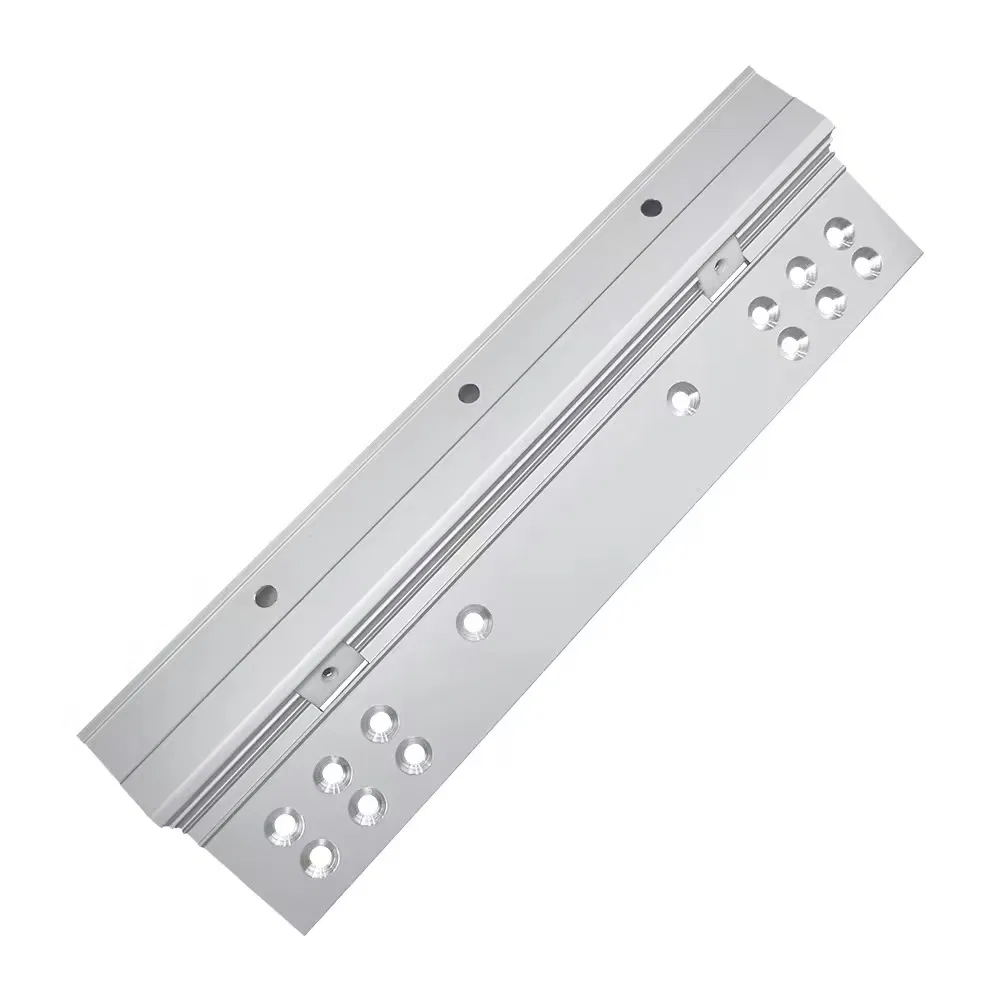

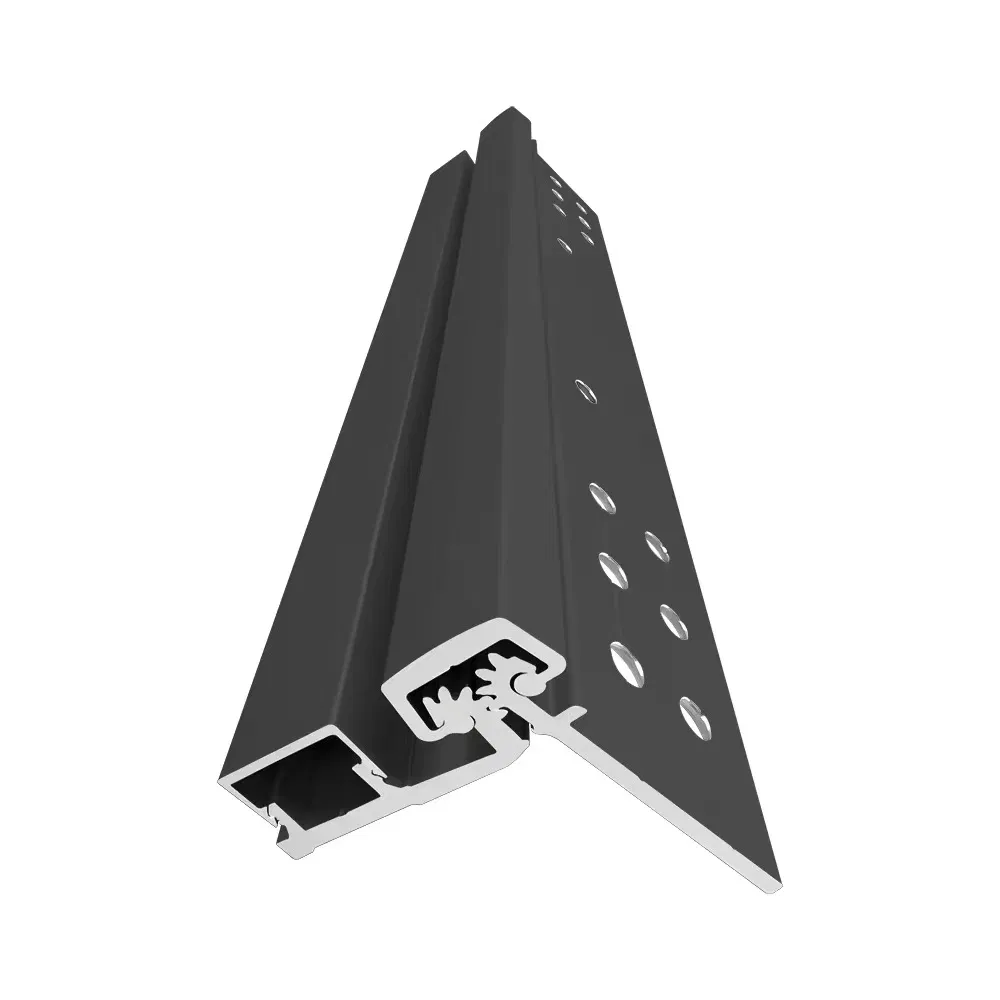

Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge
Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge
Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge
Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge
Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge
1 / 5
Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge
Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge
Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge
Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge
Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge

Factory Wholesale Heavy Duty Concealed Hidden Louvered Pergola Aluminum Continuous Geared Hinge for Doors & Windows High Quality Concealed Hinge

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
customized
Type
180° Hinge
Finish
Anodized
Material
Alloy / Aluminum
Standard Length
2.85m / 83'' / 95'' / 119''
Color Options
Silver, Black, Customized
Max. Weight
75kg+
Capacity
100,000 / Year
HS Code
7604299000
Origin
China

Fire Rated Continuous Geared Door Hinge

The Continuous Geared Hinges are designed to extend the life of a building by distributing door weight evenly along the entire length of the frame. This unique design minimizes stress at the top of the door and frame, preventing hinge failure and door sag, making it ideal for high-traffic environments.

✔No door reinforcement required
✔Fire rating: 3 hr metal / 90 min wood composite
✔High-security geared design with no pins
✔Safety design prevents fingers from being pinched
✔Supplied with Dril-Kwik screws and sex bolts
✔Standard lockside clearance for easy fit

Technical Parameters

Length (inches) Length (mm) Sex Bolts (Door) Pan Head (Door) Screws (Jamb)
83210881919
952413101920
1193023122323

Product Showcase

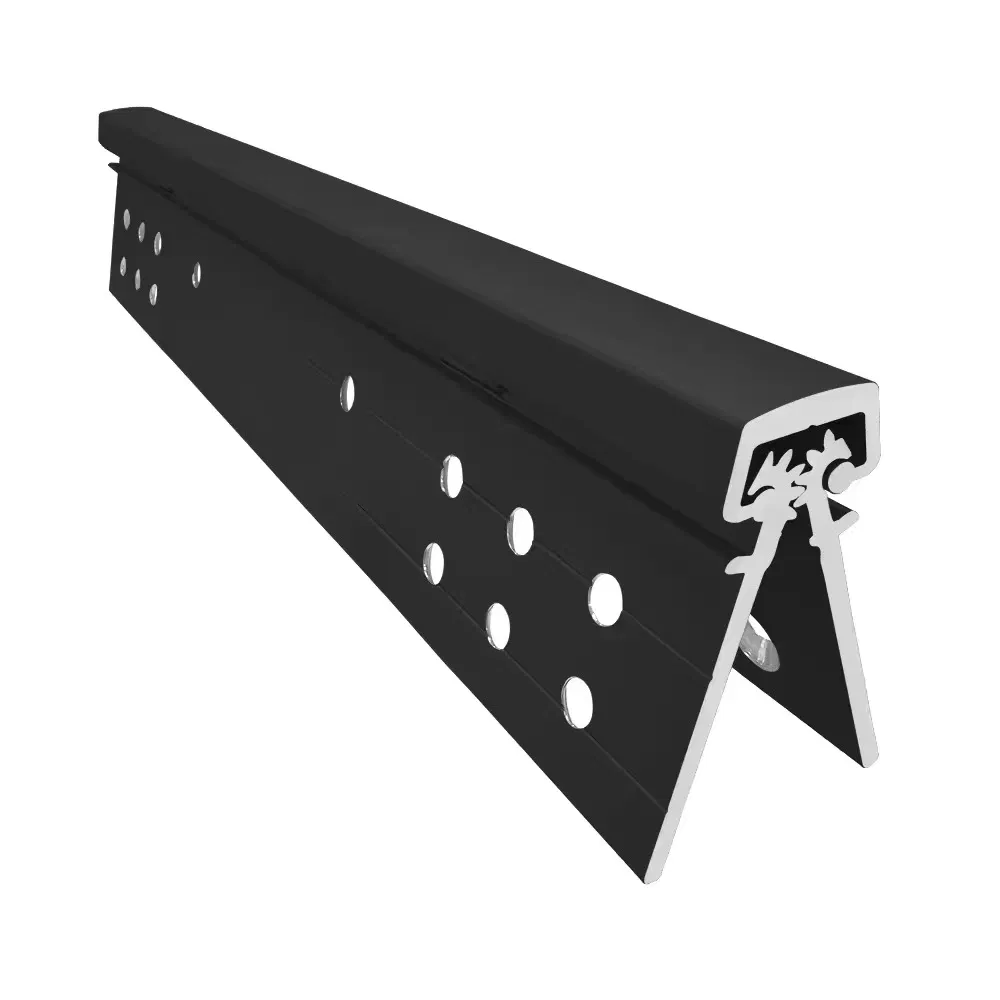

Continuous Geared Hinge 1

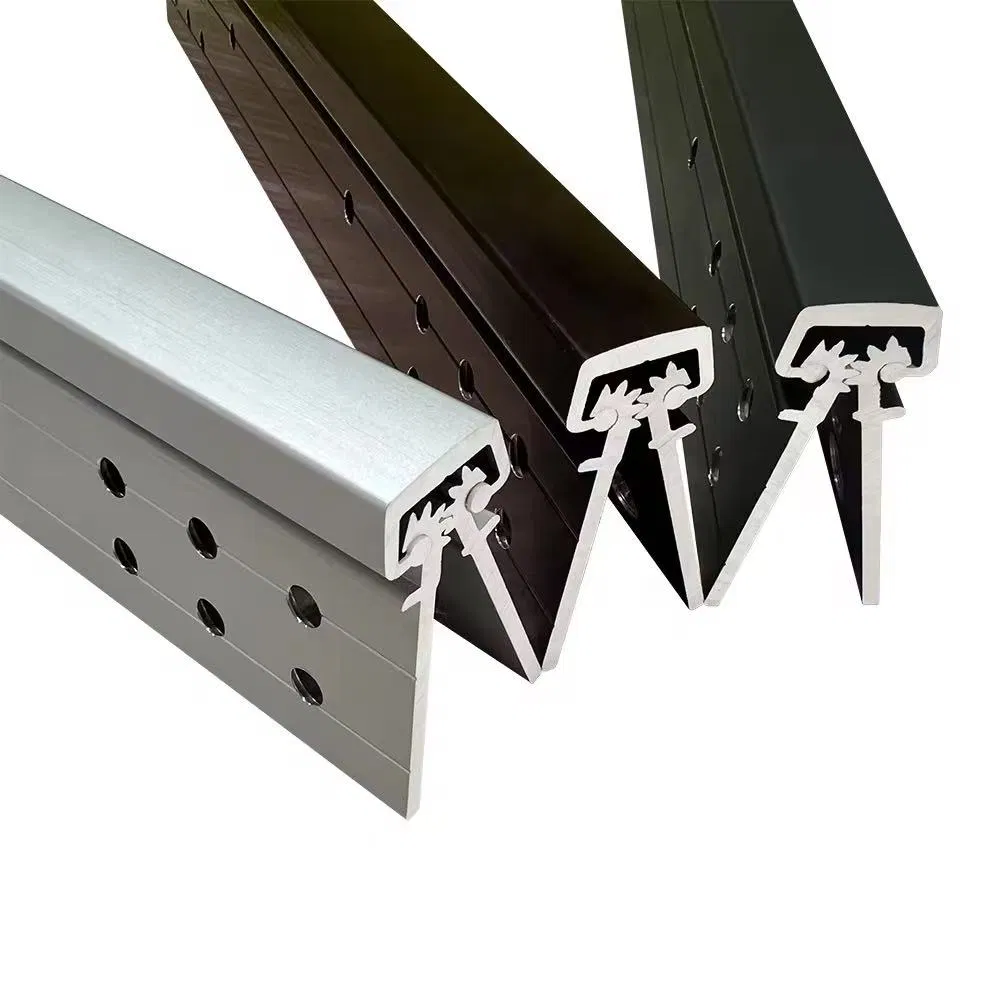

Continuous Geared Hinge 2

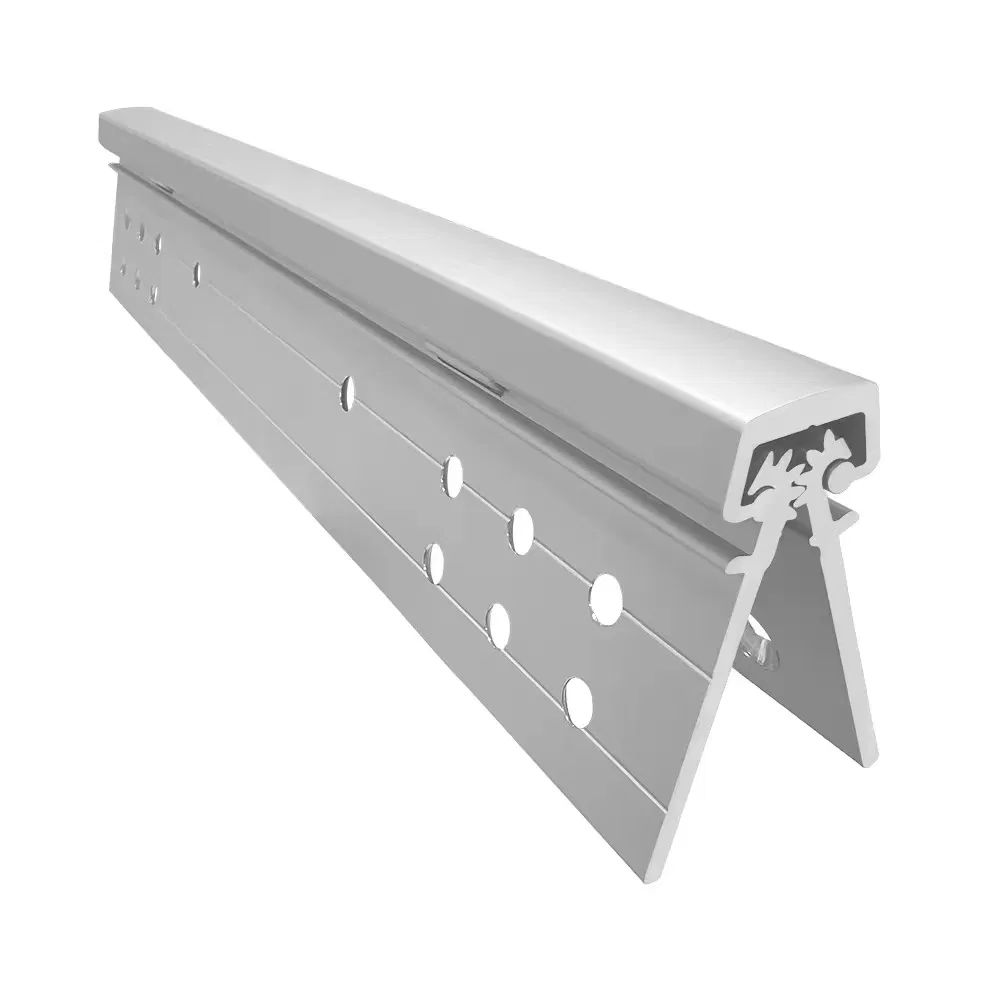

Continuous Geared Hinge 3

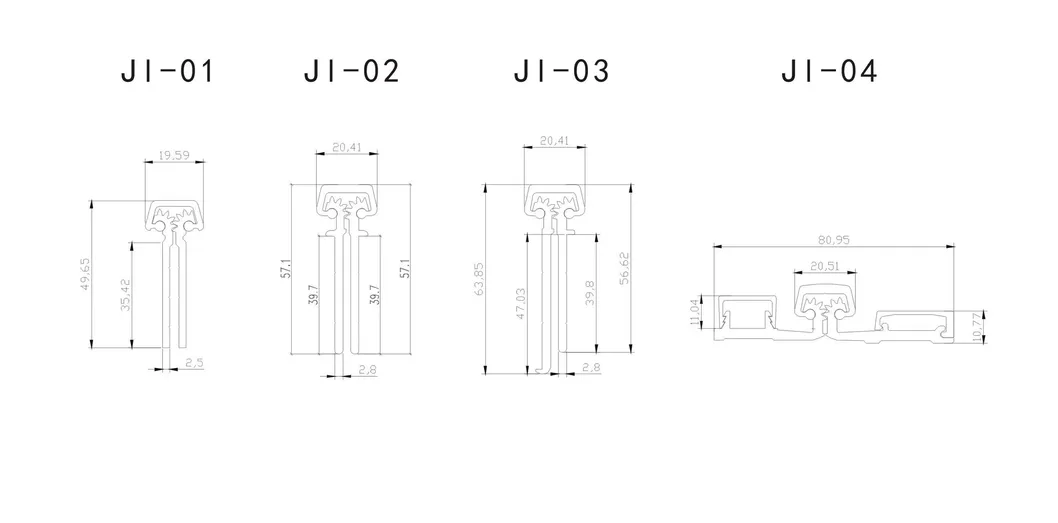

Full Technical View

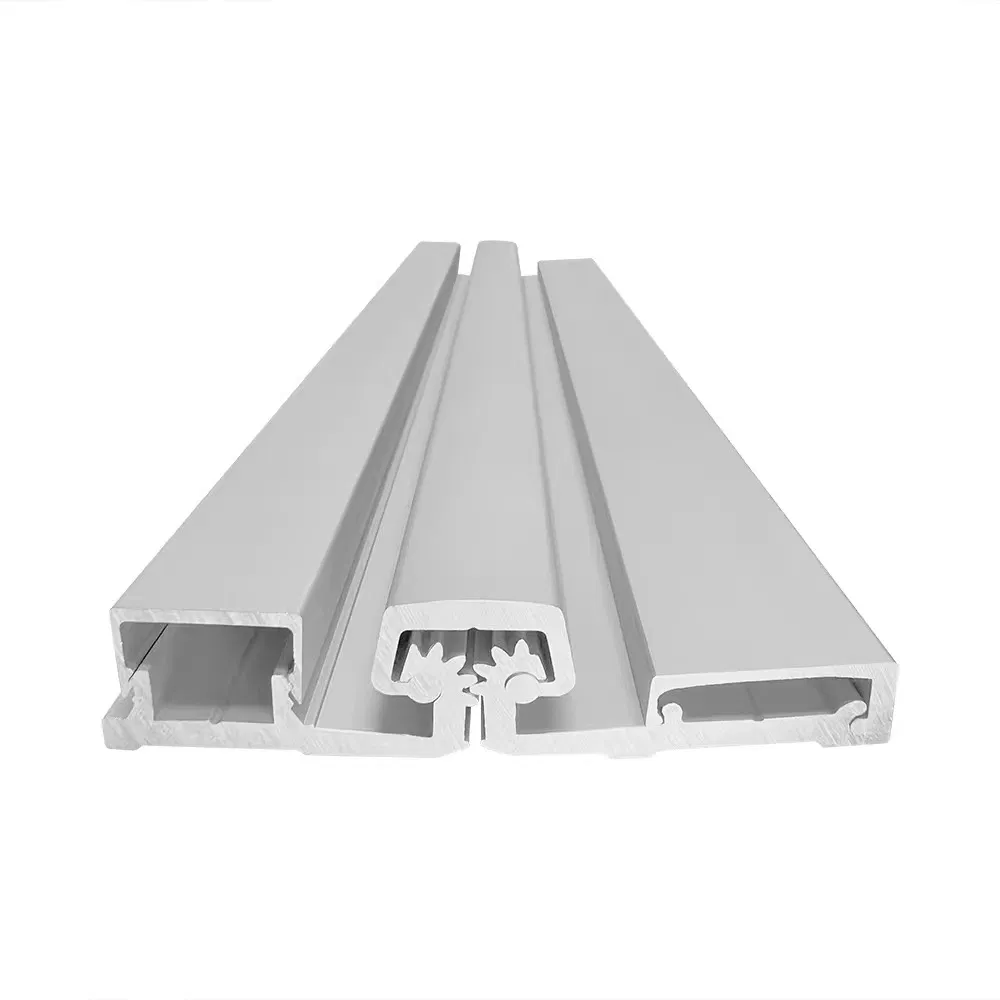

Hinge Detail 1
Hinge Detail 2

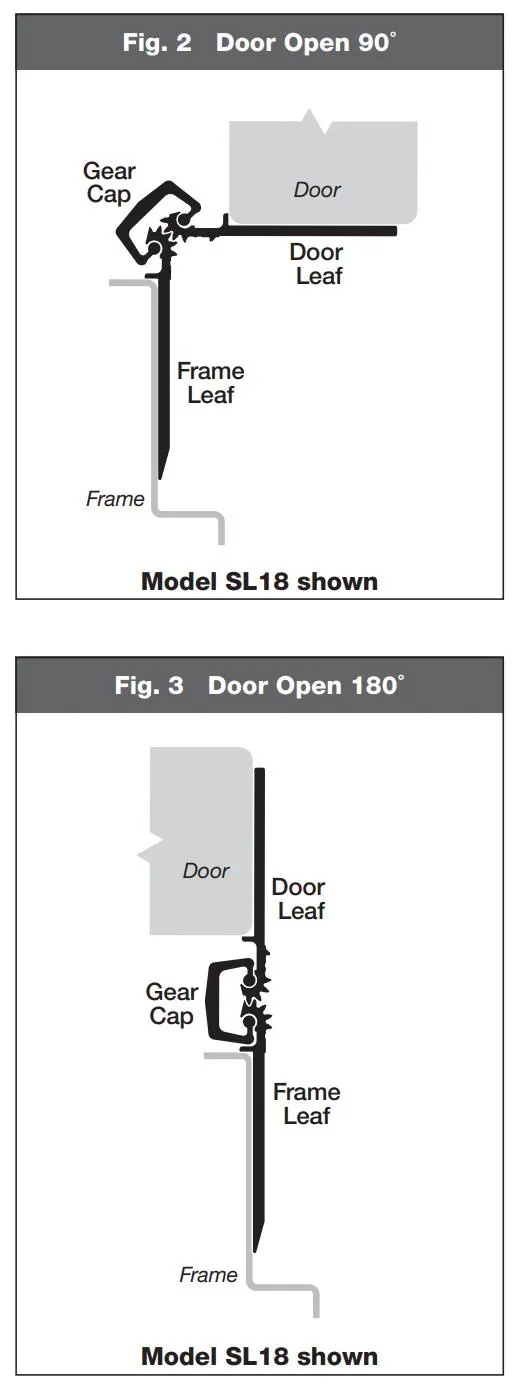

Installation Guide 1

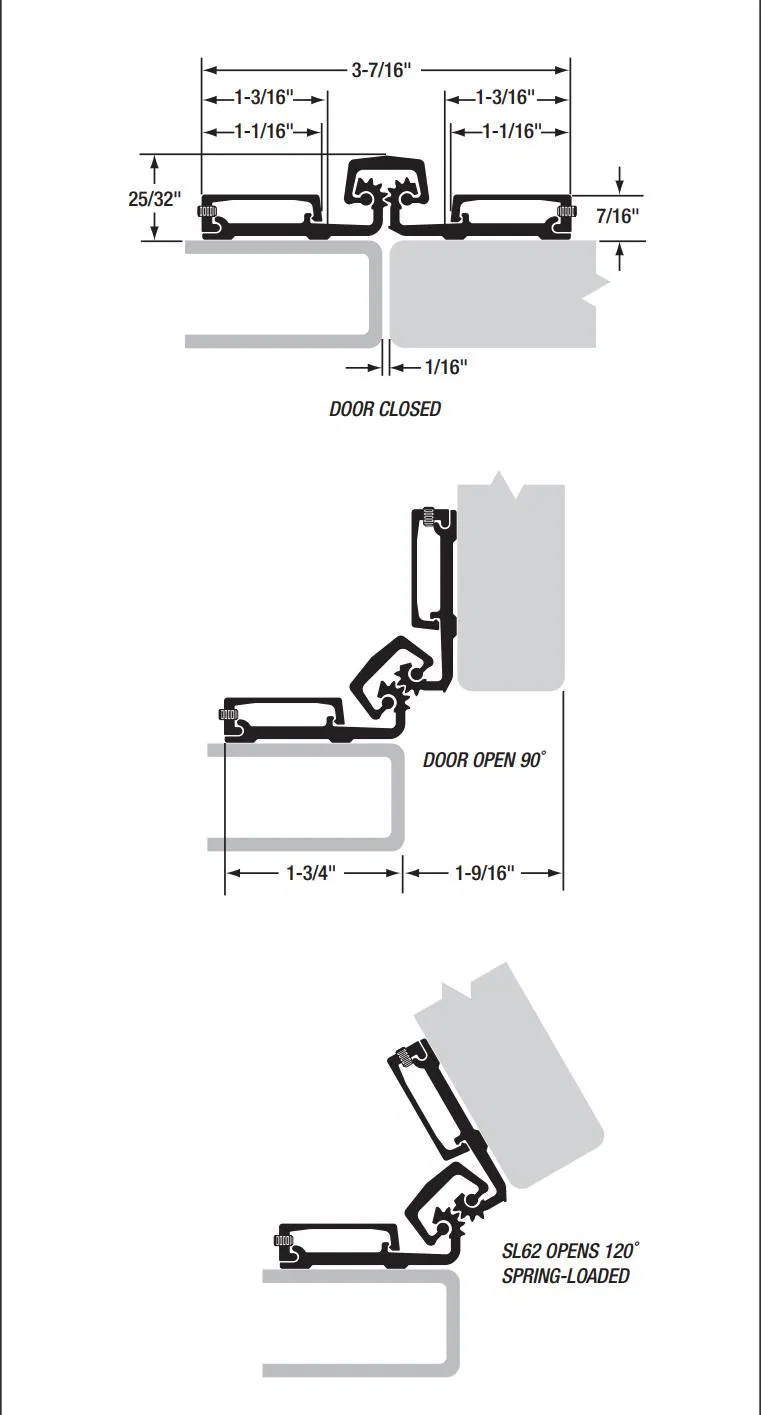

Installation Guide 2

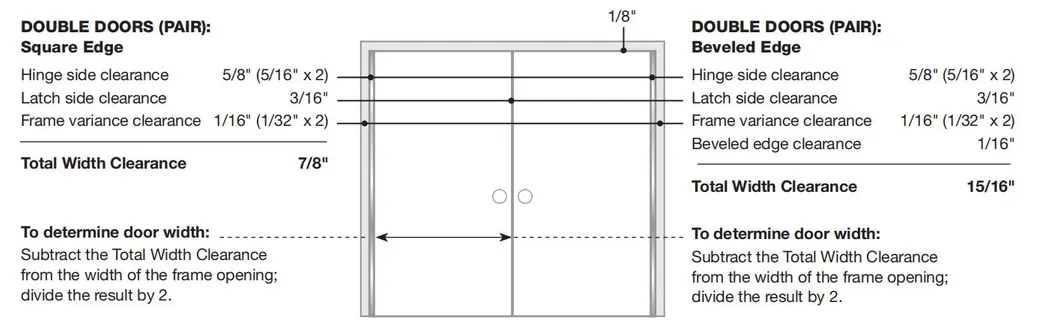

Application Overview

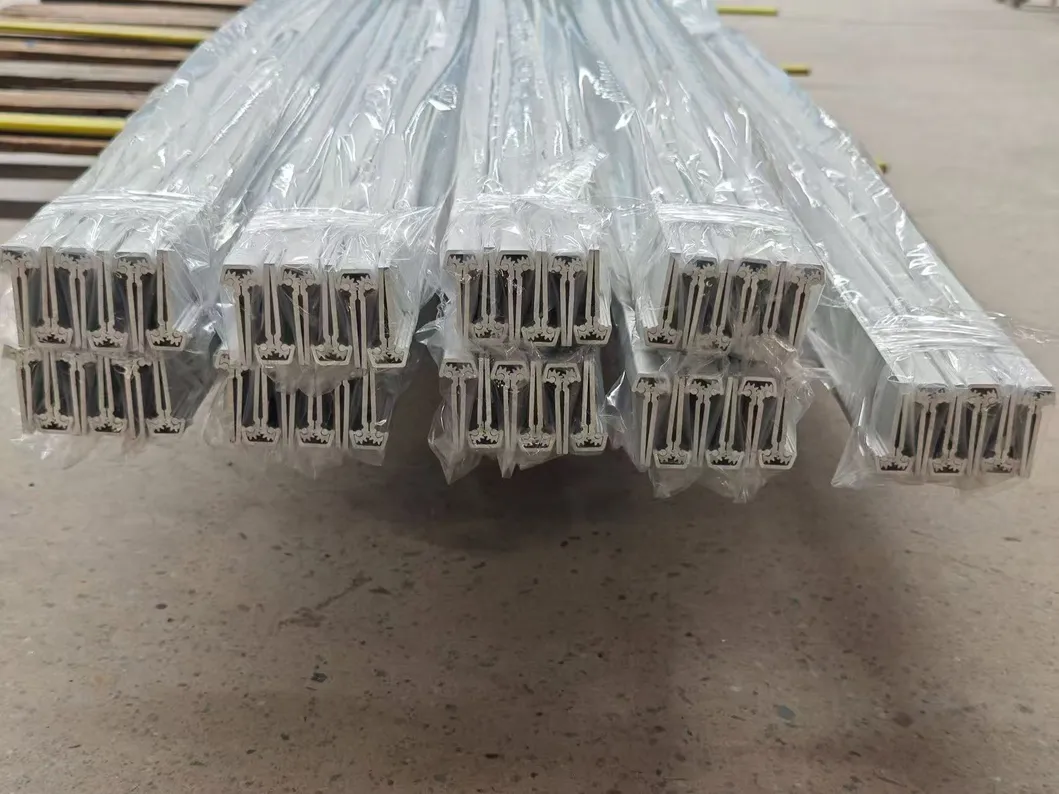

Hardware Sample 1

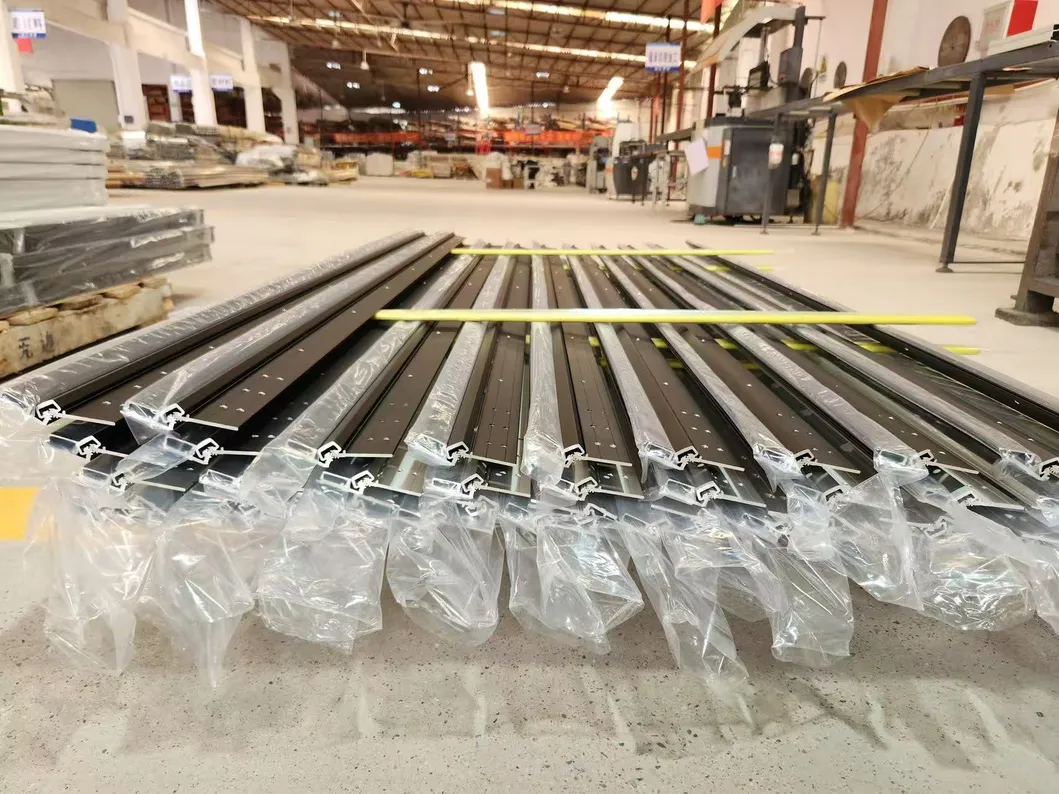

Hardware Sample 2

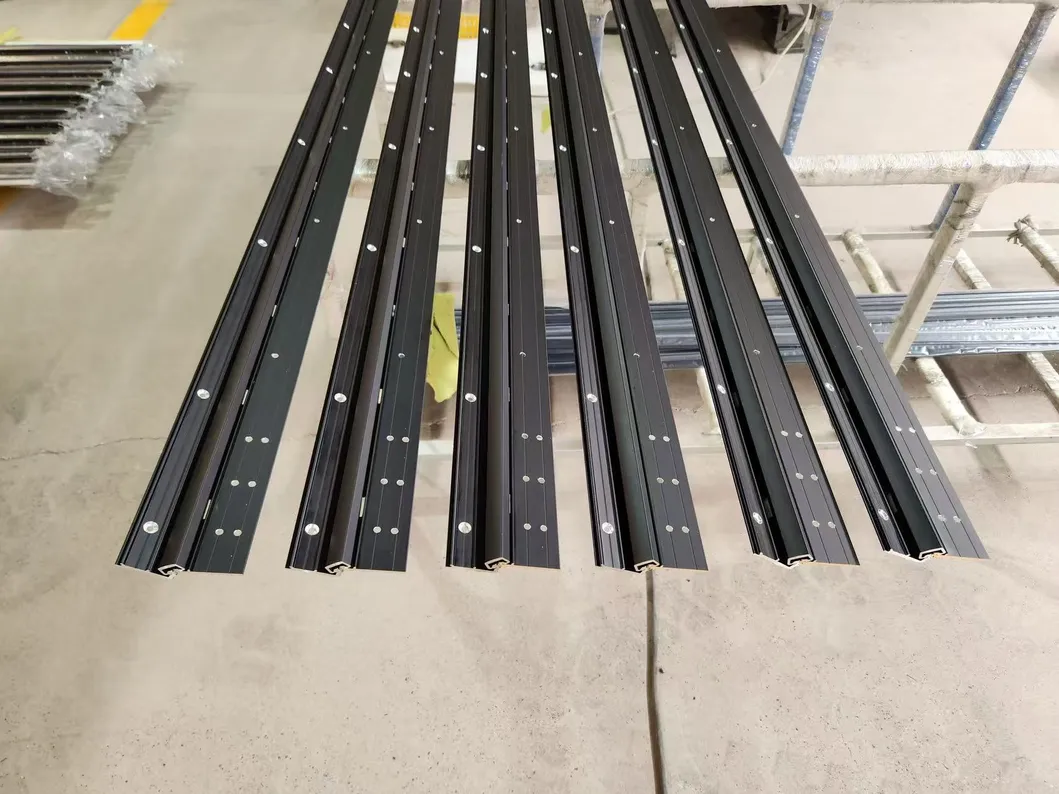

Hardware Sample 3

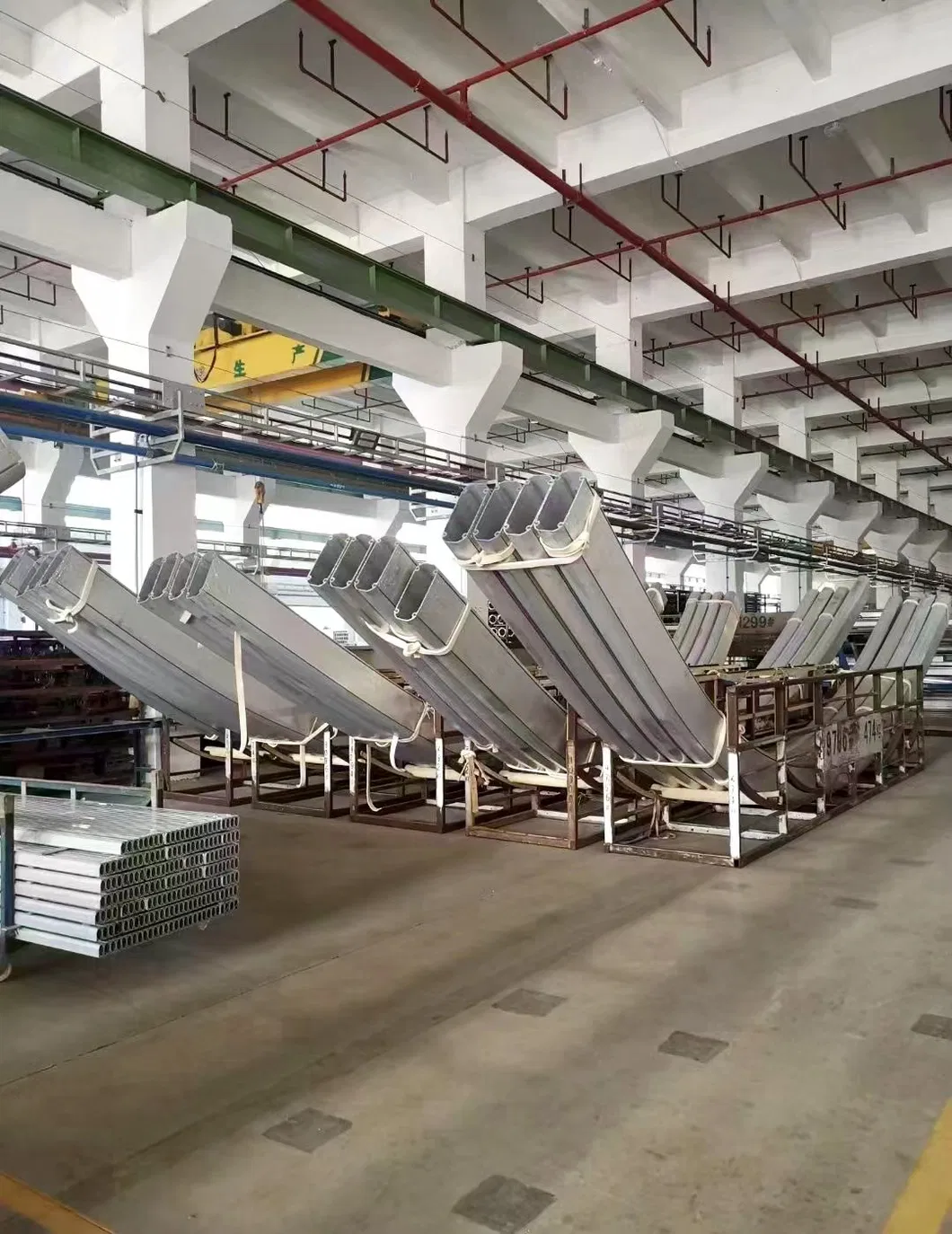

Final Product Profile

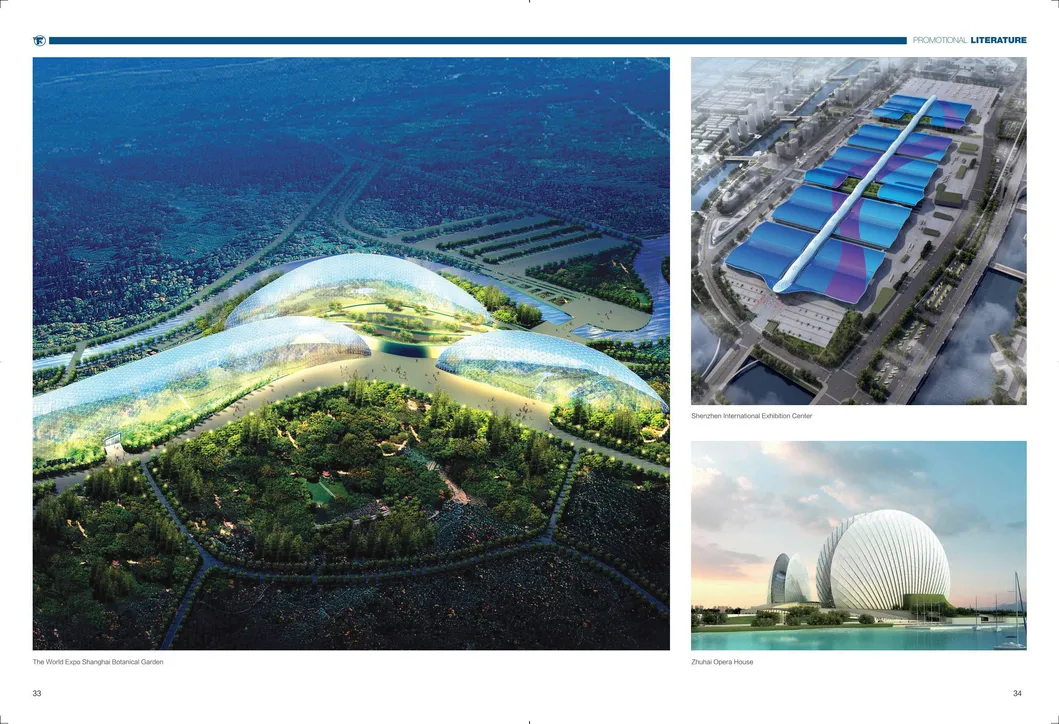

Finished Application 1

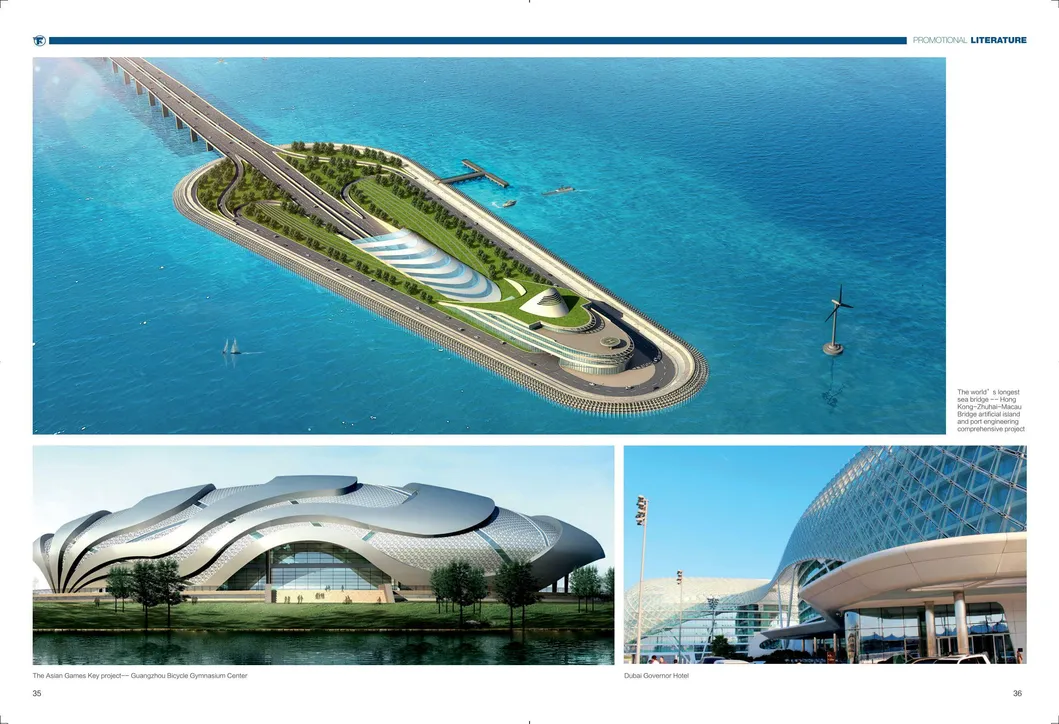

Finished Application 2
Packaging and Loading Factory Storage

Frequently Asked Questions

What is the advantage of a continuous geared hinge?
Unlike traditional butt hinges, continuous geared hinges distribute the door's weight along the entire frame. This prevents door sagging and significantly reduces stress on the hardware, extending the lifespan of both the door and the frame.
Are these hinges suitable for fire-rated doors?
Yes, our hinges are fire-rated for up to 3 hours on metal doors and 90 minutes on wood composite doors when used with the appropriate studs.
What materials and finishes are available?
The hinges are made from high-quality aluminum alloy. Standard finishes include anodized silver and black, but customized colors are available upon request to match your building's design.
Do geared hinges help with safety?
Yes. Because there is no gap between the door and the frame along the hinge side, it prevents fingers from being pinched, making it a safer option for schools, hospitals, and public buildings.
Can I request a custom length?
Absolutely. While our standard lengths are 83'', 95'', and 119'', we can provide customized lengths to fit your specific door height requirements.
What is the weight capacity for these hinges?
Our heavy-duty continuous geared hinges can support doors weighing over 75kg, ensuring smooth operation even for high-use, heavy-traffic entrances.
