| Model NO. | DJ7-LSH |
| Door Lock Part | Lock |
| Type | Truck Lock |
| Material | ABS/Steel |
| Lock Core Type | European Style |
| Car Lock Type | Network Connected Anti-theft System |
| Operation Voltage | 12/24VDC Intermittent |
| Power Consumption | 12V DC 1500mA |
| Holding Force | 600kg |
| IP Class | IP67 |
| Working Temperature | -20c ~ +60c |
| Specification | CE & RoHS |

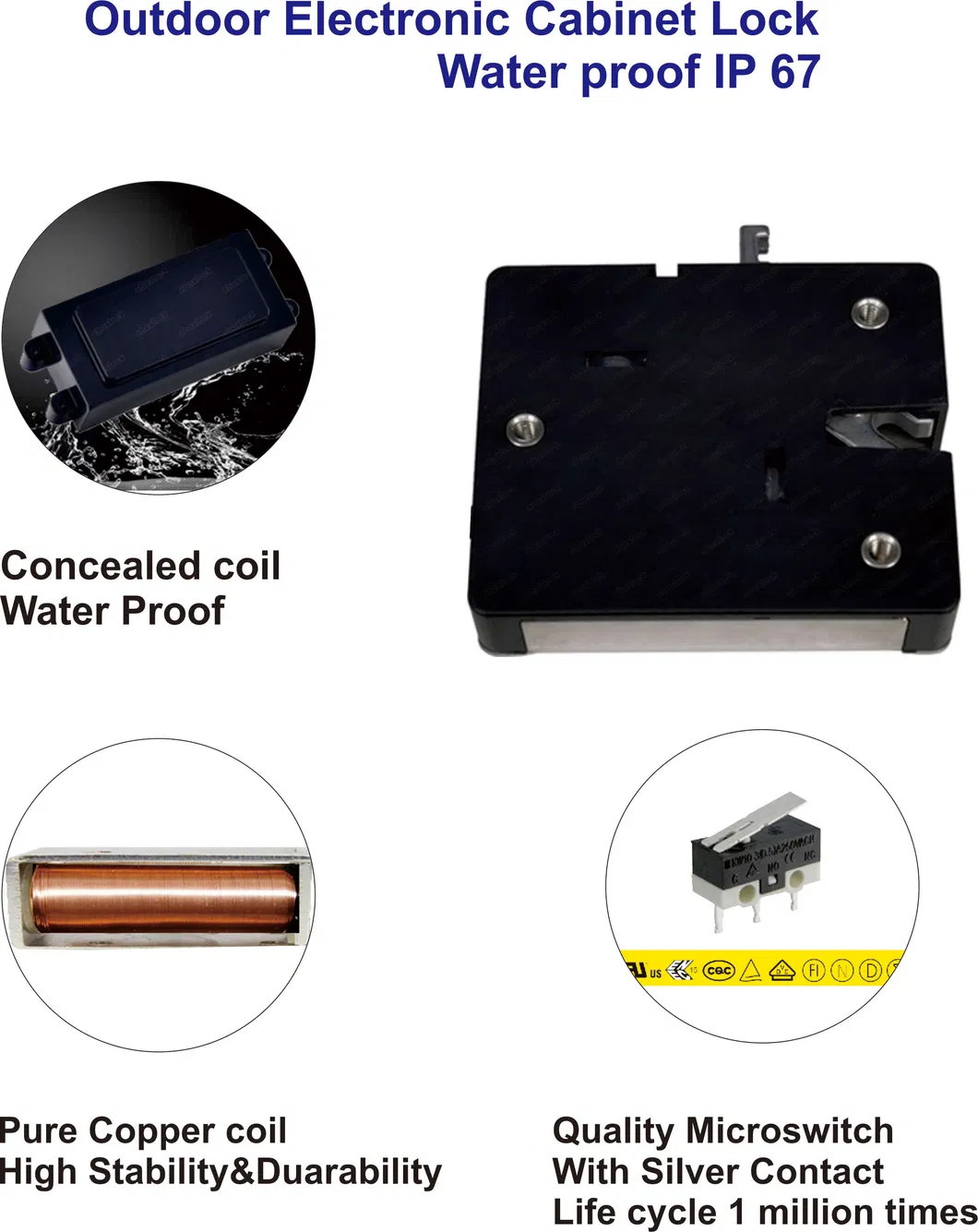

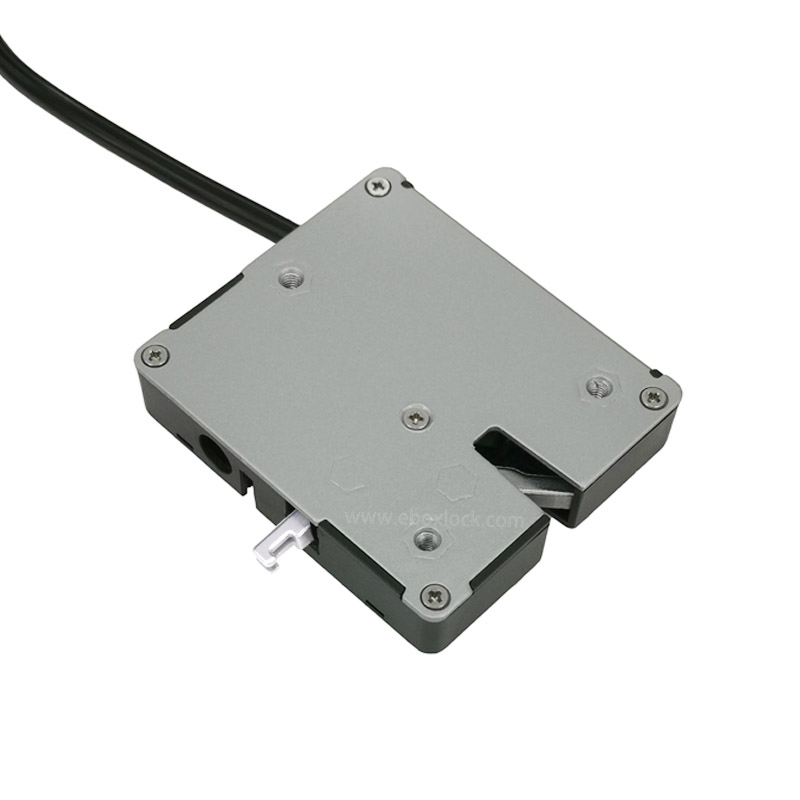

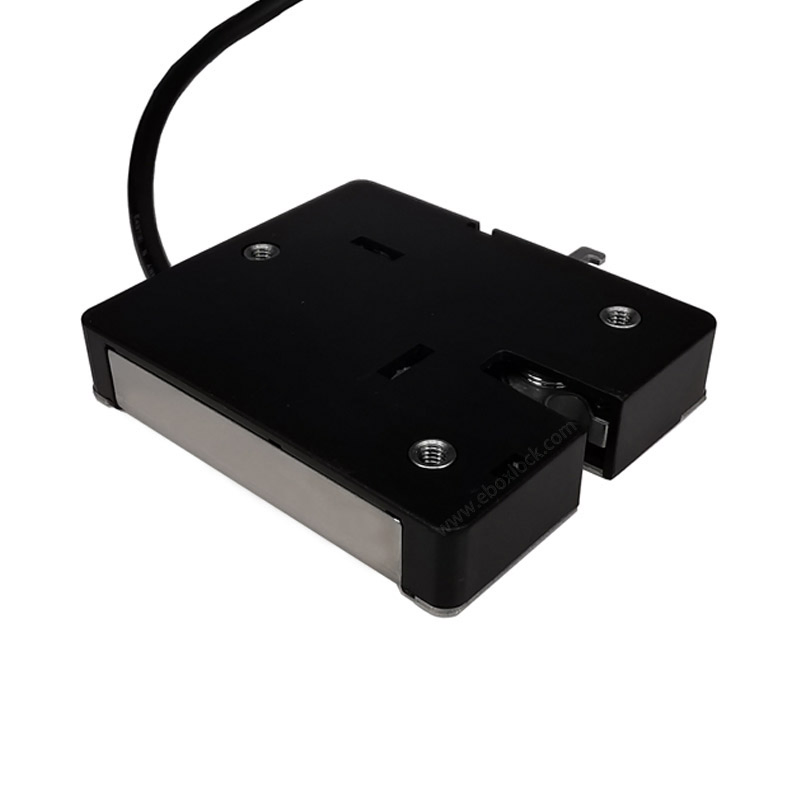

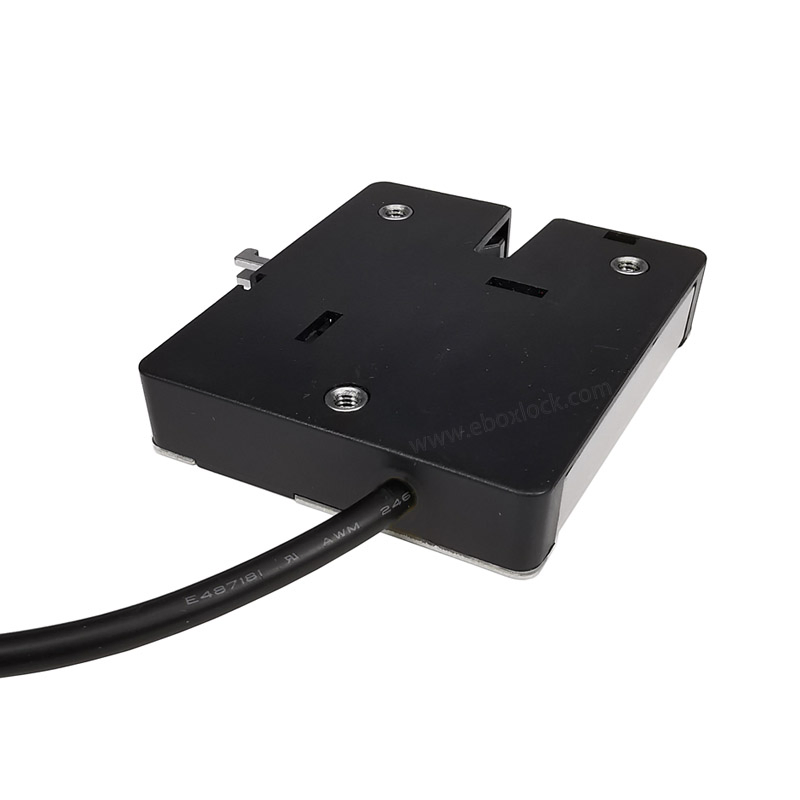

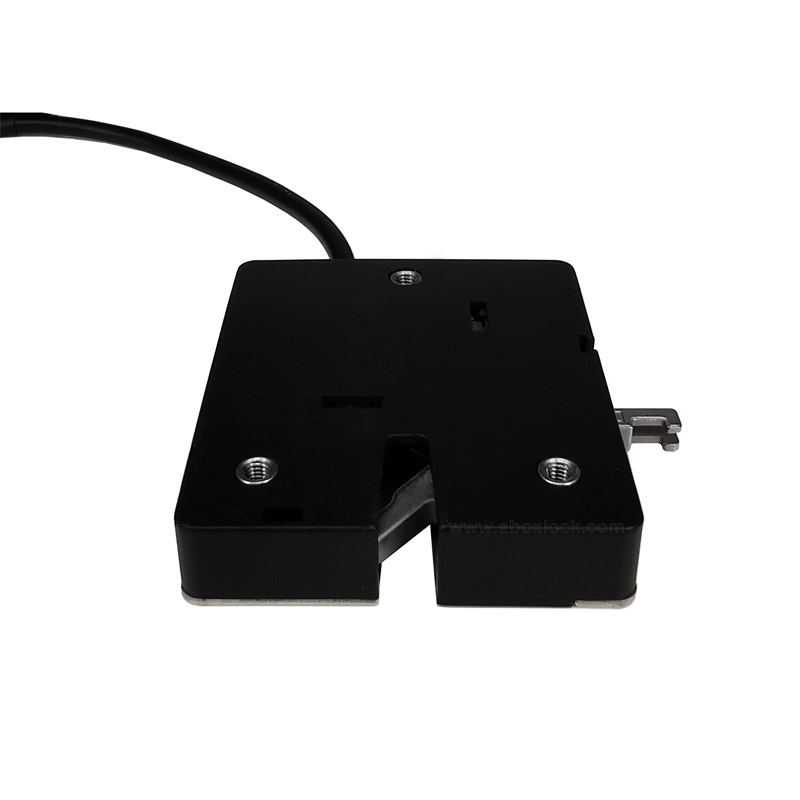

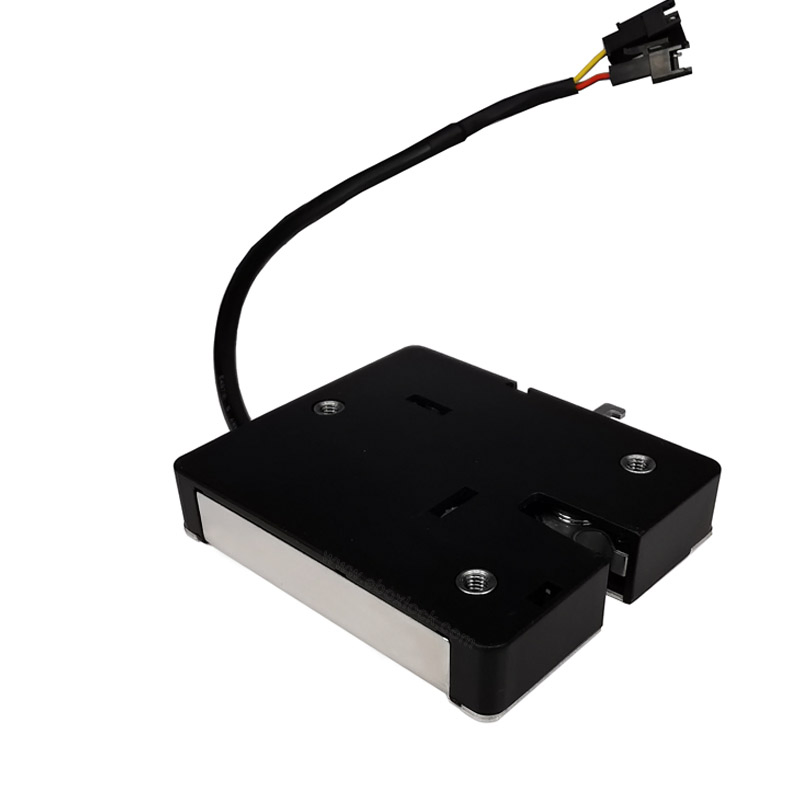

Waterproof Electromagnetic Lock DJ7-LSH is a compact electromechanical lock with concealed mechanism rated IP67, it is ideal for outdoor cabinets, drawers and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. The cabinet lock allows mechanical override for emergency open.
| Operation Voltage | 12/24VDC intermittent ±10% |
| Power Consumption | 12V DC 1500mA |
| Max. Power On | Less than 1 second |
| Operation Mode | Fail Locked |
| Cycle Rating | More than 1,000,000 |
| Dimensions | 72mm*62.5mm*14mm |
| Protection Class | IP67 |
| Feature | Available Options |
|---|---|
| Voltage | 9V, 12VDC, 24VDC, 48V |
| Current | 1500mA, 2000mA |
| Trigger Spring | 10N, 25N, 35N |
| Mounting | M5 thread (standard), Ø5.5 thru (Optional) |
| Material | Steel, Stainless steel |
| Connector | Molex, KF2510, pH, RJ11 |
* MOQ of batch order for customization: 500PCS. Sample support up to 10PCS.

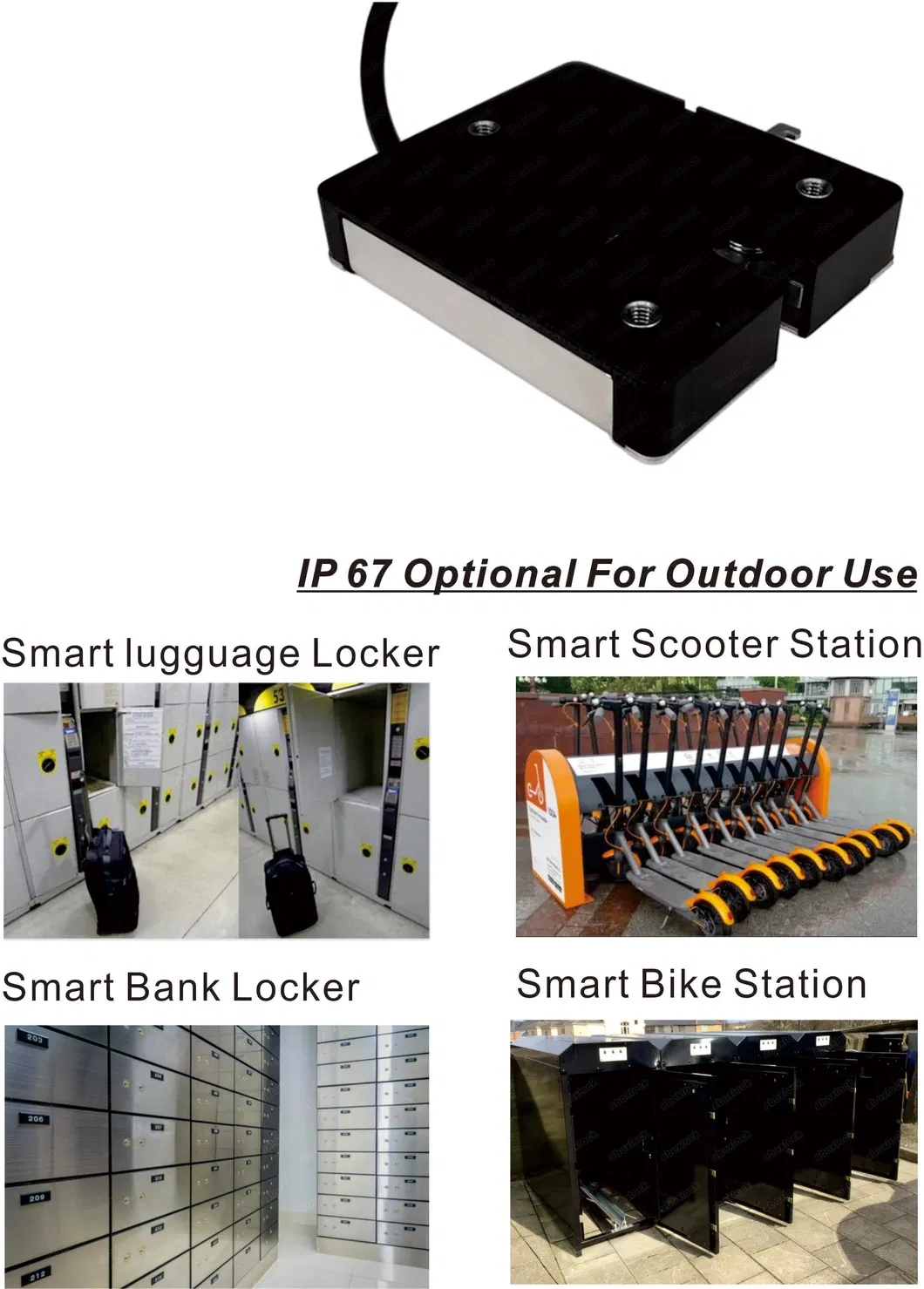

The electronic cabinet lock is ideal for various outdoor and indoor environments:

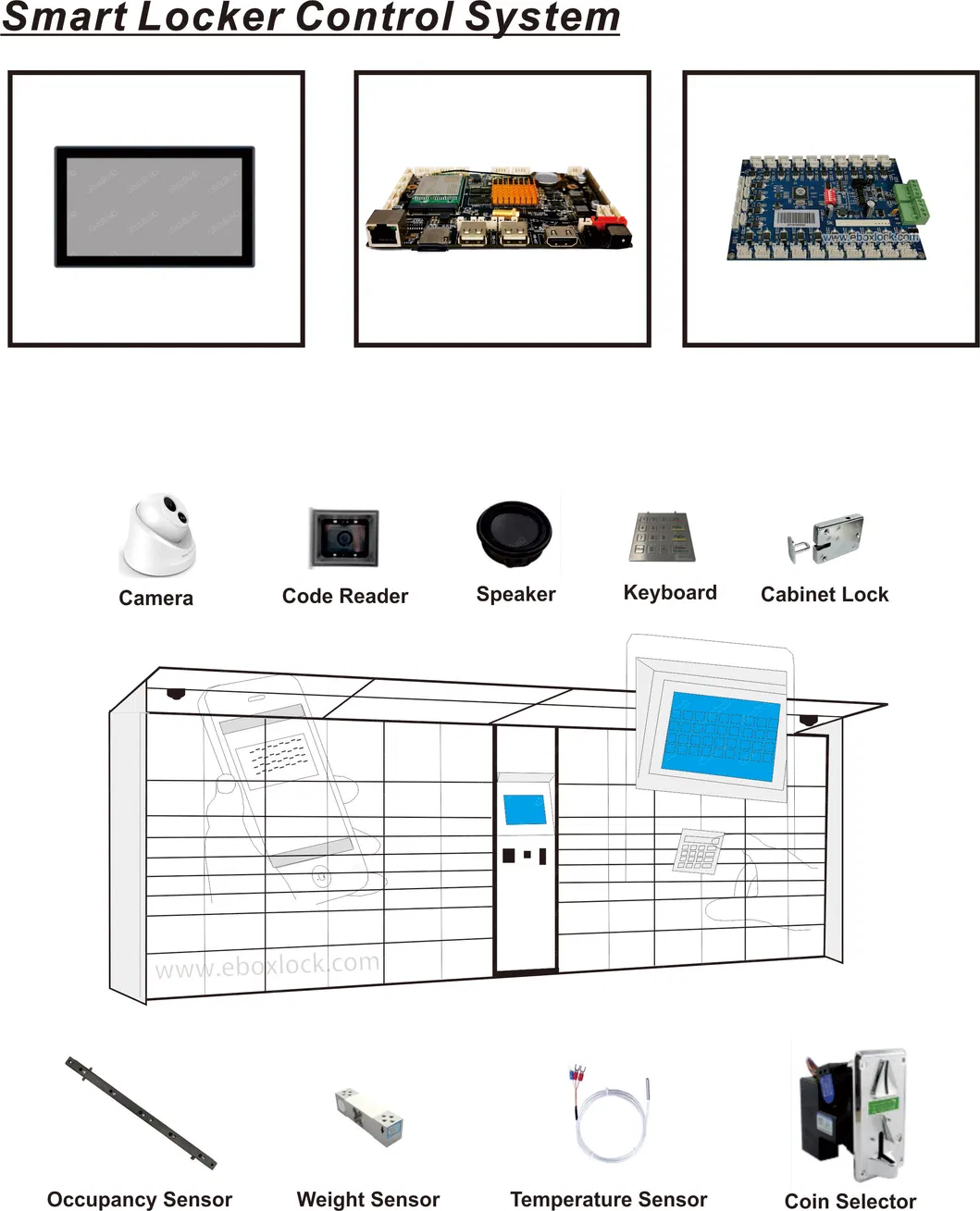

Specializing in electrified locking solutions for lockers, cabinets, and kiosks. From size-restricted enclosures to heavy-duty metal cabinets, customized designs are available to meet particular security requirements. Our range covers electronic cabinet locks, drawer locks, smart parcel locker control systems, and IOT hardware.
