| Model NO. | HSD-180 | Material | Steel |
| Thickness | 40mm | Opening Style | Rolling |
| Opening Type | Power Driven | Pattern | Square |
| Advantage | High Security, Heat Preservation | Wind Resistance | 10level, 600n/M² |
| Working Temp | 0-70ºC | Certificate | CE |

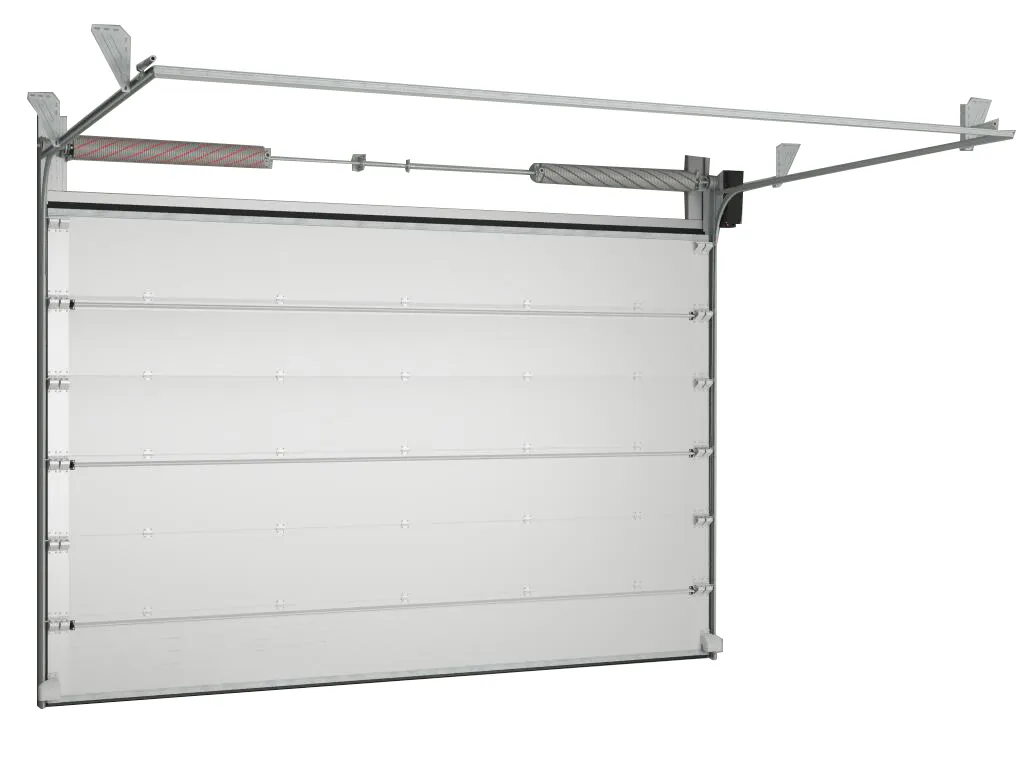

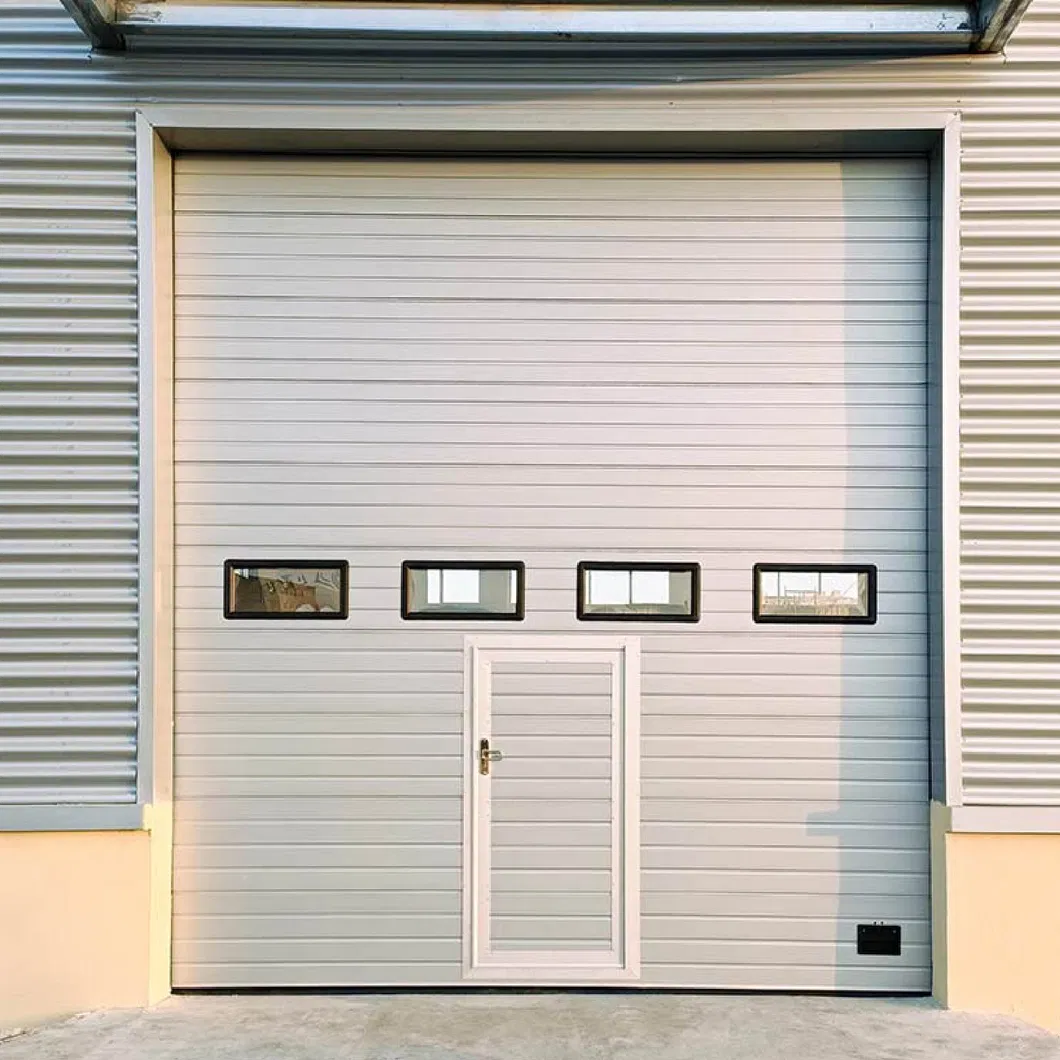

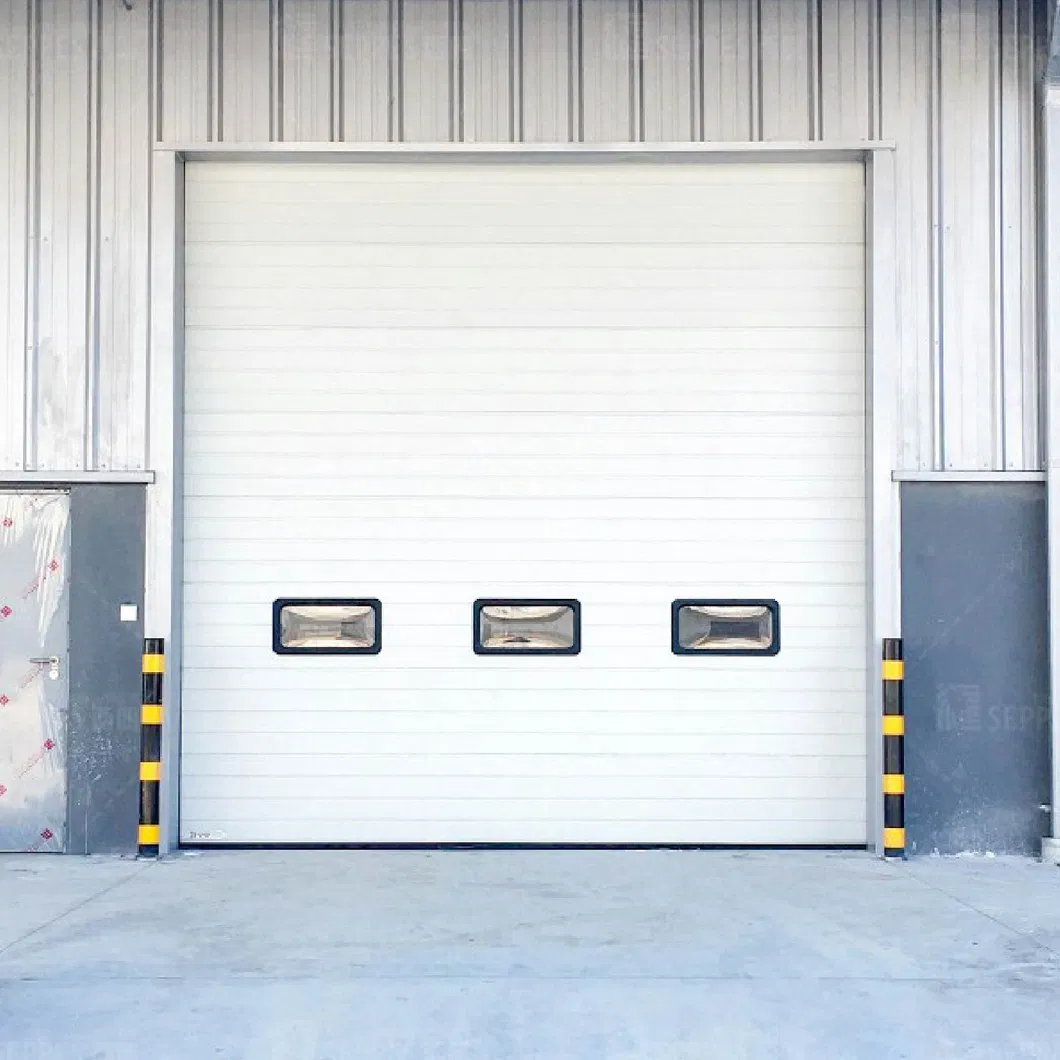

Sectional doors are installed at openings in industrial buildings, warehouses, workshops, docks and other industrial facilities. The reinforced door structure ensures uninterrupted operation and the reliable sealing system guarantees high thermal insulation of the room.

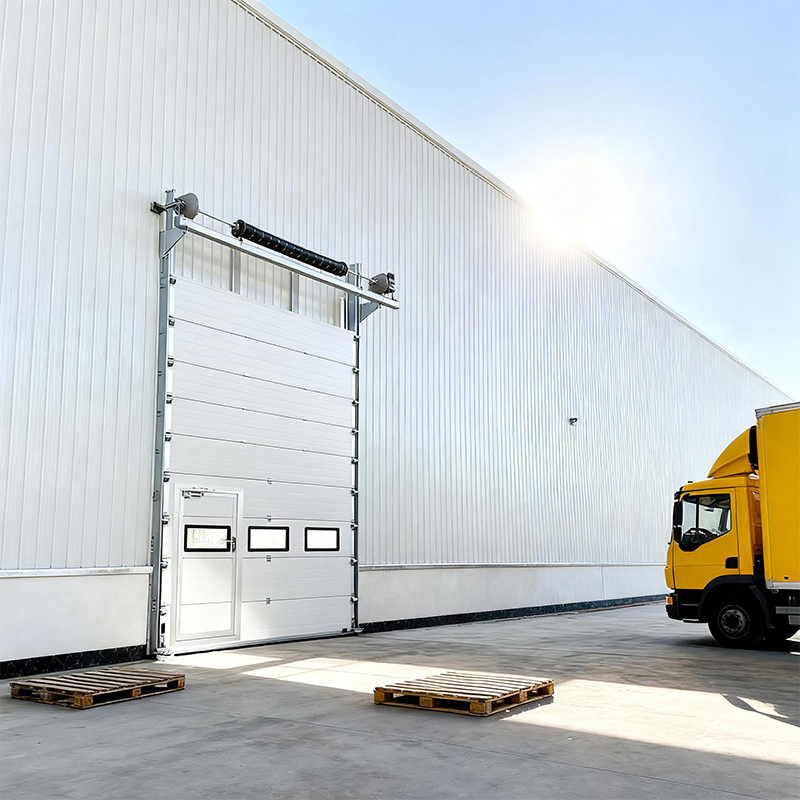

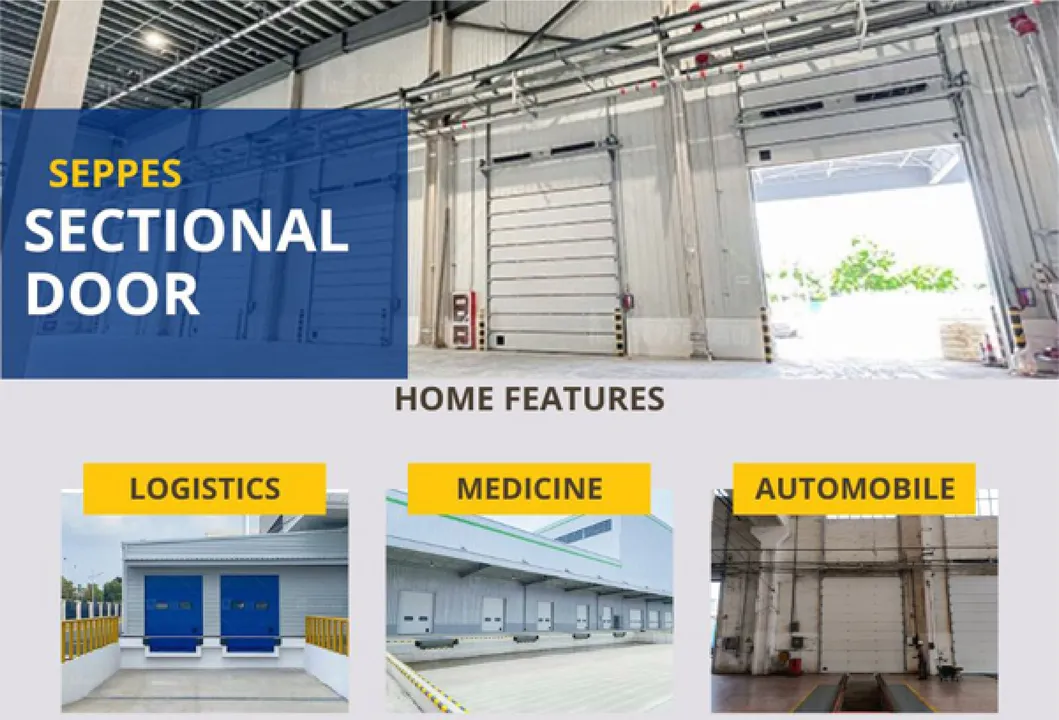

Application: Factory Gate + Equipment Room + Warehouse
| Operating Speed | 0.2-0.3m / s |
| Panel Thickness | 40 mm |
| Motor System | German FROG PUPIL |
| Safety Features | Anti-wire rope break, bottom airbag, torsion spring protection |
| Torsion Spring Life | ≥ 30,000 times |
| Foam Material | High-density Polyurethane (48kg/m³) |
| Sound Insulation | 24dB |
| Airtightness | Level 2 (2.0 m3 / m2 / h) |

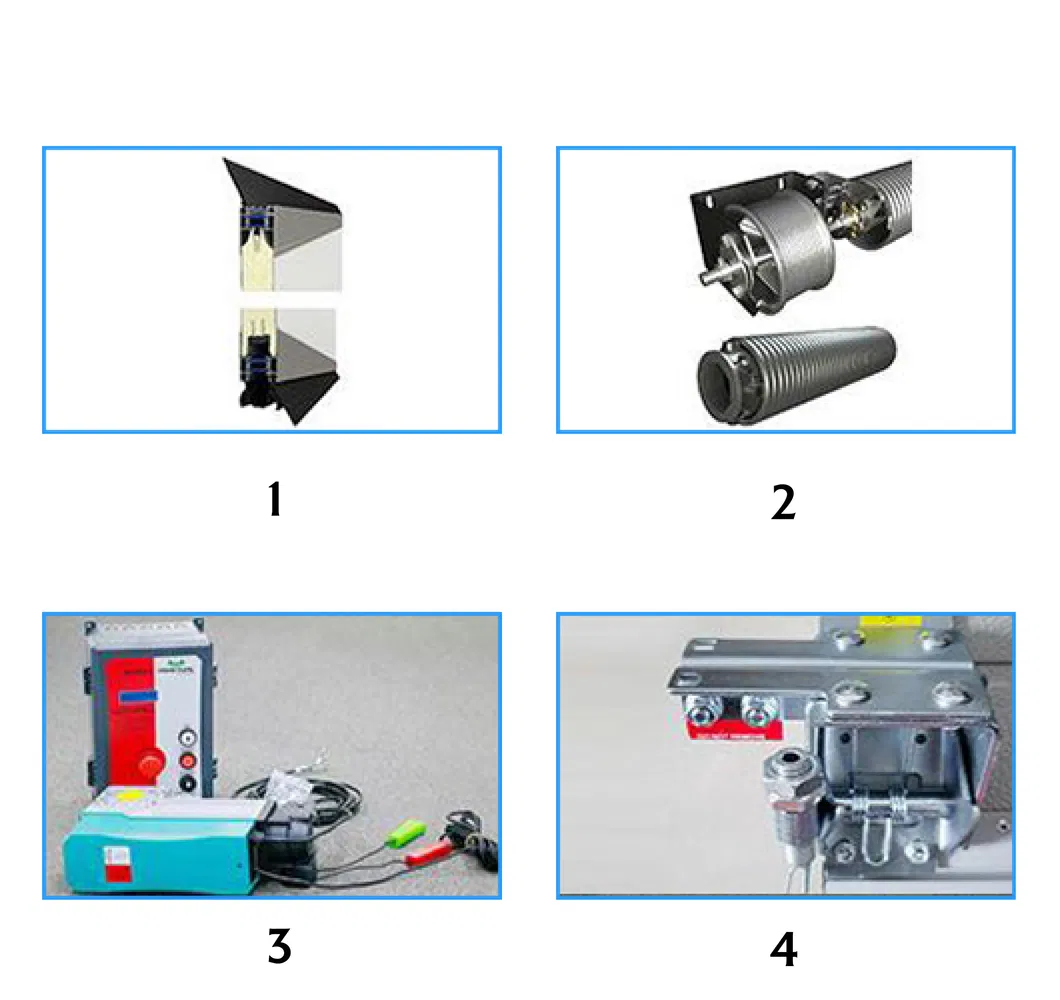

Equipped with EPDM sealing tapes and bottom seals. The interface is fitted with sealing rubber to prevent heat transfer and energy loss.
High-quality spring steel torsion springs with anti-corrosion treatment, designed for long-cycle smooth operation.
Frequency conversion intelligent control with slow start/stop. Supports interlock linkage and remote communication.

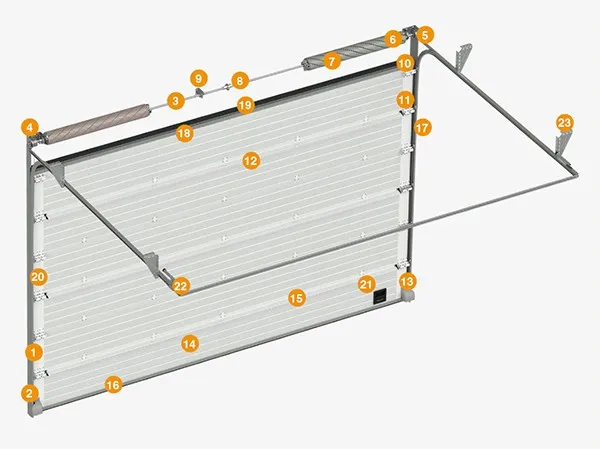

Our comprehensive system includes: 1. Vertical guide rail, 2. Side frame, 3. Door shaft, 4. Fracture protection, 5. Sheave, 6. Sleeve, 7. Torsion mechanism, 8. Coupling, 9. Inner bracket, 10. Roller bracket, and 16. Bottom aluminum profiles with sealing strips.

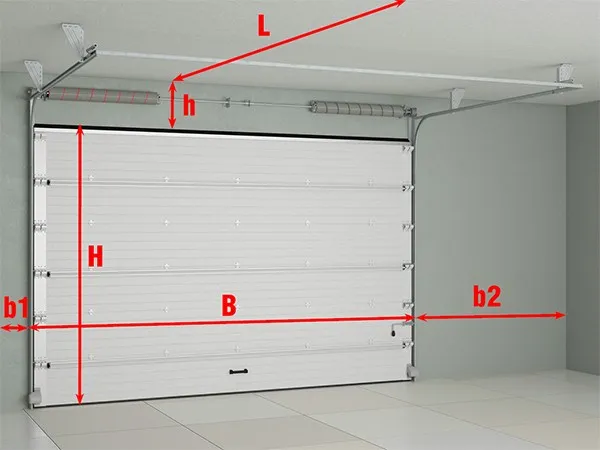

All measurements are made indoors at three points:
Focusing on the development, design and manufacturing of industrial door technology, we provide complete customized entrance door system solutions. Our products comply with European industry standards and have obtained EU CE, international SGS, and ISO9001 certifications. With a focus on professional technical solutions, our equipment serves more than 3,200 corporate customers globally.
