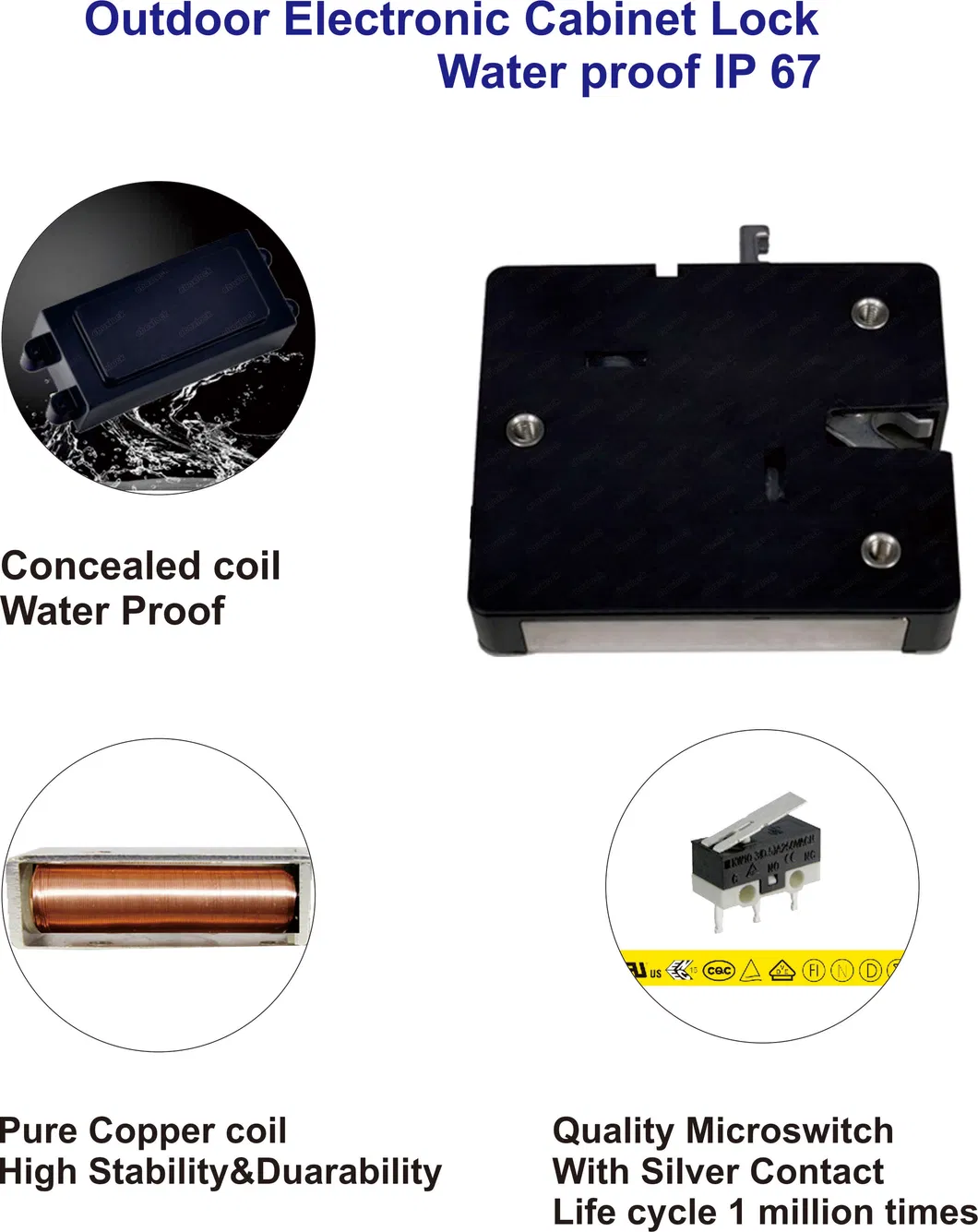

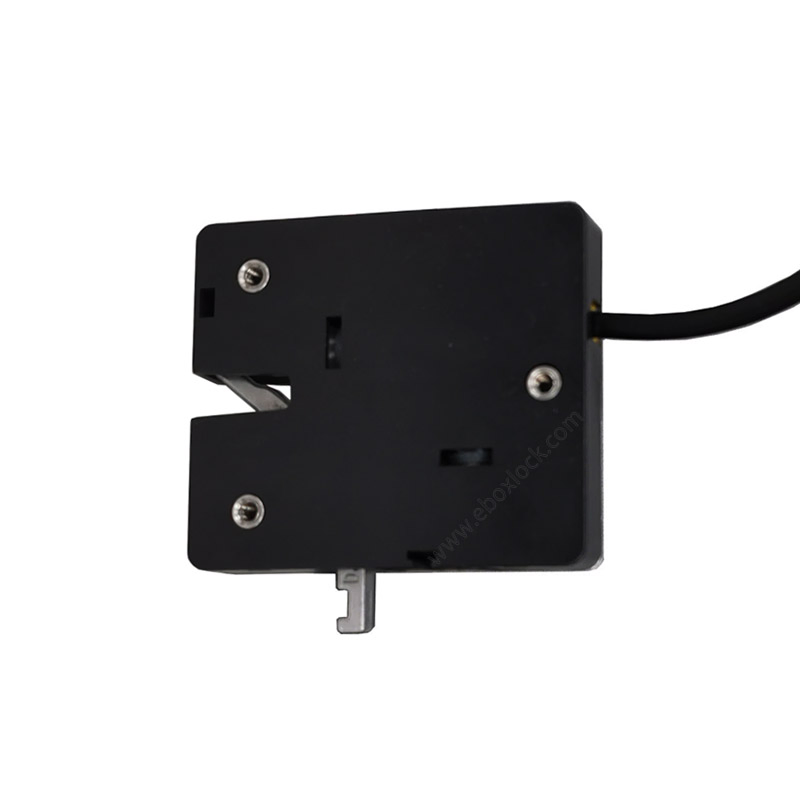

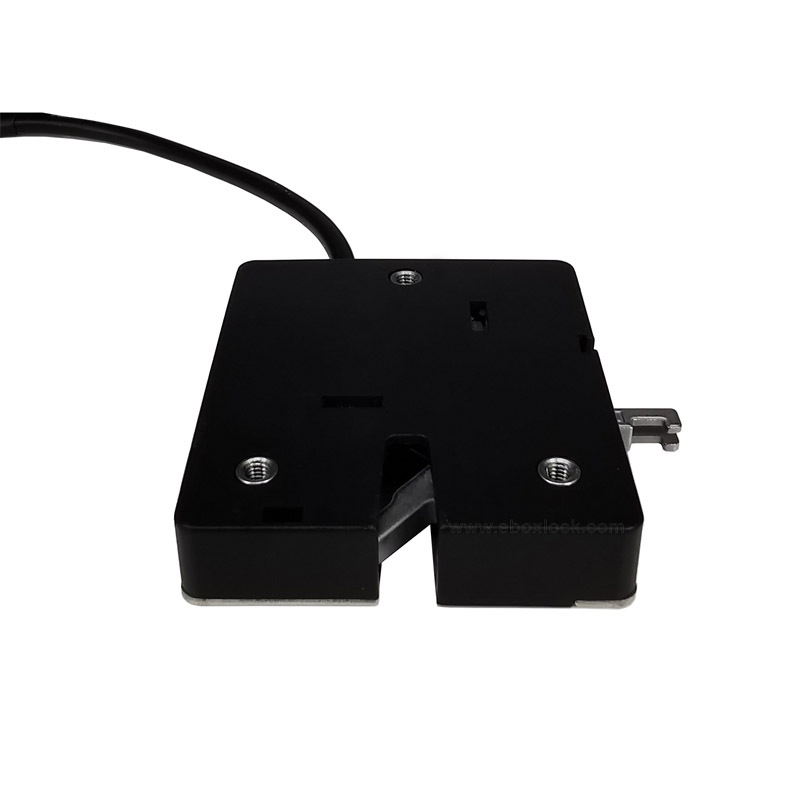

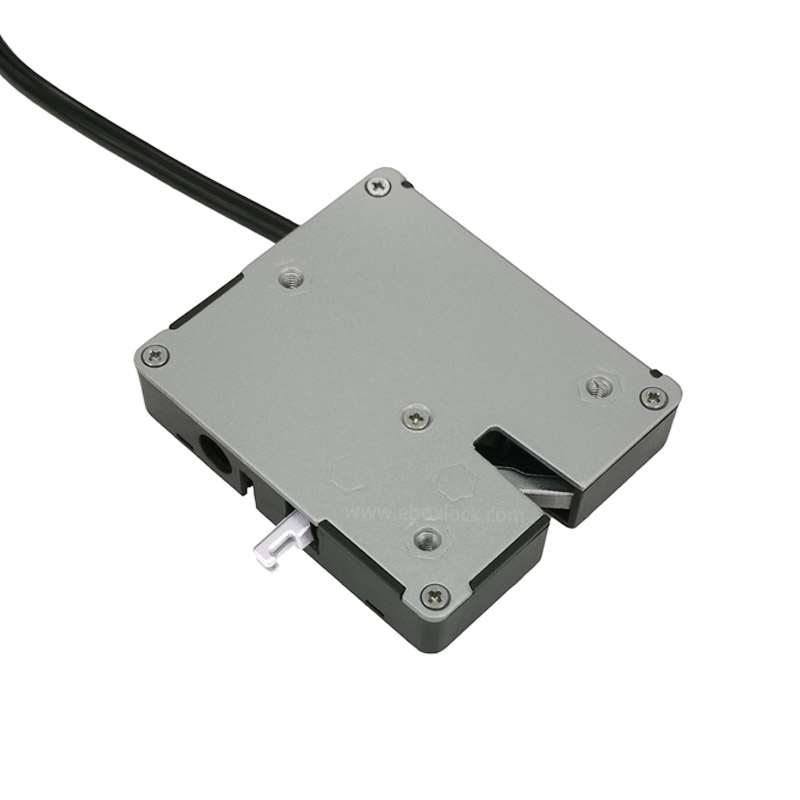

Stainless Steel Waterproof Intelligent Cabinet Lock DJ7-LS2H is a compact electromechanical lock with concealed mechanism rated IP67, it is ideal for outdoor cabinets, drawers and lockers.
Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. The cabinet lock allows mechanical override for emergency open.
| Parameter | Value |
|---|---|
| Operation Voltage | 12/24VDC intermittent ±10% |
| Power Consumption | 12V DC 1500mA |
| Max. Power On | Less than 1 second |
| Operation Mode | Fail Locked |
| Holding Force | 150KG |
| Cycle Rating | More than 1,000,000 |
| Working Temperature | -20ºC ~ +60ºC |
| Dimensions (LxWxH) | 72mm * 62.5mm * 14mm |
| Protection Class | IP67 |
| Voltage | Current | Trigger Spring | Mounting Holes | Material | Connector |
|---|---|---|---|---|---|
| 9V, 12V, 24V, 48V | 1500mA / 2000mA | 10N, 25N, 35N | M5 thread / Ø5.5 thru | Steel / Stainless Steel | Molex, RJ11, KF2510, pH |
This electronic cabinet lock is highly versatile for various industries:
