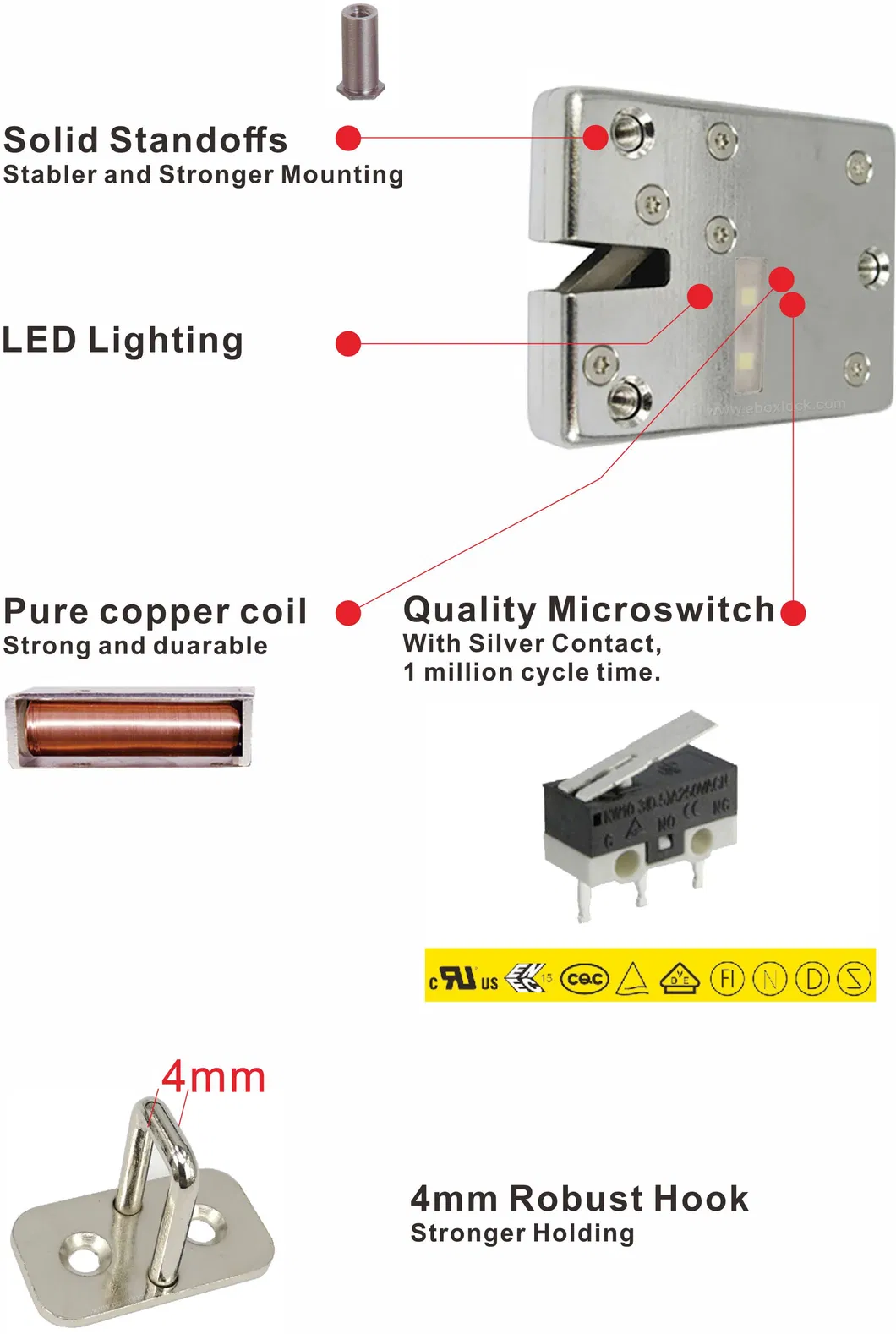

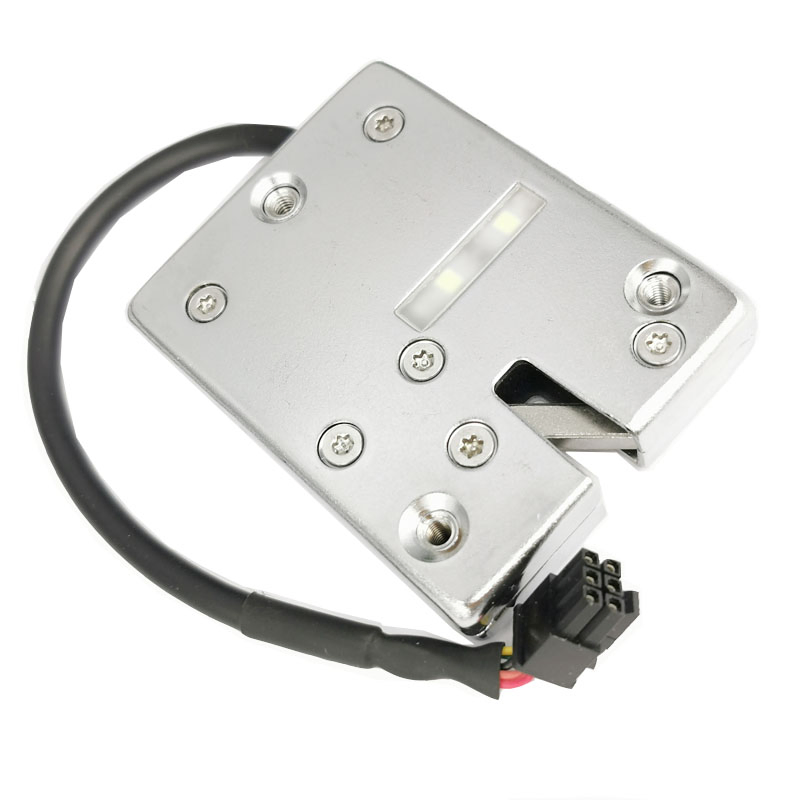

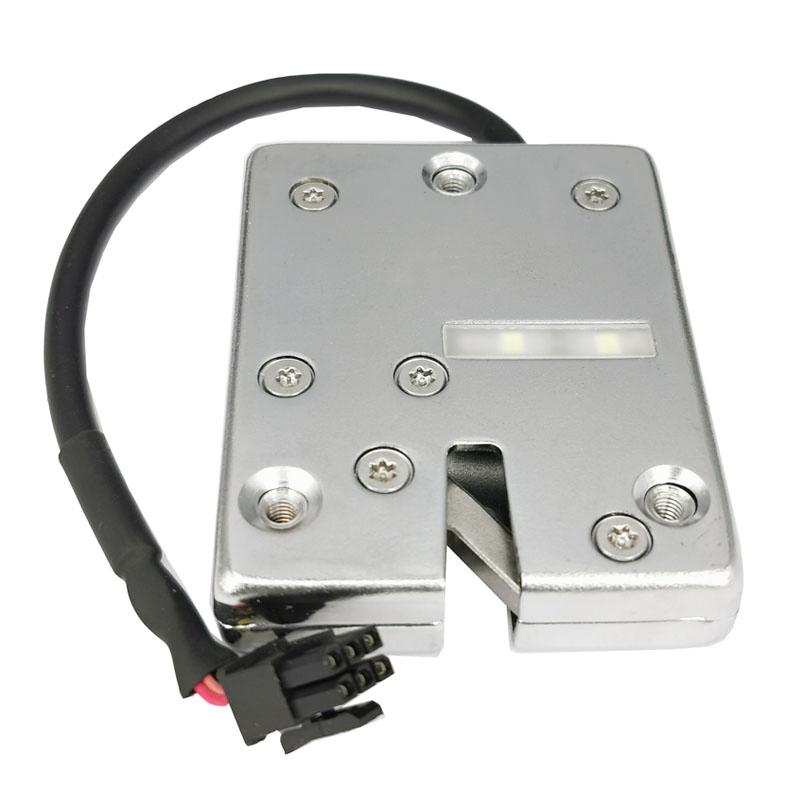

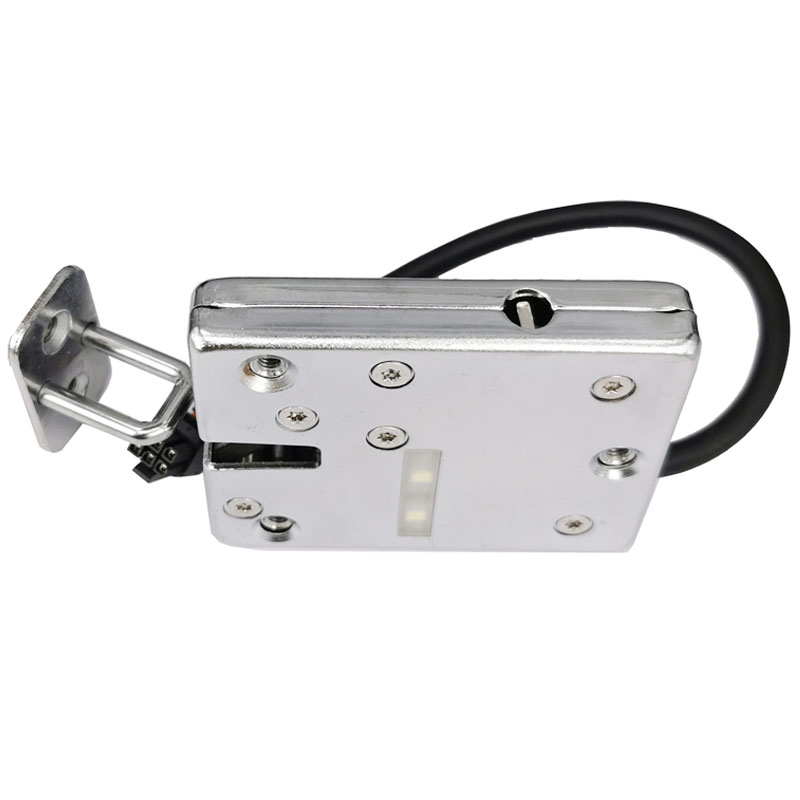

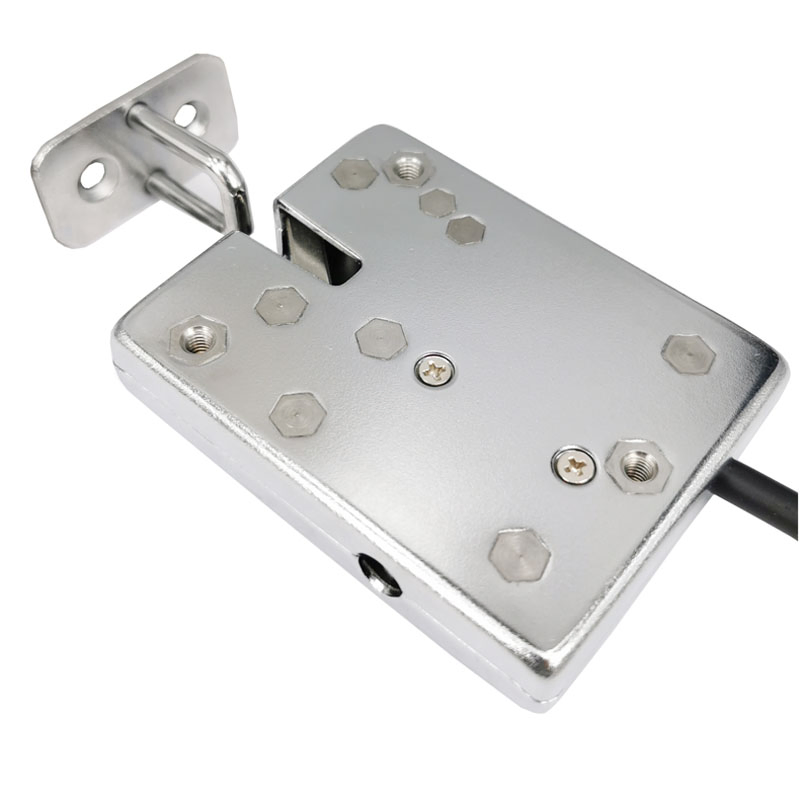

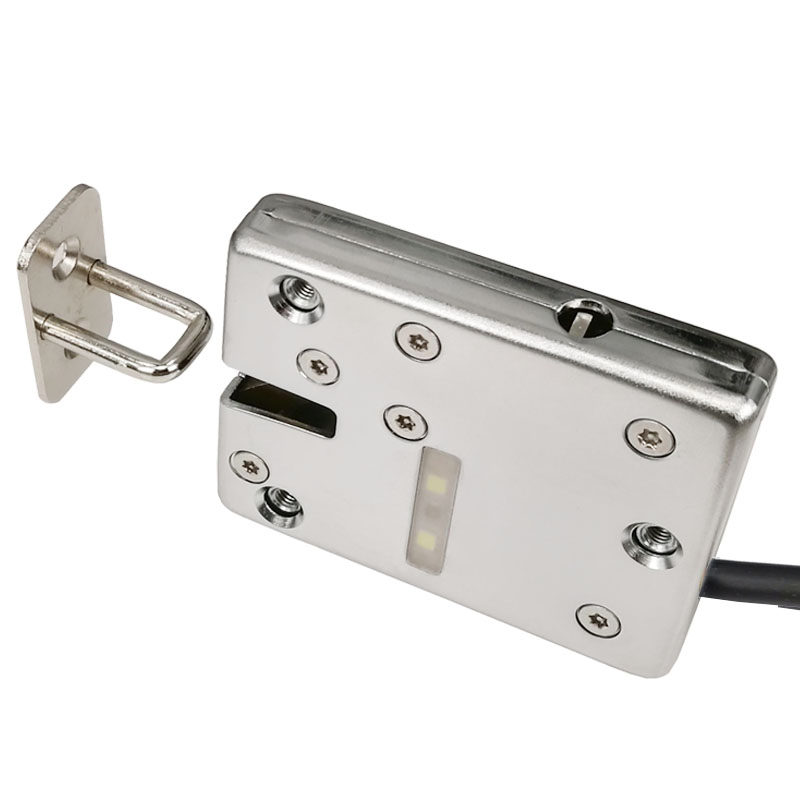

Micro Smart Cabinet Door Lock MA1208-TH features a built-in LED to offer lighting for Electronic Mailbox Systems. This compact electric lock allows controlled access to any cabinet, closet, and drawer. An optional monitoring switch is available to indicate whether the mechanism is locked or unlocked. The cabinet lock is compatible with any access control system or standalone cabinet locking controller. It allows mechanical override for emergency open. The electronic cabinet lock is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet locking applications.
| Operation Voltage | 12/24VDC intermittent ±10% |
| Power Consumption | 12VDC 800mA |
| Operation Mode | Fail Locked |
| Holding Force | 150KG |
| Max Power on Time | Less than 30 seconds |
| Cycle Rating | More than 1,000,000 times |
| Working Temp | -20ºC ~ +60ºC |
| Dimensions | 72mm * 56mm * 13.8mm |
| Protection Class | IP20 |

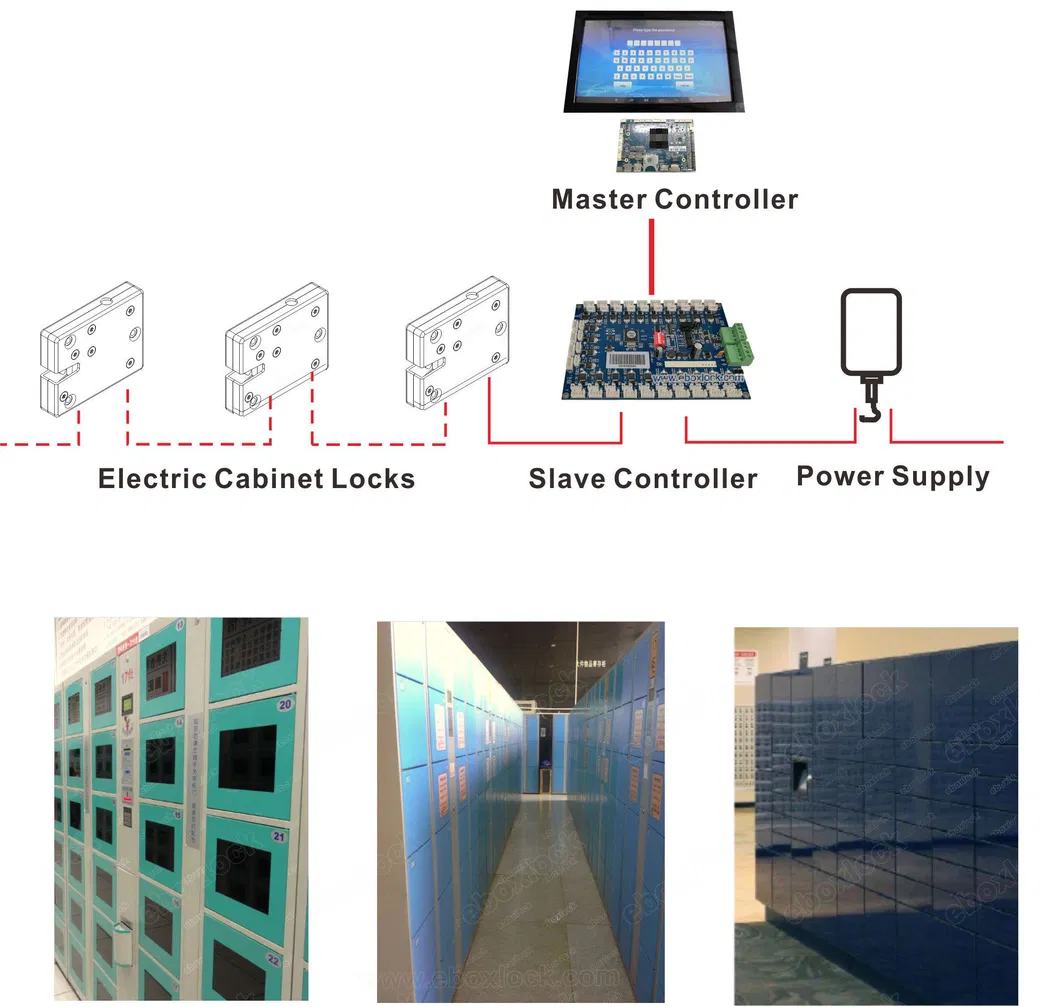

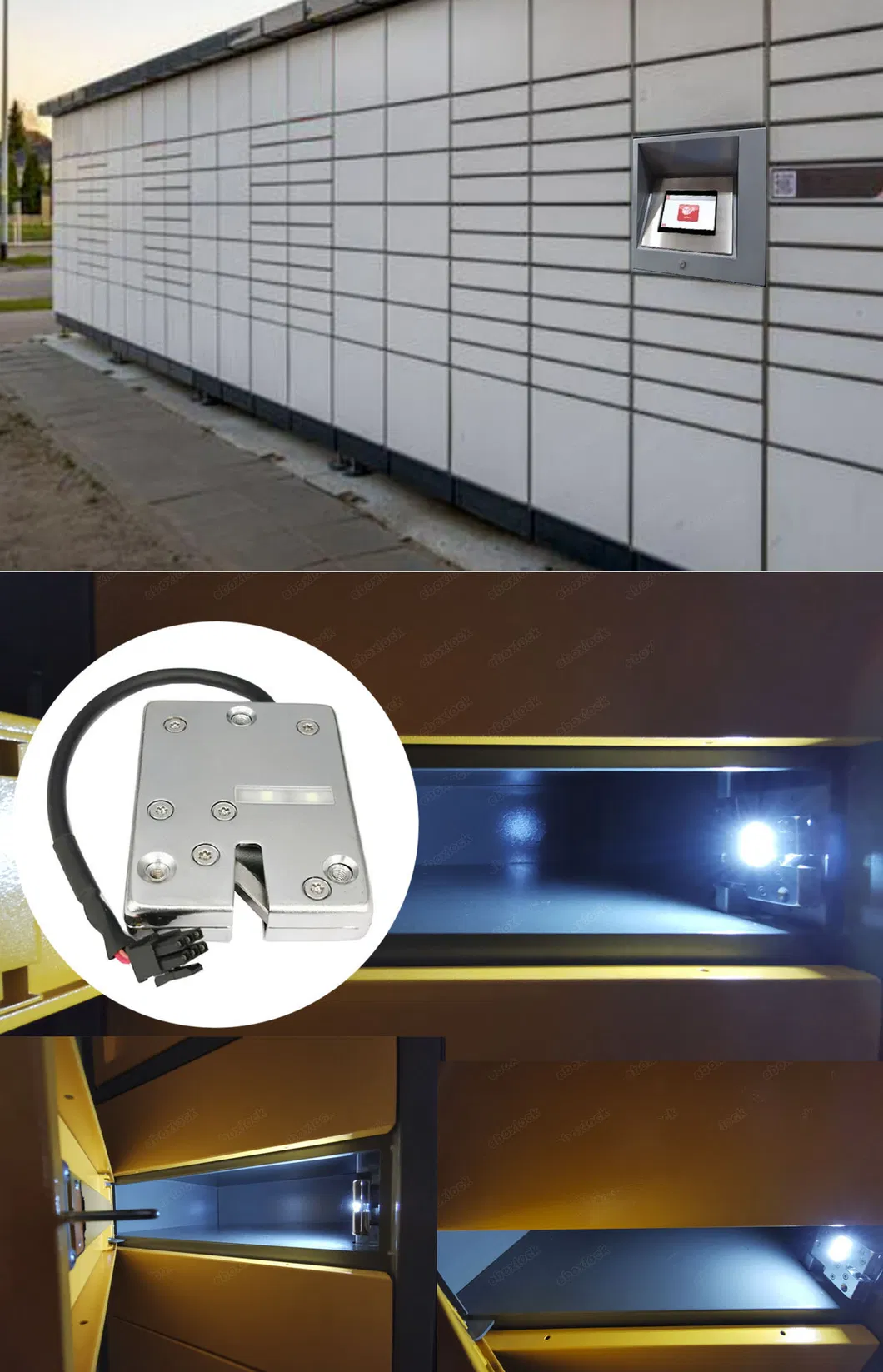

The electronic cabinet lock is ideal for various applications including:
Specialized in electrified locking solutions for lockers, cabinets, and kiosks. Quality control is integrated into the entire process, with products undergoing multi-stage testing to ensure high performance and reliability in professional security environments.
