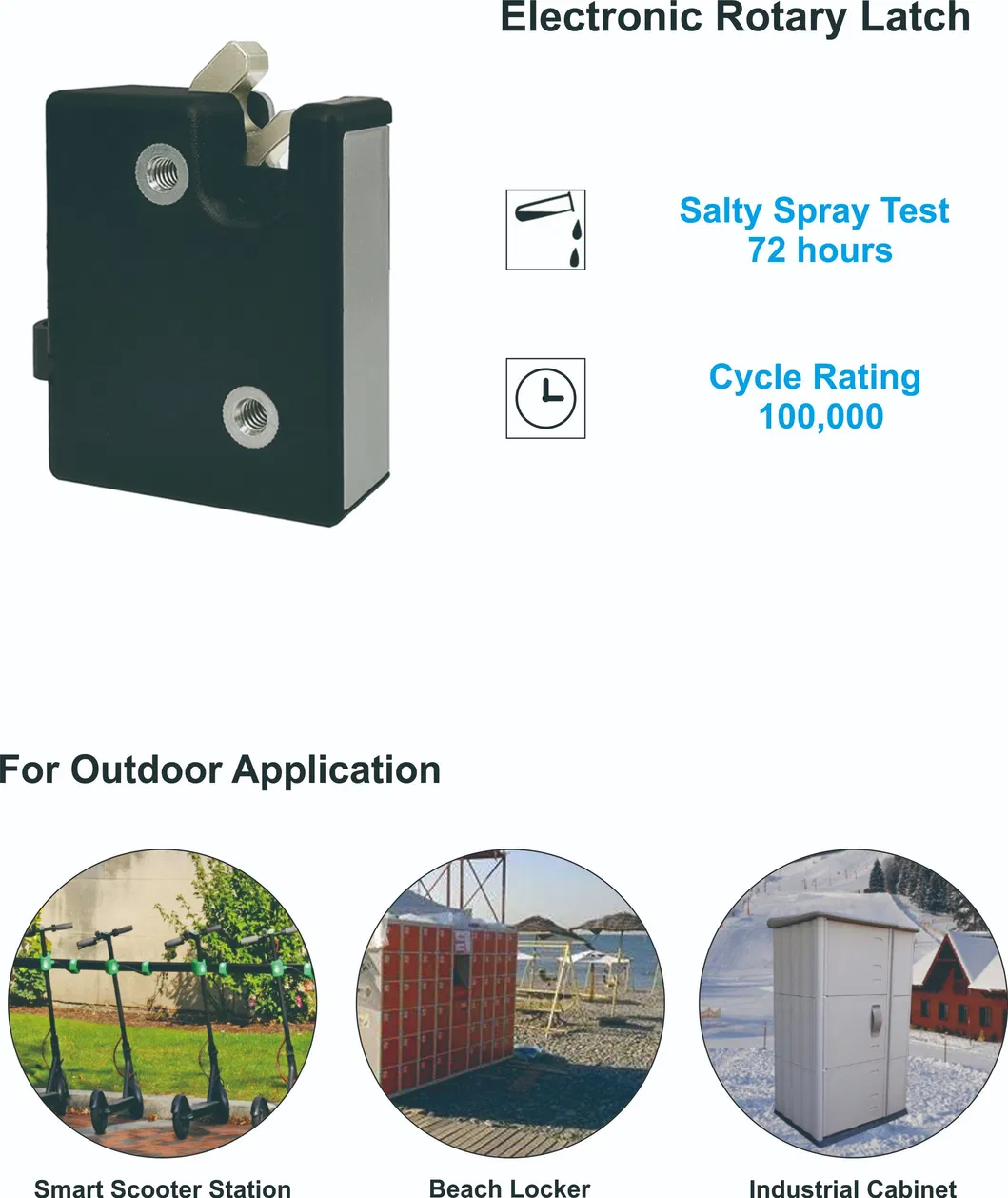

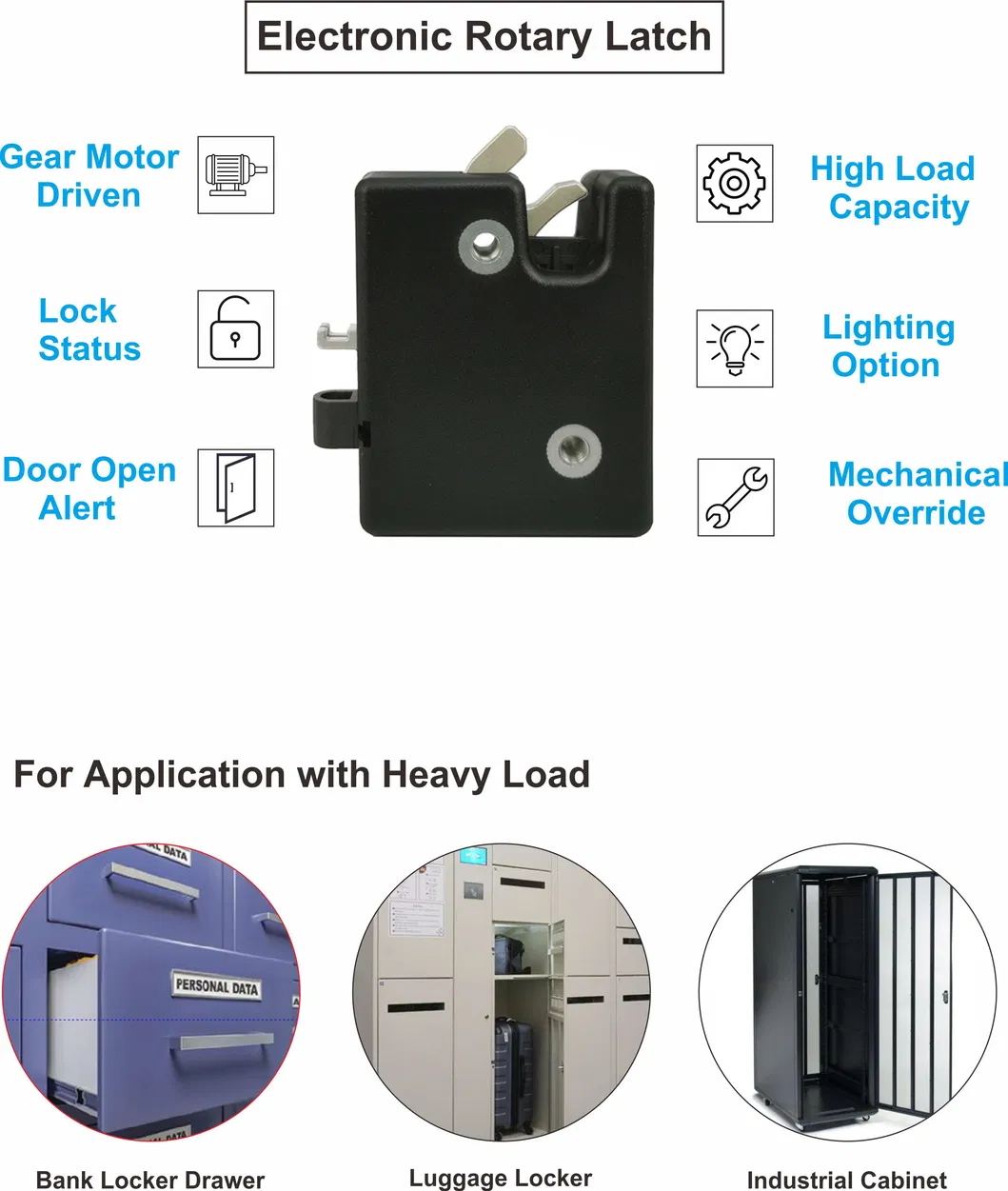

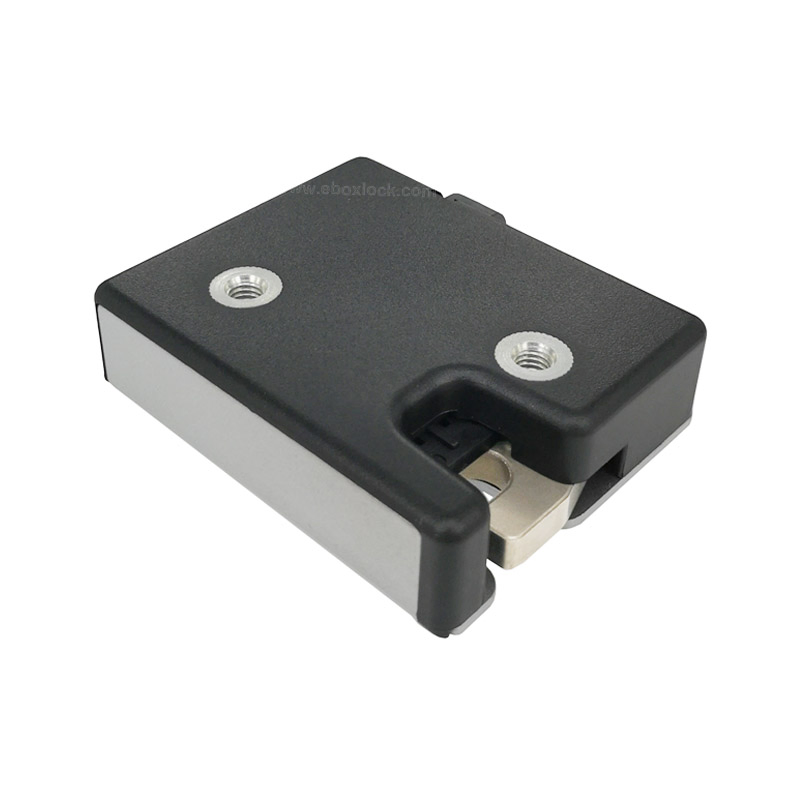

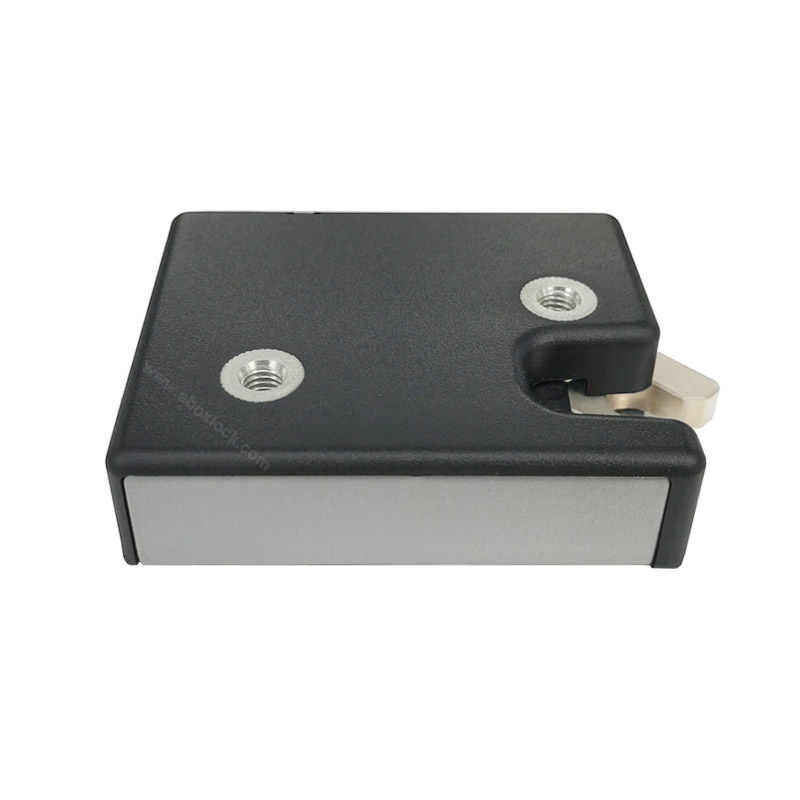

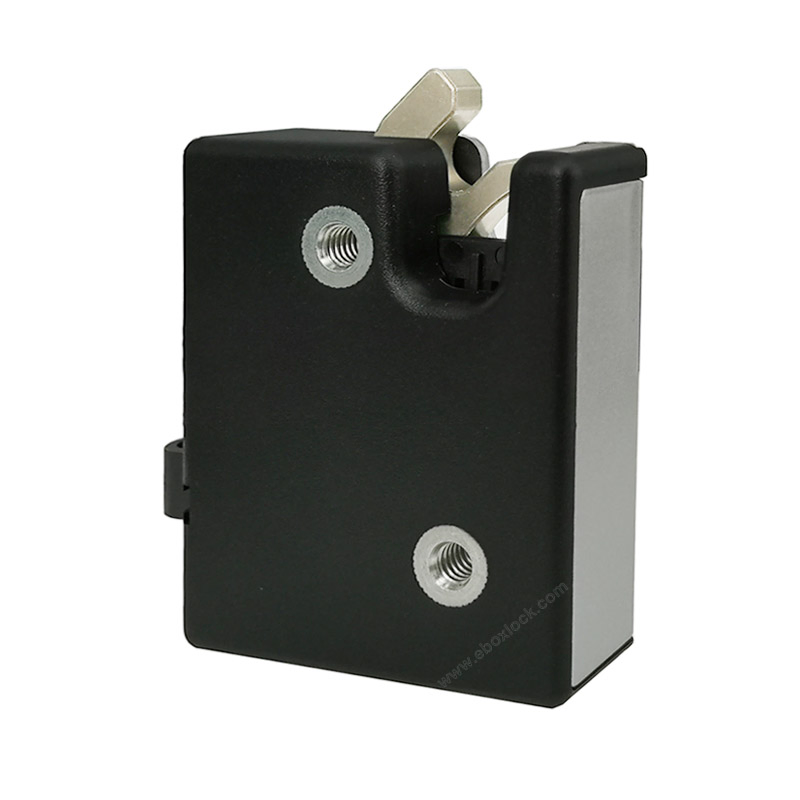

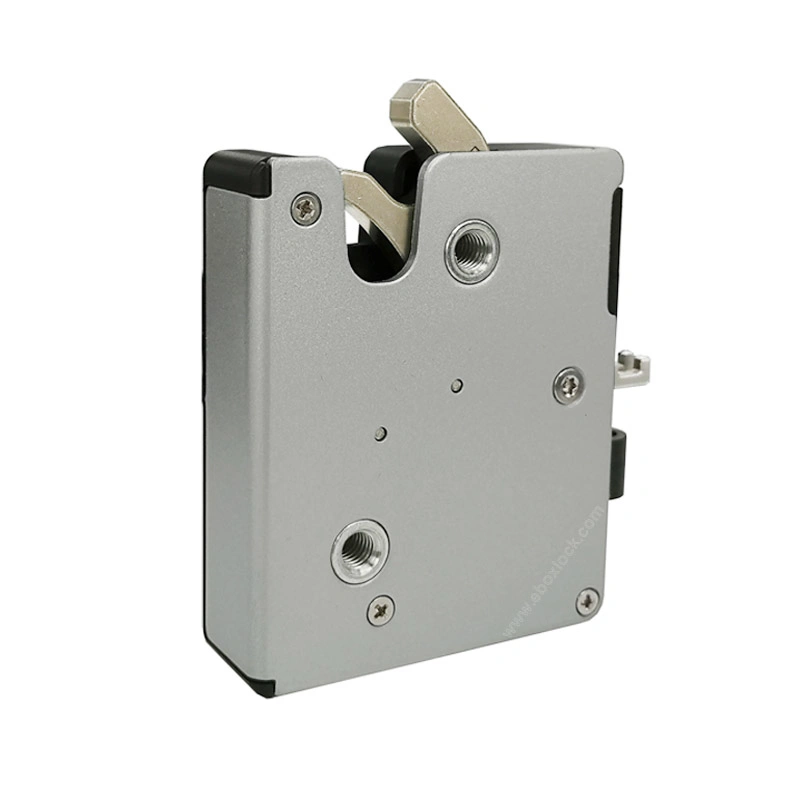

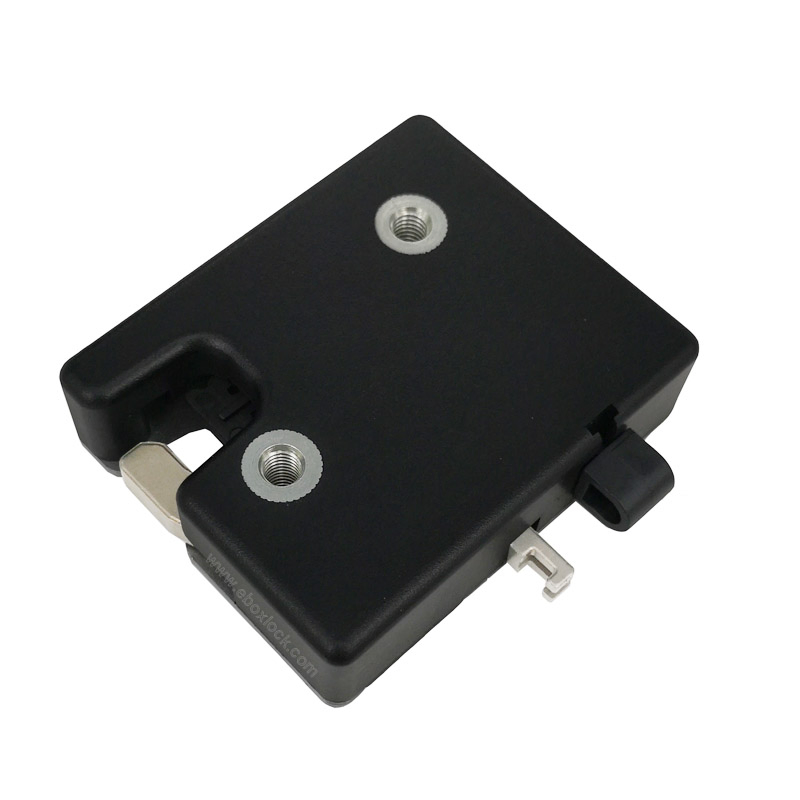

The Electromechanical Cabinet Lock DJ5-ASHF is an advanced electric lock driven by a gear-motor, offering exceptionally low power consumption and high load capability. Designed with dual sensors for both door and latch monitoring, it ensures double security for sensitive environments. The latch features an internal spring rod to push the door open automatically when electrified, simplifying the access control for modern smart locker systems.
| Parameter | Details |
|---|---|
| Operation Voltage | 12VDC ±10% |
| Current Consumption | 200mA |
| Operation Mode | Fail Locked (Fail-Secure) |
| Max. Power On Time | 1 Second |
| Holding Force | 600KG / 7000N |
| Working Temperature | -20ºC ~ +60ºC |
| Dimensions (LxWxH) | 76mm * 62.5mm * 20.3mm |
| Protection Class | IP40 |

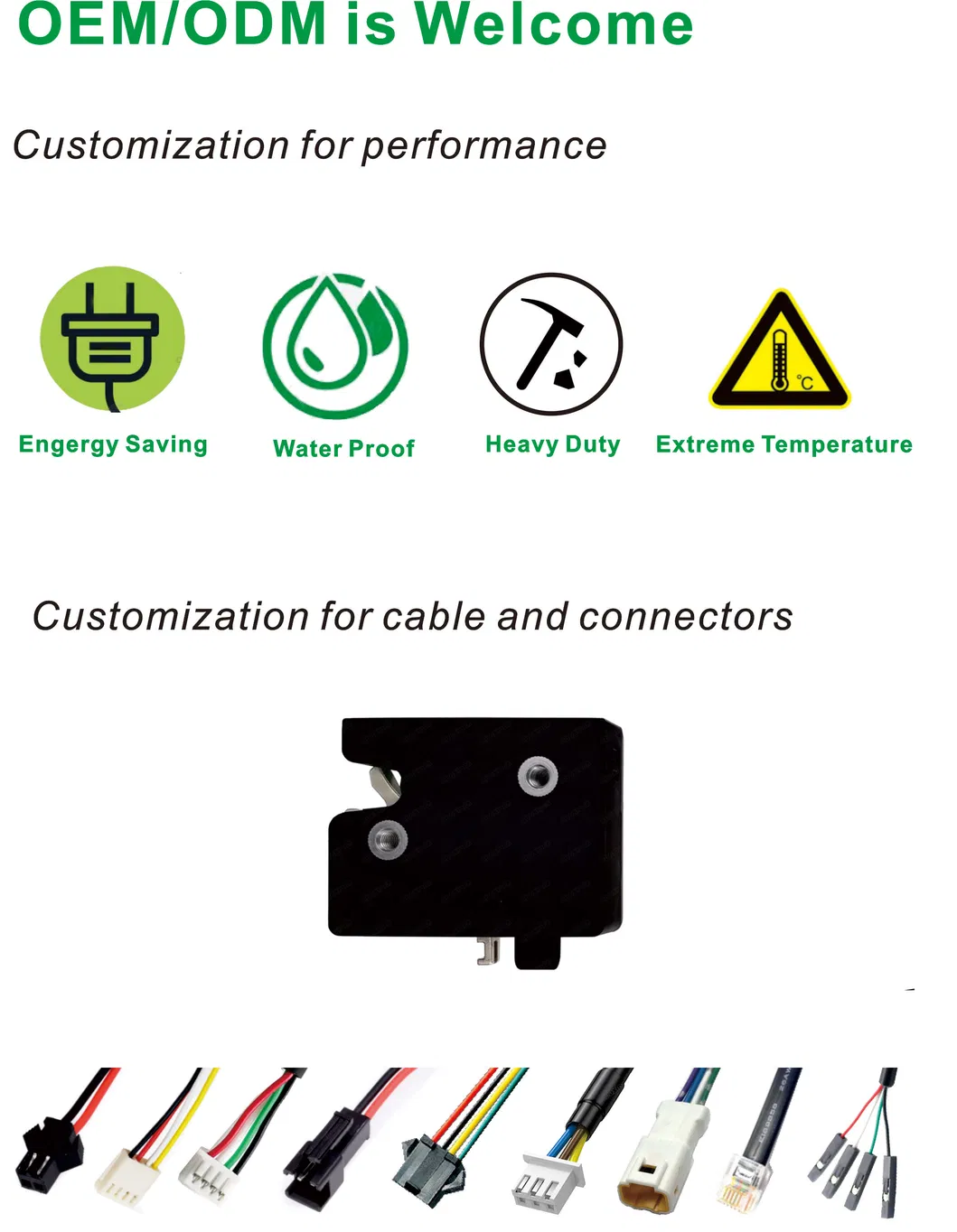

We offer tailored solutions for cable length, connector types (SM, Molex, KF2510, RJ11), and trigger spring tension (4N to 21N) to meet your specific application requirements.

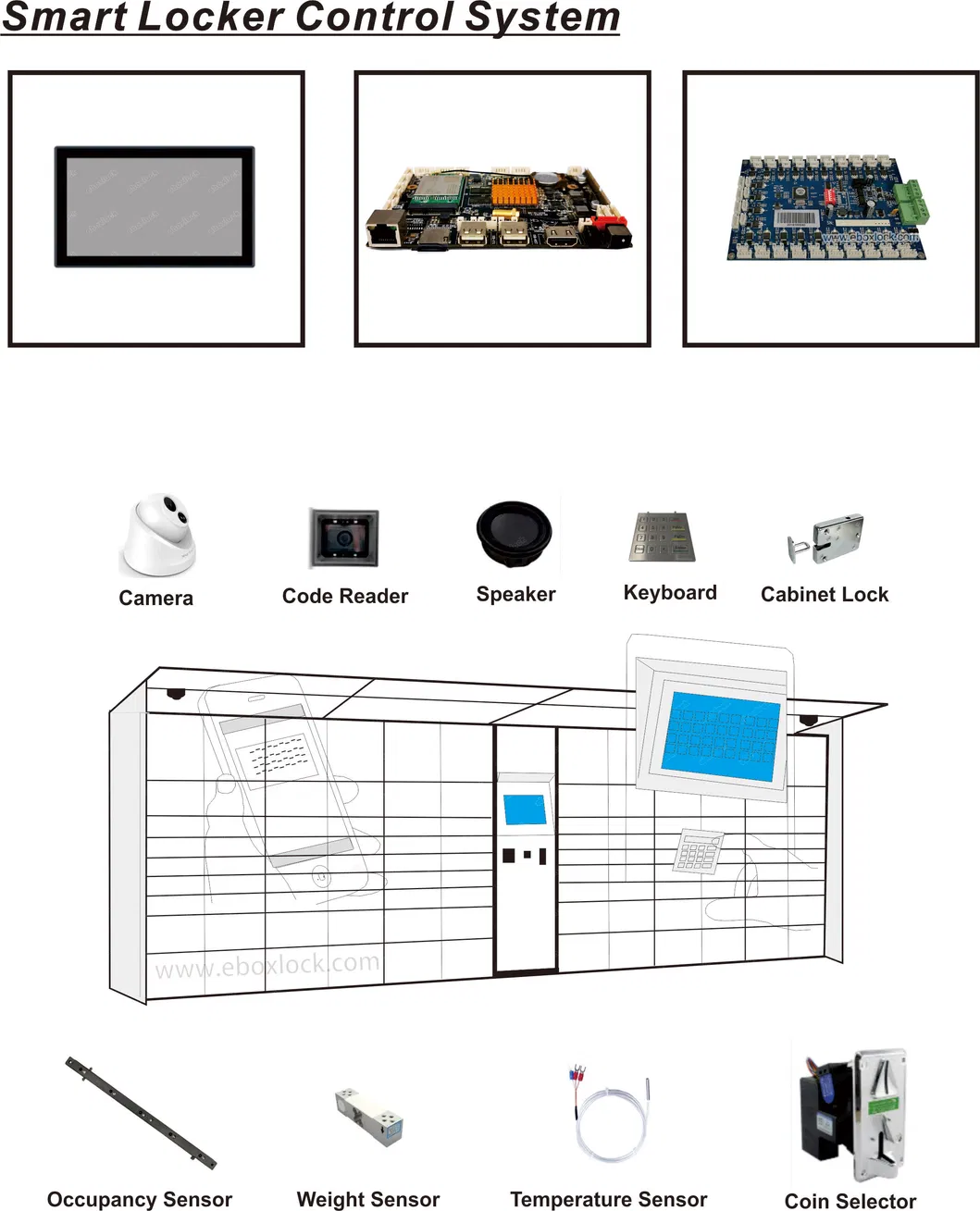

As a specialized designer and manufacturer of electrified locking solutions, we focus on security for lockers, cabinets, and kiosks. From size-restricted enclosures to heavy-duty metal cabinets, our expertise covers electronic drawer locks, smart parcel control systems, and IOT integrated hardware. Quality control is integrated into every stage of production, ensuring that each lock meets rigorous multistage testing standards for long-term reliability.
