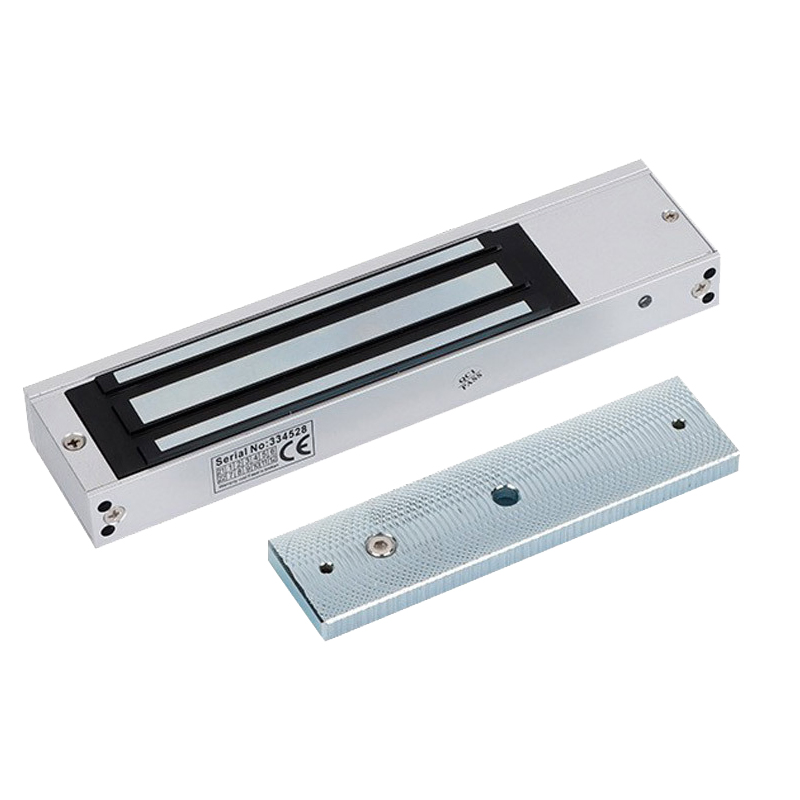

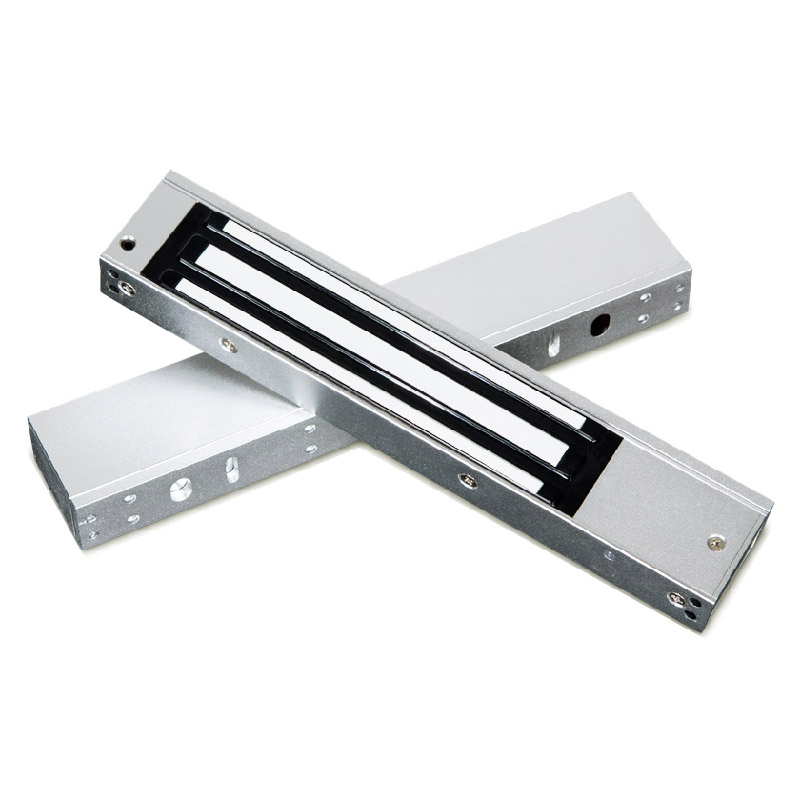

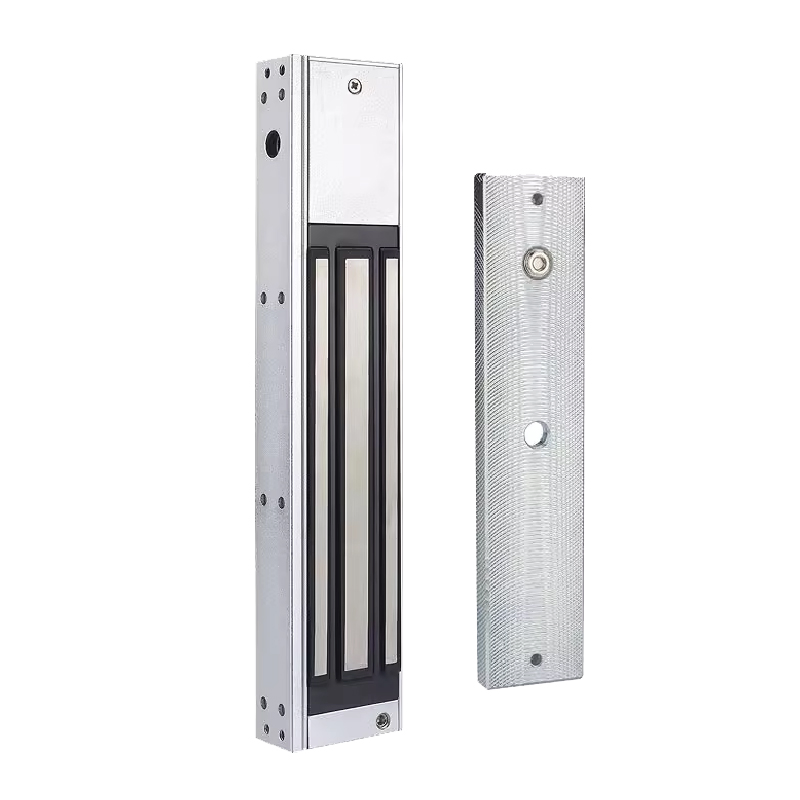

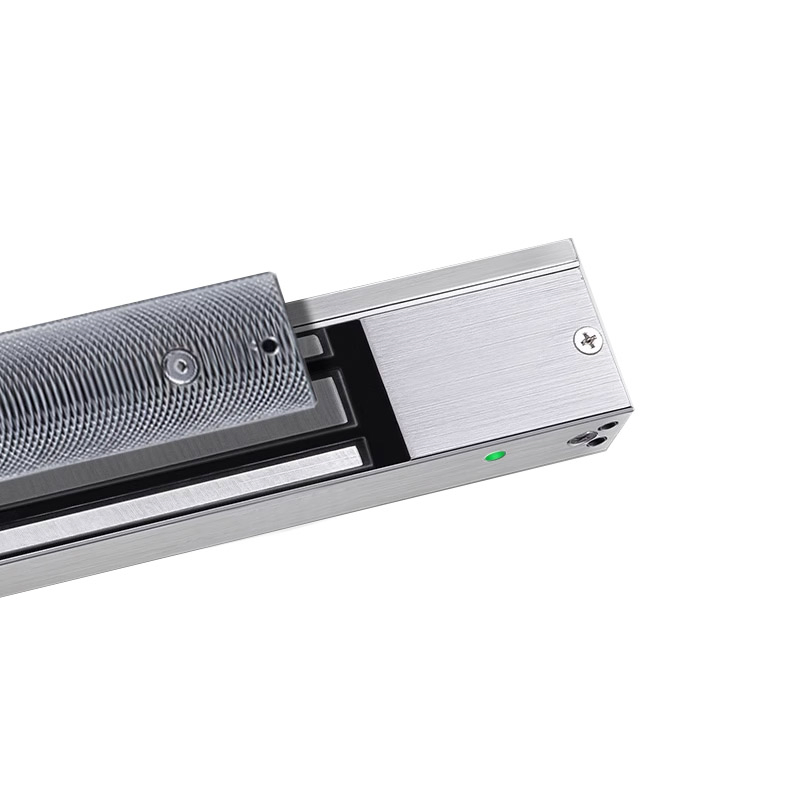

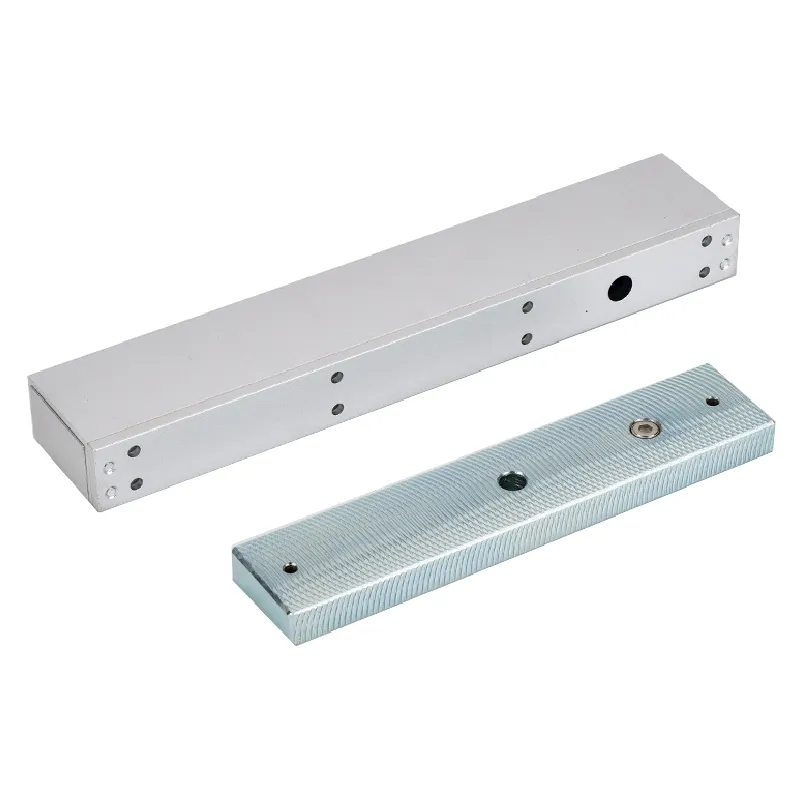

Electro Magnetic Door Lock 700lbs (320KG) with Door Status Monitoring

The ME1232S is a durable electromagnetic lock designed for single doors, featuring integrated door status reporting. It supports versatile surface mounting (vertical or horizontal), ensuring flexible installation for various door types. Compatible with major access control systems, keypads, or remote switches, this lock offers high security with minimal maintenance.

Key Features

• Superior alloy-constructed lock body and strikes
• Architectural brushed stainless steel finish for corrosion resistance

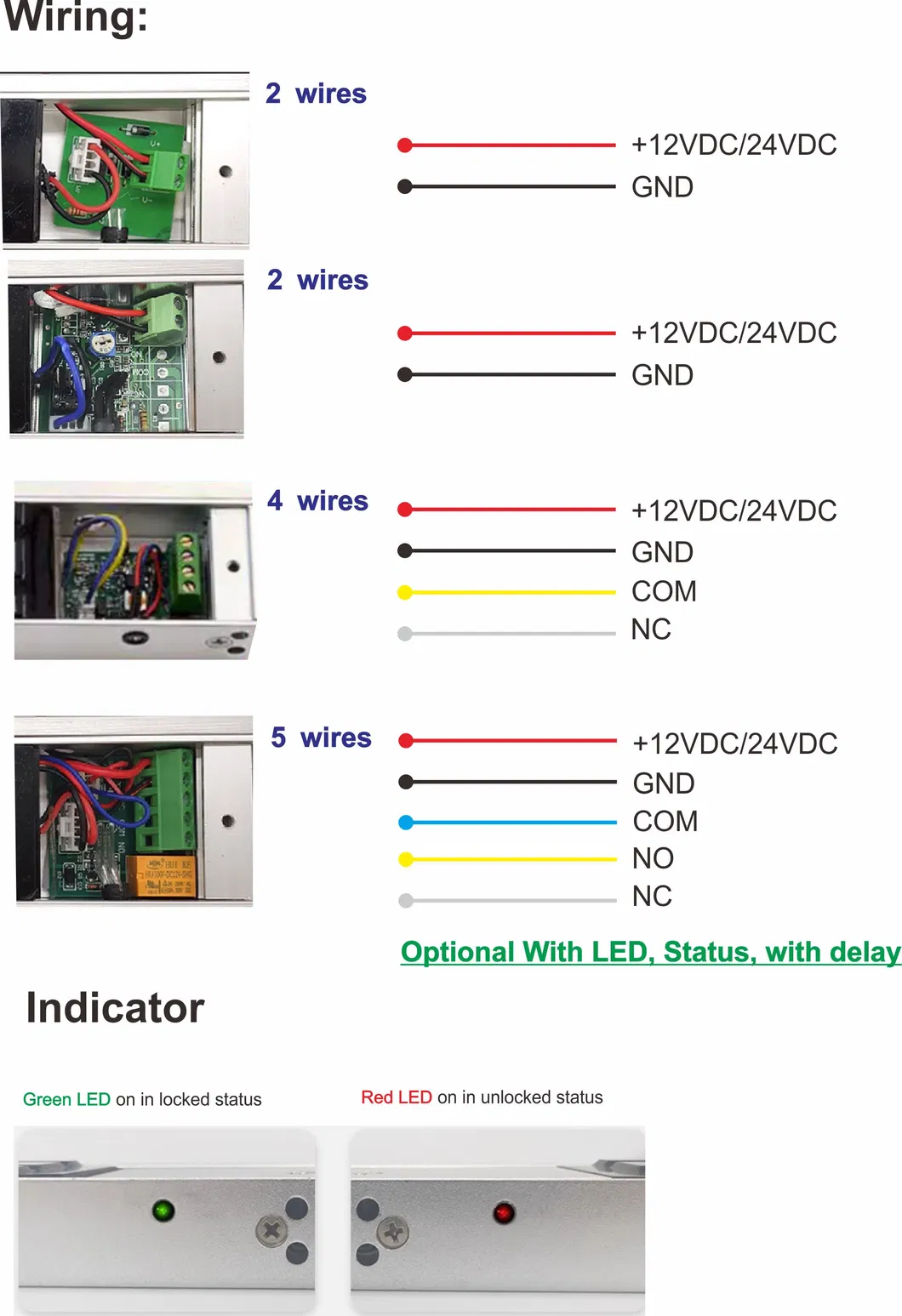

• Built-in micro switch for door status reporting
• Surface mounting for easy installation using basic tools
• Fully sealed electronics (tamper proof and weather proof)
• Instant release circuit with no residual magnetism
• Low noise operation
• Accepts access control signals from numeric keypads and card readers

Technical Specifications

• Operation Voltage: 12VDC ±10%
• Power Consumption: 480mA@12VDC
• Operation Mode: Fail unlock
• Holding Force: 320KG (700lbs)
• Cycle Rating: More than 1,000,000 cycles
• Working Temperature: -10ºC ~ +55ºC

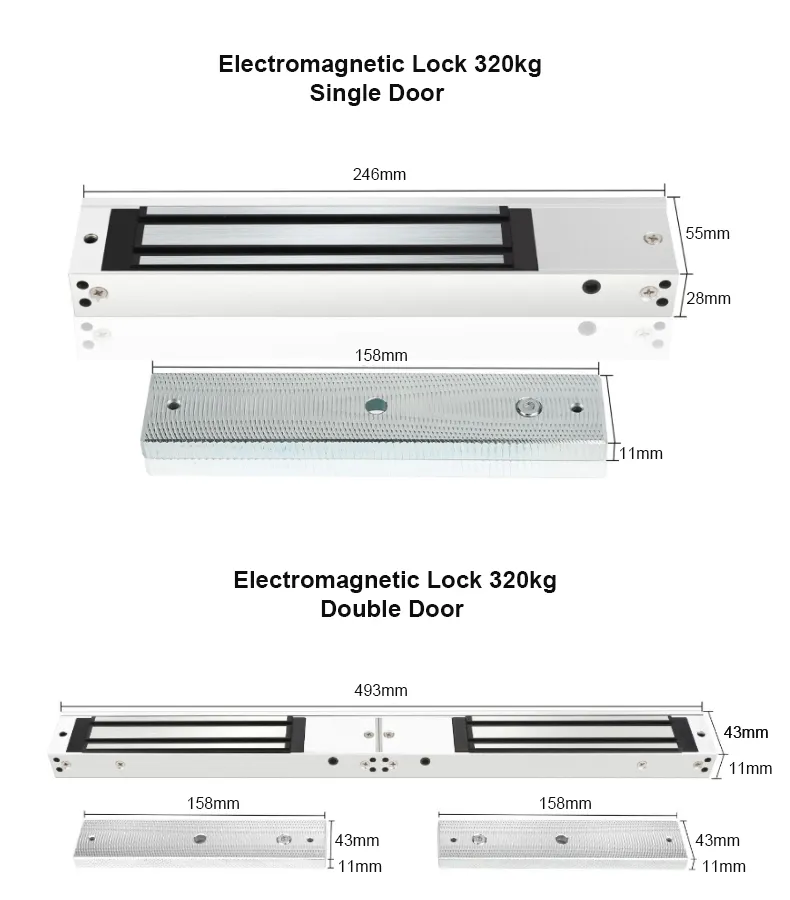

• Lock Dimensions: 246mm * 49.5mm * 26.5mm
• Strike Dimensions: 180mm * 38mm * 11mm

Order Particulars

Applications

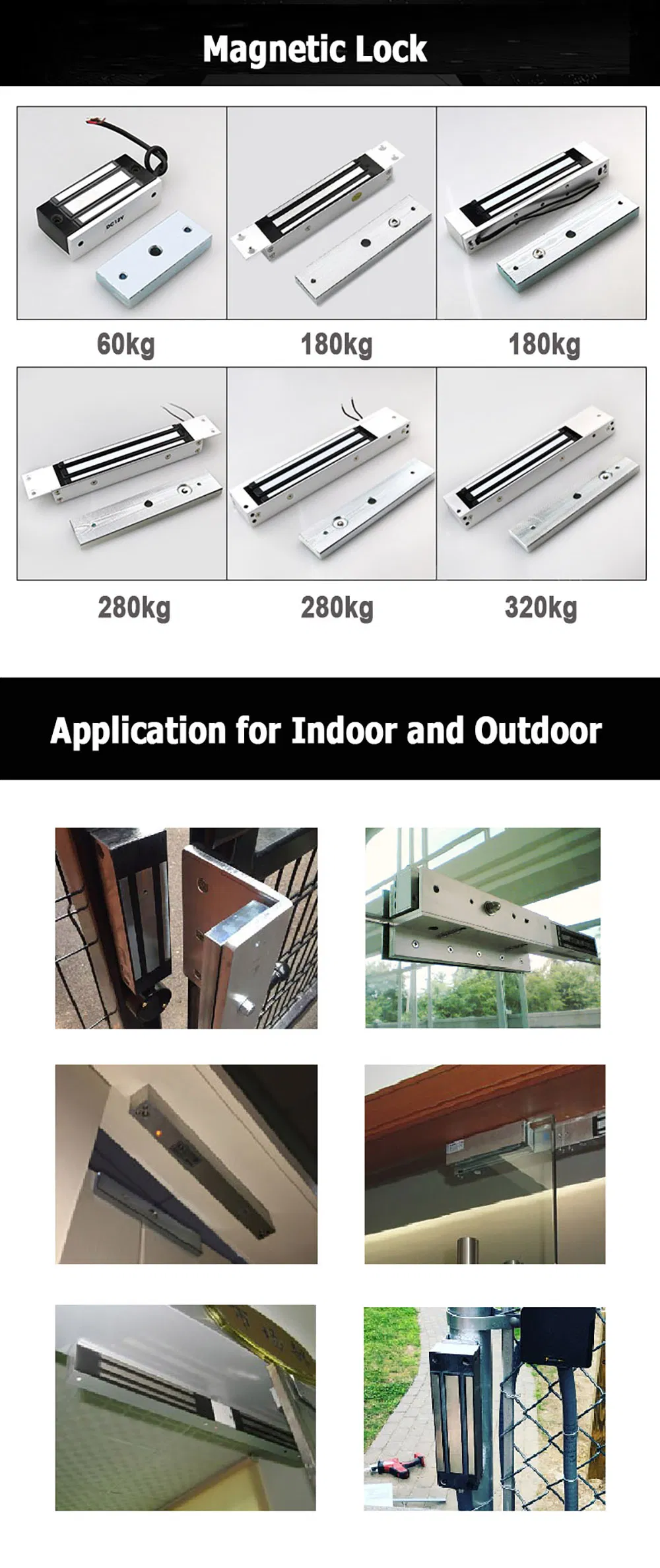

Suitable for various environments including wooden doors, glass doors, metal gates, fire doors, and high-security doors.
