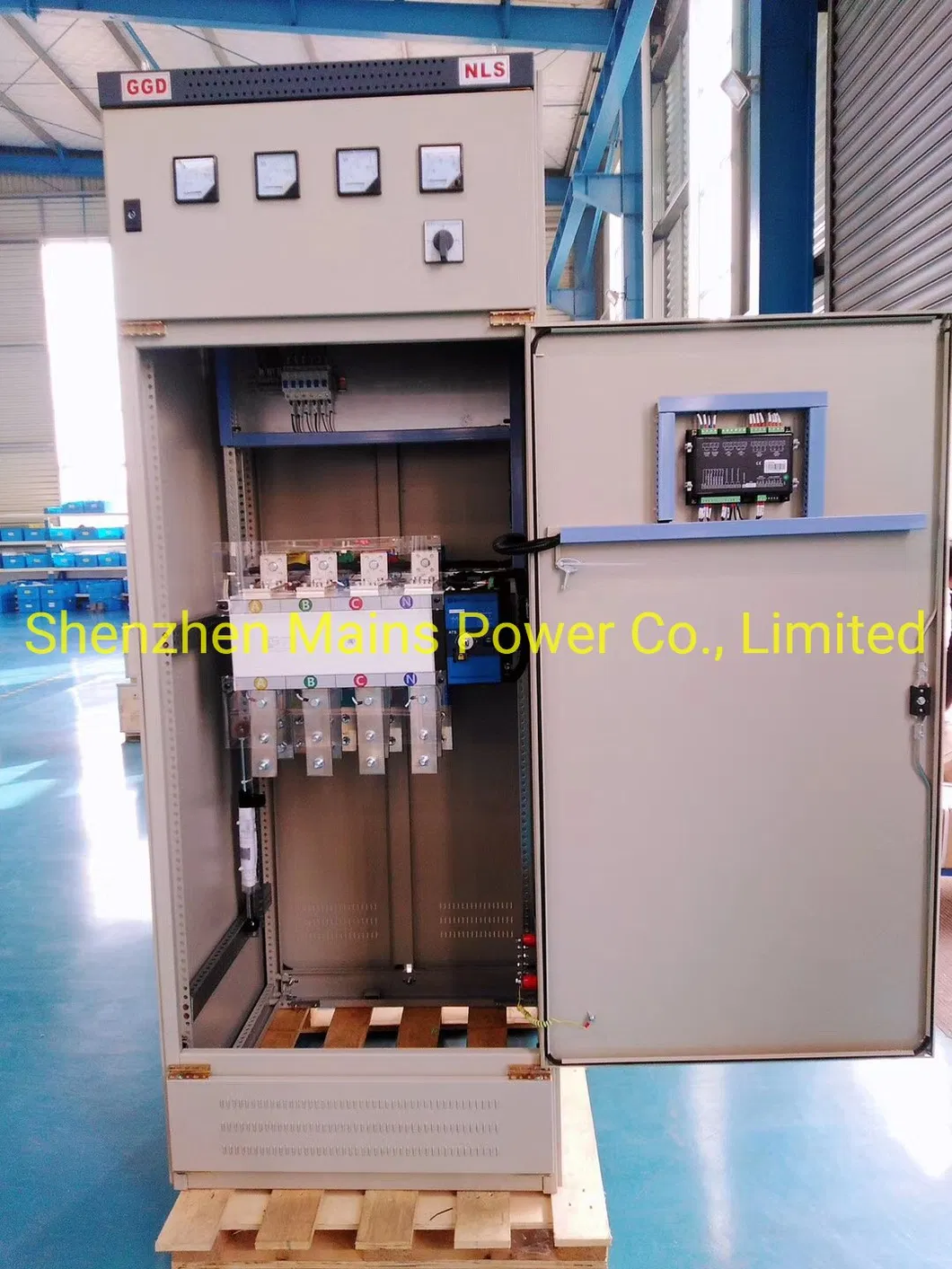

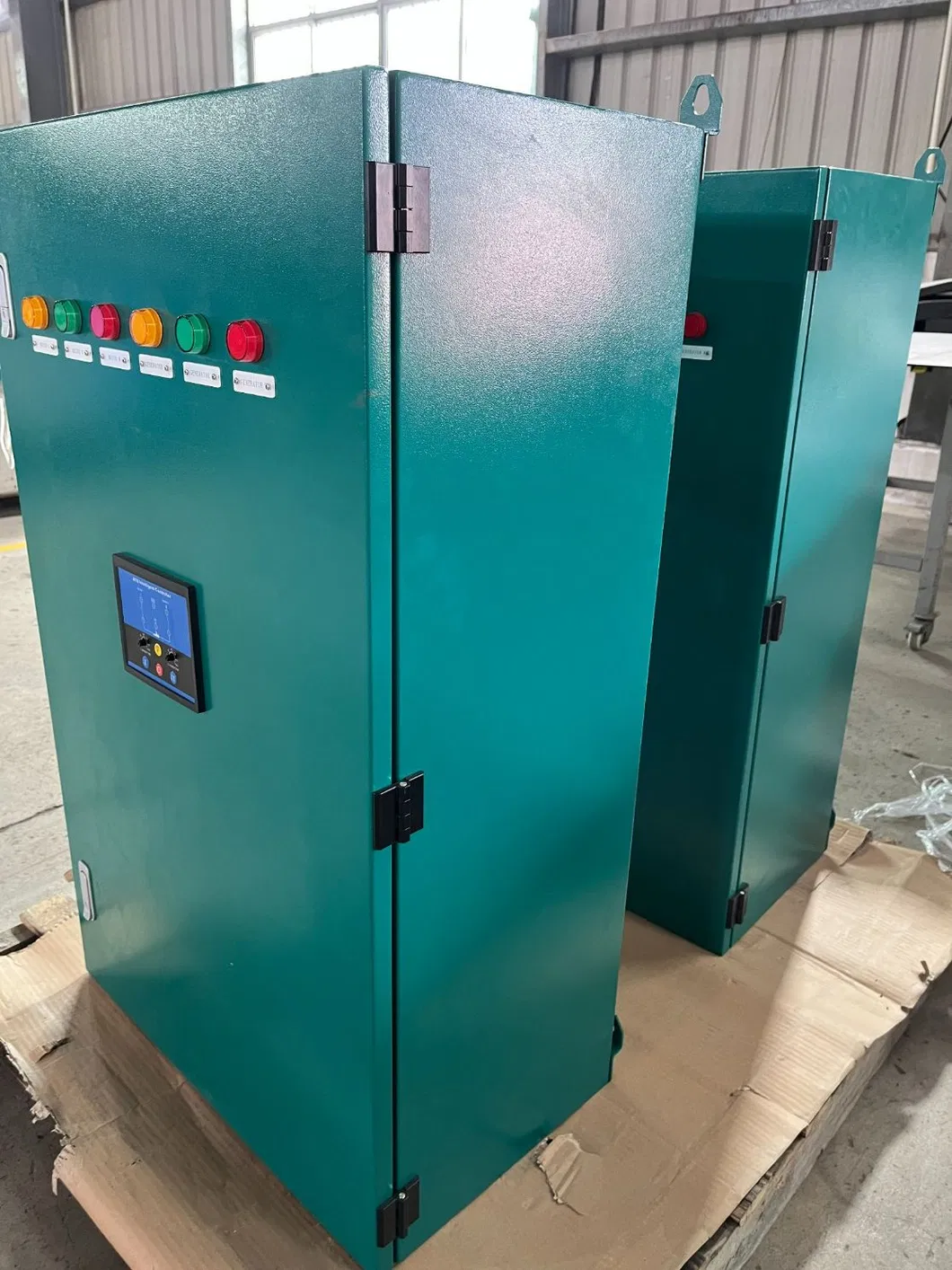

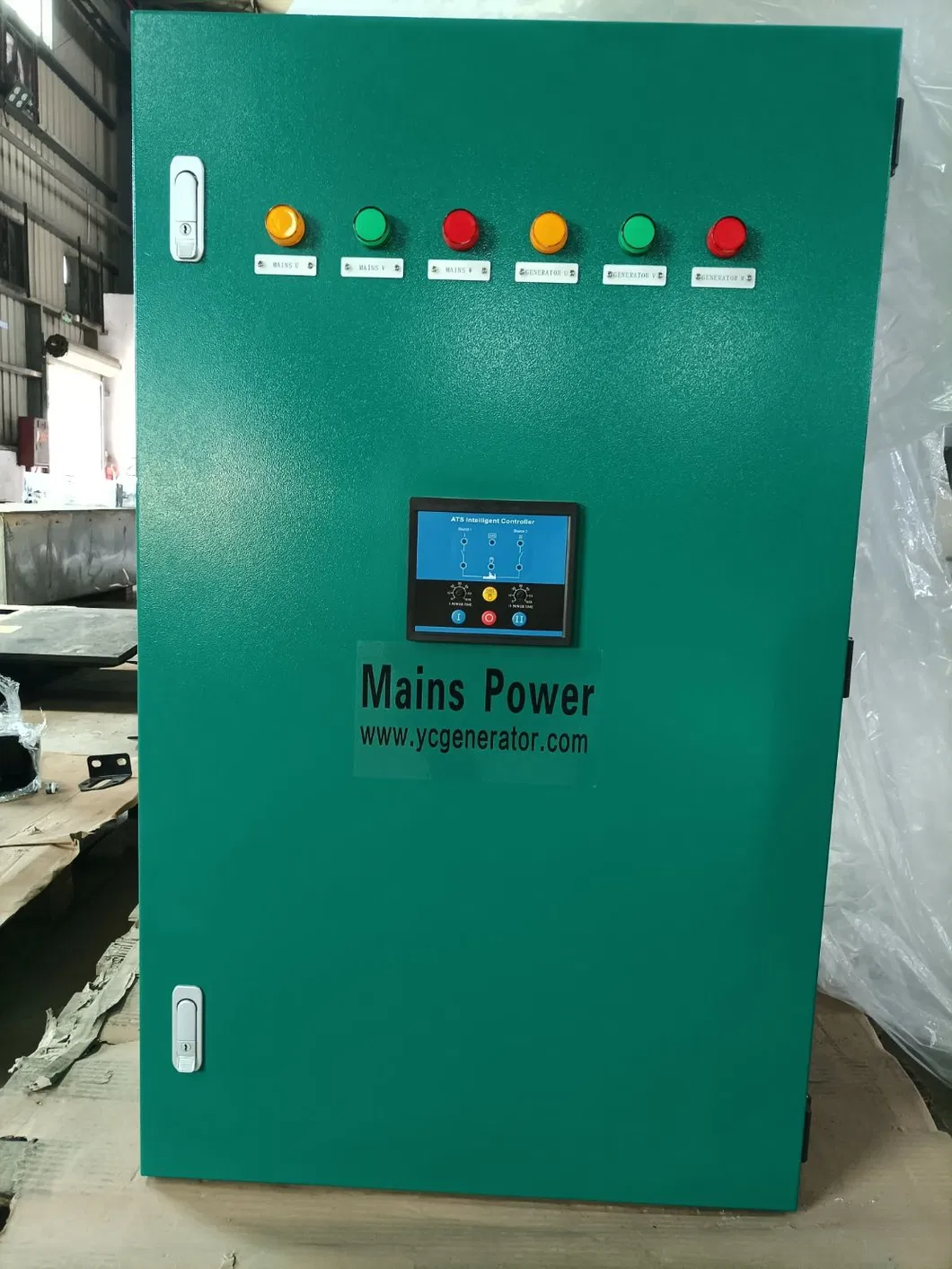

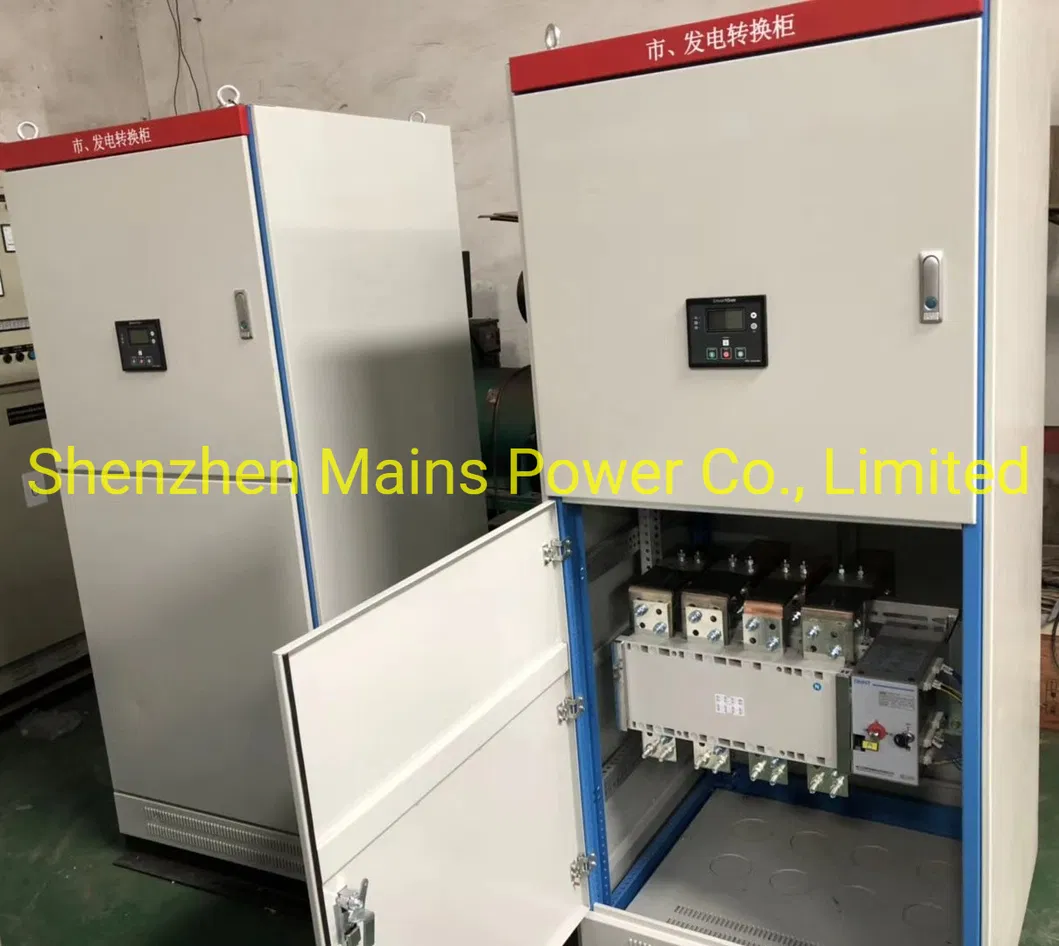

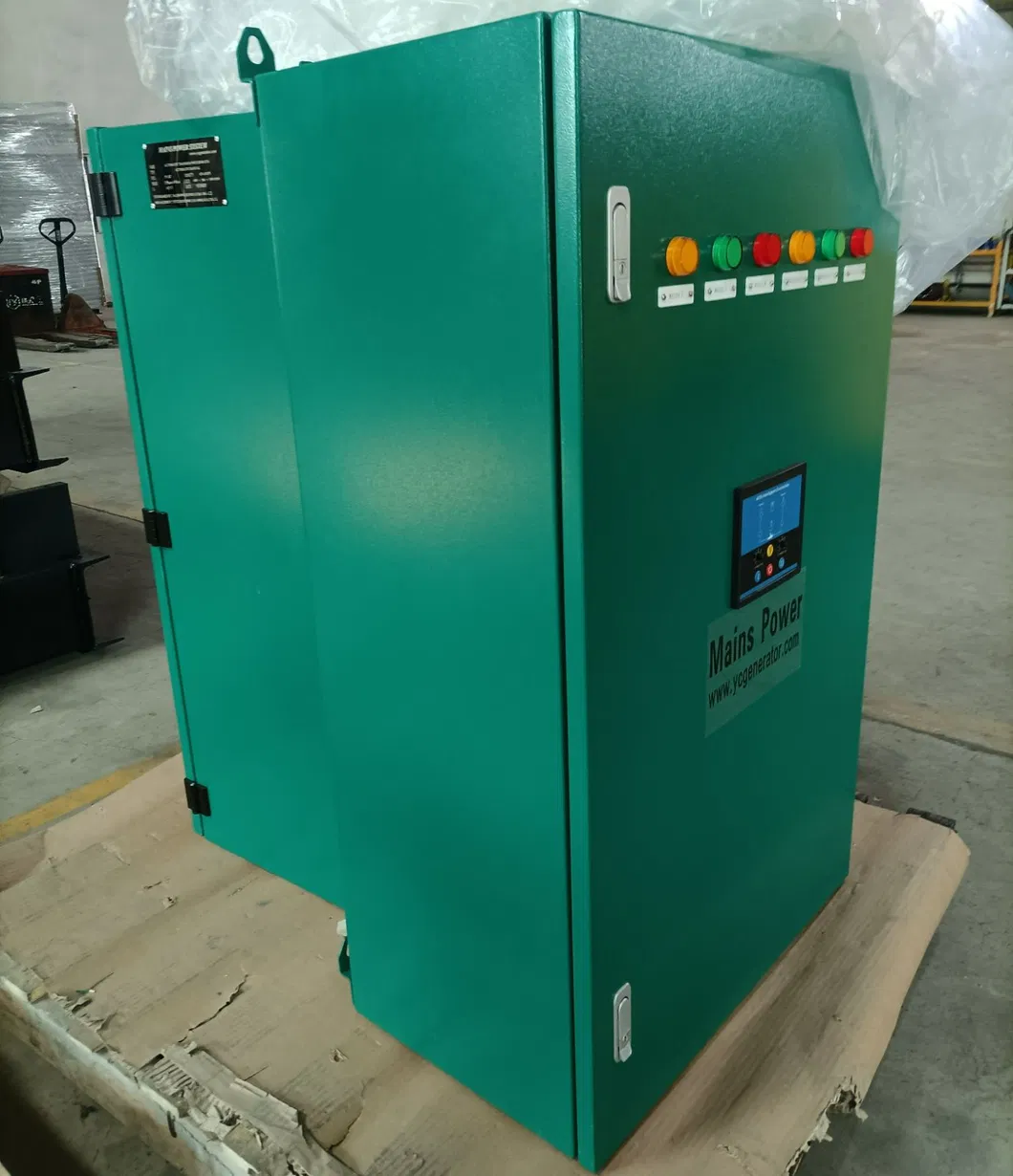

ATS Cabinet Automatic Transfer Switch Automatic Changeover Switch 630A ATS

Customization: Available
After-sales Service: Global Service Policy
Warranty: 2 Years

Product Description

Basic Product Information
Model NO.
MP-630-ATS
Type
Self-Starting Diesel Generator
Installation
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Conditions
Land Use
Usage
Common, Standby, Emergency
Excitation Mode
AC Rotating Exciter
Quality
Continuous Working
Life
10 Years
Capacity
200PCS/Month

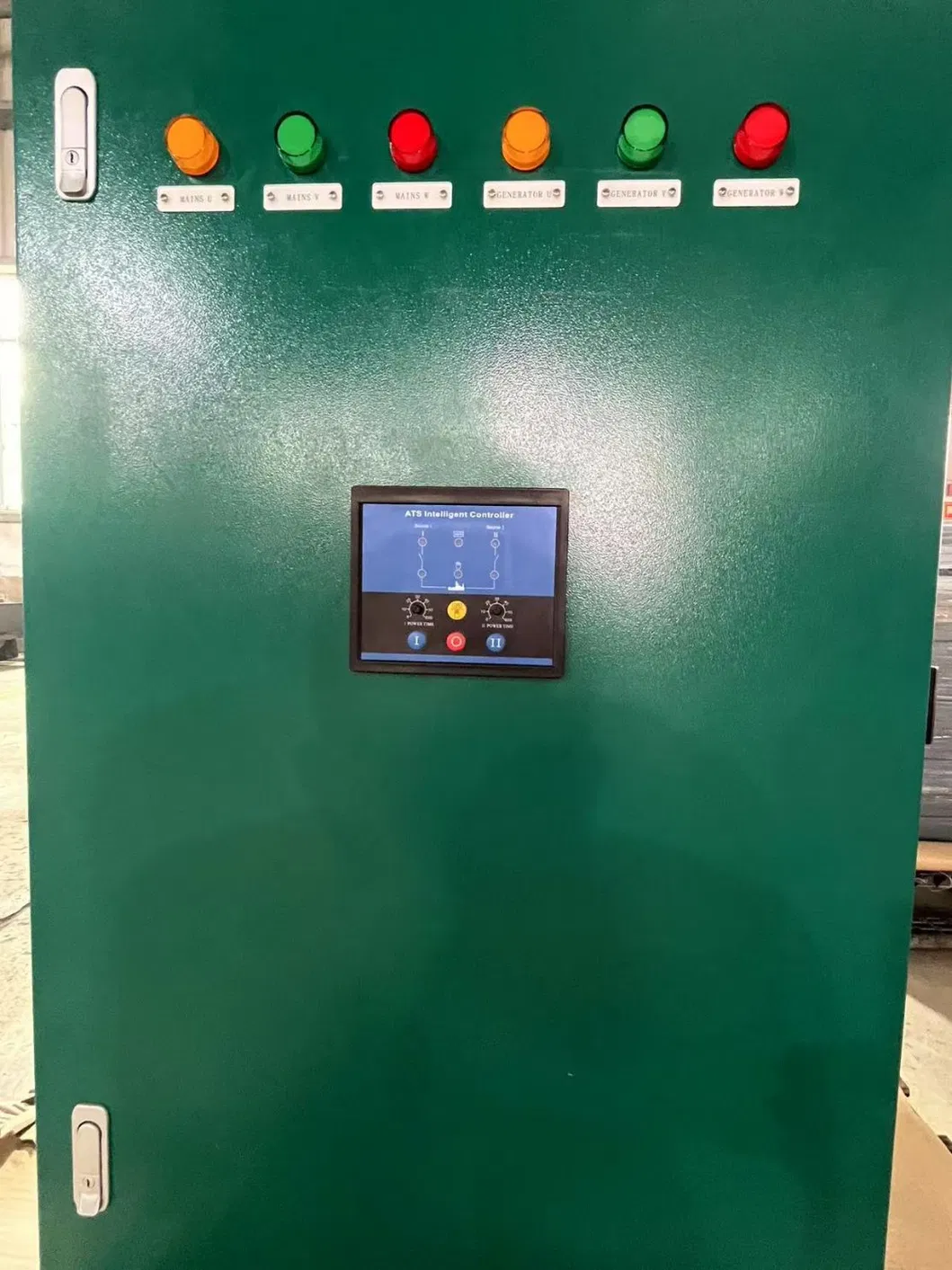

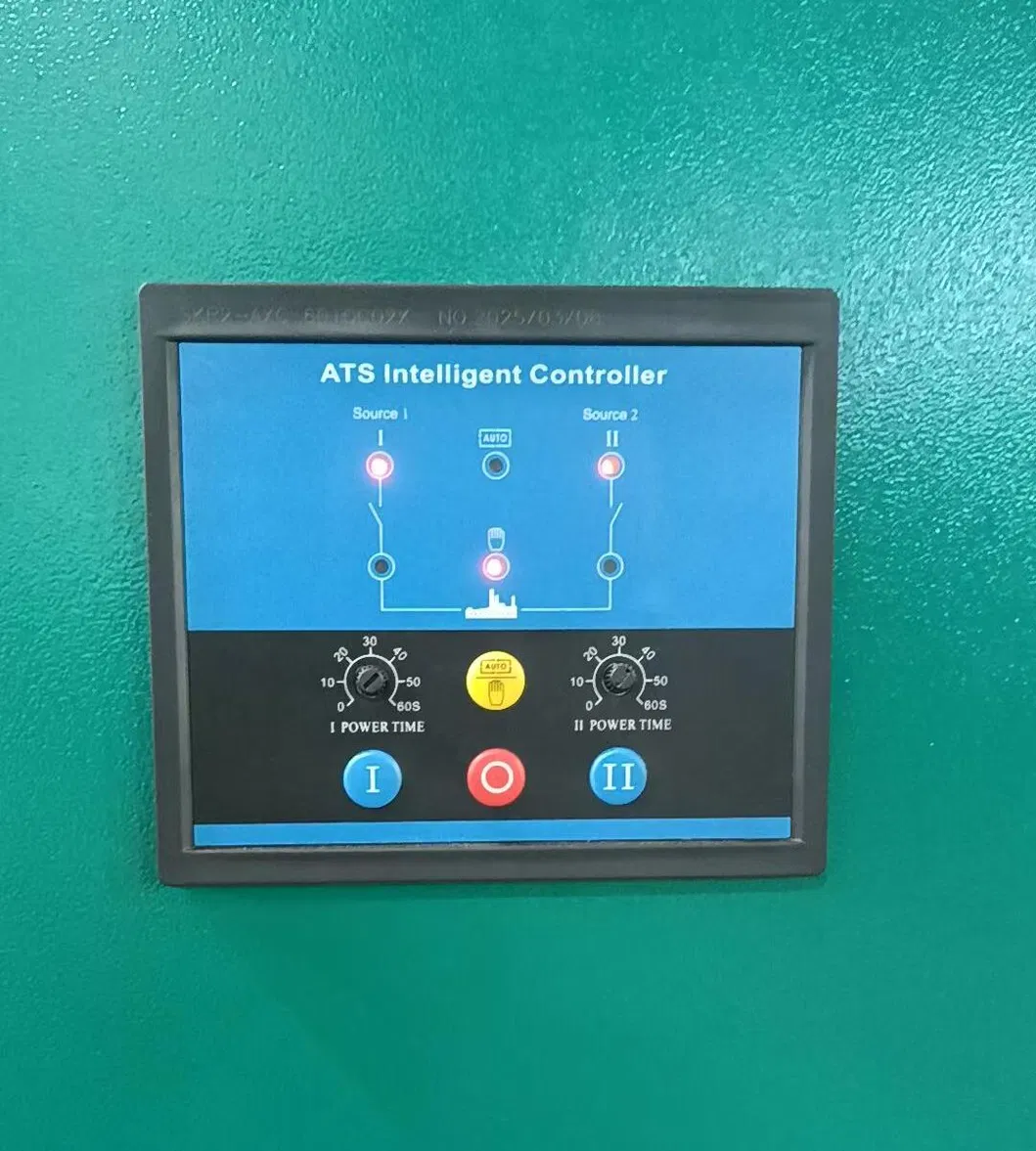

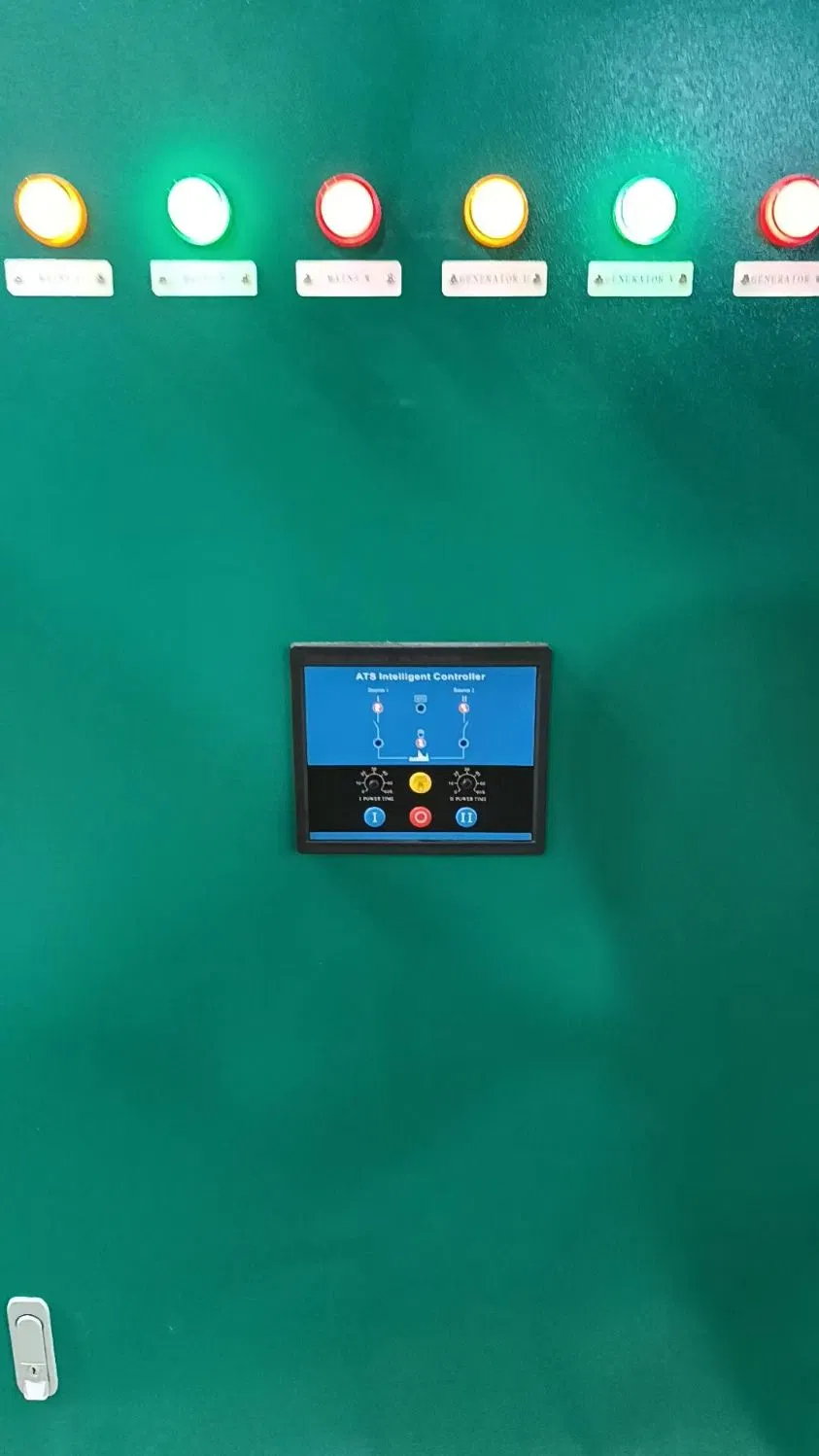

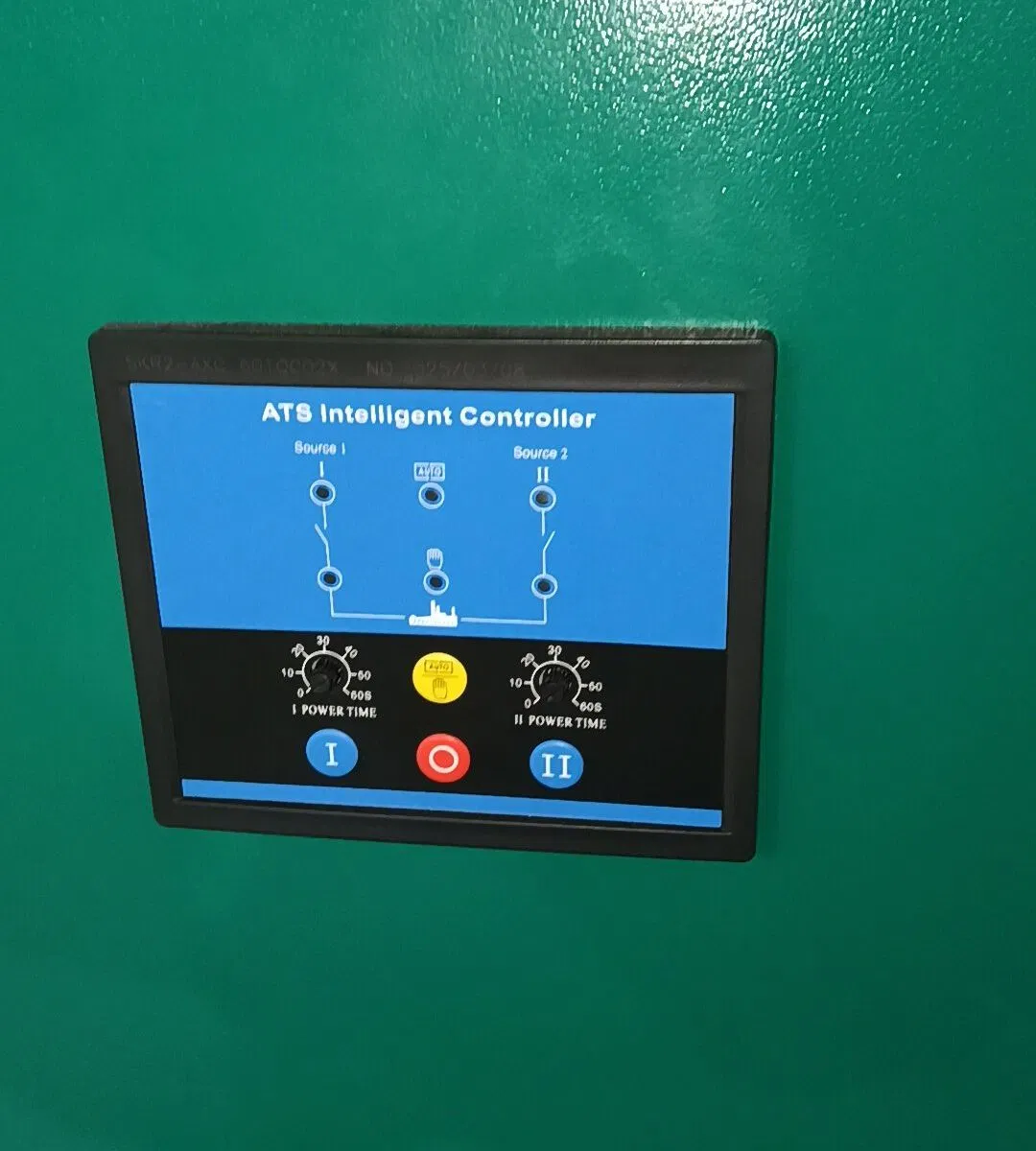

ATS Controller Features

Capacity: 630A
Compatible Breaker Brands: Smartgen, AISIKAI, SUYANG, AB, SOCOMEC

This series controller is specialized for ATS, featuring measurement display, local controlling, and remote controlling capabilities. Available models:

  • ACCEX 510: Automatic switching between mains and a single generator set.
  • ACCEX 550: Automatic switching between mains and dual generator sets.
  • Microcomputer control with advanced digital technology.
  • Programmable operating modes via control panel.
  • Clear LED status indicators.
  • PC connection supported through RS485 port for data reading and editing.

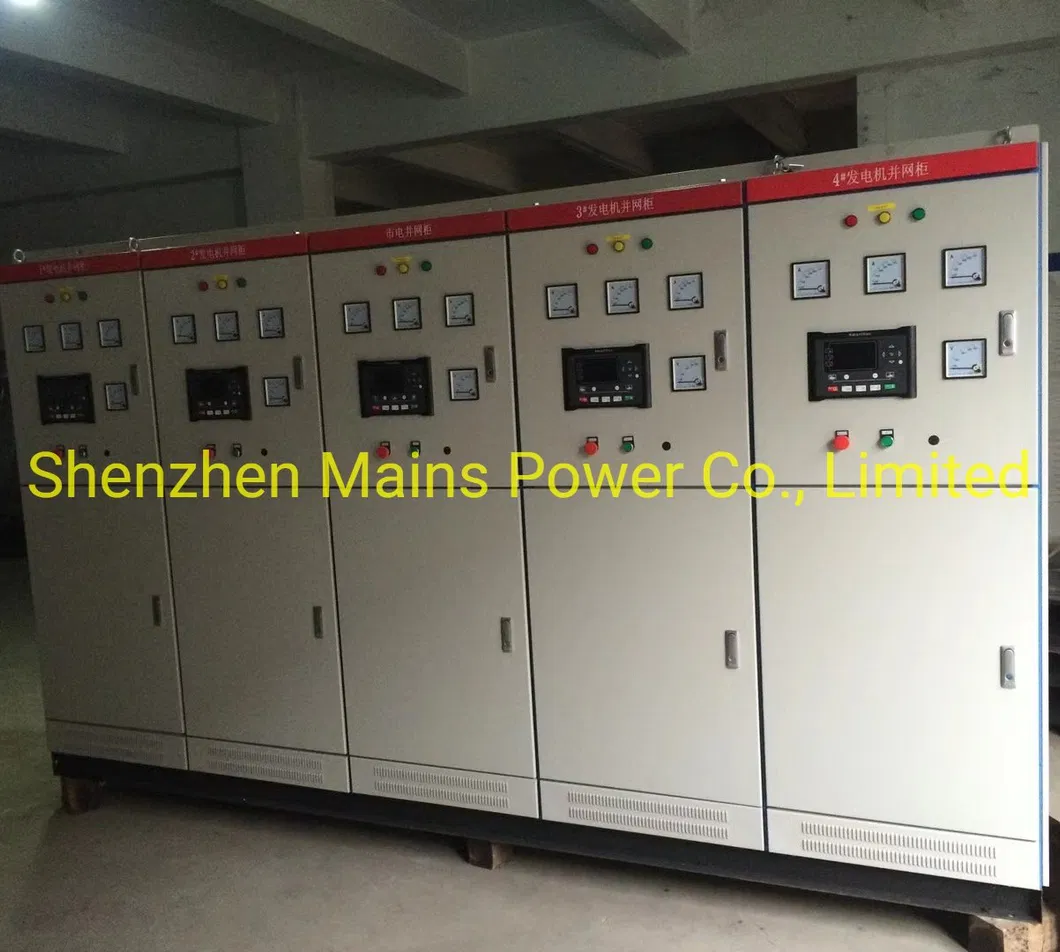

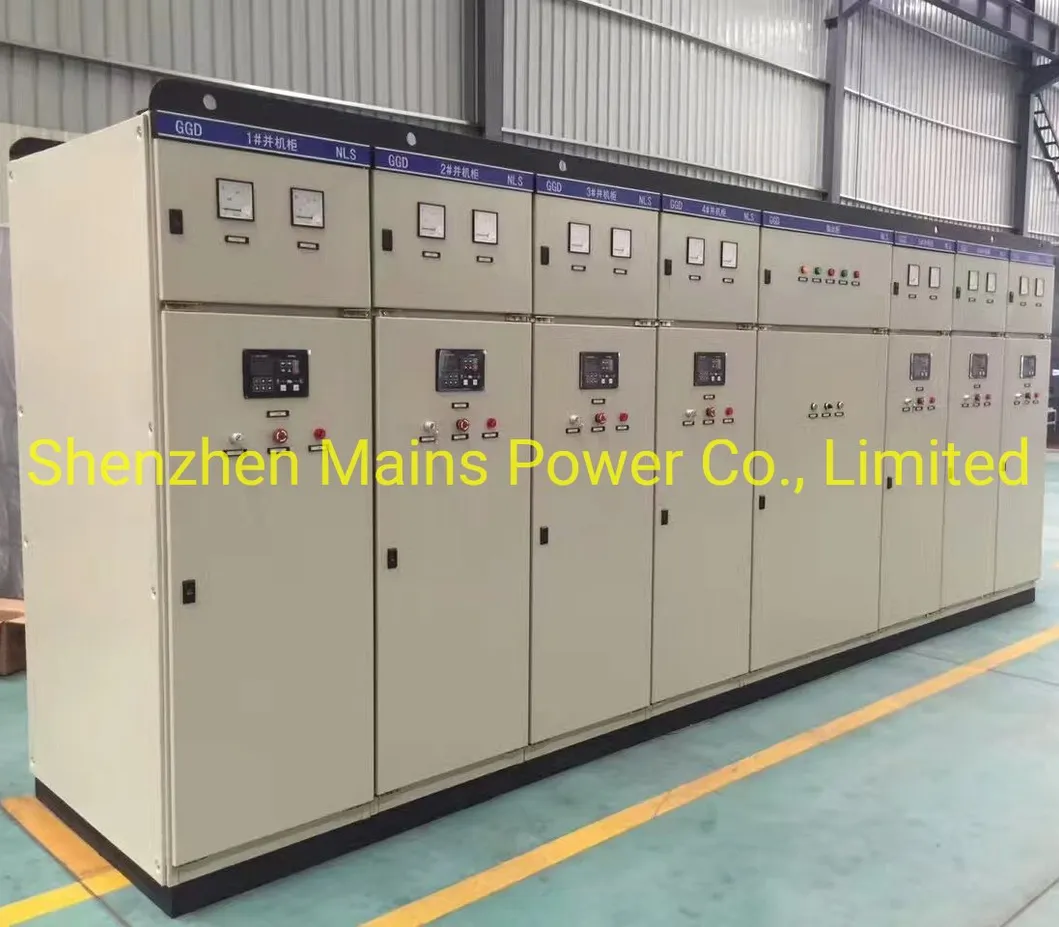

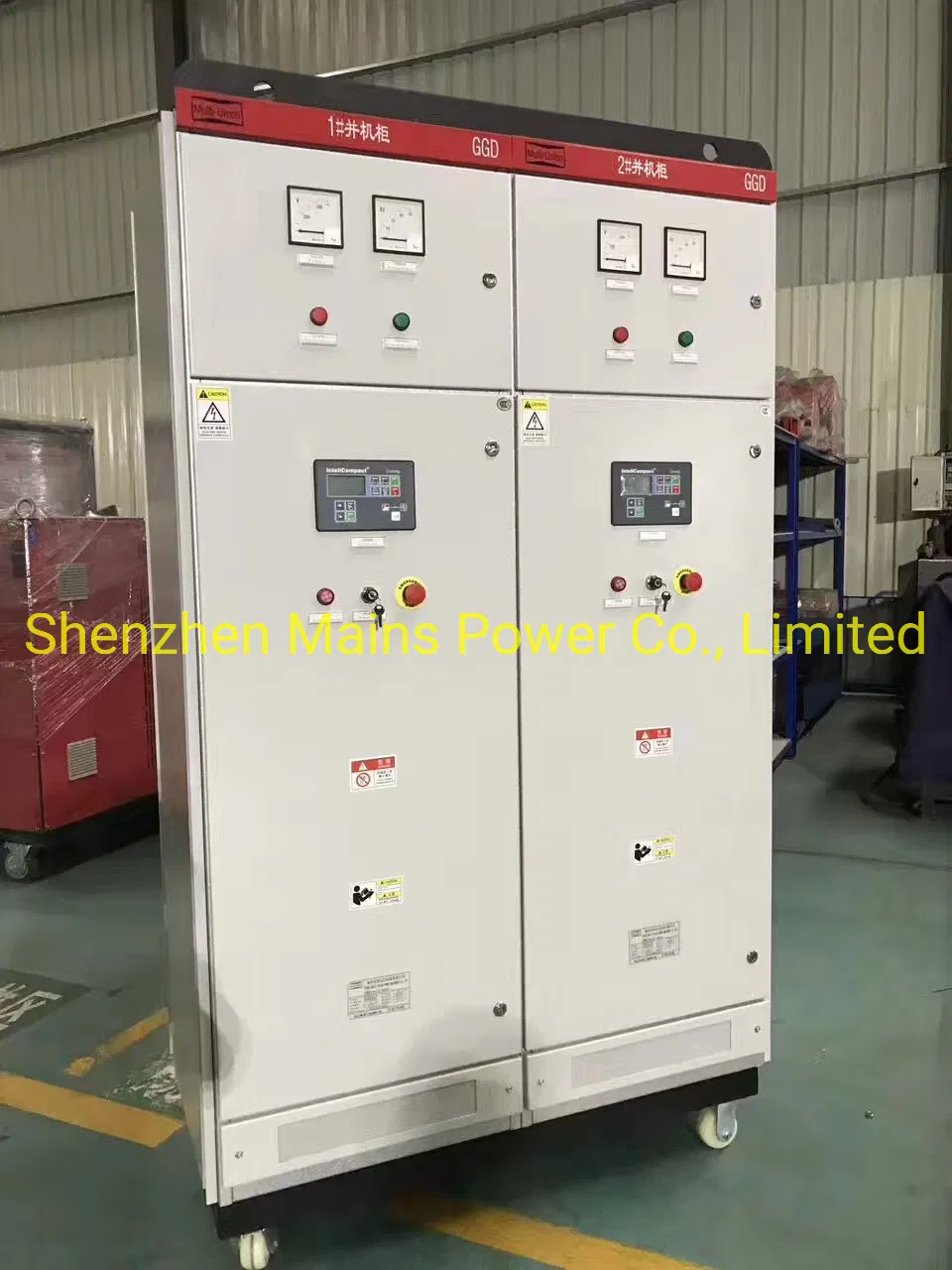

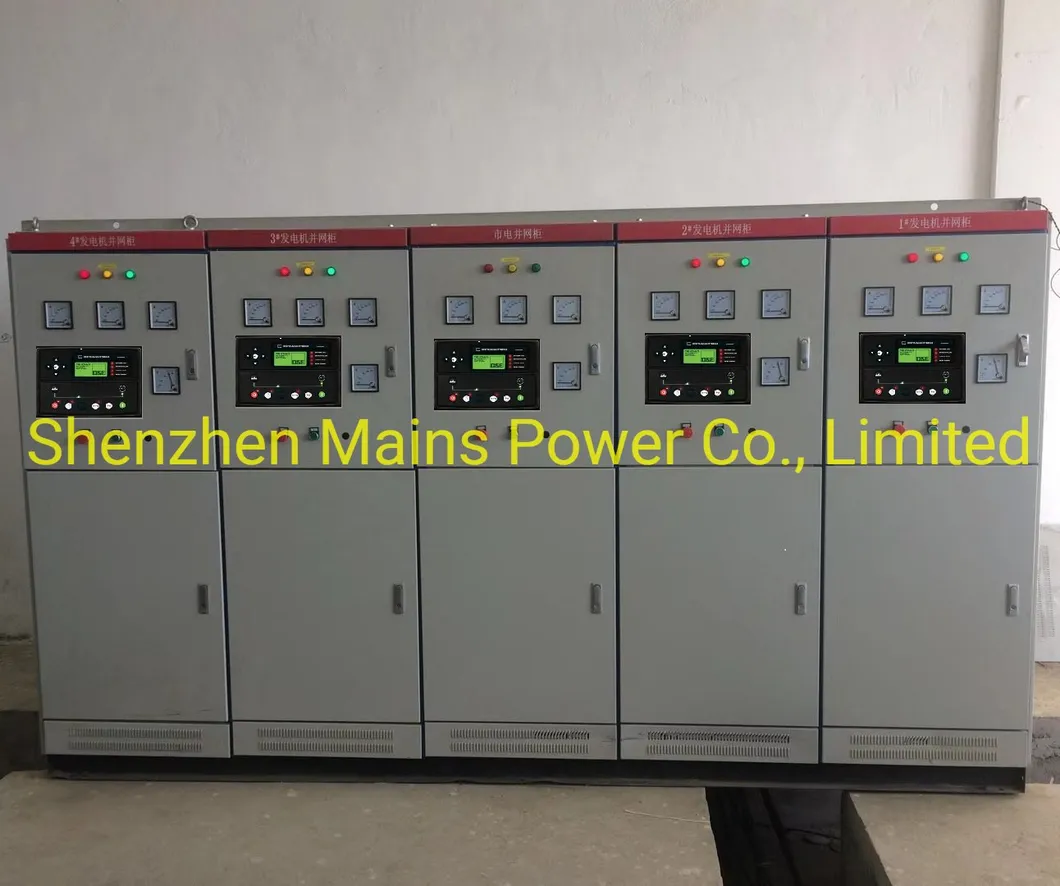

Automatic Synchronization System

Designed for the parallel running of diesel generator sets, this system allows up to 16 units to run in auto-synchronization. When connected with ATS, it manages automatic starting and synchronization, adjusting the number of active units based on load requirements to ensure stable power supply.

Core System Advantages:

  • High Reliability: Comprehensive protection for both the machinery and operators.
  • Wide Application: Can operate as a single power supply or as part of a complex synchronization system.
  • Easy Operation: Fully automatic control with English-Chinese operation systems and internal failure detection.
  • Optimized Operation Cost: Runs the precise number of generators needed to avoid low-loading inefficiency.
  • Scalable Investment: Expand capacity by adding new generator sets as your load requirements grow.
Product Gallery
Frequently Asked Questions
What is the maximum current capacity of this ATS cabinet?
The system is designed with a high capacity of 630A, suitable for heavy-duty industrial and commercial use.
Which breaker brands can be used with this system?
The system is compatible with top-tier brands including Smartgen, AISIKAI, SUYANG, AB, and SOCOMEC.
How many generator sets can be synchronized together?
The Automatic Synchronization System supports parallel running for up to 16 diesel generator sets simultaneously.
Does the controller support remote monitoring?
Yes, it includes an RS485 port which allows for PC connection to read and edit all system data remotely.
What is the estimated service life of this unit?
With reliable performance and high-quality components, the unit is designed for a service life of approximately 10 years.
What are the main benefits of the synchronization system?
Key benefits include high reliability, ease of operation through automatic control, and significantly lower initial investment and operation costs by scaling generators as needed.
