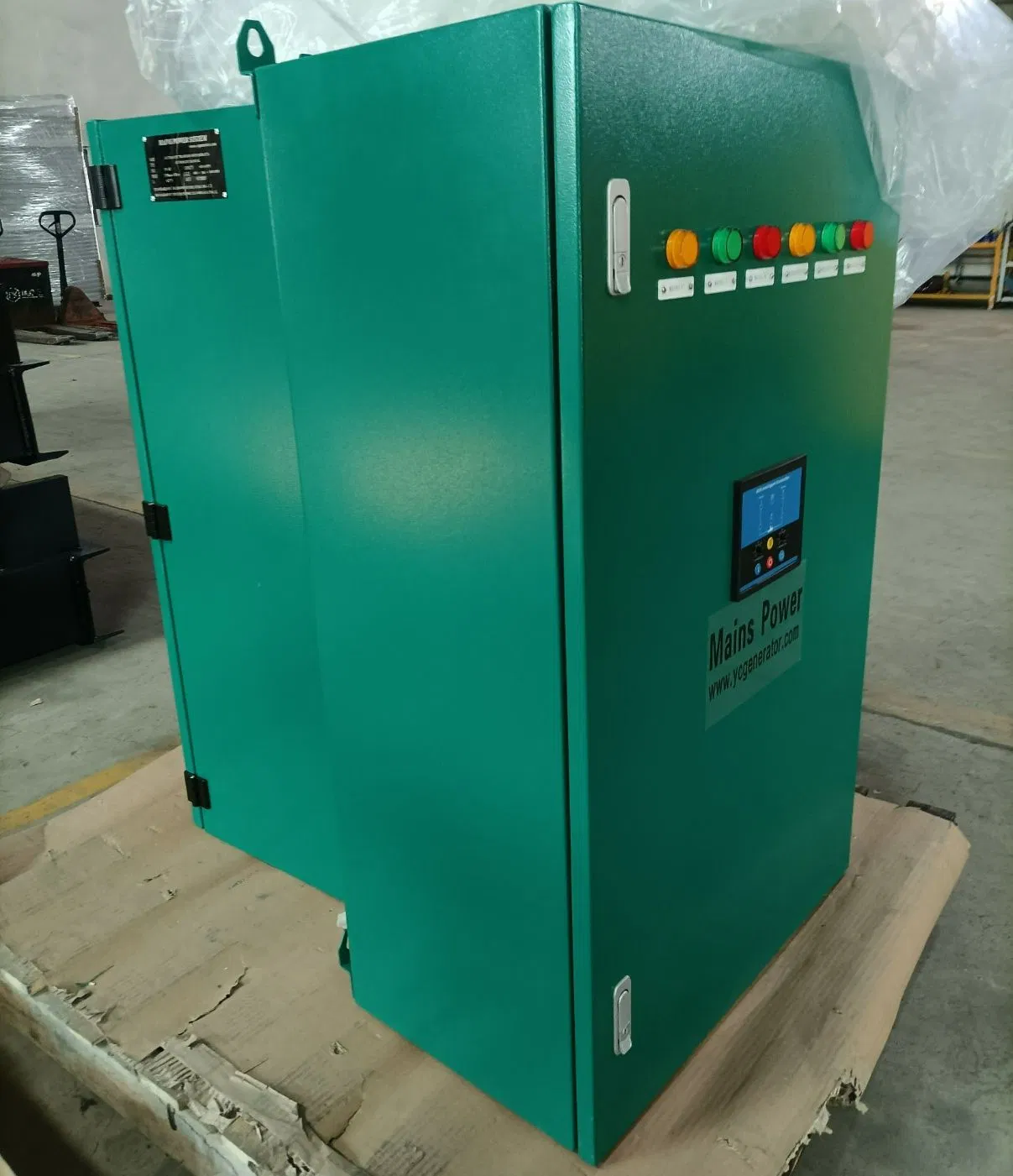

800ampere ATS Cabinet Automatic Transfer Switch 800ampere Automatic Changeover Swtich

Customization: Available
After-sales Service: Global Service Policy
Warranty: 2 Years

Product Description

Basic Specifications
Model NO.
MP-800-ATS
Type
Self-Starting Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type
Automation Type
Excitation Mode
AC Rotating Exciter
Breaker
Name Brand
Quality
Continuous Working
Performance
Reliable Running
Life
10 Years
Specification
600*500*800mm
HS Code
8502

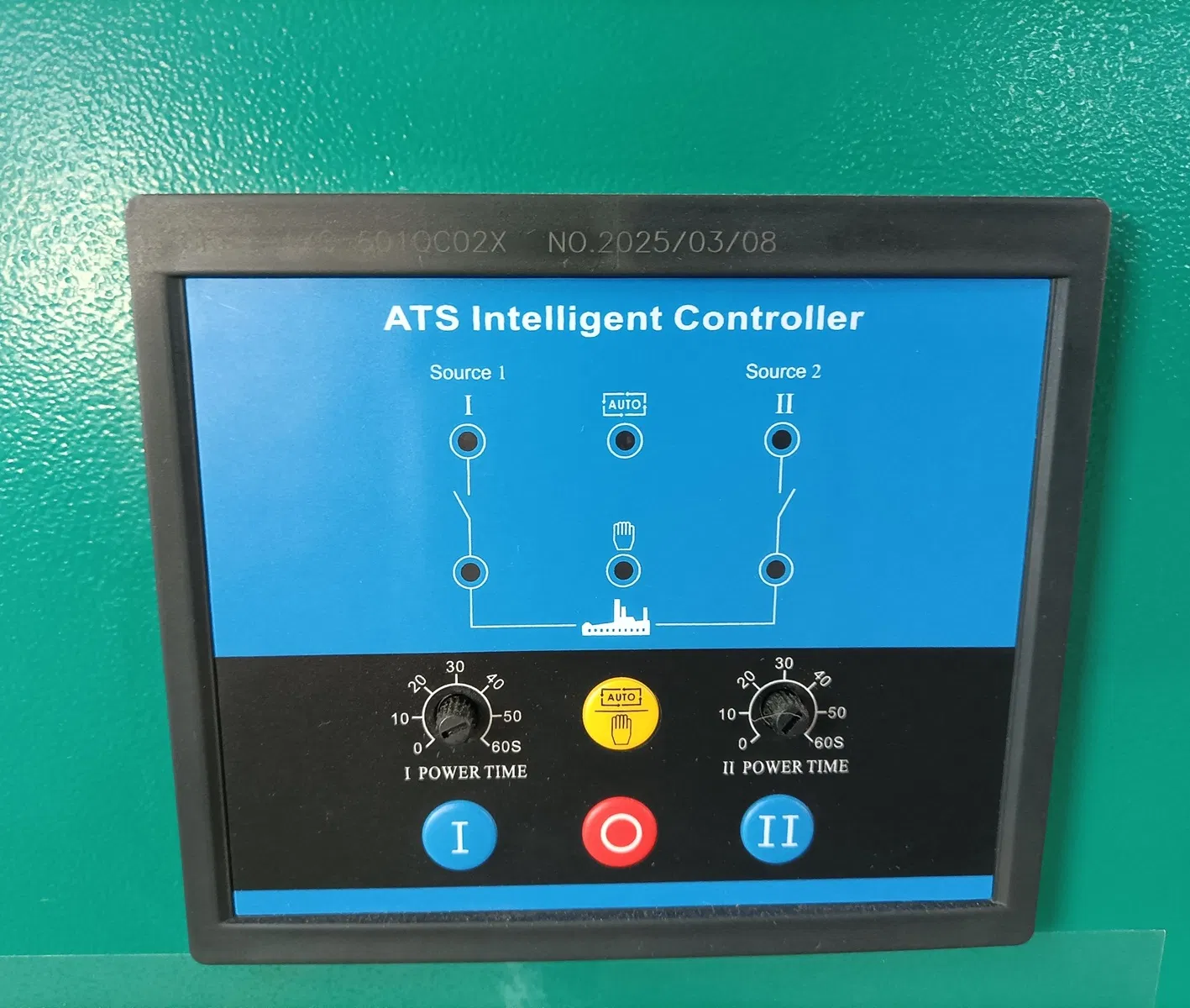

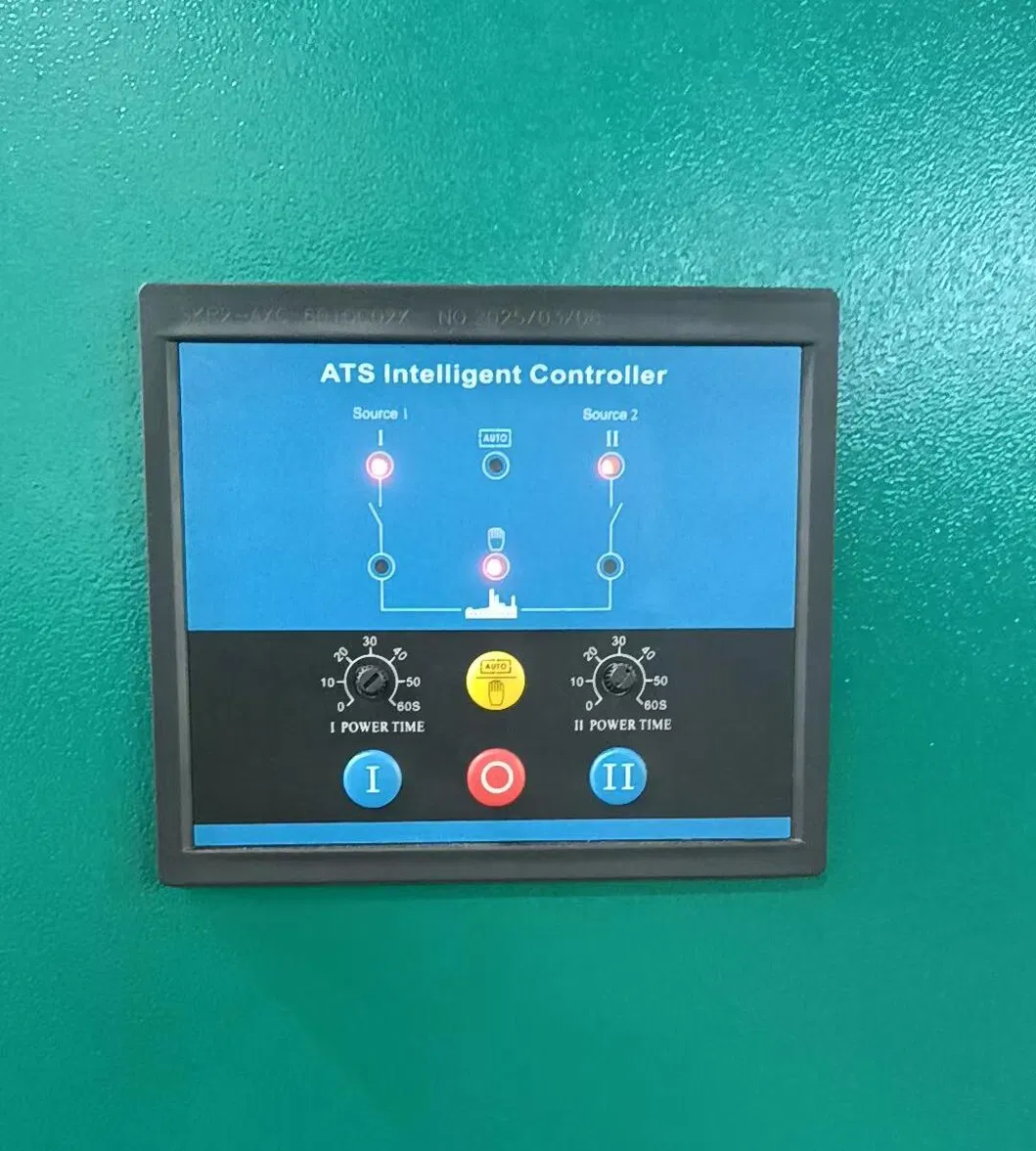

ATS Controller Overview

Capacity: 800A

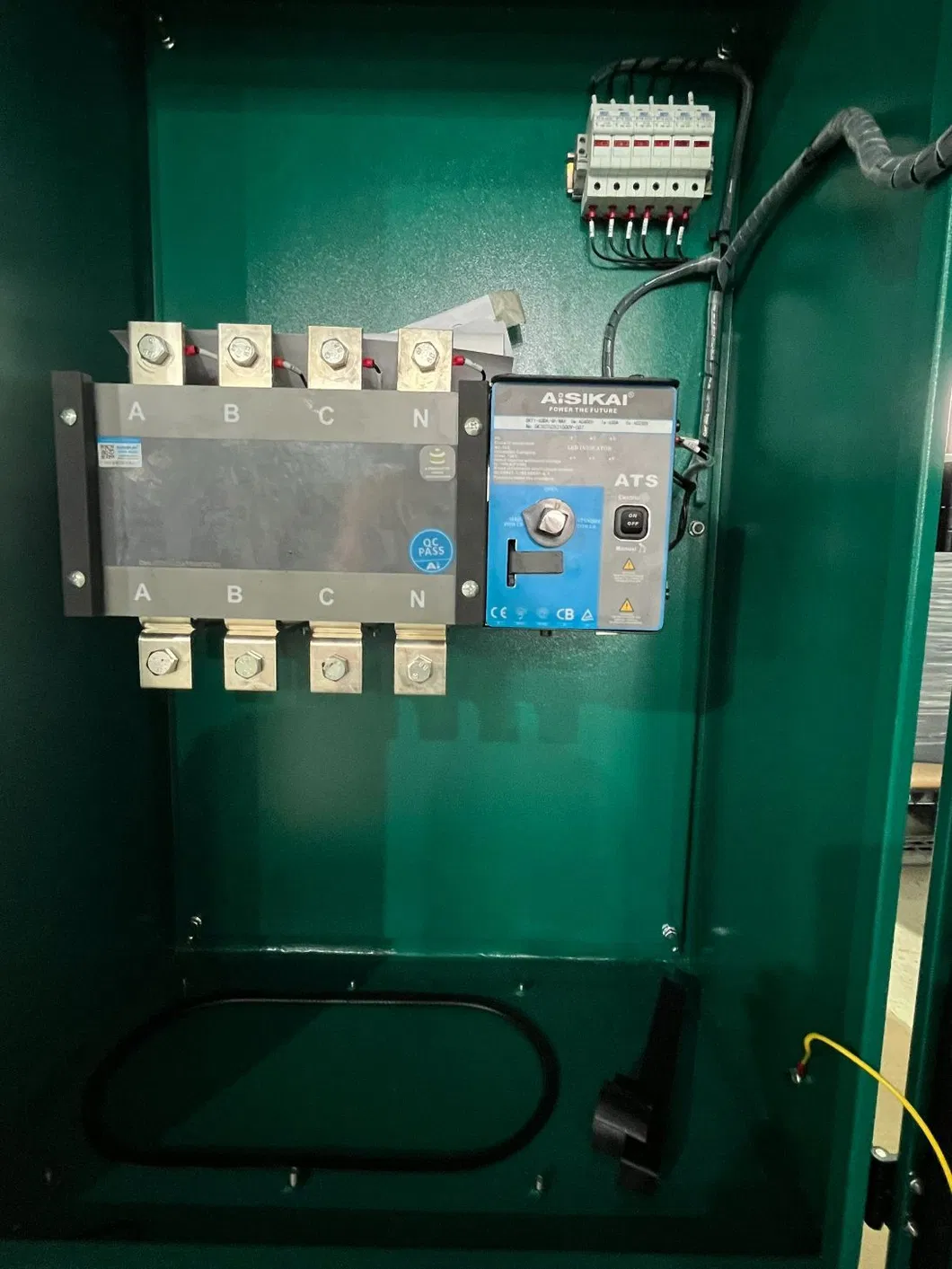

Breaker Brands: Smartgen, AISIKAI, SUYANG, AB, SOCOMEC

The series controller is specialized for ATS, featuring measurement display, local controlling, and remote controlling capabilities. Two professional models are available:

Model 510: Specialized for switching between mains and generator set.
Model 550: Specialized for switching between mains and dual generator sets.
  • Microcomputer control with advanced digital technology.
  • Operating modes fully programmed via the control panel.

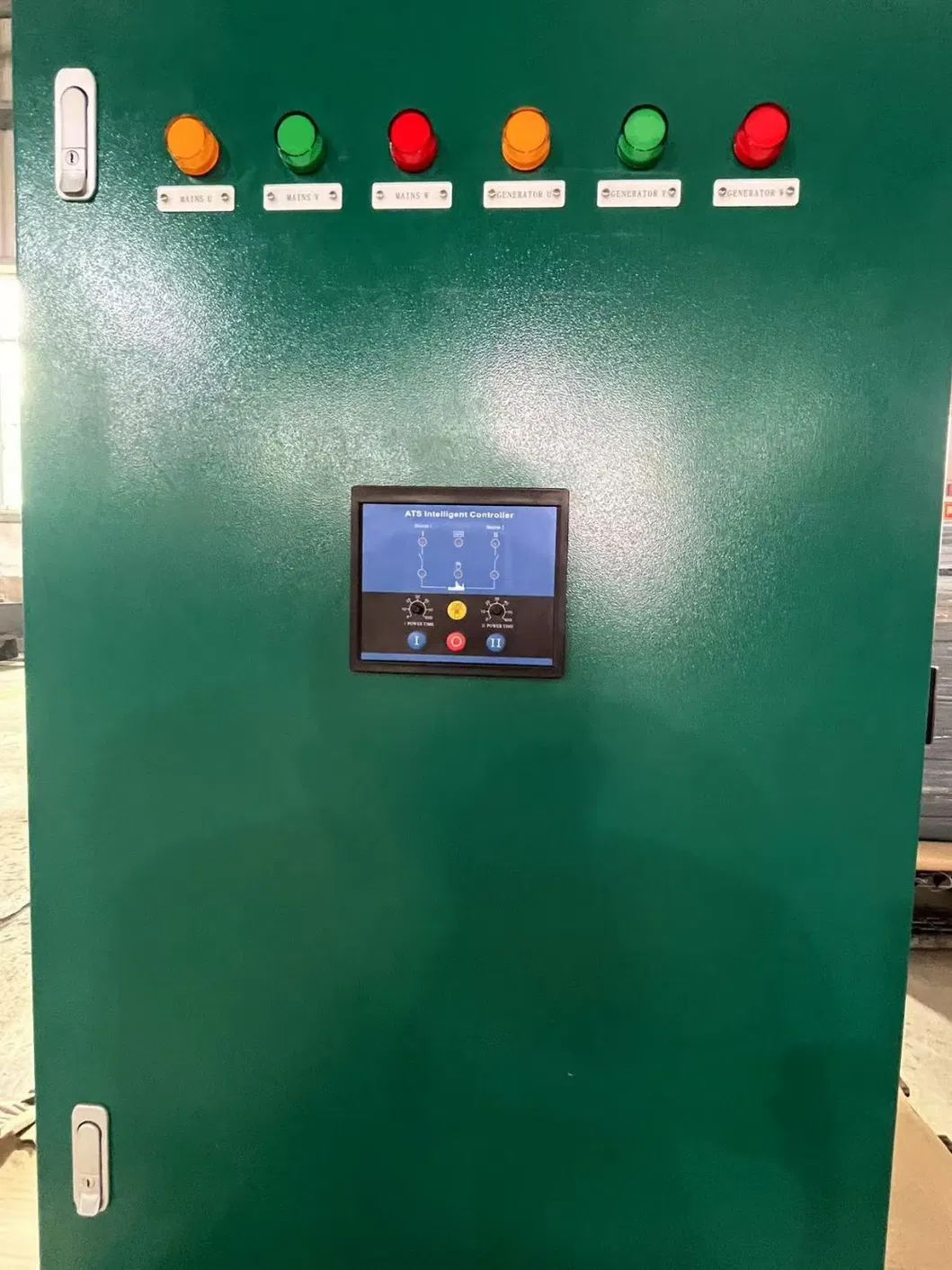

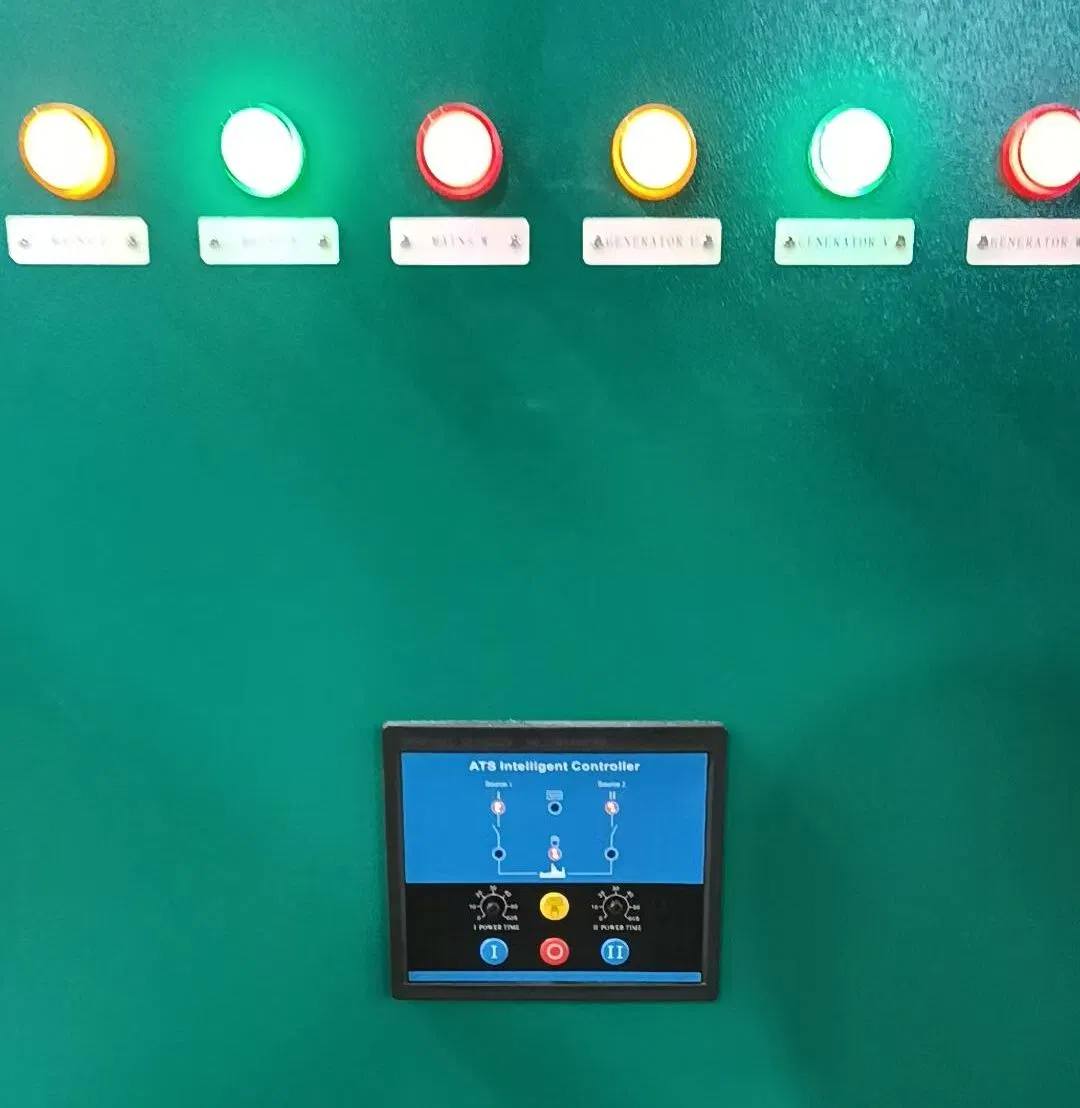

  • Clear LED indicators for status monitoring.
  • PC connection supported through RS485 port.
  • Comprehensive data accessibility (readable and editable).

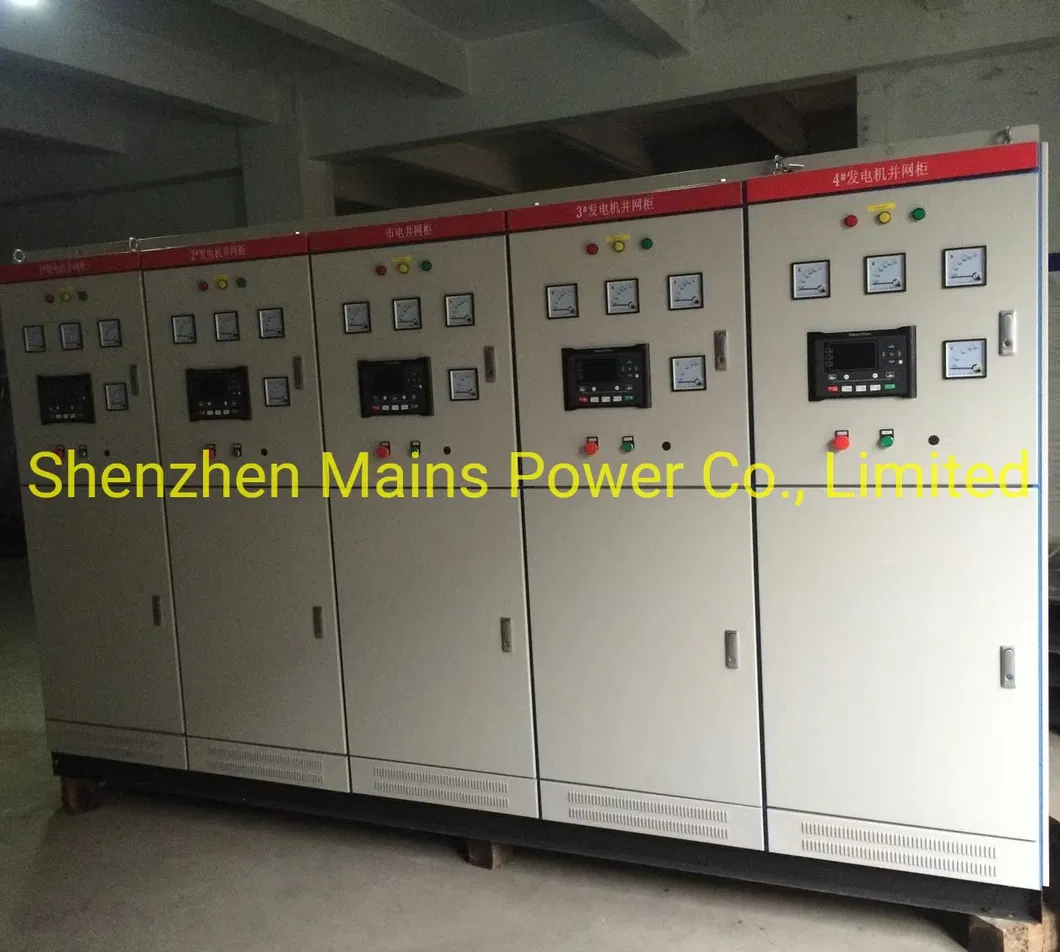

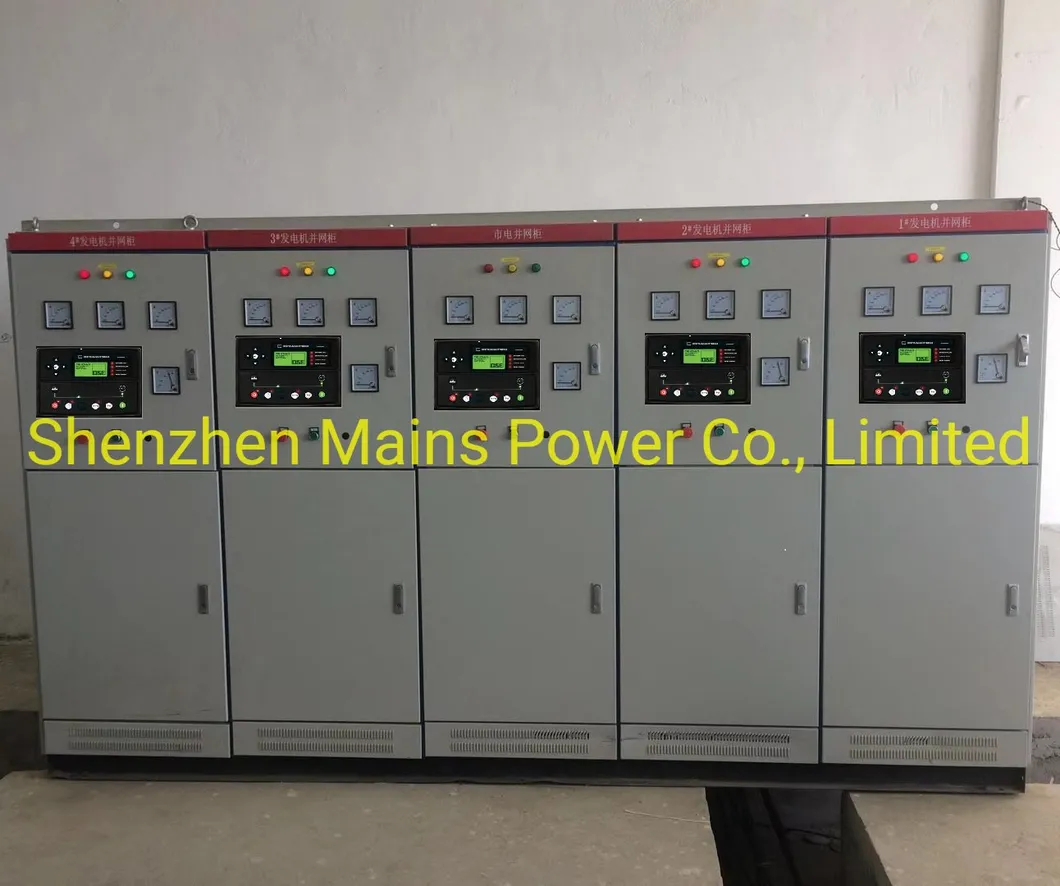

Automatic Synchronization System

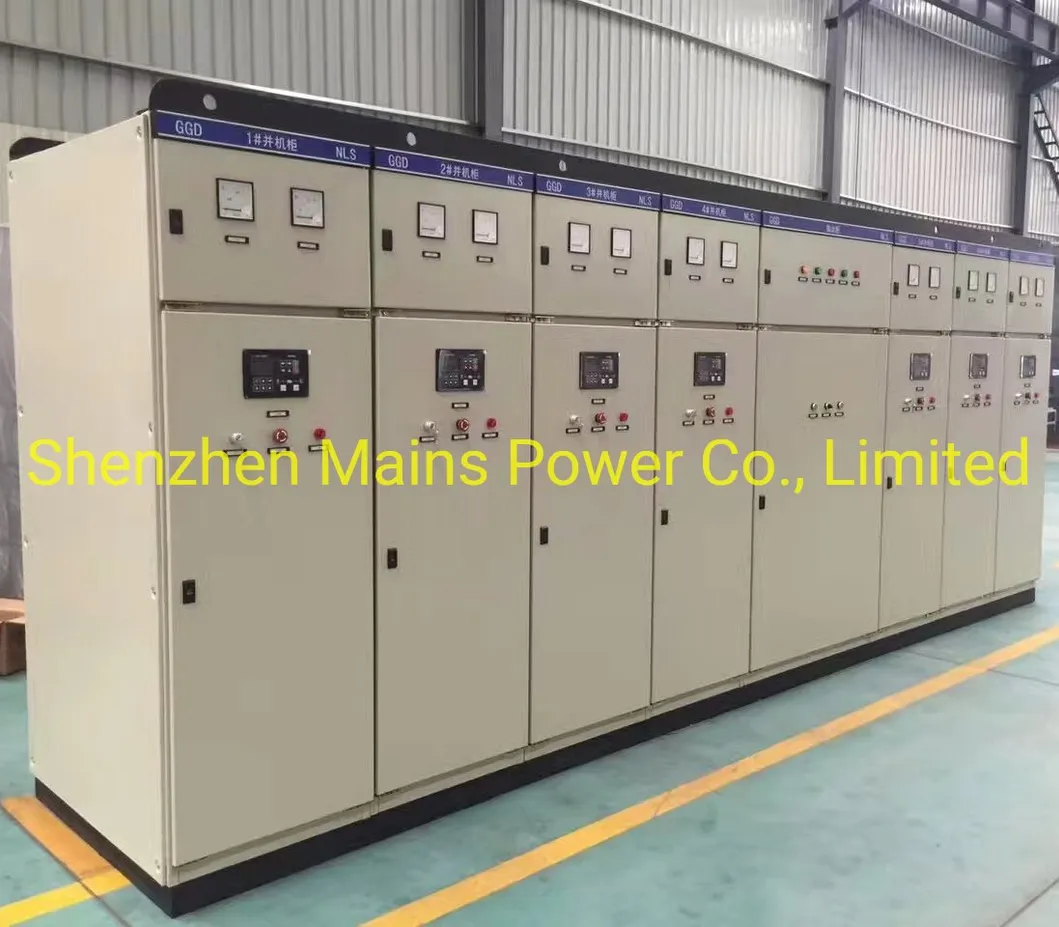

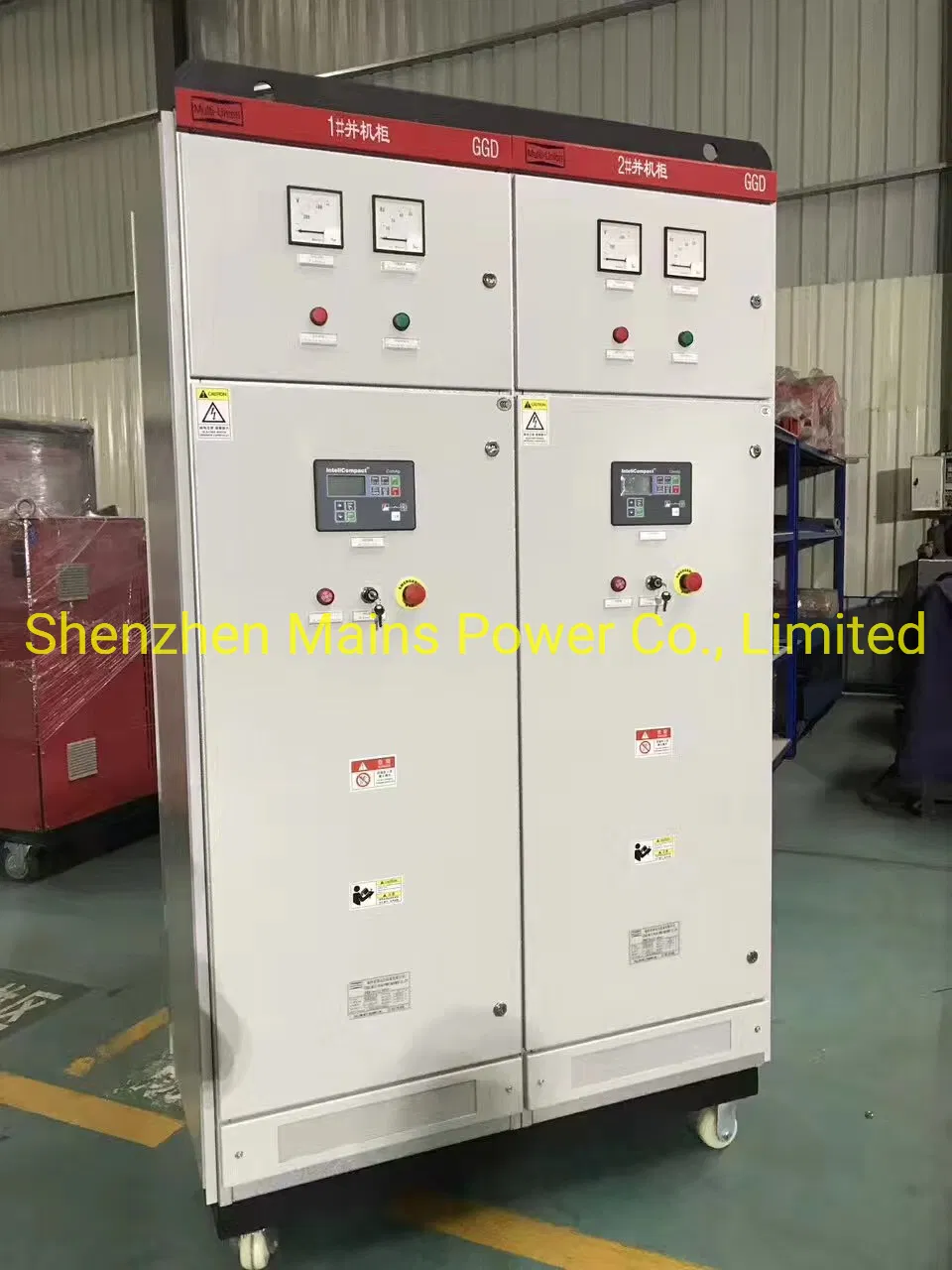

Designed for parallel running of diesel generator sets, this system allows up to 16 units to run in auto-synchronization. When connected with ATS, the system manages start-up and synchronization automatically, adjusting the number of active units based on load demands to ensure stable power supply.

System Advantages
High Reliability: Integrated protection for both machines and operators.
Wide Application: Can function as a single power supply or part of a complex synchronization grid.
Easy Operation: Features English-Chinese operation system and internal failure detection.
Cost Efficiency: Optimizes fuel and wear by running the exact number of sets required for the load.
Scalable Investment: Expand your capacity by adding new sets as power demands grow.

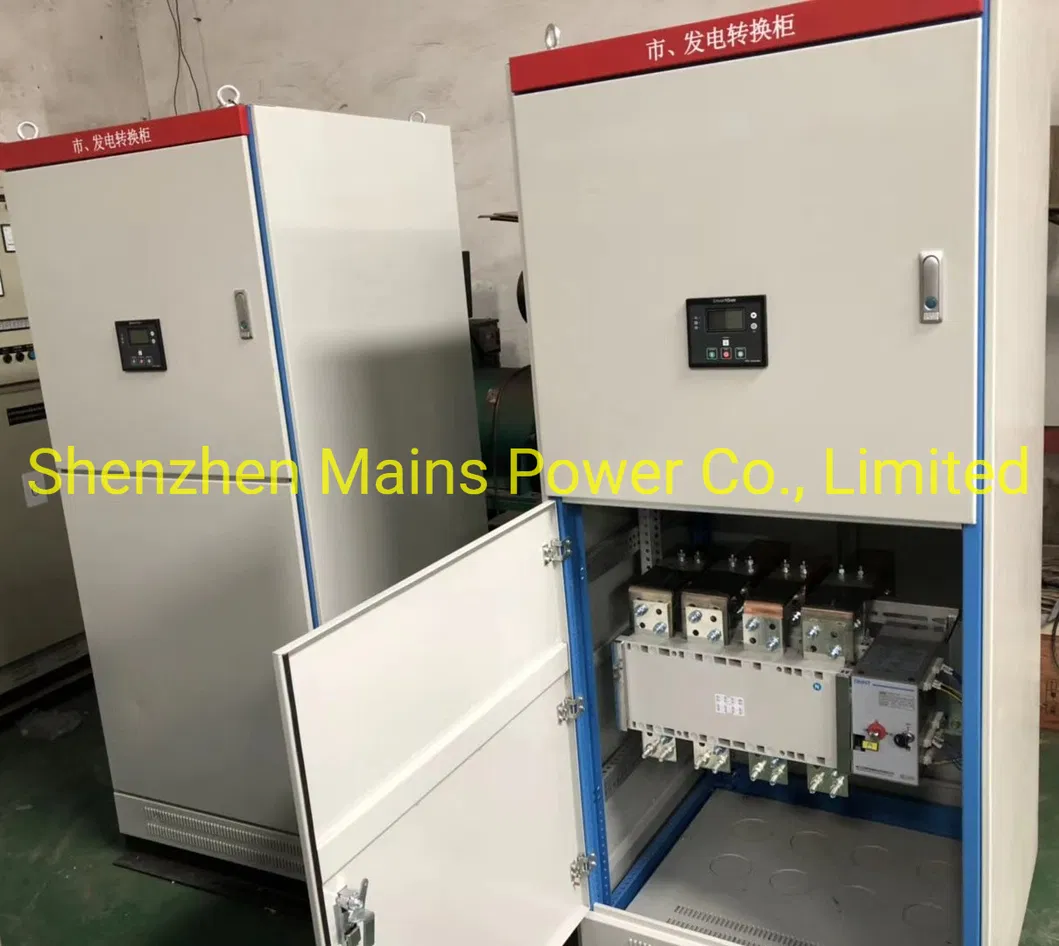

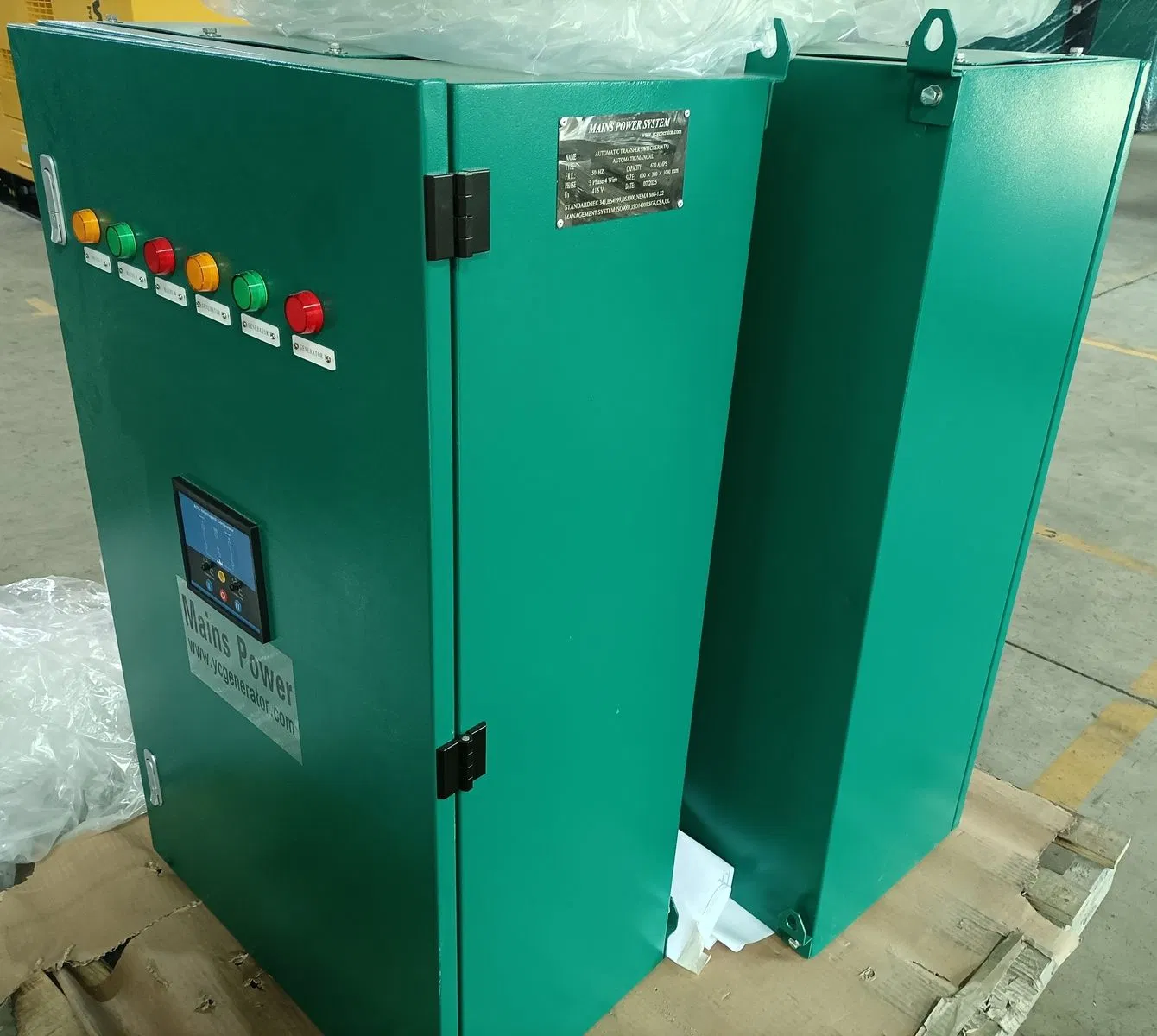

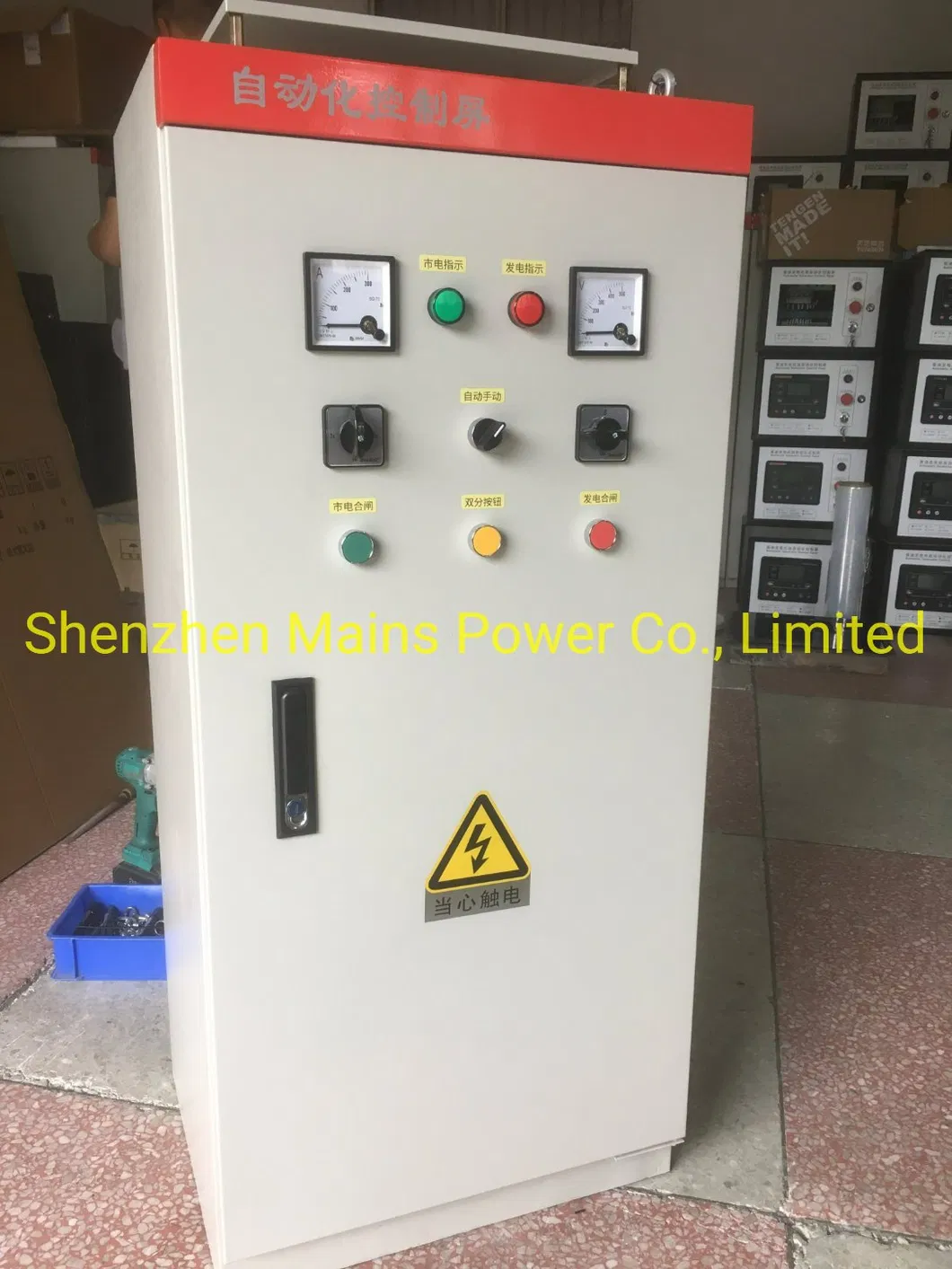

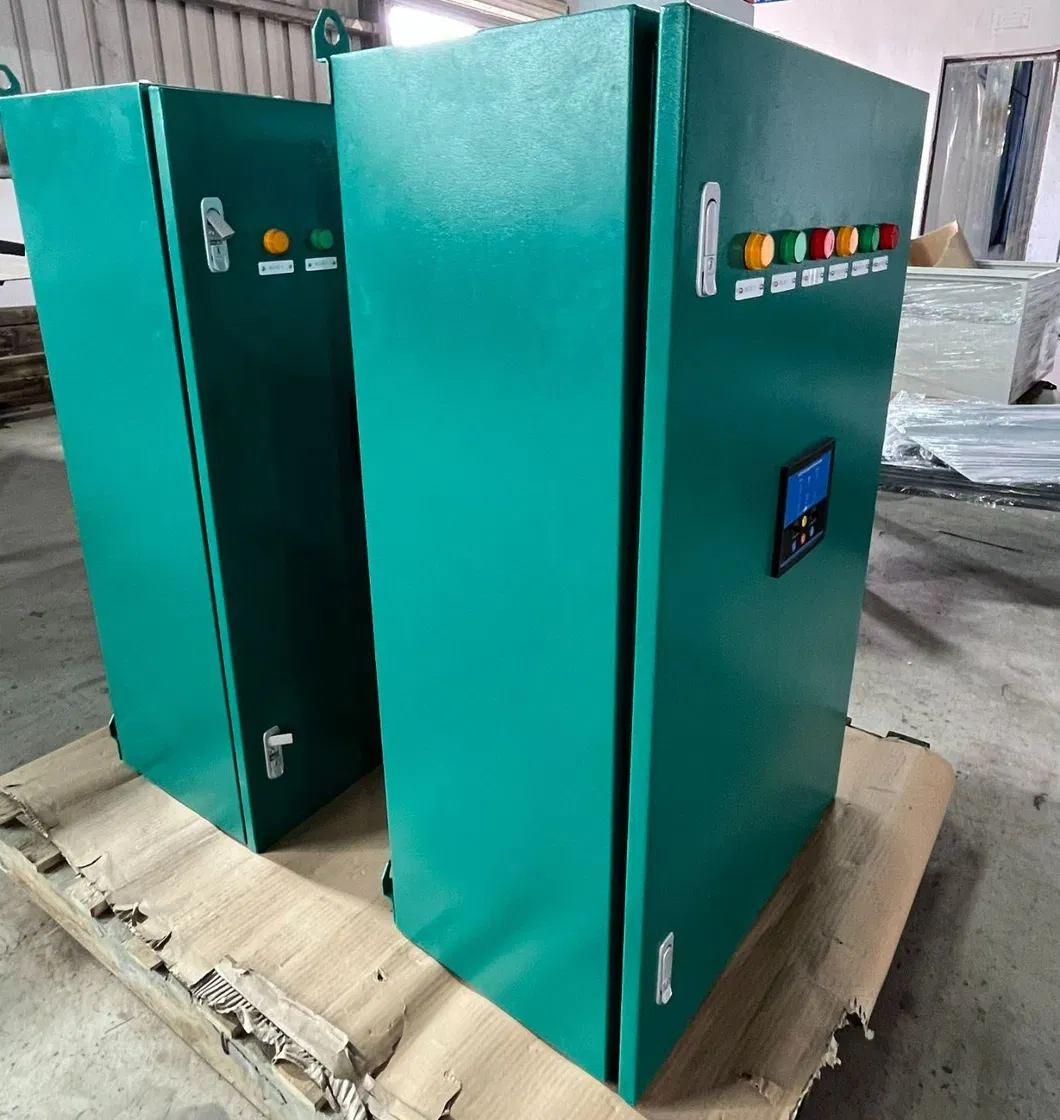

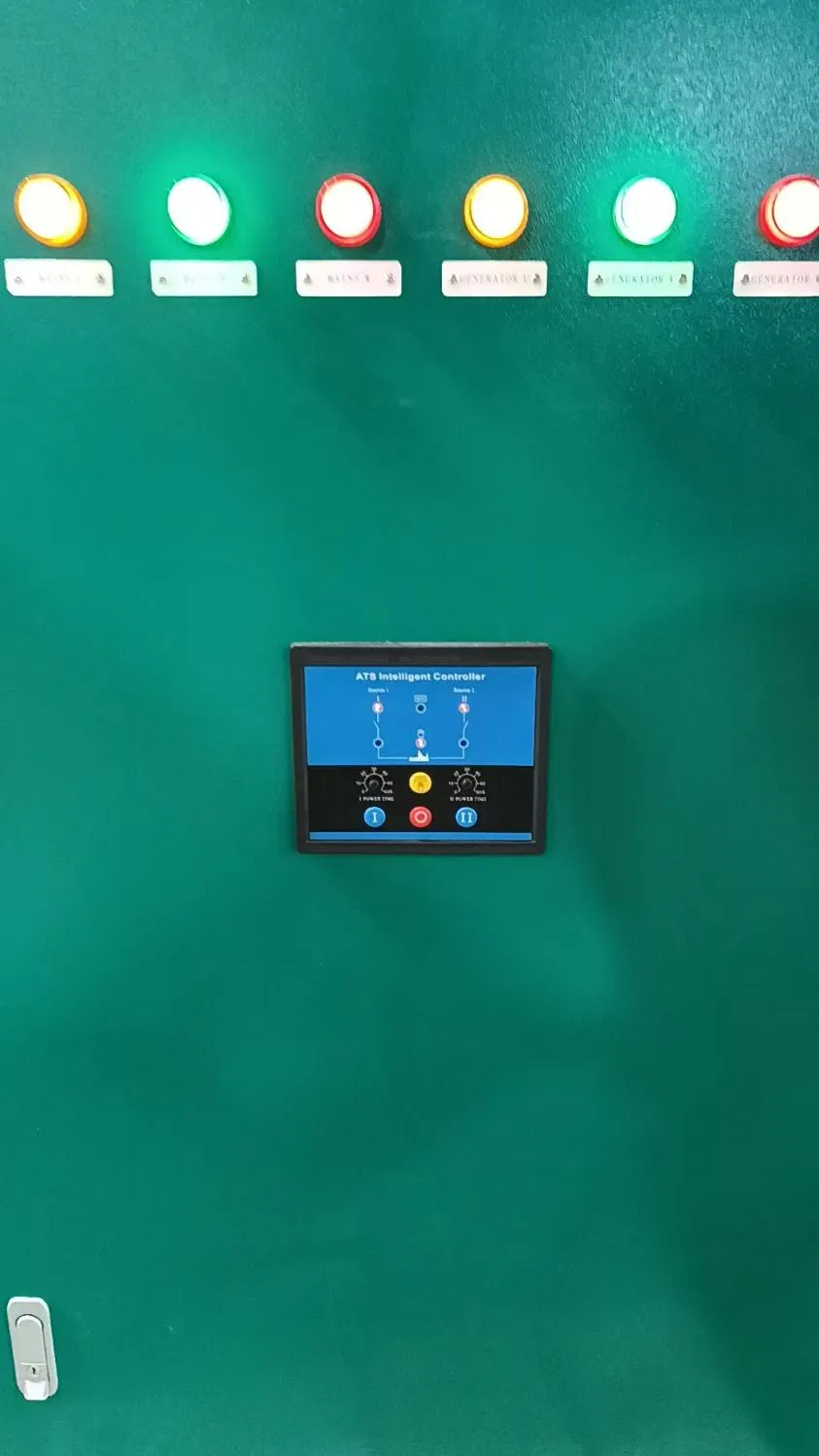

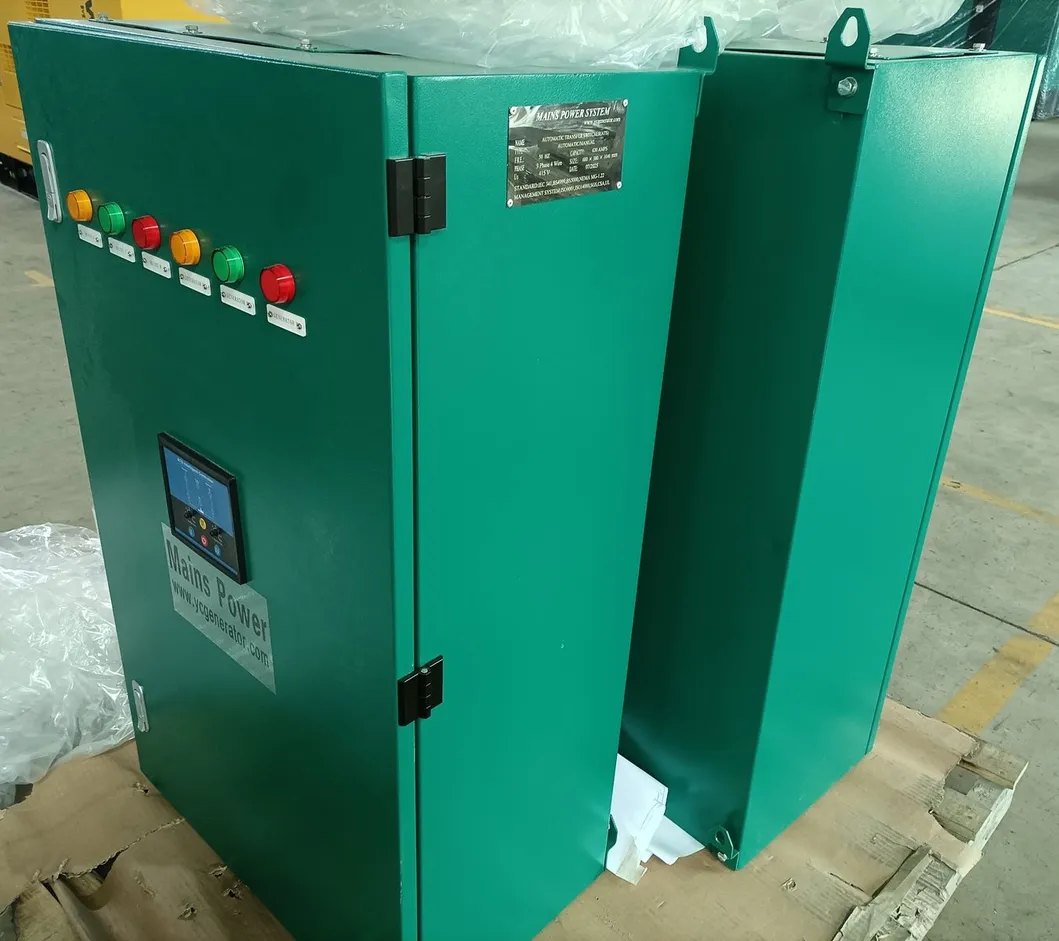

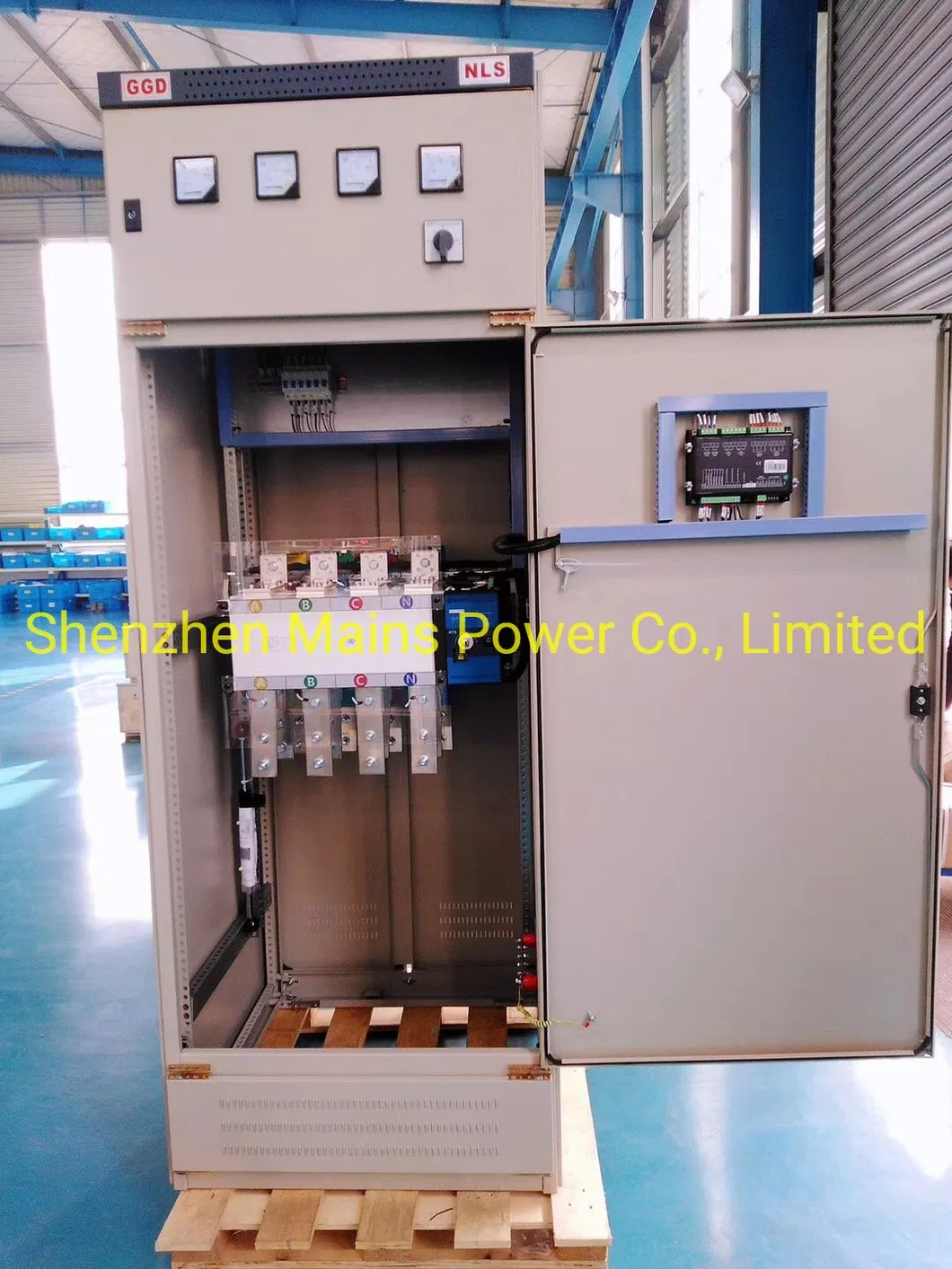

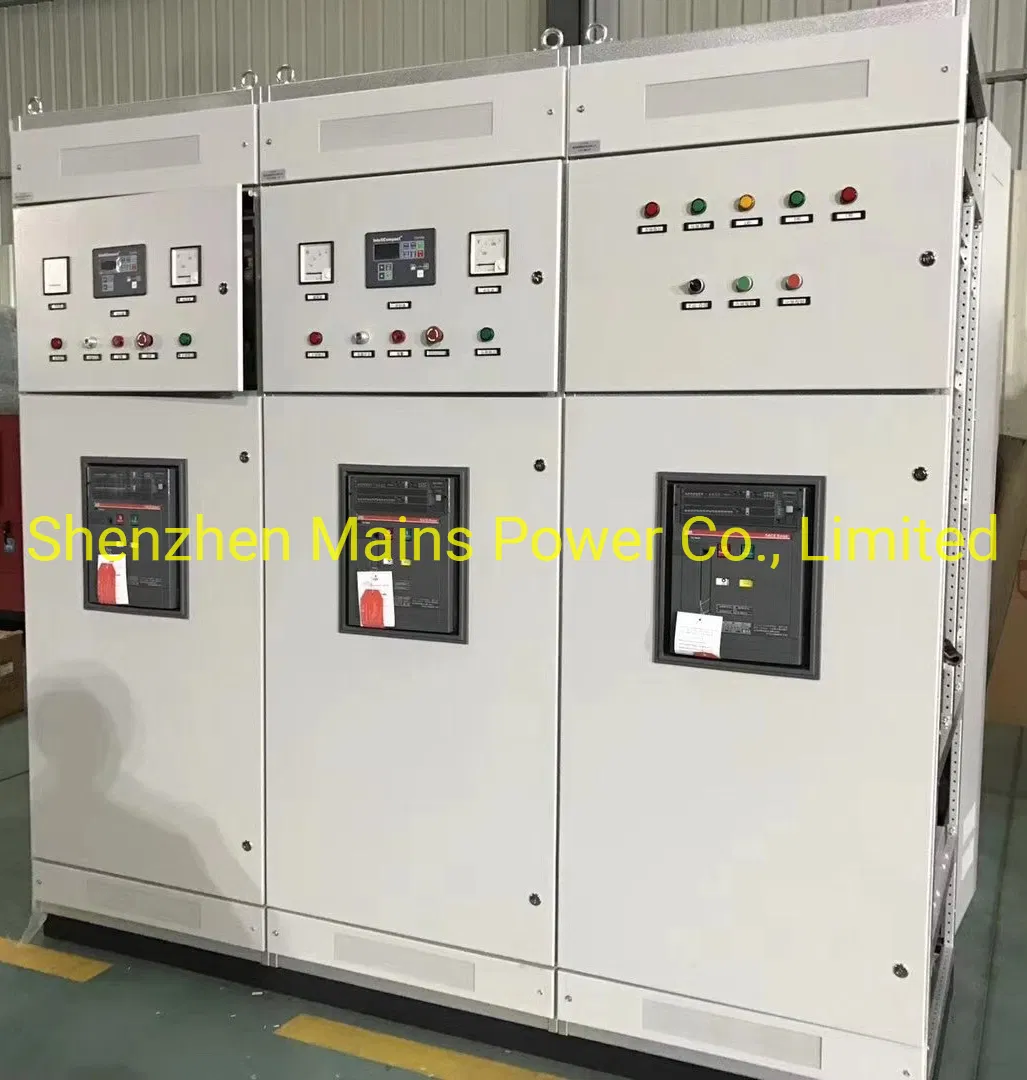

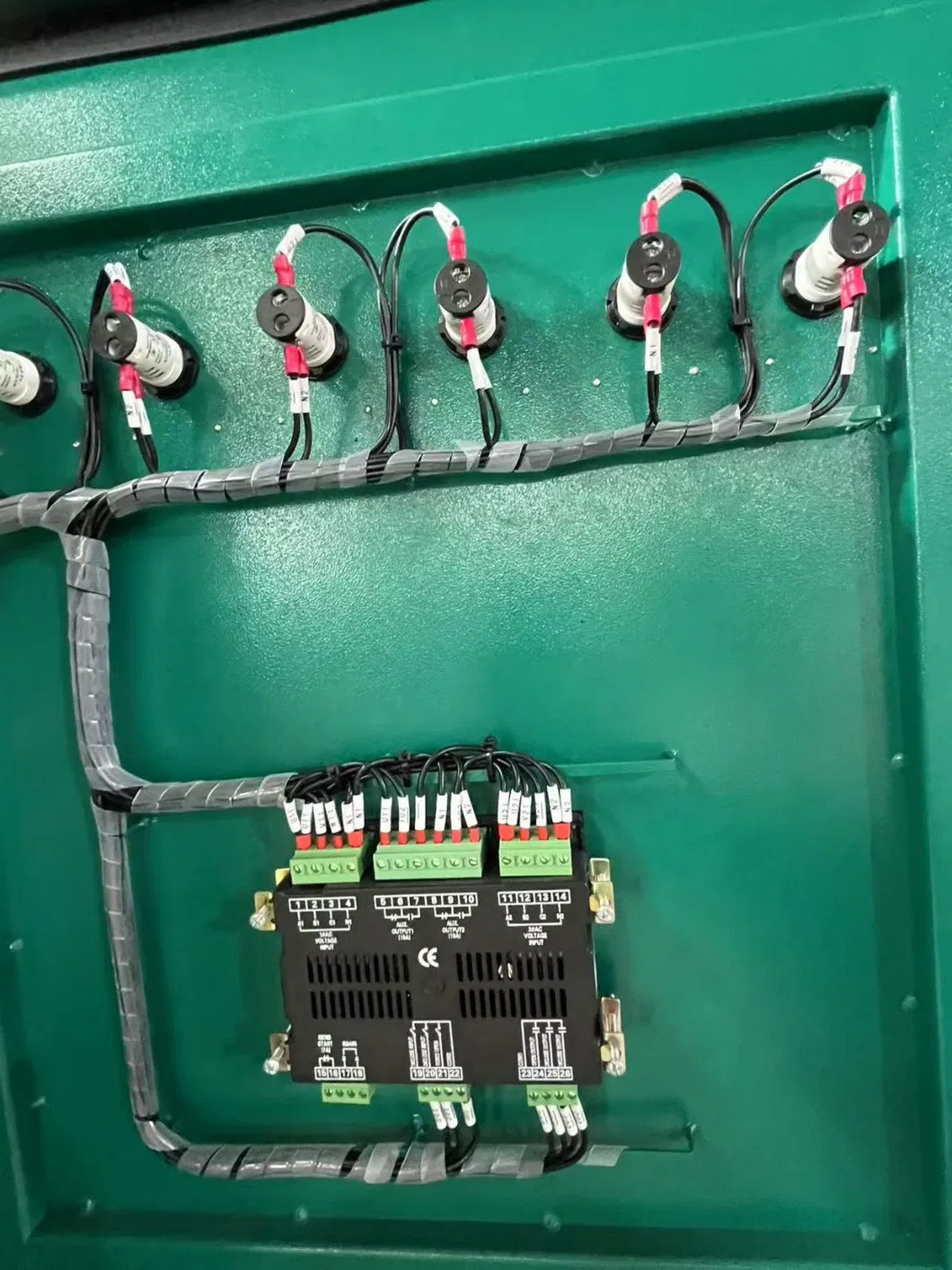

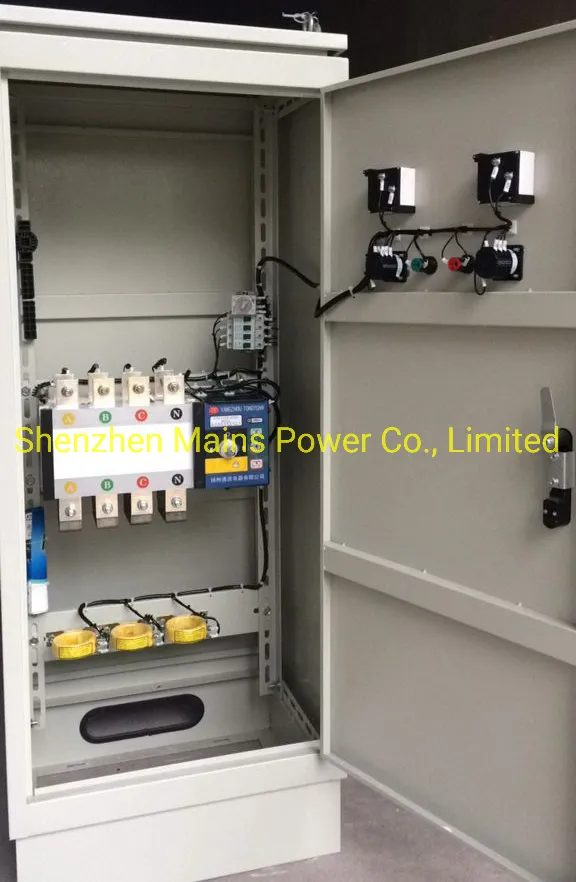

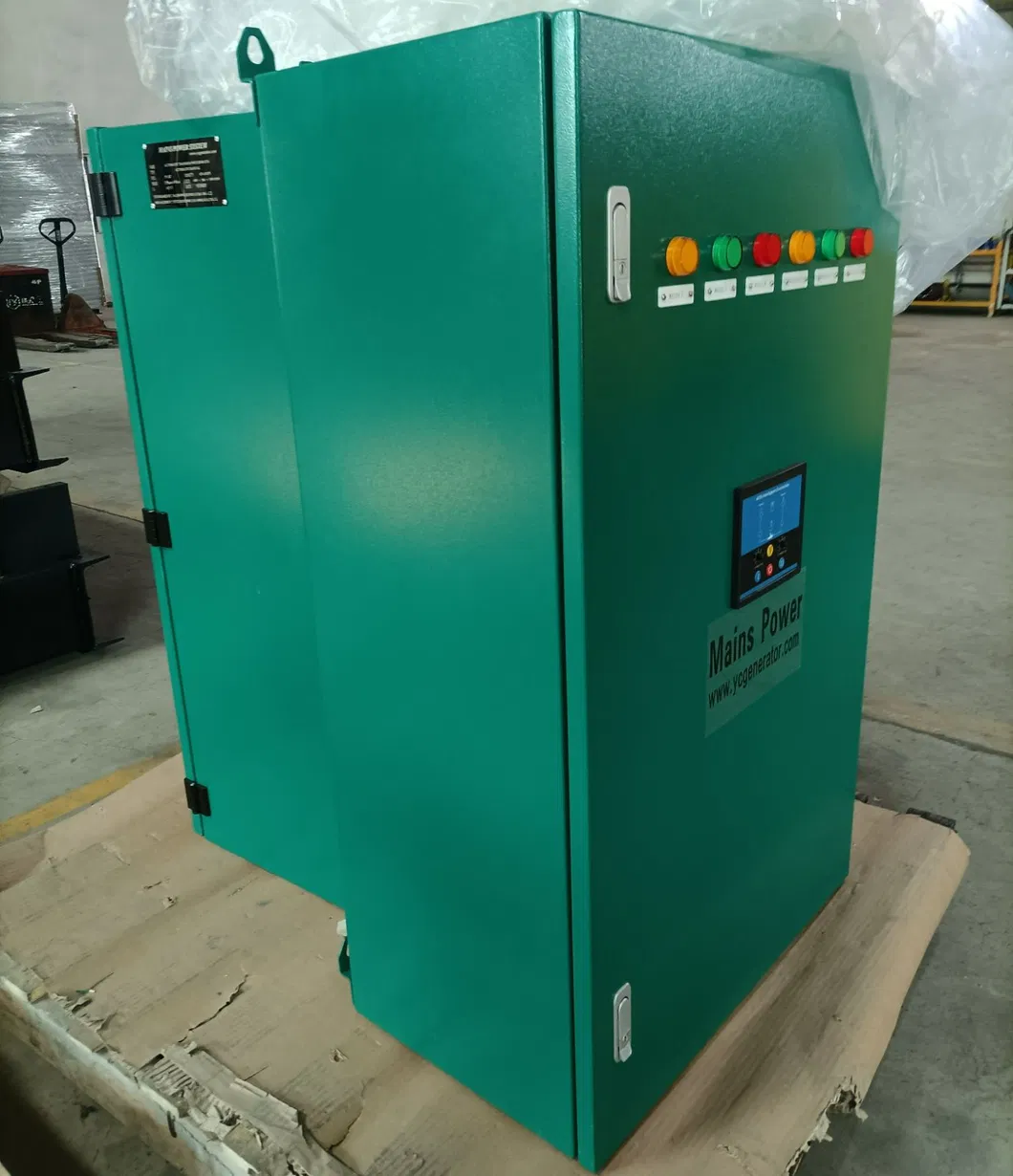

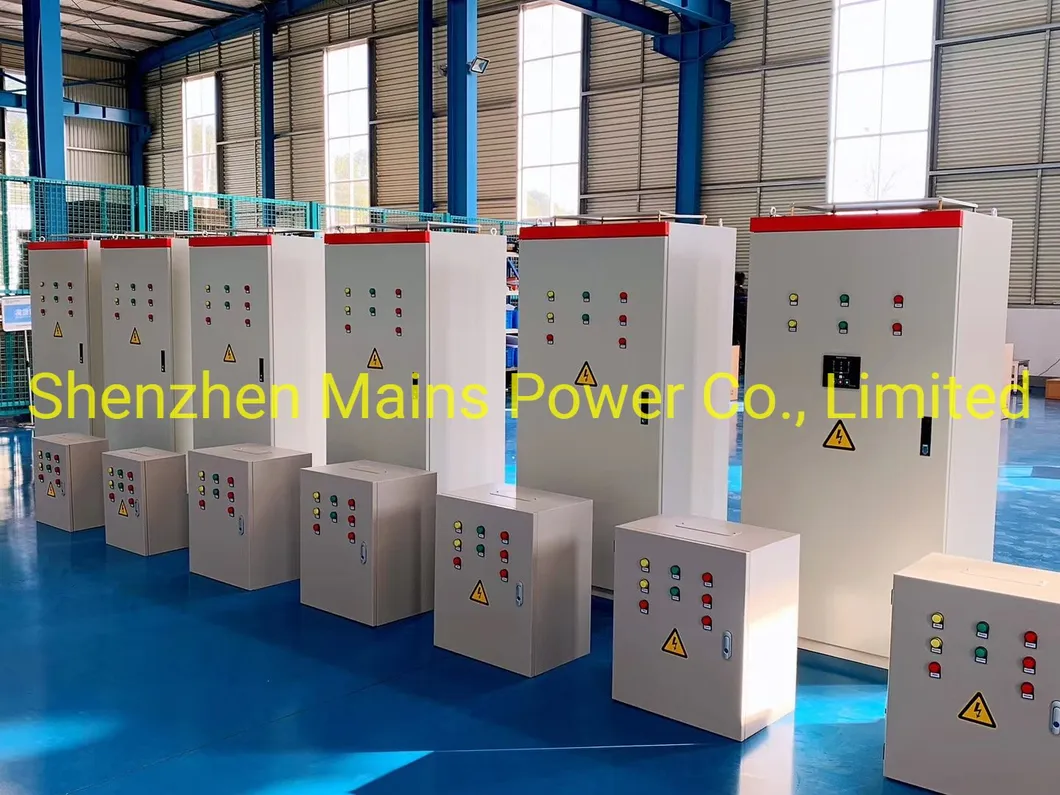

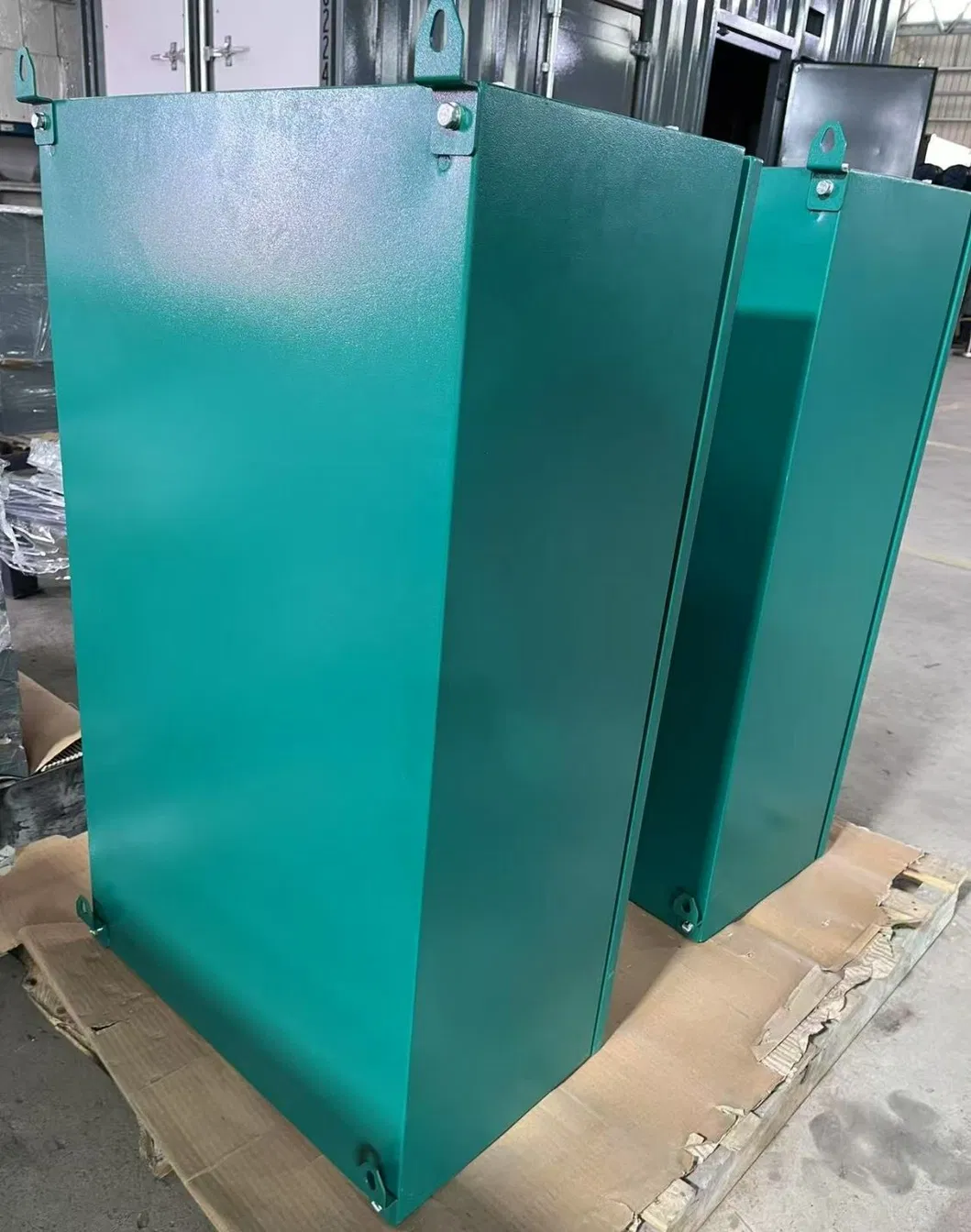

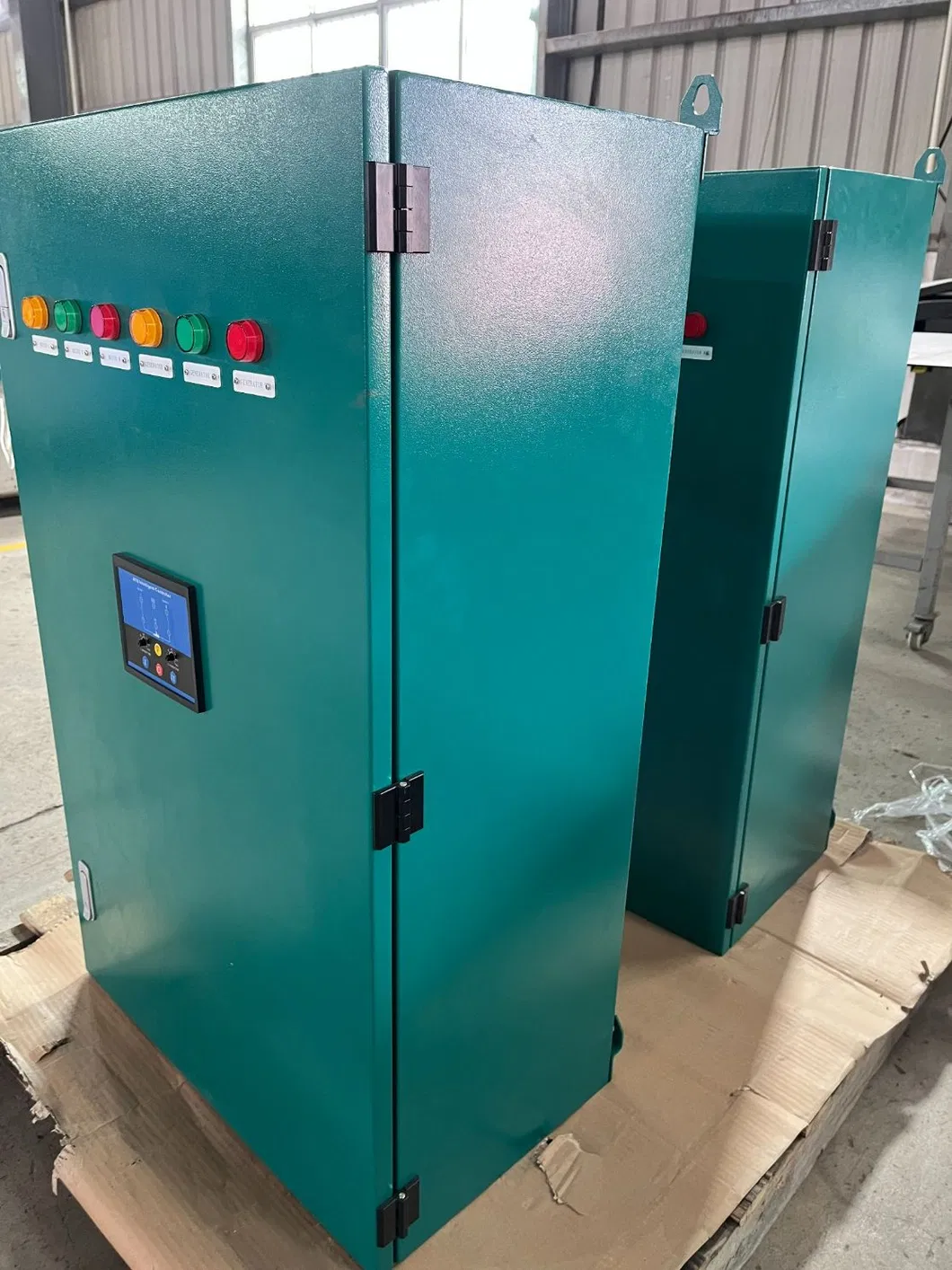

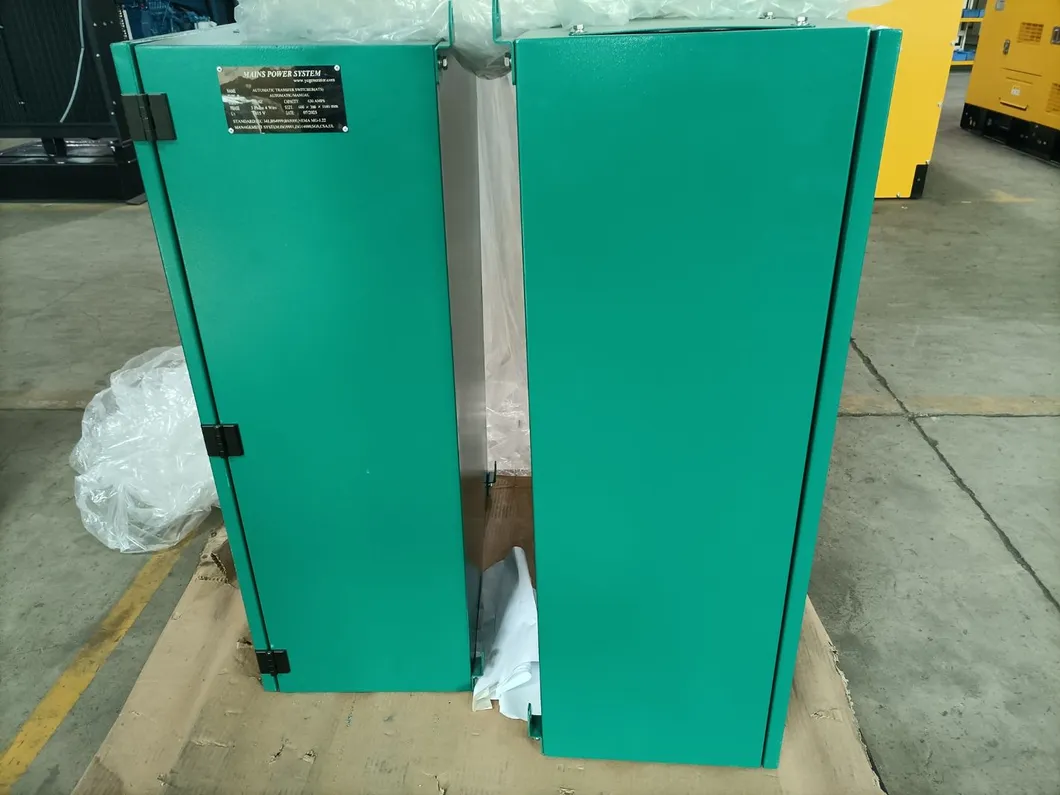

Product Display
Frequently Asked Questions
Q1: What is the maximum current capacity of this ATS cabinet?
The system features a high-capacity ATS controller rated at 800 Amperes.
Q2: Which breaker brands are compatible with this system?
We support industry-leading brands including Smartgen, AISIKAI, SUYANG, AB, and SOCOMEC.
Q3: How many generator sets can be synchronized together?
The Automatic Synchronization System (MASS) allows up to 16 generator sets to run in parallel.
Q4: Does the controller support remote monitoring?
Yes, it includes an RS485 port for PC connection, allowing all data to be readable and editable remotely.
Q5: Is the operation interface available in multiple languages?
Yes, the system features an English-Chinese operation system for easy global use.
Q6: What are the main components of the synchronization system?
A standard system includes a Deep Sea controller, an electronic governor, an AVR (Automatic Voltage Regulator), an electronic breaker, and an optional PLC system.
