For Concertina Wire, we offer multiple high-security configurations:

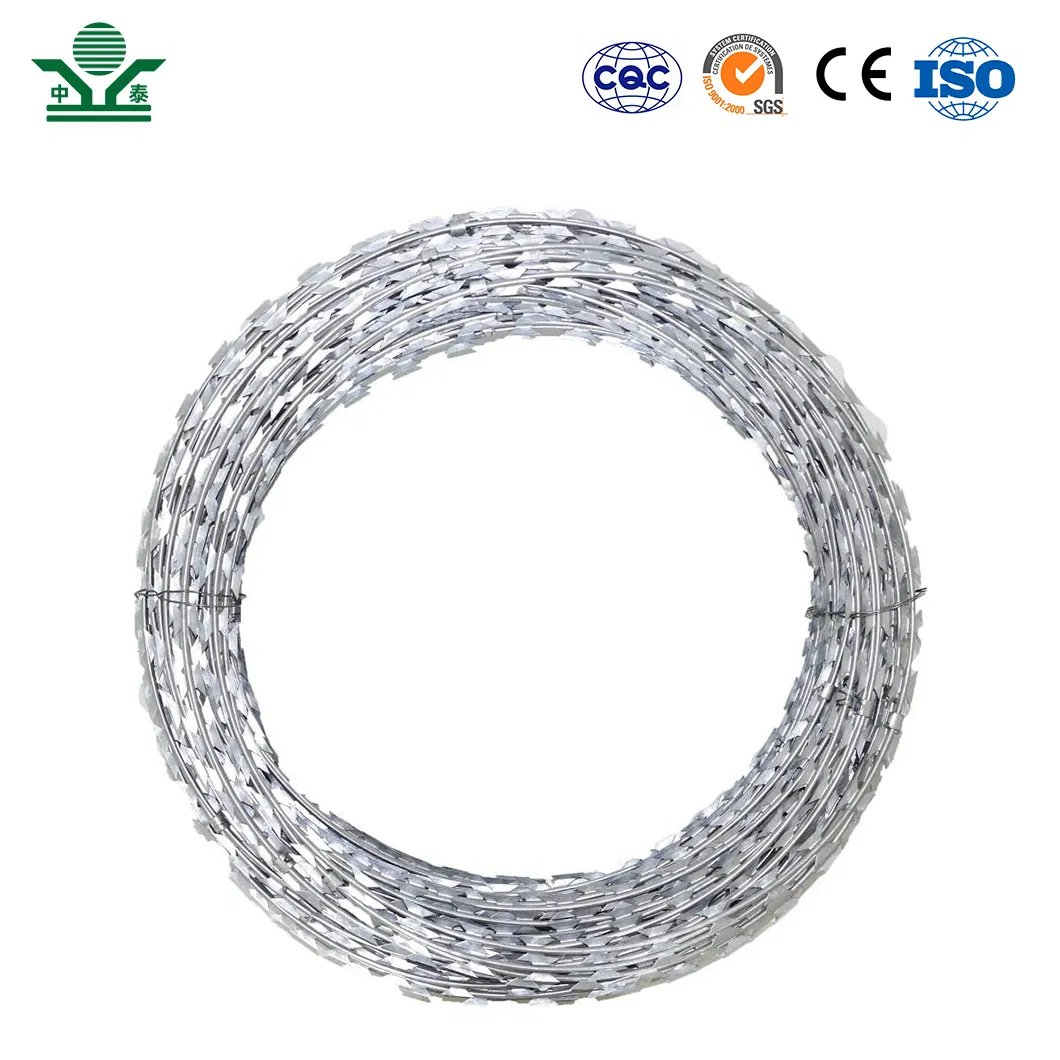

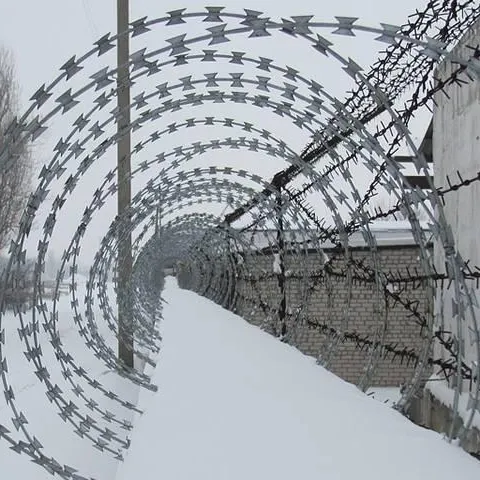

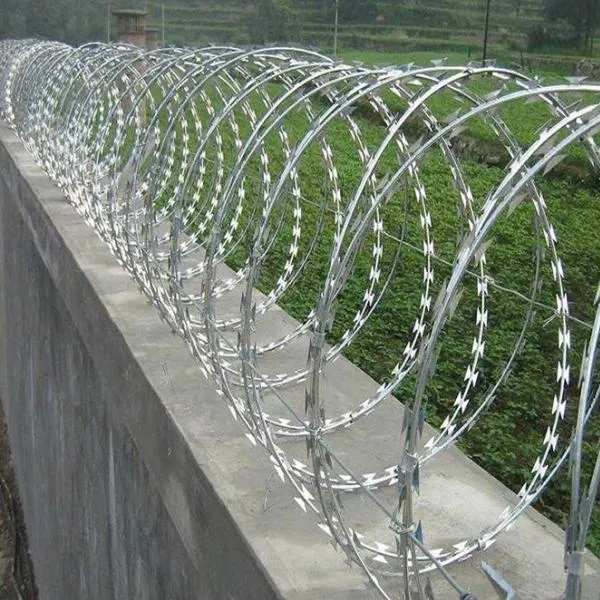

Single Coil Razor Wire: Installed without clips, it runs in natural loops on walls. Cost-effective and easily installed.

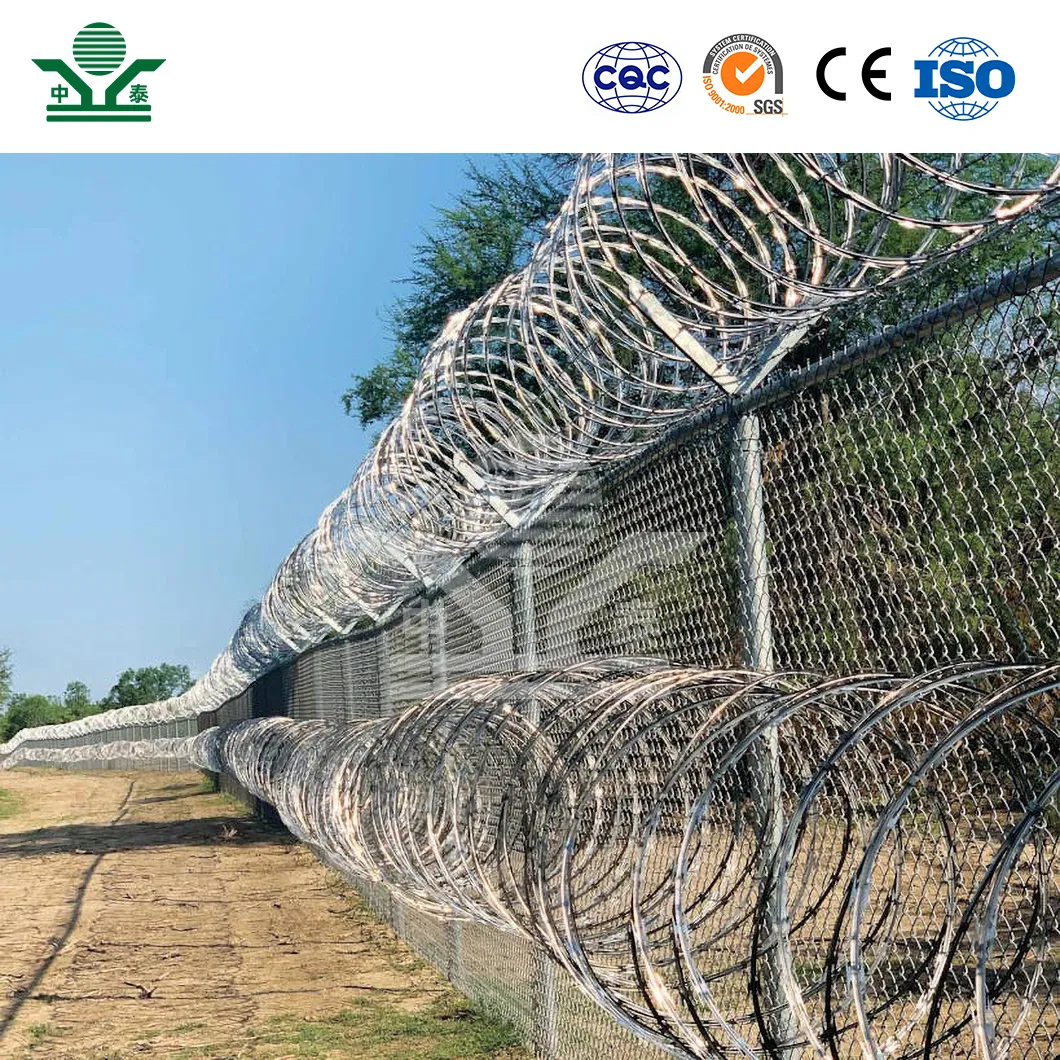

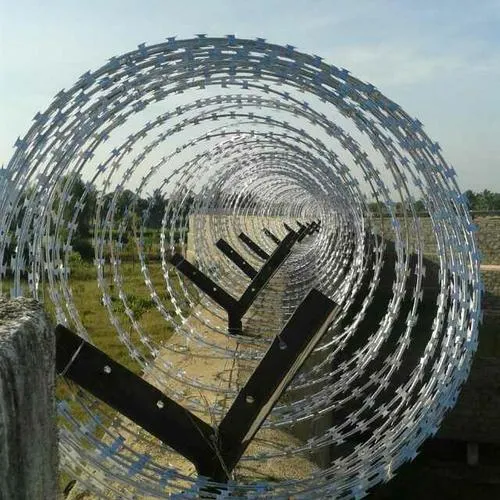

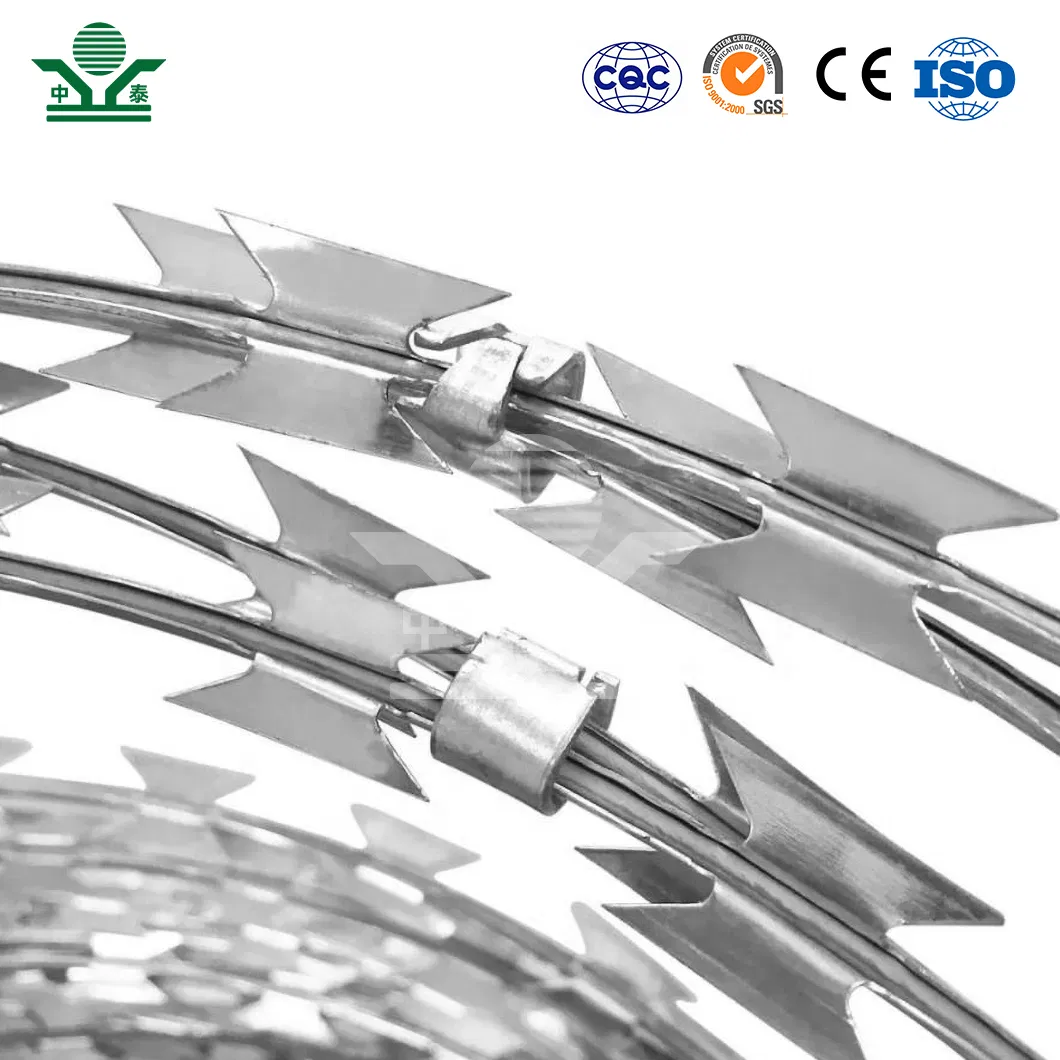

Crossed Razor Wire: Two pieces of razor wire bound together by clips for enhanced strength. Features a spiral intersecting shape that is both practical and secure.
Flat Warp Razor Wire: A new type where two loops are pressed flat and expanded. Often used with line razor wire to build defense walls.
Razor Wire Fence: Welded razor mesh for security with a practical blade design. Ideal for fences, doors, and windows.
Characteristics: Sharp blades and a strong core wire ensure high deterrent effects, easy installation, and economical practicality.

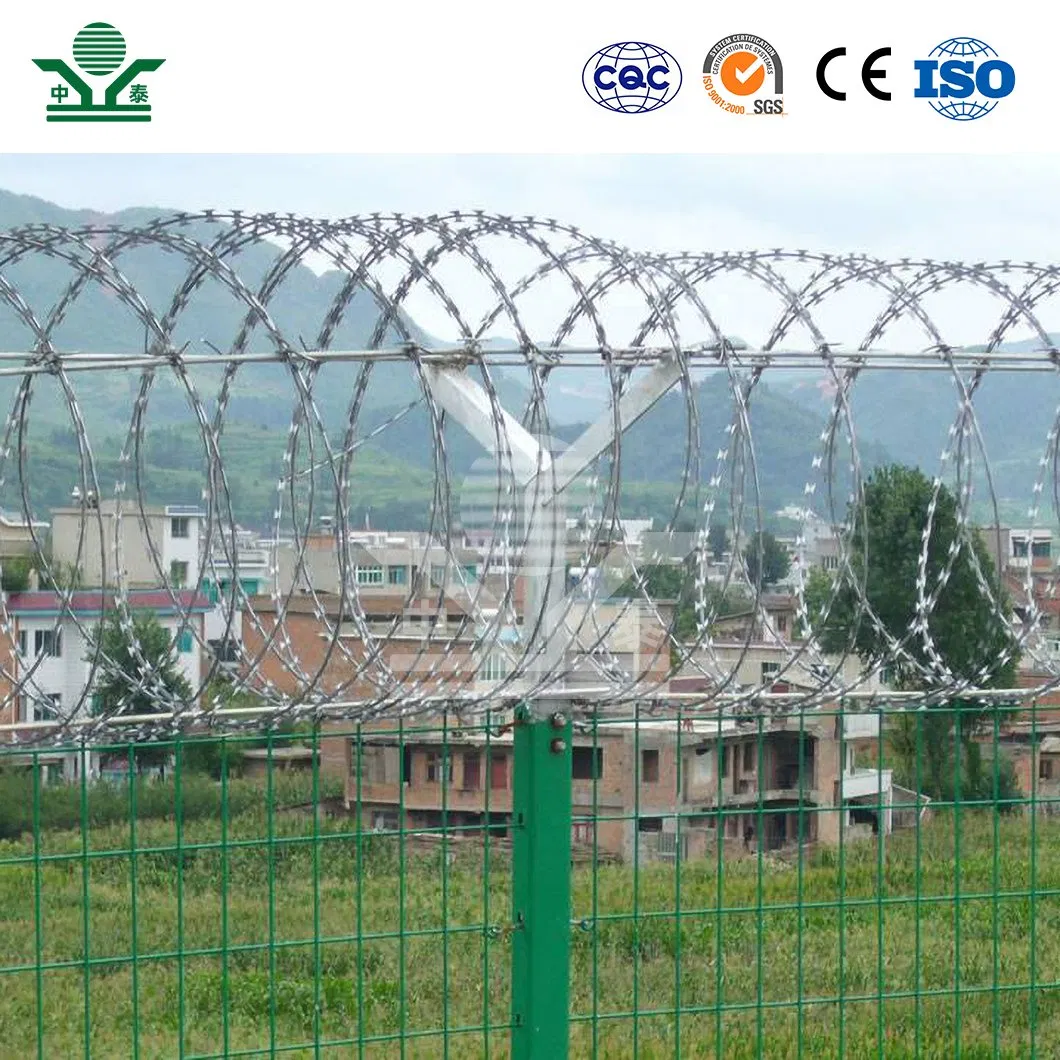

Application: Widely used in apartment complexes, organization units, frontier fences, and other sites requiring severe security measures.
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
|---|---|---|---|---|
| 450mm | 33 | 7-8m | CBT-60/65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60/65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60/65 | Single coil |
| 450mm | 56 | 8-9m | BTO-12/22/25/30 | Cross-type |
| 500mm | 56 | 9-10m | BTO-12/22/25/30 | Cross-type |
| 600mm | 56 | 10-11m | BTO-12/22/25/30 | Cross-type |
| 700mm | 56 | 10-12m | BTO-12/22/25/30 | Cross-type |
| 800mm | 56 | 11-13m | BTO-12/22/25/30 | Cross-type |
| 960mm | 56 | 13-15m | BTO-12/22/25/30 | Cross-type |

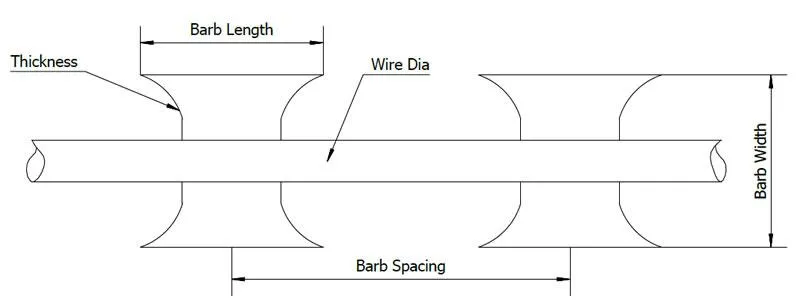

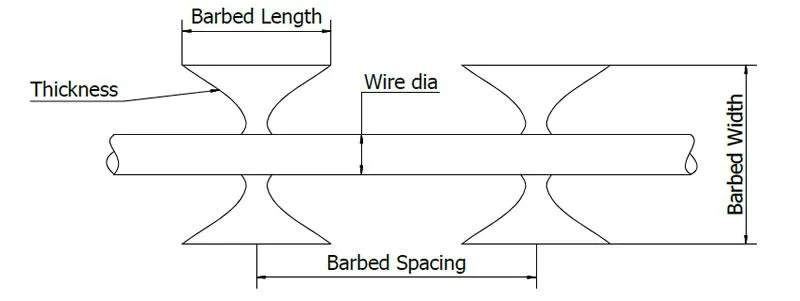

BTO-30: Thickness 0.5mm, Barb 30mm

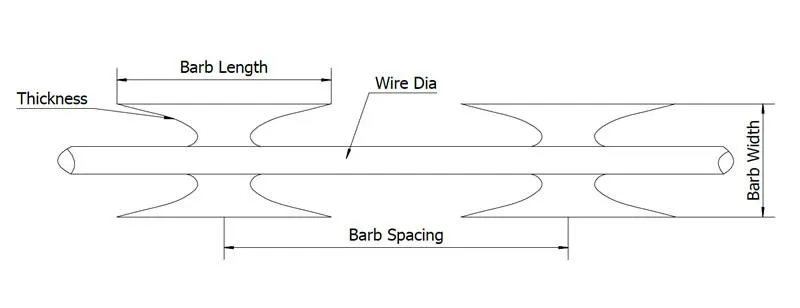

BTO-18: Thickness 0.5mm, Barb 18mm
BTO-22: Thickness 0.5mm, Barb 22mm
