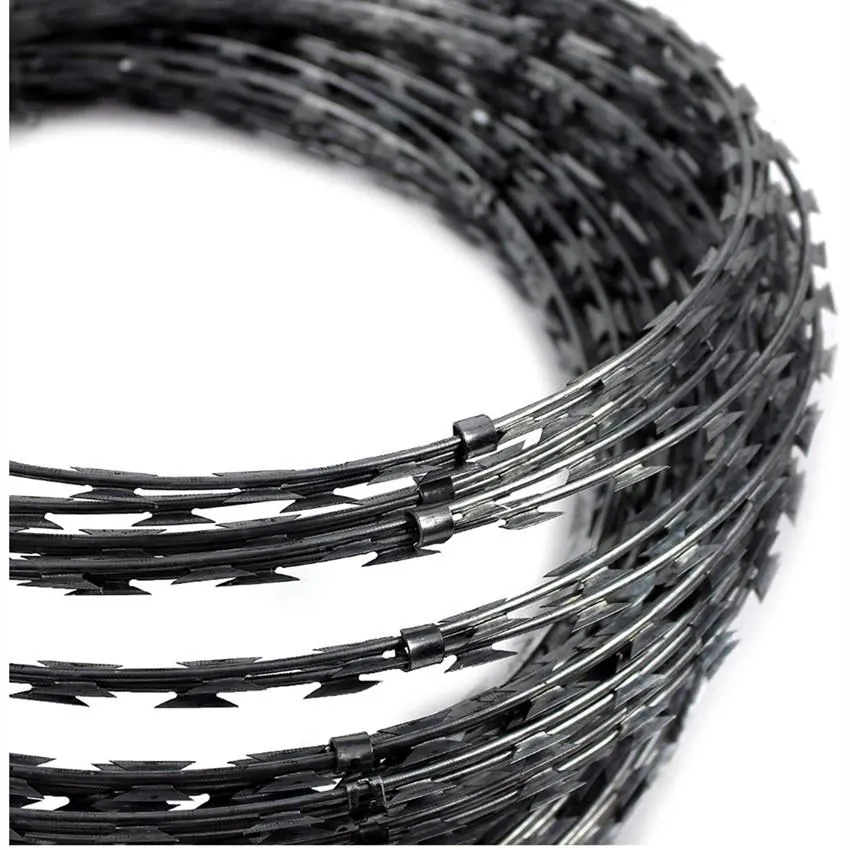

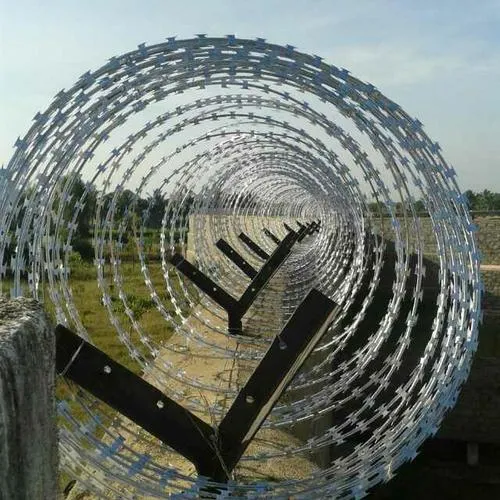

Razor barbed wire is also named concertina coils or razor-type barbed wire. It is a new type of guard fence designed for high-security applications. We offer several variations to meet specific security needs:
Characteristics: Featuring sharp blades and a strong core wire, it offers excellent deterrent effects, easy installation, and long-term durability.

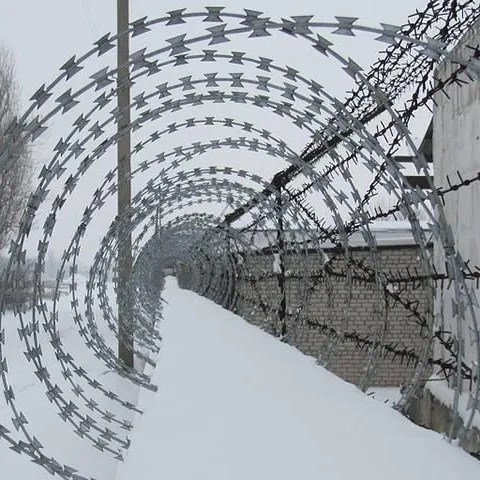

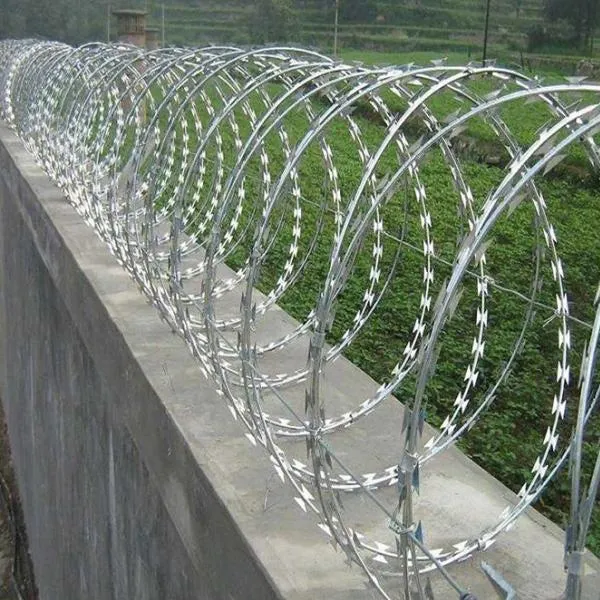

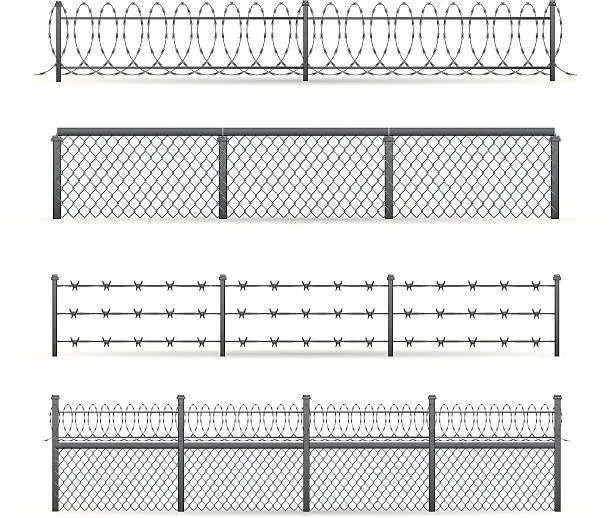

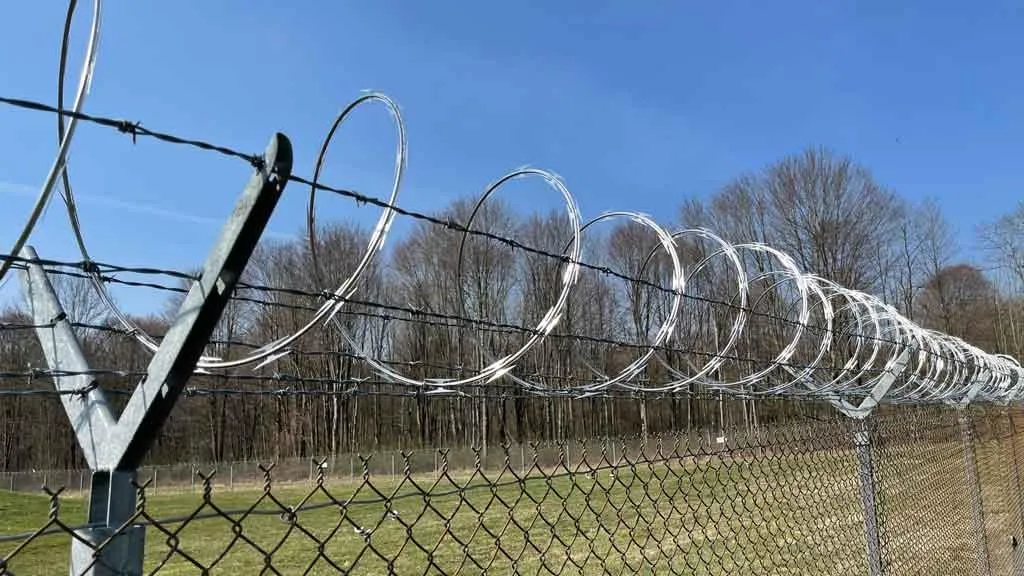

Application: Widely used in apartment houses, organization units, frontier fences, nuclear power plants, and areas requiring severe fencing security.
| Outside Diameter | No. of Loops | Standard Length | Type | Notes |
|---|---|---|---|---|
| 450mm | 33 | 7-8m | CBT-60/65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60/65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60/65 | Single coil |
| 450mm | 56 | 8-9m | BTO-12/22/25/30 | Cross-type |
| 600mm | 56 | 10-11m | BTO-12/22/25/30 | Cross-type |
| 960mm | 56 | 13-15m | BTO-12/22/25/30 | Cross-type |

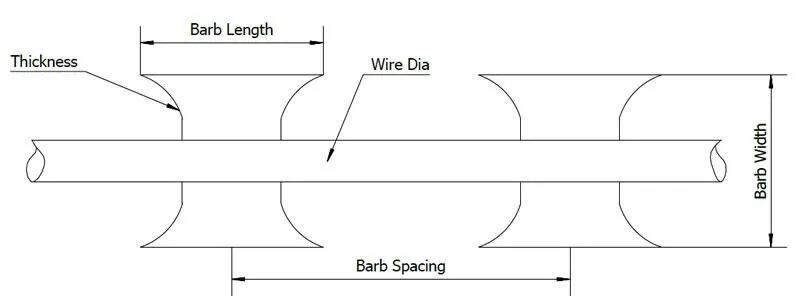

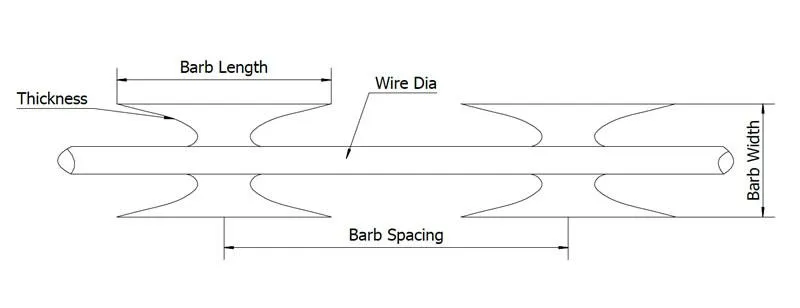

BTO-30: Thickness 0.5mm, Wire 2.5mm, Barb 30mm.
BTO-18: Thickness 0.5mm, Wire 2.5mm, Barb 18mm.
BTO-22: Thickness 0.5mm, Wire 2.5mm, Barb 22mm.

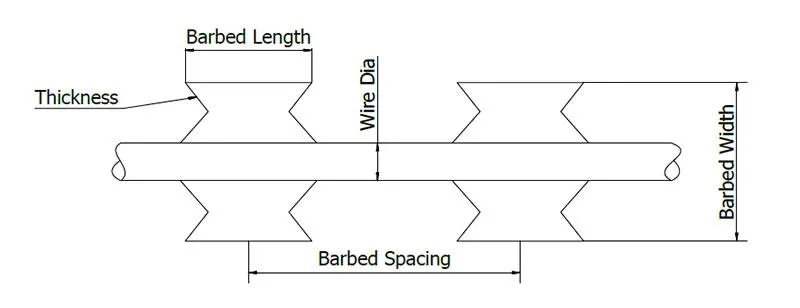

CBT-65: Thickness 0.6mm, Wire 2.5mm, Barb 65mm.
