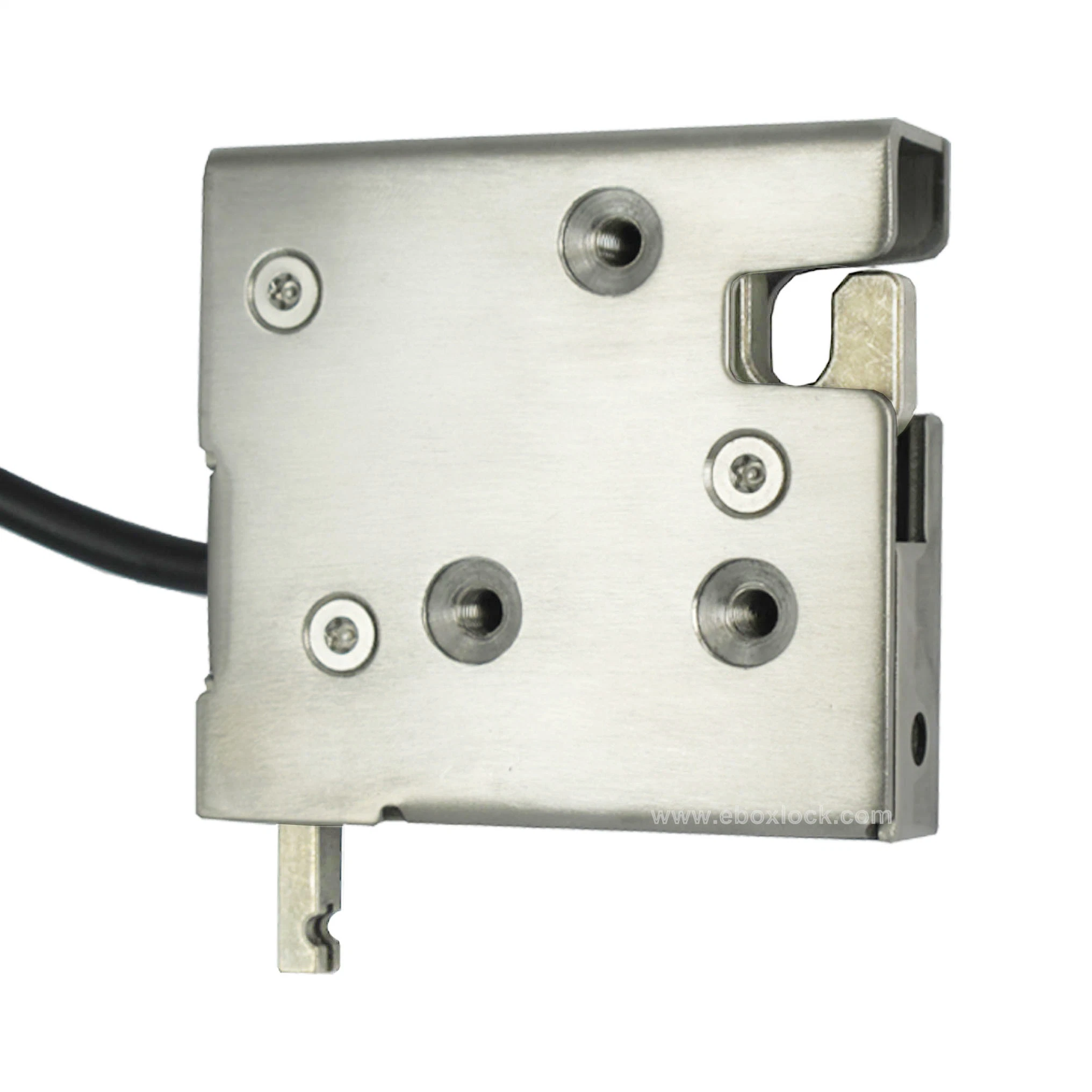

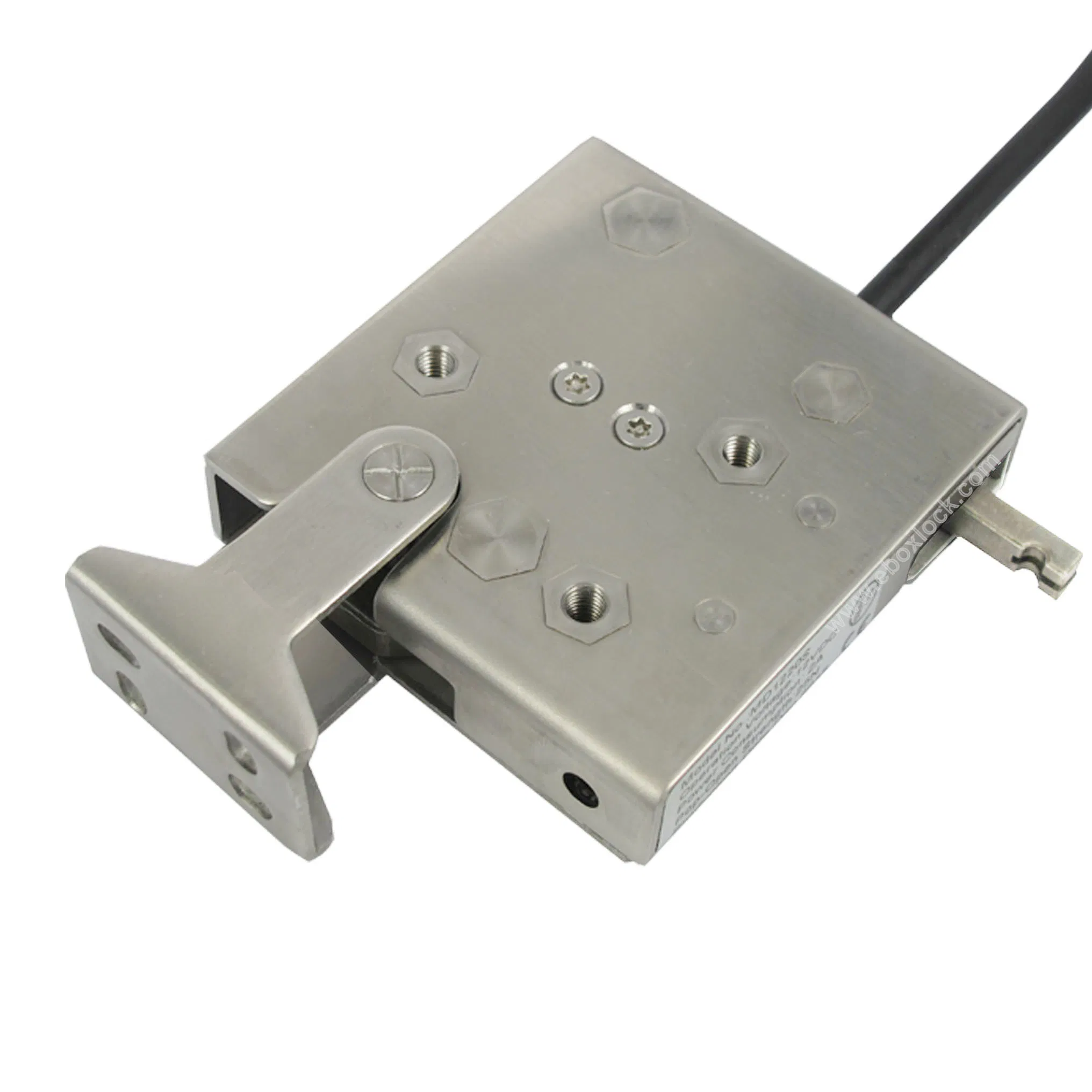

Stainless Steel Electronic Cabinet Lock with Reporting for Electronic Lockers

Customization:	Available
After-sales Service:	Online Service/Refund/Replacement
Warranty:	2 Years Warranty

Basic Specifications

Model NO.

MD1215LS-H

Certification

RoHS, FCC, CE, ISO9001

Working Principle

Electronically Controlled Lock

Function

Fail -Safe

Type

Electromagnetic Lock

Operation Voltage

12/24VDC Intermittent

Holding Force

600kg

Cycle Rating

More Than 1,000,000

Operation Mode

Fail Locked

Material

Stainless Steel 304

Origin

China

HS Code

83013000

Product Description

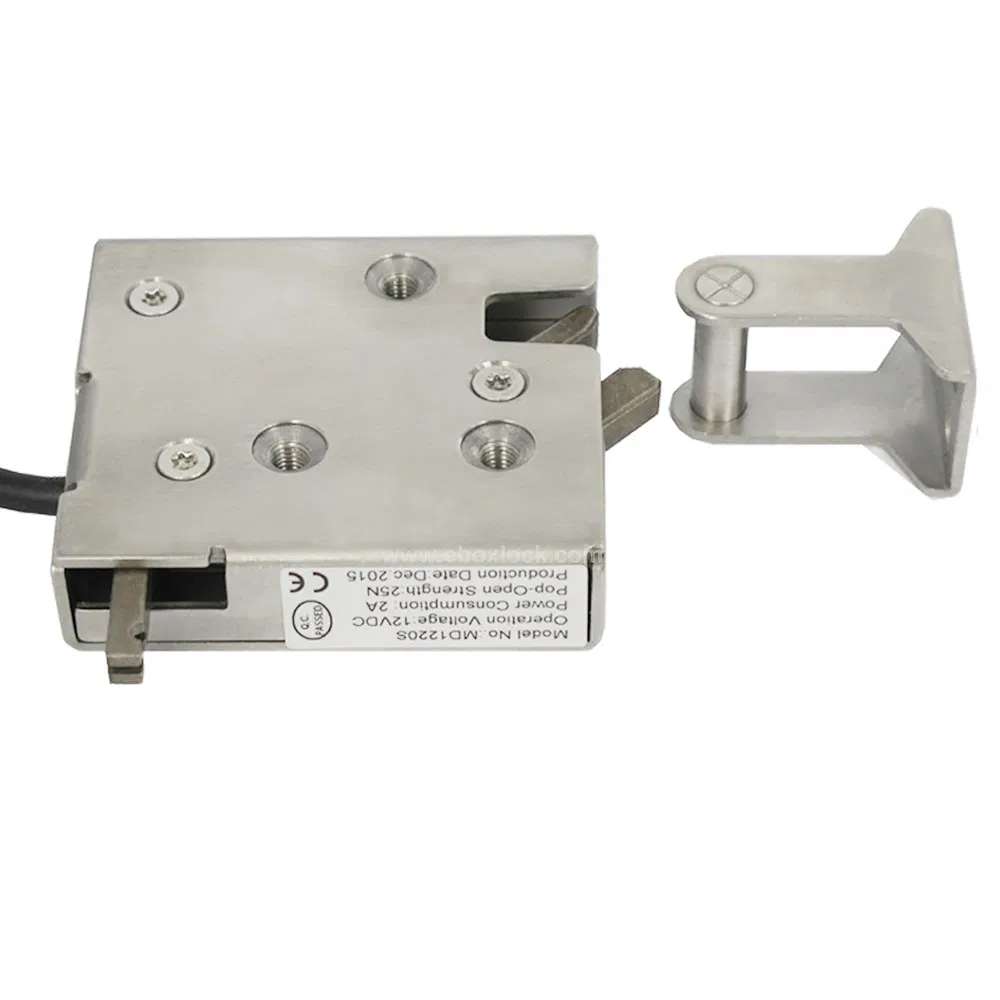

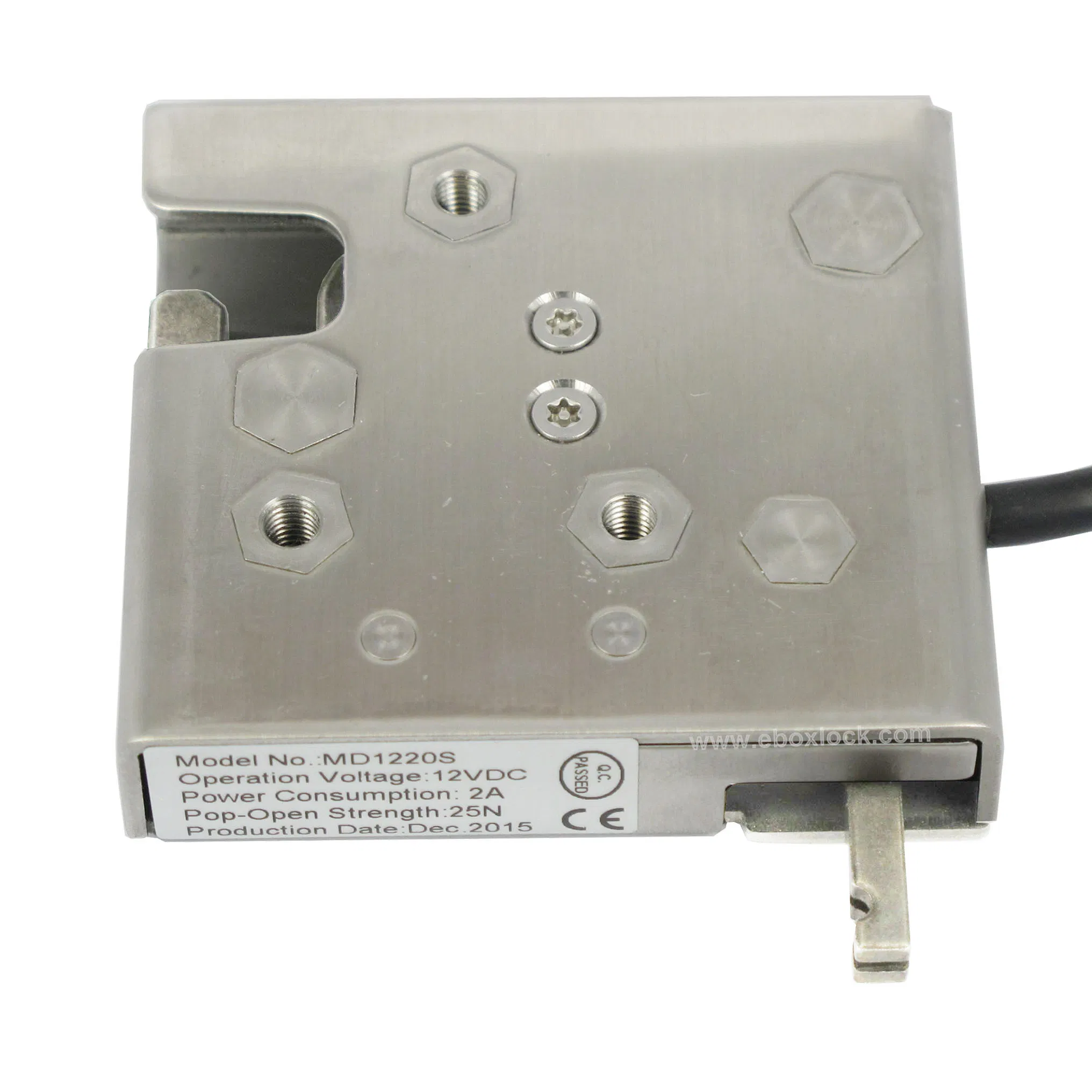

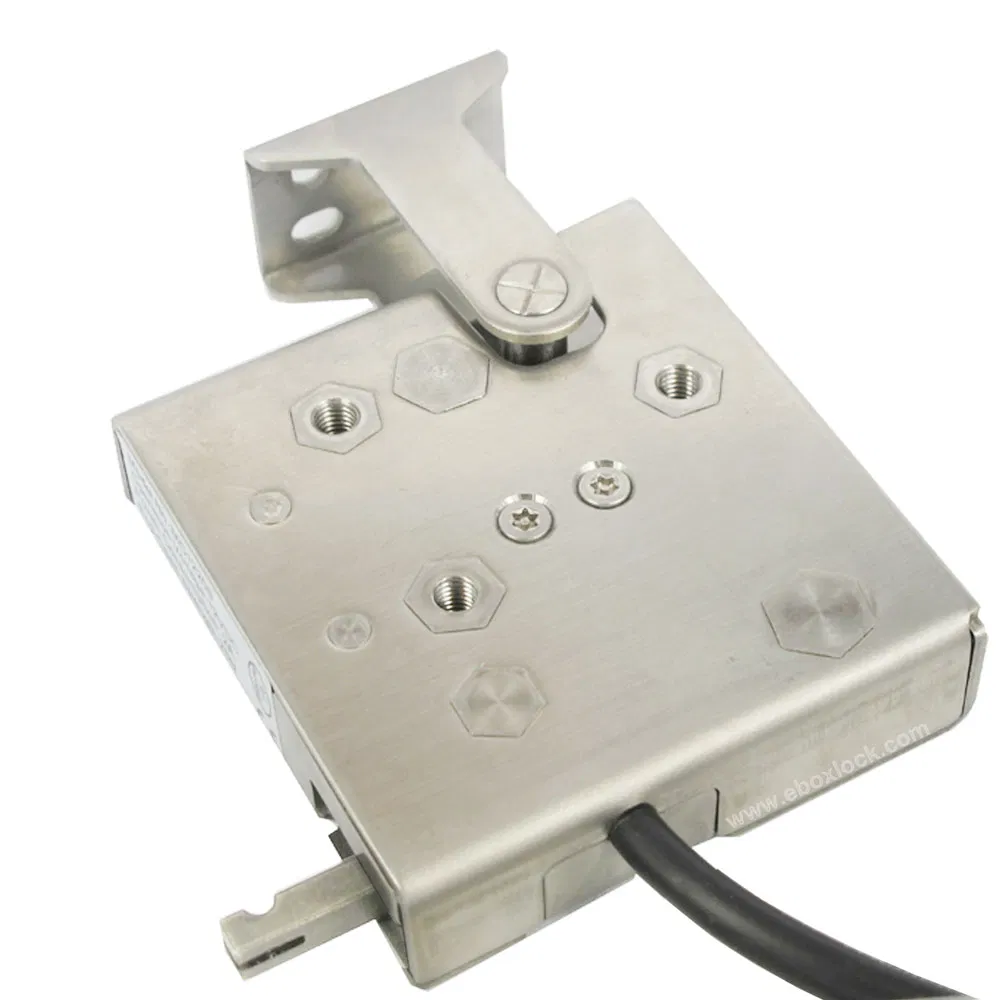

Electric Cabinet Lock MD1215LS-H is a high security access control solution for cabinets, drawers, safe and lockers. Robust all metal construction allows MD series cabinet lock operates against heavy mechanical load. An optional built-in door sensor provides reporting of open/ close status and mechanical kits for manual override in case of power failure.

Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any access control system or standalone cabinet locking. With easy push-to-close operation, the lock is designed with internal spring rod to push door open when electrified.

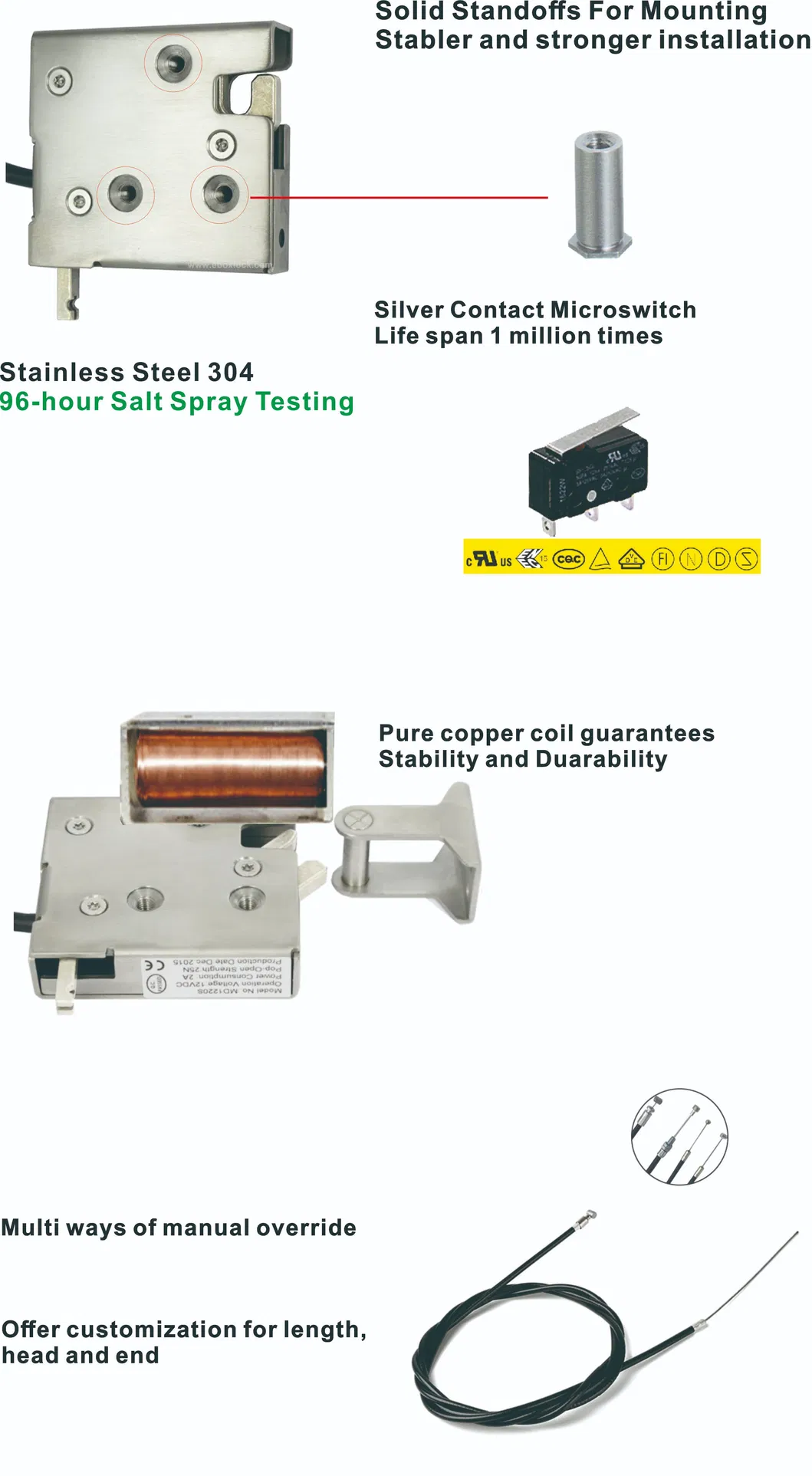

Key Features

Superior heavy duty metal construction
Stainless steel 304 housing
Surface-mounted compact electric lock
Mechanical override for manual release
Operates against heavy mechanical load
Compatible with wireless RF key fobs, keypads, or card readers
Ideal for lockers, mail boxes, and drawers

Technical Parameters

Specification	Details
Operation Voltage	12/24VDC intermittent ±10%
Power Consumption	12V DC 1500mA
Operation Mode	Fail Locked
Holding Force	600KG
Maximum Power on Time	Less than 30 second
Solenoid	Rated for intermittence use
Cycle Rating	More than 1,000,000 times
Working Temperature	-20ºC ~ +60ºC
Dimensions (LxWxH)	72mm67mm18mm
Protection Class	IP20

Part Selection Guide

Part No	Operating Current	Microswitch	Trigger Spring	Manual Override
MD1215	12VDC@1500mA	Without	10N/25N	Hidden
MD1215S	12VDC@1500mA	With	10N/25N	Hidden
MD1215L	12VDC@1500mA	Without	10N/25N	Exposed
MD1215LS	12VDC@1500mA	With	10N/25N	Exposed

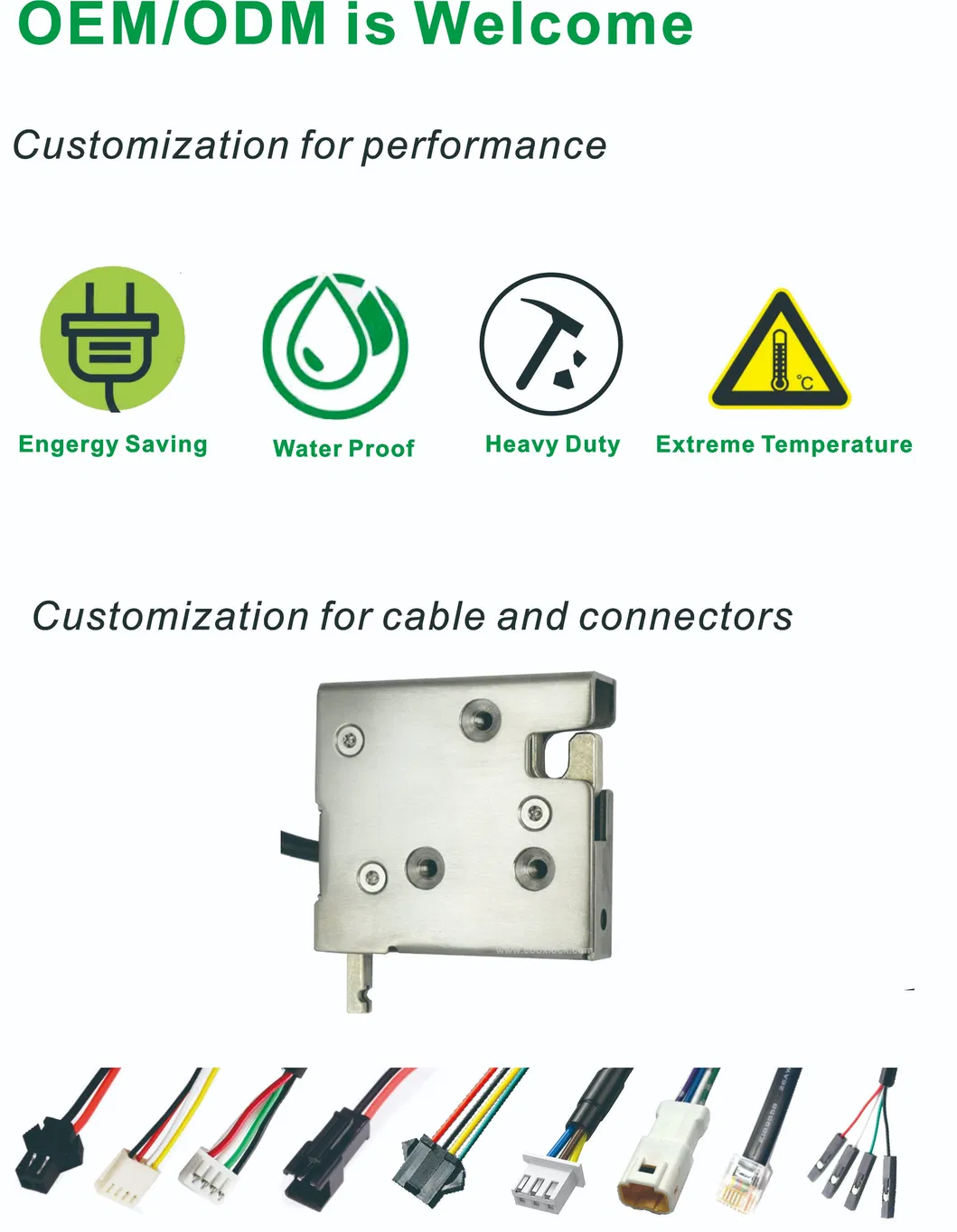

Customization Options: We offer customization for cable length and connector type to better meet the exact requirement of your application, including voltage (9V/12V/24V/48V), Trigger Spring (10N/25N/35N), and Connector types (Molex, RJ11, PH, etc.).

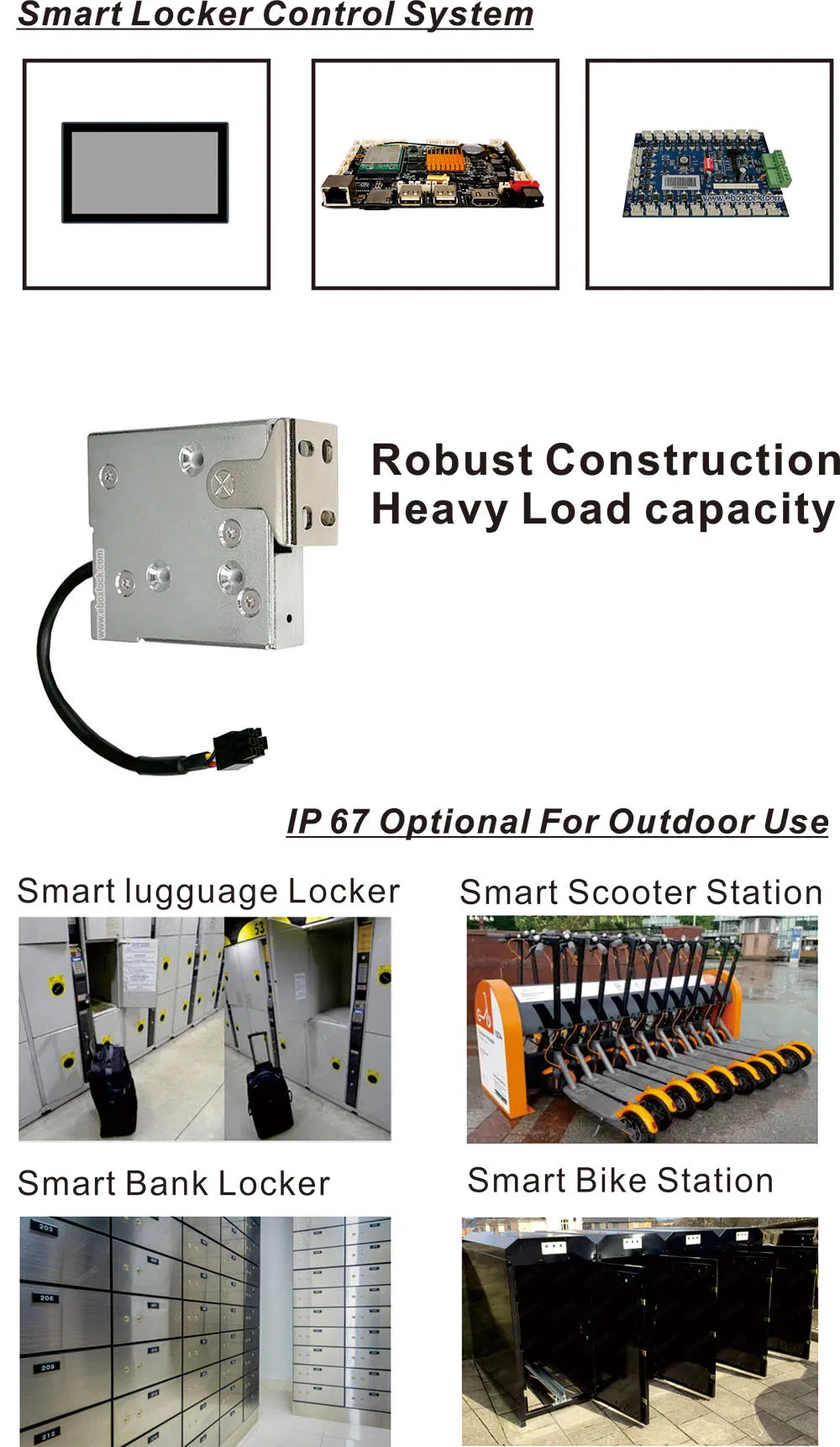

Applications

Electronic storage lockers Steel cabinet & Metal furniture Retail display cases Filing cabinets Key cabinets Museum displays Pharmaceutical drawers Electronic mailboxes

Packaging & Delivery

Package Size

12.00cm * 11.00cm * 7.00cm

Gross Weight

0.500kg

Frequently Asked Questions

Q1: What is the maximum holding force of the MD1215LS-H? The lock provides a superior holding force of up to 600kg, making it suitable for heavy-duty security applications.

Q2: Can the lock be opened manually during a power failure? Yes, the lock features a convenient mechanical override that enables manual release in case of power loss.

Q3: What materials are used in the construction of this lock? The housing is made of high-quality Stainless Steel 304 with a robust all-metal internal construction for maximum durability.

Q4: What is the expected lifespan of the MD1215LS-H? The lock is rated for a long service life with a cycle rating of more than 1,000,000 operations.

Q5: Is it possible to customize the connectors or voltage? Yes, we offer customization for operating voltage (9V to 48V), cable lengths, and various connector types like Molex, RJ11, and more.

Q6: Does this lock provide door status feedback? Models with the "S" suffix (e.g., MD1215LS) include a built-in microswitch for reporting open or closed status.
