| Model NO. | SGD-120 |
| Material | Steel |
| Thickness | 40mm |
| Opening Style | Rolling |
| Opening Type | Power Driven |
| Door Panel Pattern | Square |
| Color | White |
| Surface Finishing | Finished |
| Certificate | CE |
| Style | Modern; Industrial |
| Open Style | Automatic Control |
| Advantage | High Security, Heat Preservation |
| Opening Method | Electric Side Opening |
| Transport Package | Wooden Box |

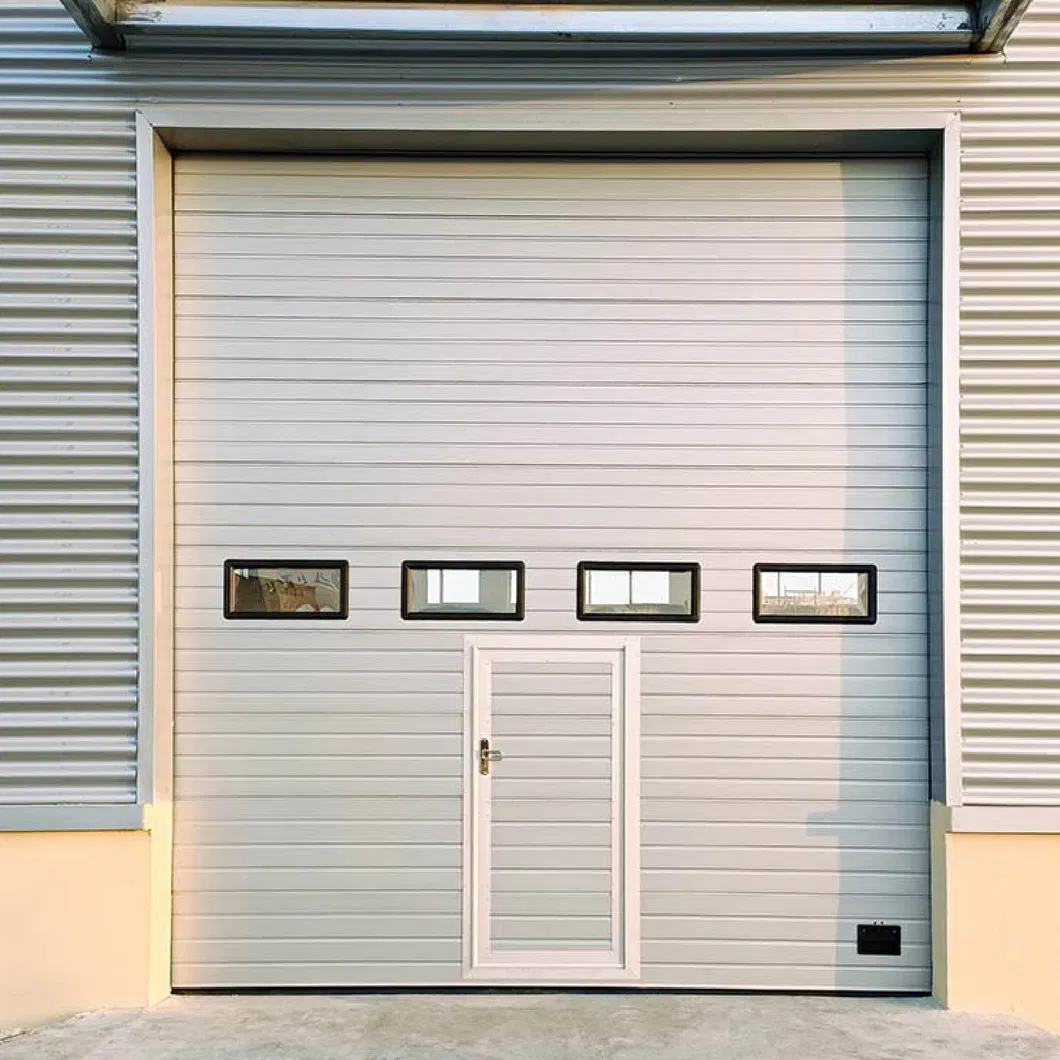

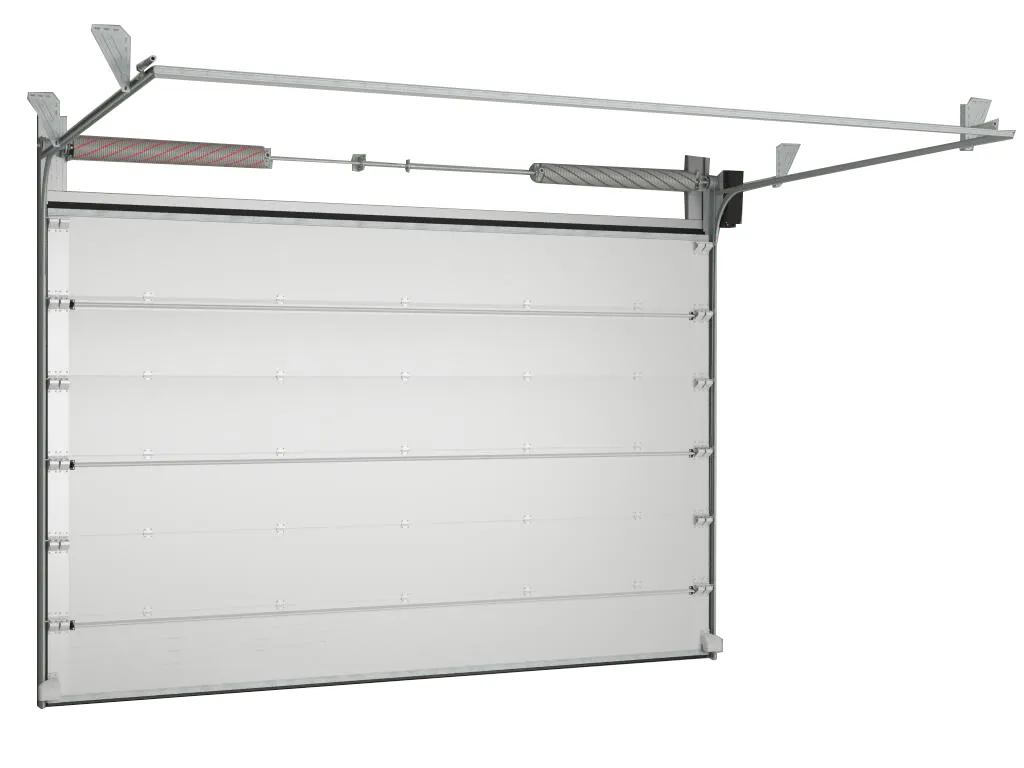

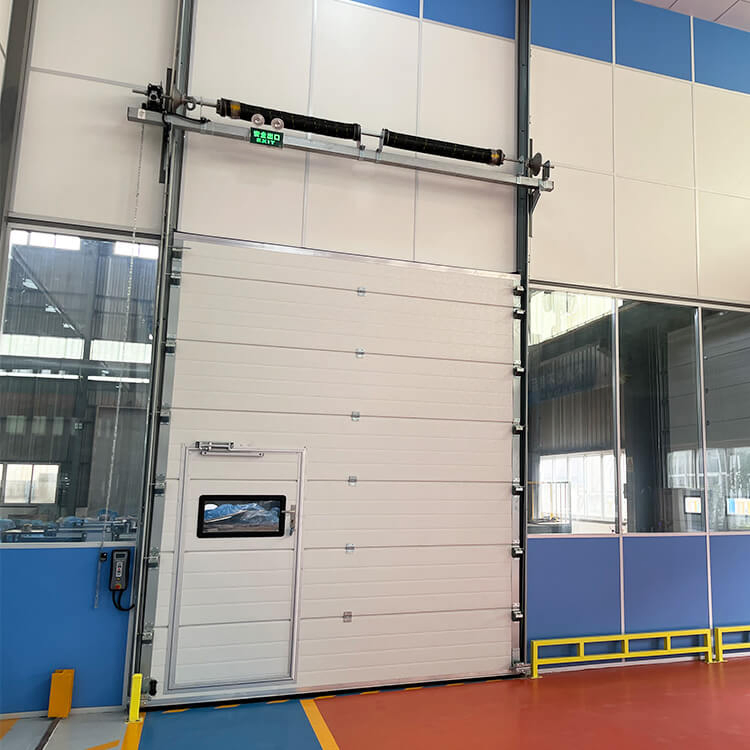

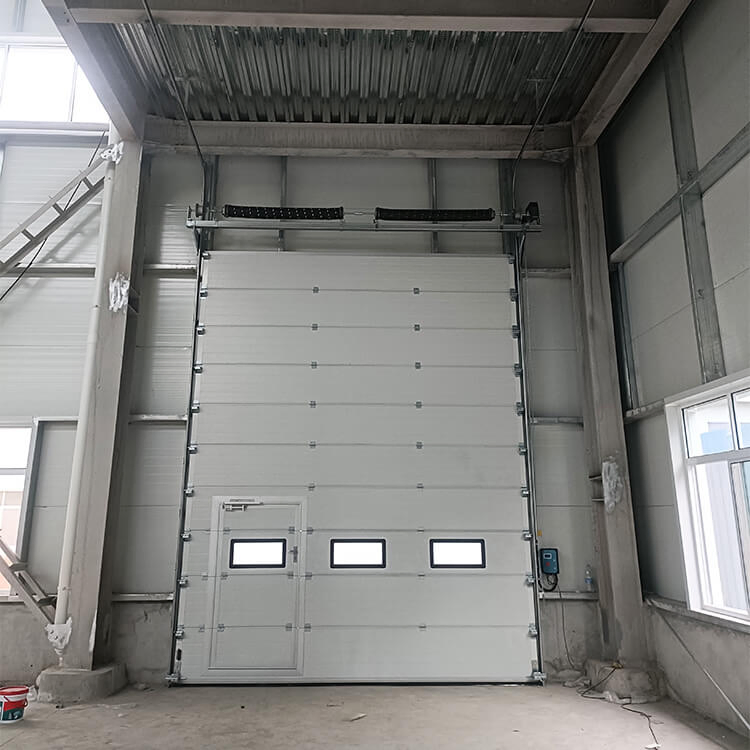

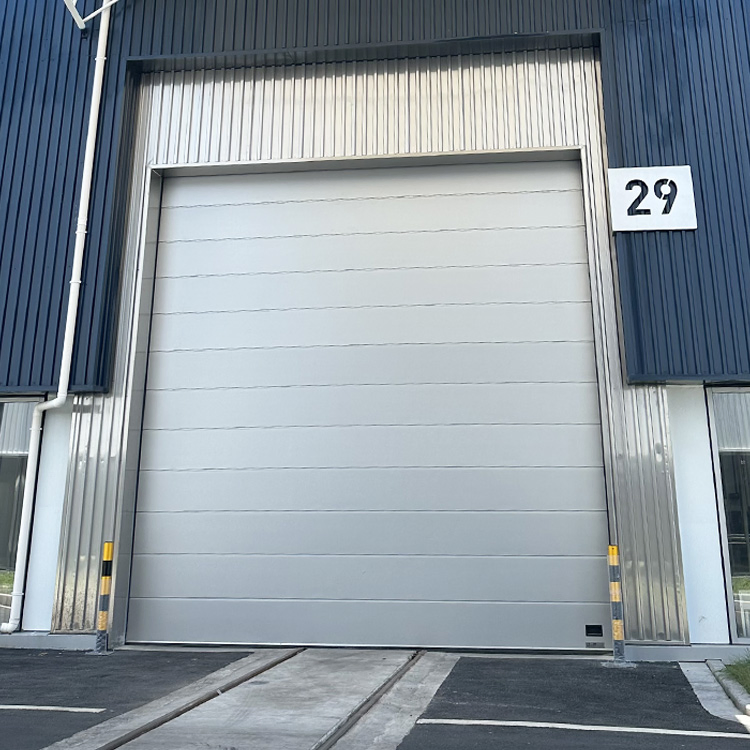

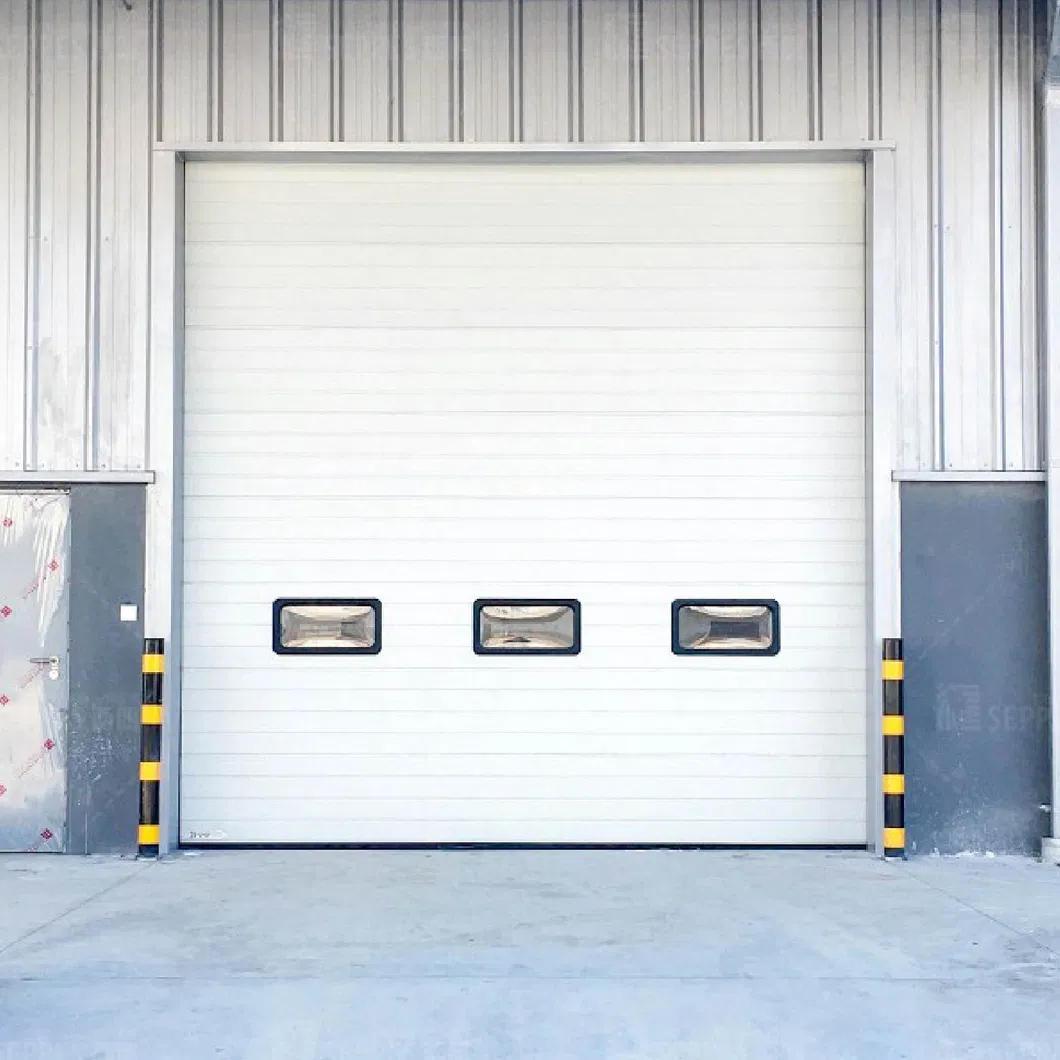

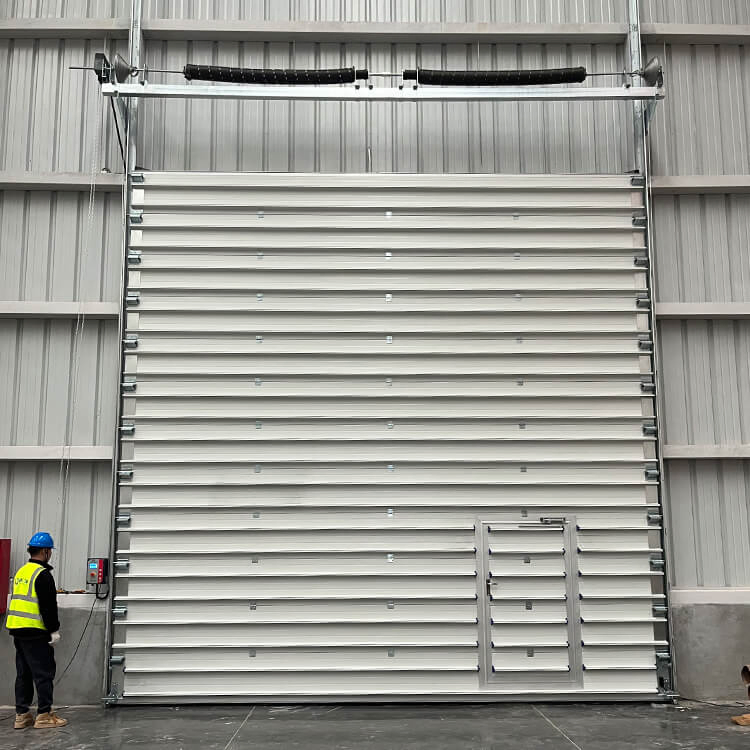

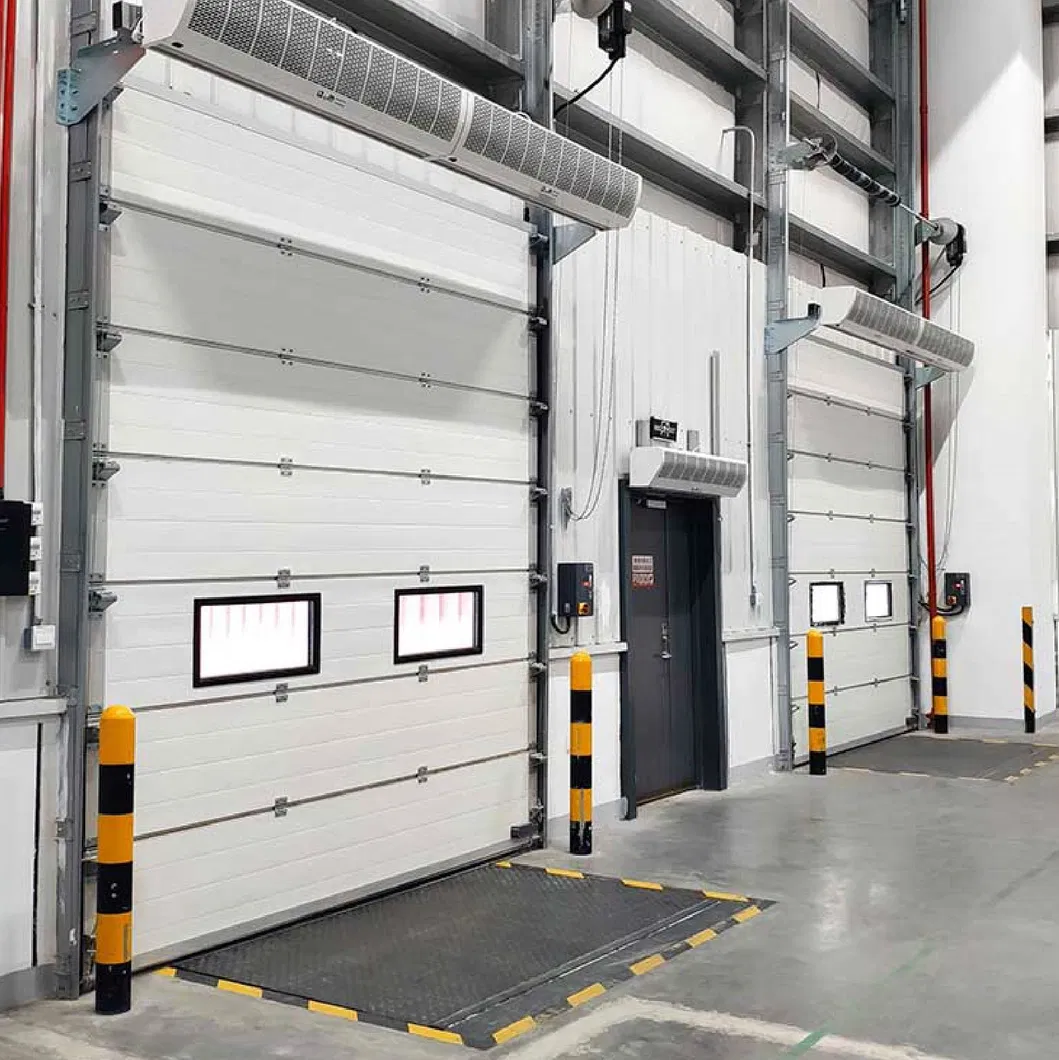

Sectional doors are installed at openings in industrial buildings, warehouses, workshops, docks and other industrial facilities. The reinforced door structure ensures uninterrupted operation and the reliable sealing system guarantees high thermal insulation of the room.
Factory Gate + Equipment Room + Warehouse
| Opening Speed | 0.2-0.3m / s |
| Panel Thickness | 40 mm |
| Color Options | Yellow, Red, Blue, White, Grey |
| Motor System | German High-Performance Motor |
| Safety Features | Anti-wire rope break, bottom airbag, torsion spring anti-break |
| Cycle Life | ≥30,000 times |
| Insulation Material | High-density polyurethane foaming (48kg/m³) |
| Wind Resistance | 4*4 Newton 700 / m2 |
| Sound Insulation | 24dB |
| Airtight Rating | Level 2 (2.0 m3 / m2 / h) |

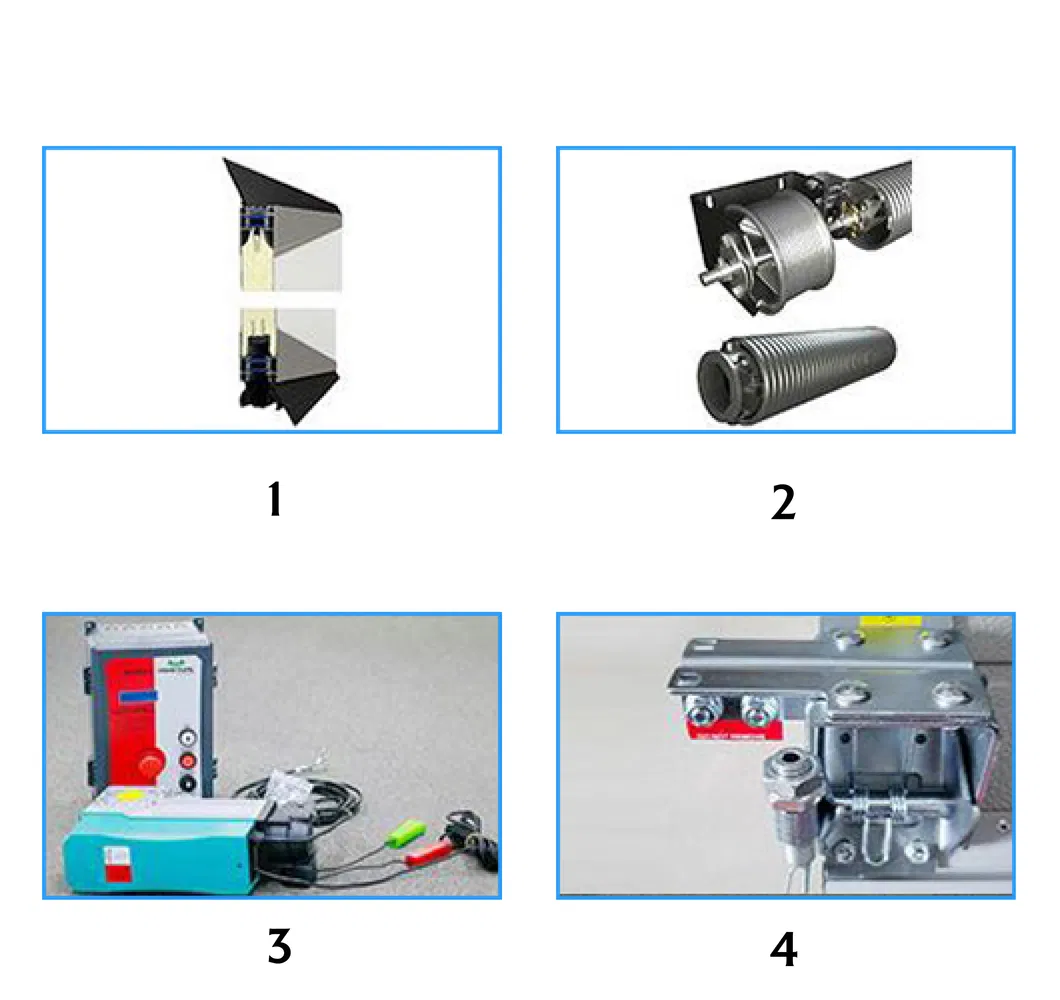

Top and side guide rails with EPDM sealing tapes and bottom seals. Interface equipped with sealing rubber to reduce energy loss.

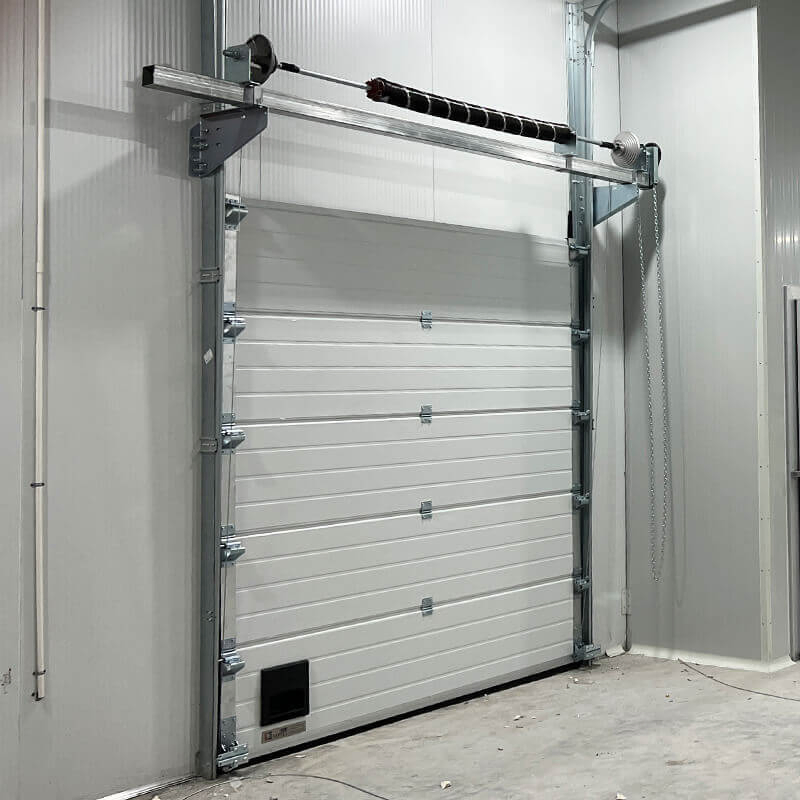

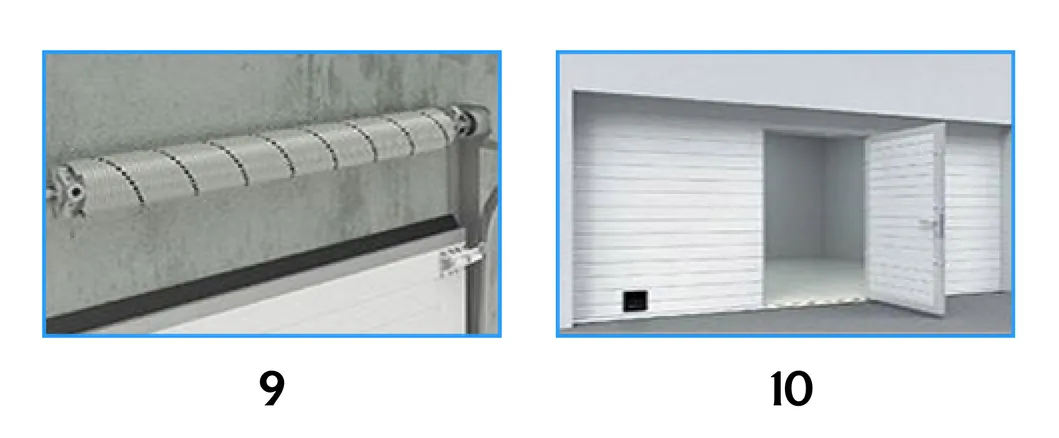

High-quality spring steel torsion spring with anti-corrosion treatment. Smooth operation guaranteed for up to 30,000+ cycles.
Frequency conversion intelligent control, slow start and stop for durability. Supports interlock linkage and remote communication.
Locks the door body within 20cm in case of accidental spring breakage to ensure absolute safety.

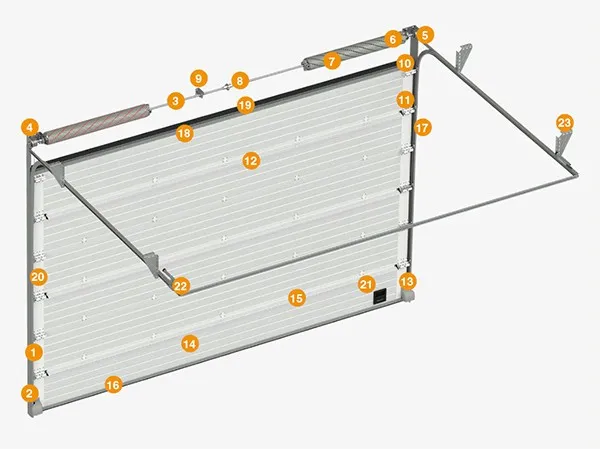

1.Vertical guide rail | 2.Side frame | 3.Door shaft | 4.Spring protection | 5.Sheave | 6.Torsion sleeve | 7.Balance mechanism | 8.Coupling | 9.Bracket | 10.Roller bracket | 11.Roller | 12.Back muscles | 13.Wire rope protection | 14.Sandwich panel | 15.Hinge | 16.Sealing strip | 17.Side seal | 18.Aluminum profile | 19.Top seal | 20.Side cover

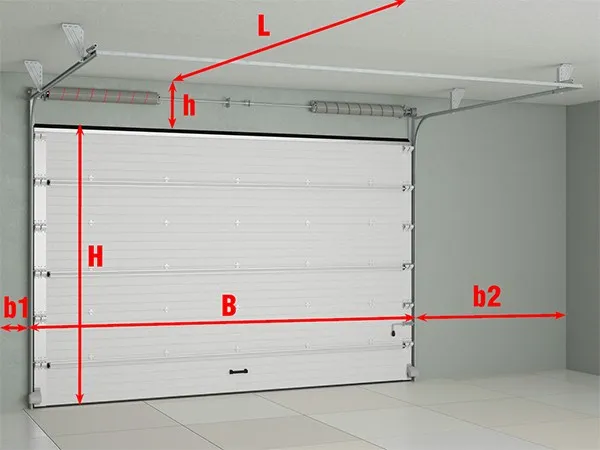

H - Height from ground to top of opening.
B - Width from left edge to right edge.
h - Headroom (minimum 500 mm above opening).
b1/b2 - Lateral distance (minimum 150 mm left and right).
L - Internal depth of the room.
