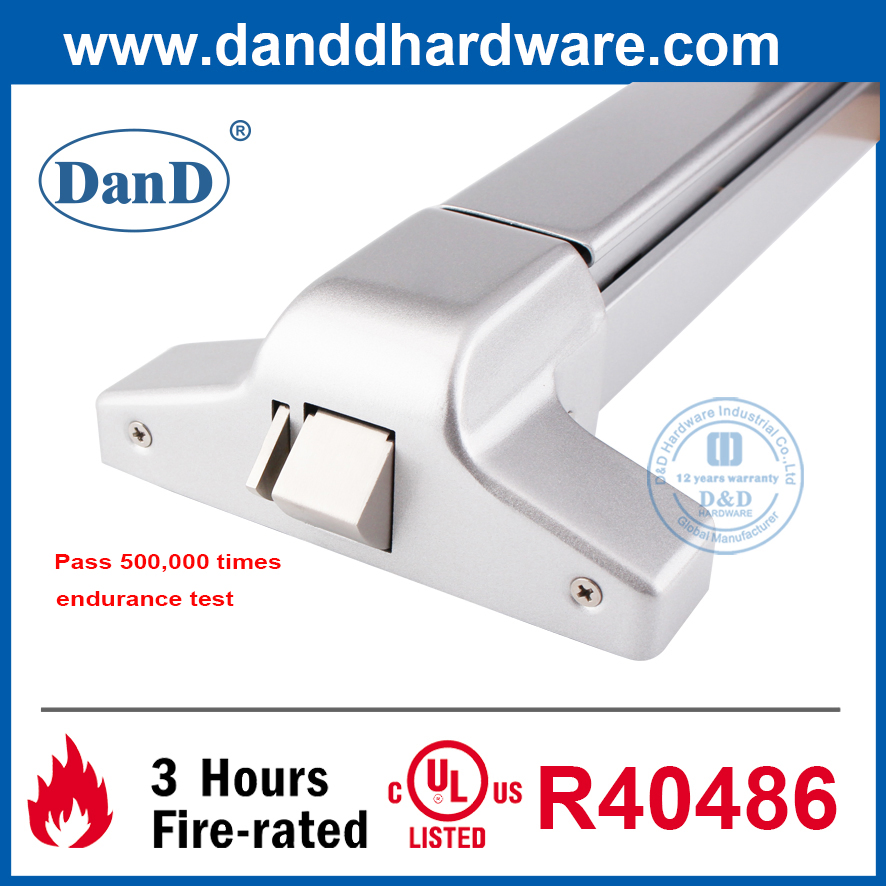

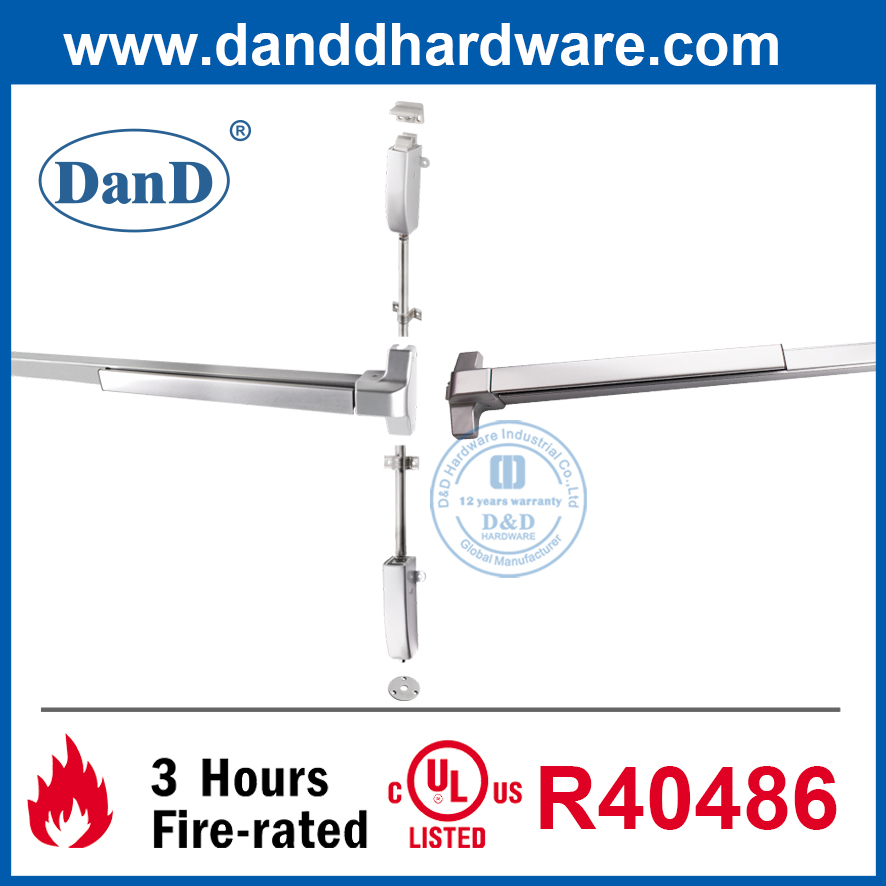

ANSI UL Listed Panic Lock Bar Stainless Steel 304 Fire Rated Lock Half Length Rod Commercial Push Bar Panic Door Lock Exit Rim Hardware Panic Exit Device Bar

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
DDPD003
Fire Rated
UL10c 3 Hours
ANSI Standard
Grade 1
Door Width
650mm to 1320mm
Door Height
2133mm
Max Door Weight
200kg
Door Thickness
Max 50mm
Touch Bar Length
500mm
Latch Type
Security Anti-Thrust Latch
Suitable for
Wooden, Metal, Fire Rated Doors
Panic Exit Device Banner
Product Description
Feature Details
Product Name ANSI UL Listed Panic Lock Bar Stainless Steel Fire Rated Hardware

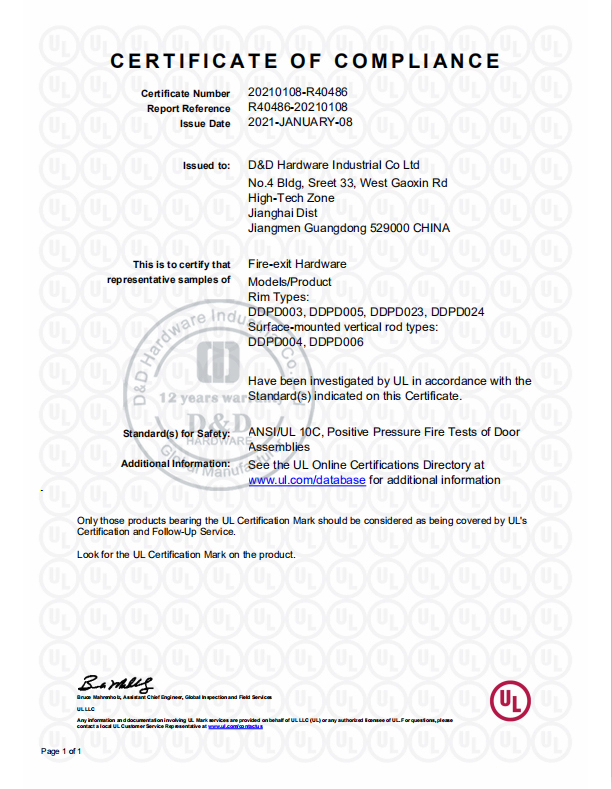

Certification UL Listed, UL 10C (3 hours fire-rated), ANSI/BHMA A156.3
Material Stainless Steel 304 or Steel on paint
Finish Options Satin/Polished Stainless Steel, Antique Brass, Silver, PVD, Gold

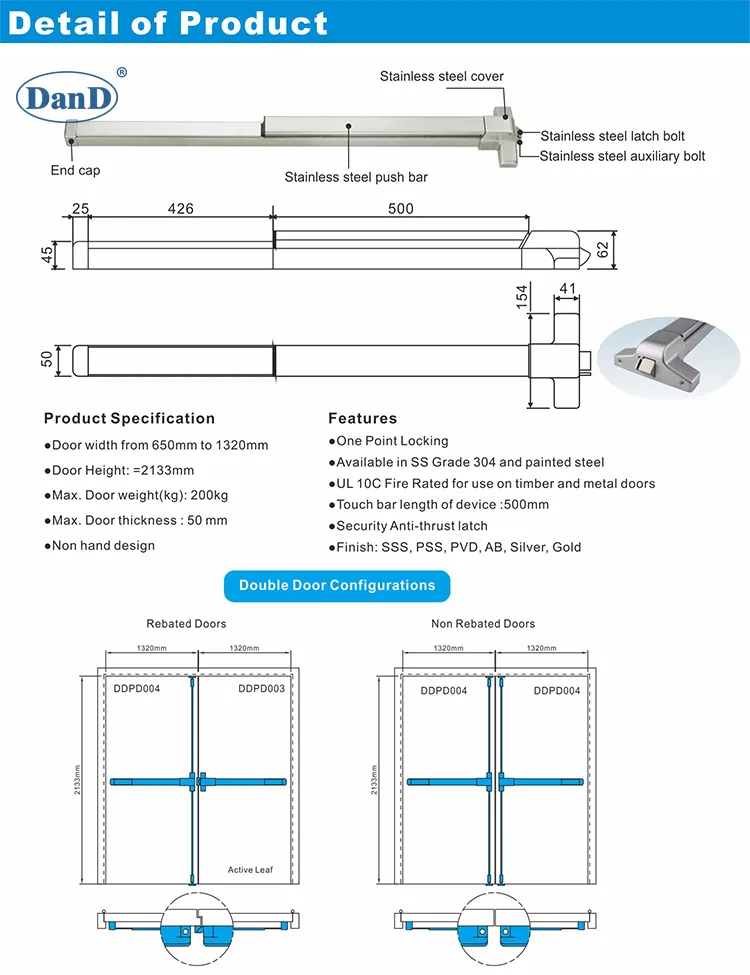

Technical Drawing

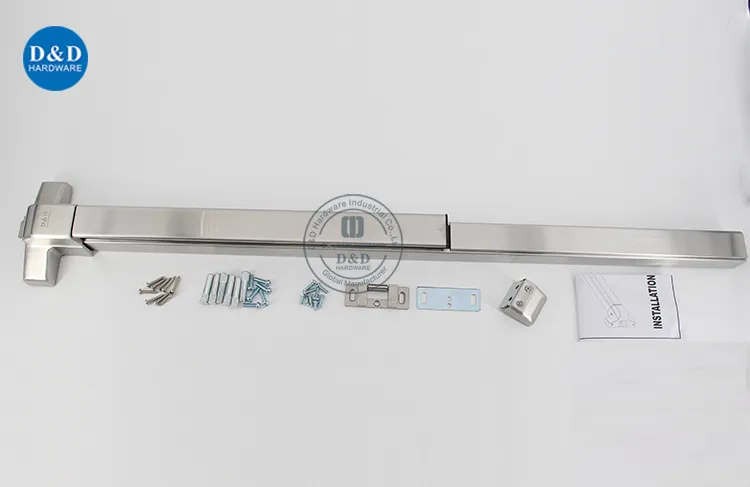

Product View 1

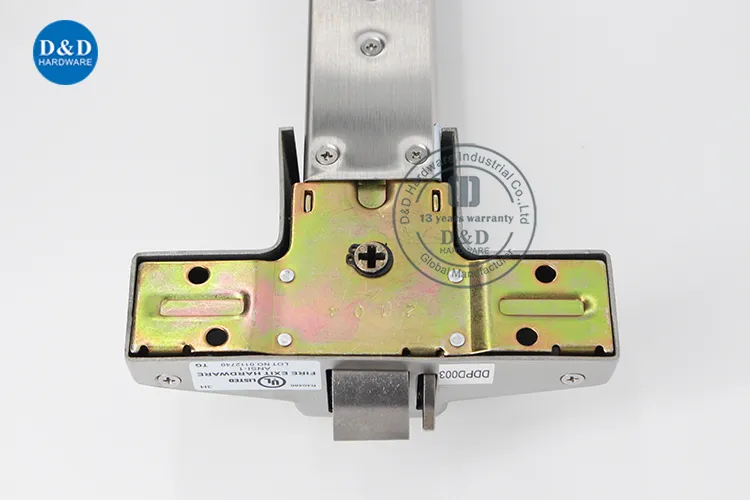

Product View 2
Installation Details

A UL 10C 3-hour fire-rated panic bar is indispensable in high-risk environments where extended fire containment and life safety are paramount. It offers maximum fire and smoke containment by ensuring the door assembly can withstand extreme heat (up to 1,925°F / 1,050°C) for 180 minutes. This significantly surpasses standard 60- or 90-minute ratings, preventing fire spread and protecting escape routes. It ensures compliance with strict codes like IBC, NFPA 80, and NFPA 101, making it mandatory for stairwells, hospitals, and industrial facilities. Tested under UL 305 standards, this hardware remains operational under heat stress and is built for durability with over 500,000 cycles.

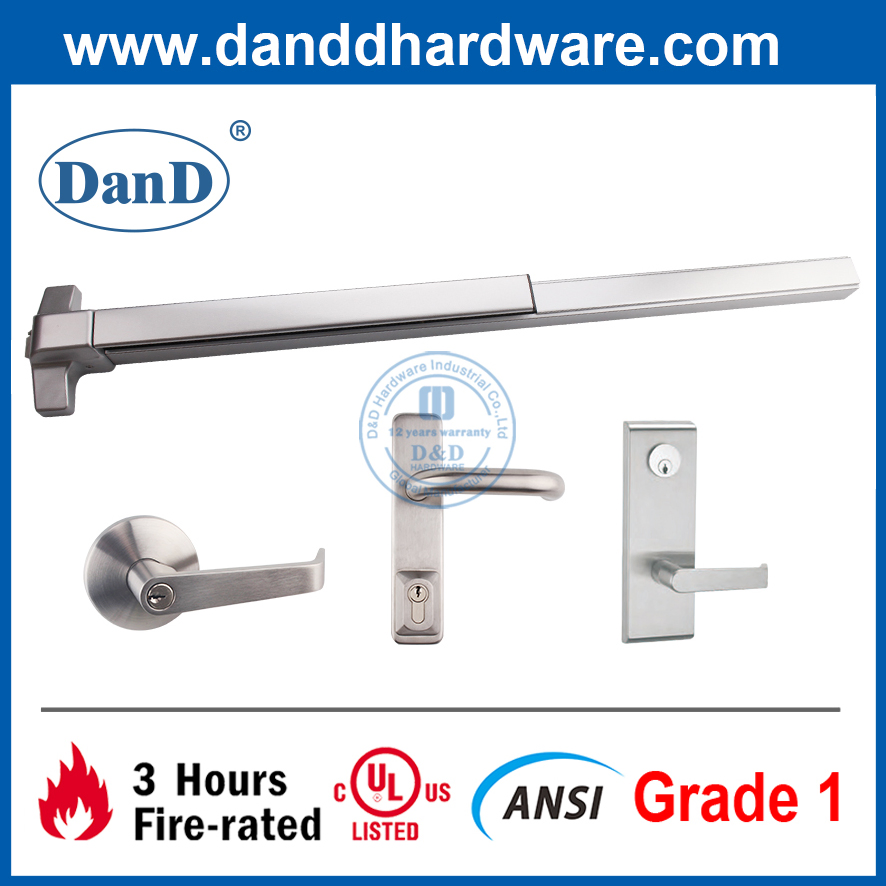

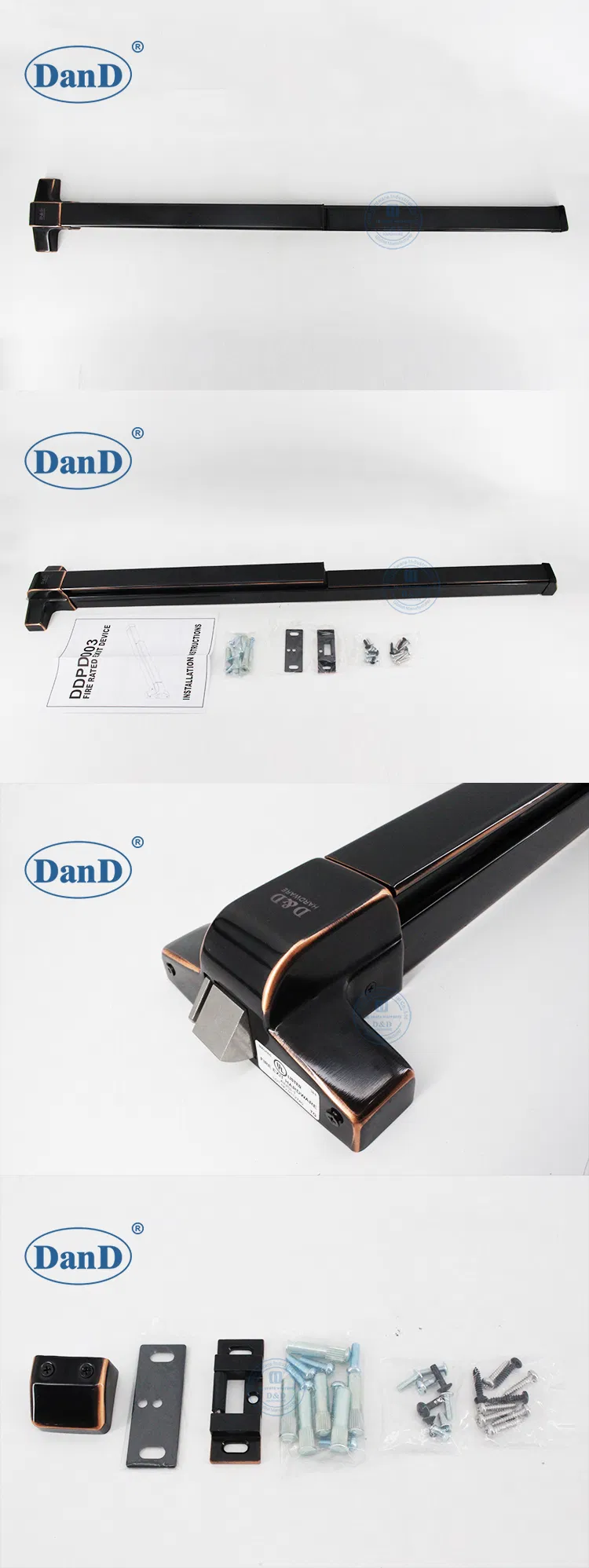

Product Lineup

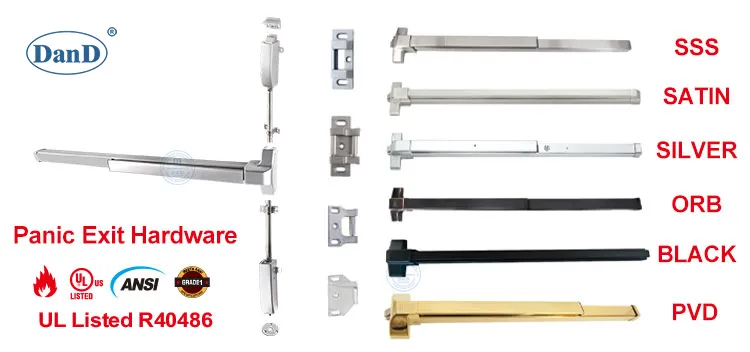

Accessory 1

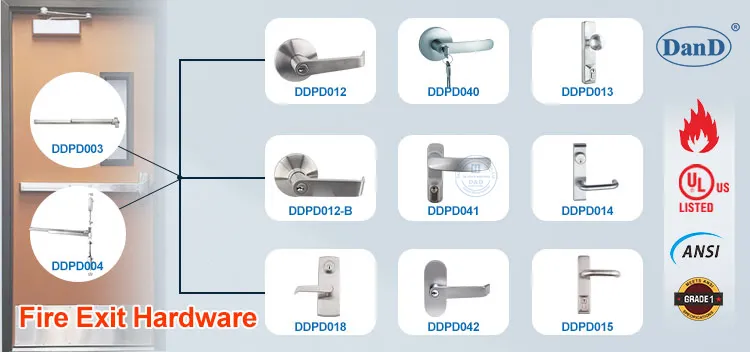

Accessory 2
Packaging & Delivery
Package Size
113.00cm * 24.00cm * 15.00cm
Gross Weight
5.000kg
MOQ
50 PCS
Sample Time
5-7 Working Days
Hardware Solutions
  • Door Hinges - UL Listed UL10C & ANSI Grade 1/2
  • Door Locks - CE EN12209 Fire Rated & UL 10C
  • Stainless Steel Handles - BS EN 1906 Grade 4
  • Panic Exit Devices - UL Listed UL305 & CE Certified
  • Door Closers - CE BS EN 1154 & UL10C
  • Lock Cylinders - BS EN1303

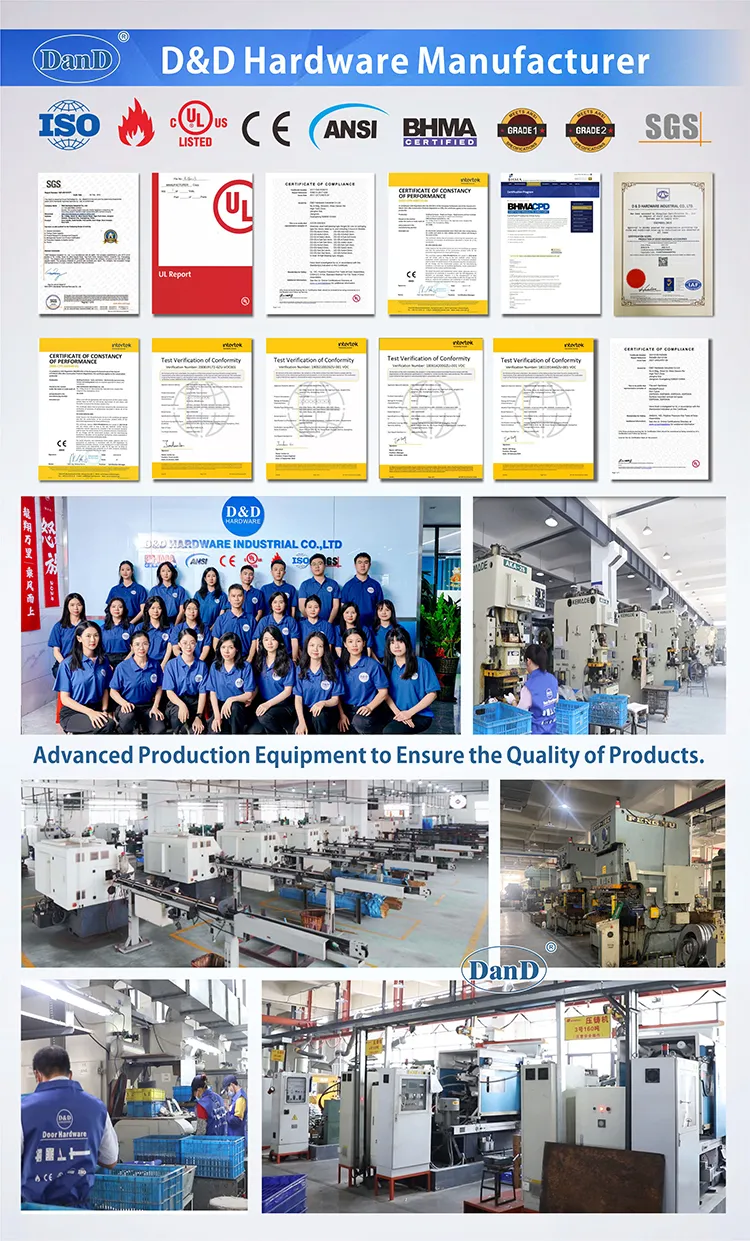

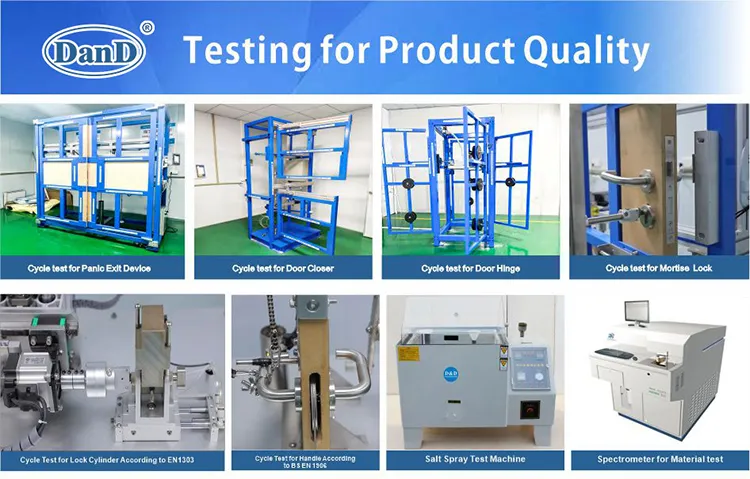

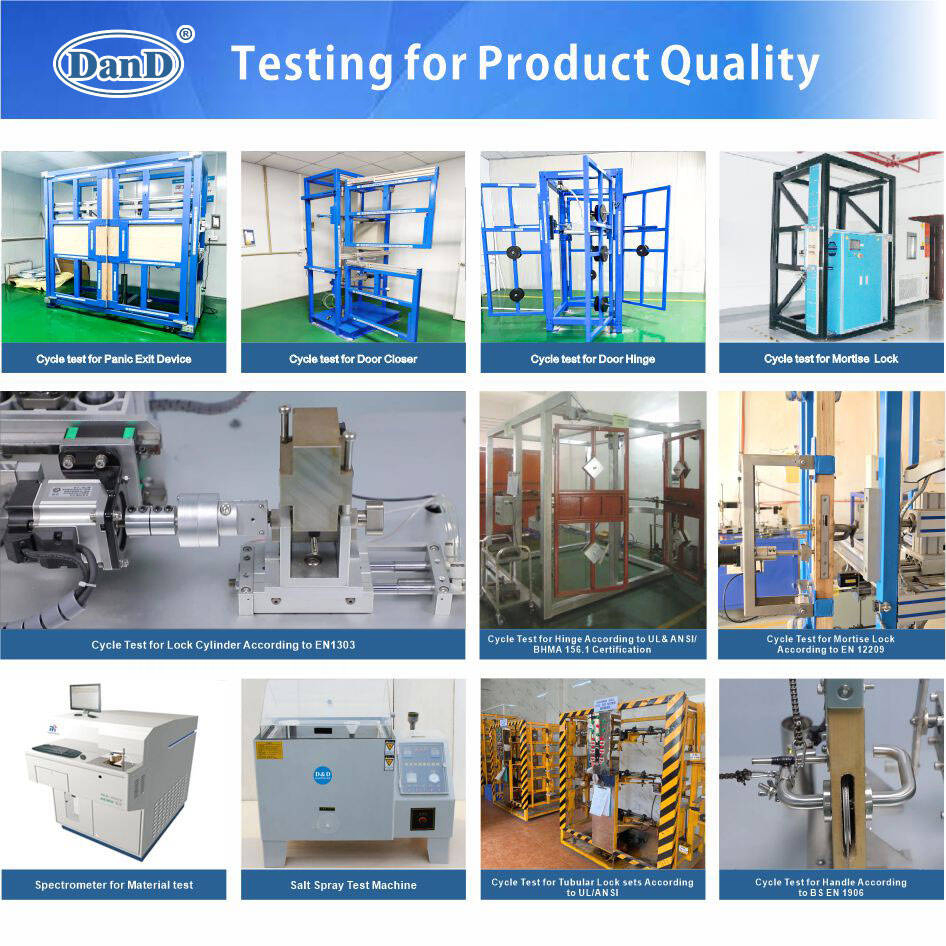

Quality Testing Manufacturing Facility
Frequently Asked Questions
What certificates do you have?
We have CE and UL certificates. All our product designs follow international standards such as EN/CE, UL, and ANSI.
Do you accept OEM or ODM?
Yes, we are professional in OEM and ODM, currently cooperating with famous brands for custom hardware solutions.
What is the guarantee on your products?
We provide a 5-year mechanical guarantee on our products.
What grade of stainless steel is used?
We primarily work with SUS304 and SUS316. Some items are also available in SUS201.
Can you provide samples before an order?
Yes, we can offer up to 3 free samples for your evaluation, with freight collect via your courier account.
What are your payment terms?
Our accepted payment terms include T/T, D/P, Western Union, and L/C.
