Basic Info.
Certification
RoHS, FCC, CE
Application
Public Passage, Supermarket, Campus, Hospital, Warehouse, Hotel
Principle
Electronically Controlled Lock
Material
Steel with Plating or Stainless Steel
Monitoring
Door Status Supported
Product Description

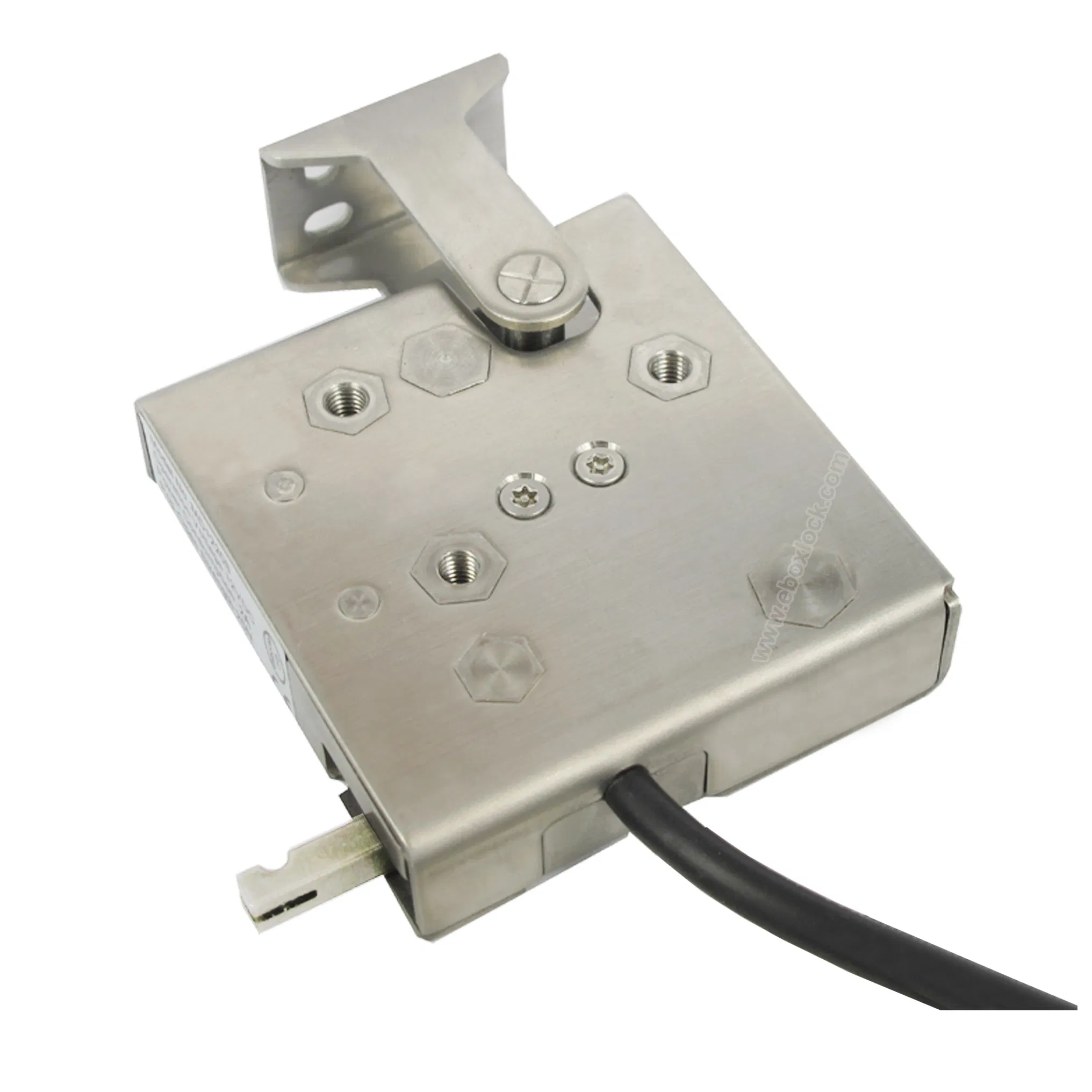

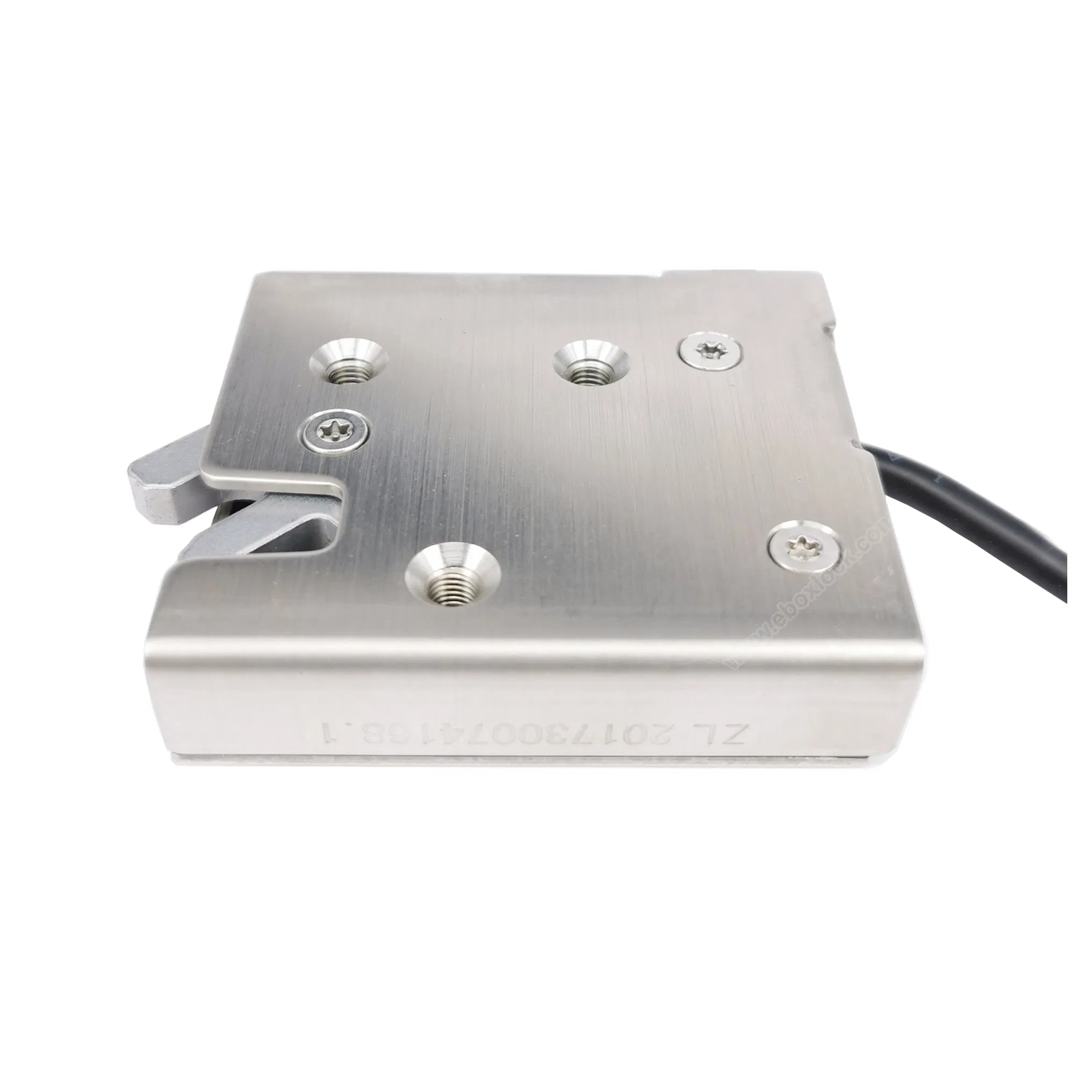

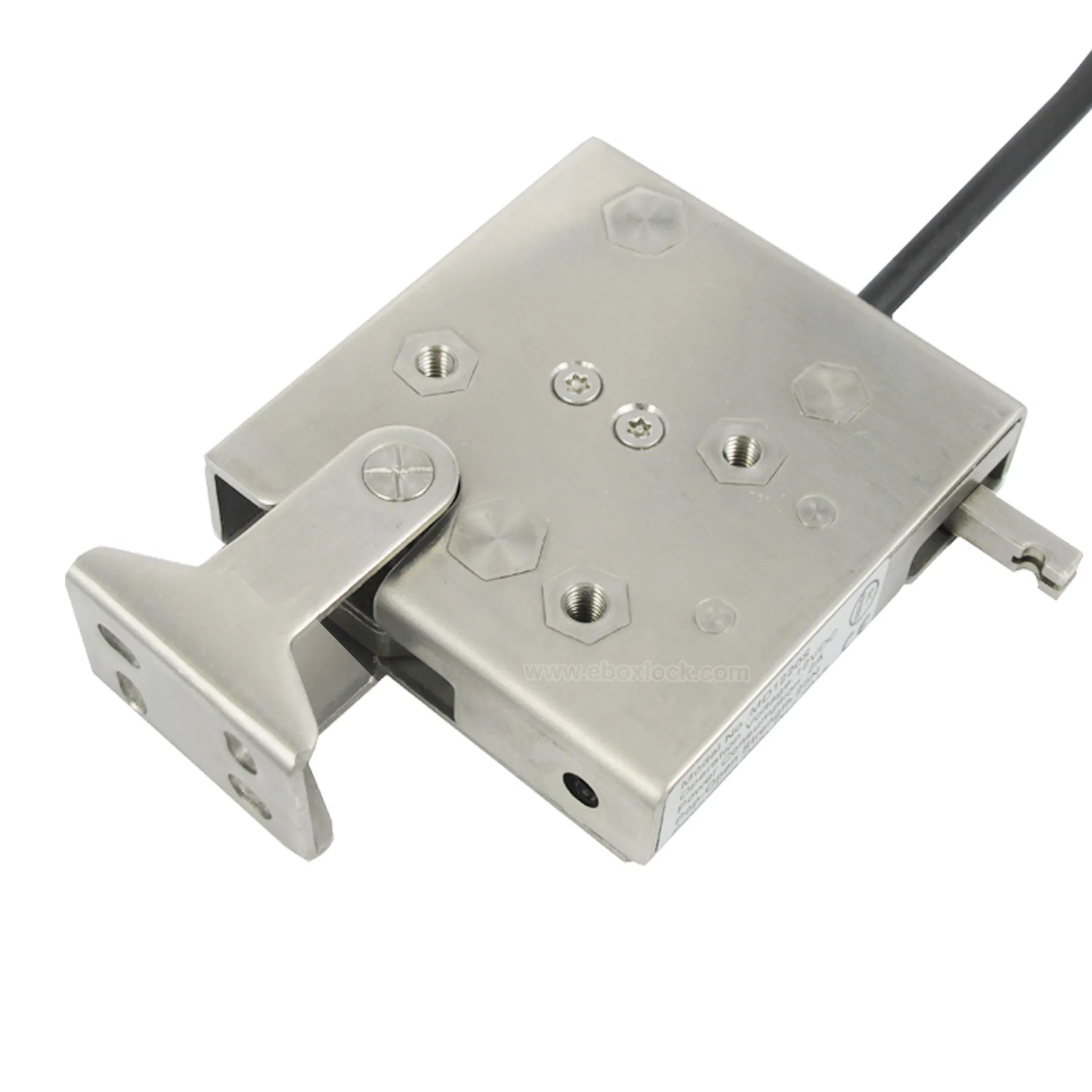

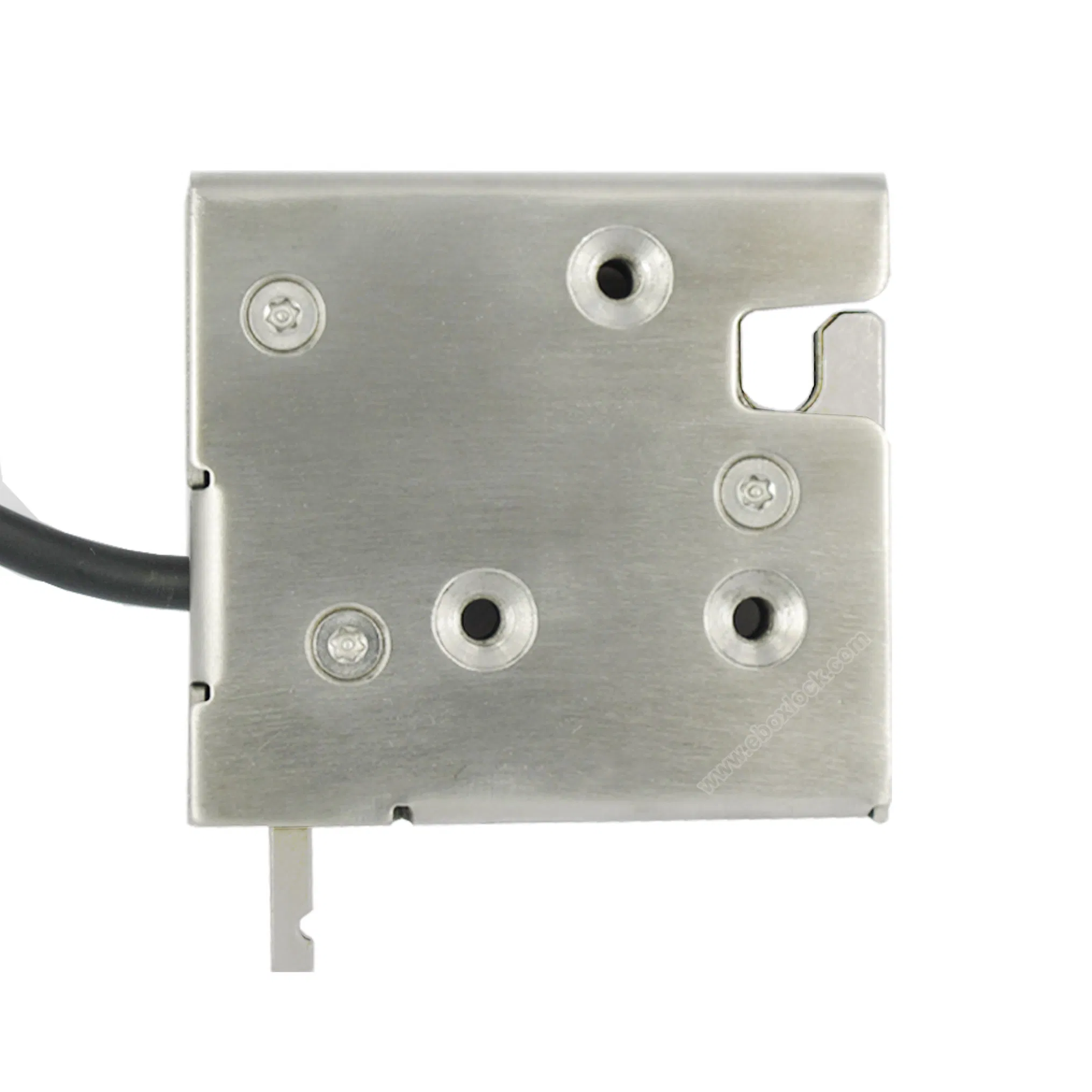

Electronic Rotary Lock MH8026LSH is an electric lock driven by gear-motor, which distinguishes it by low power consumption and high load capability. Designed with delay re-lock function, it allows flexibility of controlling the unlock time. An optional internal door sensor provides reporting of open/close status and mechanical kits for manual override in case of power failure. With easy push-to-close operation, the latch builds an internal spring rod to push door open when electrified. It simplifies the access control of heavy duty vehicles and equipments.
Key Features
- Low energy consumption
- Microprocessor controlled gear motor
- Operates against heavy mechanical loads
- Optional internal microswitch for reporting status
- Push to close and electronic release
- Optional time delay for holding
- Corrosion-resistant version available for outdoor
- High strength and durability
- Accepts control inputs from any access devices
Technical Specifications
| Parameter |
Details |
| Operation Voltage | 5-26VDC Nominal |
| Operating Current | Less than 200mA at 12VDC |
| Standby Current | Less than 15uA |
| Time of Latch Release | 1 second free load |
| Operation Mode | Fail secure |
| Holding Force | 600KG |
| Cycle Rating | More than 1,000,000 |
| MS Contact Rating | 5A @125V |
| Working Temperature | -20ºC ~ +60ºC |
| Dimensions LxWxH | 72mm * 67mm * 18mm |
| Weight | 330g |
Main Applications

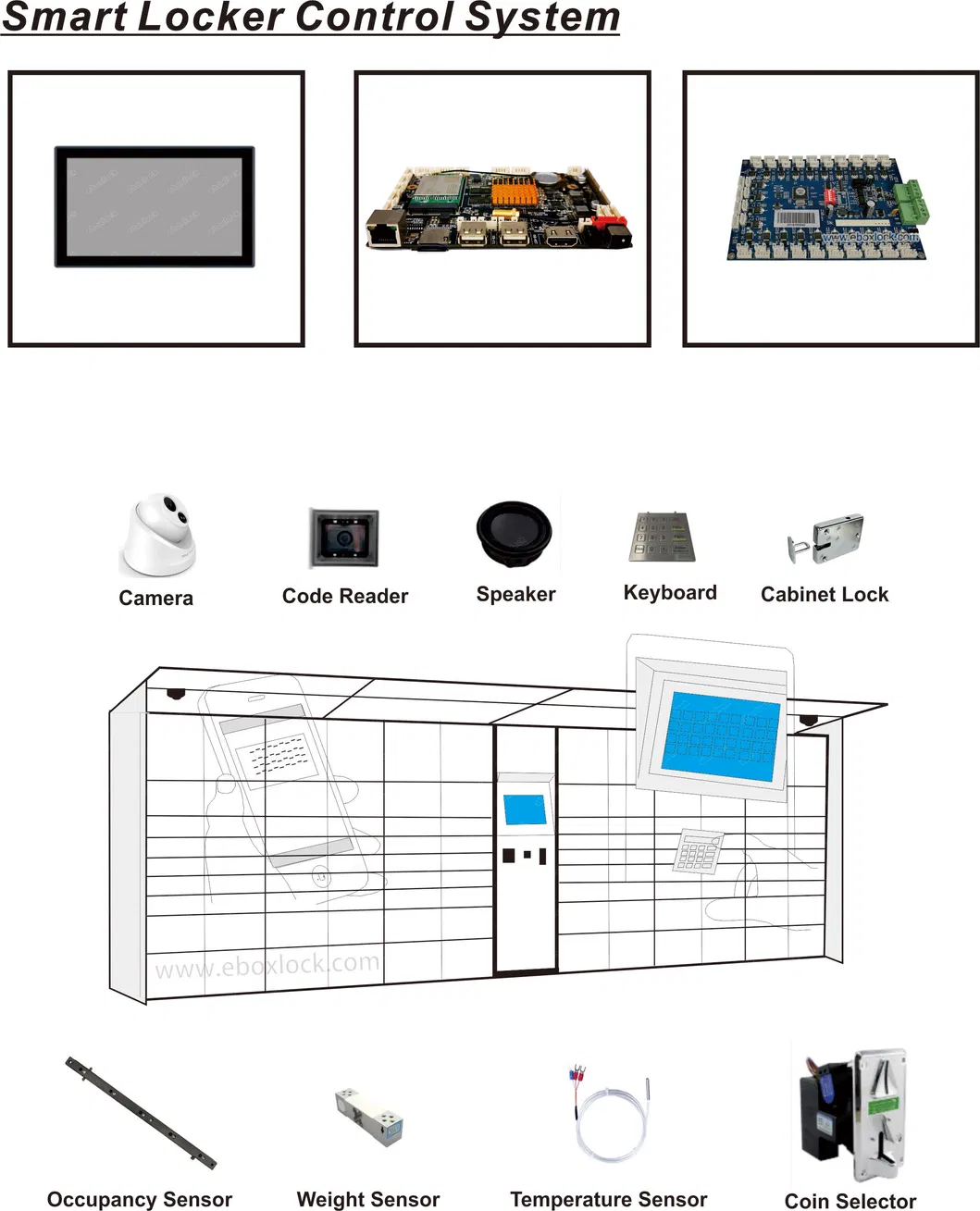

Ideal for: Vending machines, delivery parcel lockers, self-service sales kiosks, cabinets, security doors, grills and gates.

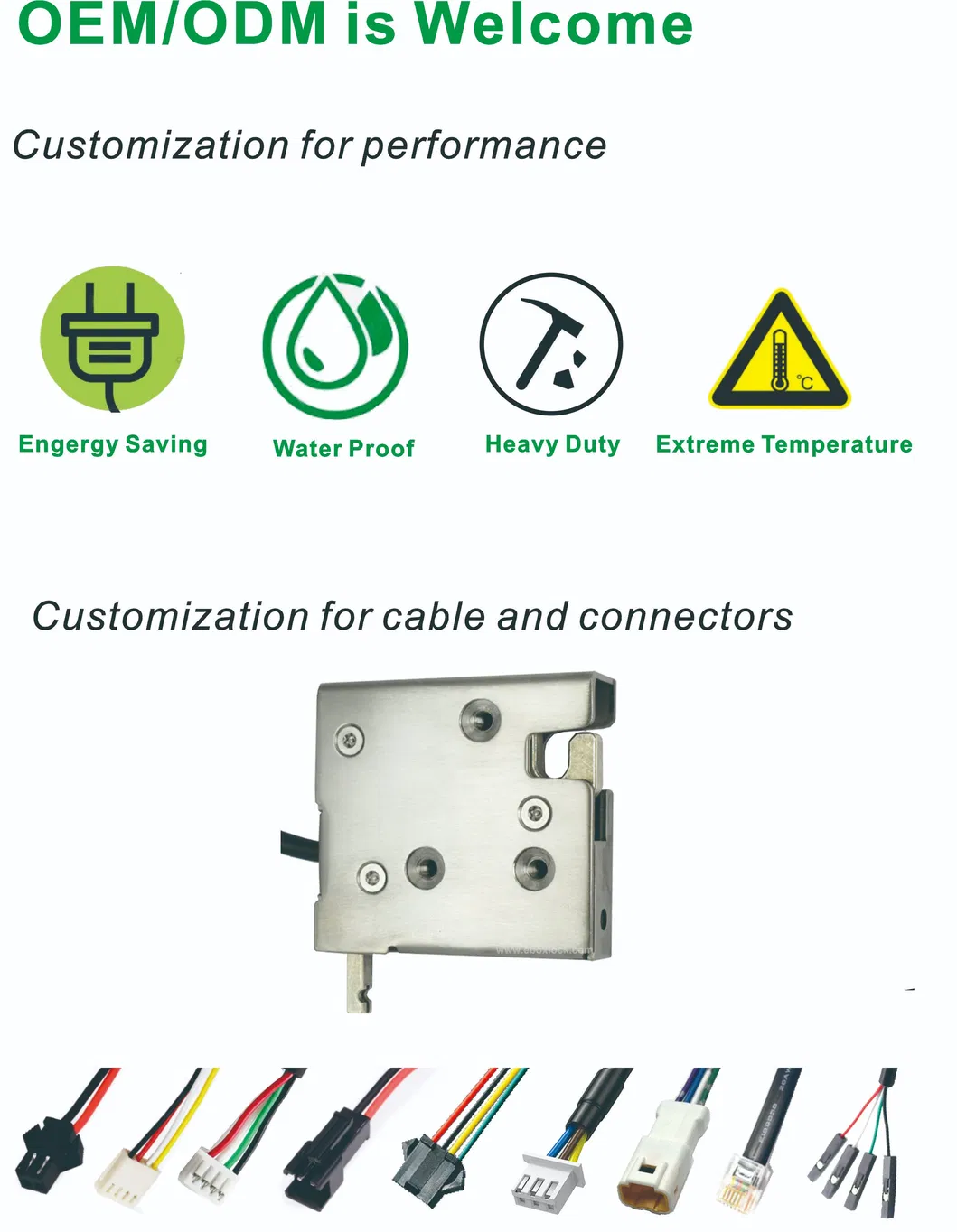

Customization available for cable length and connector type!
| Voltage |
Trigger Spring |
Mounting |
Material |
Connector |
| 5V-26V |
10N / 25N / 35N |
M5 Thread / Thru |
Steel / Stainless |
Molex, PH, RJ11 |
Packaging & Delivery
Package Size
12.00cm * 11.00cm * 7.00cm
Frequently Asked Questions
What is the maximum holding force of the MH8026LSH?
The lock is designed for heavy-duty security with a high holding force of up to 600kg.
What voltage range does this electronic rotary lock support?
It supports a wide operating voltage range from 5V to 26VDC.
Can I monitor the door status with this lock?
Yes, an optional internal microswitch is available to report the open or closed status of the door.
Is it suitable for outdoor use?
We offer a corrosion-resistant version specifically designed for durability in outdoor environments.
What happens in the event of a power failure?
The lock can be equipped with optional mechanical override kits for manual release during power outages.
How long is the service life of the motor?
The lock has undergone extensive testing and is rated for over 1,000,000 duty cycles.
