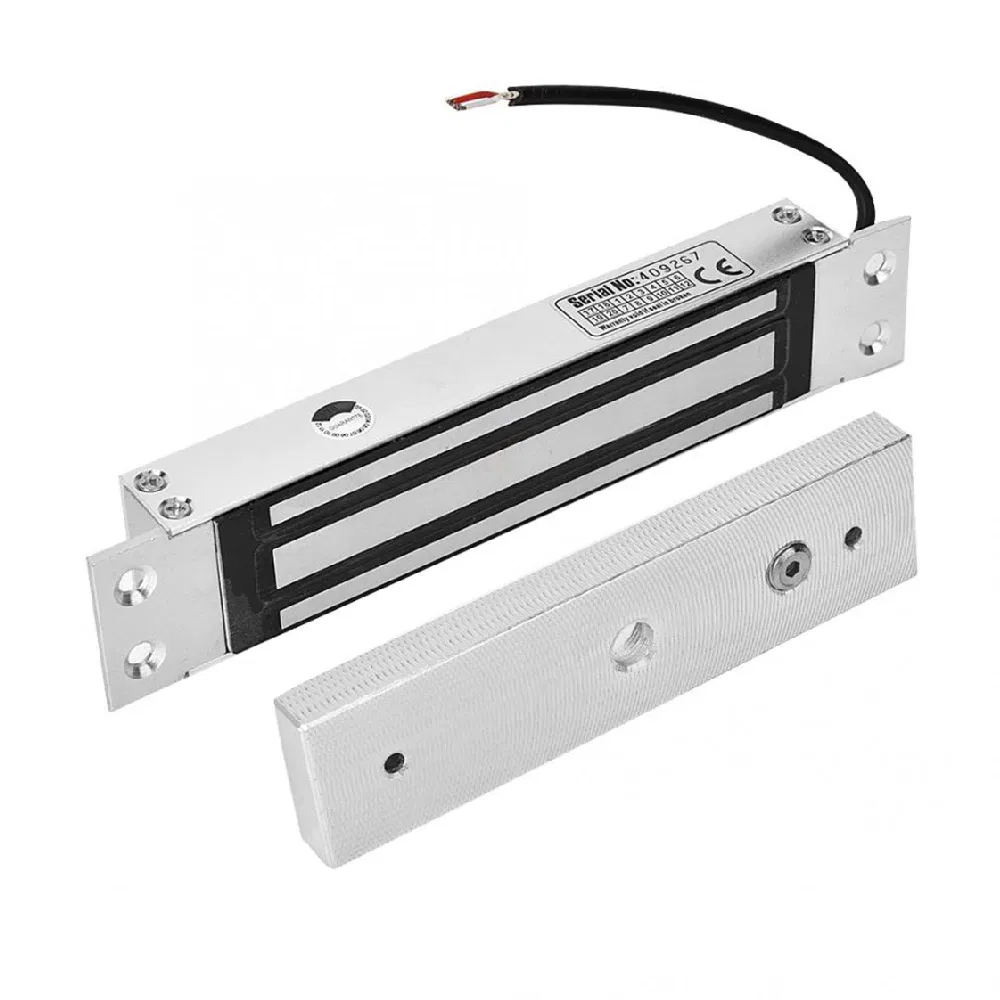

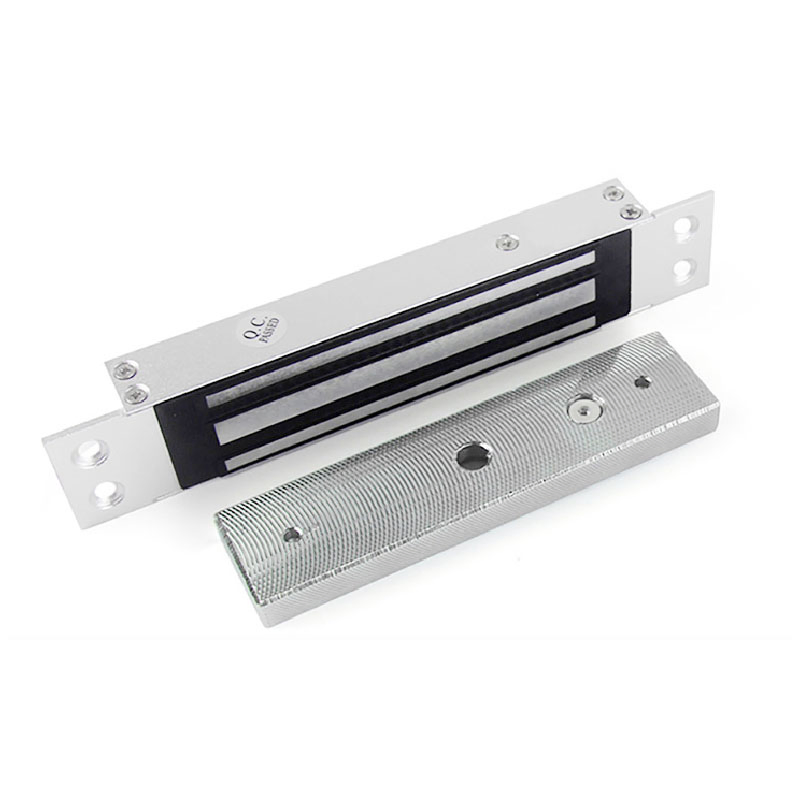

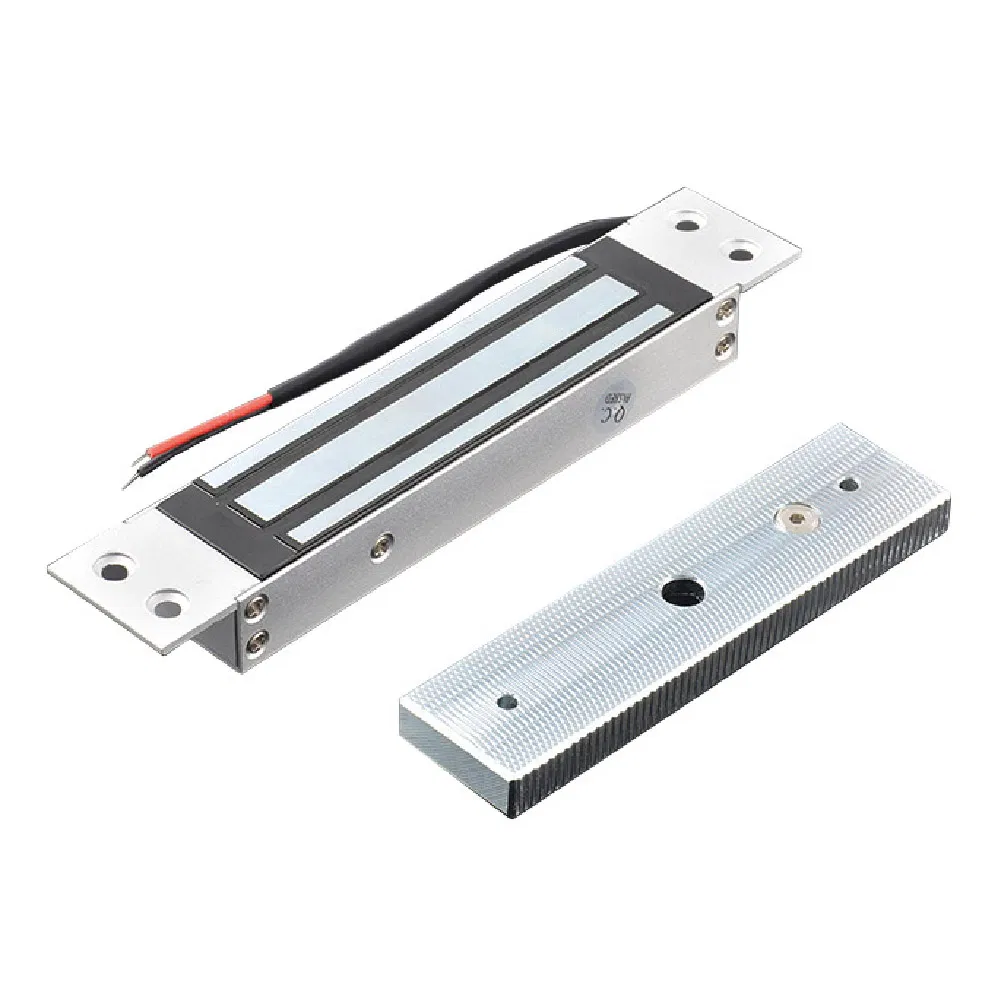

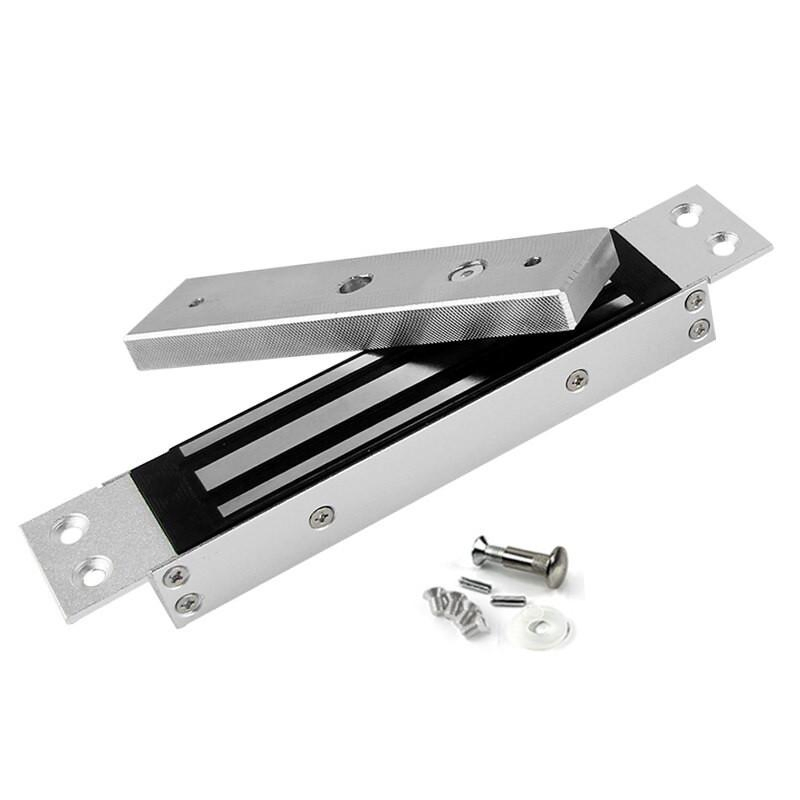

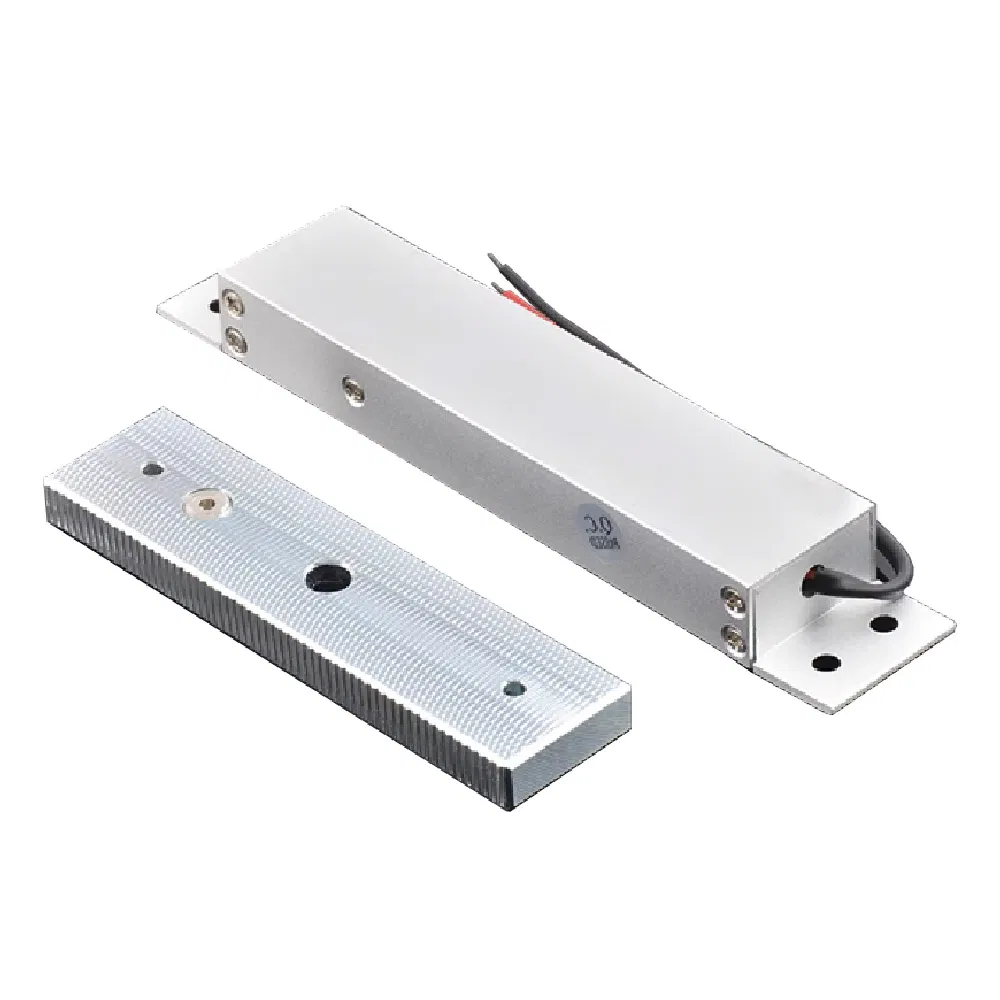

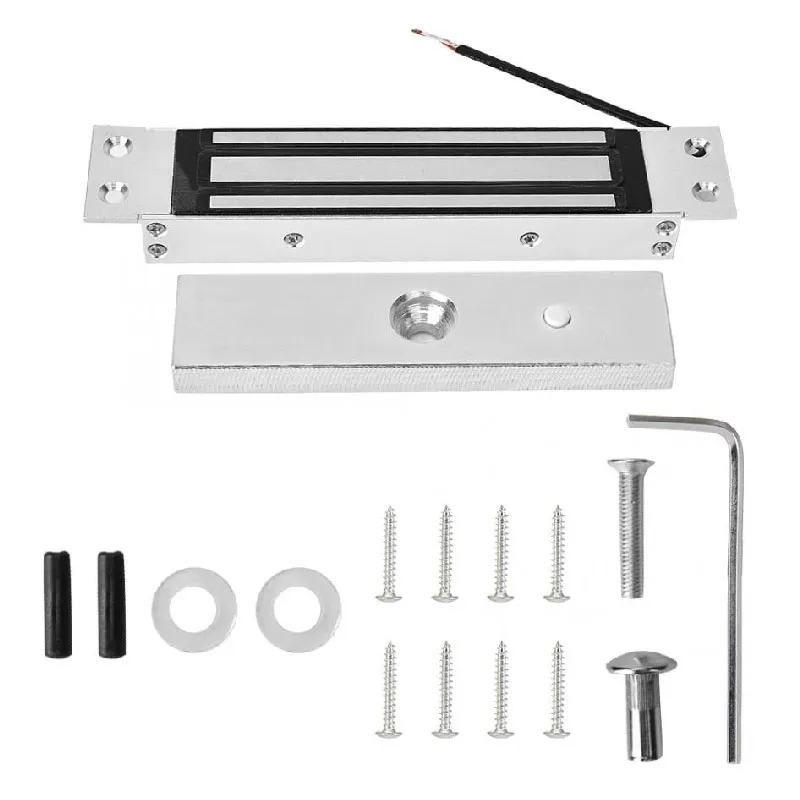

The Magnetic Lock ME1228F with 600 lb. Holding Force is a concealed magnetic lock ideal for door access. Mortise mounting either vertically or horizontally offers easy and flexible installation. Hardware accessories include brackets, housings, and dress covers as needed for every opening type. The electromagnetic lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. It is recommended for access-controlled interior rooms and secure areas within buildings.
| Parameter | Details |
|---|---|
| Operation Current | 500mA/12 VDC or 250mA/24 VDC |
| Operation Mode | Fail unlock (Fail-Safe) |
| Holding Force | 280KG / 600lb |
| Cycle Rating | More than 300,000 cycles |
| Working Temperature | -10ºC ~ +55ºC |

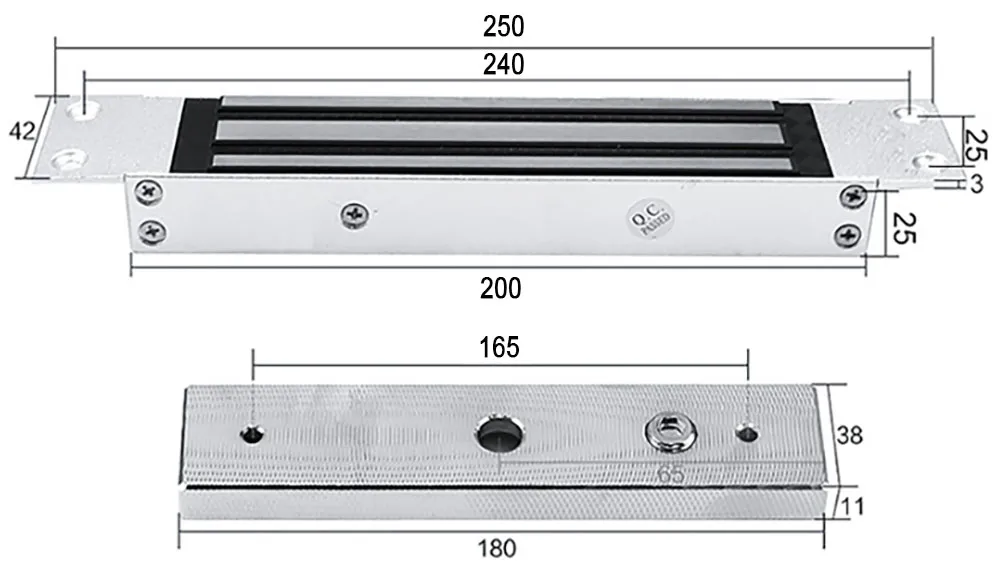

| Lock Dimensions | 250L x 42W x 26H (mm) |
| Strike Dimensions | 180L x 38W x 11H (mm) |
| Protection Class | IP67 |
| Model No. | Holding Force | LED Indicator | Sensor | Mounting Way | Door Type |
|---|---|---|---|---|---|
| ME1228F | 280KG/600lbs | Without | Without | Flush Mount | Single |
| ME1228W | 280KG/600lbs | Without | Without | Surface Mount | Single |
| ME1228L | 280KG/600lbs | With | Without | Surface Mount | Single |
| ME1228LS | 280KG/600lbs | With | With | Surface Mount | Single |
| ME1228DLS | 280KG/600lbs | With | With | Surface Mount | Double |

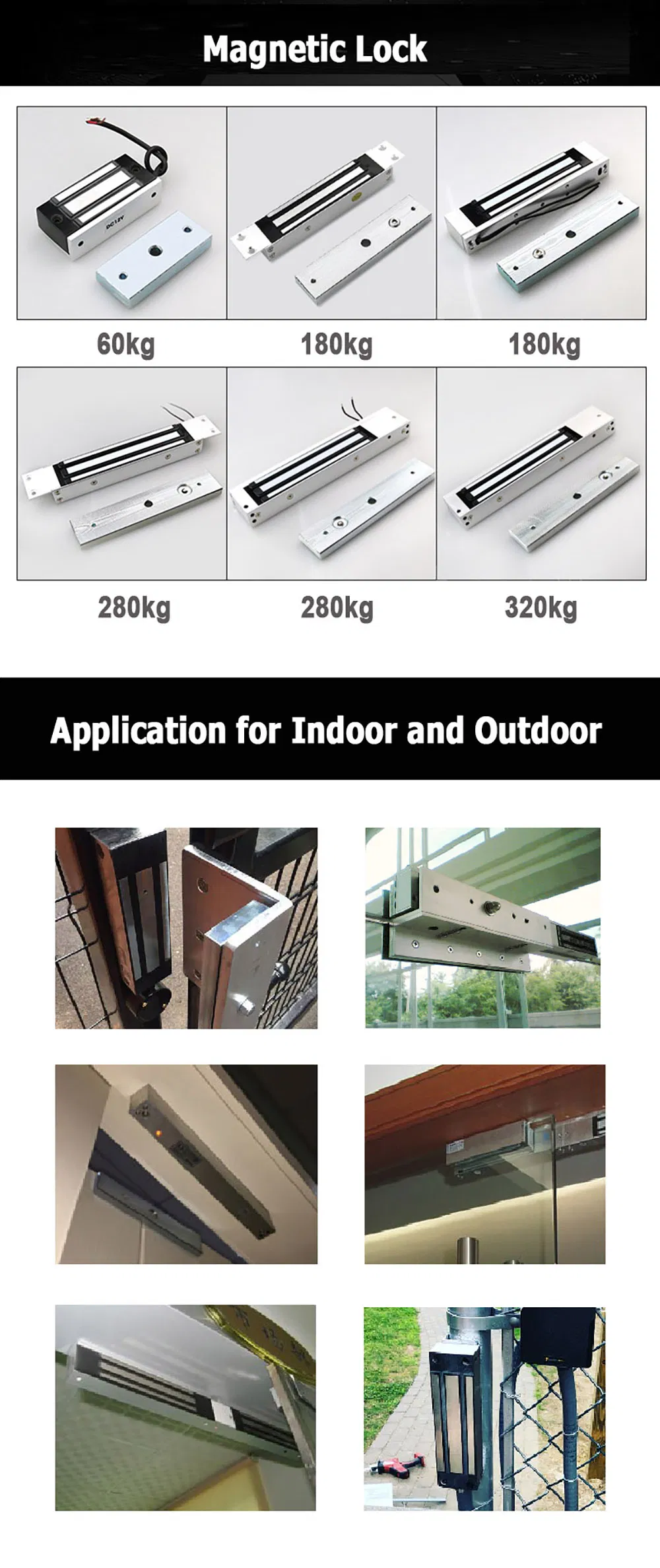

The electromagnetic lock is ideal for various applications including:
