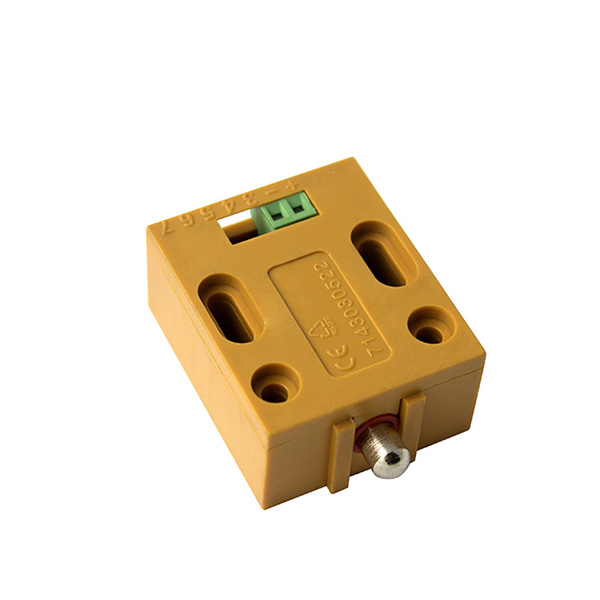

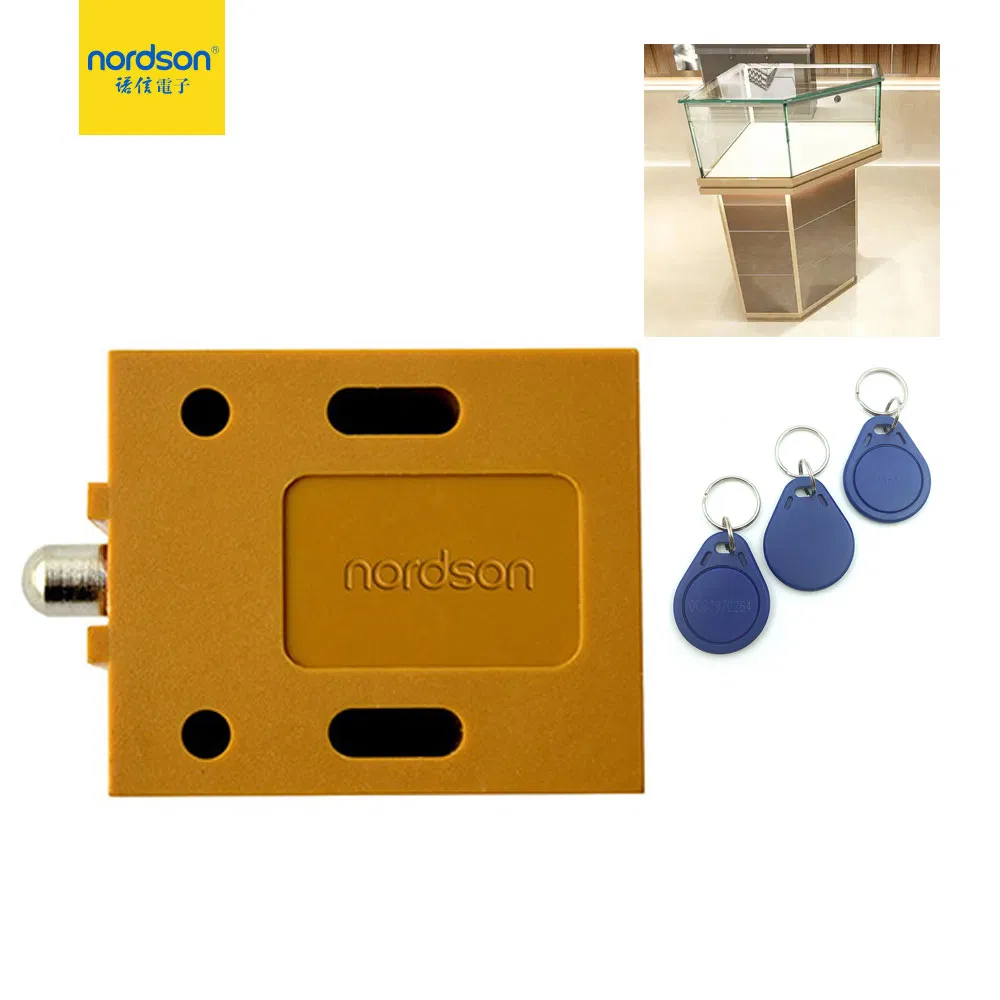

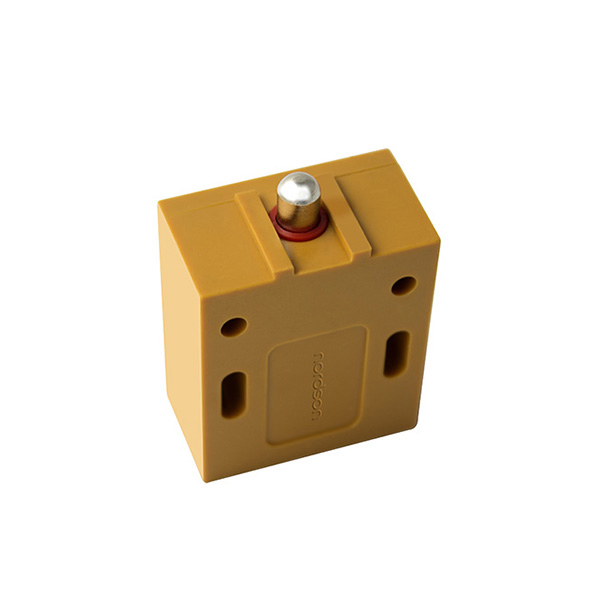

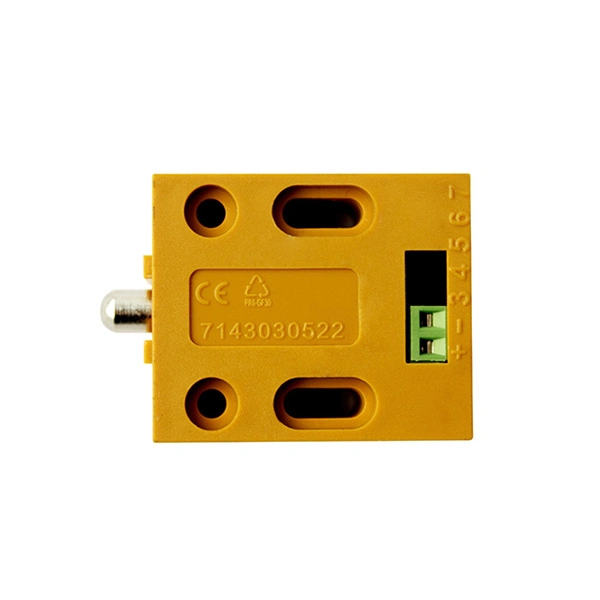

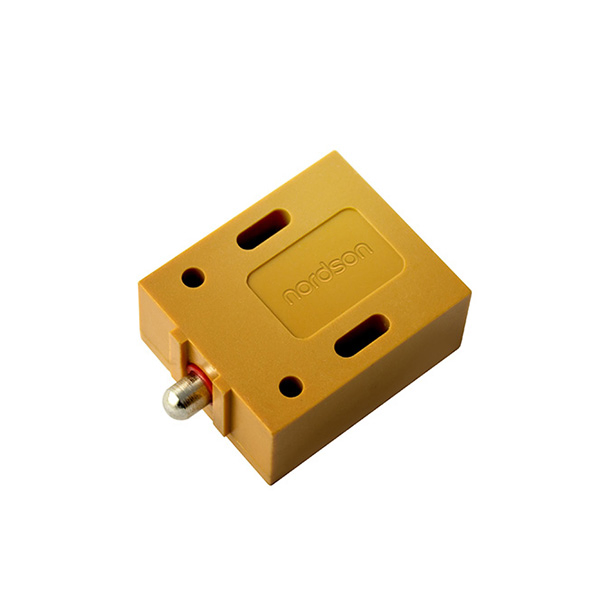

The NI-7143 small electronic cabinet lock is expertly designed for various applications such as boxes, cabinets, and lockers requiring frequent access. It is ideal for safe boxes and storage units in shopping malls. Features include instant electrification, safety, durability, energy saving, and ease of installation.
| Version | Fail locked (locked when current is off) |
| Diameter dead bolt | ø9mm, 18mm |
| Shear strength | 100Lbs / 50KG |
| Rated Operating Voltage | DC 12V or 24V (Customization Available) |
| Standby Current | 250mA |
| Optional Functions | Door Status Sensors |
| Face place material | ABS |
| Surface Temp | Low Temperature |
| Ambient temperature | -10°C to +55°C |
| Suitable for | Wooden, Aluminum & Metal Furniture frame |

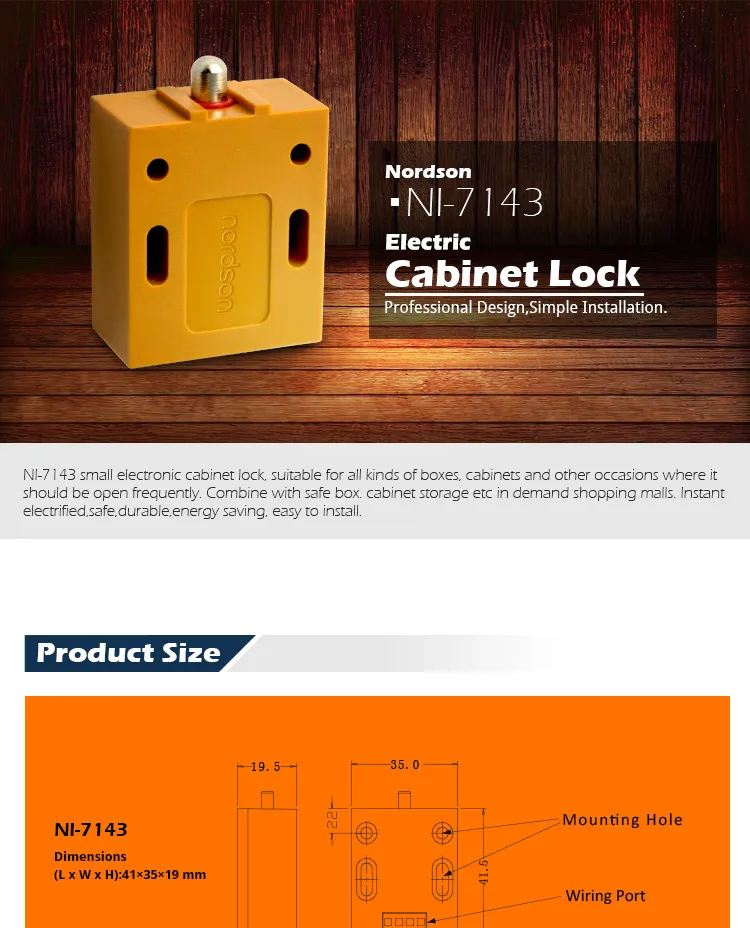

| Dimensions (L x W x H) | 41mm x 35mm x 19mm |
| Weight | 0.11kg |
| Compliance | CE-mark & RoHS-mark |
📦 Packaging: Neutral Package.
🚚 Shipping: Small quantities within 1-5 working days; large quantities within 14 working days after payment receipt.
🛡️ Warranty Policy:
• 3-year warranty for electromagnetic locks, access control panels, and electric bolts.
• 1-year warranty for exit buttons, brackets, and power supplies.
