Basic Information
| Model NO. |
MH8026SPH |
| Type |
Motorized Rotary Latch |
| Material |
Steel with Plating or Stainless Steel 304 |
| Theft-proof Performance |
600kg Holding Force |
| Operation Voltage |
5-26VDC |
| Power Consumption |
60mA (Standby less than 15uA) |
| Monitoring |
Door Status (Optional internal microswitch) |
| Cycle Testing |
300,000 to 1,000,000 Cycles |
| Protection Class |
IP67 Weatherproof |
| Operating Temperature |
-40ºC ~ +80ºC |

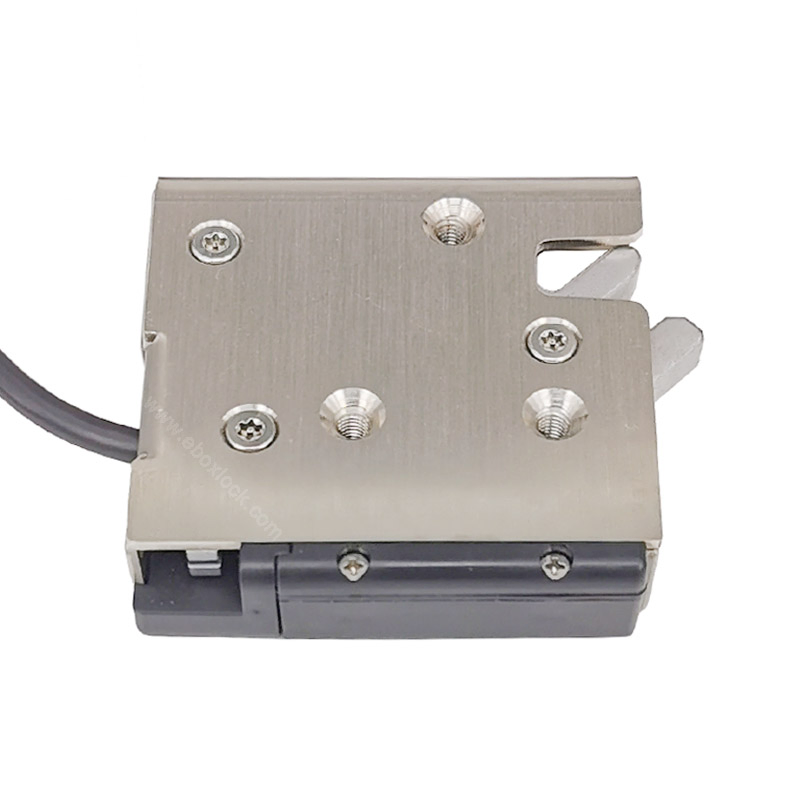

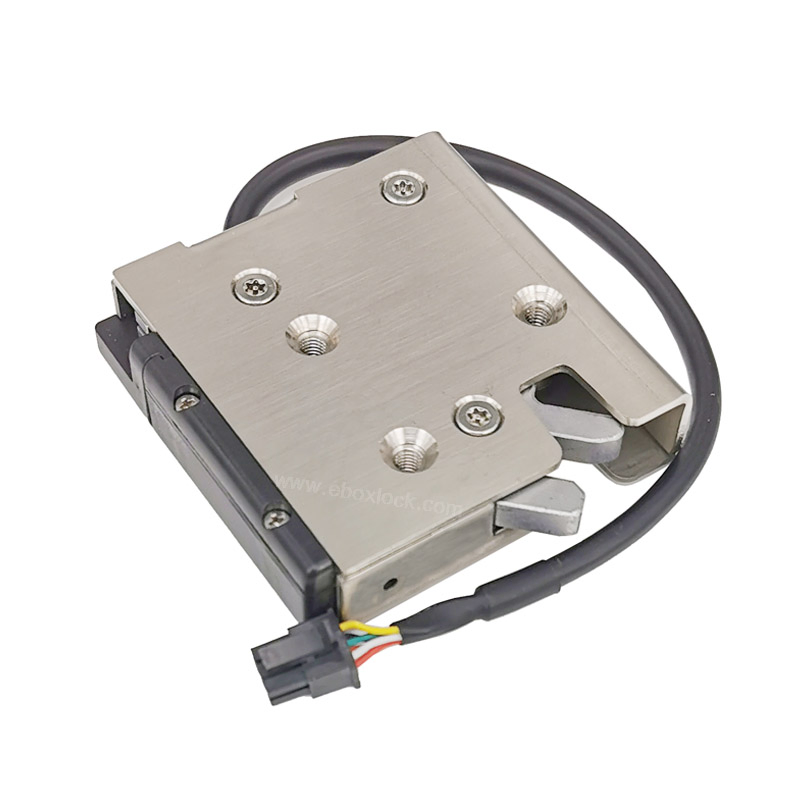

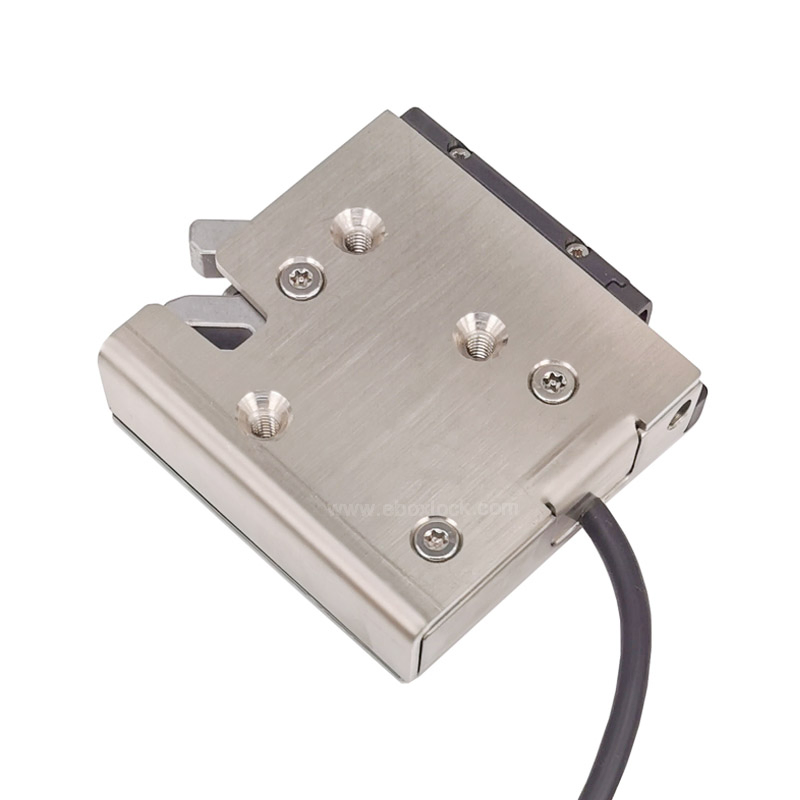

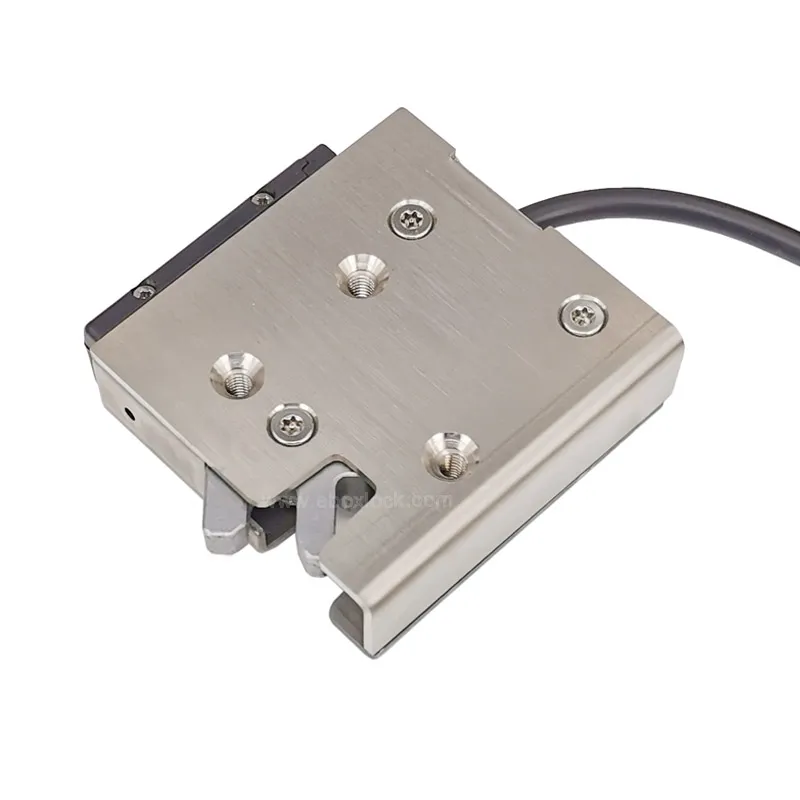

Product Overview

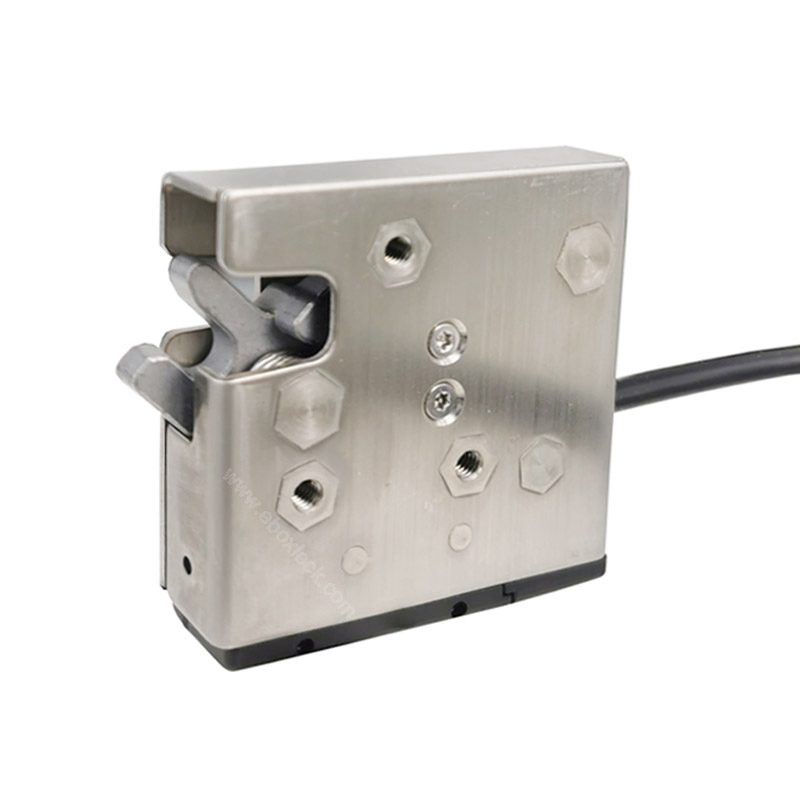

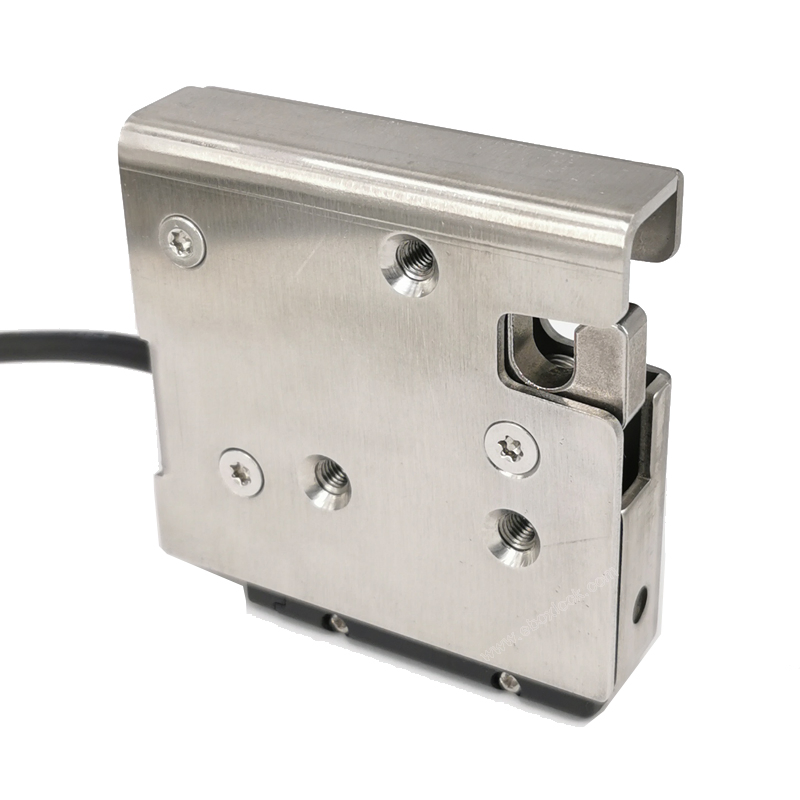

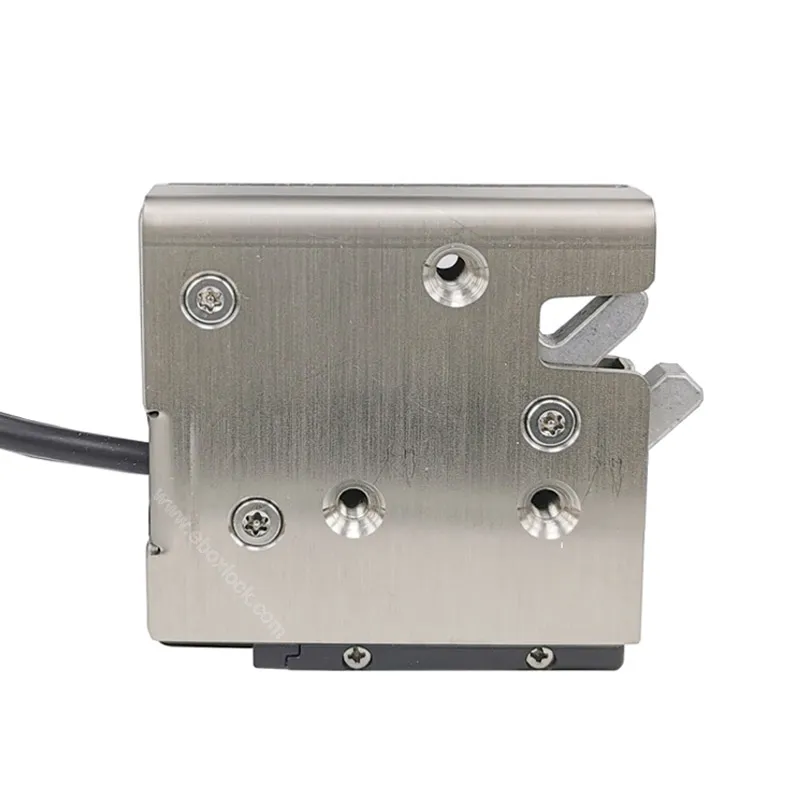

Weatherproof IP67 Electronic Rotary Latch Lock MH8026SPH is an electric lock driven by gear-motor, which distinguishes it by low power consumption and high load capability. Designed with delay re-lock function, it allows flexibility of controlling the unlock time. With easy push-to-close operation, the latch builds an internal spring rod to push door open when electrified. It simplifies the access control of heavy duty vehicles and equipment.
Key Features
- Low energy consumption
- Tough 304 stainless steel construction
- Sealed Microprocessor controlled gear motor
- Operates against heavy mechanical loads
- Push to lock and electronic release
- Accepts control inputs from any access control devices
Technical Specifications
| Operating Current |
Less than 200mA at 12VDC |
| Time of Latch Release |
1 second free load |
| Operation Mode |
Fail secure |
| MS Contact Rating |
5A @125V |
| Dimensions |
72mm * 67mm * 18mm |
| Weight |
330g |
Applications
Vending machines
Delivery parcel lockers
Self-service kiosks
Outdoor Cabinets
Security doors
Grills & Gates
Heavy duty vehicles
Customization Options
We offer customization for cable length and connector type to better meet requirements.
| Trigger Spring |
10N / 25N / 35N |
| Mounting Holes |
M5x16 thread or M5x25 thru |
| Cable Types |
Twisted, RVV, or Flat cable |
| Connectors |
Molex, KF2510, PH, RJ11 |
Packaging & Delivery
| Package Size |
12.00cm * 11.00cm * 7.00cm |
| Gross Weight |
0.400kg |
Frequently Asked Questions
Is this lock suitable for outdoor use?
Yes, it features an IP67 protection class, making it weatherproof and ideal for outdoor cabinets and medical refrigerators.
What is the maximum holding force?
The lock is designed with a high-strength metal construction providing up to 600kg of holding force.
What voltage range does the lock support?
The motorized rotary latch operates on a wide nominal voltage range from 5V to 26V DC.
Can I monitor the door status with this lock?
Yes, it includes an optional internal microswitch that provides real-time reporting of the open or closed status of the door.
How durable is the MH8026SPH model?
The lock is built for high durability and is cycle-rated for 300,000 to over 1,000,000 operations depending on application conditions.
What happens in case of a power failure?
The lock is "Fail Secure" (remains locked without power), but optional mechanical override kits are available for manual opening in emergencies.
