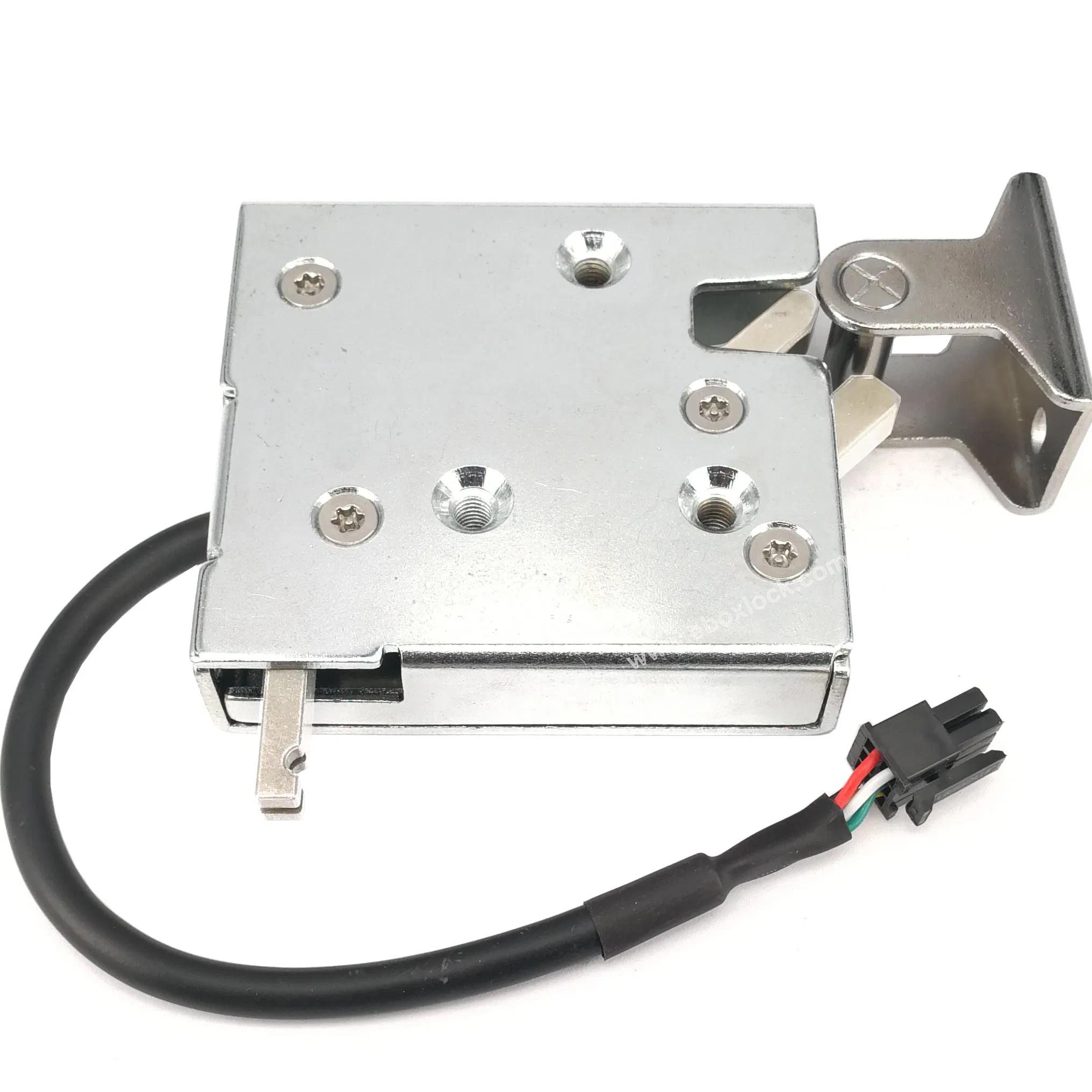

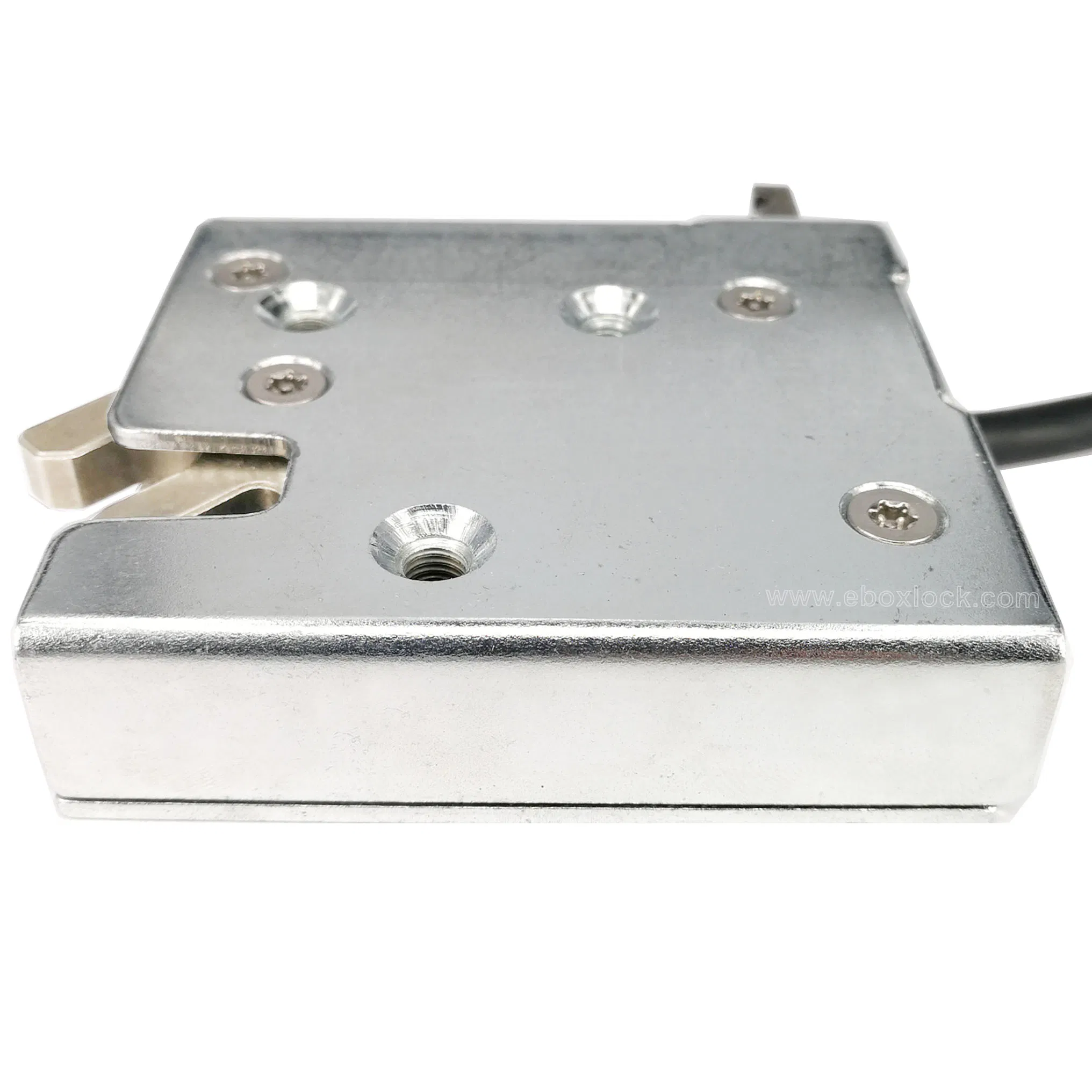

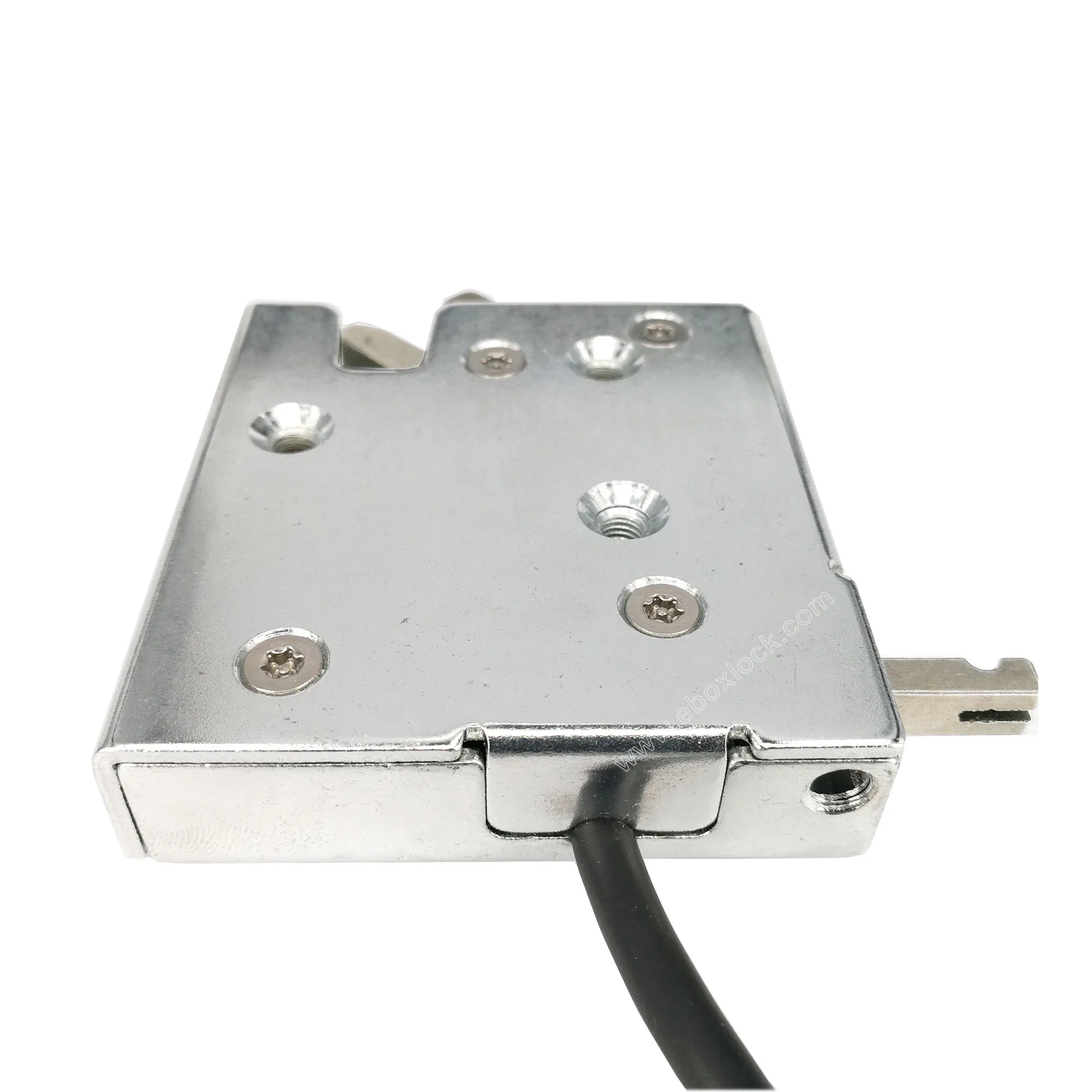

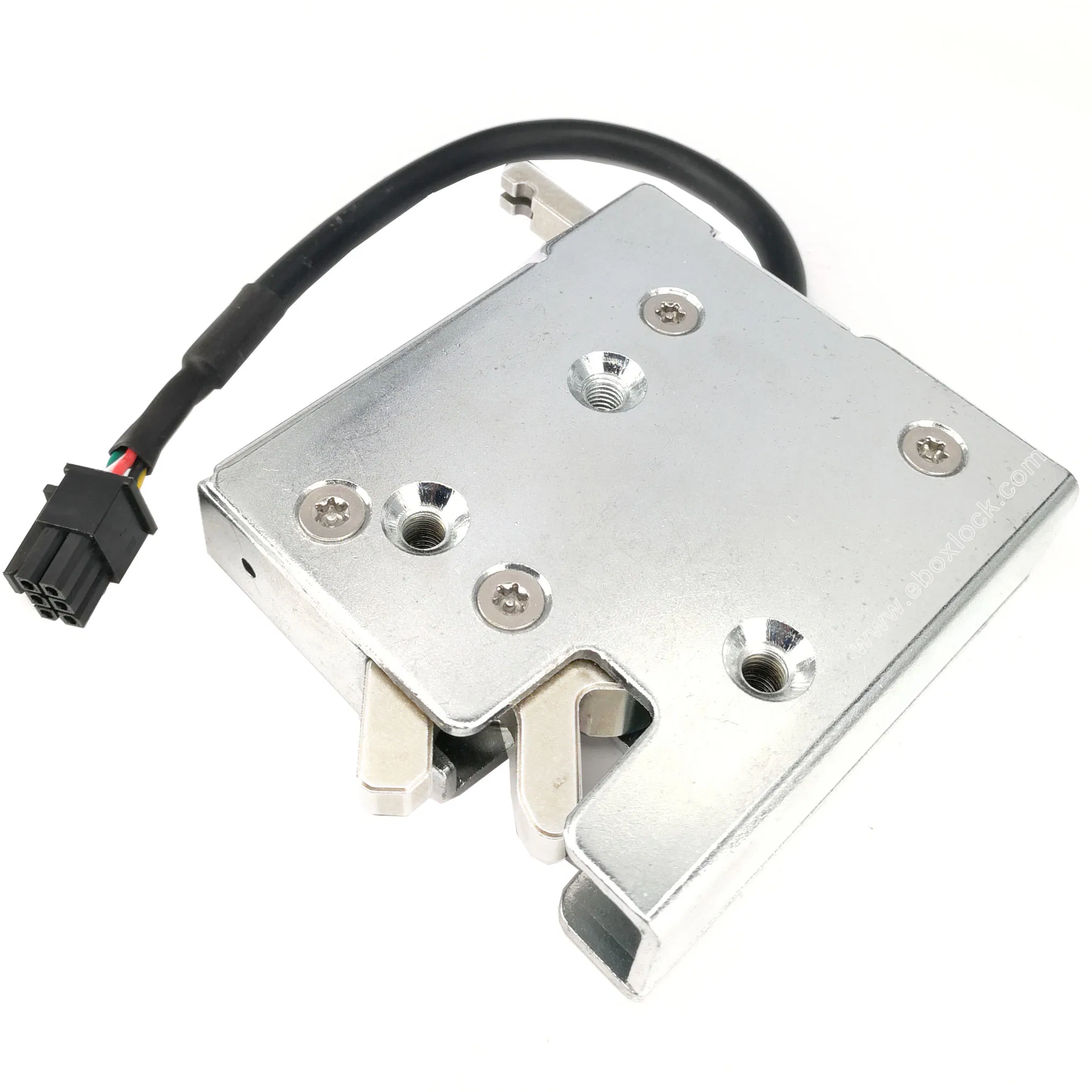

The MD1220LS-915 is a high-security access control solution specifically designed for Smart Bike Lockers and Electric Scooter Stations. Its robust all-metal construction allows the lock to operate reliably even under heavy mechanical loads.

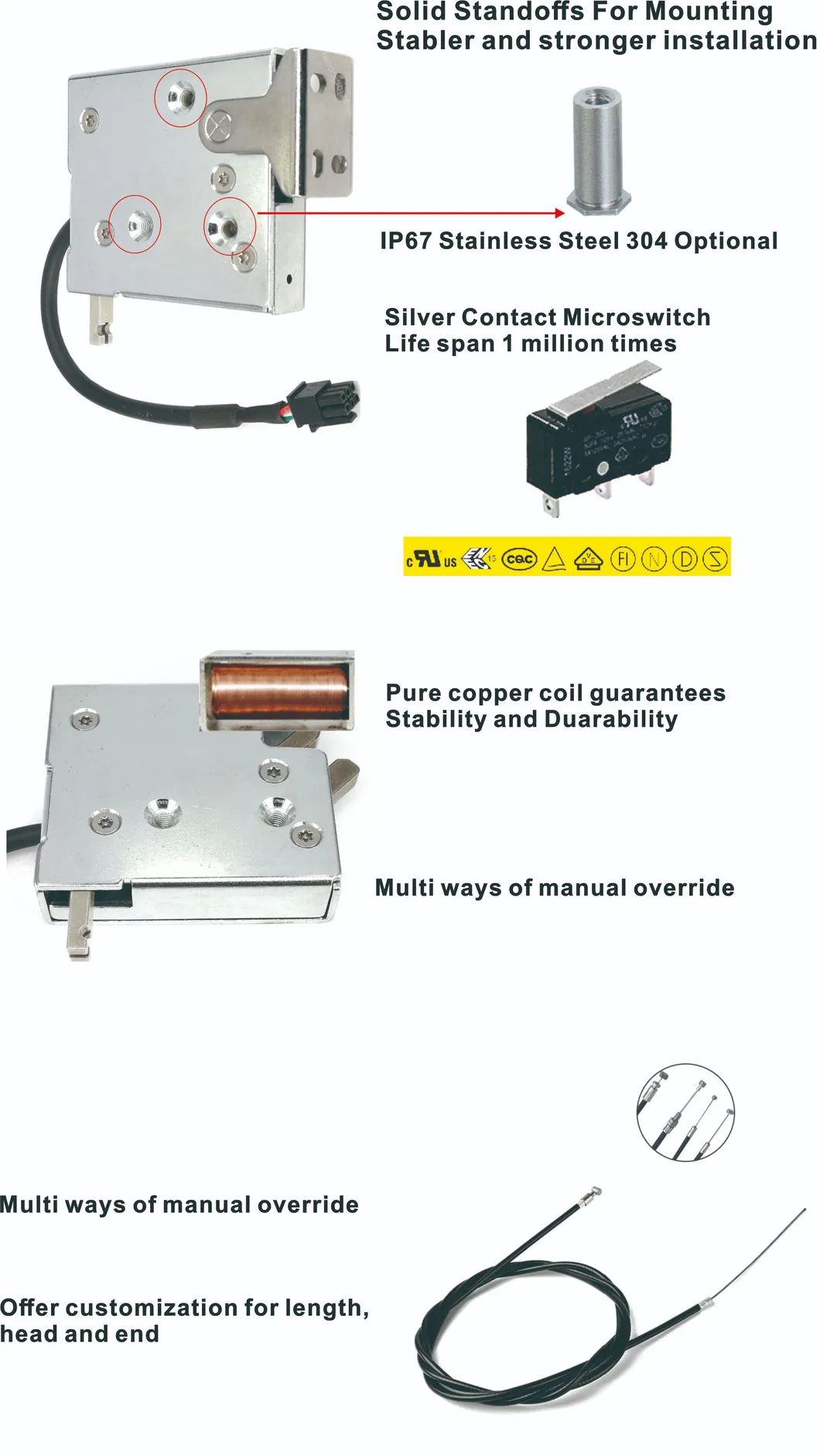

An optional built-in door sensor provides real-time reporting of open/close status, while mechanical kits allow for manual override in the event of a power failure. The surface-mounting design offers flexible installation either vertically or horizontally.
| Parameter | Value |
|---|---|
| Operation Voltage | 9VDC intermittent ±10% |
| Power Consumption | 9V DC 3000mA |
| Holding Force | 600KG |
| Cycle Rating | More than 1,000,000 times |
| Working Temperature | -20ºC ~ +60ºC |
| Protection Class | IP20 |
We offer extensive customization for cable lengths and connector types to meet the exact requirements of your application. Options include voltage variations (9V, 12V, 24V, 48V), different trigger spring strengths (10N to 35N), and materials such as stainless steel.
This electronic cabinet lock is ideal for:
