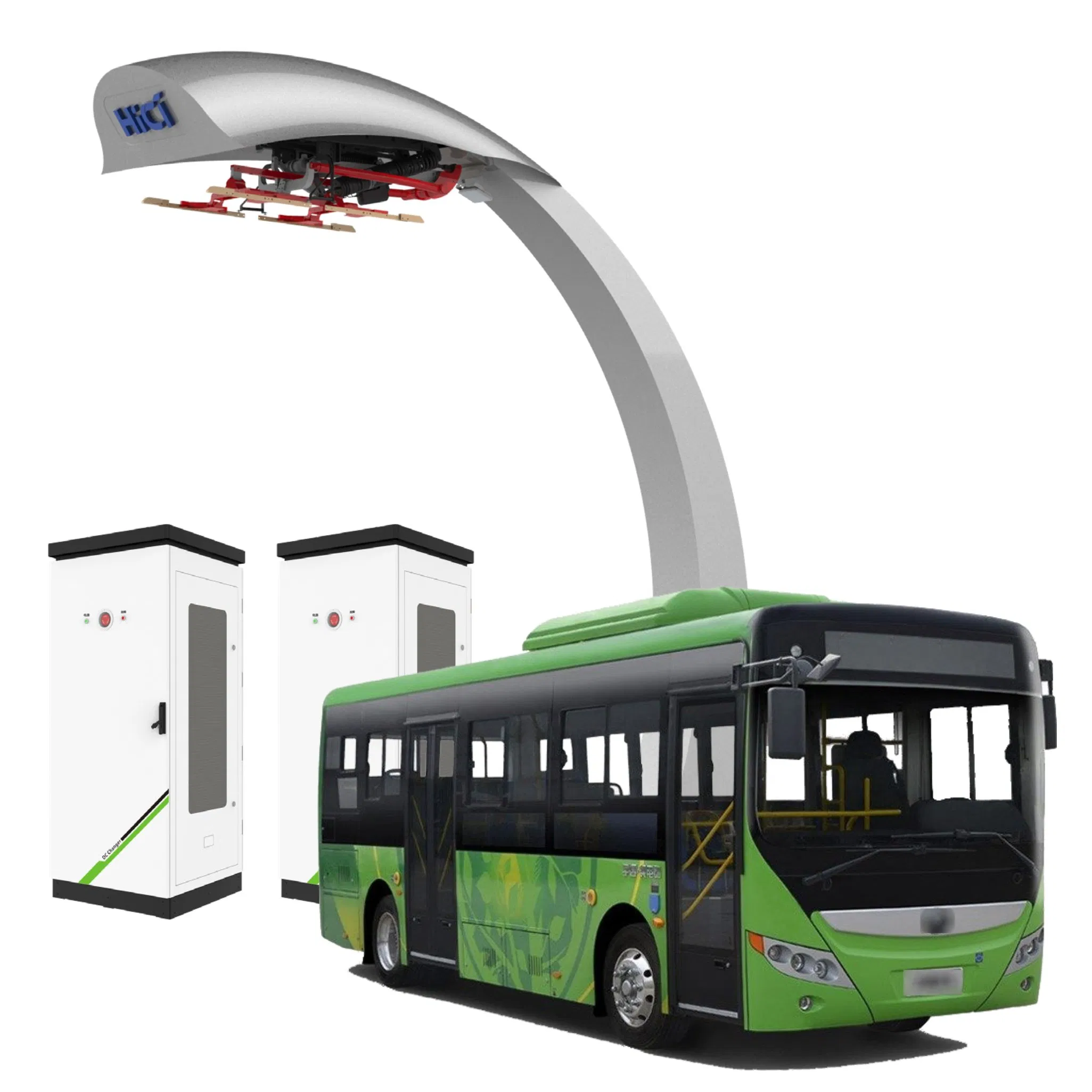

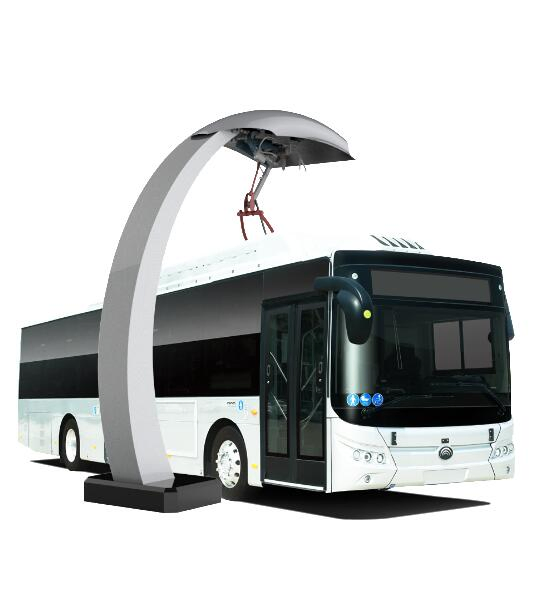

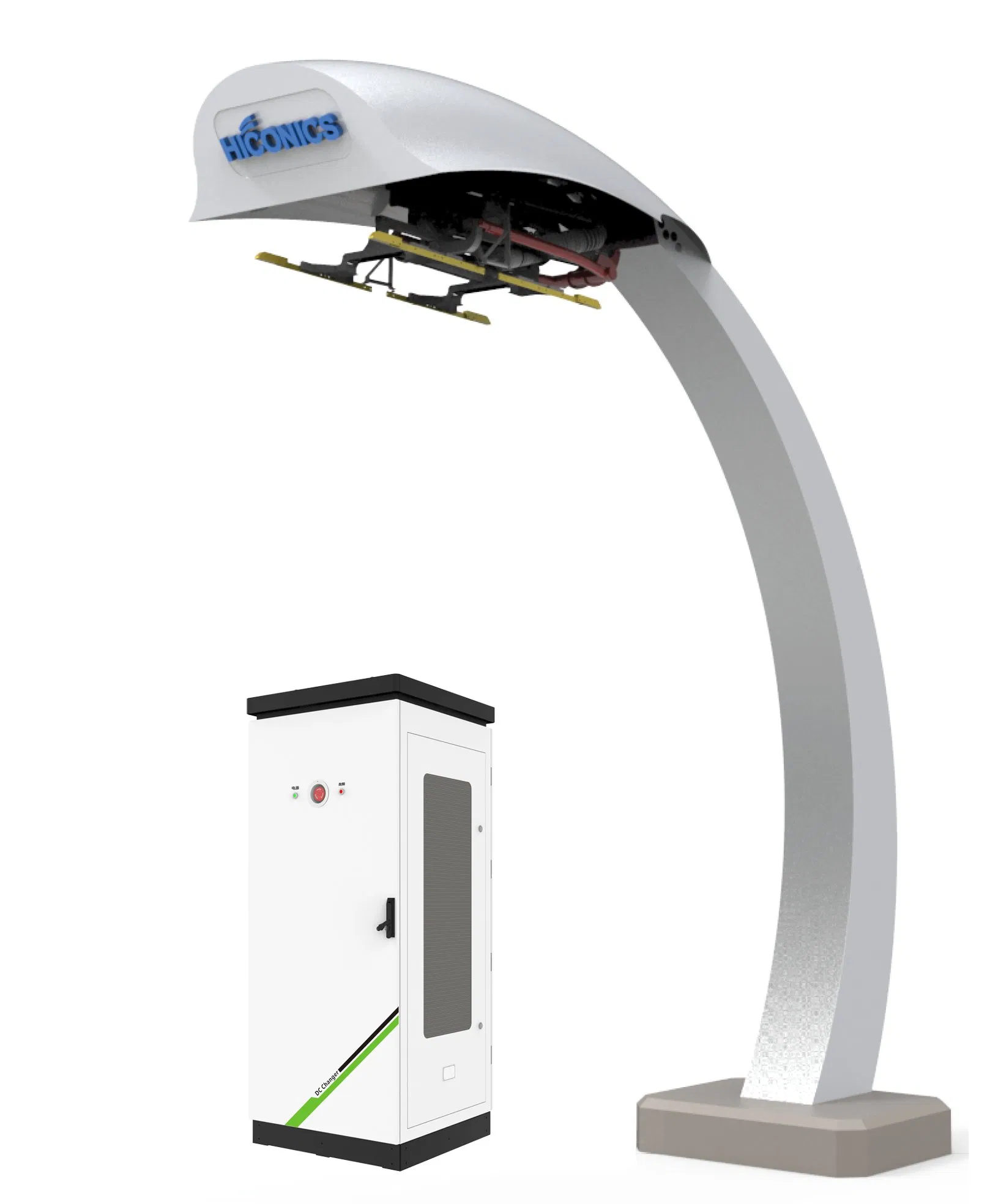

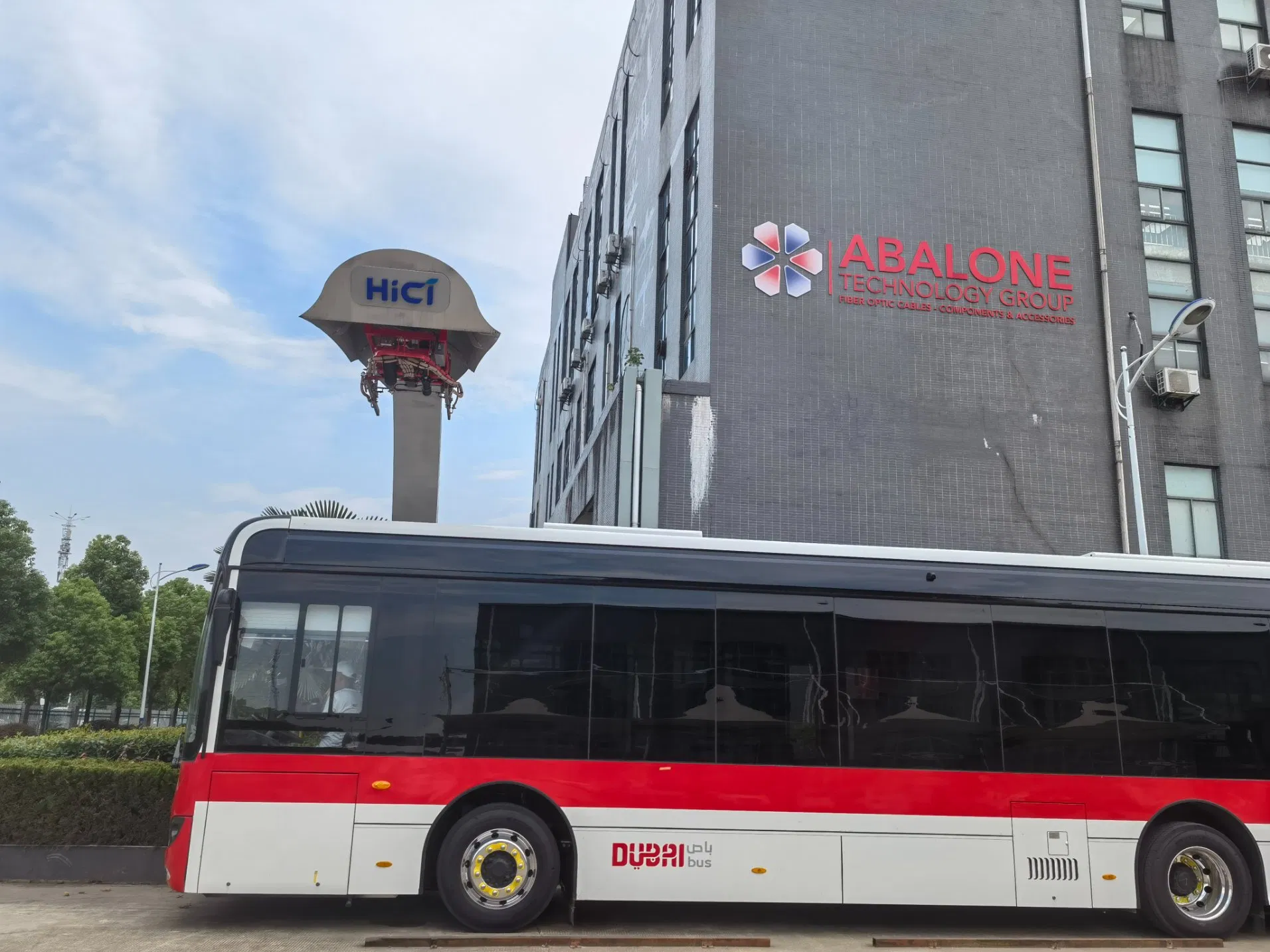

The split type pantograph system is a high-power quick charging equipment developed for modern infrastructure. It is primarily used to provide ultra-fast charging for pure electric buses. The system features two modes of AC and DC input. The entire system is composed of a "charging module cabinet + charging interface," which ensures convenient maintenance and a superior user experience.
Adopting a streamlined design, the pantograph offers a fashionable appearance. The charging module cabinet is treated with galvanizing and multi-layer spraying, achieving mechanical characteristics greater than IK10. With IP54 protection, the system is waterproof, dustproof, and anti-corrosion, meeting demanding environment protection requirements.
PLC carrier communication is adopted to realize accurate positioning and data interaction between the bus and pantograph. This significantly improves charging security and prevents connection errors. The system meets ISO15118 standards with a maximum output current reaching 800A for rapid charging.

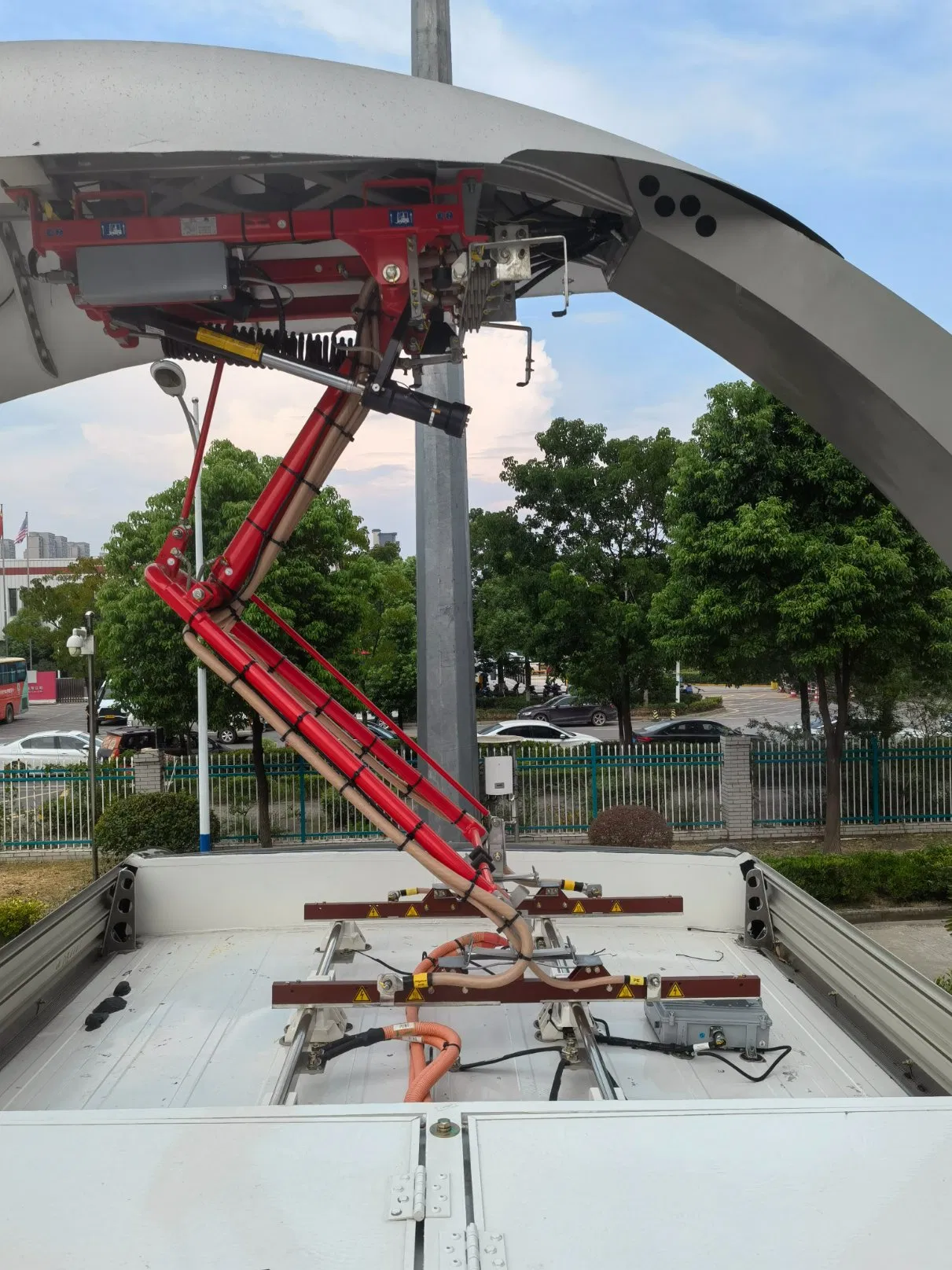

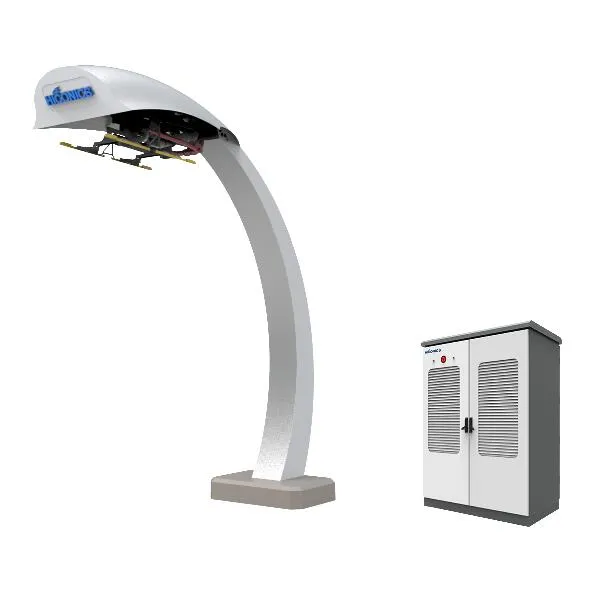

The "Power + Charging" split design separates the power section from the charging interface, simplifying installation and maintenance. The interface uses high-quality components imported from Germany, ensuring stability and safety through a robust steel frame design.
Equipped with comprehensive protection functions: overvoltage, undervoltage, overcurrent, abnormal frequency, short circuit, emergency stop, leakage current, and lightning surge protection. It also supports hot insertion and extraction for maximum safety.
| Technical Item | Requirements / Specifications |
|---|---|
| Nominal Voltage | 400VAC±15% |
| Input Current (MAX) | 1100A |
| AC Input Frequency Range | 40~60HZ |
| AC Input Mode | 3P+N+PE |
| Rated Output Voltage | 150~1000VDC |
| Rated Output Current | 0~800A |
| Power Factor | >0.99 |
| Efficiency | ≥0.95 (50% load or above) |
| IP Class | IP54 |
| Operation Temperature | -30ºC~+55ºC |
| Noise | ≤65dB |

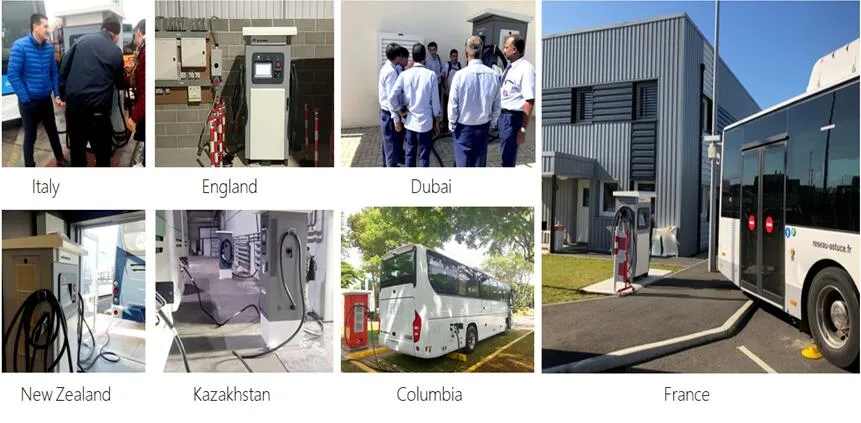

Our EV chargers have been widely applied in over 200 cities and approximately 27 countries and regions overseas, including the UK, France, Bulgaria, Australia, the Middle East, and Singapore. We have accumulated abundant experience in actual application and maintenance service.

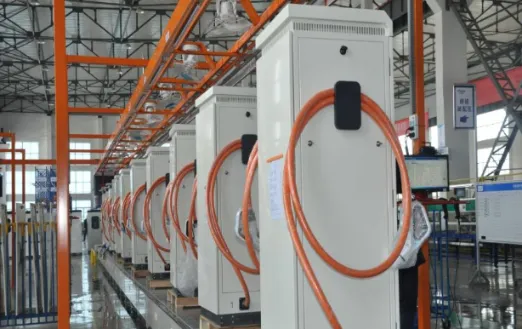

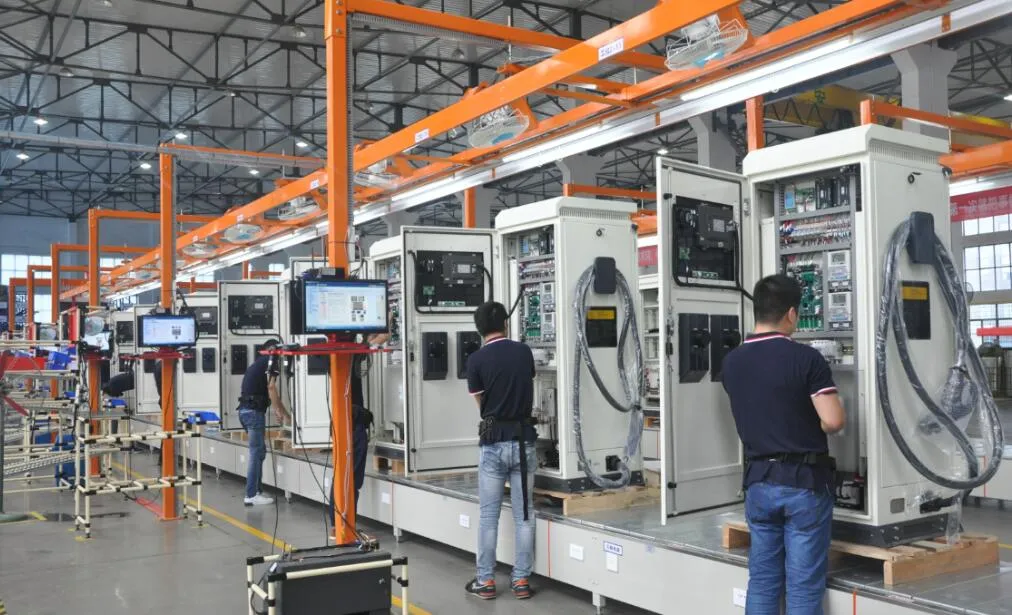

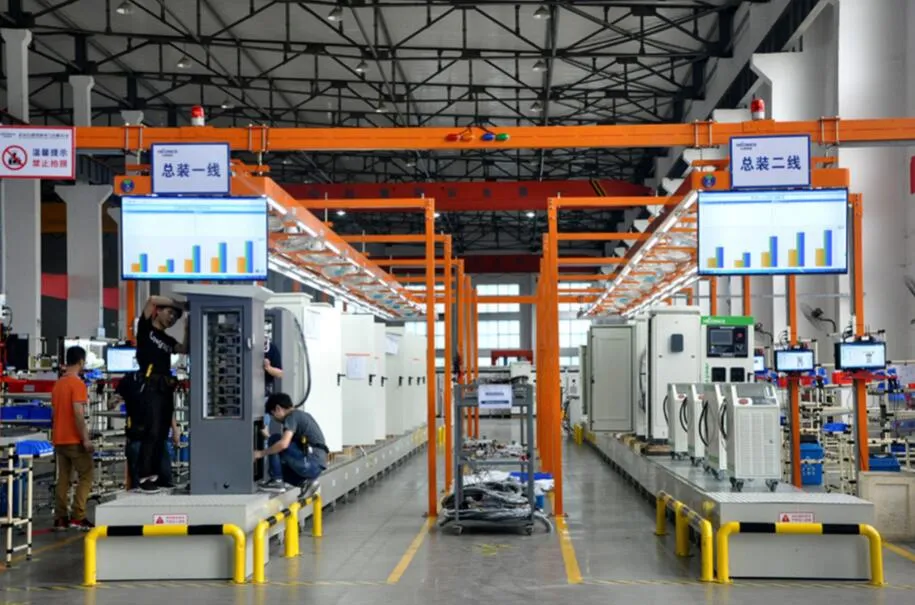

Our facility features advanced automatic assembly production lines. Debugging and aging processes are operated with automation equipment, enabling real-time data collection and self-diagnosis. A single charging pile can be finished within 35 minutes.
1. Comprehensive English manuals and maintenance guides supplied with products.
2. 24-hour online remote guidance for installation and operation.
3. Free operation and maintenance training for customers.
4. Spare parts delivered within 5 working days for warranty issues.
5. On-site engineering support available for large-scale requirements.
It is a high-power charging solution where the power module cabinet is separated from the charging interface (pantograph), designed specifically for fast-charging electric buses through roof-mounted contacts.
The system supports a maximum output current of up to 800A, allowing for ultra-fast energy replenishment for commercial electric vehicle fleets.
Yes, the system complies with several international standards including IEC 61851, IEC 62196, and ISO 15118, ensuring compatibility with European standard vehicles.
Absolutely. The system features an IP54 protection rating and IK10 mechanical strength, making it resistant to water, dust, and physical impact in outdoor public stations.
Yes, it supports OCPP 1.6J protocol and can connect via 4G, Ethernet, or WiFi for remote management, billing, and diagnostics.
The product comes with a standard 24-month warranty, along with lifelong technical support and remote guidance.
