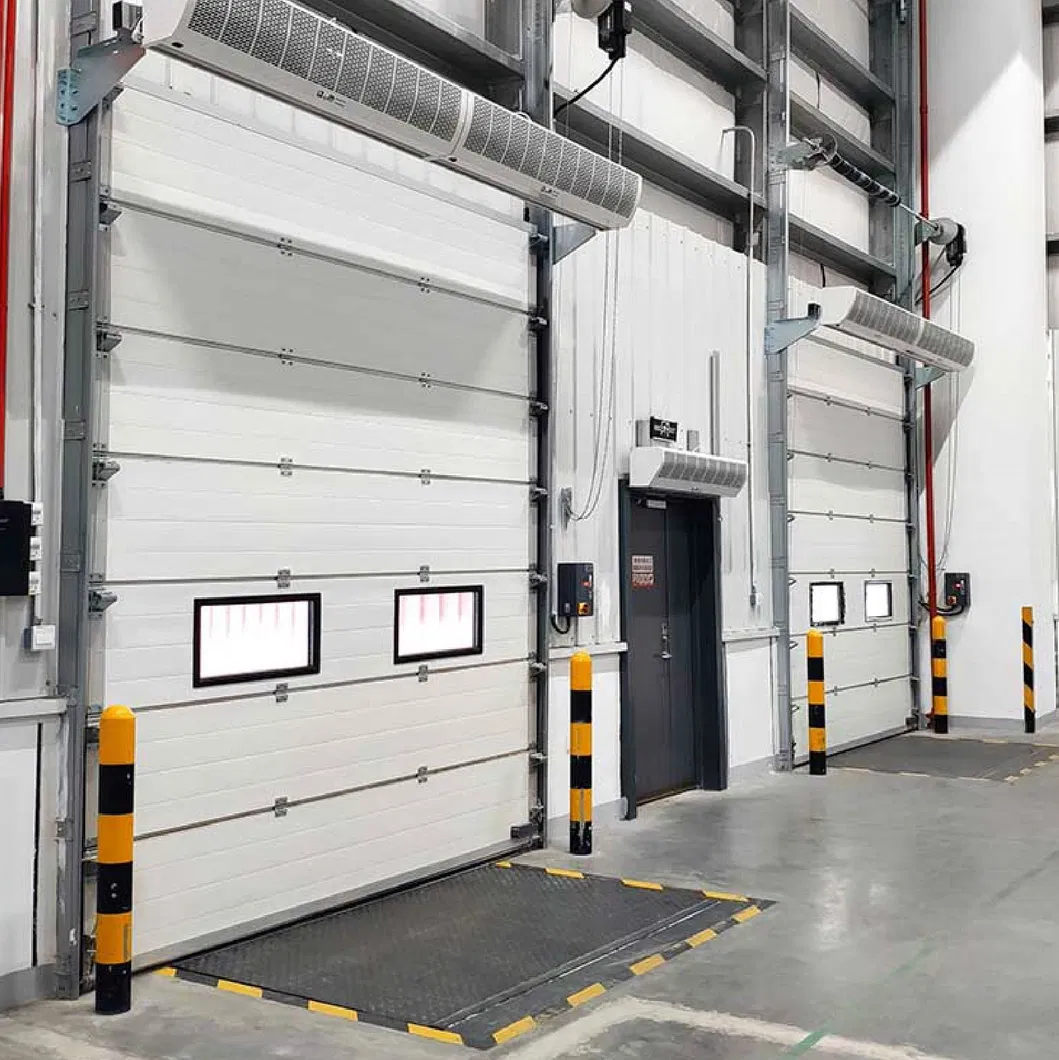

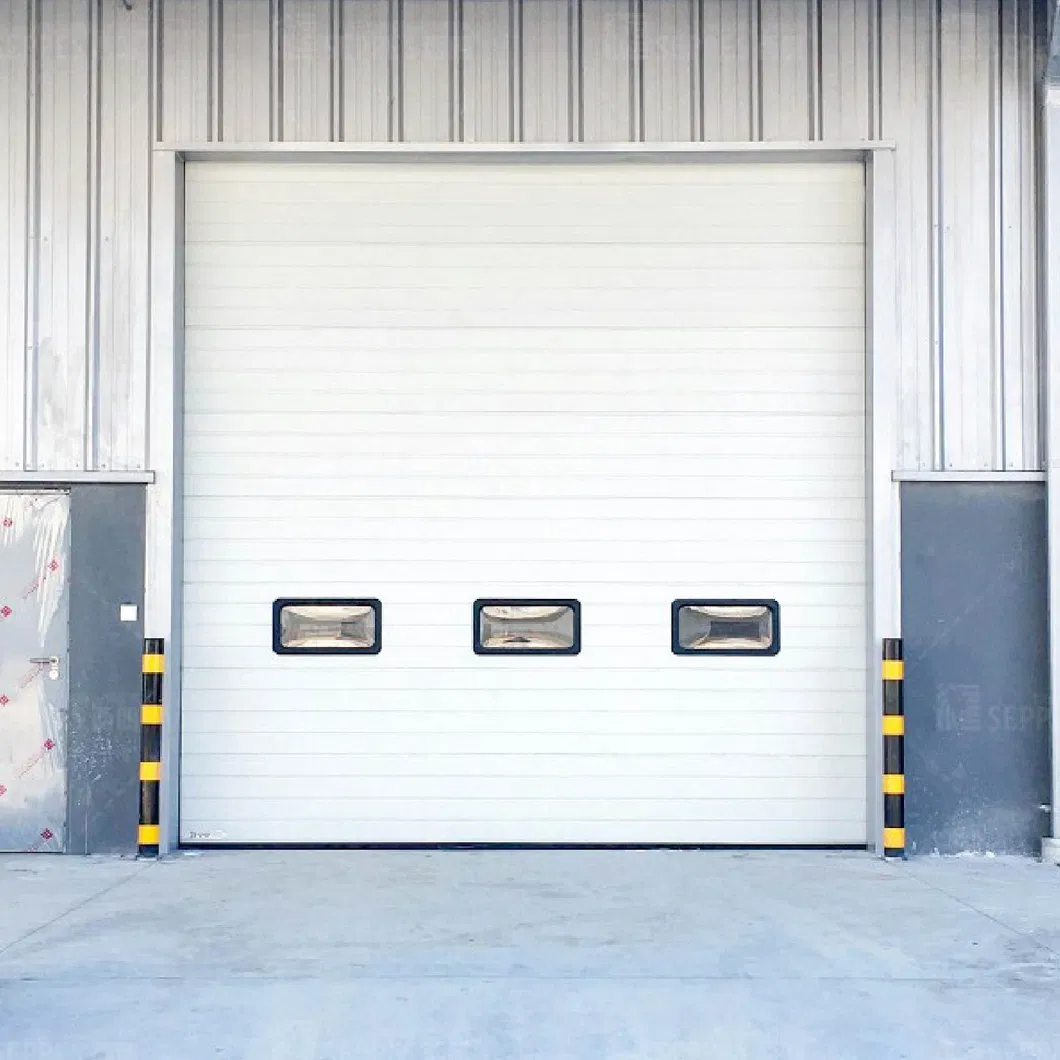

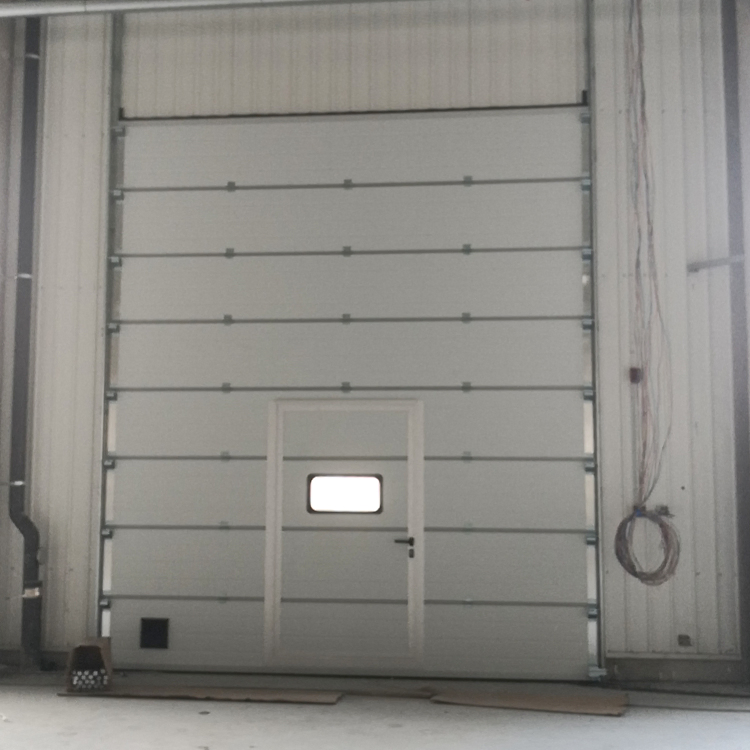

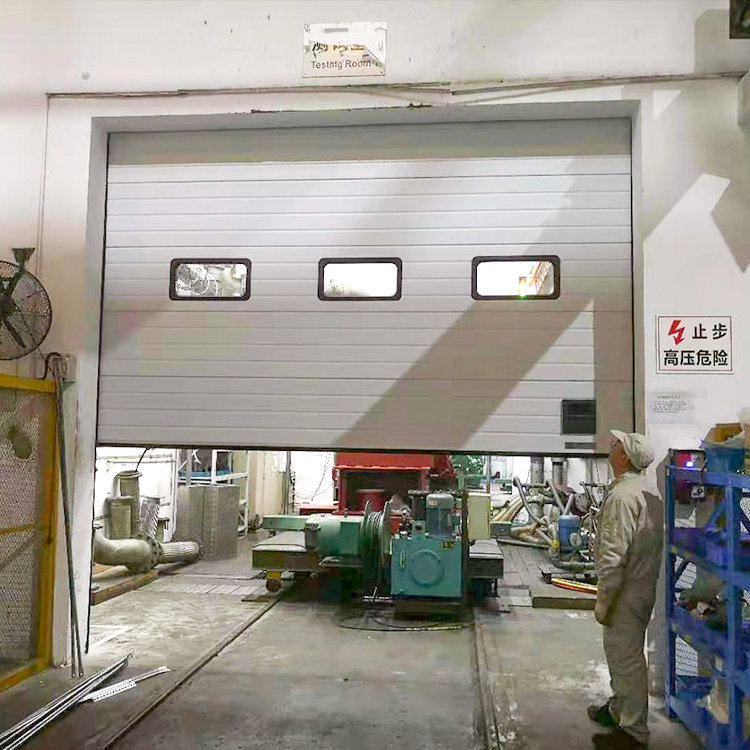

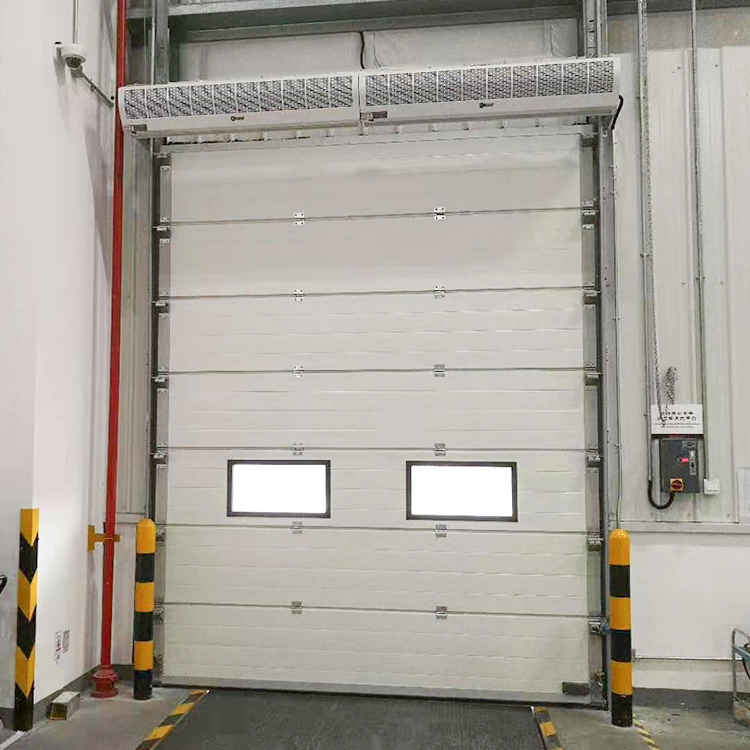

Sectional doors are installed at openings in industrial buildings, warehouses, workshops, docks and other industrial facilities. The reinforced door structure ensures uninterrupted operation and the reliable sealing system guarantees high thermal insulation of the room.
Factory Gate + Equipment Room + Warehouse
| Speed: | 0.2-0.3m / s |
| Thickness of door panel: | 40 mm |
| Available Colors: | Yellow, Red, Blue, White, Grey |
| Motor: | German Technology High-Performance Motor |
| Safety protection: | Anti-wire rope break device, bottom airbag device, torsion spring anti-break function. |
| Torsion spring: | ≥30,000 times |
| Foam material: | High-density polyurethane foaming material (48kg ± 2kg / m³) |
| Wind loading rating: | 4*4 Newton 700 / m2 |
| Sound insulation: | 24dB |

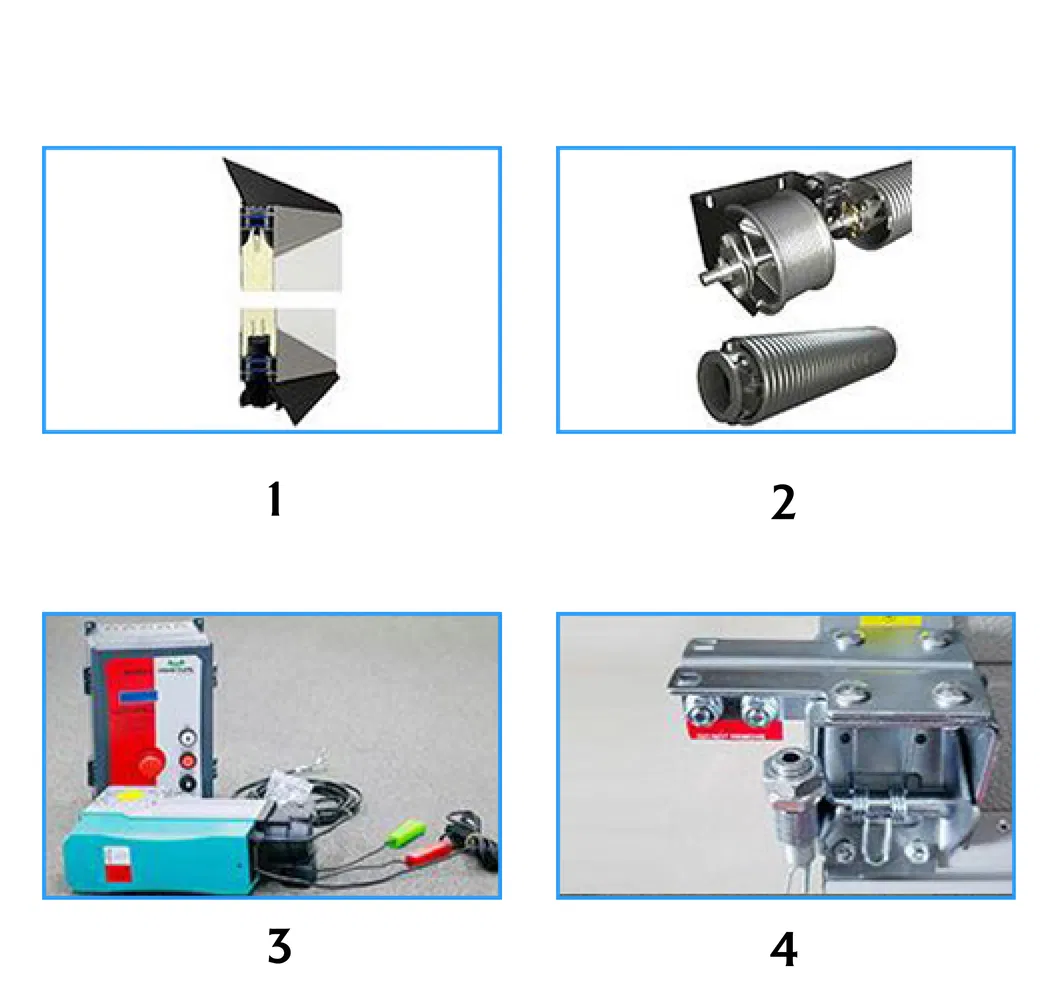

1. Door Panel Structure: EPDM sealing tapes and bottom seals ensure full closure. The interface cuts off heat transfer to reduce energy loss.
2. Balance Device: Torsion spring made of high-quality spring steel with anti-corrosion treatment, rated for up to 100,000 cycles.
3. Control System: Intelligent frequency conversion control for stable operation and slow start/stop functionality.
4. Fall Arrest Device: Optional anti-break protection locks the door within 20cm in case of emergency.

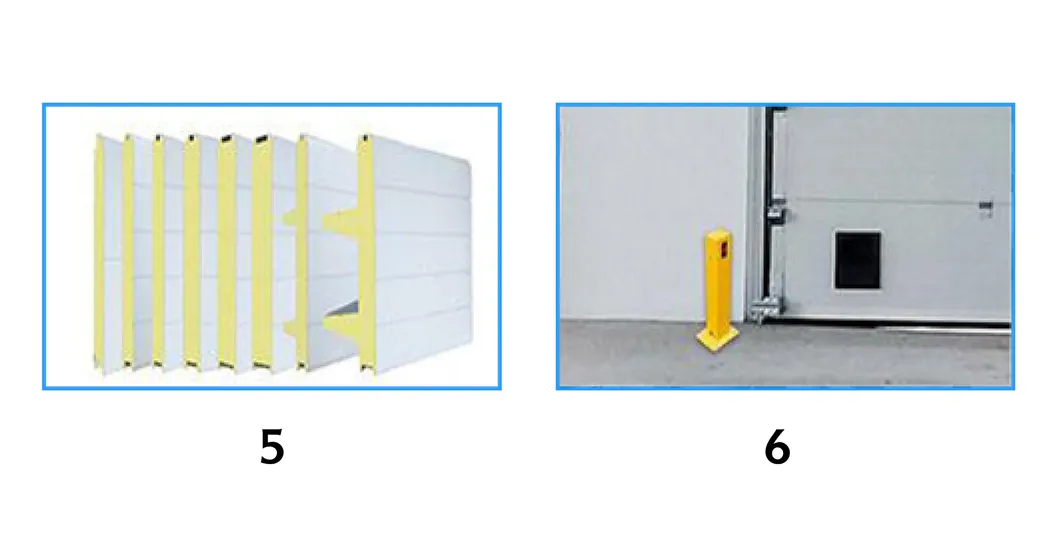

5. Panel Options: Variety of thicknesses (40/50/60/80mm) filled with polyurethane foam for impact resistance and thermal insulation.

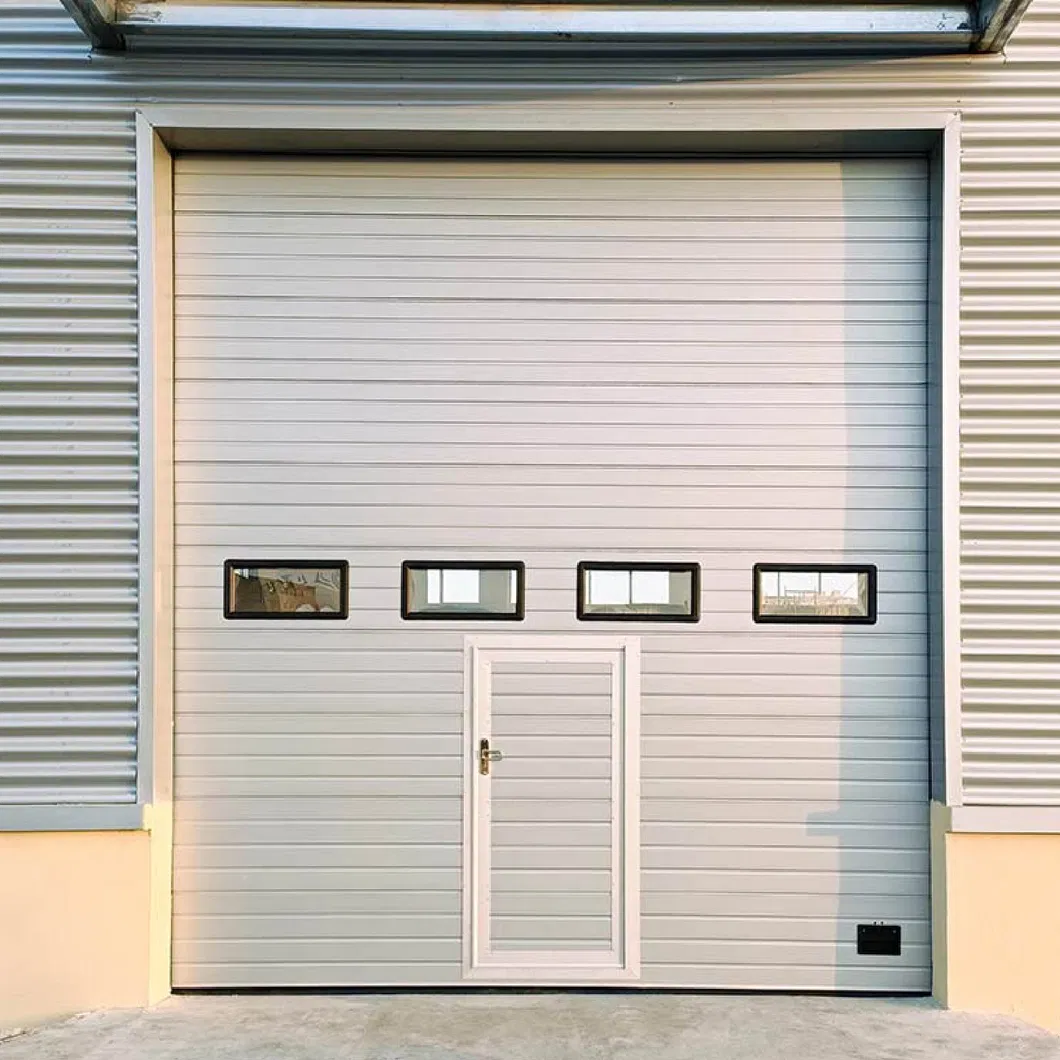

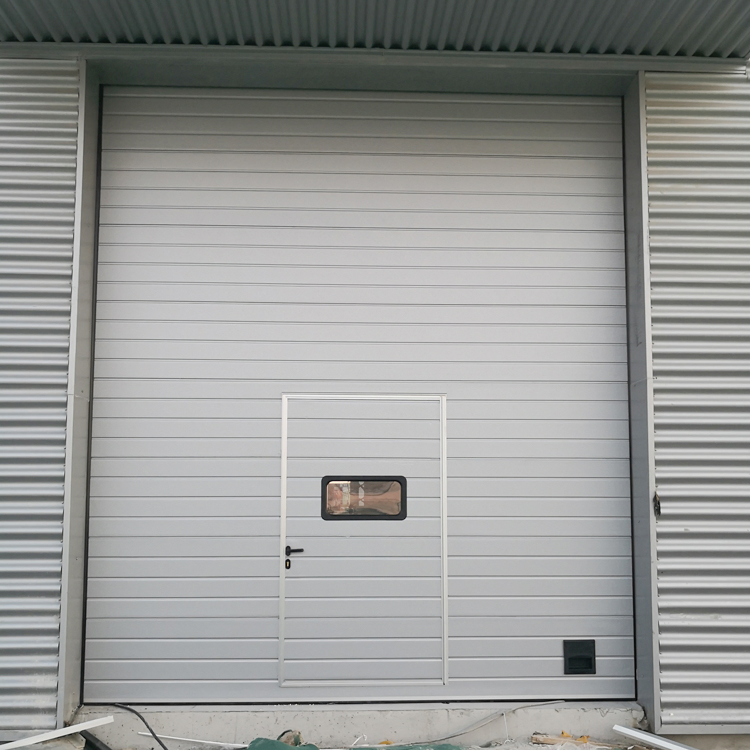

6. Safety Equipment: Optional windows, door-in-door designs, and infrared safety sensors for comprehensive protection.

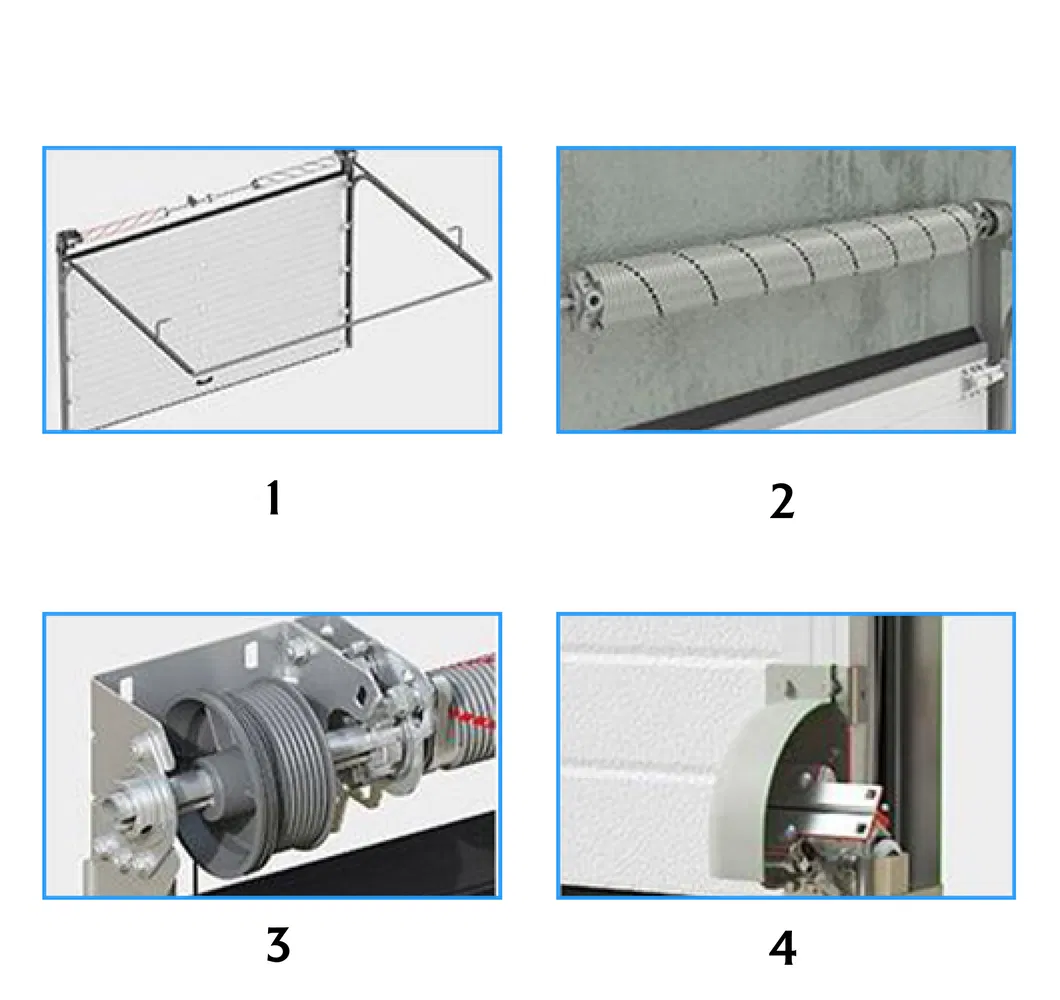

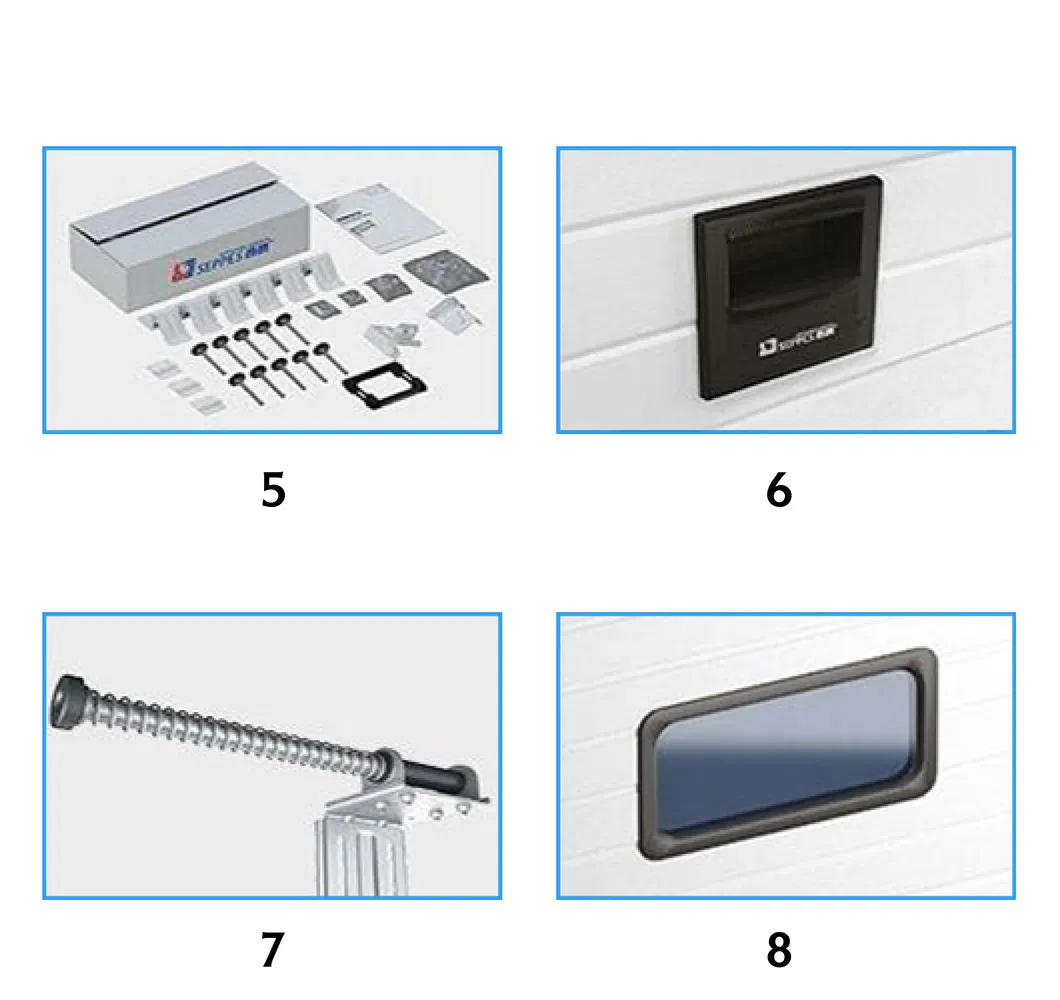

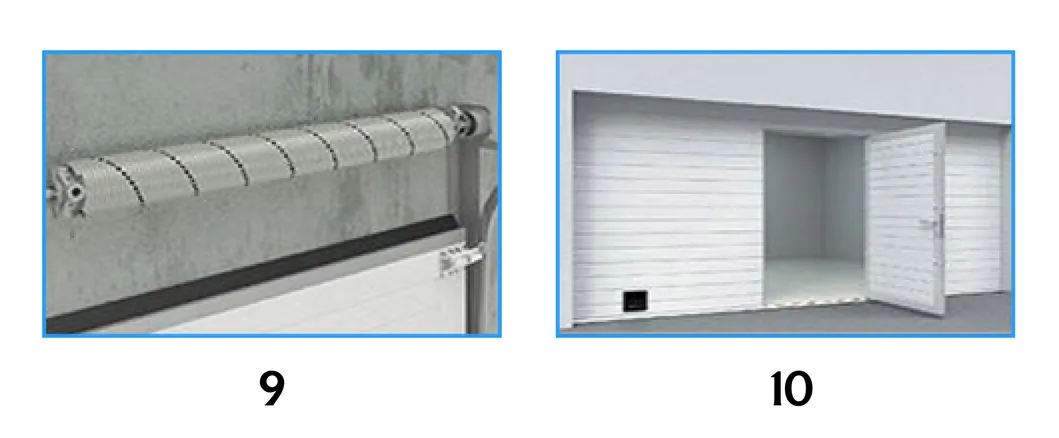

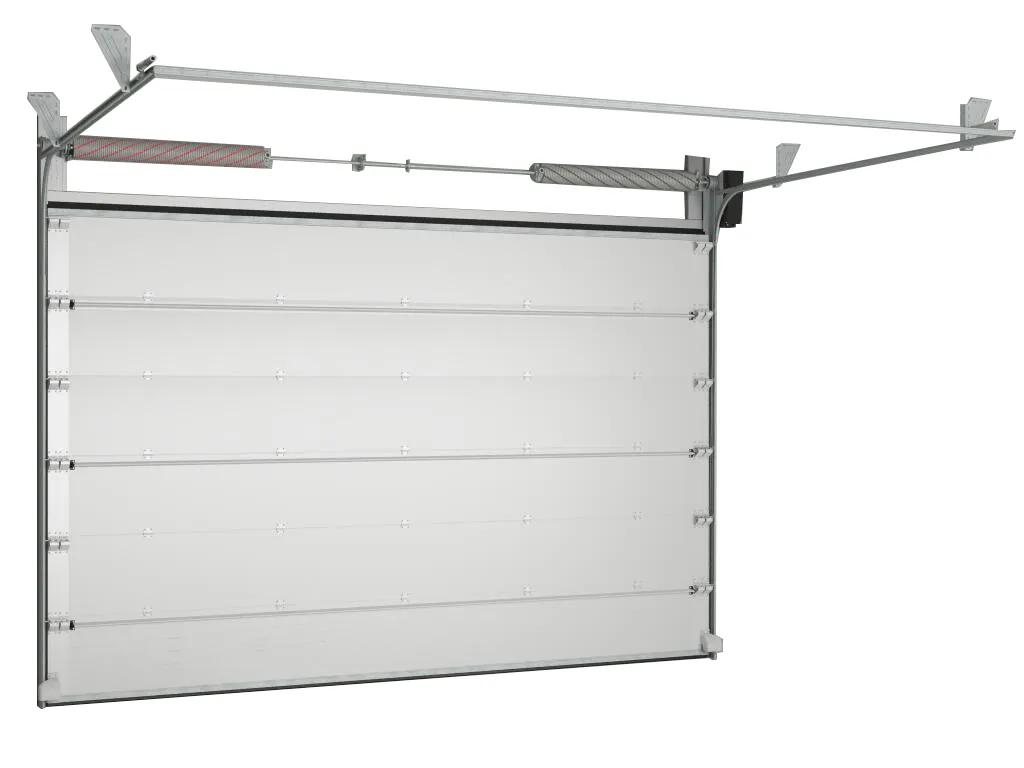

Detailed Components: 1. Vertical guide rail, 2. Side frame, 3. Door shaft, 4. Torsion spring protection, 5. Sheave, 6. Balance spring mechanism, 7. Inner bracket, 8. Sandwich panel, 9. Sealing strips, 10. End buffer.

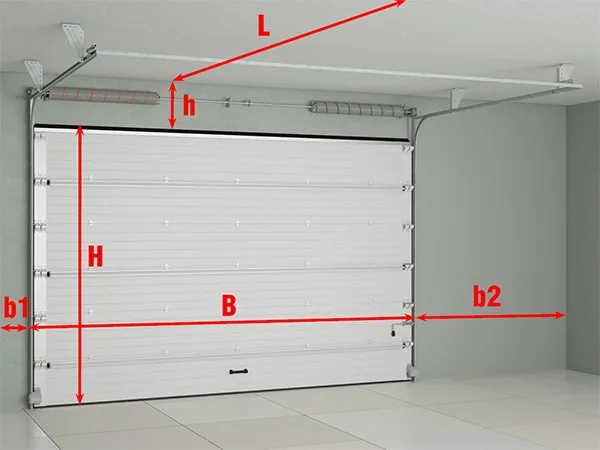

Indoor Measurement Requirements:
System includes door panel assembly, torsion spring break protection, wire rope anti-drop device, and full installation kit with product passport.
As a high-tech company focusing on industrial door technology, we provide customized entrance system solutions for global customers. Our main products include high-speed doors, automatic roller shutters, and sectional doors. All products comply with European industry standards and hold CE, SGS, and ISO9001 certifications.
