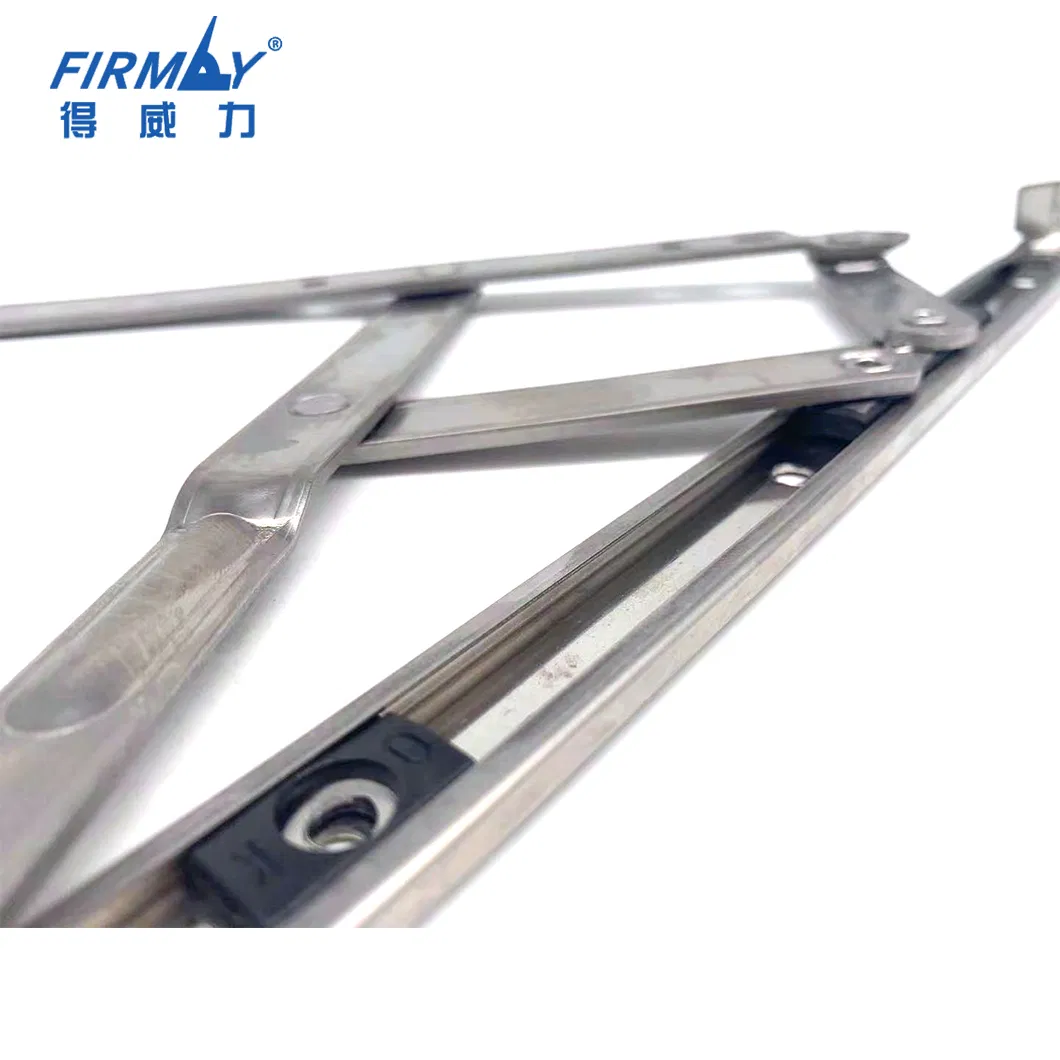

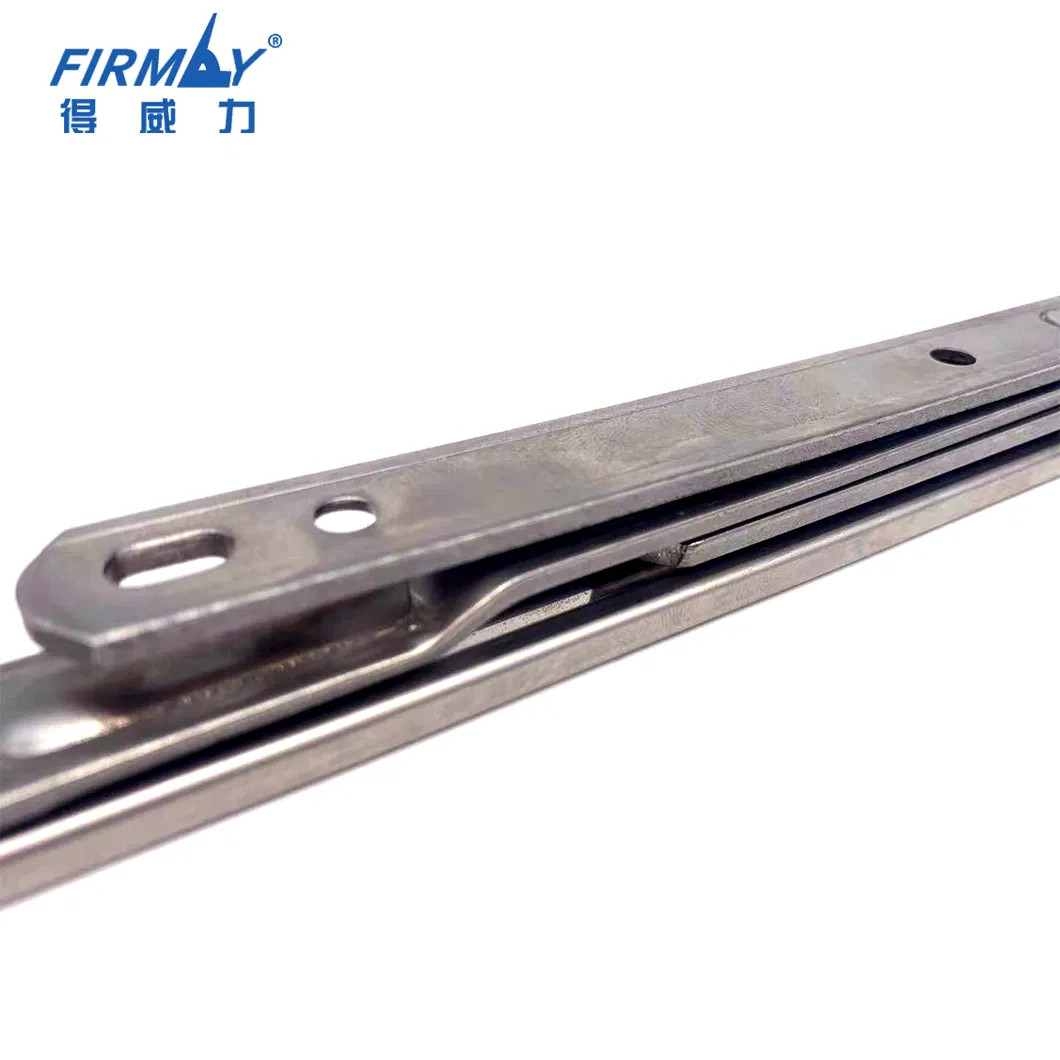

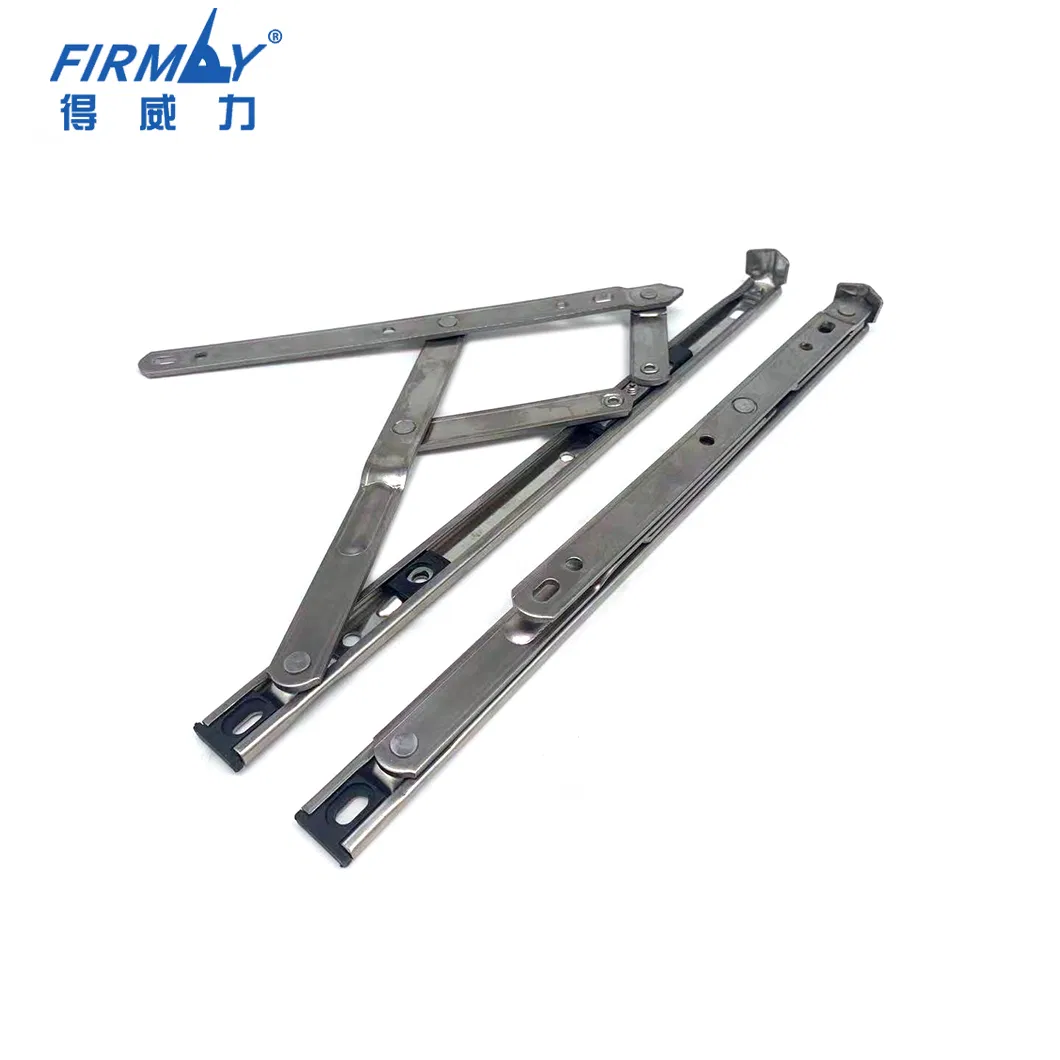

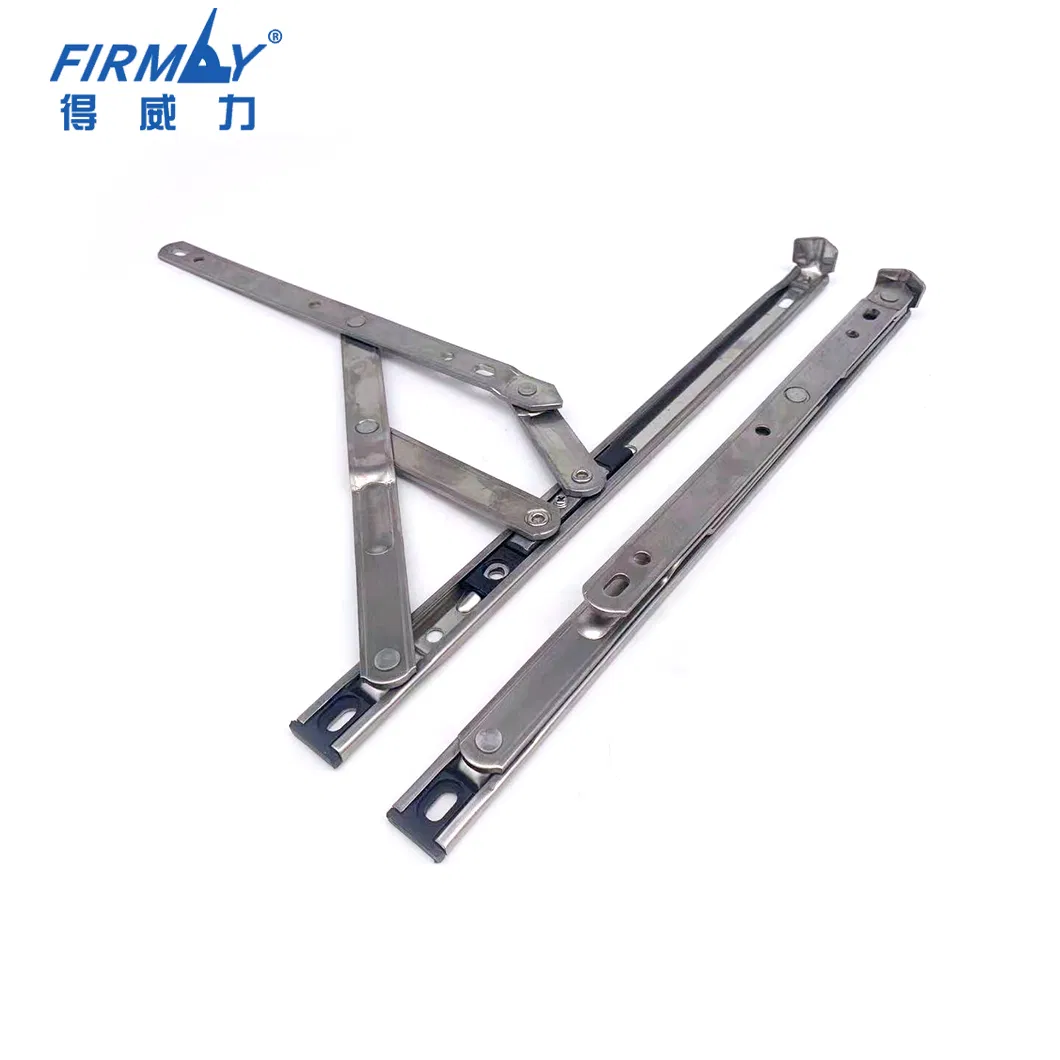

High Quality Hardware 201 Stainless Steel Door and Window Hinge for Casement Window Brace Security Casement Friction Stay

■ Basic Info

Type

90° Hinge

Finish

Powder Coating

Material

Stainless Steel

Feature

Easy to Install and Durable

Sample Time

Within 3-5 Days

Delivery Time

20-25 Working Days

Open-Close Test

More Than 50,000 Times

Specification

8" to 22" Customized

■ Product Description

High quality hardware stainless steel door and window hinge for Casement Window brace security casement Friction Stay.

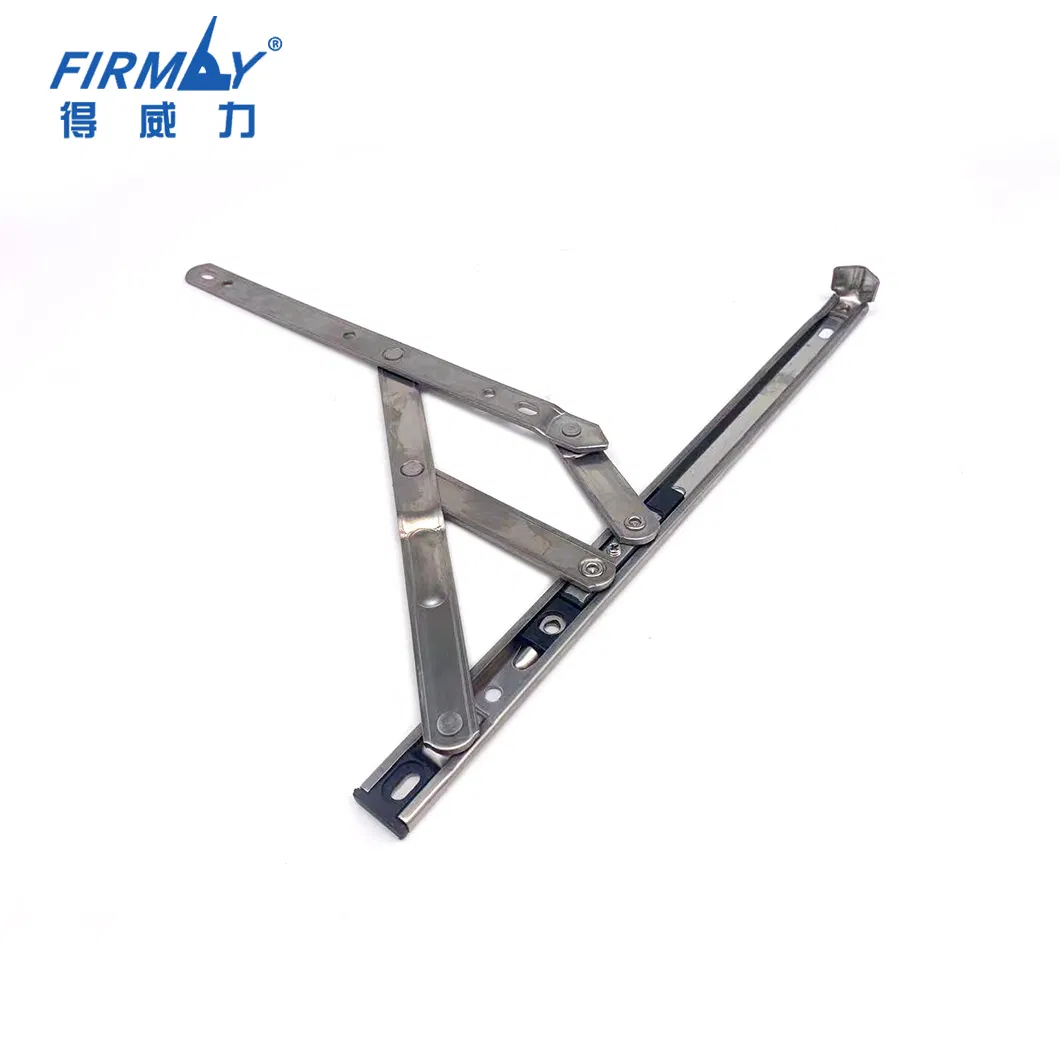

Product Name	Single-point telescopic stainless steel friction stay	Test Open-Close	More Than 50,000 Times
Material	SS201# / SS304#	Bar	4 Bars
Bar Thickness	3.0mm	Tray	18mm
Feature	Steel slide, copper positioning screw	MOQ	500 pcs

■ Technical Parameters (Unit: mm)

Spec	A	B	D	E	F	I	Max Height	Max Width	Max Weight	Angle
8"	37.5	55.5	147	160.5	25	192	900	350	10kg	88°±2°
10"	37.5	55.5	184	197	25	253	900	400	13kg	88°±2°
12"	37.5	55.5	184	197	25	294	900	450	16kg	88°±2°
14"	37.5	55.5	219.4	233	25	335.5	900	500	19kg	88°±2°
16"	37.5	55.5	235	250	25	396	900	550	21kg	88°±2°
18"	37.5	55.5	235	249	25	445	900	600	24kg	88°±2°
20"	37.5	55.5	279	293	25	499	900	650	27kg	88°±2°
22"	37.5	55.5	342	358	25	543.5	900	700	30kg	88°±2°

■ Professional Manufacturing

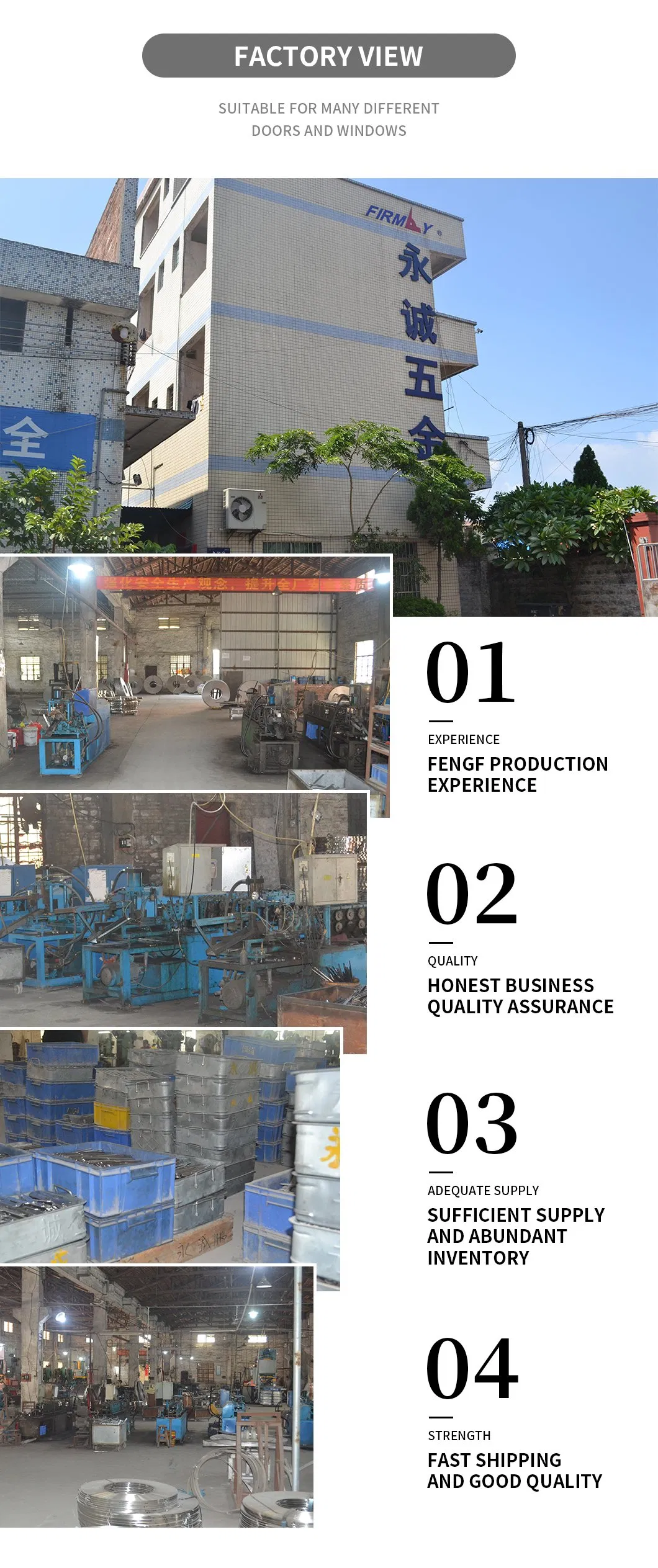

Founded in 1992, the production base is located in a famous construction hardware production hub in China. We are a professional enterprise integrating R&D, production, and sales of high-end architectural aluminum door and window accessories.

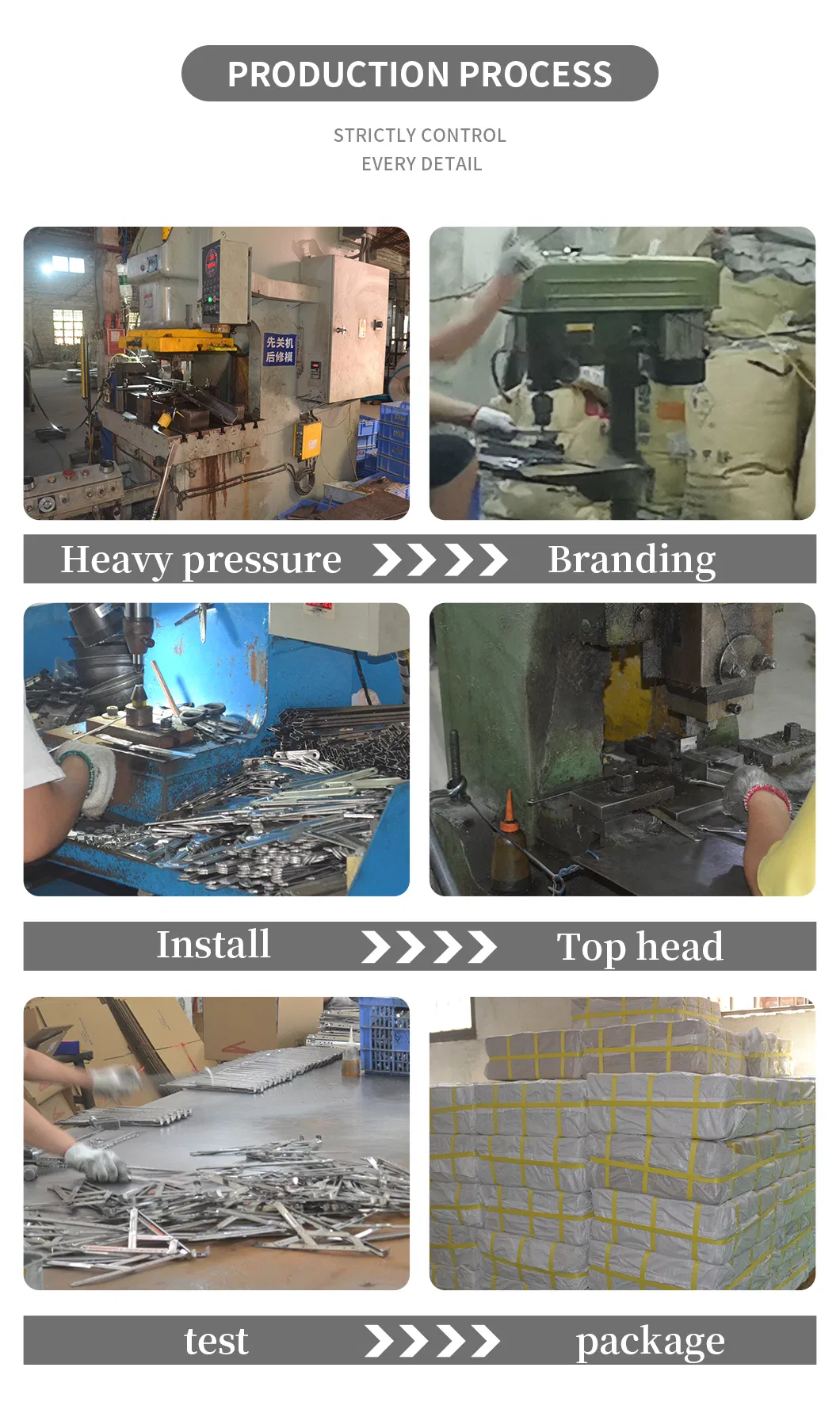

With three branch systems focusing on stainless steel sliding braces, alloy accessories, and plastic parts, the company emphasizes specialization in each field. Our modern business system features standardized plant facilities covering over 20,000 square meters. Strict quality management is implemented from raw materials to final packaging, including casting, stamping, molding, and assembly.
