Fire Rated Concealed Leaf Full Mortise Continuous Geared Door Hinge

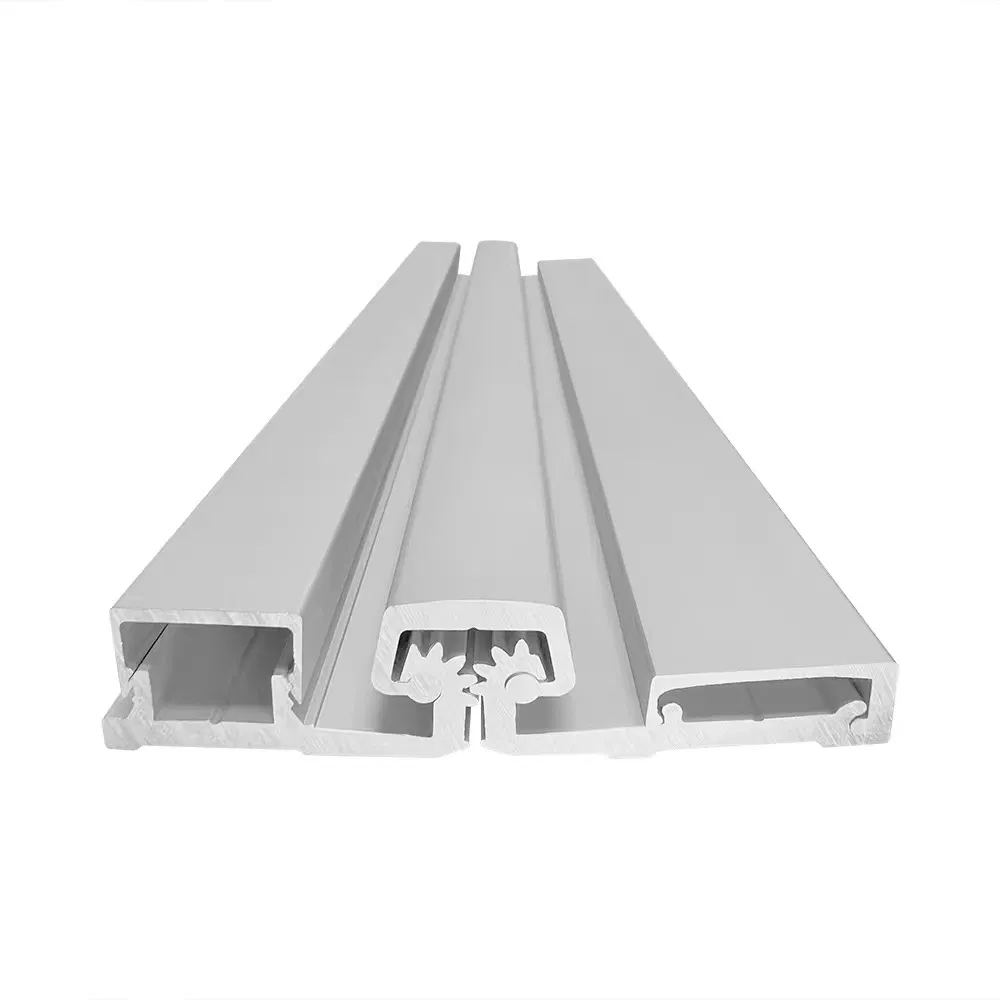

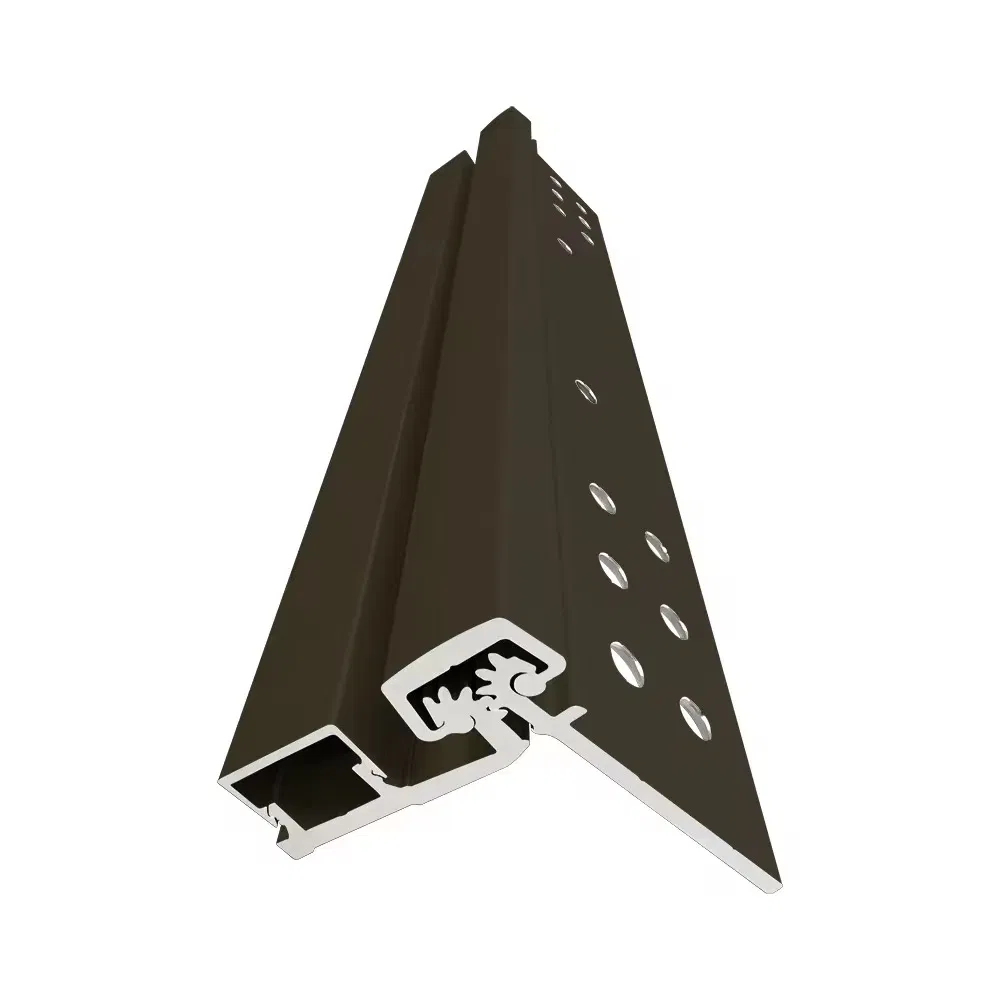

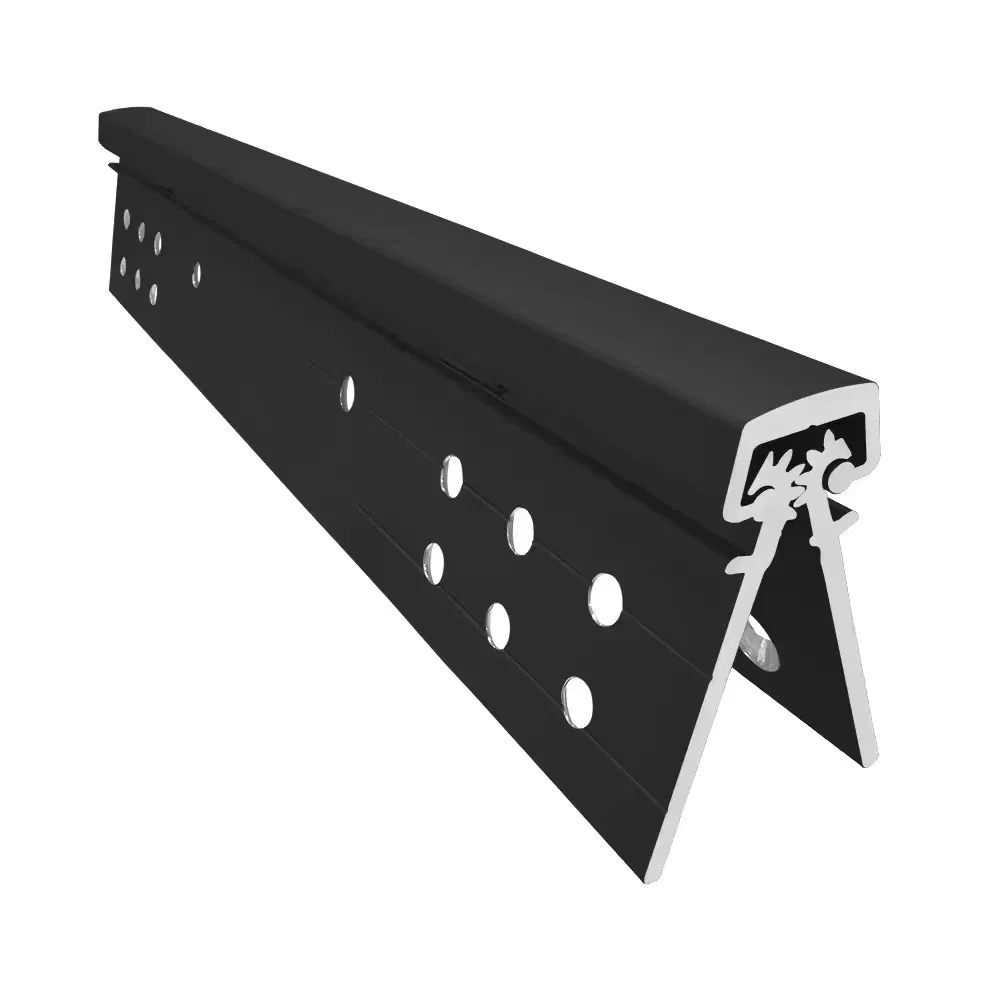

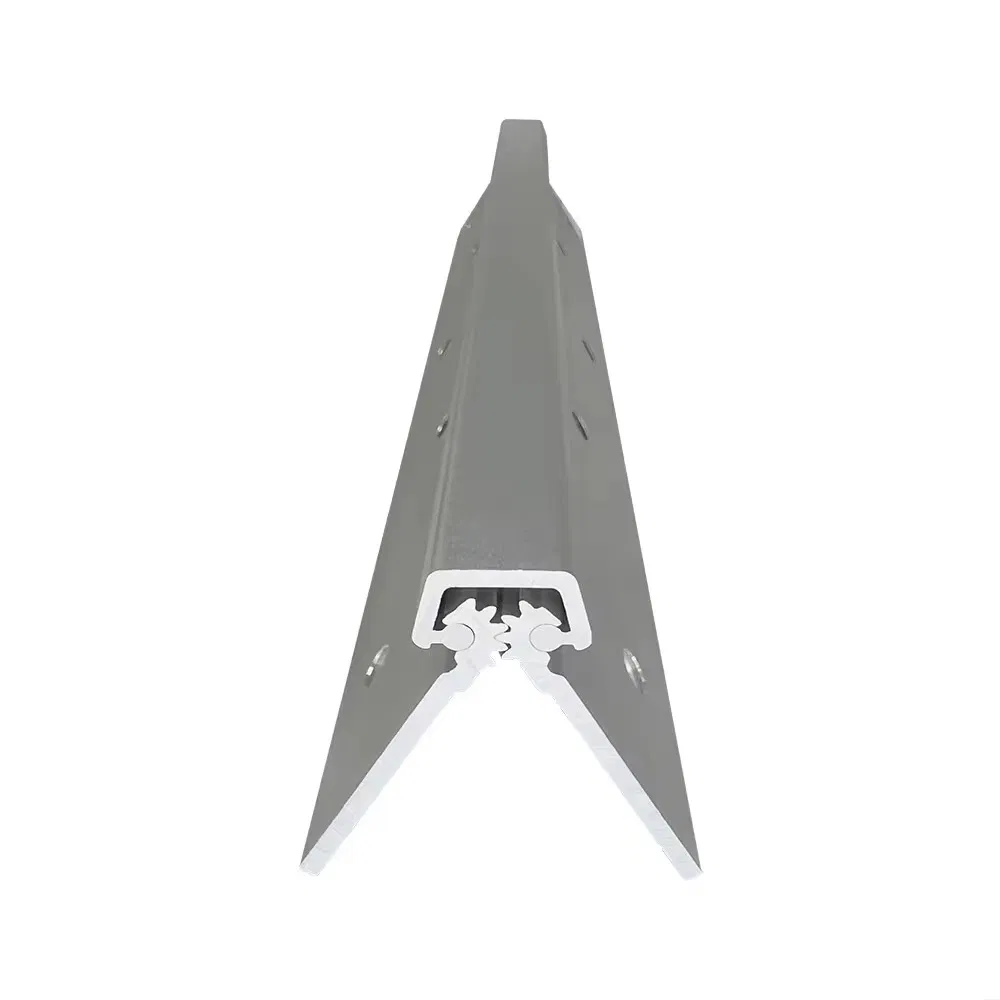

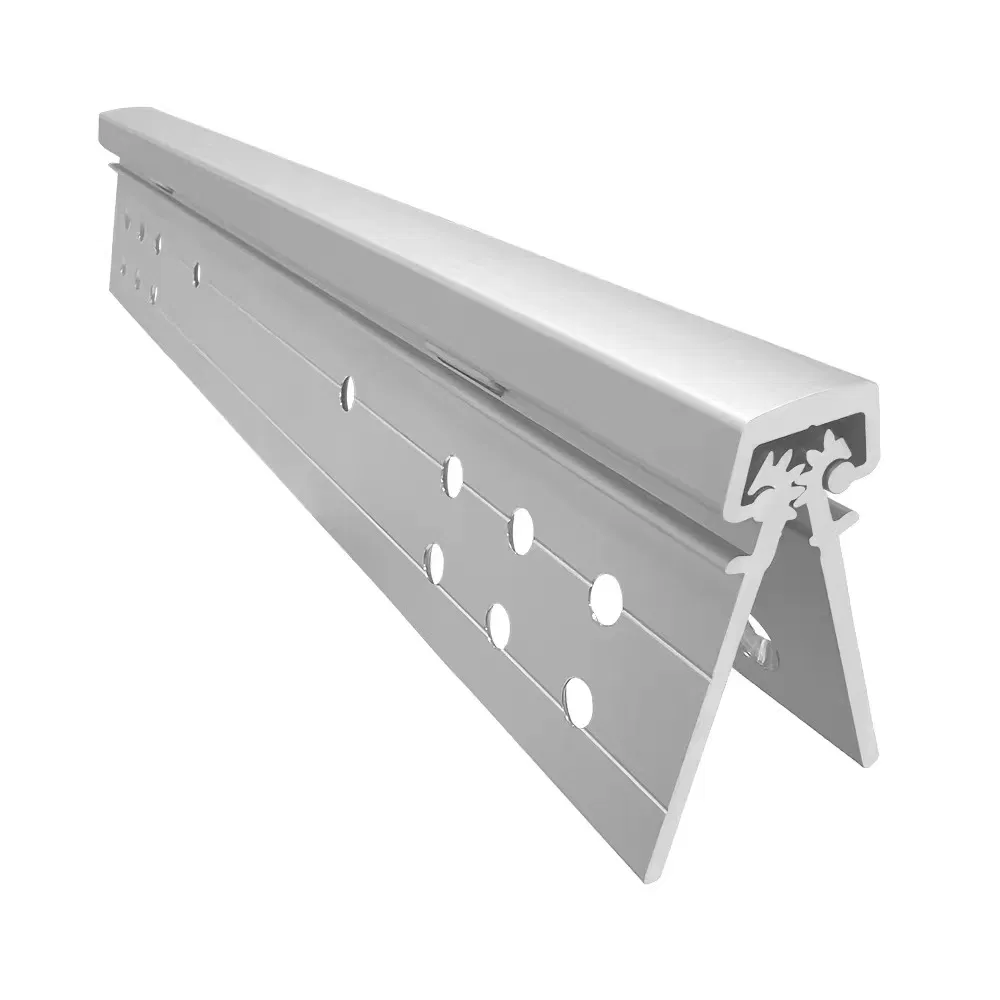

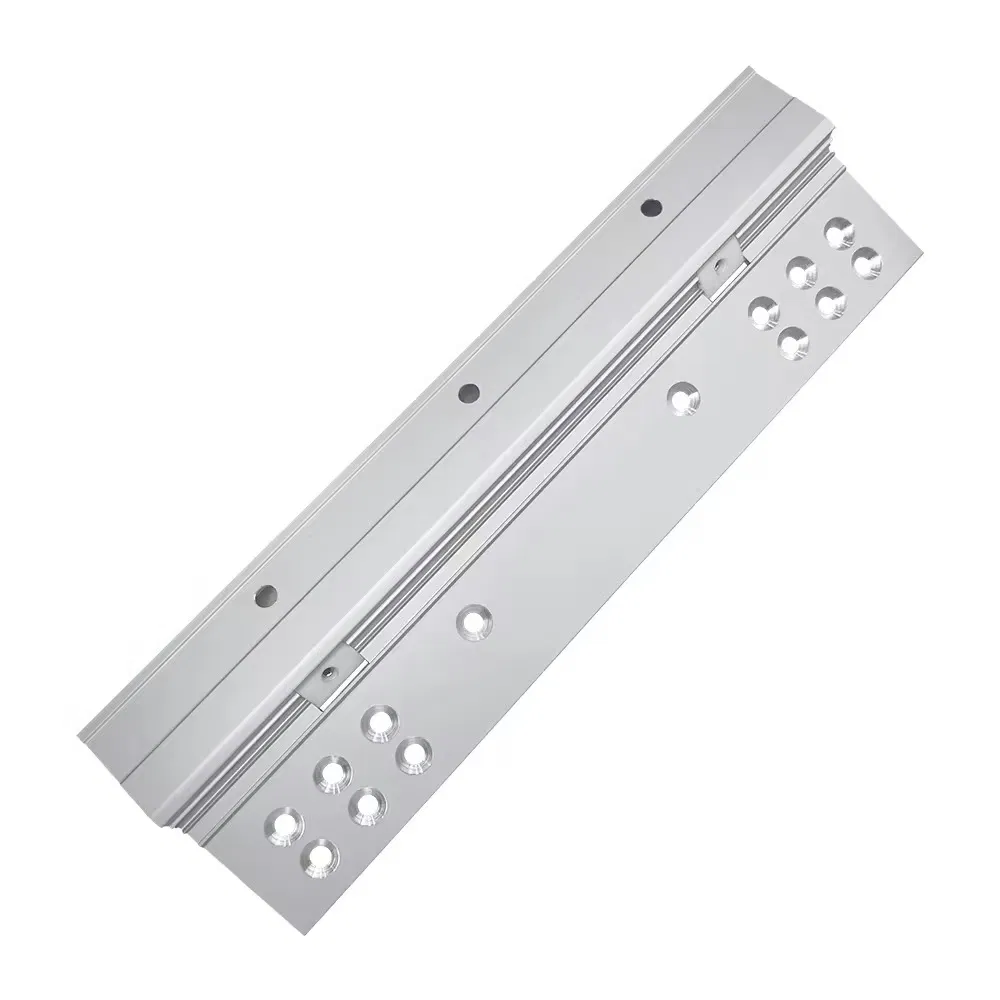

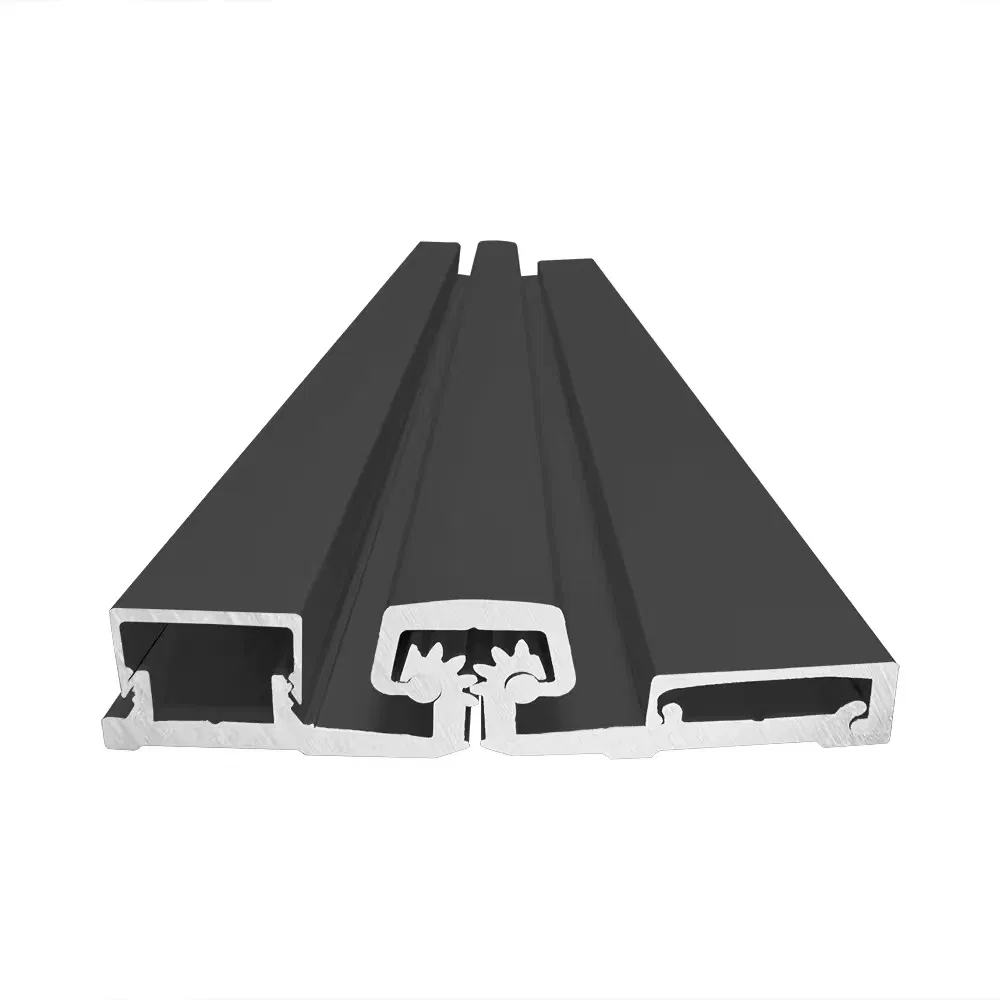

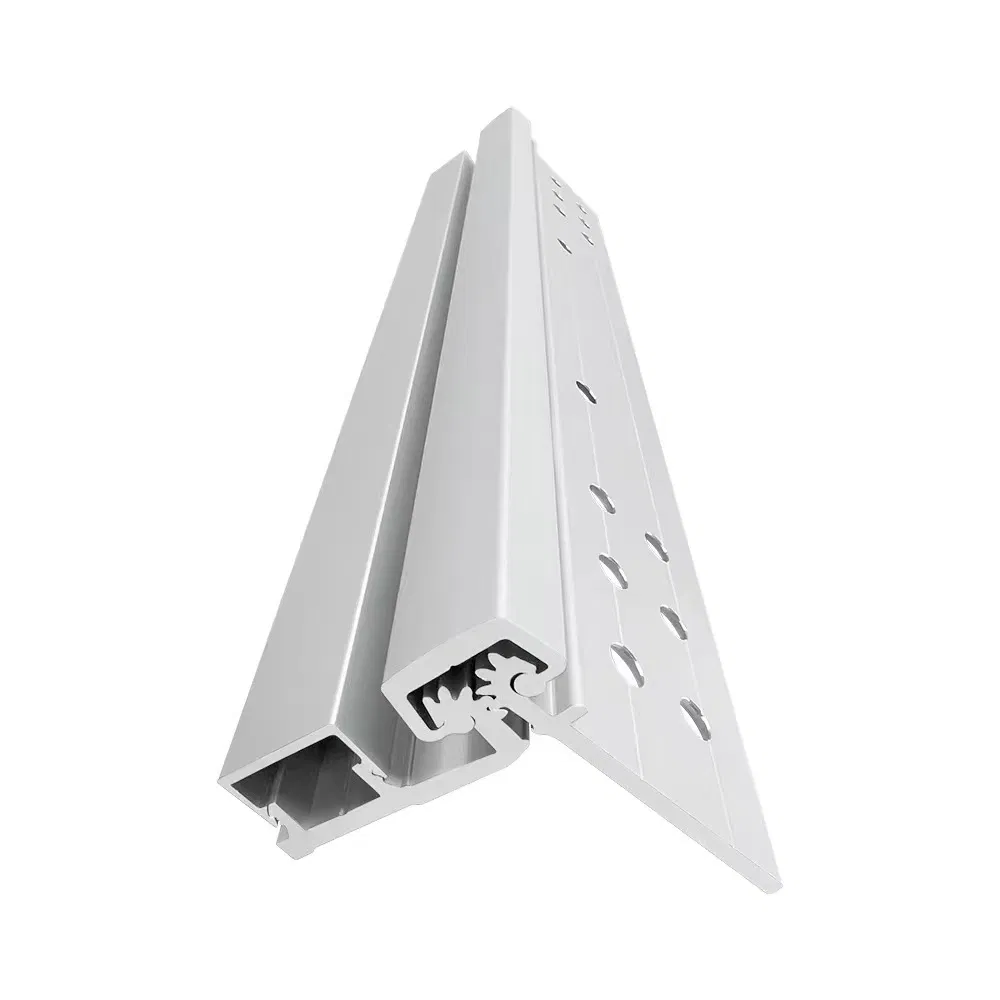

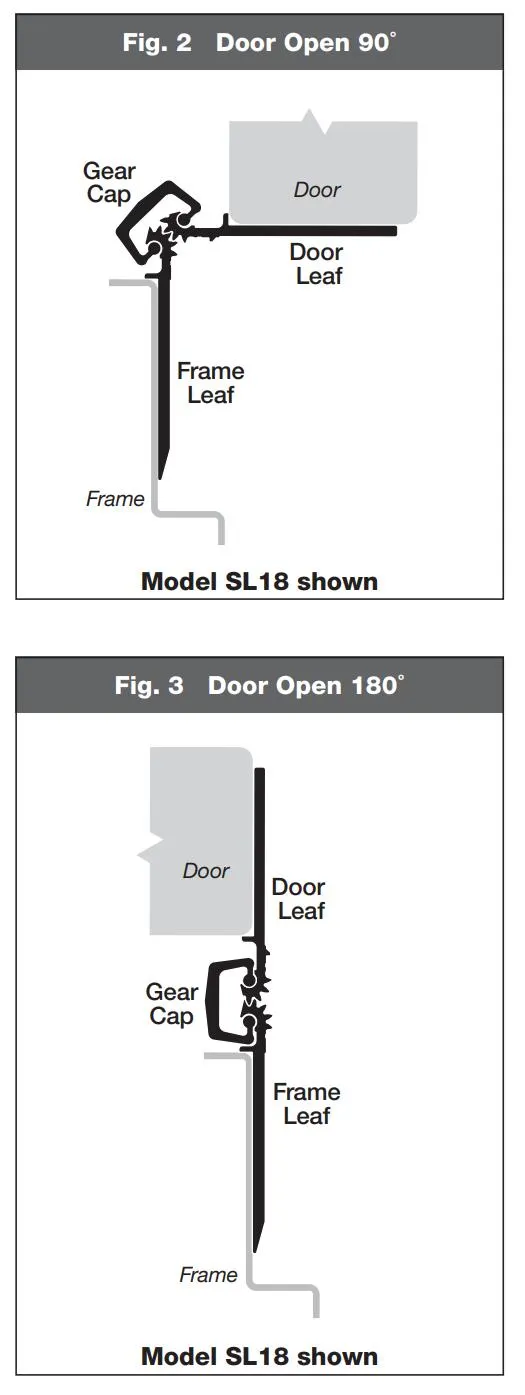

The Continuous Geared Hinges are designed to last the life of a building by distributing the weight of a door along the entire length of its frame. The unique design reduces the high amount of stress normally associated at the top of the door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps a door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high-use and high-traffic doors. The geared continuous hinge has no pin. Instead, these hinges utilize a single gear section for the leaf and a separate gear section for the frame side of the door. The two are held in place by a full length cover channel and rotate on a series of bearings. The design of a continuous hinge eliminates the spacing between the hinges, which helps prevents fingers from being pinched, making it a safer device than traditional hinges. These benefits result in higher efficiency and less maintenance, maximizing the value of a door opening investment.
| Product Name | Continuous Geared Hinges | Material | Aluminum |
|---|---|---|---|
| Color | Silver/Black/Customized | Length | 83''/95''/119''/customized |
| Max.Weight | 75kg+ | Surface Finishing | Anodized/Powder coated |
| Style | Classic/Modern | Opening Angle | 180 Degree |
| Use on | Door | Warranty | 1 year |
| MOQ | 500pcs | Leadtime | 30 days |
| Sample | Free, available | Certification | ISO9001, ROHS |
| Length (inches) | Length (mm) | Sex Bolts (Door) | Pan Head (Door) | Screws (Jamb) |
|---|---|---|---|---|
| 83 | 2108 | 8 | 19 | 19 |
| 95 | 2413 | 10 | 19 | 20 |
| 119 | 3023 | 12 | 23 | 23 |
A: It is a door hinge that runs the full length of the door, utilizing a gear mechanism to distribute weight evenly. It is certified for fire safety, providing up to 3 hours of protection on metal doors.
A: Geared hinges eliminate door sag by supporting the door's weight across the entire frame. They are more durable for high-traffic areas and increase safety by preventing finger pinching.
A: Yes, while standard sizes like 83", 95", and 119" are available, we offer customization services to meet specific door height requirements.
A: No, these hinges are designed for easy installation and often do not require additional door reinforcement, making them ideal for both new builds and retrofitting.

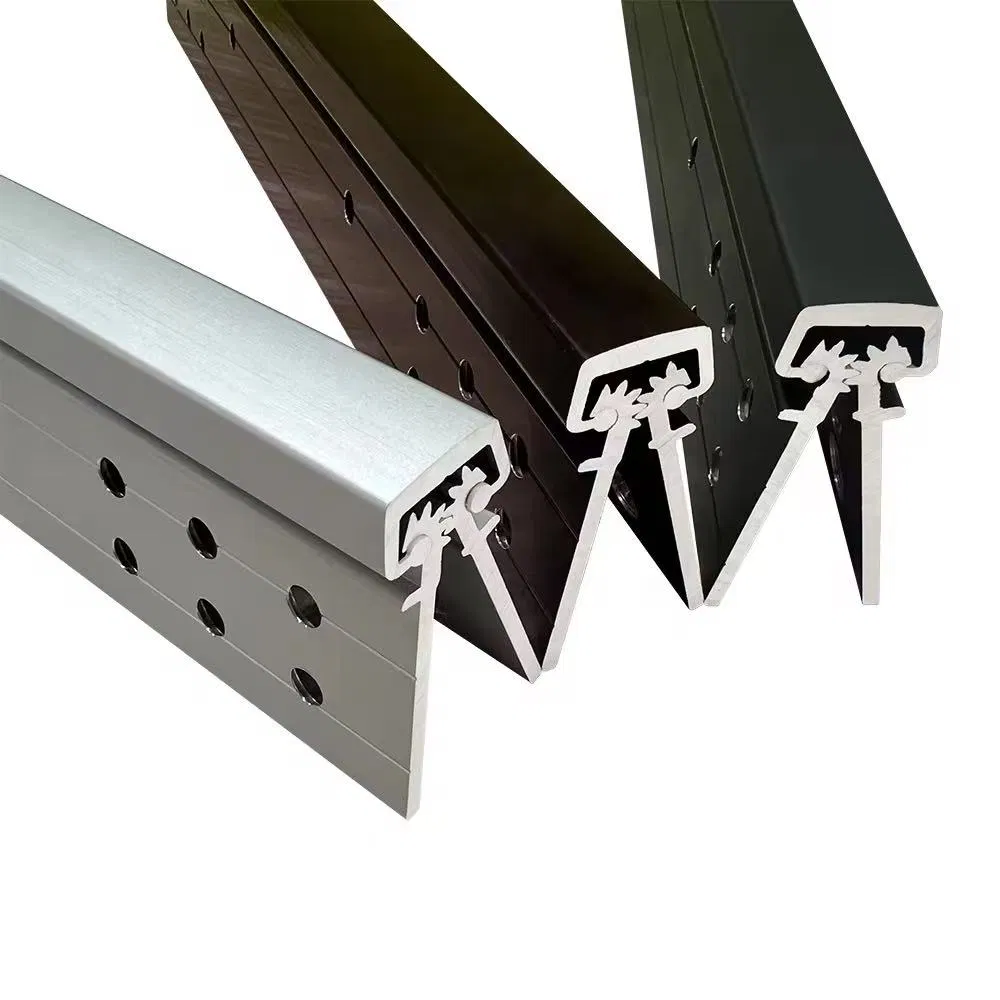

A: Our standard finishes include Anodized Silver and Black. We can also provide powder-coated custom colors upon request to match your building's aesthetic.
A: These heavy-duty hinges are designed to support weights exceeding 75kg, making them suitable for commercial and industrial heavy door applications.
