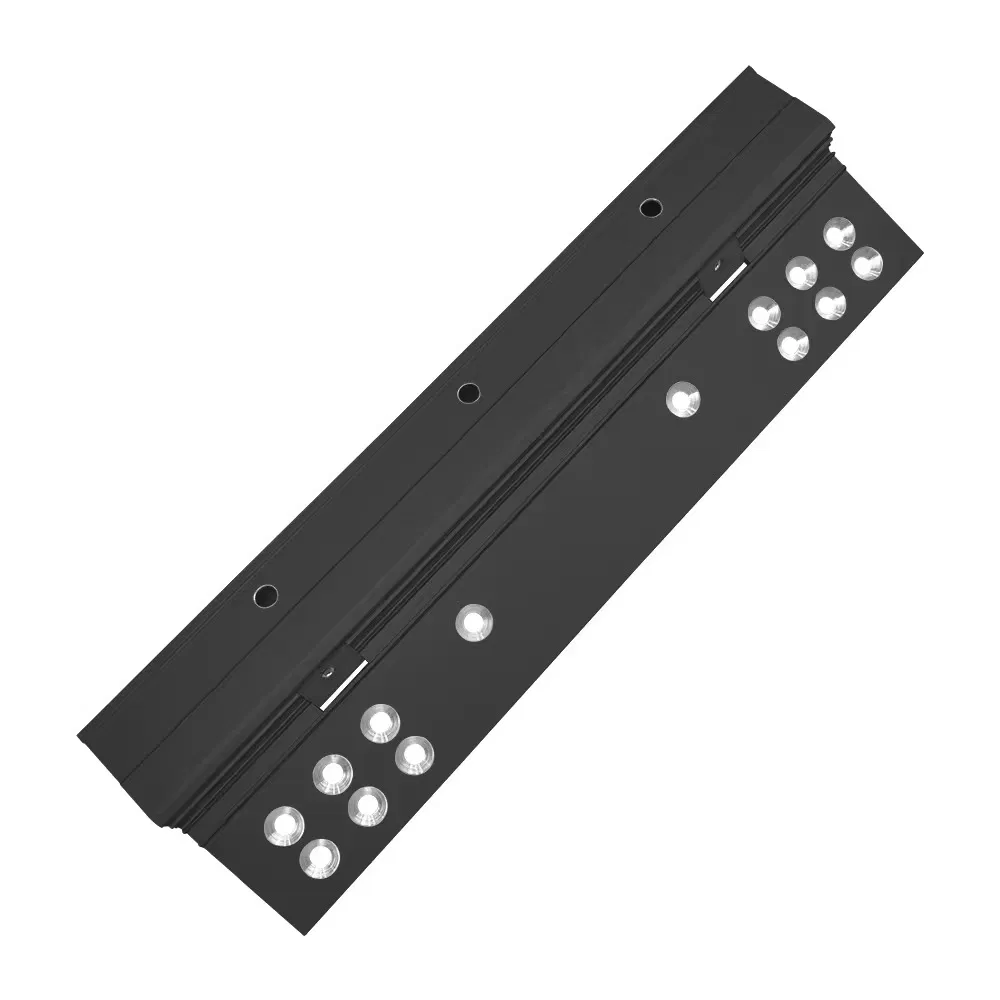

Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door
Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door
Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door
Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door
Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door
1 / 5
Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door
Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door
Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door
Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door
Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door

Heavy Duty Industrial Design Full Surface Louvered Pergola Aluminum 83 Inches Continuous Hinge Geared for Swing Door

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
Customized
Type
180° Hinge
Finish
Anodized
Material
Aluminum Alloy
Standard Length
2.85m (83"/96"/120")
Color
Black / Silver
Origin
China
HS Code
7604299000

Fire Rated Concealed Leaf Continuous Geared Hinge

  • ✔ Door Reinforcement Not Required
  • ✔ Dril-Kwik Screws and Sex Bolts Included
  • ✔ Fire Rating: Up to 3hr (Metal) / 90min (Wood Composite)
  • ✔ Prevents Fingers from Being Pinched
  • ✔ 3 Years Warranty for Long-term Performance

Continuous Geared Hinges are engineered to last the lifespan of a building by distributing door weight evenly along the entire length of the frame. This unique design minimizes the high stress typically concentrated at the top of the door in traditional butt hinge applications. It effectively eliminates door sag and ensures constant alignment, making it ideal for high-traffic environments.

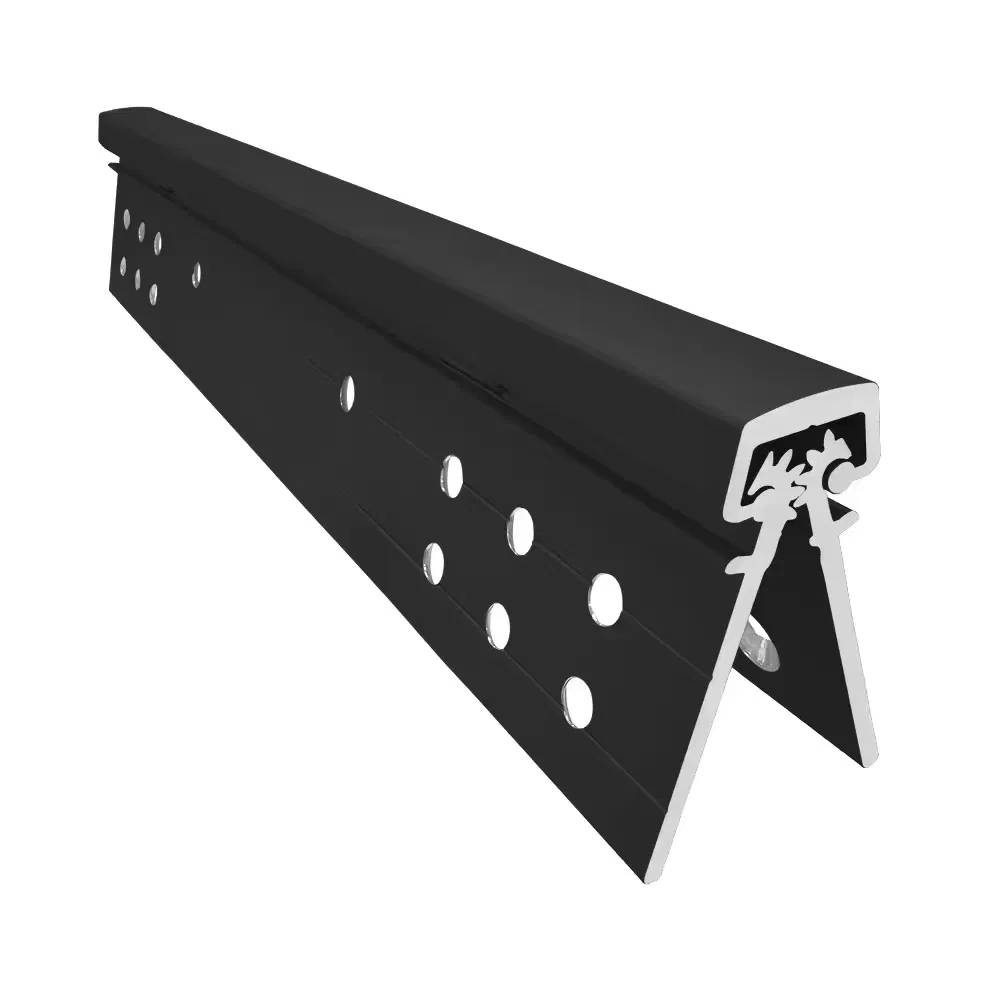

Continuous Hinge Display 1

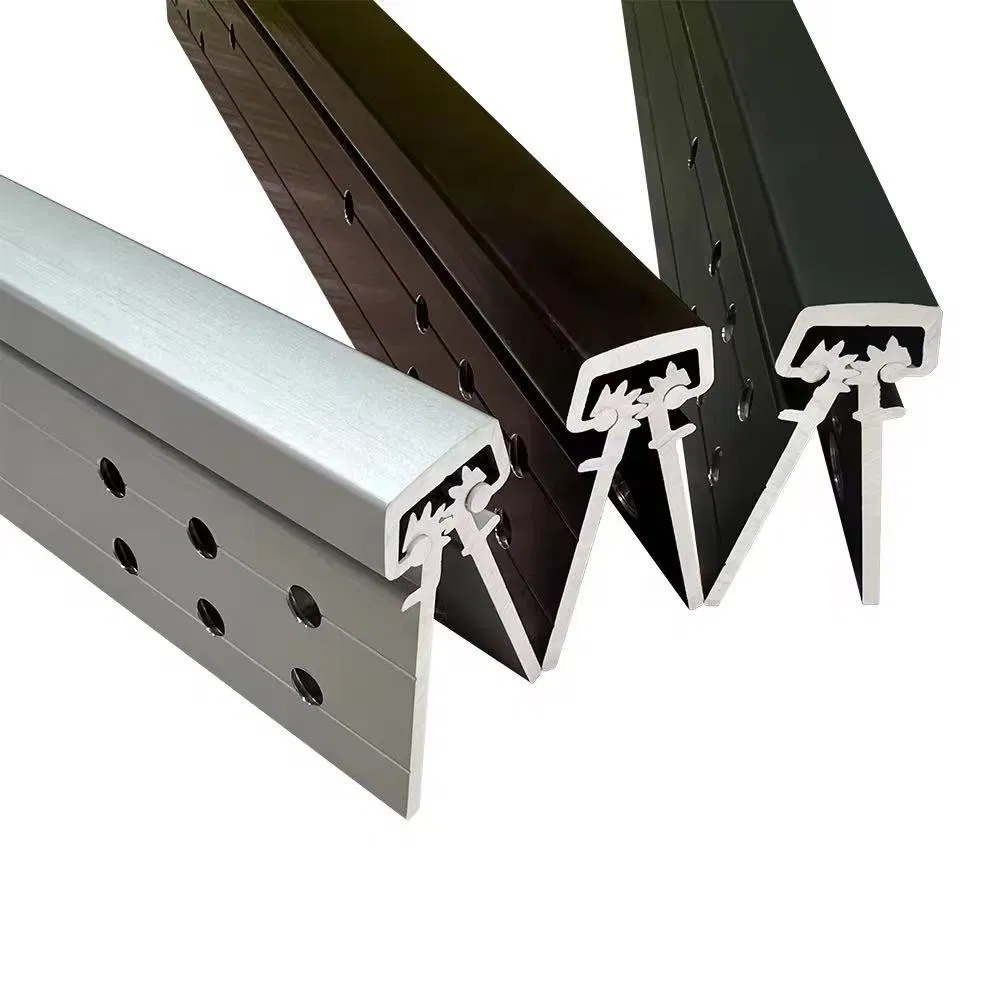

Continuous Hinge Display 2

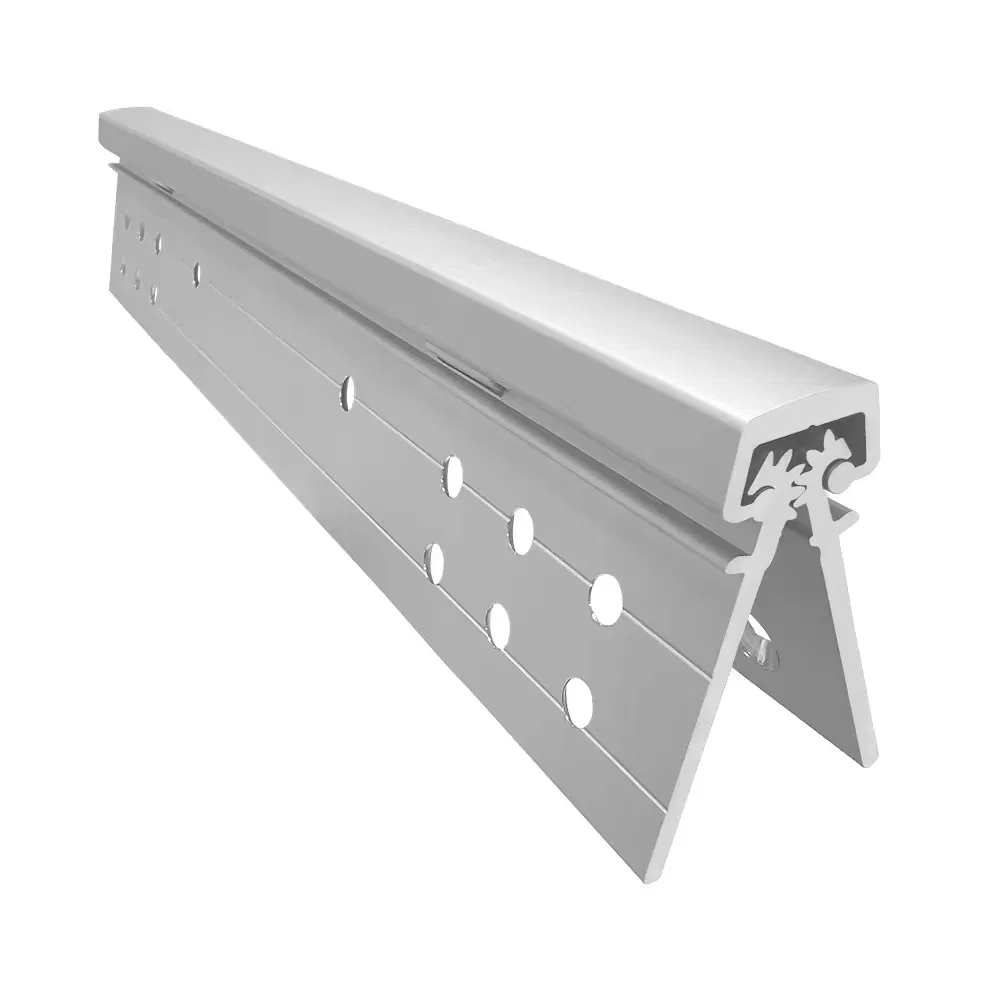

Continuous Hinge Display 3

Product Technical Details

Product Name Continuous Geared Hinges Material Aluminum
Color Options Silver / Black / Customized Length 83'' / 95'' / 119'' / Customized
Max Weight 75kg+ Finishing Anodized / Powder Coated
Opening Angle 180 Degree Style Classic / Modern
MOQ 500pcs Certification ISO9001, ROHS

Installation Hardware Guide

Length (Inches) Length (mm) Sex Bolts (Door) Pan Head (Door) Screws (Jamb)
83210881919
952413101920
1193023122323

Product Visualization

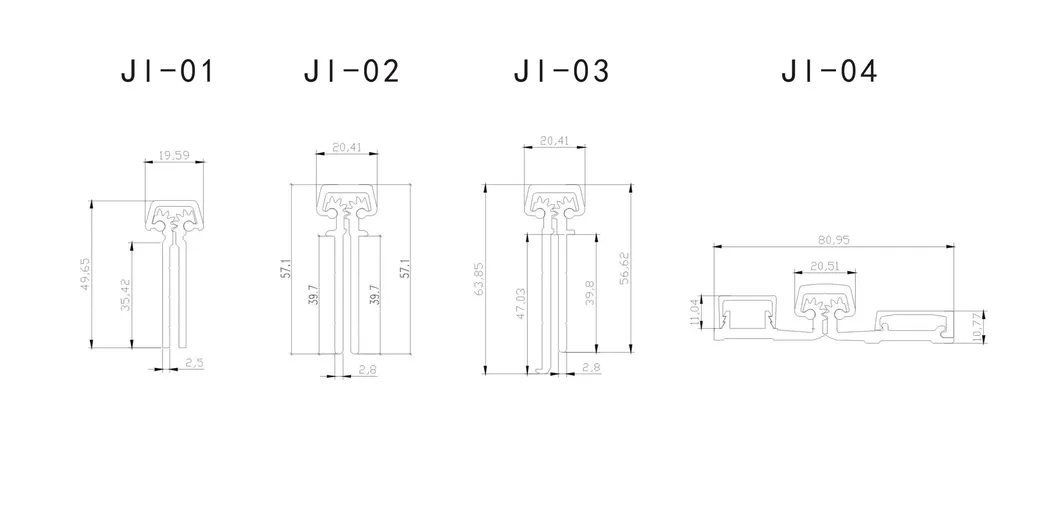

Technical Drawing Overview

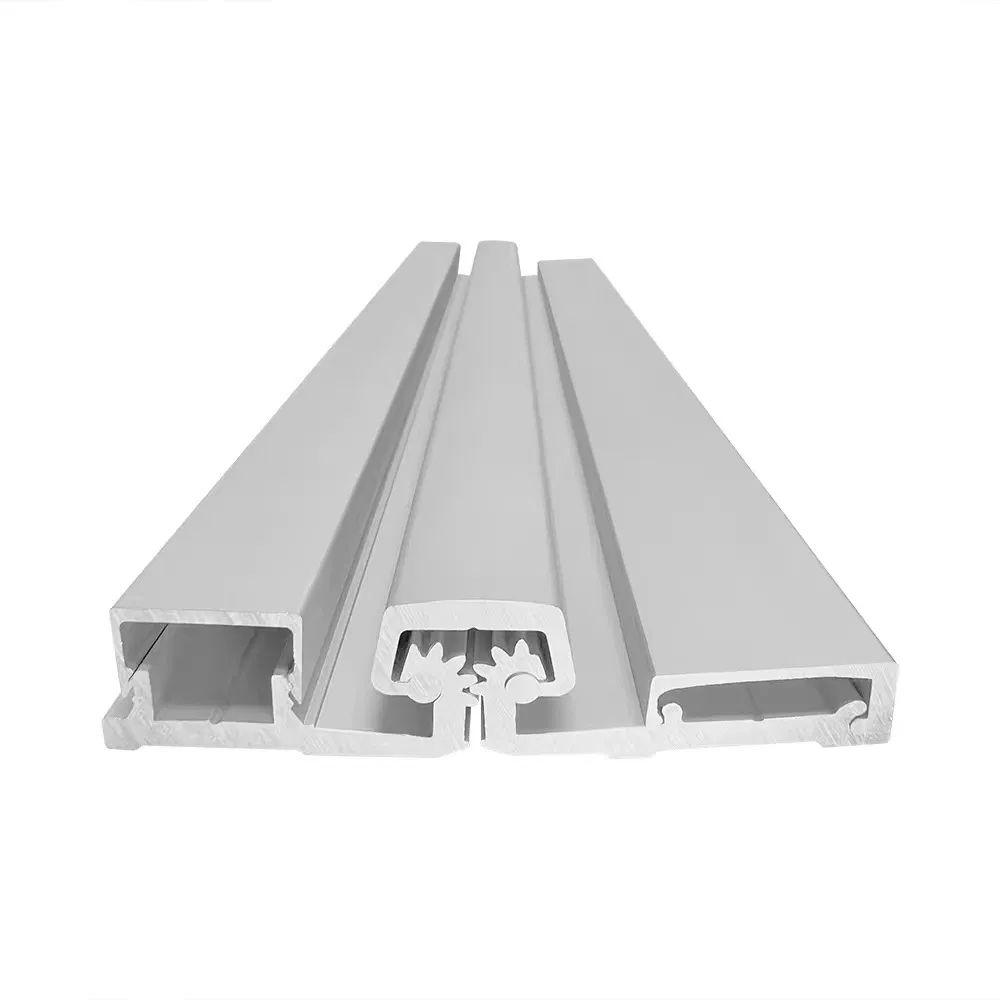

Hinge Detail 1

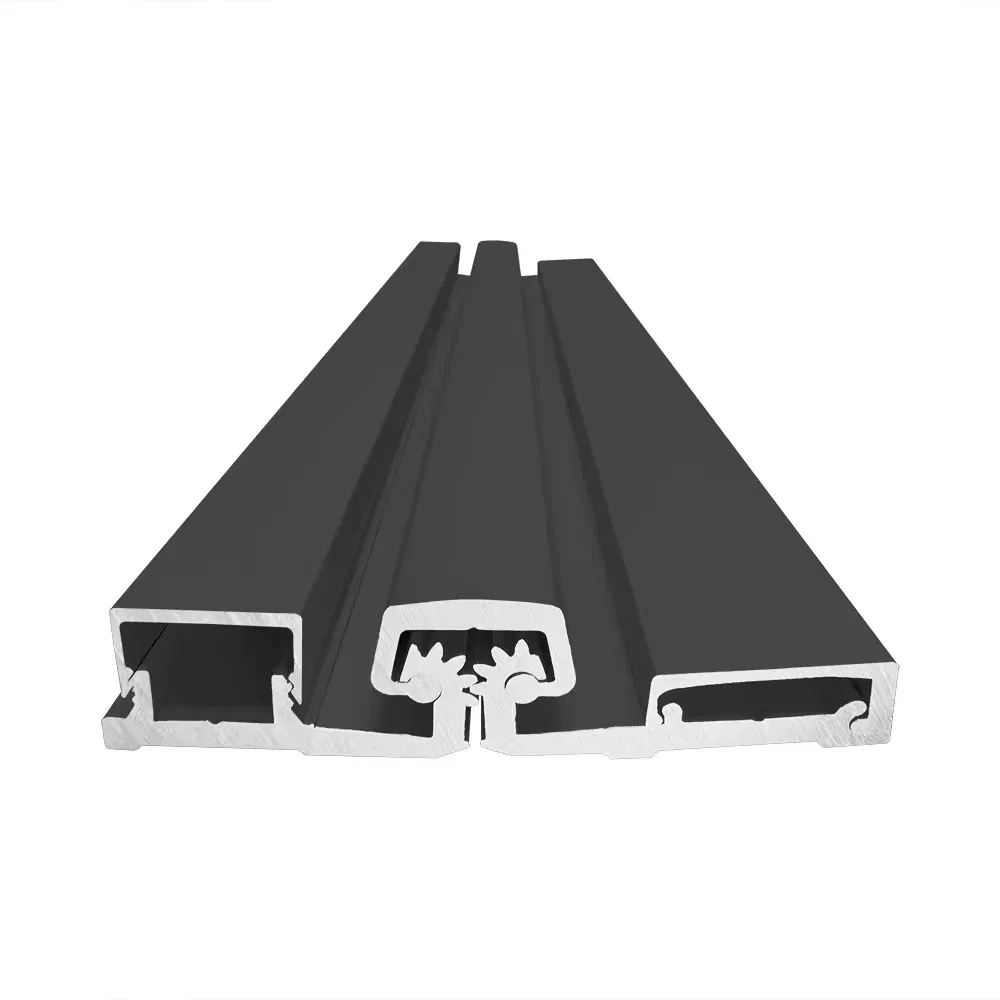

Hinge Detail 2

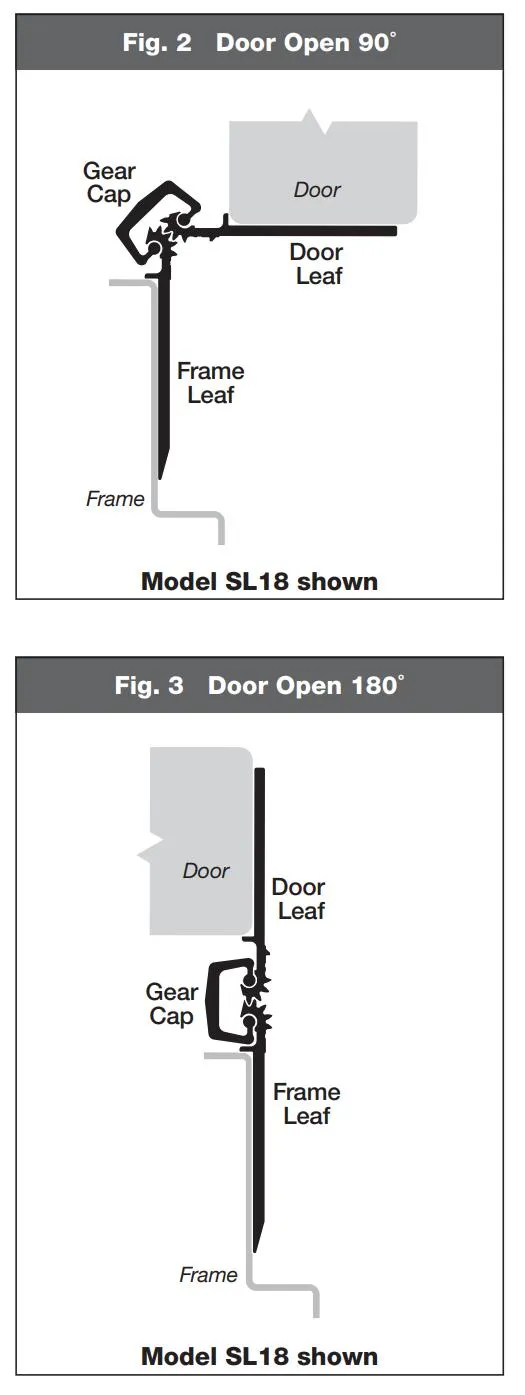

Profile View 1

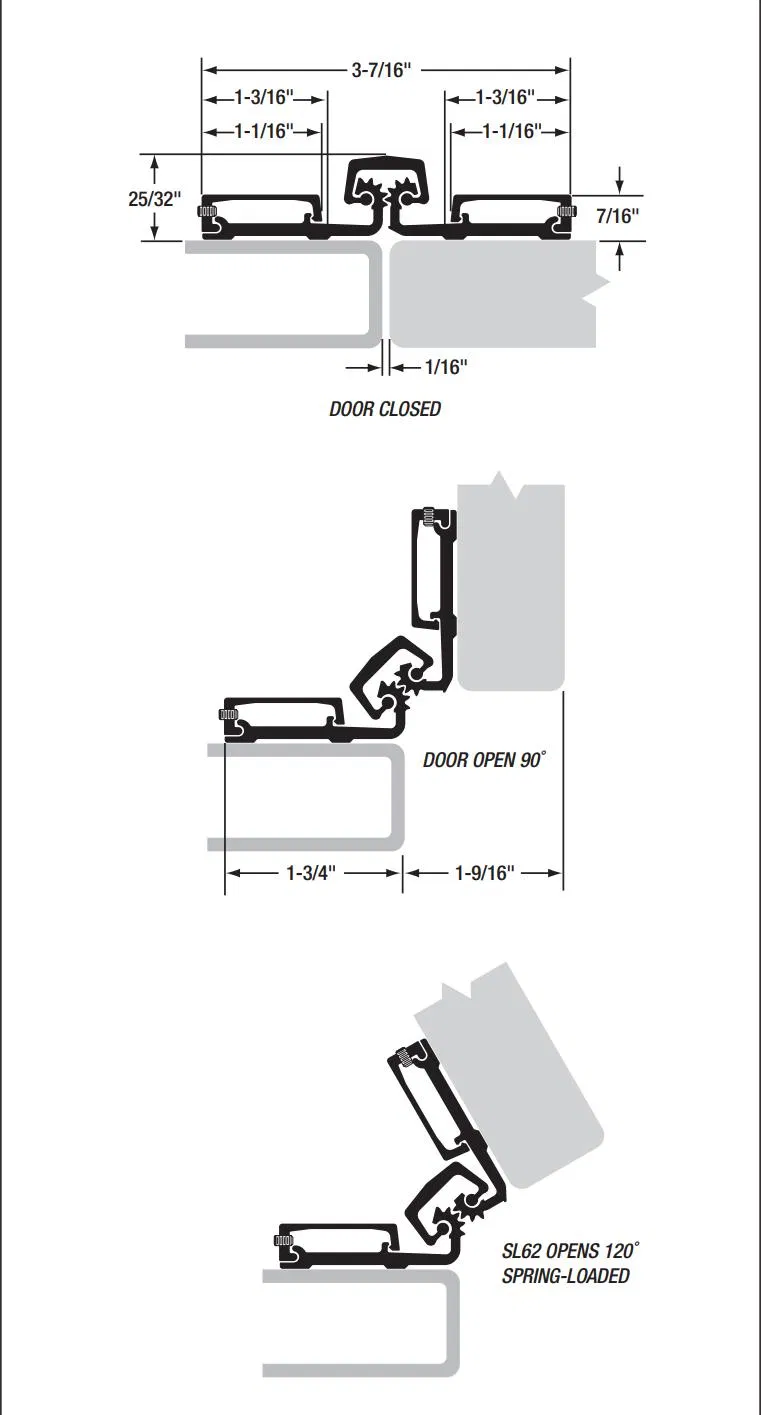

Profile View 2

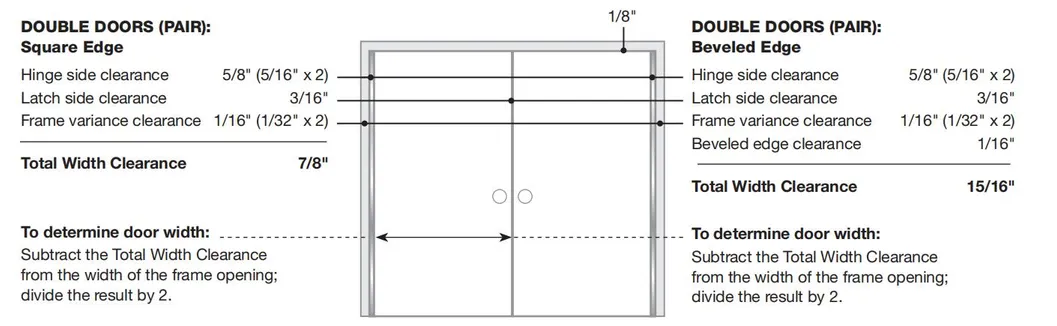

Installation Banner

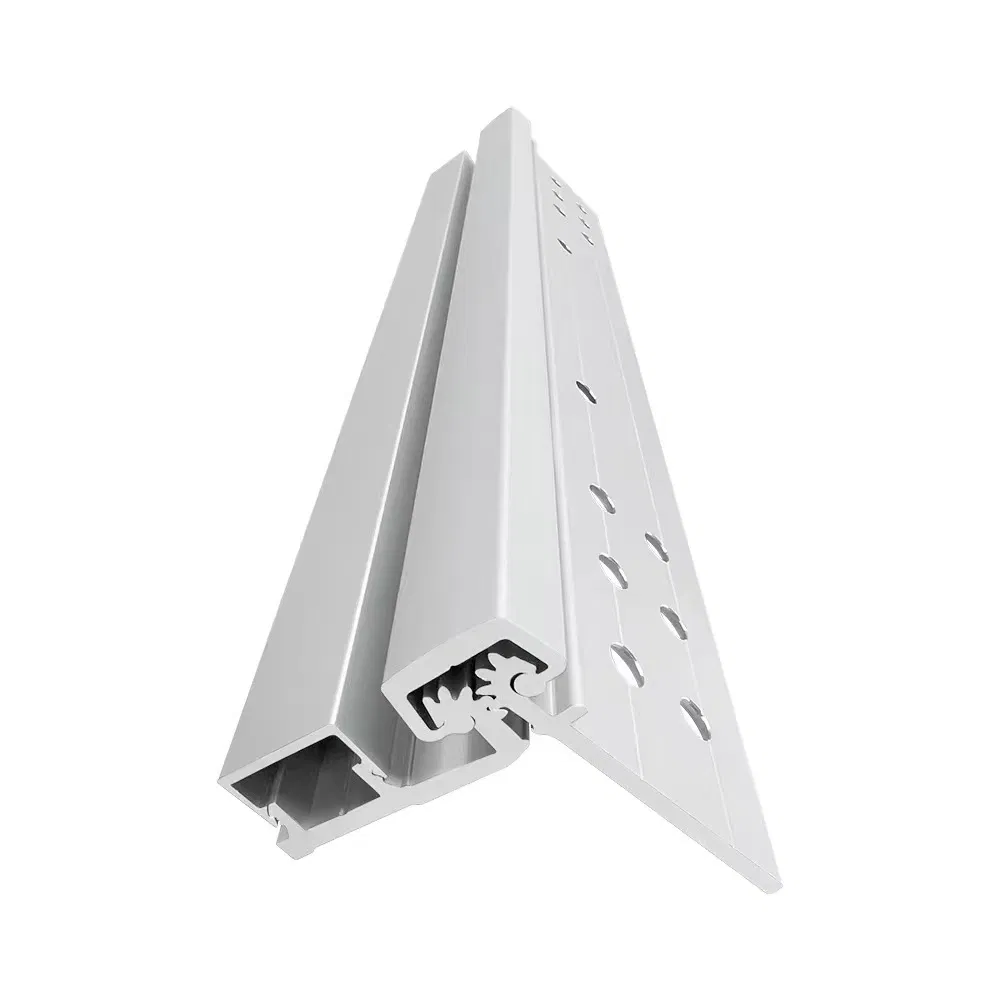

Anodized Finish
Powder Coated Finish

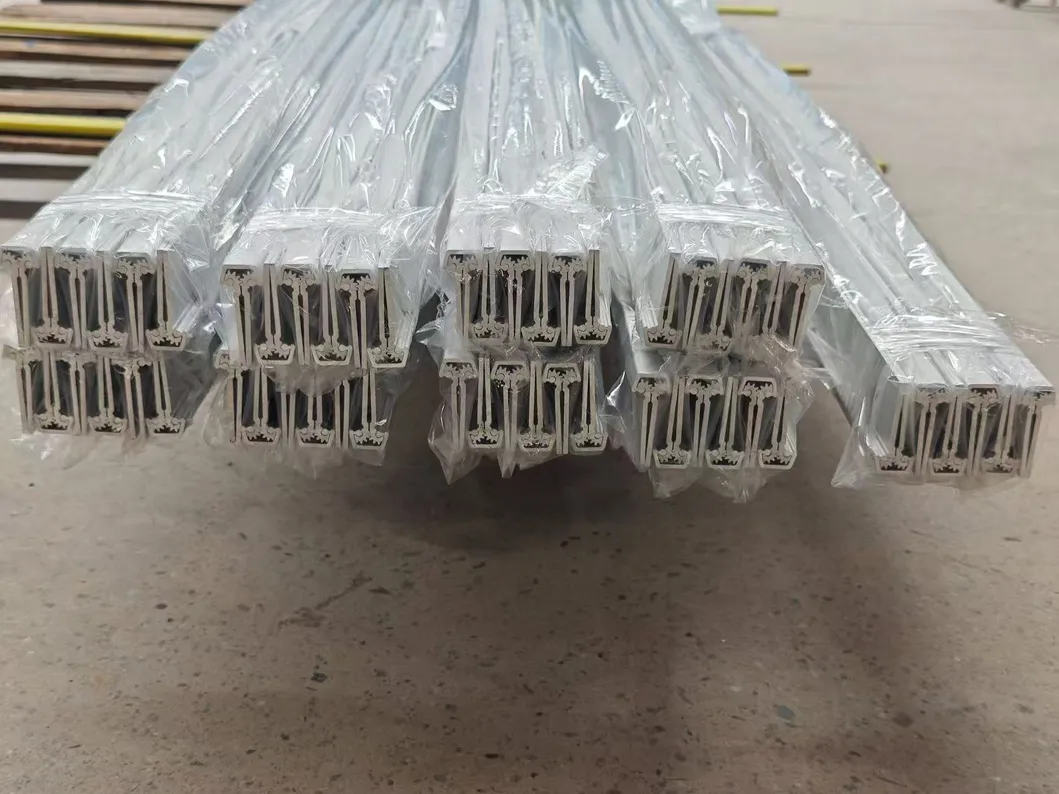

Application Scene 1

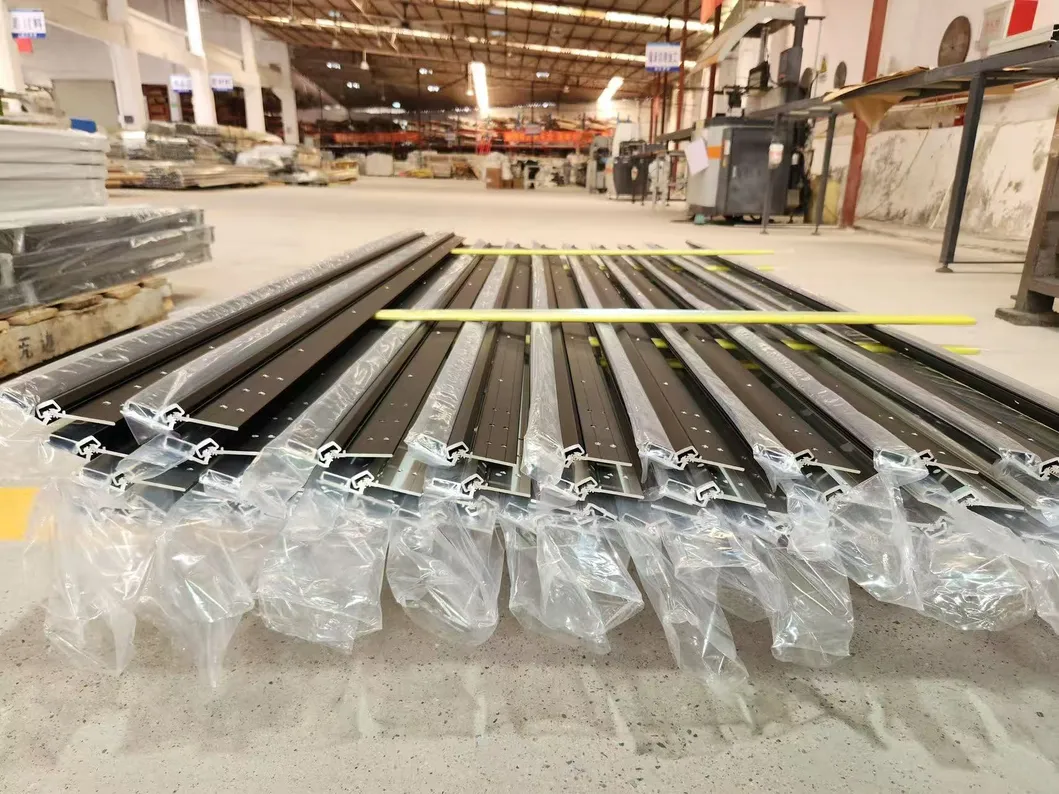

Application Scene 2

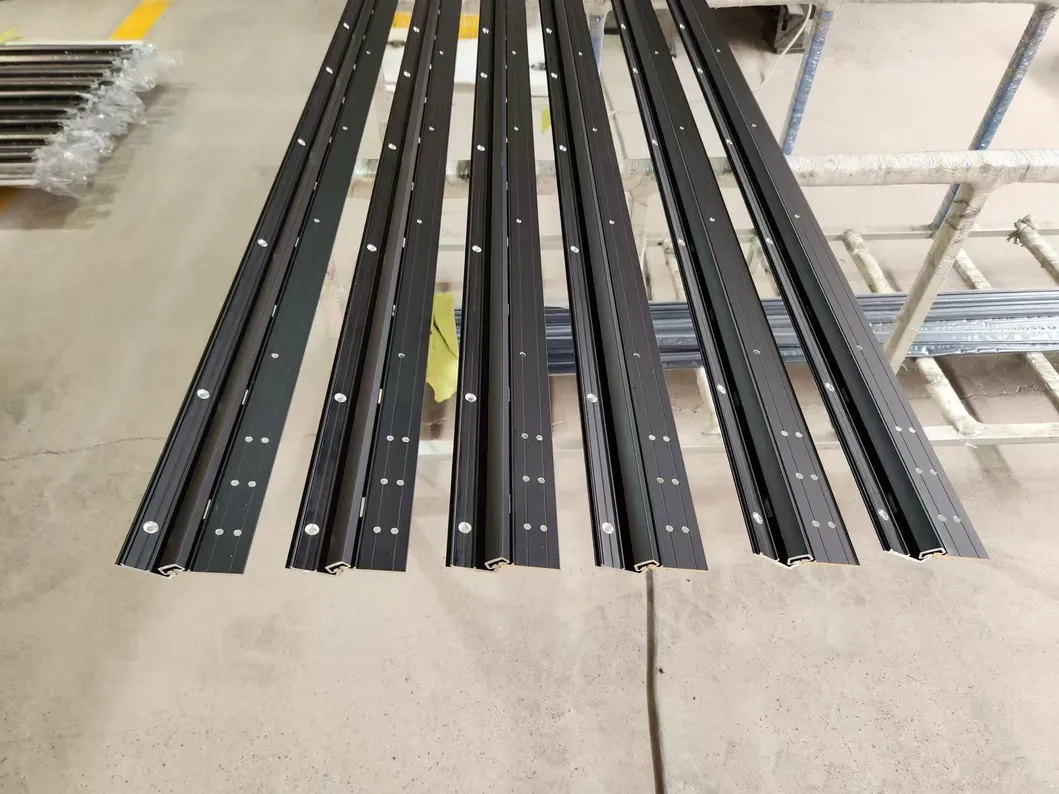

Application Scene 3

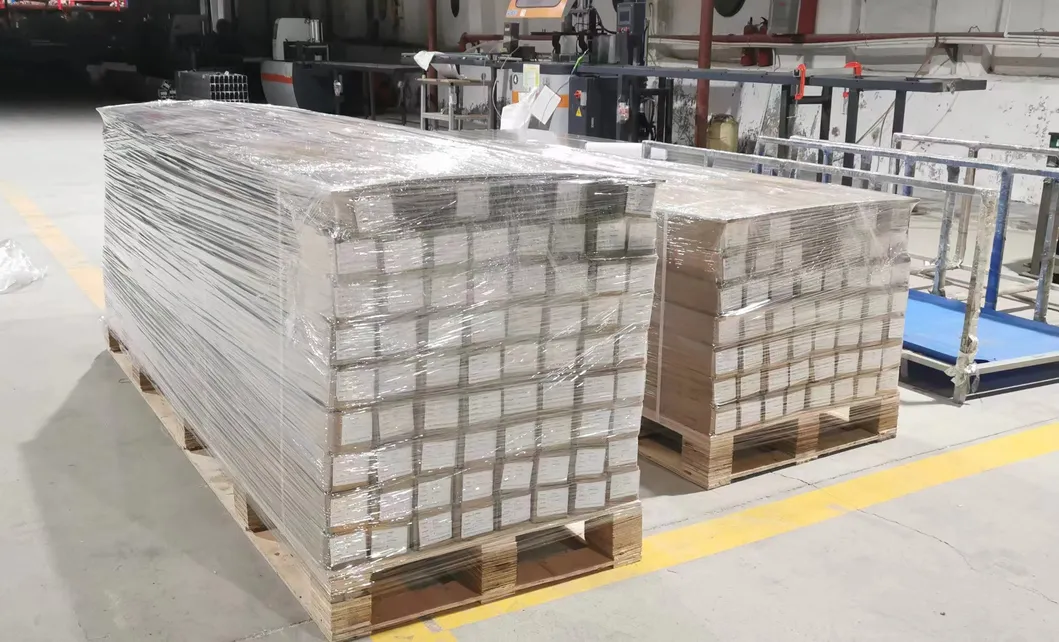

Close-up View
Mechanism Detail

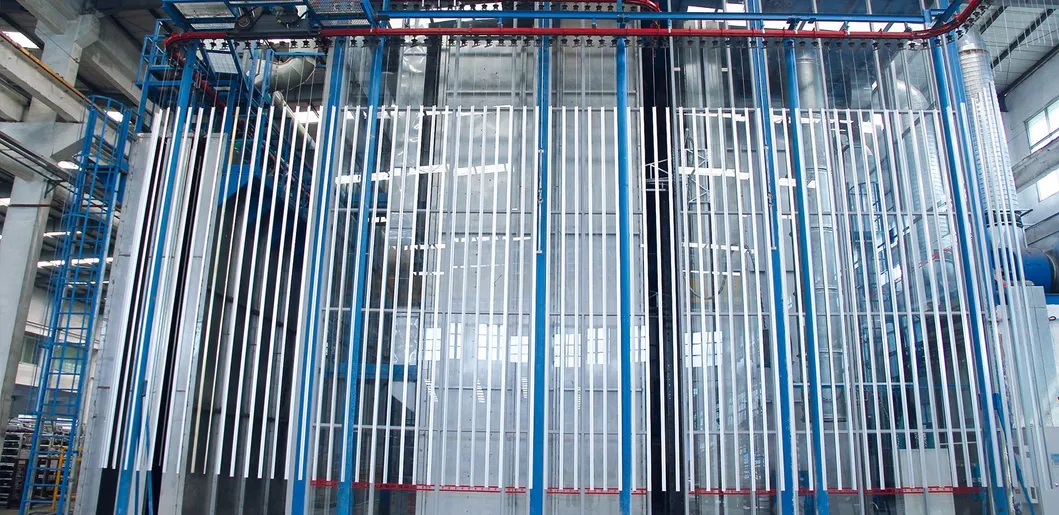

Component Breakdown Structural Design

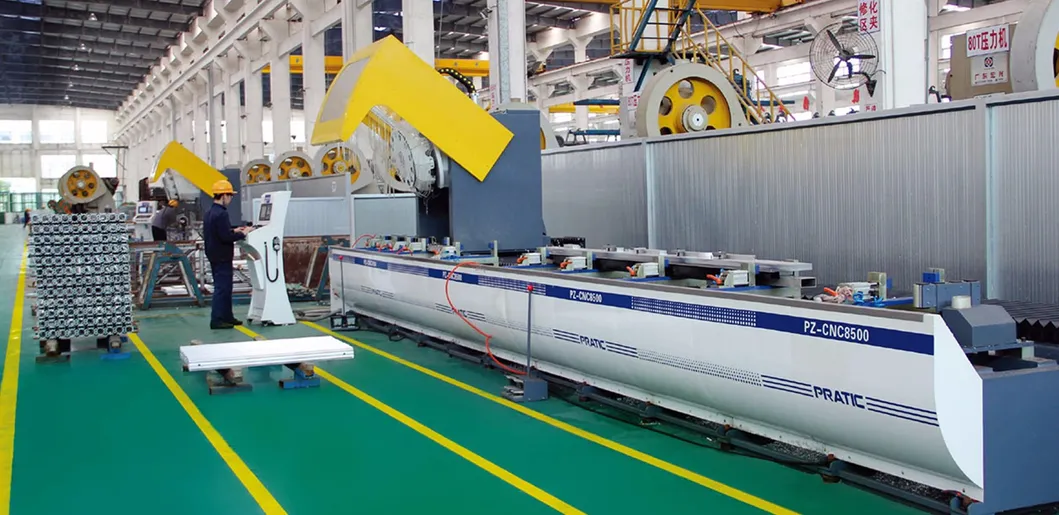

Factory Testing 1

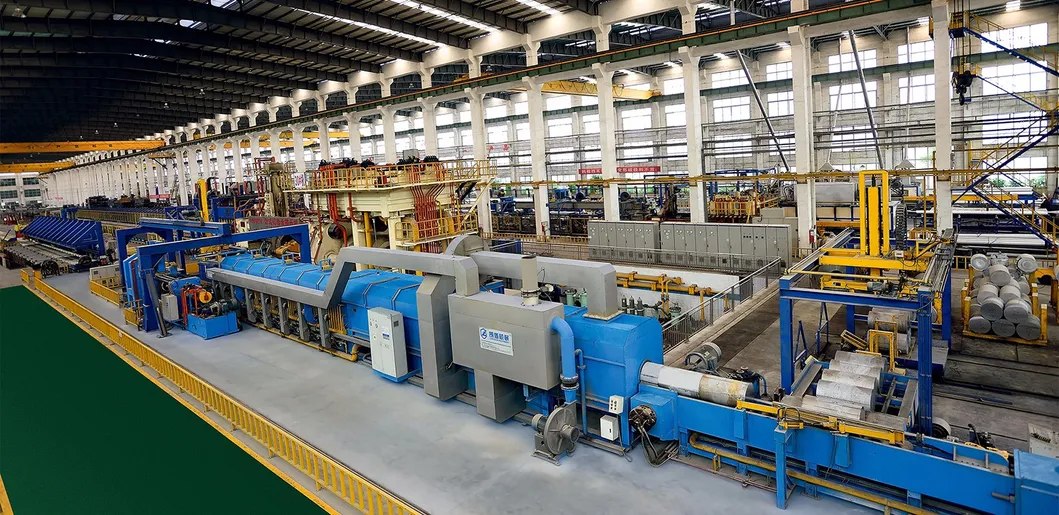

Factory Testing 2
Final Product Quality
Warehouse Stock 1
Warehouse Stock 2
Packaging Standard Shipping Logistics

Frequently Asked Questions

What makes a geared continuous hinge better than a standard hinge?
Unlike traditional hinges that concentrate stress on small points, continuous geared hinges distribute the door's weight along the entire frame. This prevents door sag and extends the life of the opening, especially in high-traffic areas.
Are these hinges fire-rated?
Yes, these hinges are fire-rated for up to 3 hours on metal doors and 90 minutes on wood composite doors (when used with appropriate studs).
Can the length of the hinge be customized?
While our standard lengths are 83", 95", and 119", we offer customization services to meet specific door height requirements.
What material is used for the hinges?
The hinges are manufactured from high-quality aluminum alloy with an anodized or powder-coated finish for superior durability and corrosion resistance.
How does the geared design improve safety?
The geared mechanism eliminates the gap between the door and the frame, significantly reducing the risk of fingers being pinched, which is a common safety concern with traditional hinges.
What is the warranty period for this product?
We provide a 3-year warranty on our continuous geared hinges, ensuring long-term reliability and performance for your door hardware investment.
