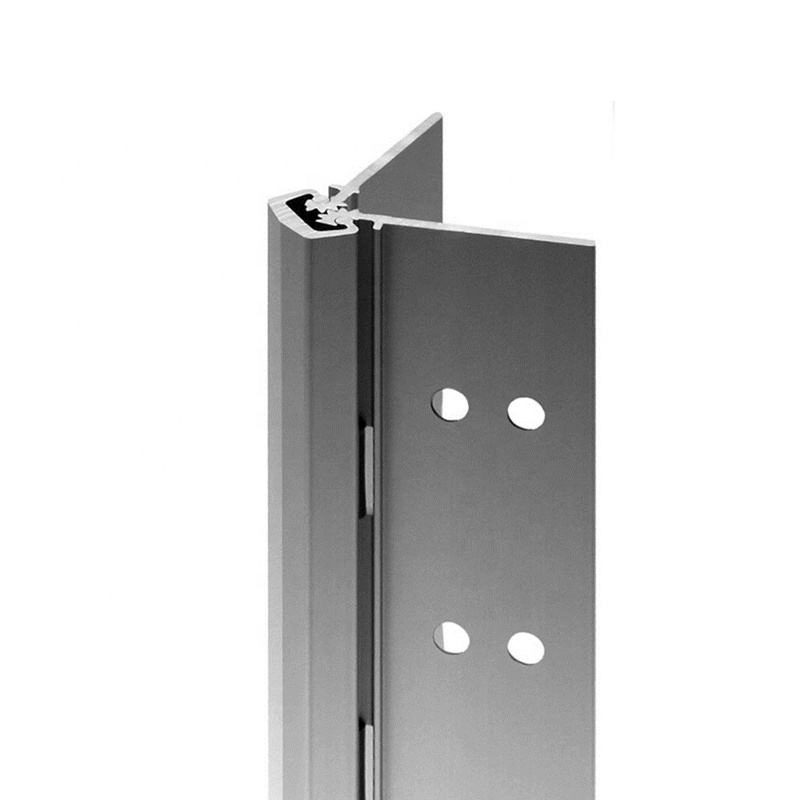

Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price
Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price
Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price
Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price
Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price
1 / 5
Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price
Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price
Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price
Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price
Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price

Heavy Duty Fire Rated Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge for Factory Price

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year
Send Inquiry

Product Description

Product Overview
Model NO.
CGH1083
Type
Continuous Geared Door Hinge
Finish
Clear Aluminum/Dark Bronze Anodized
Material
Aluminum
Keywords
Concealed Leaf, Full Mortise
Normal Size
83" / 95" / 119" / Customized
Max. Weight
75kgs
Certification
ISO9001
Application
Apartment / Factory / Commercial
Design Style
Traditional / Heavy Duty
Heavy Duty Fire Rated Continuous Geared Hinge

Concealed Leaf Aluminum Full Mortise Continuous Geared Door Hinge

These hinges are designed to last the life of a building by distributing the weight of a door along the entire length of its frame. The unique design reduces stress at the top of the door and frame, eliminating door sag and reducing maintenance.

Specifications Details
Item No.CGD1083
MaterialHigh Grade Aluminum
FinishedBright Anodize, Black, Clear Aluminum
Mounting TypeFull Mortise / Door Mount
Loading Weight75 KGS
Fire RatingUp to 3 hr. metal / 90 min. wood composite
Warranty3-Year Warranty
Key Features & Benefits
  • Door Reinforcement not required
  • Dril-Kwik screws and sex bolts included
  • Standard lockside clearance
  • High Fire Rating safety compliance
  • Prevents fingers from being pinched
  • Constant alignment eliminates door sag
Detailed Product Images

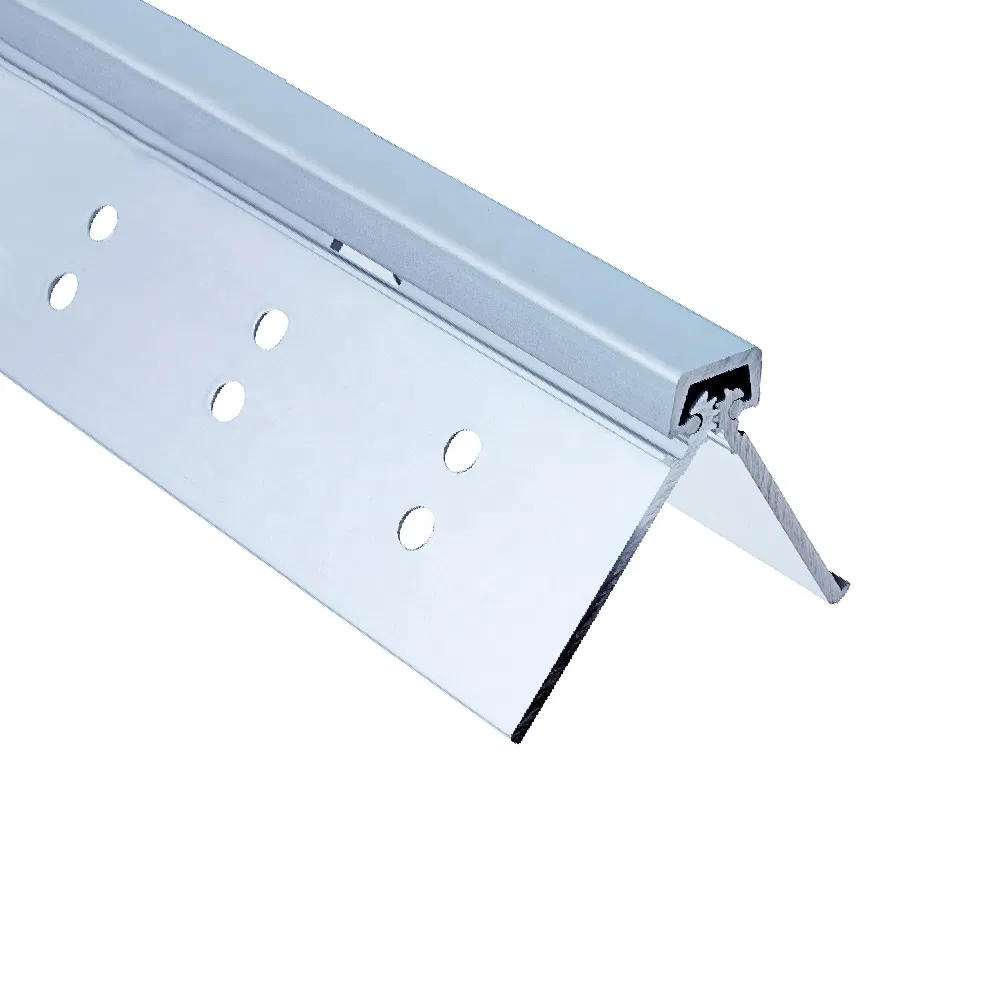

Detailed Image 1
Detailed Image 2

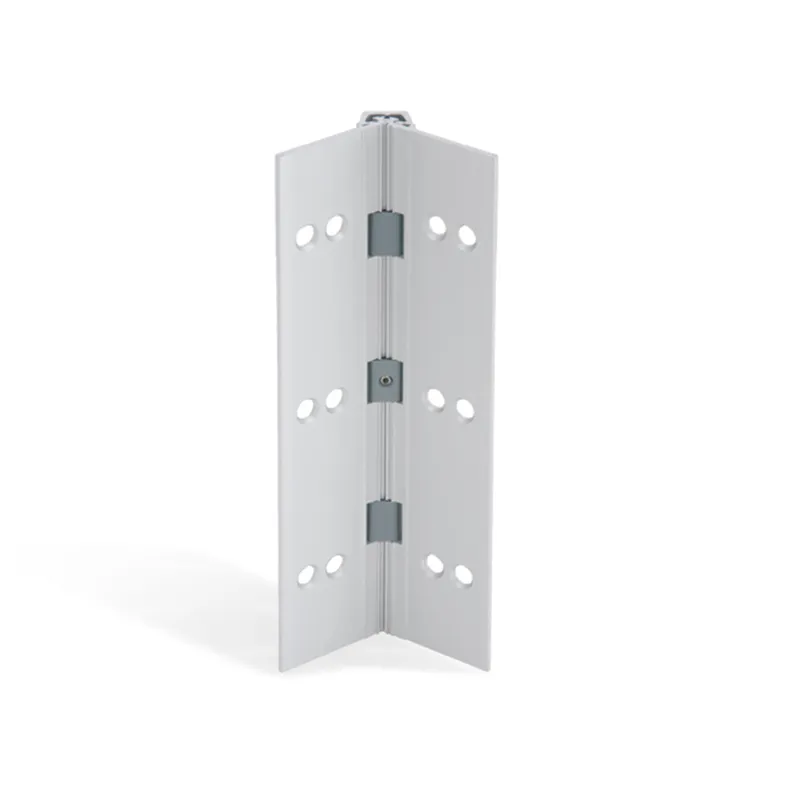

Detailed Image 3
Product Banner
Calculating Required Door Clearances

IMPORTANT: All standard length hinges are supplied slightly shorter than nominal door height to avoid threshold or flooring clearance problems.

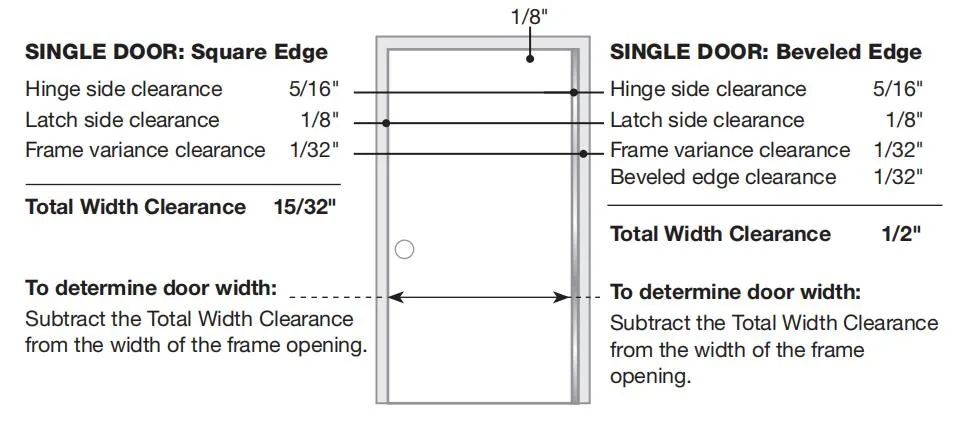

Clearance Diagram 1
Clearance Diagram 2
Length (inches) Length (mm) Hole Count (Door) Hole Count (Jamb)
8321081919
9524132020
11930232323
Product Selection & Quality

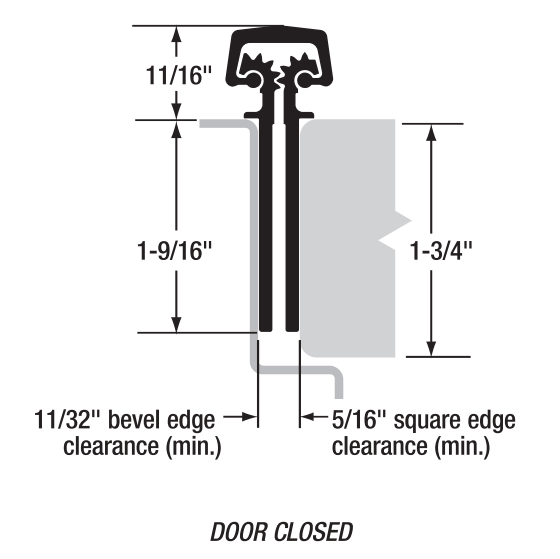

Door Show 1

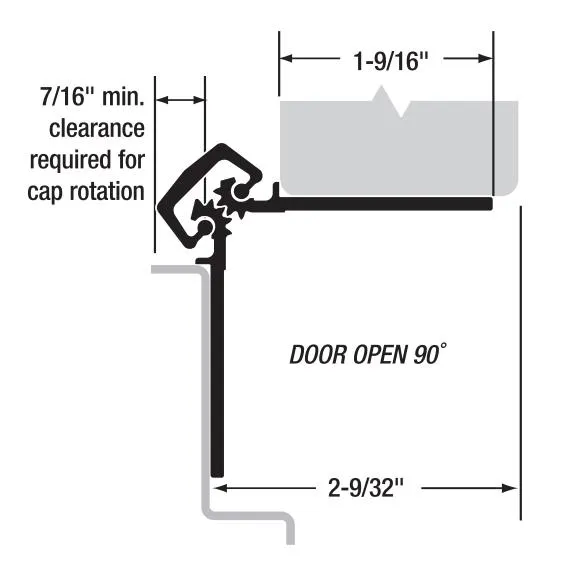

Door Show 2
Product Categories
Certifications
Frequently Asked Questions
How can I obtain product samples?
Sample orders can be arranged through standard trade channels. Production typically takes approximately 3 to 5 working days once confirmed.
What finishing options are available?
We offer a wide variety of finishes including Satin, Polished, Satin Nickel, Bright Chrome, Gold, Matt Black, and Satin Graphite to match your project requirements.
Do you support product customization?
Yes, we provide extensive customization options for logos, colors, materials, and surface treatments to meet specific architectural needs.
What are the standard packaging options?
Standard packaging involves bubble bags and sturdy cartons. We can also provide customized color boxes and instruction manuals for bulk orders.
What are your typical payment terms?
We generally accept T/T and other standard trade payment methods. Specific terms are negotiable based on the order volume.
How quickly can I expect a price quotation?
Our team typically provides detailed quotes within 24 hours of receiving your specific requirements and quantities.
