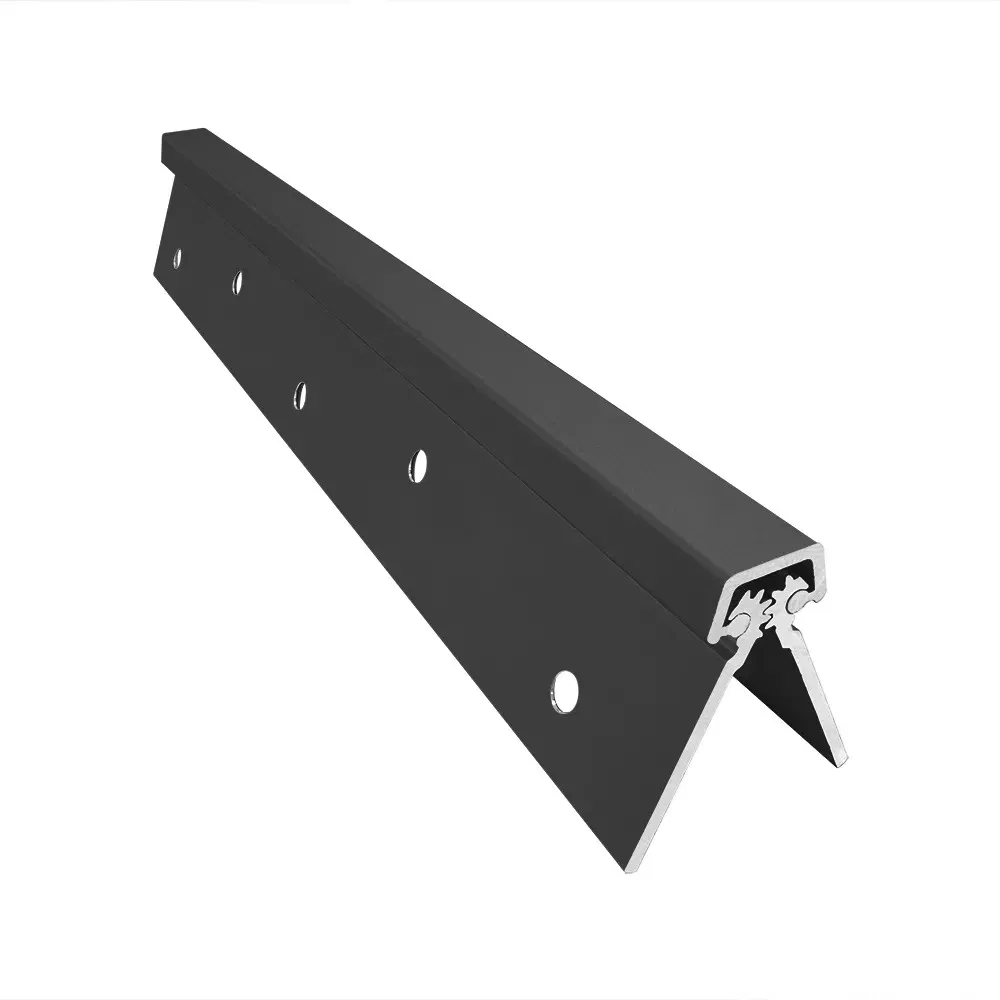

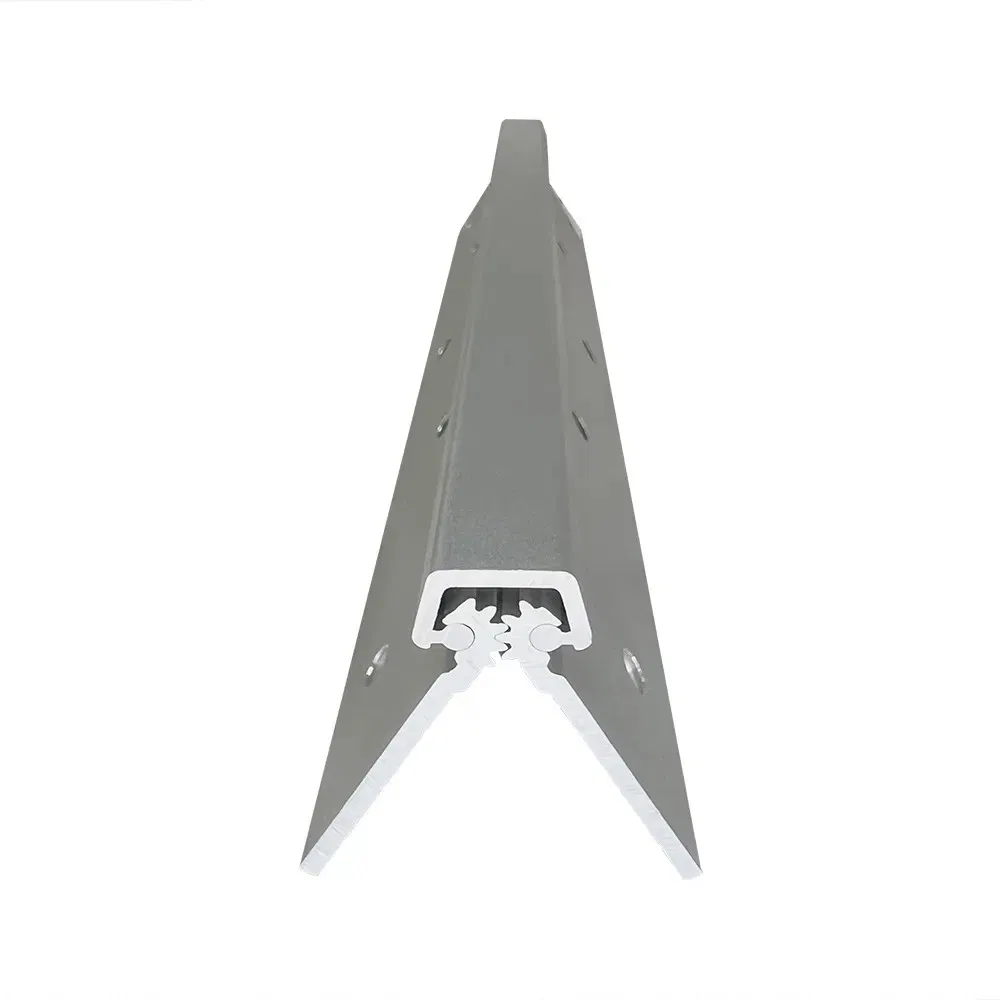

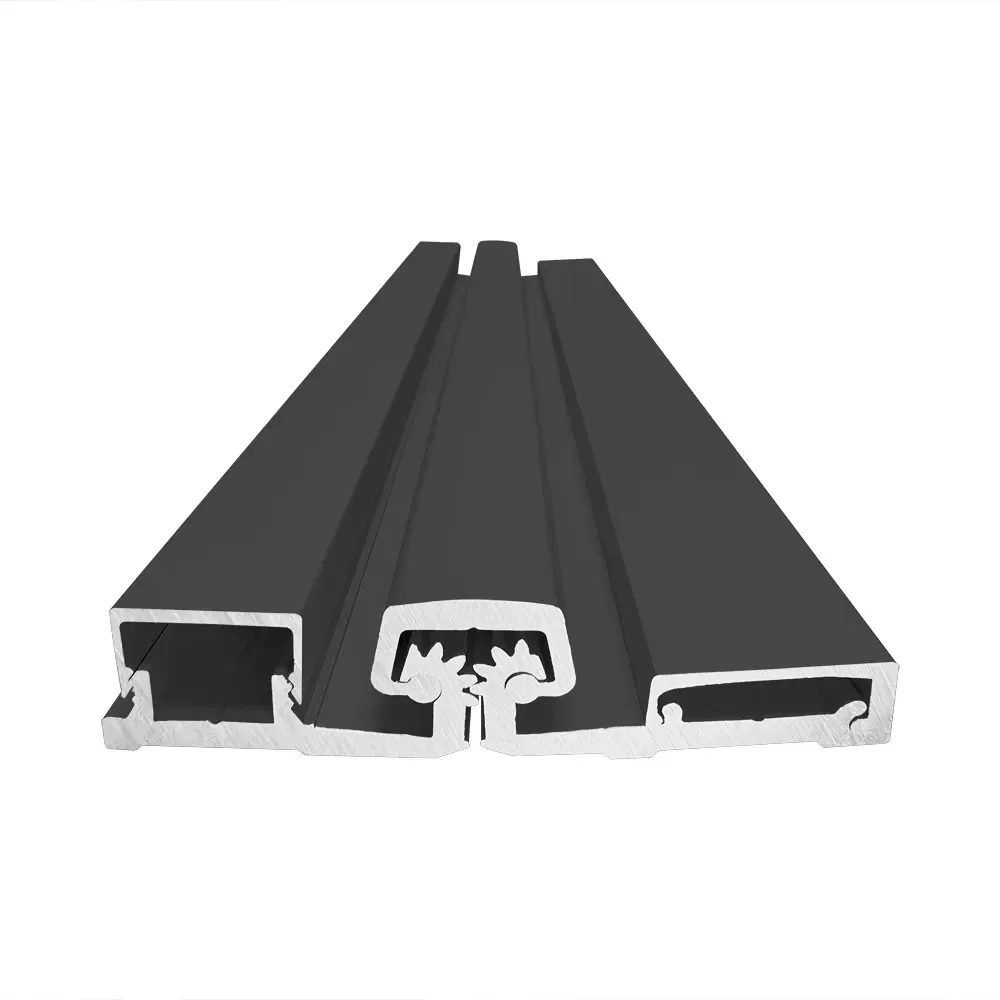

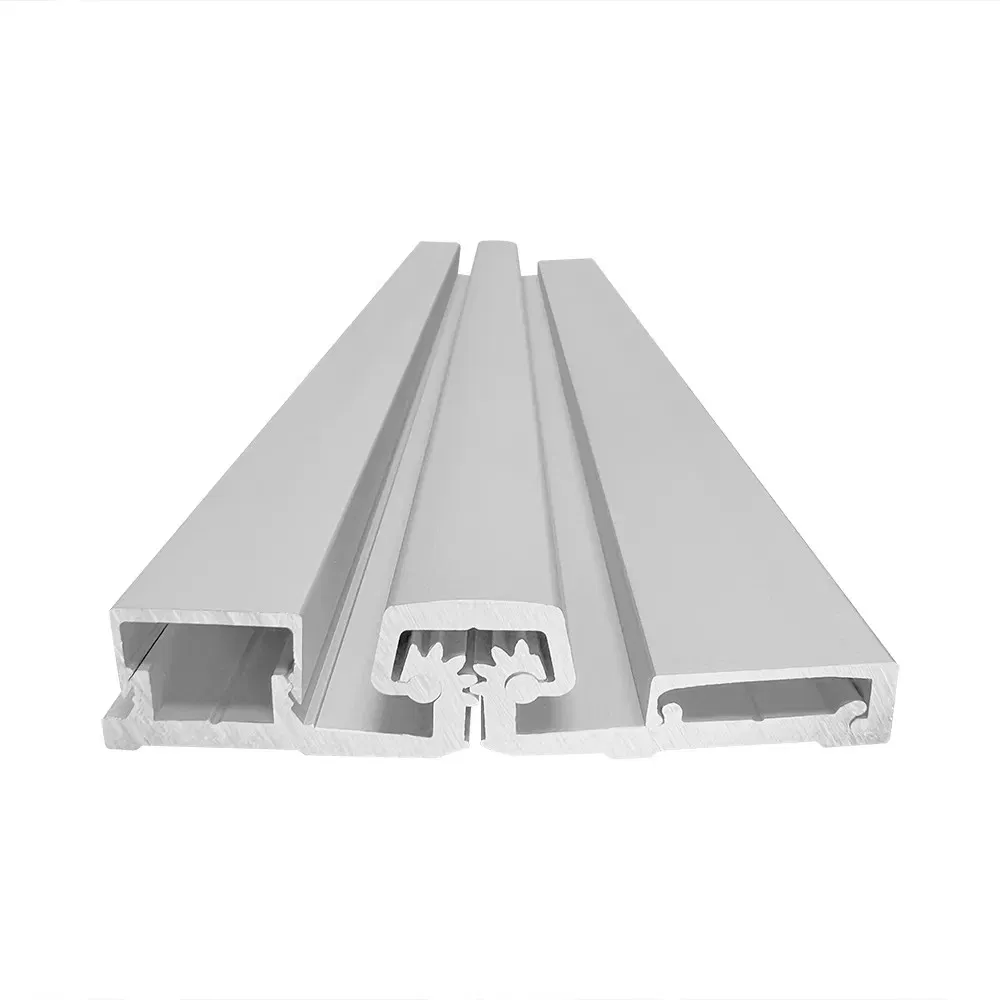

Continuous Gear Hinges offer superior performance for use in high frequency door opening lots with a measured life of over 2.5 million openings and closings. Our Continuous Gear Hinges use a unique gear design to minimize lateral wear on the hinge while distributing the weight of the door itself, as well as the recoil generated by opening and closing the door, evenly along the overall length of the product and the door frame.
Ideal for new construction and remodeling applications. Our hinges are now in use in a large number of building projects, hospitals, airports, shopping malls and more. Continuous gear hinges provide greater security and durability compared to traditional butt hinges. These hinges have passed the UL 3-hour fire test and obtained ANSI & BHMA certificates.
| Door Size |
Hinge Length |
Bearings |
Door Weight |
| 6'8" |
79" |
26 |
520 lbs |
| 7'0" |
83" |
27 |
540 lbs |
| 7'2" |
85" |
27 |
540 lbs |
| 8'0" |
95" |
31 |
620 lbs |
| 10'0" |
120" |
39 |
780 lbs |
Material: Extruded 6063-T6 aluminum alloy/temper with pinless assembly.
Finishes: CL-Clear anodized aluminum / BZ-Dark anodized aluminum
