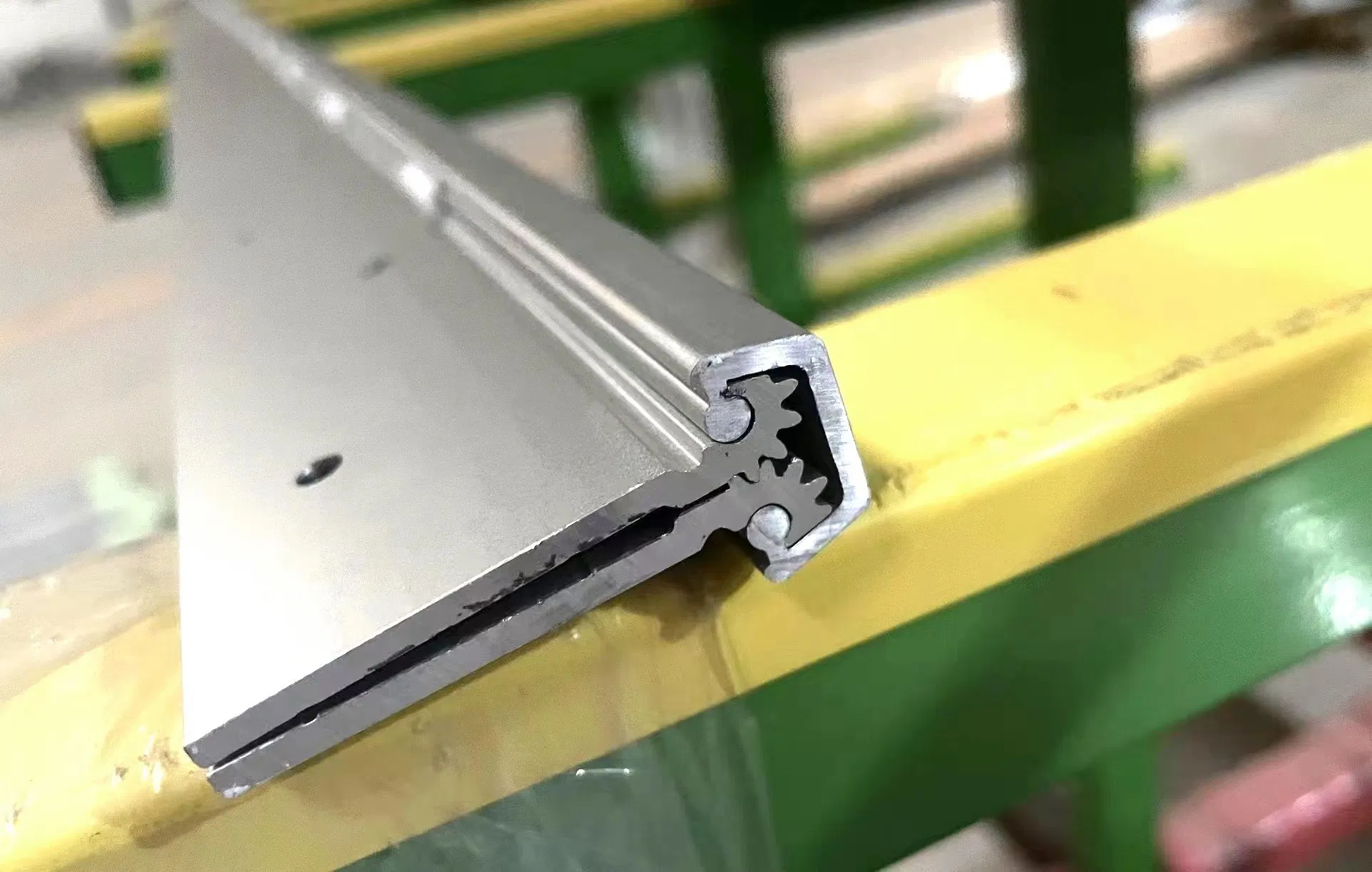

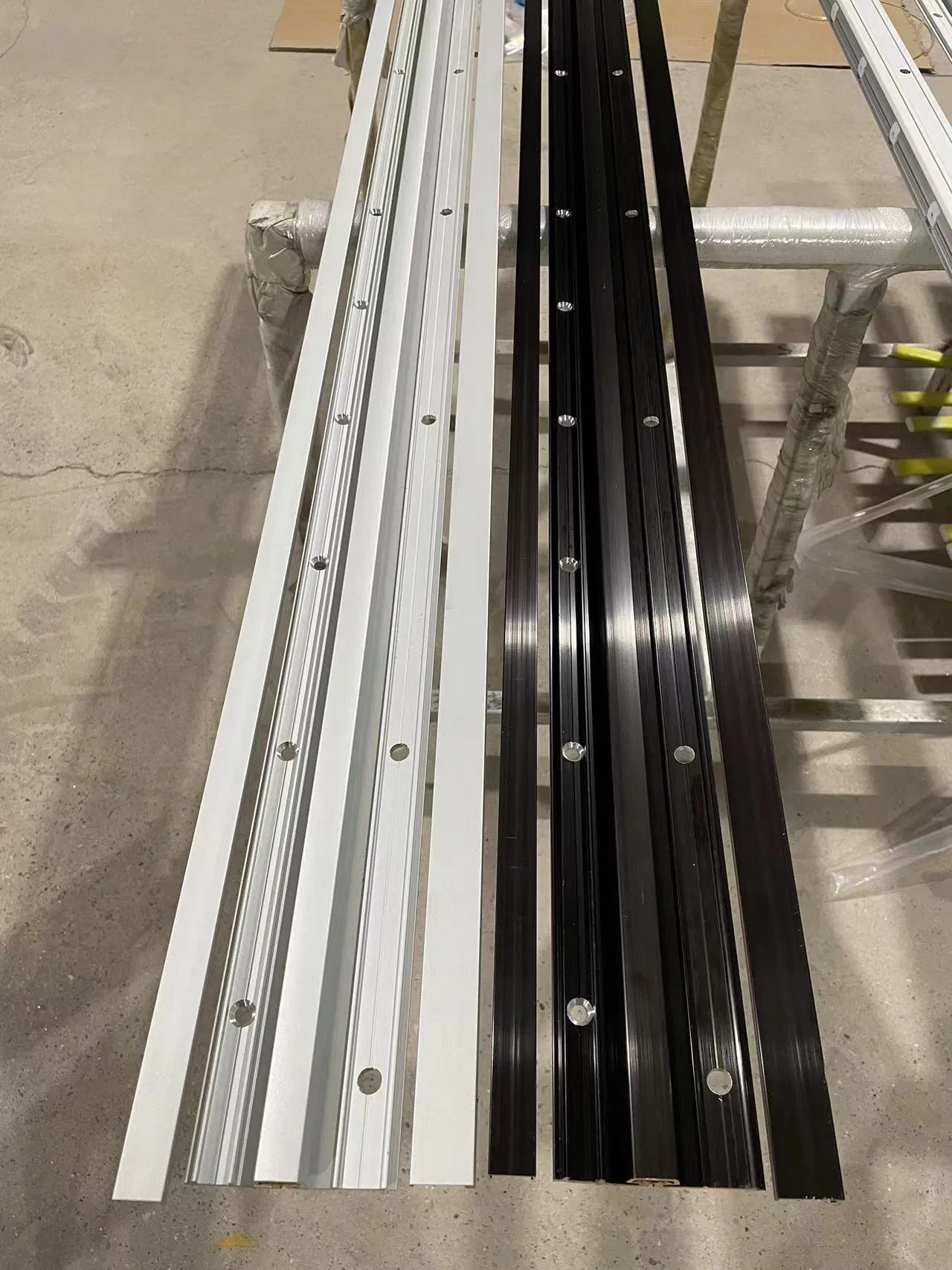

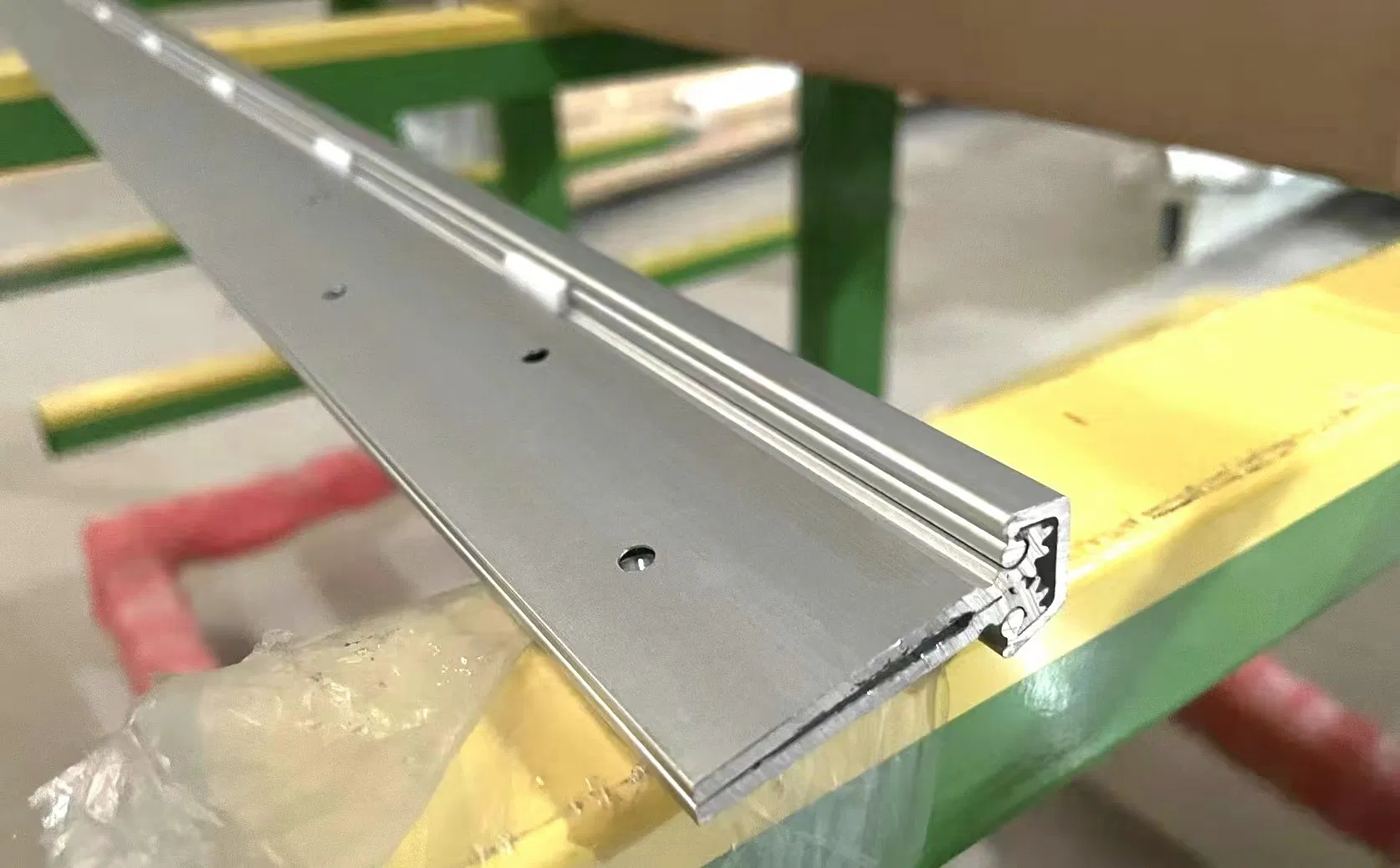

Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge
Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge
Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge
Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge
Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge
1 / 5
Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge
Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge
Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge
Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge
Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge

Heavy Duty Full Surface Aluminum Continuous Geared Door Hinge

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
standard
Type
180°Hinge
Finish
Anodized
Material
Alloy
Length
2.85m
Color
Black
Swings
2
Other Length
Customized
Transport Package
Wood Box
Specification
84"/96"/120"
Origin
China
Production Capacity
100,000/Year
Product Overview

These Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.

Technical Data & Components
Length (inches) Length (mm) Sex Bolts (Door) Pan Head (Door) Screws (Jamb)
83210881919
952413101920
1193023122323
Product Visuals
Full Surface Aluminum Continuous Geared Door Hinge Main

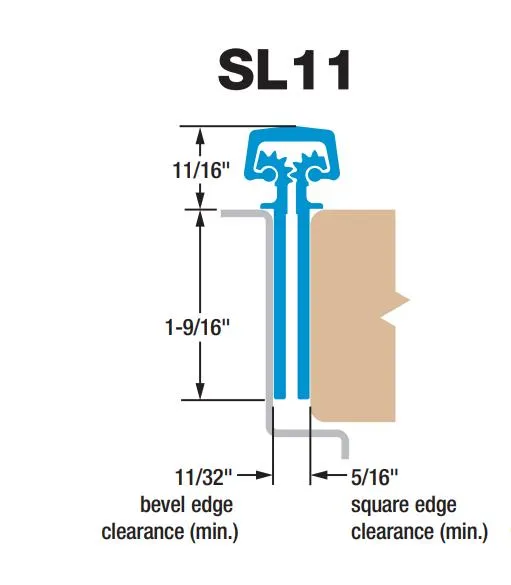

Geared Door Hinge Detail 1

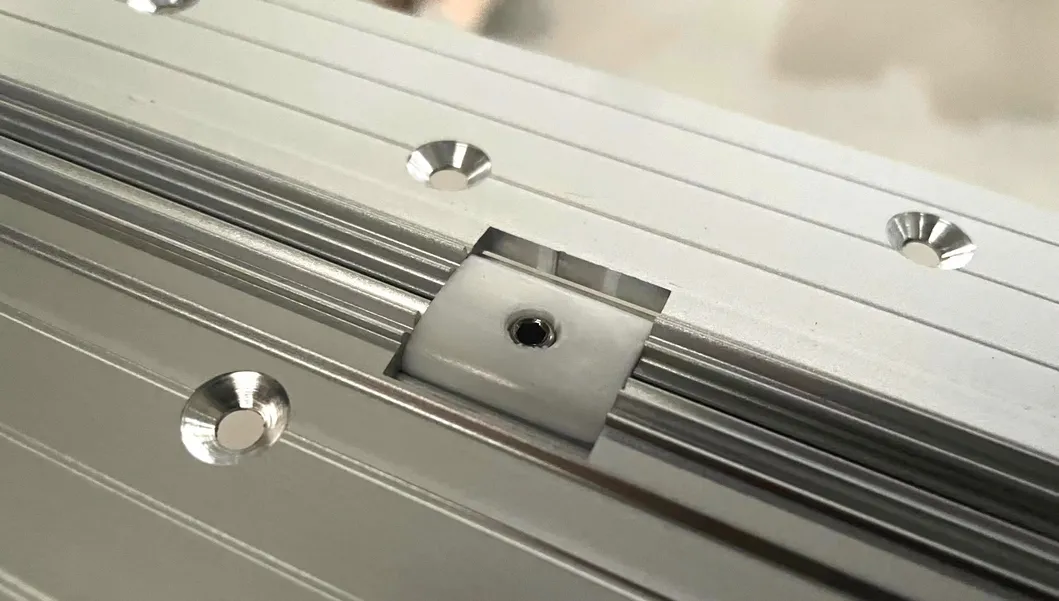

Geared Door Hinge Detail 2

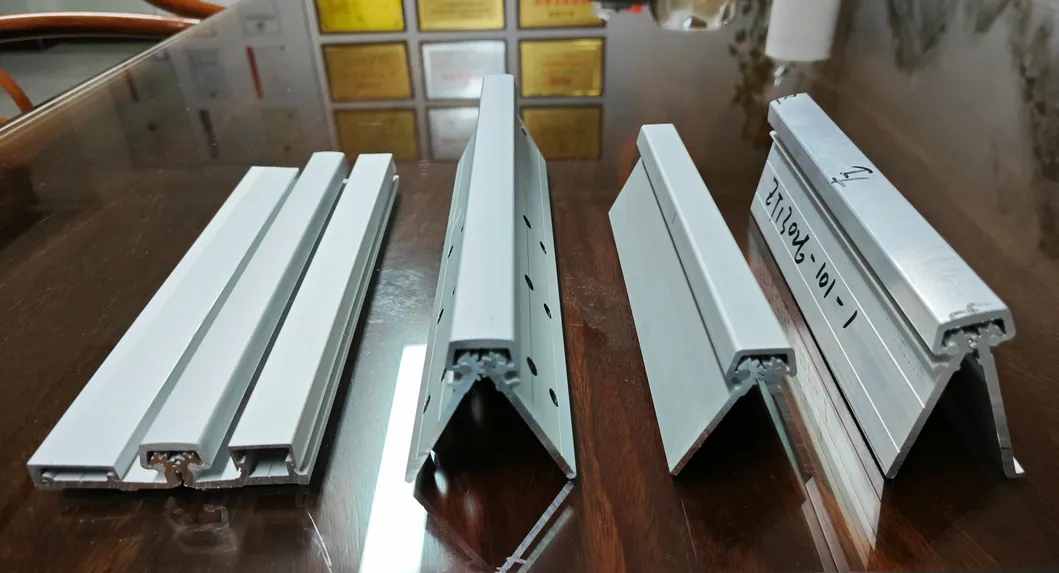

Installation View 1
Installation View 2

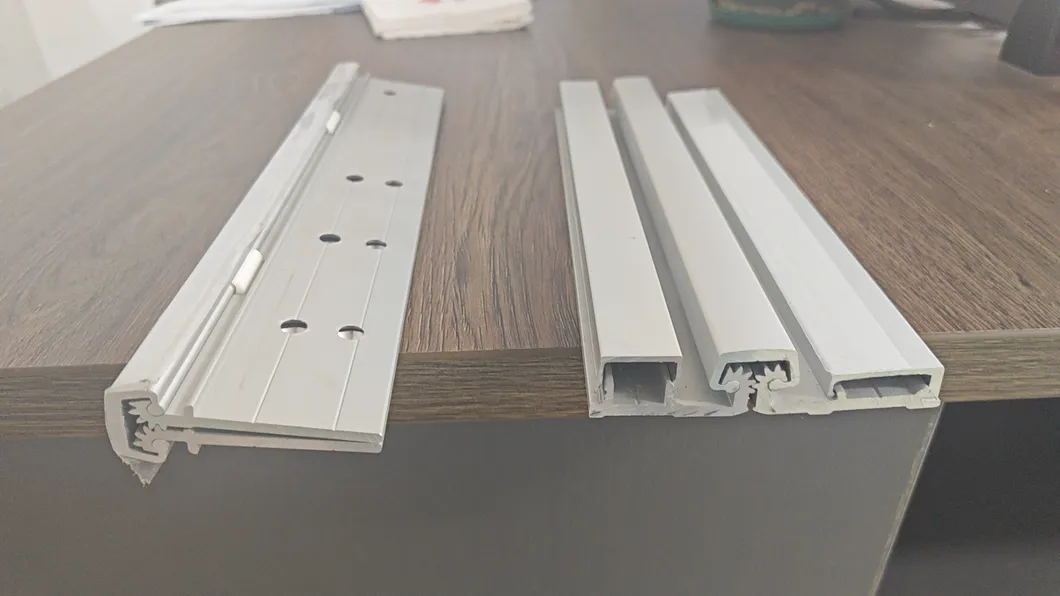

Installation View 3

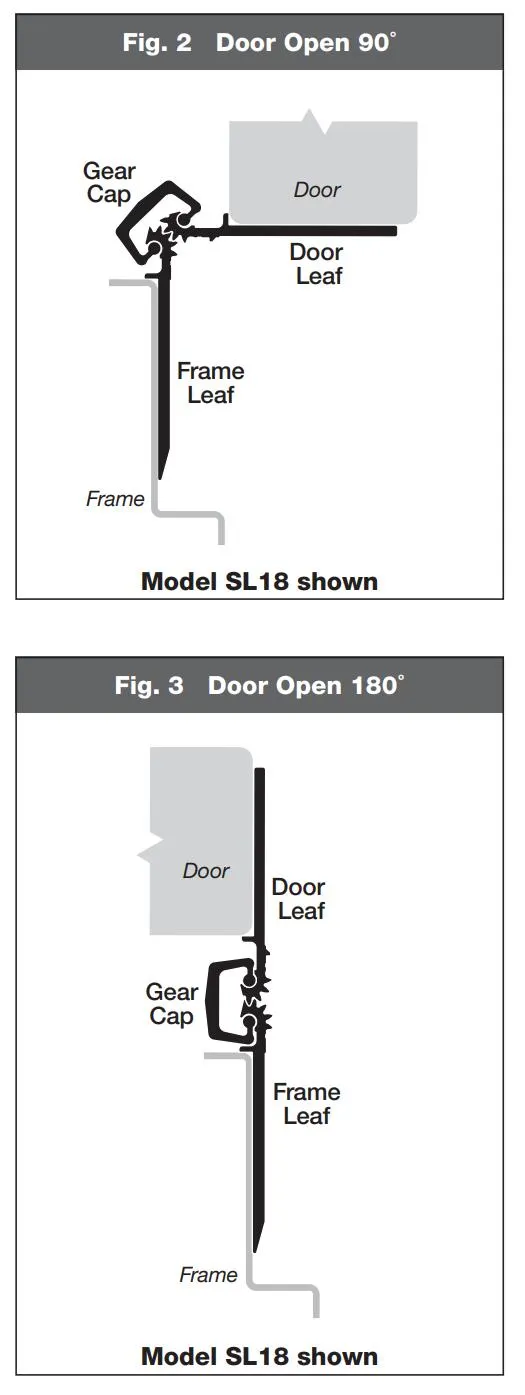

Profile View 1

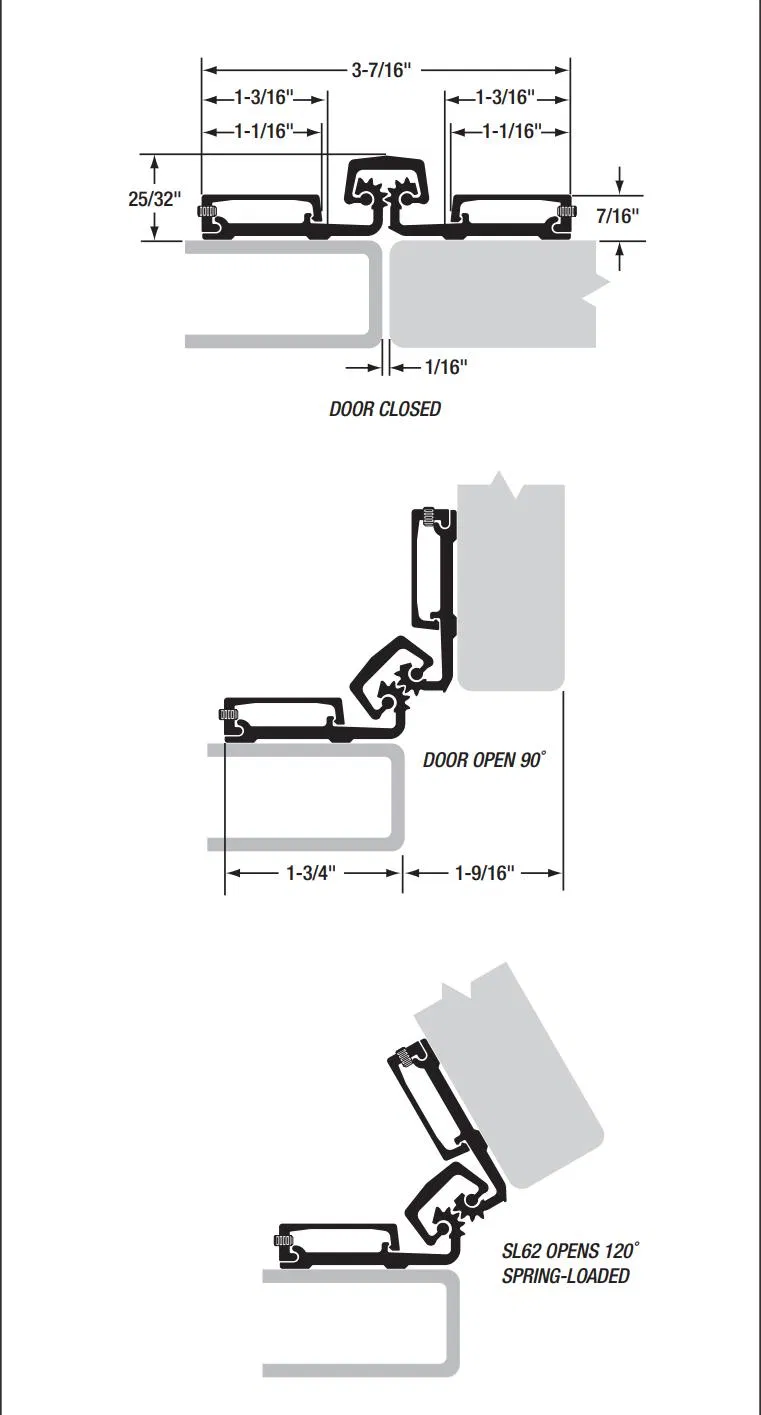

Profile View 2

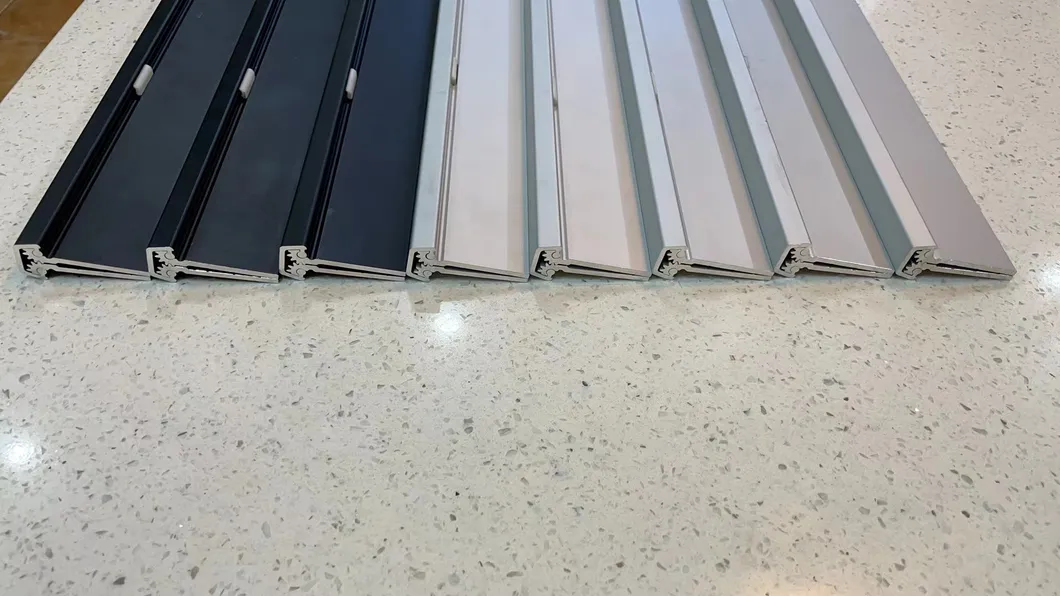

Assembly Diagram

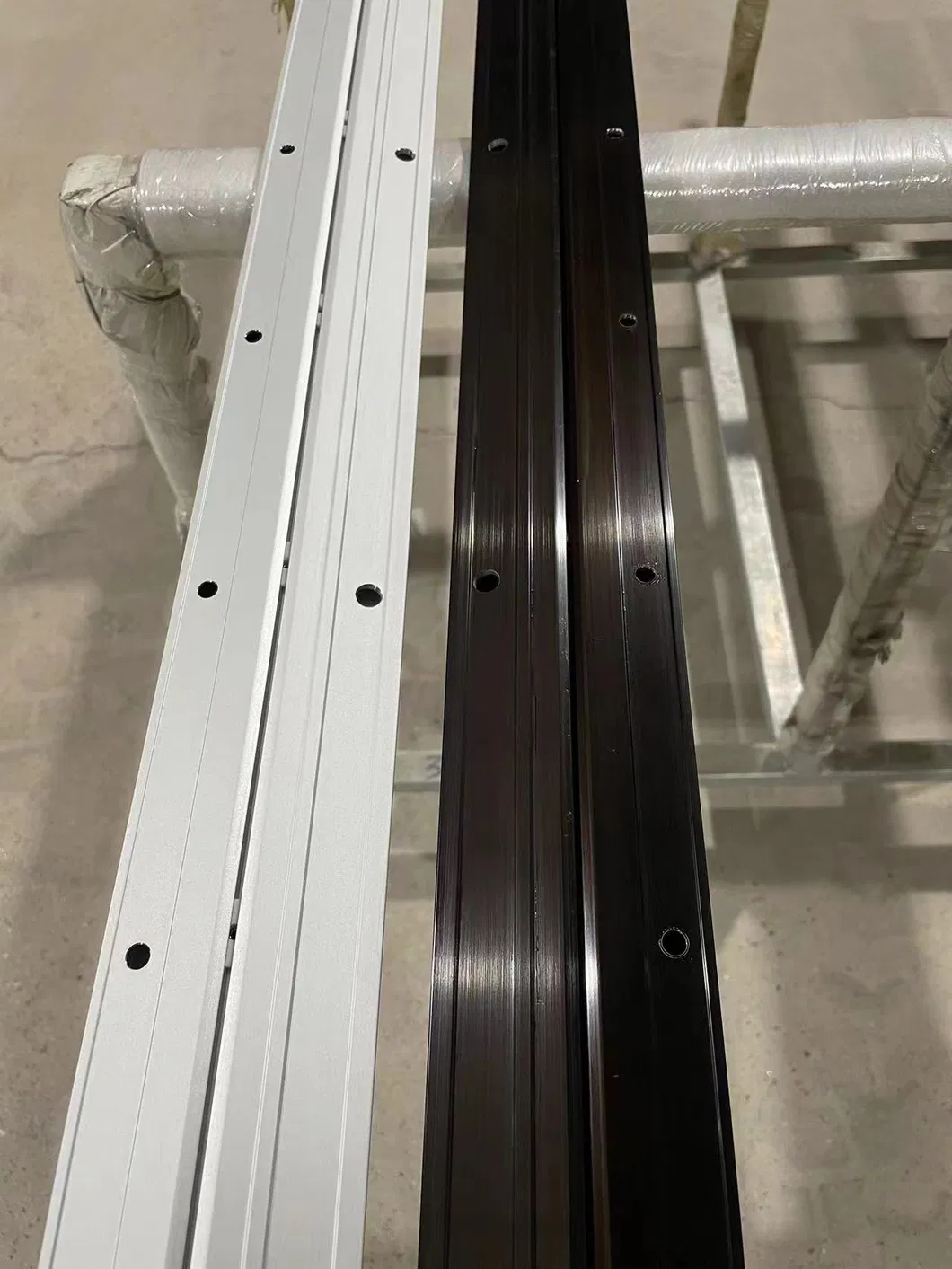

Technical Drawing 1
Technical Drawing 2
Component Detail 1
Component Detail 2
Frequently Asked Questions
What makes geared continuous hinges better than standard hinges?
Geared continuous hinges distribute the door's weight along the entire length of the frame, reducing stress on the door and frame components for superior longevity.
What environments are these hinges suitable for?
They are ideal for high-traffic areas such as hospitals, schools, airports, storefronts, and commercial buildings.
What are the available standard lengths?
Standard lengths include 84", 96", and 120" (or 83", 95", 119" according to specific hardware sets), with customization options available.
What material and finish is used?
These hinges are made from high-quality alloy with an anodized finish, providing excellent durability and corrosion resistance.
Can these hinges be used for 180° door swings?
Yes, these are specifically designed as 180° hinges, allowing for a wide range of motion.
Is technical hardware like sex bolts included?
Depending on the length (83" to 119"), sets include 8 to 12 sex bolts and approximately 19 to 23 screws for proper installation.
