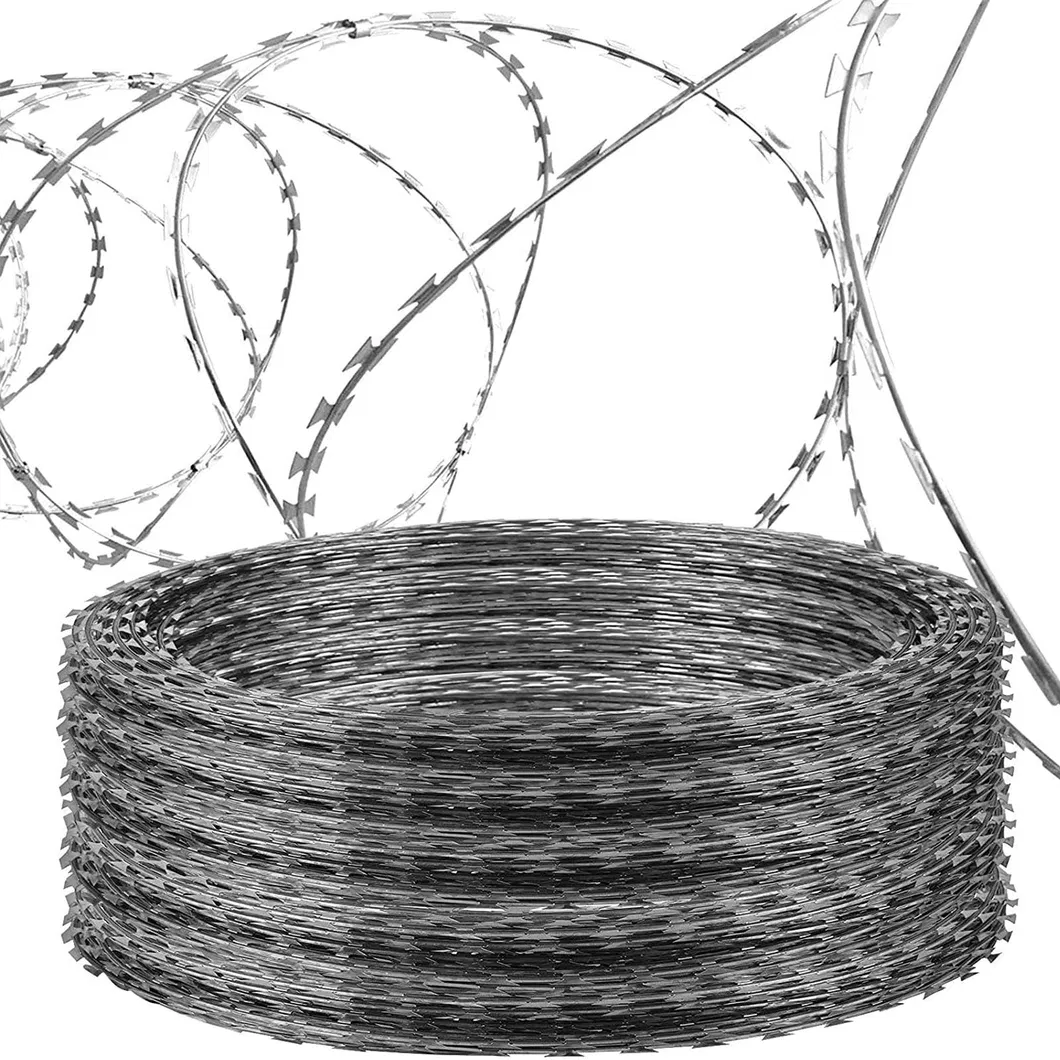

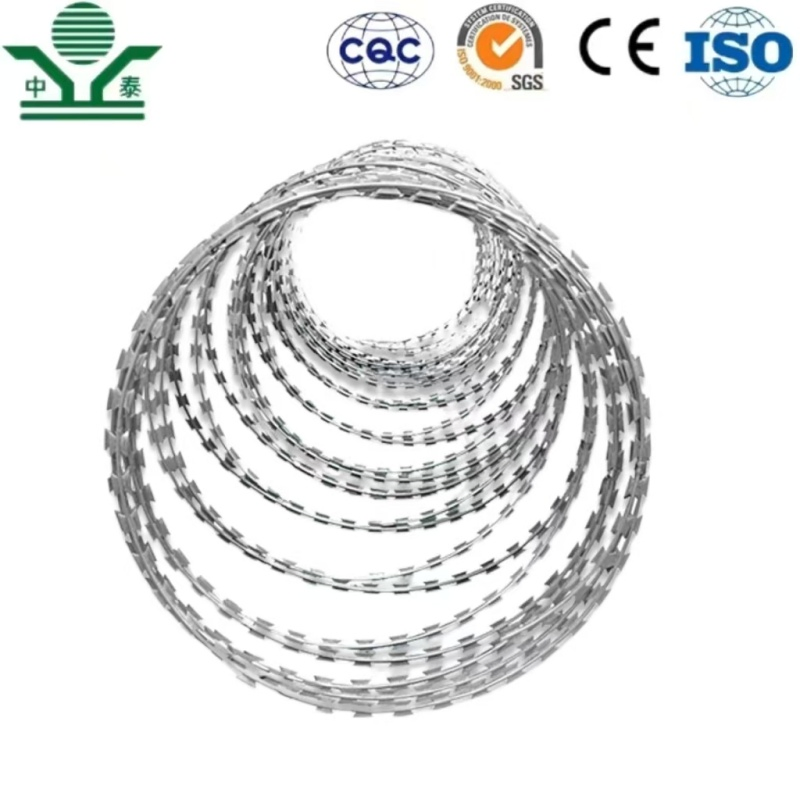

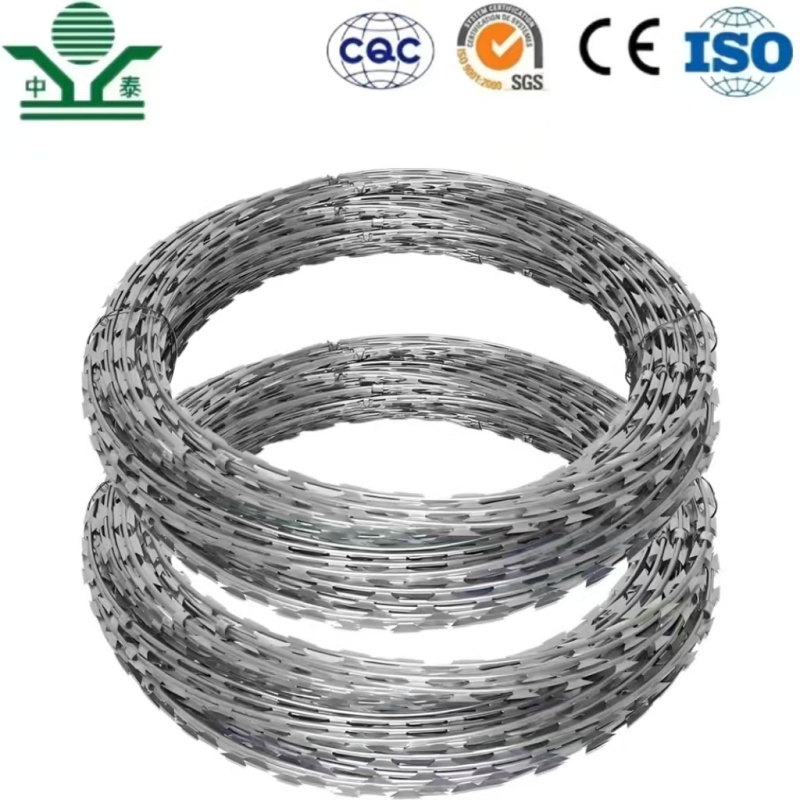

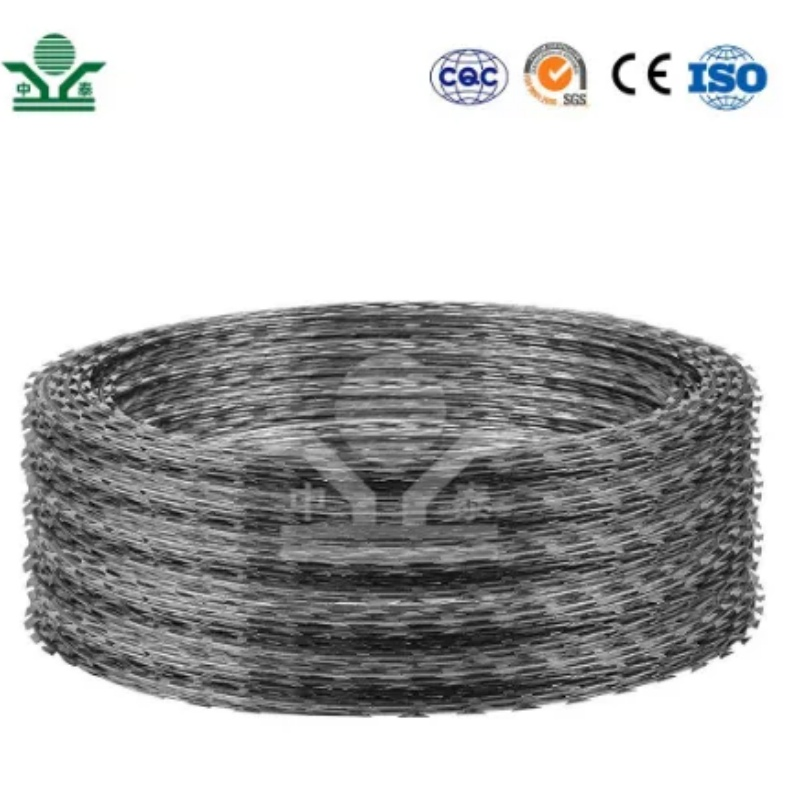

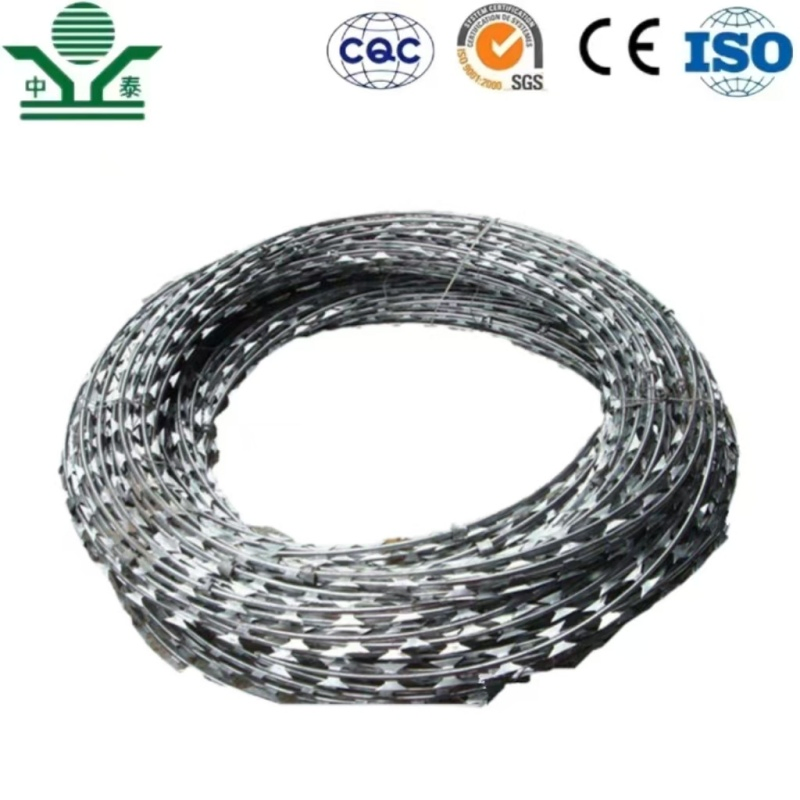

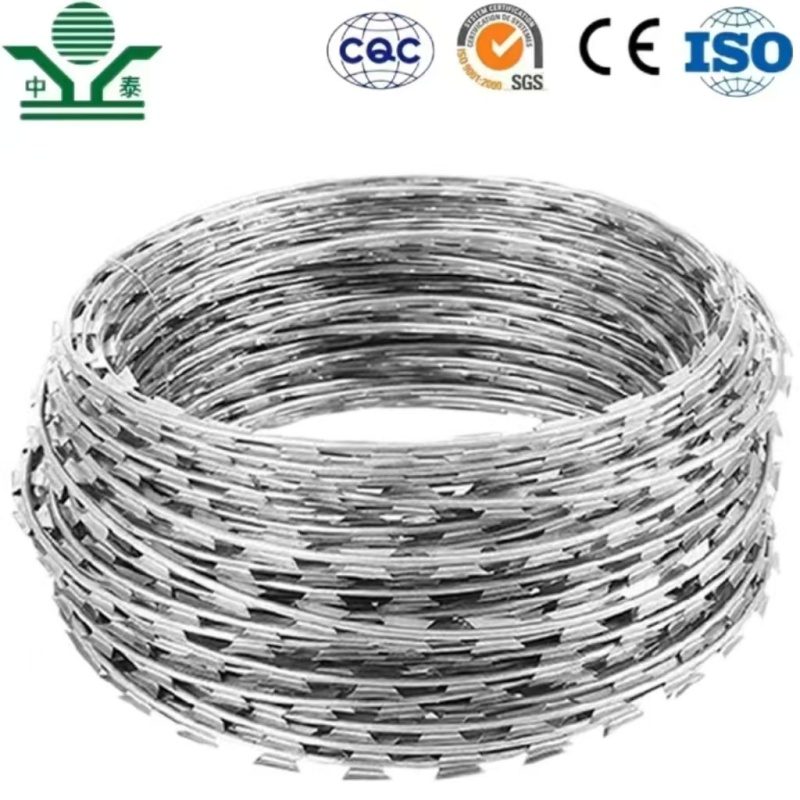

Good Galvanized Cbt-65 Razor Barbed Wire Concertina Wire for Fencing

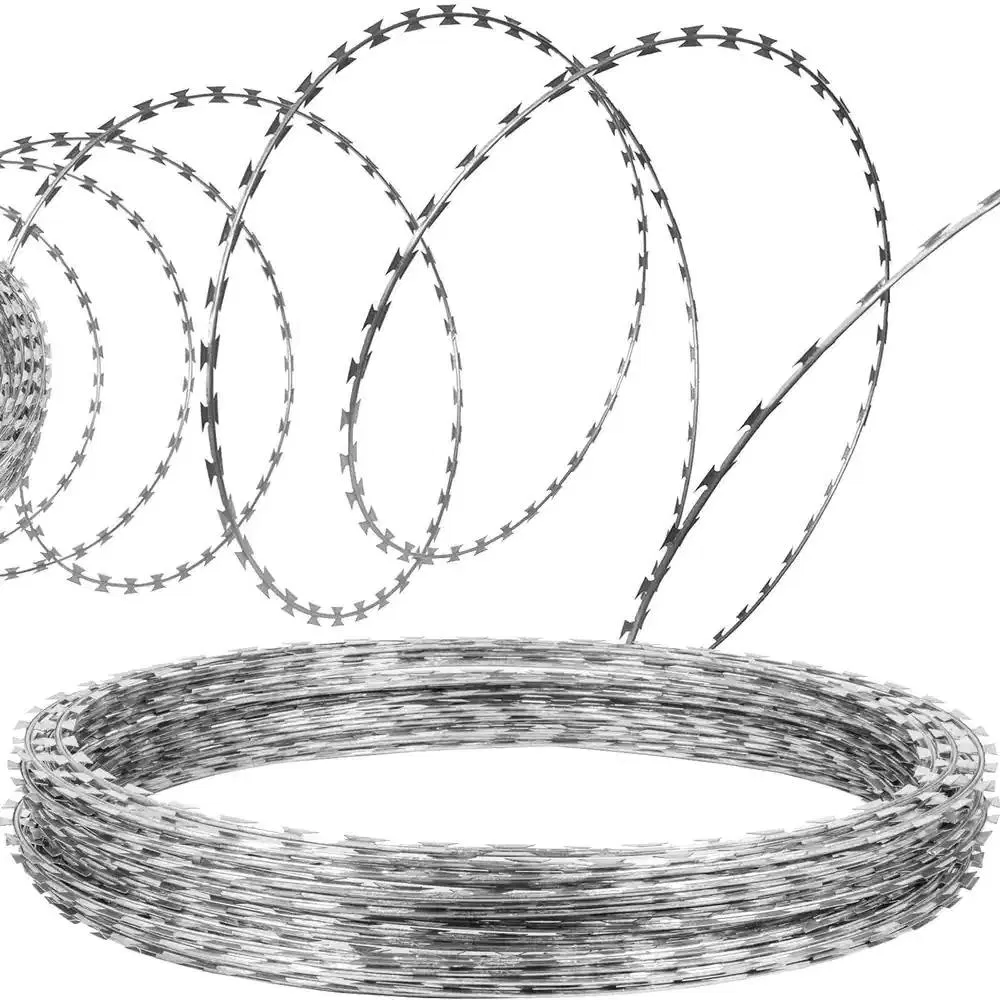

Product Introduction: We offer various types of Concertina Wire including Single Coil, Crossed, Flat Warp, and Welded Razor Mesh Fence.

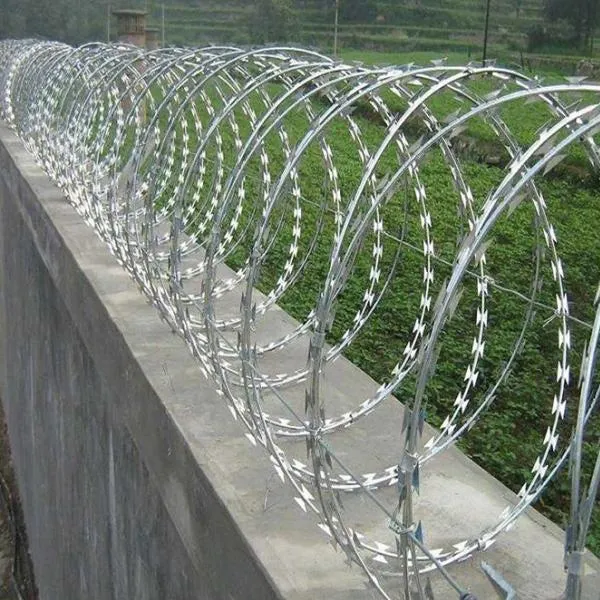

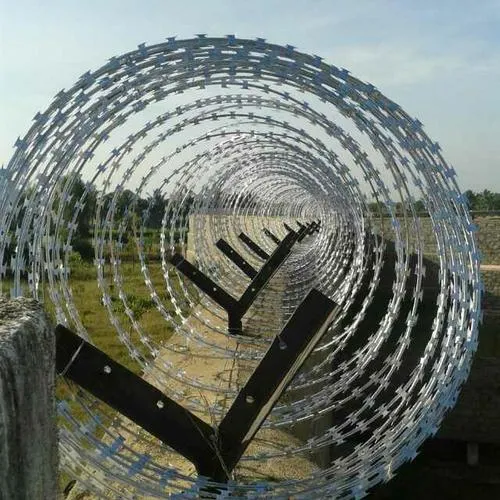

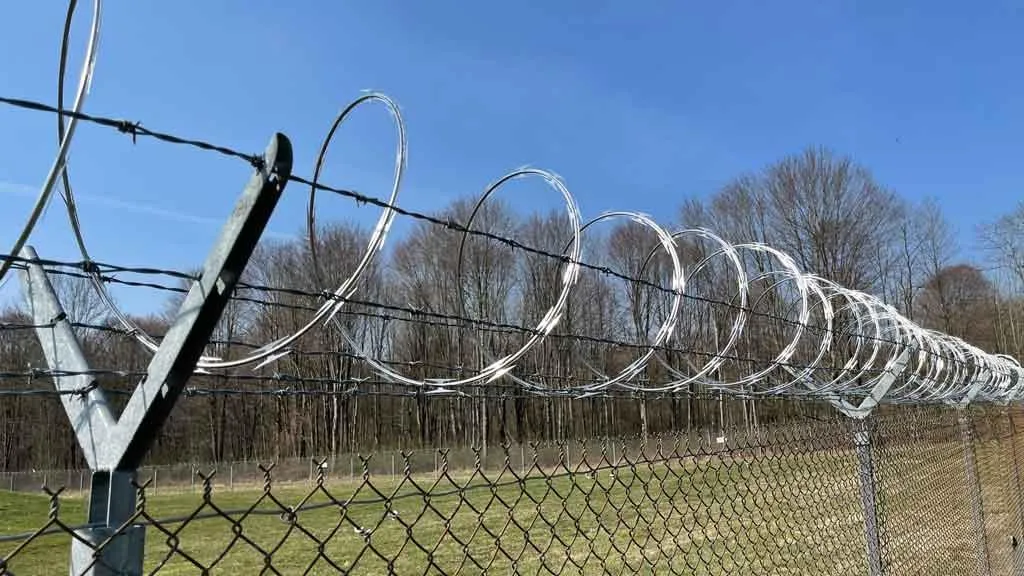

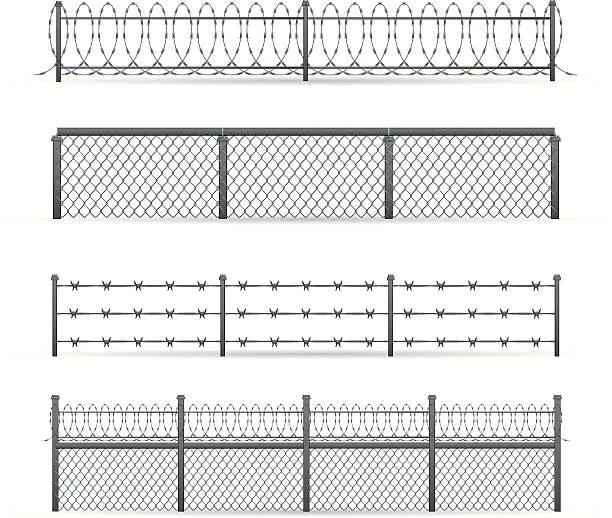

Razor wire fencing secures critical infrastructure: bases, depots, water conservation, nuclear power plants, power plants, gas distribution facilities, and border regions. It is also popular for private suburban safety barriers.

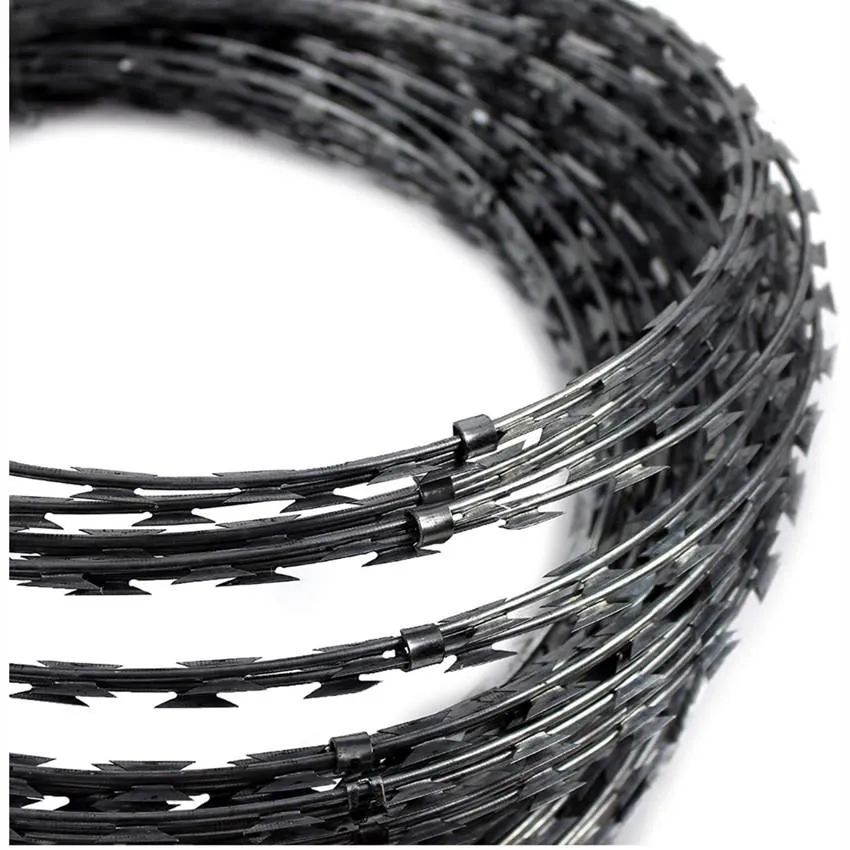

Materials include galvanized wire, PVC coated wire, and stainless steel. PVC-coated mesh offers excellent corrosion resistance in high-humidity environments. Galvanized options feature varying zinc layer thicknesses to ensure long-term durability.
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
|---|---|---|---|---|
| 450mm | 33 | 7-8m | CBT-60/65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60/65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60/65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60/65 | Single coil |
| 450mm | 56 | 8-9m | BTO-12/22/25/30 | Cross-type |
| 500mm | 56 | 9-10m | BTO-12/22/25/30 | Cross-type |
| 600mm | 56 | 10-11m | BTO-12/22/25/30 | Cross-type |
| 700mm | 56 | 10-12m | BTO-12/22/25/30 | Cross-type |
| 800mm | 56 | 11-13m | BTO-12/22/25/30 | Cross-type |
| 960mm | 56 | 13-15m | BTO-12/22/25/30 | Cross-type |

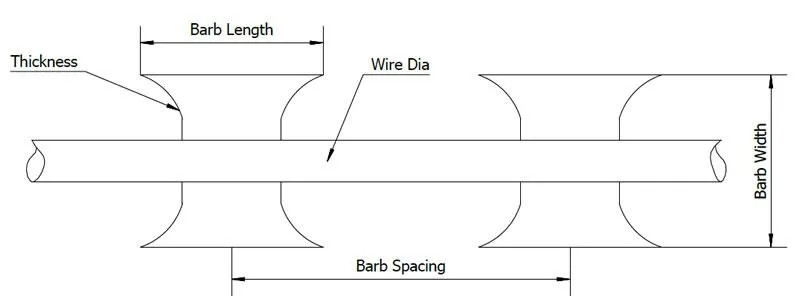

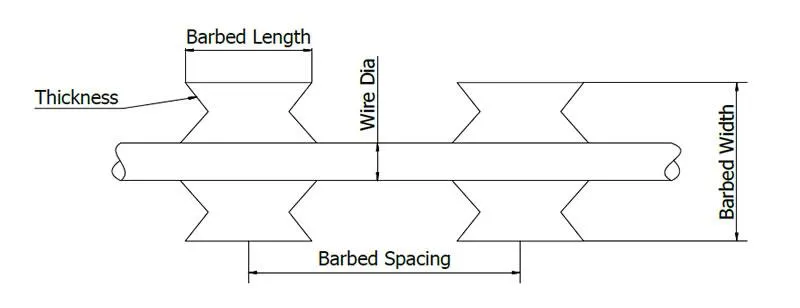

BTO-30: Thickness: 0.5 mm; Wire diameter: 2.5 mm; Barb length: 30 mm; Barb width: 18 mm; Barb spacing: 45 mm.
BTO-18: Thickness: 0.5 mm; Wire diameter: 2.5 mm; Barb length: 18 mm; Barb width: 15 mm; Barb spacing: 33 mm.
BTO-22: Thickness: 0.5 mm; Wire diameter: 2.5 mm; Barb length: 22 mm; Barb width: 16 mm; Barb spacing: 35 mm.

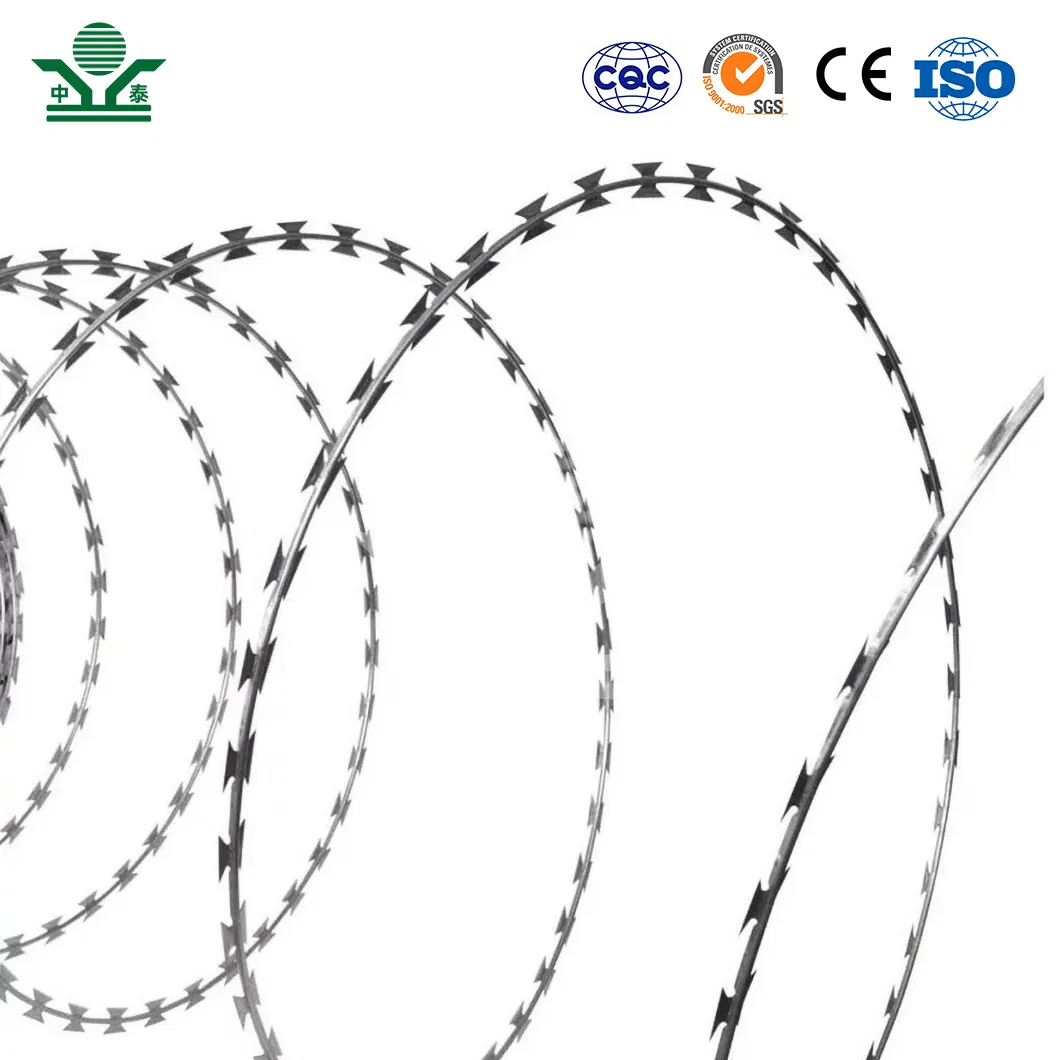

CBT-65: Thickness: 0.6 mm; Wire diameter: 2.5 mm; Barb length: 65 mm; Barb width: 22 mm; Barb spacing: 102 mm.
