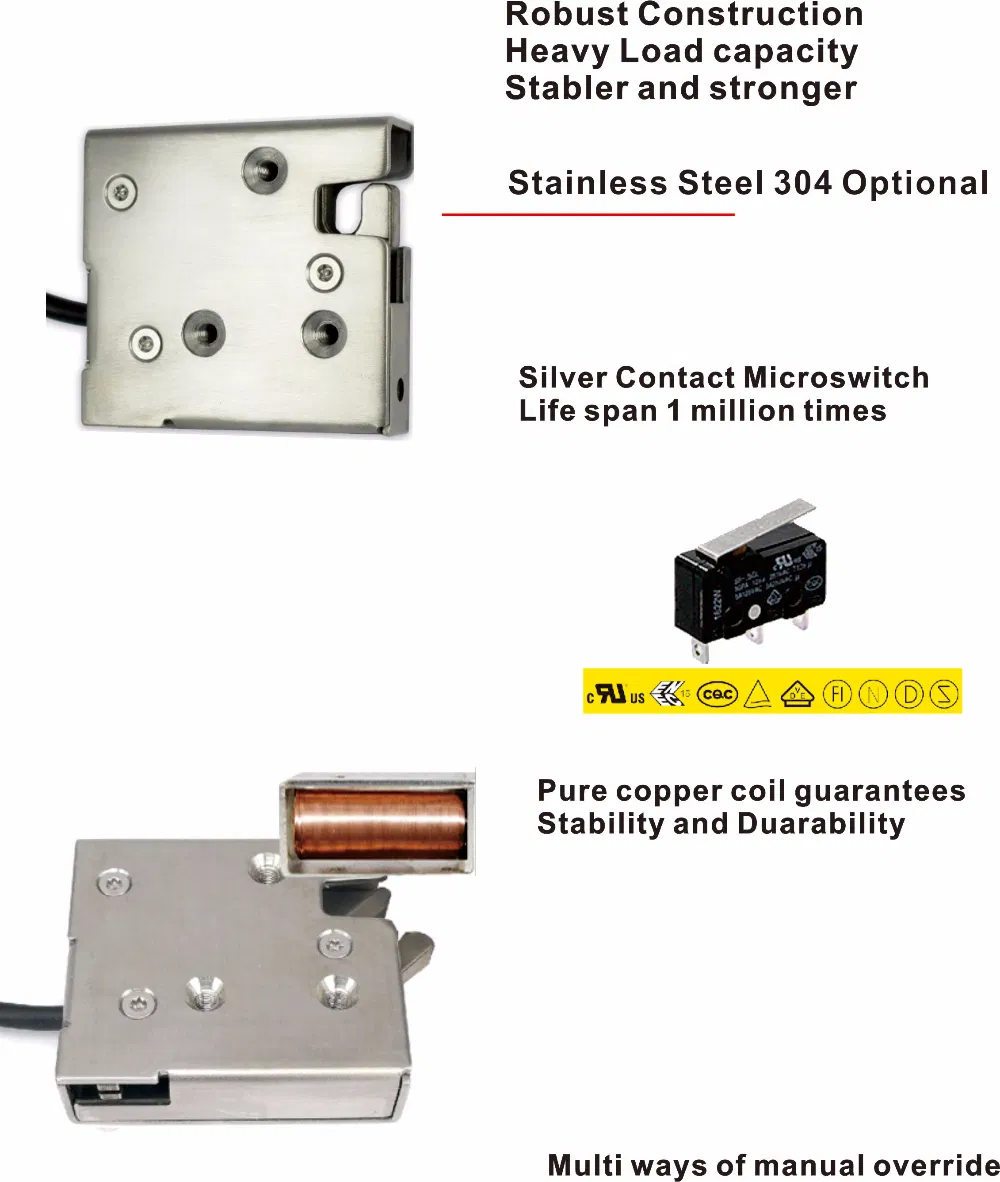

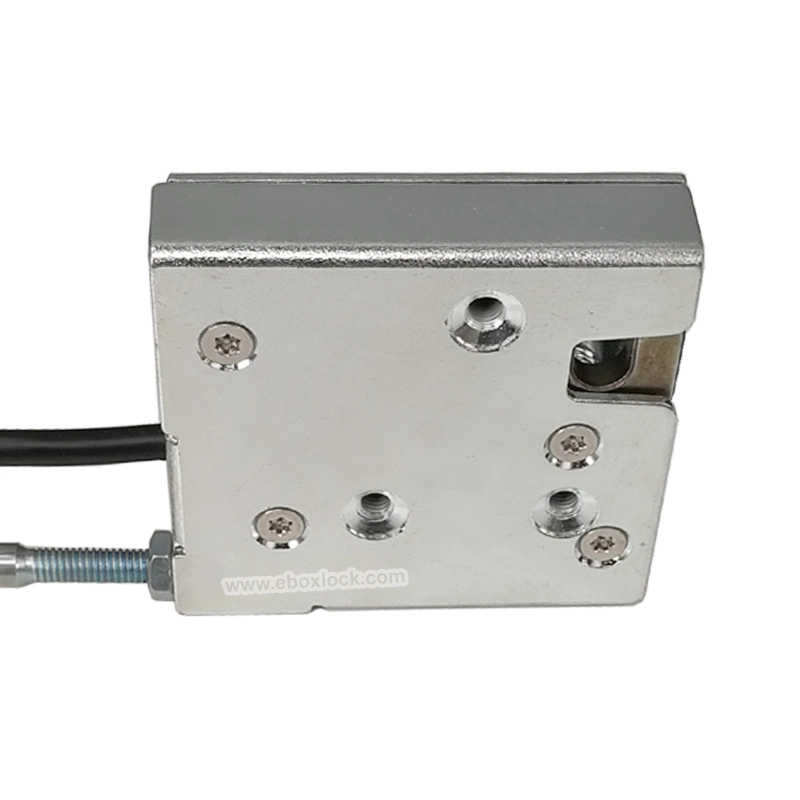

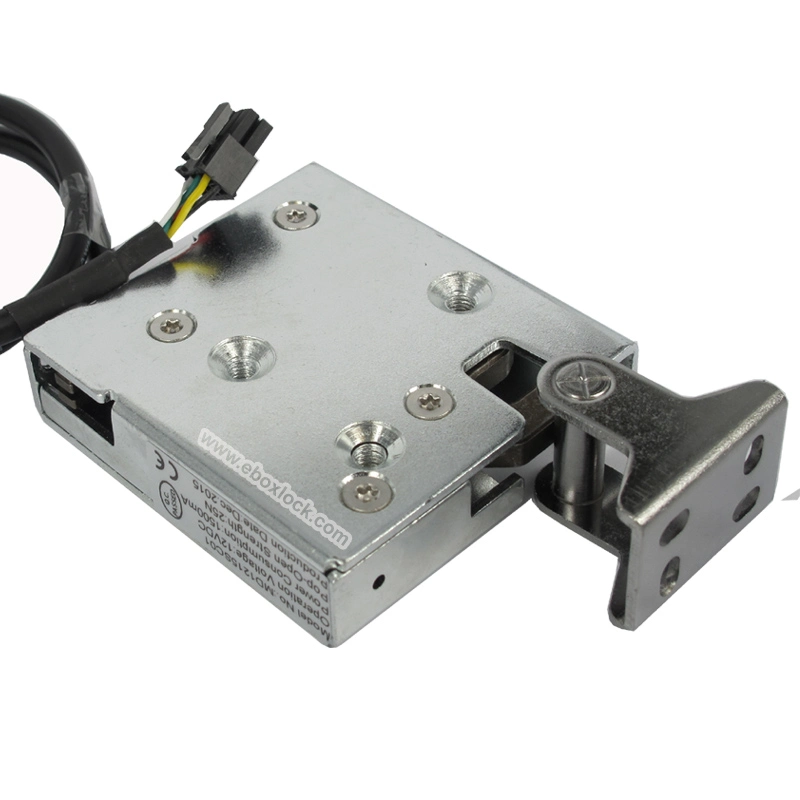

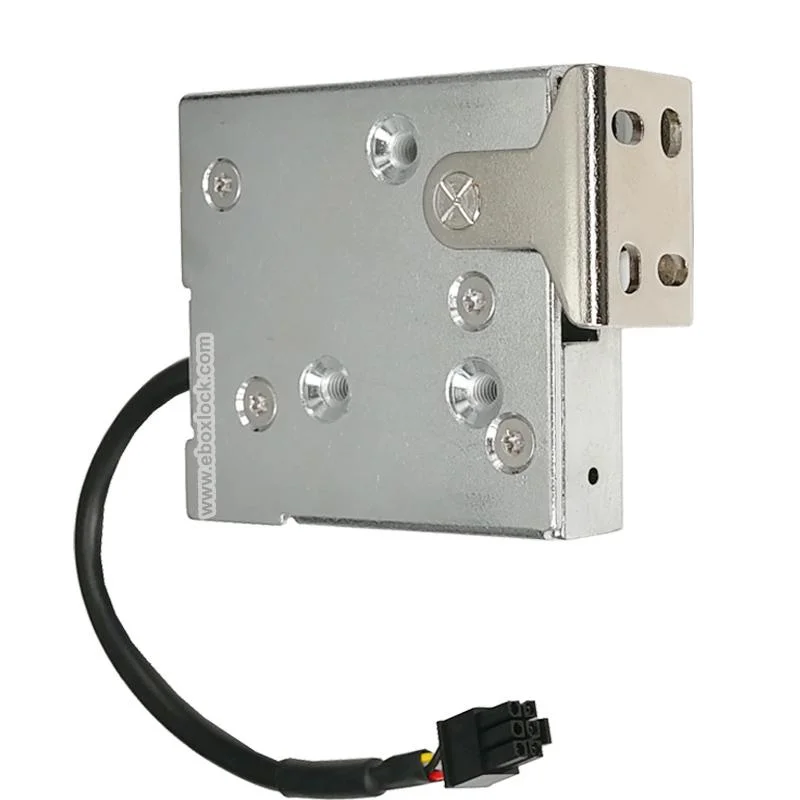

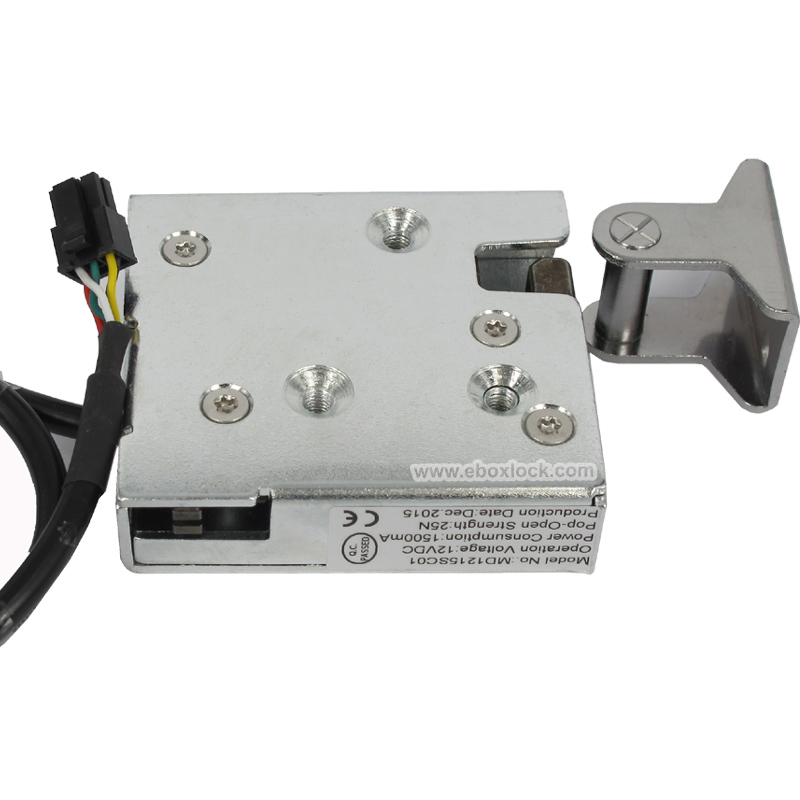

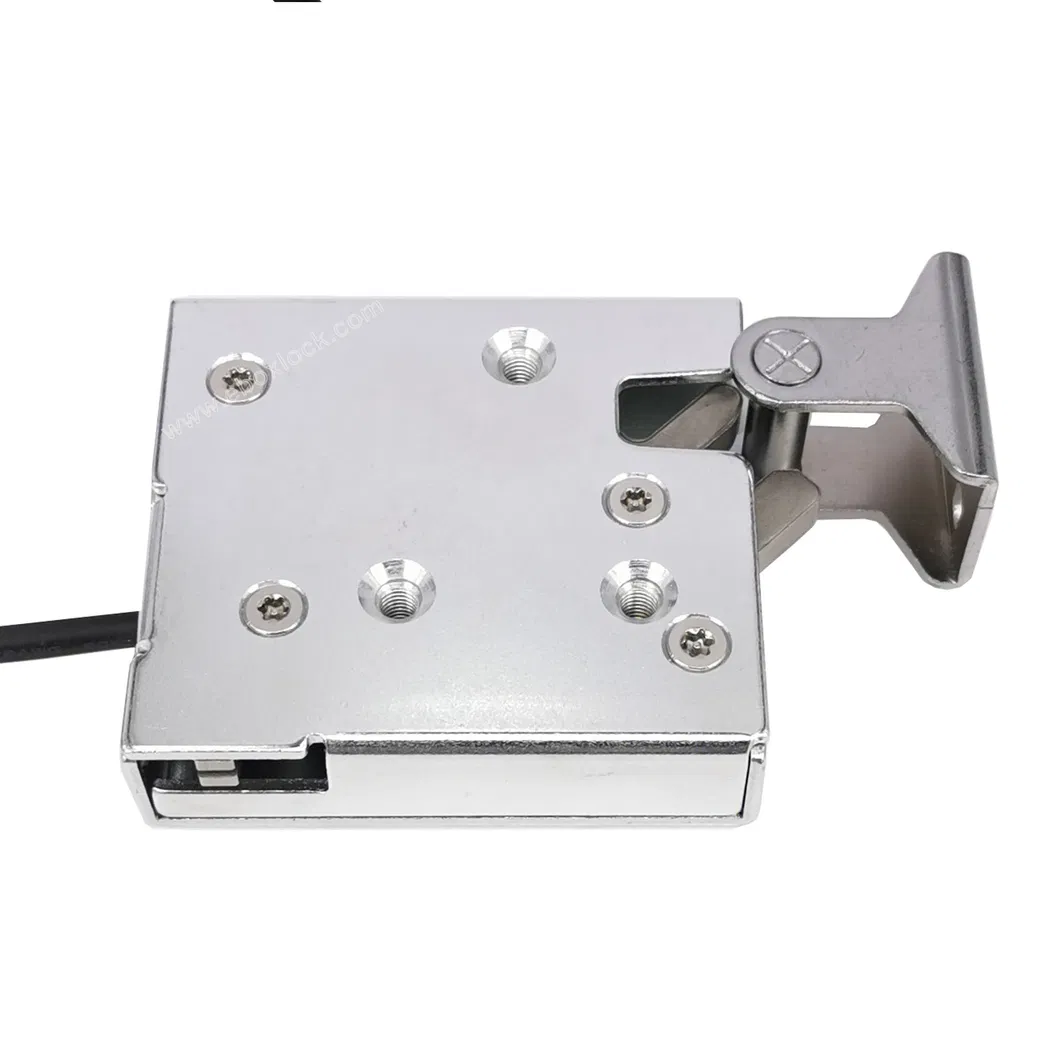

Superior Heavy Duty Electronic Cabinet Lock MD1220S is a high security access control solution for cabinets, drawers, safes, and lockers. Robust all-metal construction allows MD series cabinet locks to operate against heavy mechanical loads. An optional built-in door sensor provides reporting of open/close status, and mechanical kits for manual override ensure security in case of power failure.
Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any access control system or standalone cabinet locking. With easy push-to-close operation, the lock is designed with an internal spring rod to push the door open when electrified.
| Parameter | Details |
|---|---|
| Operation Voltage | 12/24VDC intermittent ±10% |
| Power Consumption | 12V DC 2000mA |
| Operation Mode | Fail Locked |
| Holding Force | 600KG |
| Maximum Power On Time | Less than 30 second |
| Cycle Rating | More than 1,000,000 times |
| Working Temperature | -20ºC ~ +60ºC |
| Dimensions (LxWxH) | 72mm * 67mm * 18mm |
| Protection Class | IP35 |
| Voltage | Current | Trigger Spring | Material | Connector |
|---|---|---|---|---|
| 9V, 12V, 24V, 48V | 1500mA - 2000mA | 10N, 25N, 35N | Steel / Stainless Steel | Molex, KF2510, PH, RJ11 |
This electronic cabinet lock is ideal for a wide variety of security applications:
Specializing in electrified locking solutions for lockers, cabinets, and kiosks, the manufacturer provides customized designs for size-restricted enclosures or heavy-doored metal cabinets. The range covers electronic cabinet locks, drawer locks, smart parcel control systems, and IOT hardware.
Quality control is integrated into the entire process, with products undergoing multi-stage testing and continuous supervision to ensure reliability in professional security environments.
