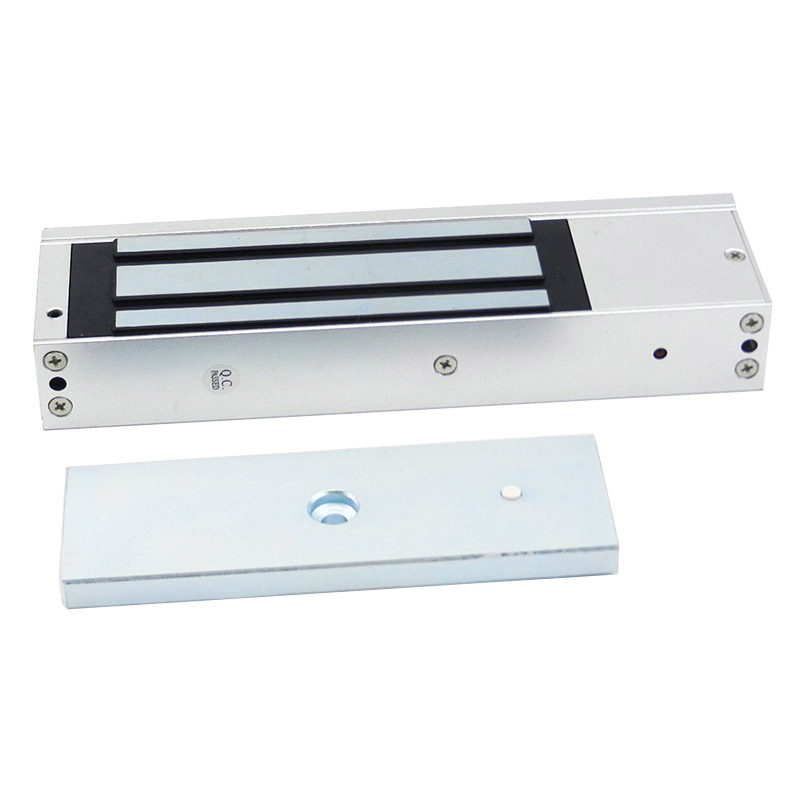

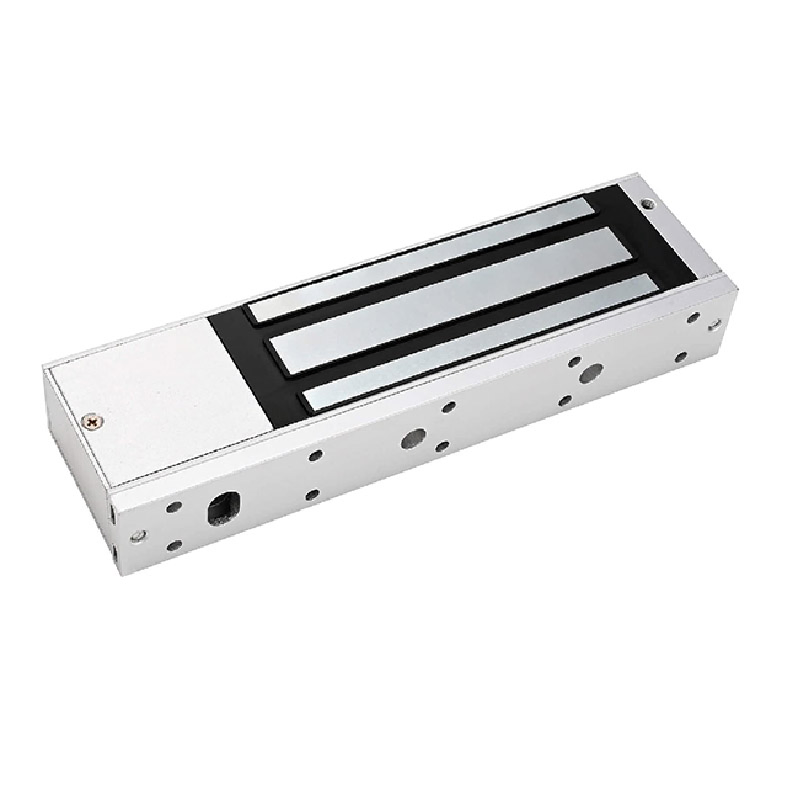

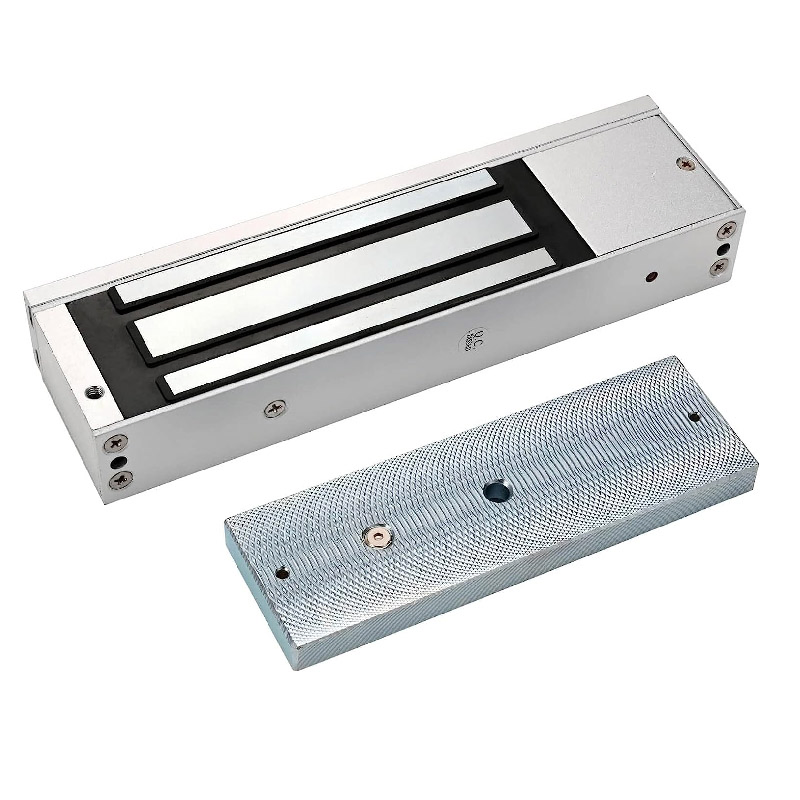

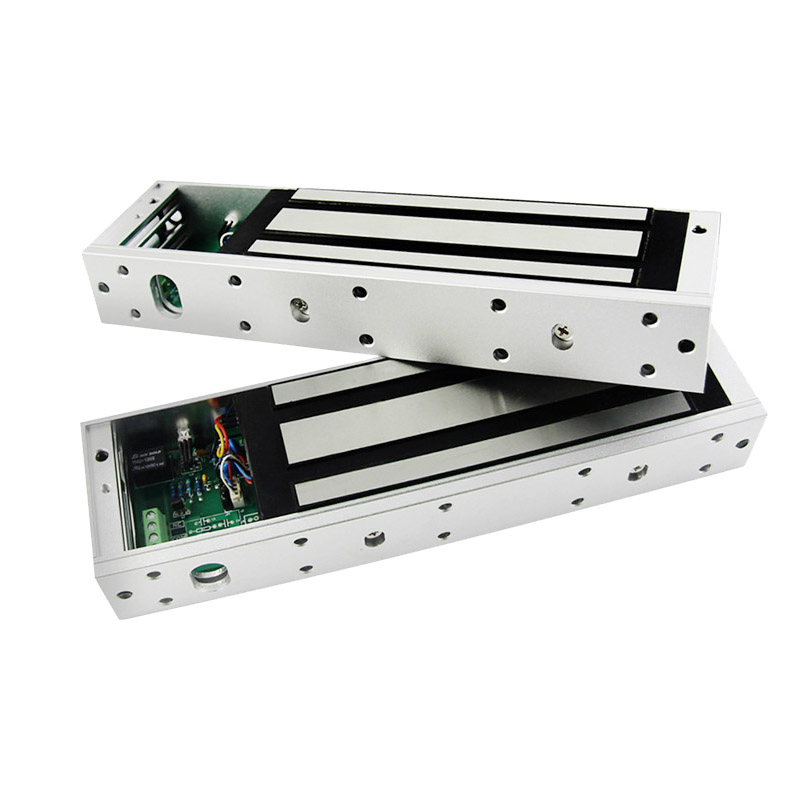

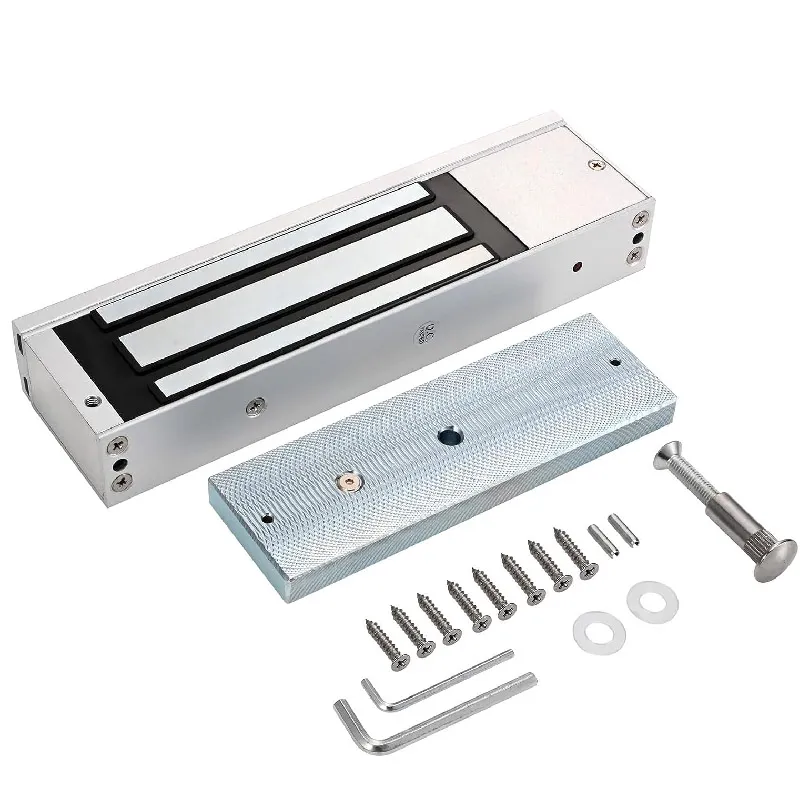

Single Door Electromagnetic Lock 1200lbs (500KG) with LED Indicator

1 / 5

Single Door Electromagnetic Lock 1200lbs (500KG) with LED Indicator

Customization:	Available
After-sales Service:	Online Service/Refund/Replacement
Warranty:	1 Years Warranty

Send Inquiry

Product Description

Basic Specifications

Model NO.ME1250LS

MaterialAluminum Alloy

TypeElectro Magnetic Lock

Holding Force1200lbs (500kg)

InstallationSurface Mount

Operation Voltage12V/24V

LED IndicatorYes

Anti-theft Standard500kg Holding Force

★

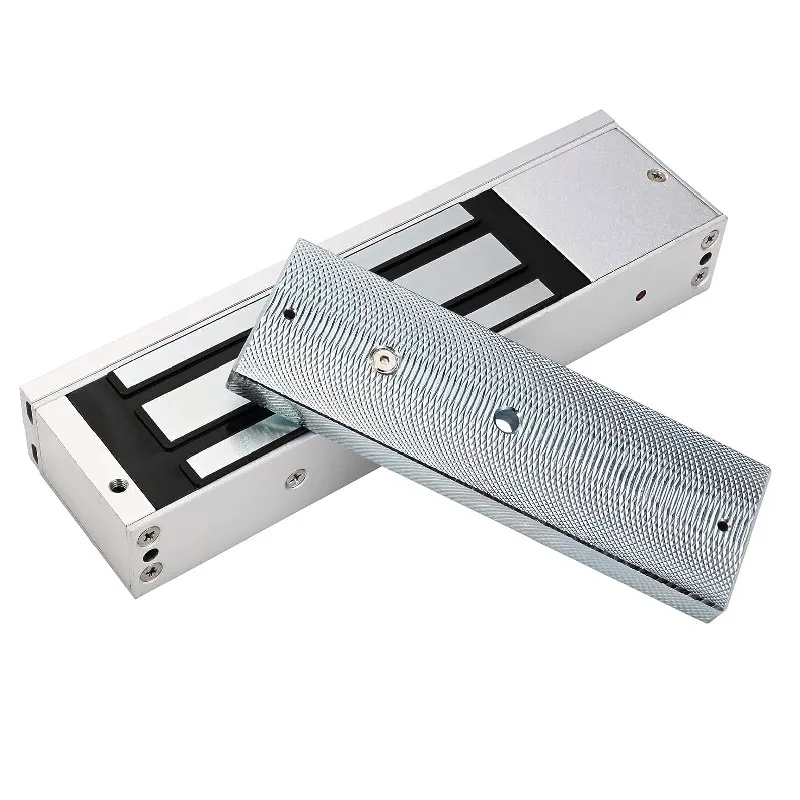

Product Overview

The ME1250LS is a high-durability electromagnetic lock designed for single doors. Featuring a robust aluminum alloy construction and an architectural brushed stainless steel finish, it offers superior corrosion resistance. This lock is compatible with any access control system and is ideal for environments requiring high security with low maintenance.

✔

Key Features

◈ Superior alloy-constructed lock body and strikes for maximum strength.

◈ Architectural brushed stainless steel finish for enhanced corrosion resistance.

◈ Fully sealed electronics making it tamper-proof and weather-proof.

◈ Instant release circuit with no residual magnetism for smooth operation.

◈ Low noise operation suitable for indoor and outdoor environments.

◈ Supports signals from numeric keypads and card readers.

⚙

Technical Data

Operation Voltage	12VDC ±10%
Power Consumption	1850mA@12VDC
Operation Mode	Fail unlock
Cycle Rating	More than 1,000,000 cycles
Working Temp	-10ºC ~ +55ºC
Lock Dimensions	265mm x 72mm x 40mm
Strike Dimensions	184mm x 60mm x 14mm
Gross Weight	4.5kg

▤

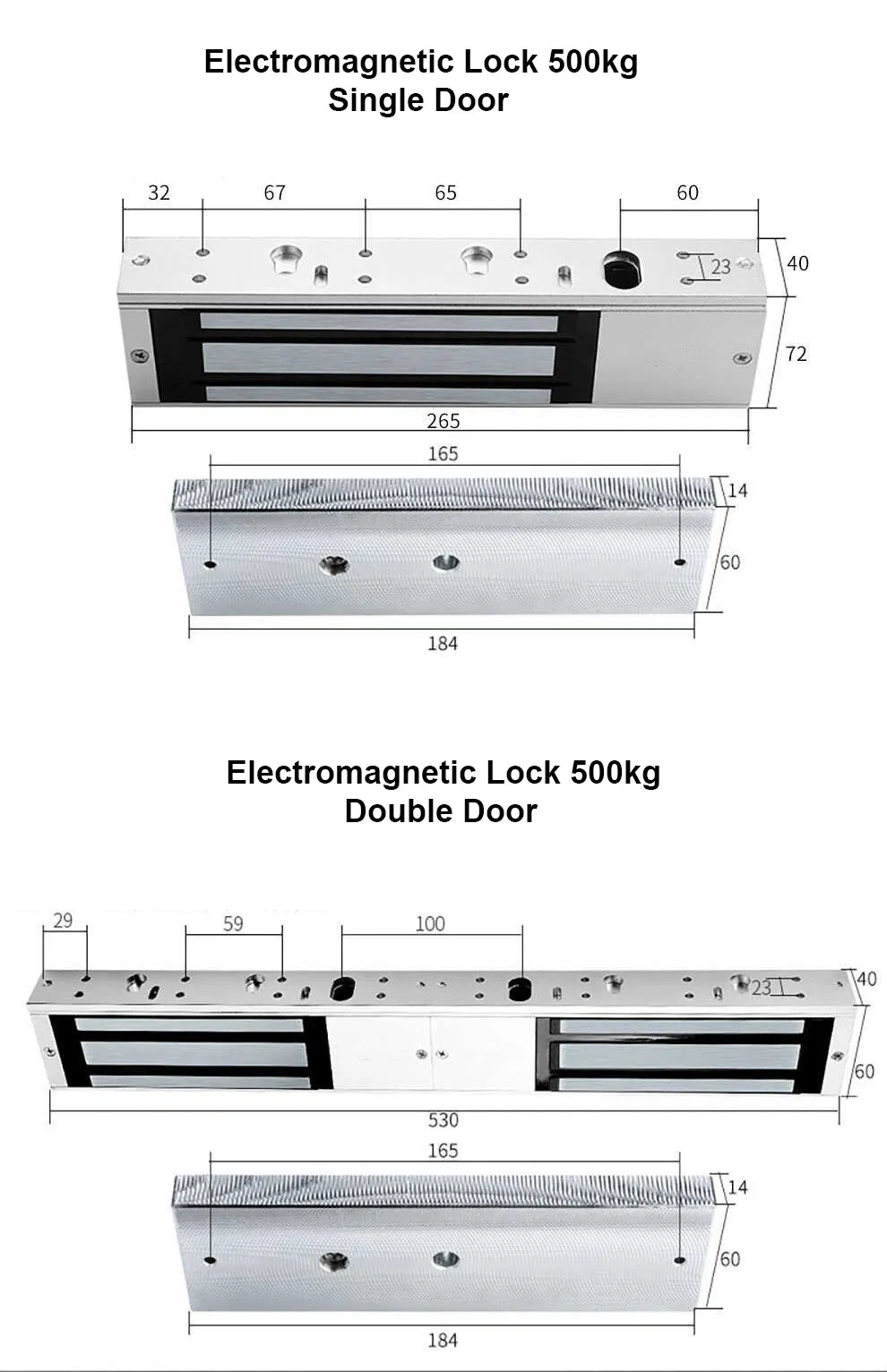

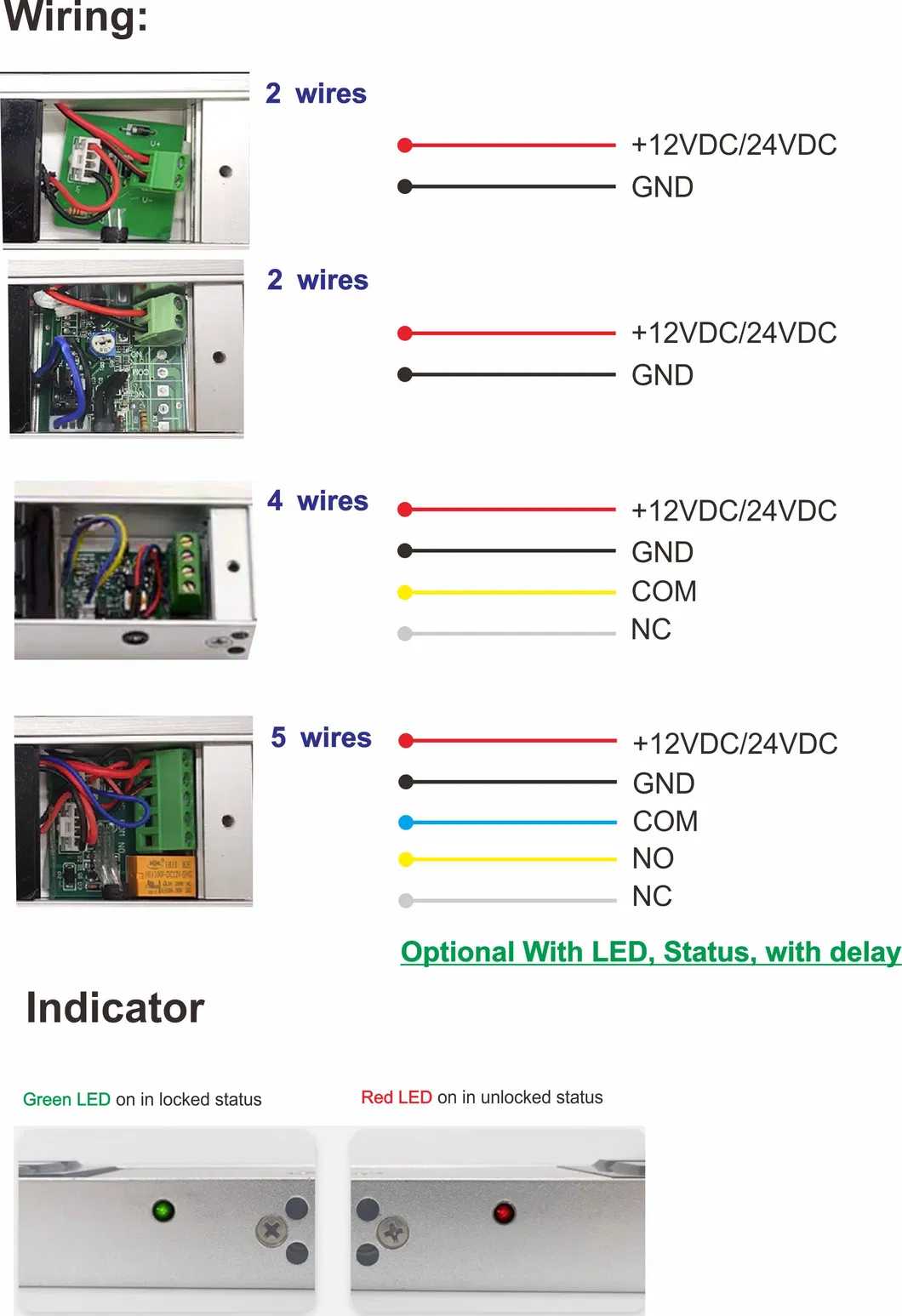

Technical Diagrams & Applications

Applications: This electromagnetic lock is ideal for wooden doors, glass doors, metal doors, fire doors, and high-security doors.

Frequently Asked Questions

What is the holding force of the ME1250LS?

The lock provides a powerful holding force of 1200lbs (500kg), making it suitable for high-security applications.

Is this lock suitable for outdoor use?

Yes, the electronics are fully sealed, making the lock both tamper-proof and weather-proof for indoor and outdoor installation.

What door types can this lock be installed on?

It is versatile and can be fitted to wooden doors, glass doors, metal gates, fire doors, and general security doors.

Does the lock have a status indicator?

Yes, it includes a built-in LED indicator to show the current operation status of the lock.

What happens during a power failure?

The ME1250LS operates in "Fail Unlock" (Fail Safe) mode, meaning it will release the door when power is cut for safety.

Is there any residual magnetism after release?

No, it features an instant release circuit designed specifically to eliminate residual magnetism.
