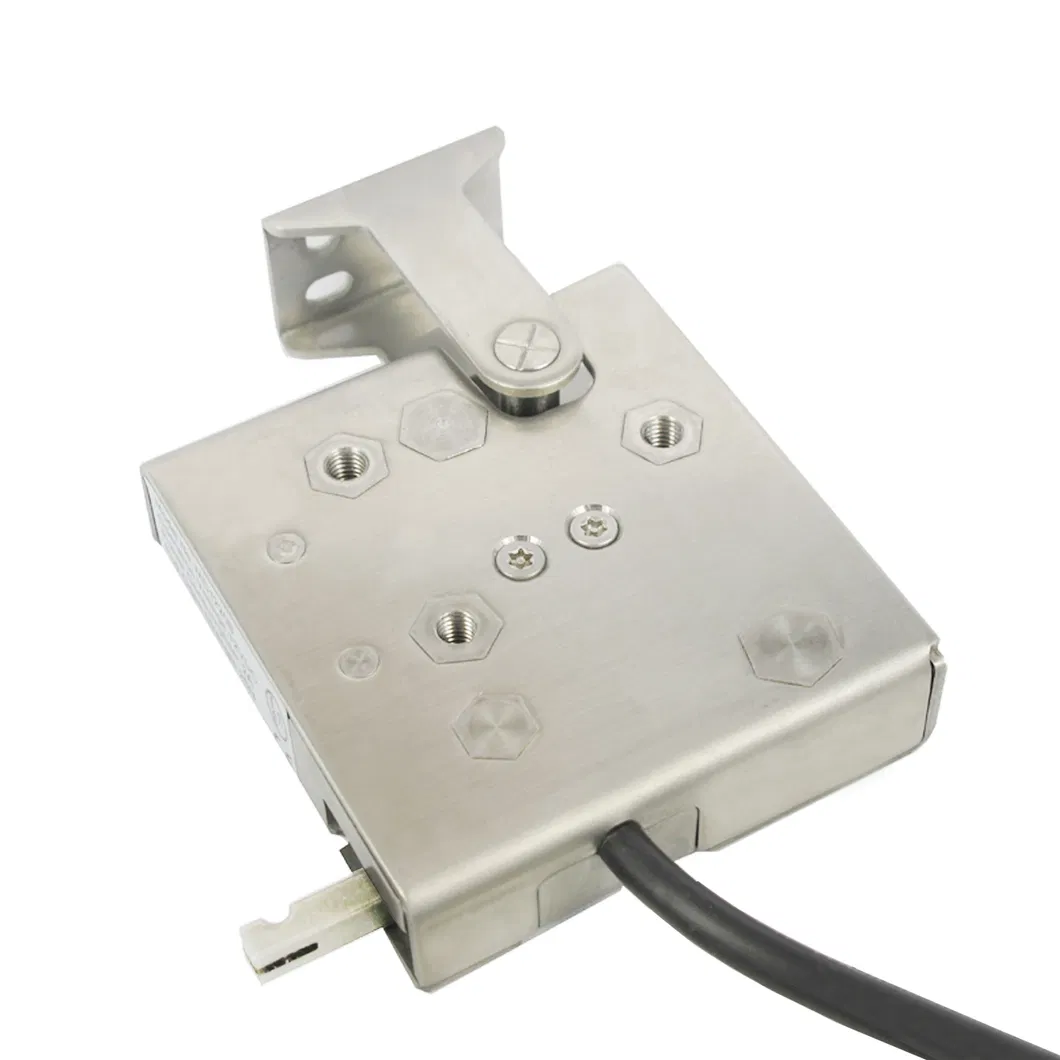

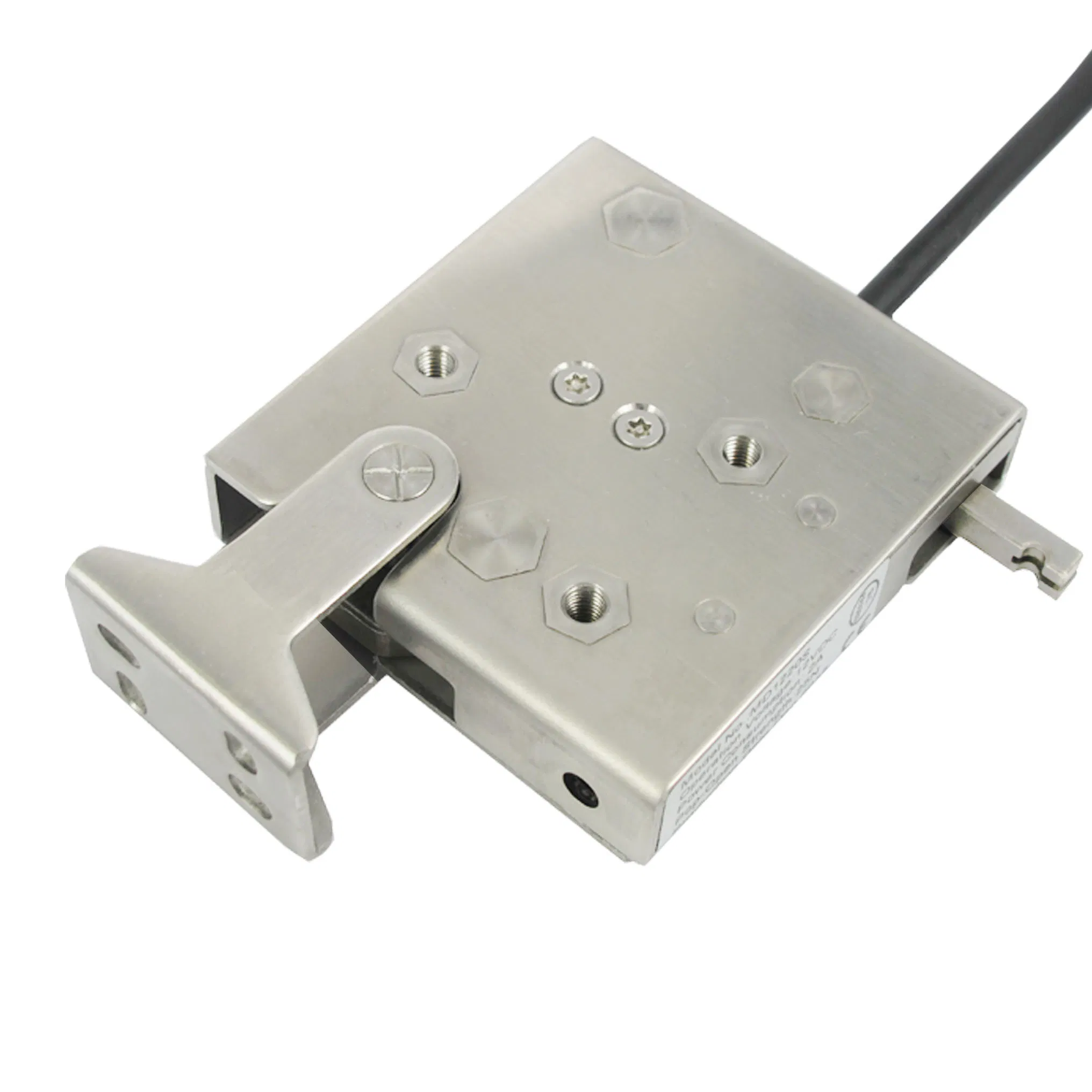

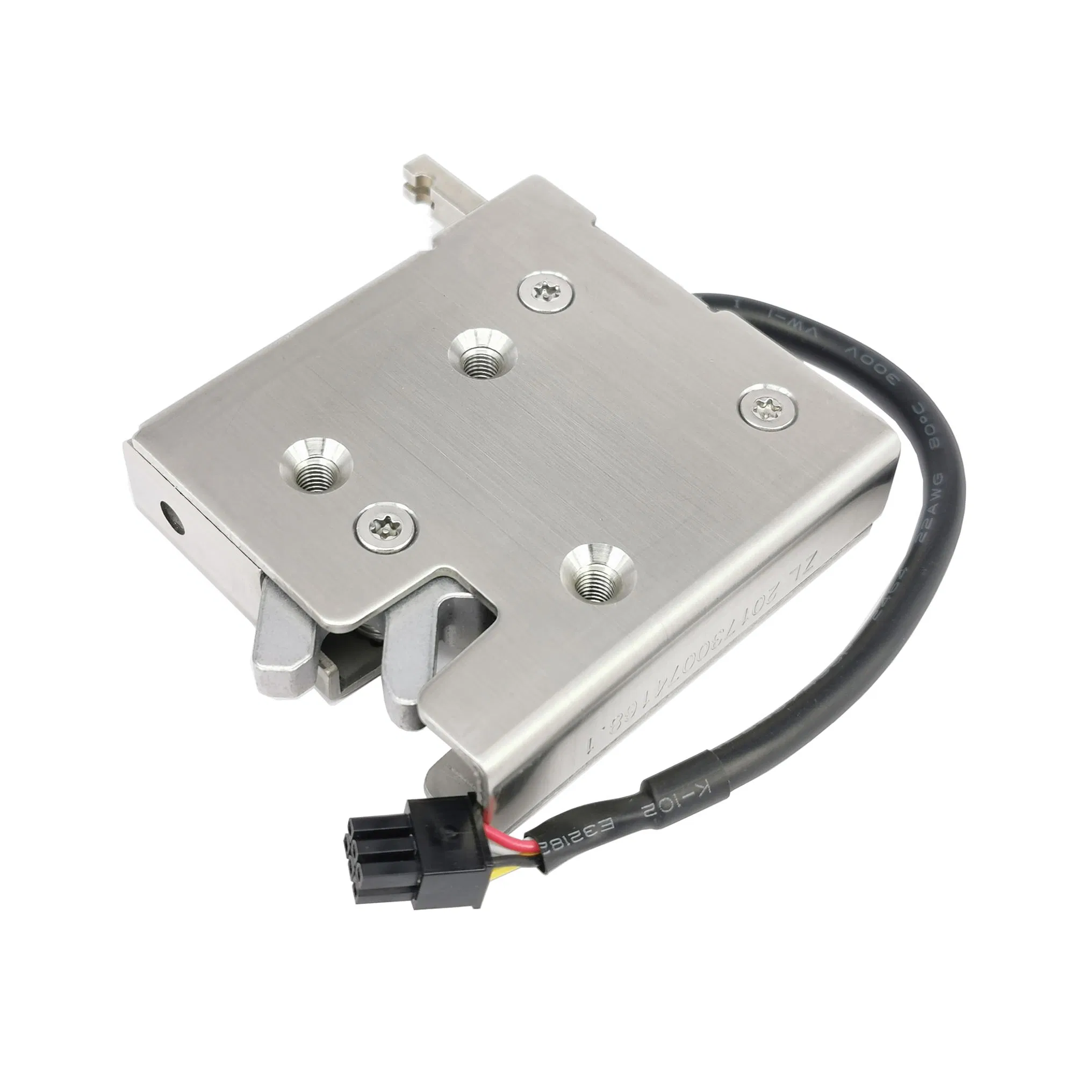

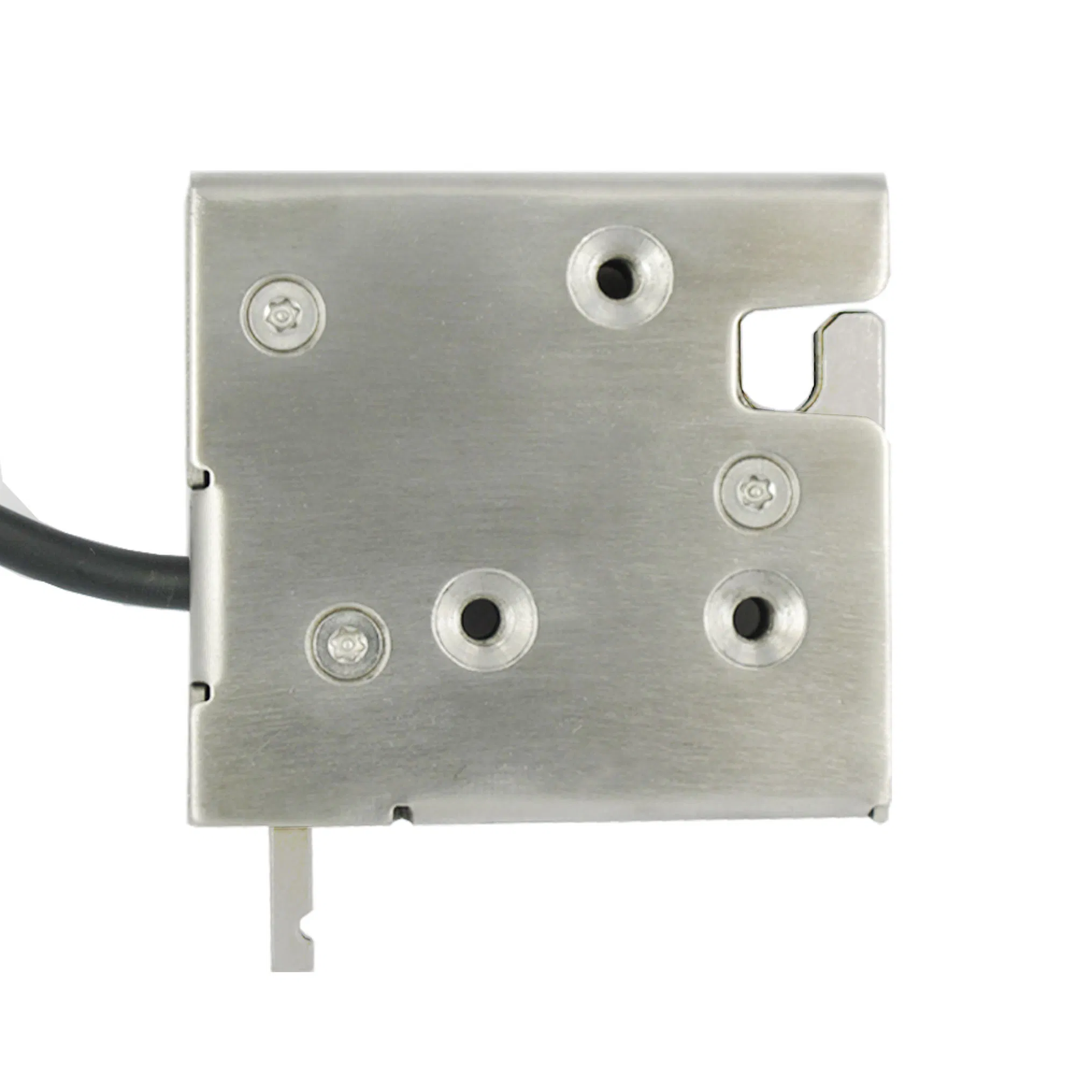

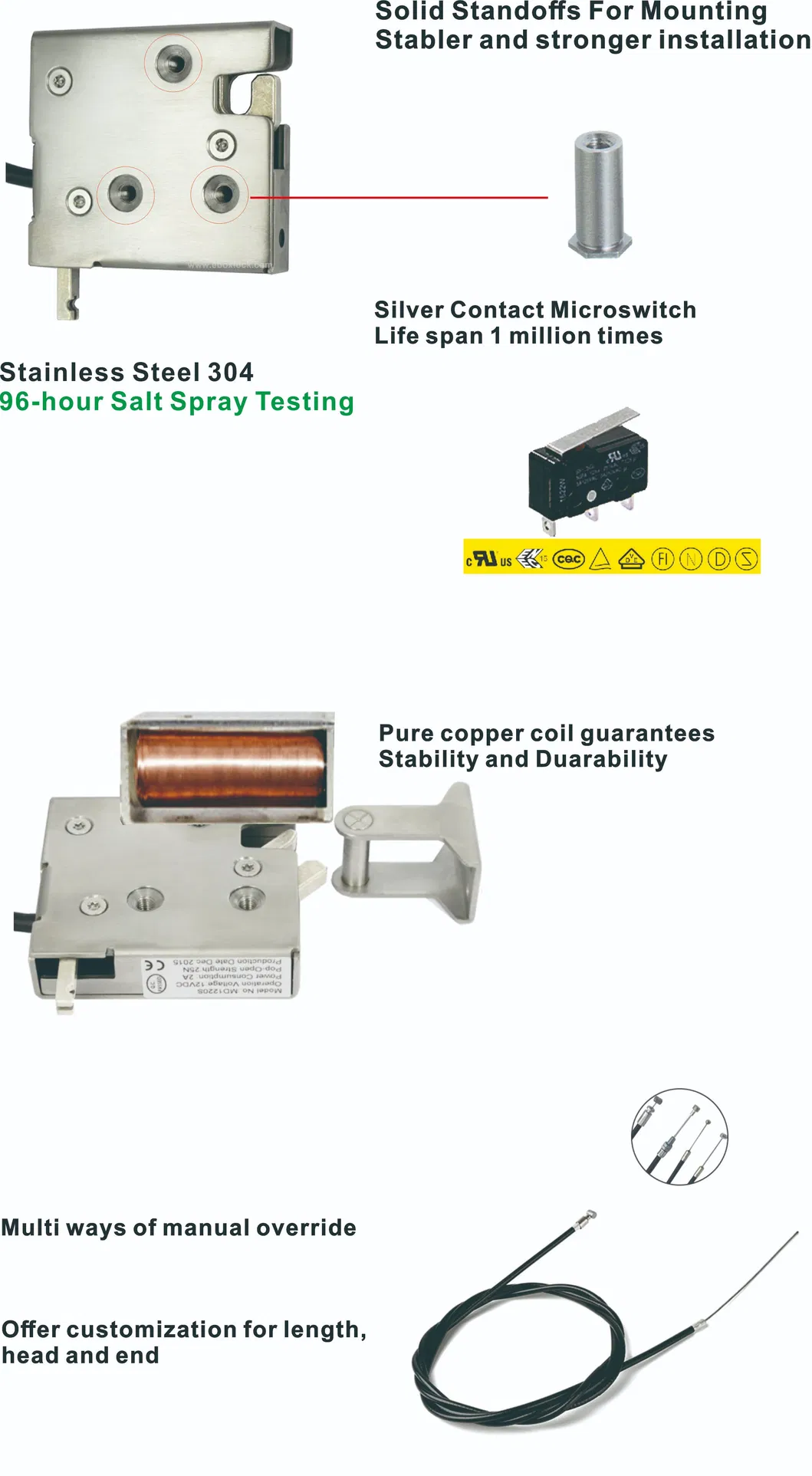

Electric Door Lock MD1220LPH is a high security access control solution for Parcel Delivery Kiosk Express Cabinets. Robust all metal construction allows MD series cabinet lock operates against heavy mechanical load. An optional built-in door sensor provides reporting of open/ close status and mechanical kits for manual override in case of power failure.
Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any access control system or standalone cabinet locking. With easy push-to-close operation, the lock is designed with internal spring rod to push door open when electrified.
| Parameter | Details |
|---|---|
| Operation Voltage | 12/24VDC intermittent ±10% |
| Power Consumption | 12V DC 1500mA |
| Operation Mode | Fail Locked |
| Holding Force | 600KG |
| Maximum power on time | Less than 30 second |
| Cycle Rating | More than 1,000,000 times |
| Working Temperature | -20ºC ~ +60ºC |
| Dimensions LxWxH | 72mm*67mm*18mm |
| Protection Class | IP20 |
| Part No | Operating Current | Microswitch | Trigger Spring | Manual Override |
|---|---|---|---|---|
| MD1215 | 12VDC@1500mA | Without | 10N/25N | Hidden |
| MD1215S | 12VDC@1500mA | With | 10N/25N | Hidden |
| MD1215L | 12VDC@1500mA | Without | 10N/25N | Exposed |

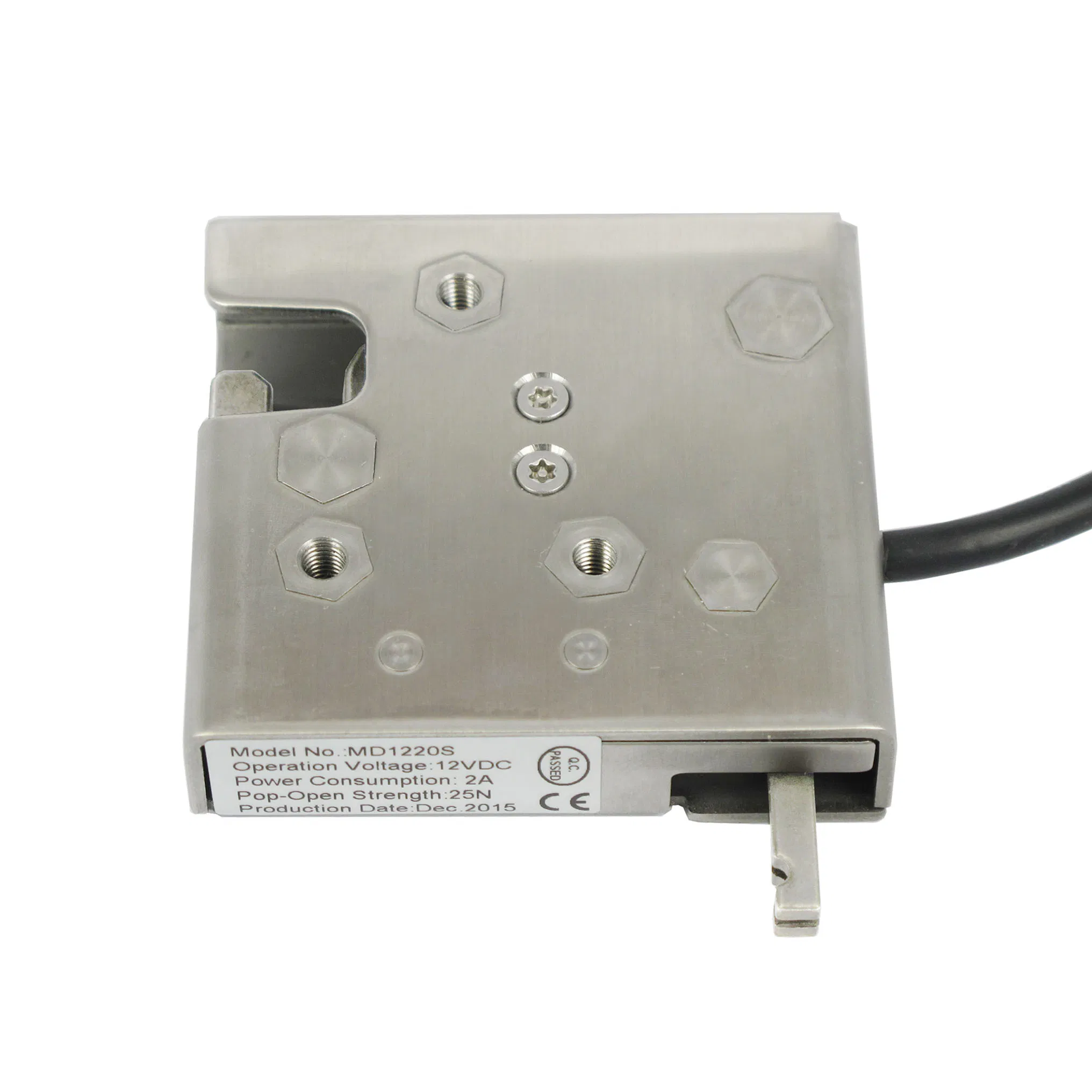

| MD1220 | 12VDC@2000mA | Without | 10N/25N | Hidden |
| MD1220LS | 12VDC@2000mA | With | 10N/25N | Exposed |
We offer customization for cable length and connector types to better meet your exact requirements.
| Voltage | Trigger Spring | Material | Cable | Connector |
|---|---|---|---|---|
| 9V / 12V / 24V / 48V | 10N / 25N / 35N | Steel / Stainless steel | Twisted / RVV / Flat | Molex / KF2510 / PH / RJ11 |

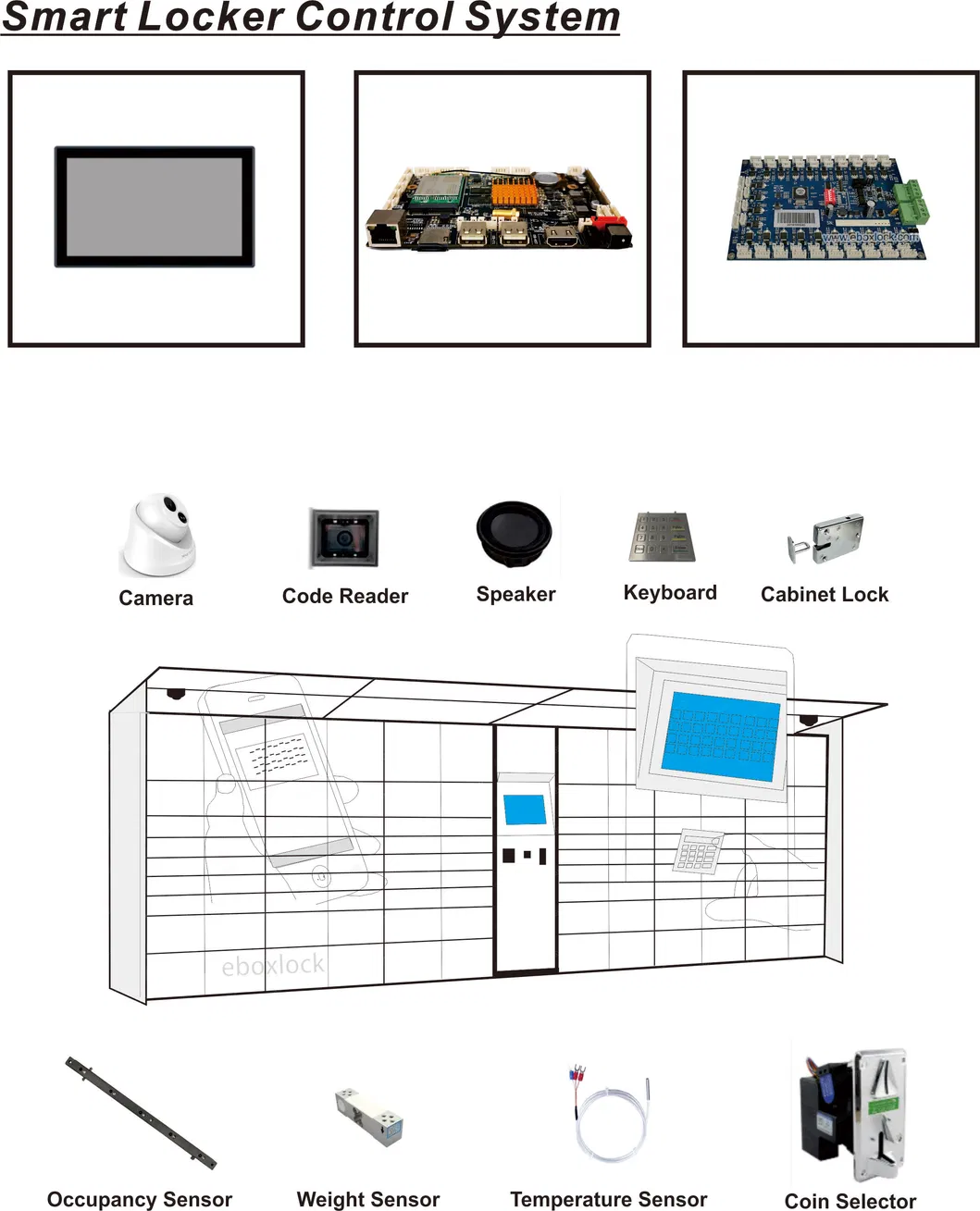

The electronic cabinet lock is ideal for various professional applications:
