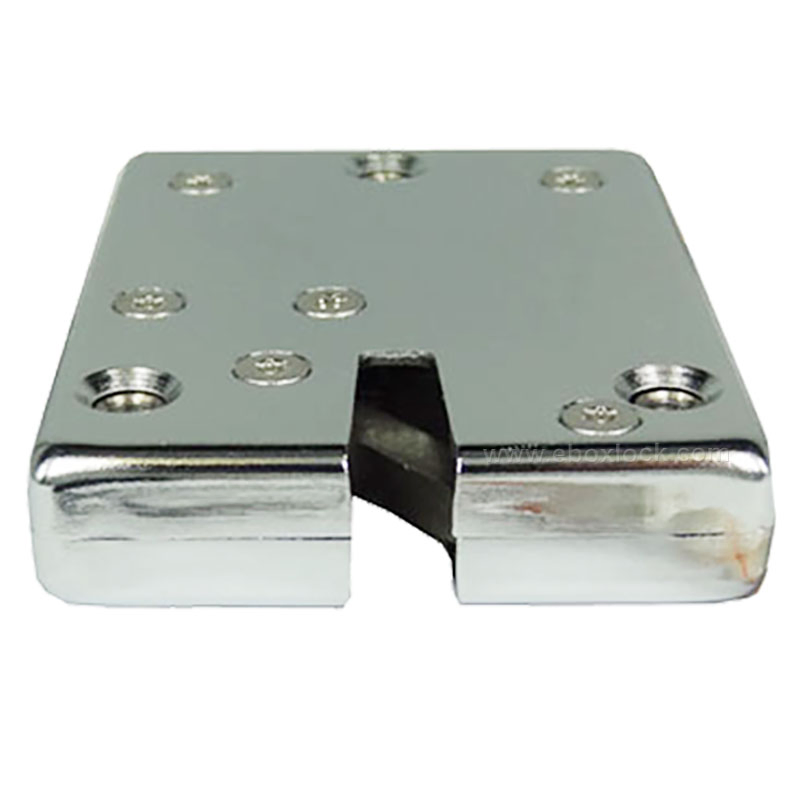

Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)
Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)
Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)
Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)
Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)
1 / 5
Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)
Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)
Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)
Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)
Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)

Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)

Customization: Available
Material: Steel Chrome Plating
Shape: Interlock
Send Inquiry

Product Description

Basic Product Information
Model NO.
MA1208S
Usage
Drawer, Door, Cabinet and Lockers
Angle
180°
Surface Finishing
Steel with Chrome Plating
Condition
New
Power Consumption
12V DC 800mA
Cycle Rating
More Than 1,000,000 Times
Dimensions
72mm*56mm*13.8mm
Protection Class
IP20
Certificate
CE, RoHS, FC, ISO9001
HS Code
83013000
Product Description

Electric Cabinet Lock MA1208S is a compact and all-metal constructed lock designed to provide keyless locking solutions for cabinets, drawers, and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation. A lock sensor is available for detecting door status. This cabinet lock is compatible with any access control system or standalone cabinet locking controller. It allows mechanical override for emergency opening. The electric cabinet lock is energy-saving, cost-efficient, robust, easy to install, and suitable for one or multiple cabinet locking applications.

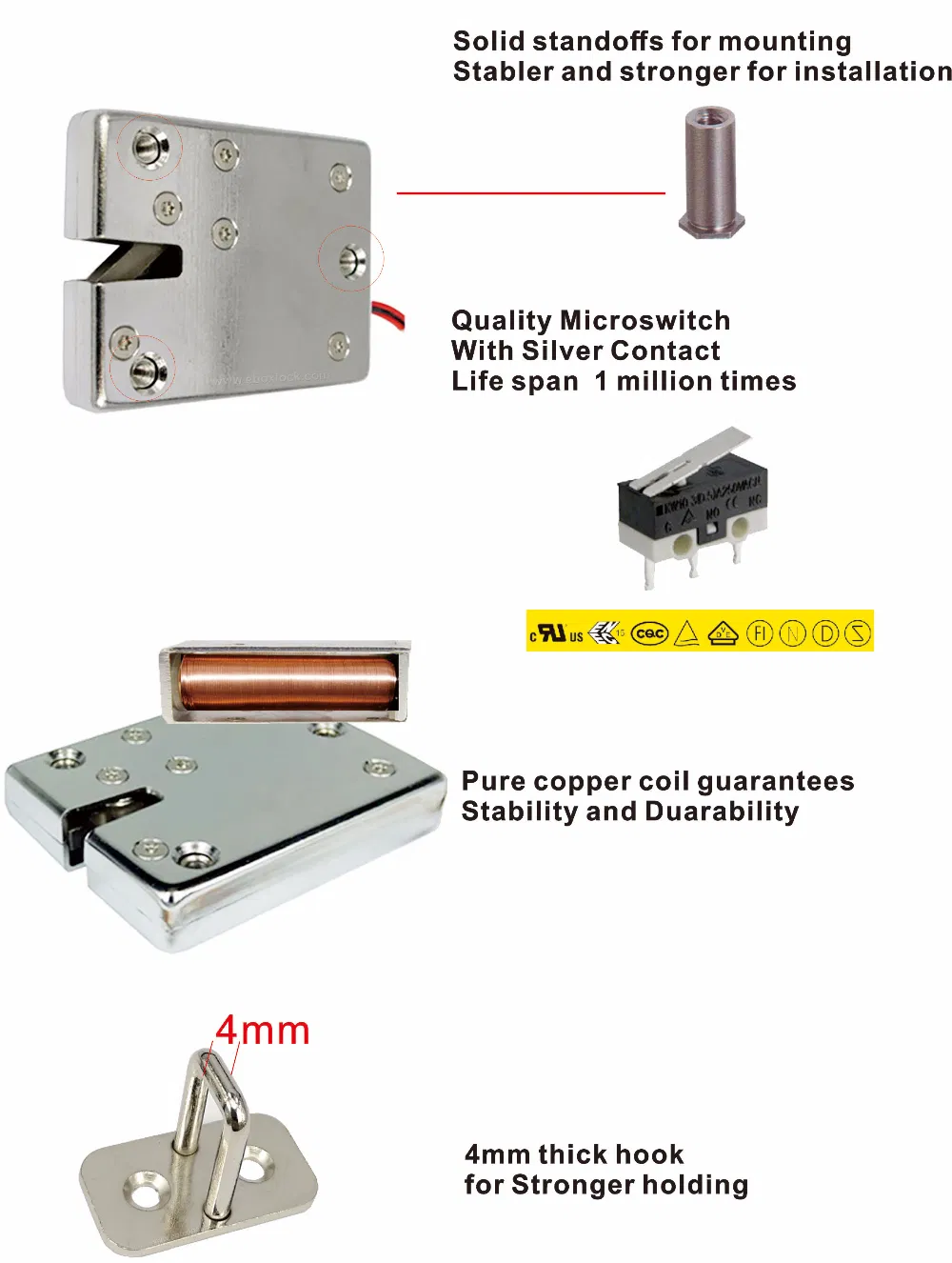

Electric Cabinet Lock

Main Features:

  • Available in 12VDC or 24VDC
  • Superior heavy-duty metal construction with Chrome-plated steel housing
  • Convenient mechanical override enables manual release during power failure
  • Three-bolt regular triangle mounting enables high security and low install cost
  • Optional internal lock switch for detecting open/close output signal
  • Accepts access control signals from numeric keypad, RFID card, remote or fingerprint
  • Patented Design with 2 years limited warranty

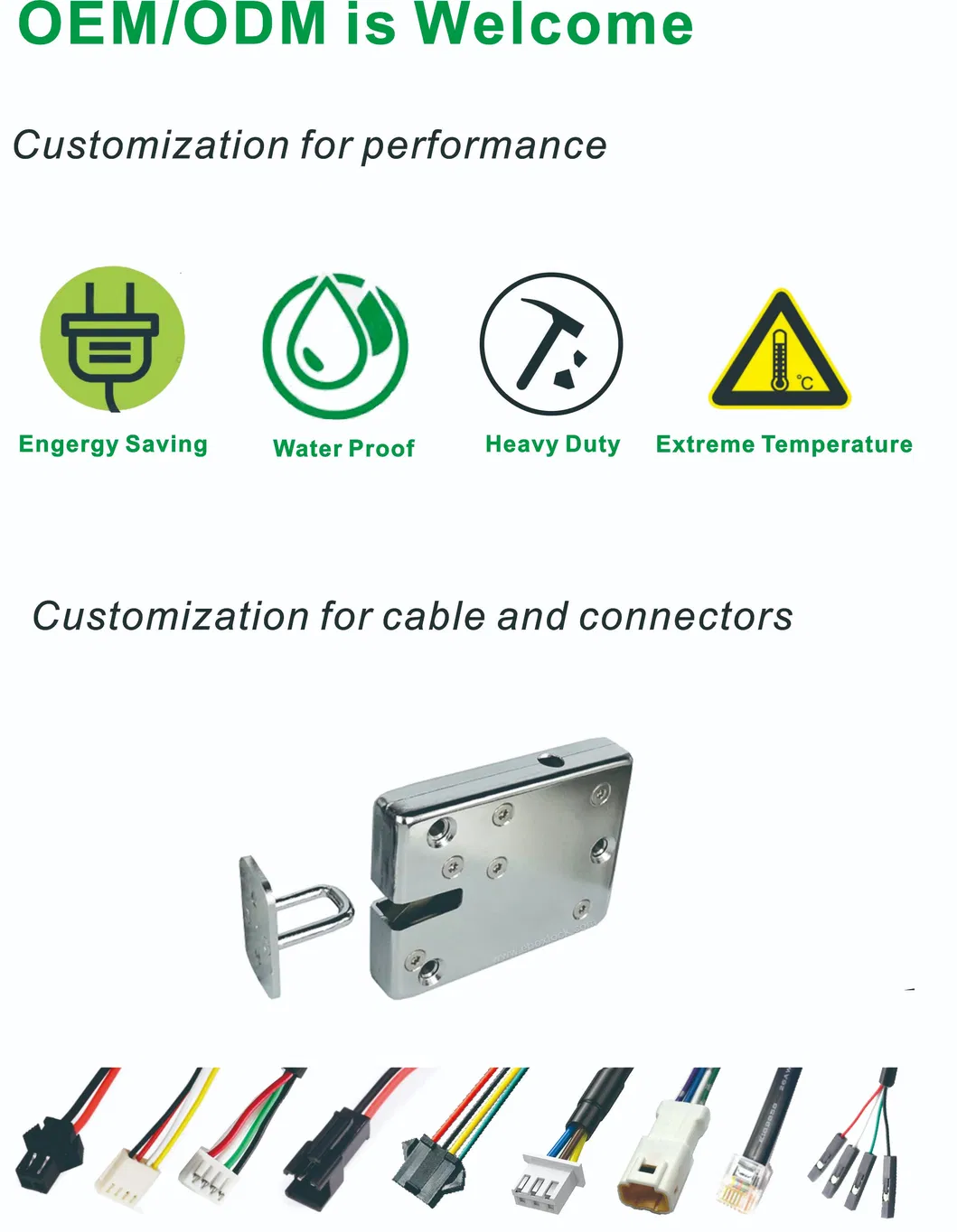

Electronic Lockers Feature
Customization Options
Voltage Current Trigger Spring Mounting Material Cable Connector
9V / 12VDC / 24VDC / 48V 400mA / 800mA / 1500mA / 2000mA 4N / 7N / 15N / 21N M4 thread (std) / M4 thru Steel (std) / Stainless steel Twisted / RVV / Flat cable SM / Molex / KF2510 / PH / RJ11
Technical Specifications
Operation Voltage
12/24VDC intermittent ±10%
Operation Mode
Fail Locked
Holding Force
150KG
Max Power on Time
Less than 30 seconds
MS Contact Rating
2A @25V
Working Temp
-20ºC ~ +60ºC

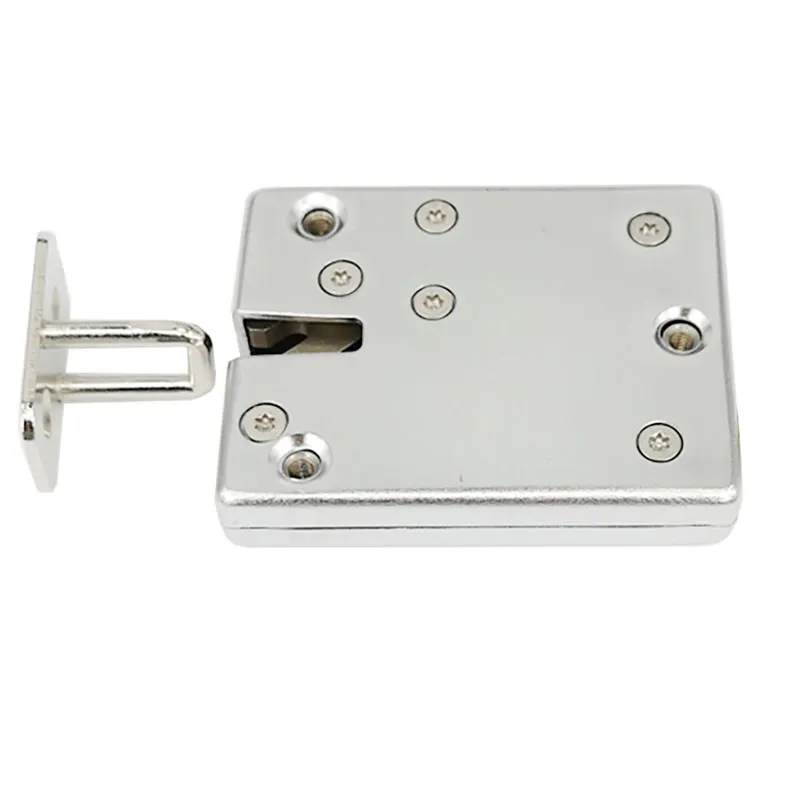

Product Detail 1

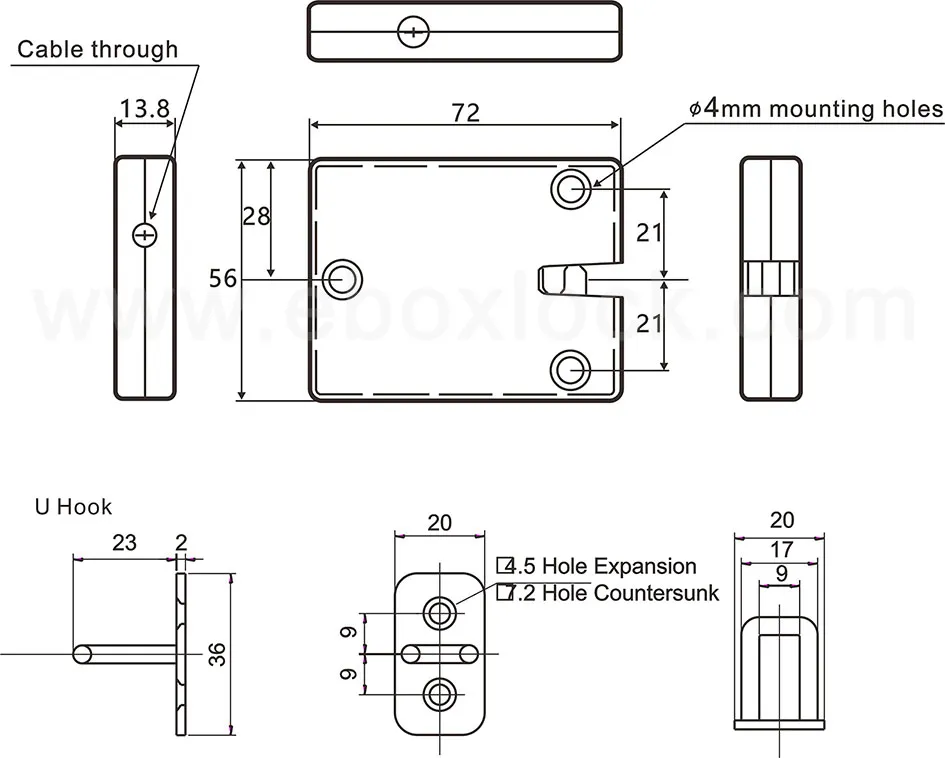

Dimensions

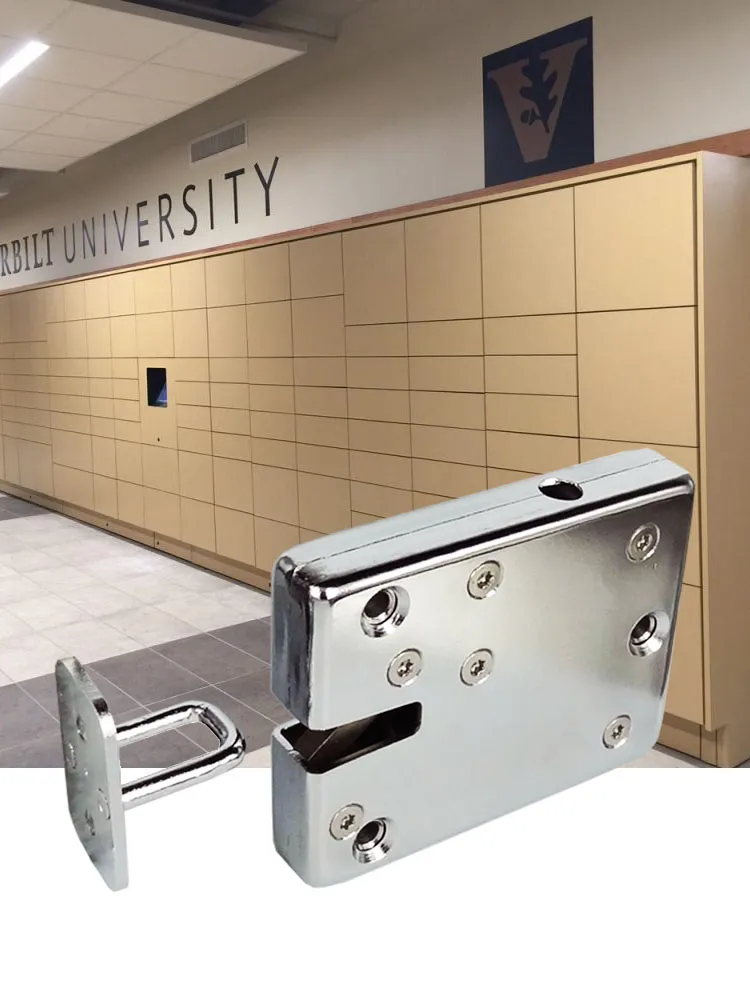

Product Detail 2
Applications

The electric cabinet lock is ideal for various specialized security applications:

Parcel Delivery Lockers
Smart Lockers
Vending Machines
Telecommunication Kiosks
Bank & Cash Drawers
Electronic Mailboxes
Pharmaceutical Cabinets
Smart Bike Stations

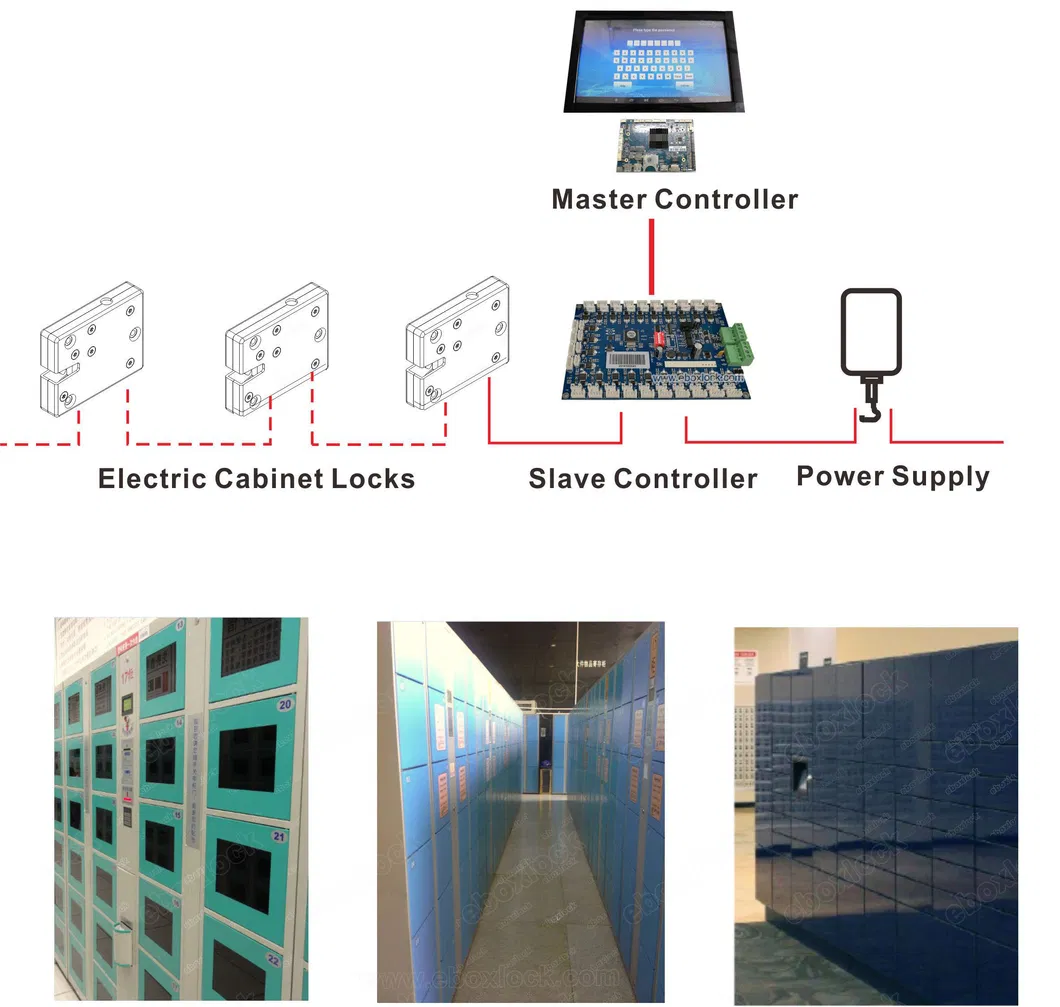

Application Scenario
Packaging Details
Package 1
Package 2
Frequently Asked Questions
What is the operating voltage for this cabinet lock?
The lock operates on 12VDC or 24VDC intermittent power (±10%). Standard power consumption is 800mA at 12V DC.
Can the lock be opened manually if the power fails?
Yes, it features a 7mm mechanical override hole that allows for manual release during emergency power failures.
How durable is the MA1208S electric lock?
The lock is built with superior heavy-duty metal construction and has a cycle rating of more than 1,000,000 operations.
Does this lock provide feedback on the door status?
Yes, there is an optional internal lock switch available for detecting open/close output signals to monitor the door status.
What is the holding force of the lock?
The MA1208S provides a holding force of approximately 150KG (330 lbs), making it suitable for secure lockers and cabinets.
Is this lock waterproof for outdoor use?
The lock has an IP20 protection class rating, which means it is designed for indoor use or within protected enclosures.
