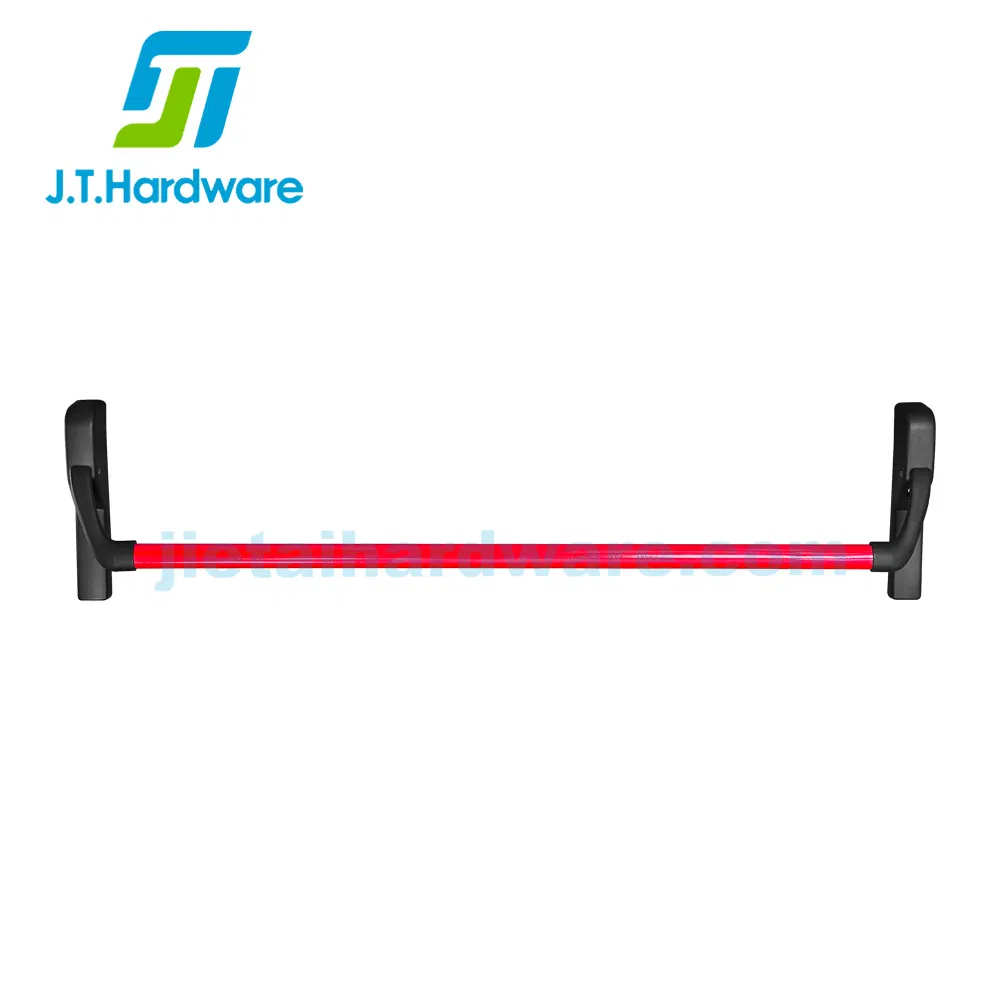

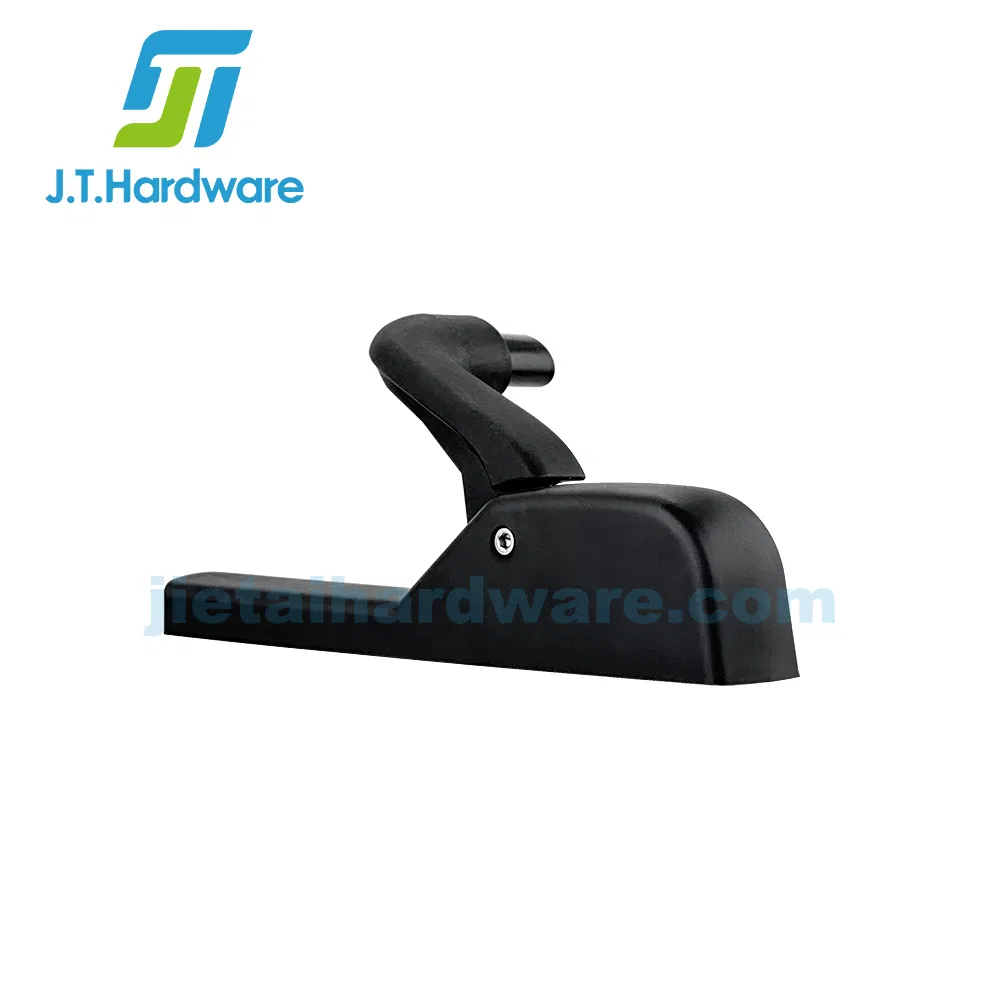

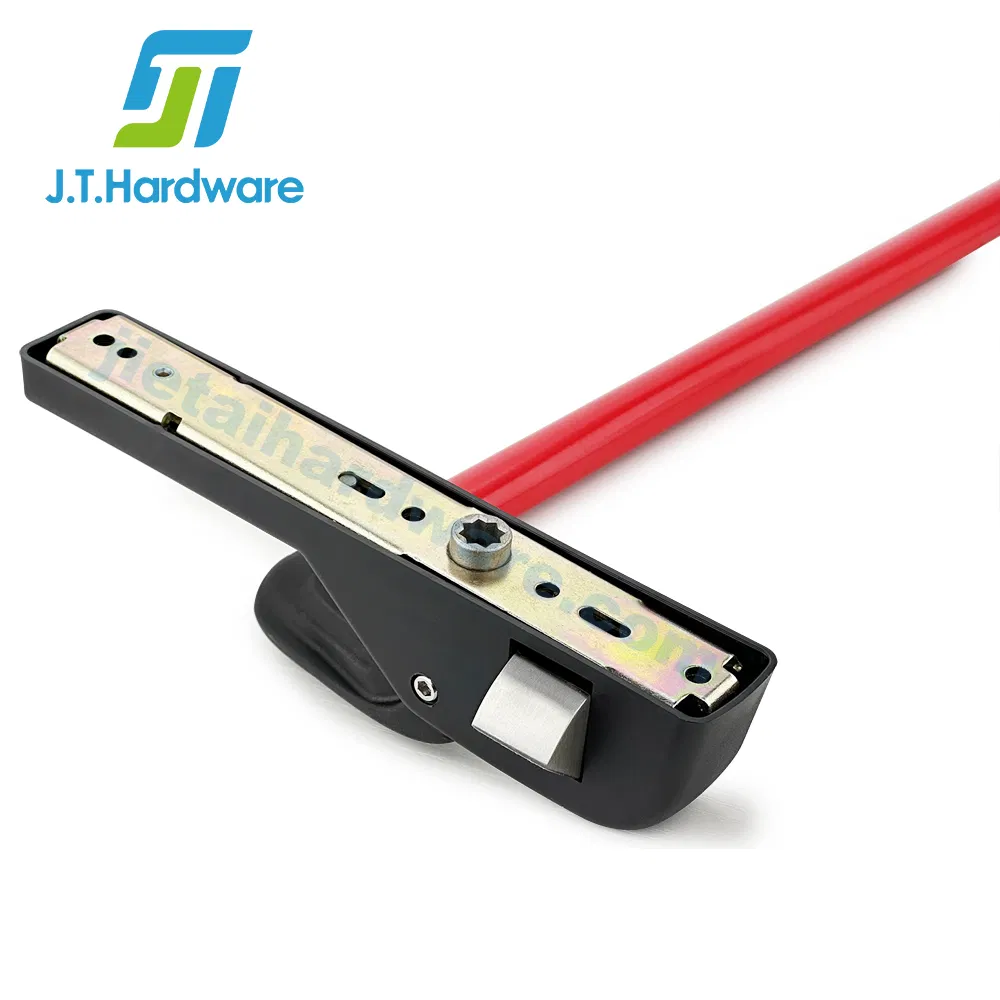

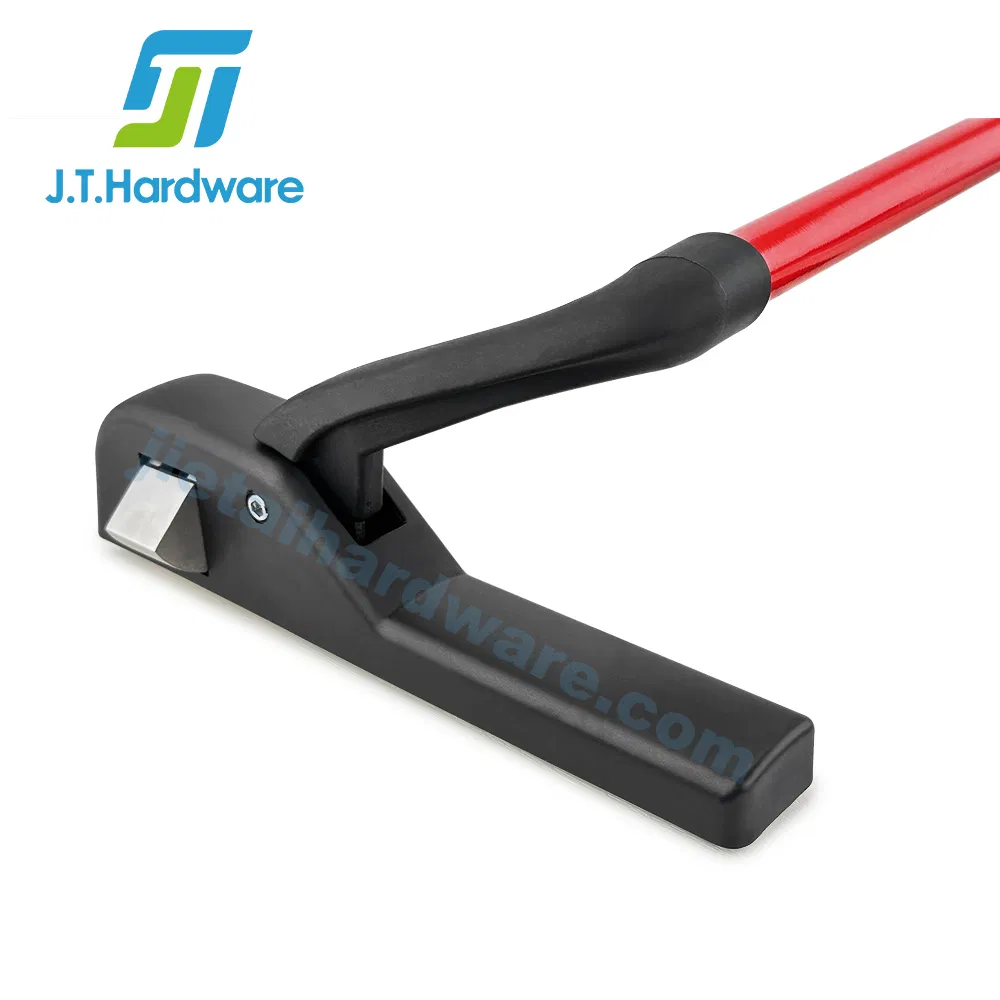

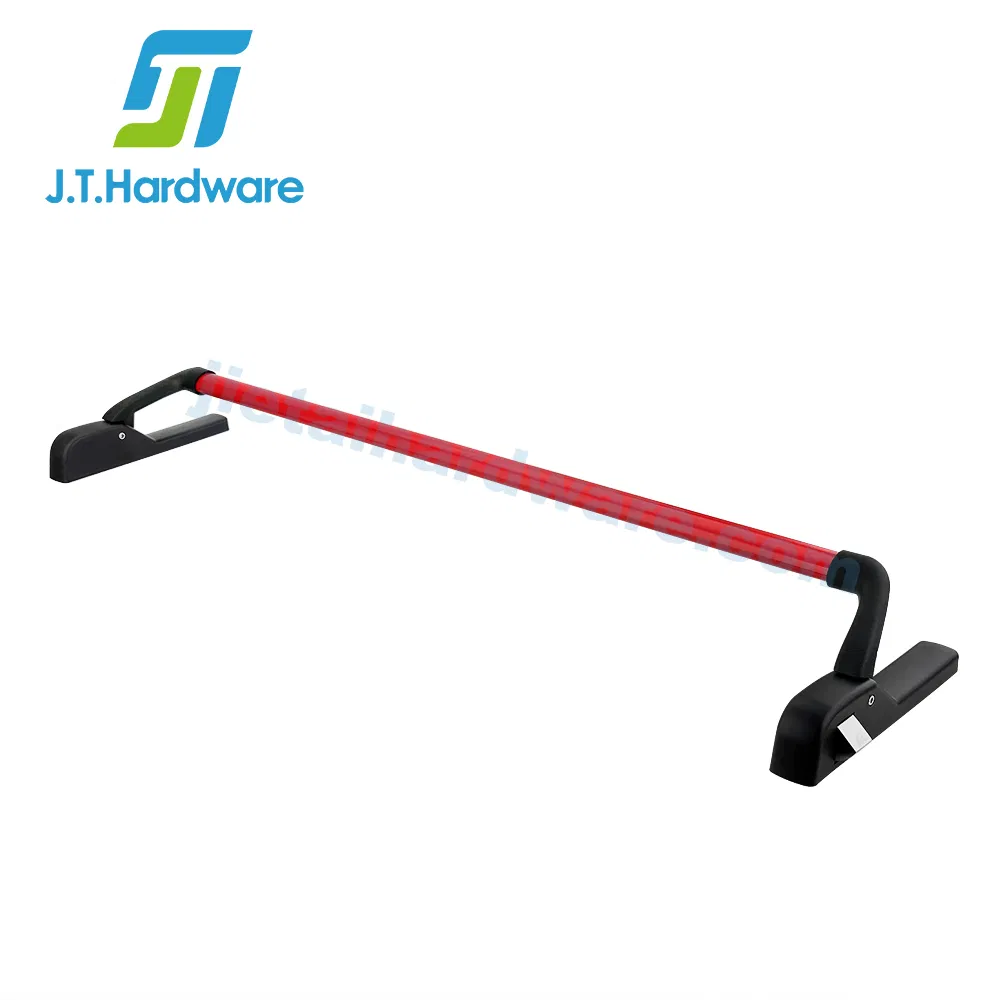

Commercial Grade ED 1350 Series Rim Type Cross Push Bar Exit Device

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year

Product Description

Basic Info

Model NO.ED1351
MaterialStainless Steel, Steel, Plastic
StyleModern
Anti-theft StandardHighly Safe
PartLock
OptionalPolishing, PVD, Black, Red
Door Thickness44-57mm
Length980mm Standard (Push Bar 850mm)
Product NamePanic Exit Device
StandardFire Rated
FinishStainless Steel Satin, Silver Painted
ApplicationOffice, Super Mall, School, Hospital, Hotel
CertificationCE, EN1125, EN1634, Fire Rated
Suitable forMetal Door, Fire Rated Door
SpecificationStandard

Product Description

Introducing the Fire Door Panic Hardware - ED 1350 Series! Elevate your security with our Single Rim Type Cross Push Bar Exit Device, designed for effortless operation and robust protection.
MaterialStainless Steel, Steel, Plastic
FinishStainless Steel Satin, Silver Painted
OptionalPolishing, PVD, Black, Red
Suitable forMetal Door, Fire Rated Door
StandardFire Rated
Door thickness44-57mm
Length980mm Standard (Push Bar 850mm)
CertificationCE, EN1125, EN1634, FIRE RATED

Product Features

ED 1350 Series Rim Type Cross Push Bar Exit Device
  • Perfectly engineered for narrow stile doors, ensuring a seamless blend of security and style.
  • The ED1355 model is compatible with a mortise lock featuring dimensions of CC 72/85/92mm.
  • Handed for specific directional use, ensuring precise and reliable functionality.
  • Material: Crafted from high-quality Stainless steel and durable, resilient Steel.
  • Finish: Standard stainless steel satin and silver painted; Optional Polishing, PVD, Black, and Red.
  • Certified EN1125 category 3 and EN1634 fire rating of up to 2 hours.

Size & Technical Data

Size Info Header

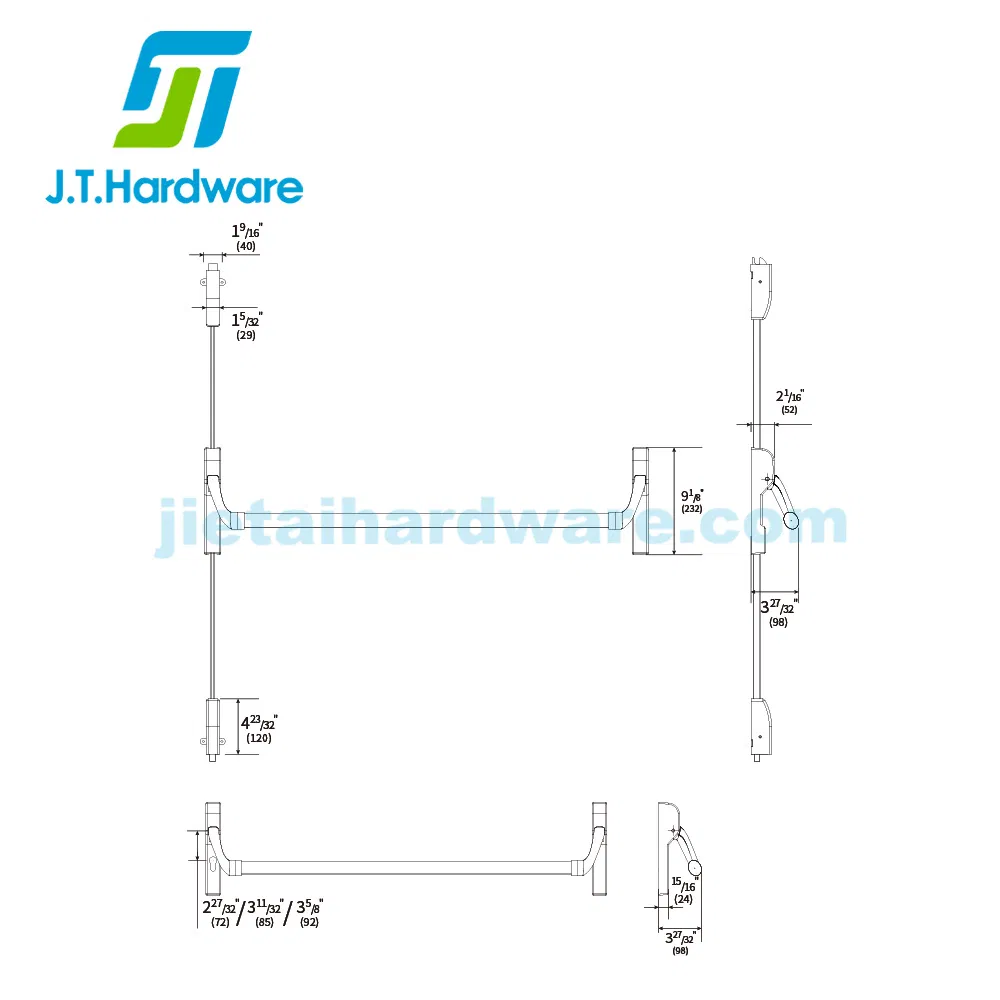

Technical Drawing 1

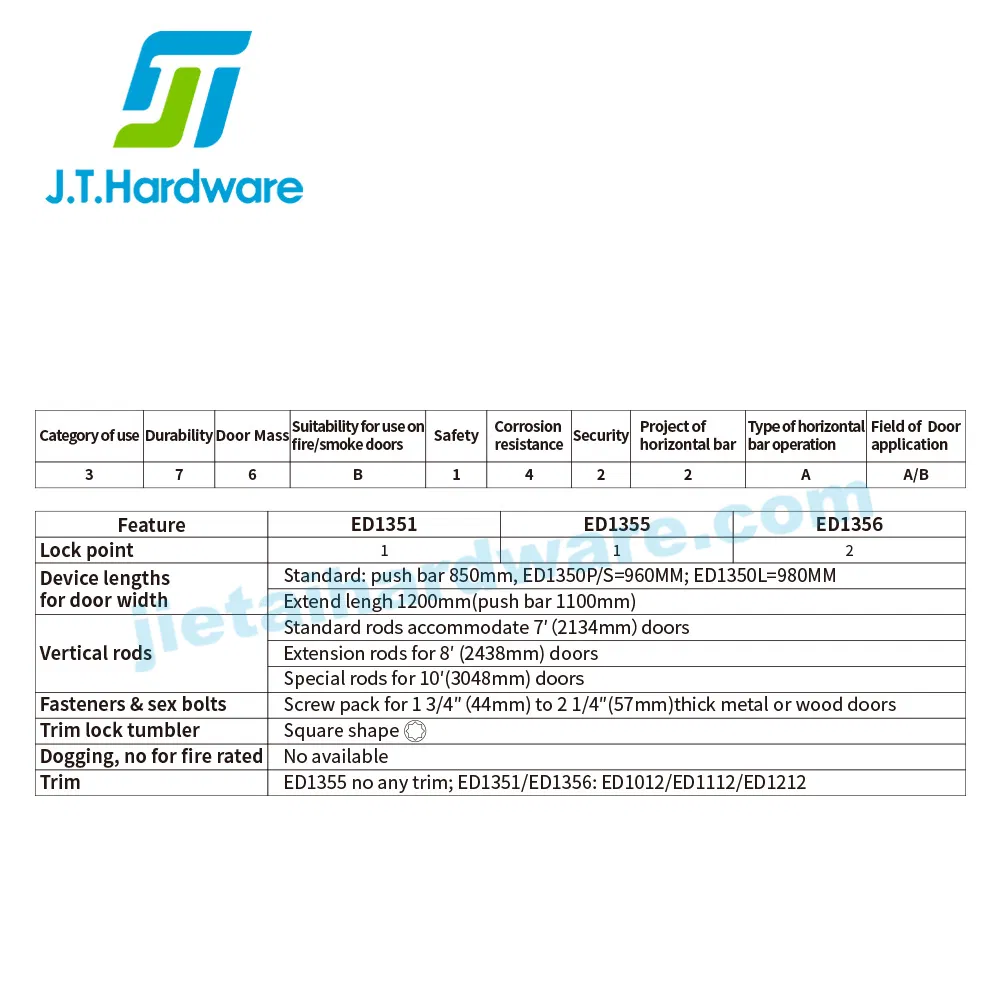

Technical Drawing 2

Packaging & Certifications

Packaging Detail
Certifications Display
Production Process

Frequently Asked Questions

How can I get a samples?
Please contact us to confirm more details. Samples are free for you, but new customers are expected to pay for the courier cost, which will be deducted from the formal order payment.
How many colors are available?
Satin, Polished, Satin Nickel, Bright Chrome, Gold, Matt Black, Satin Graphite, etc.
Can I customize my products?
Yes, we can help to customize your logo, color, material and surface treatment.
Can you offer customized packages?
Sure, we can offer customized color boxes and instruction manuals if the order meets a certain quantity.
What is your payment term?
T/T is our standard term; other payment methods are also negotiable.
What is the delivery time?
It depends on your order quantity, generally about 15-35 days for different products and quantities.
