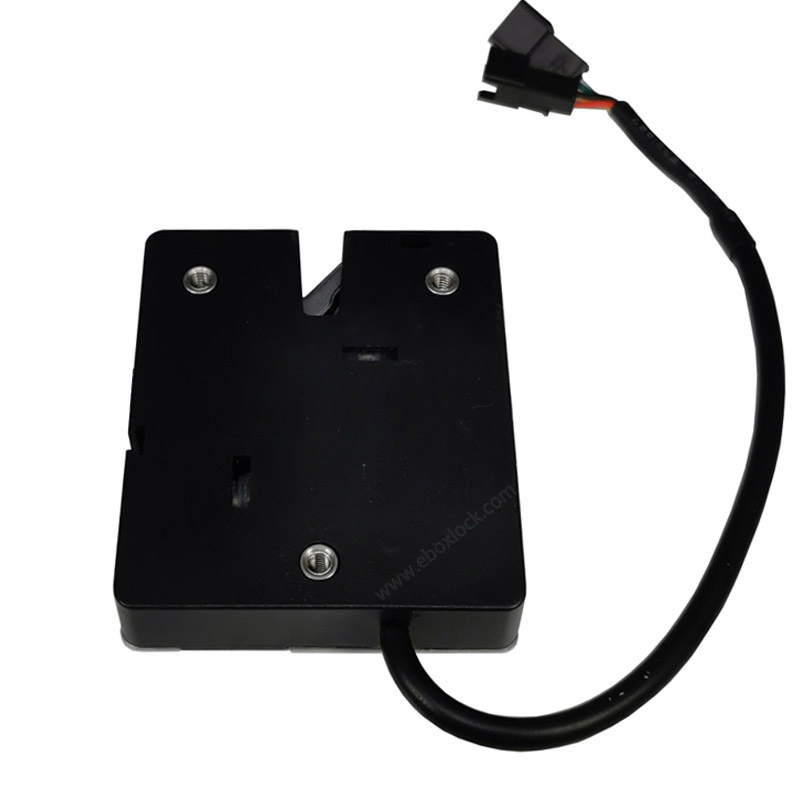

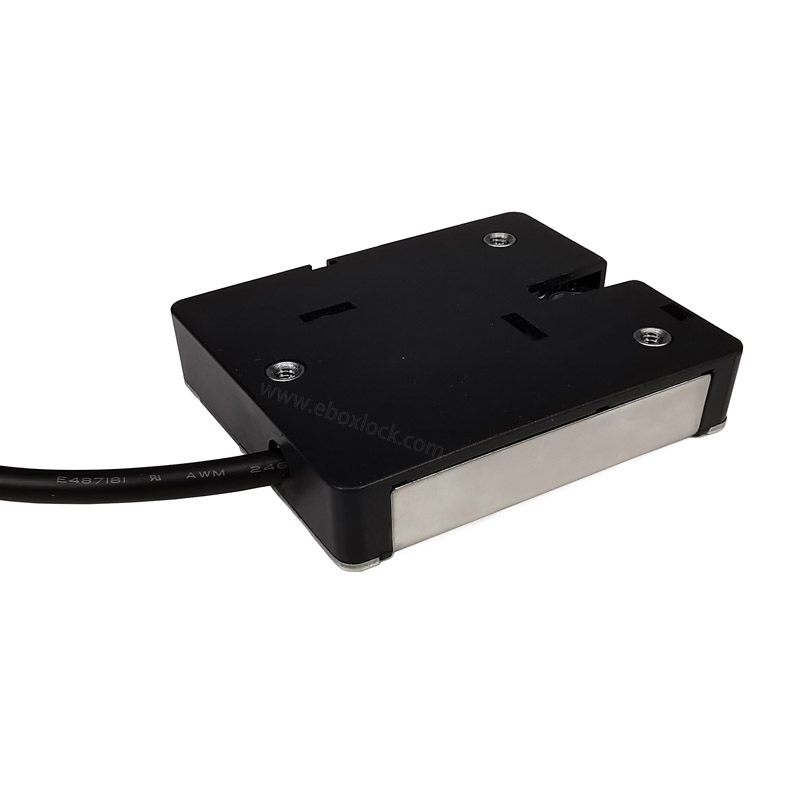

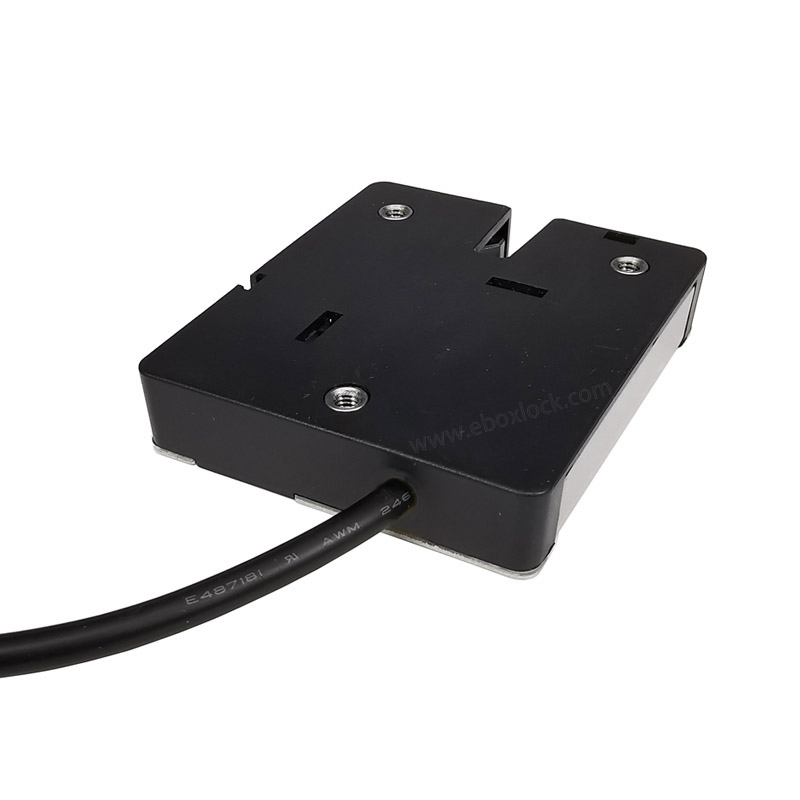

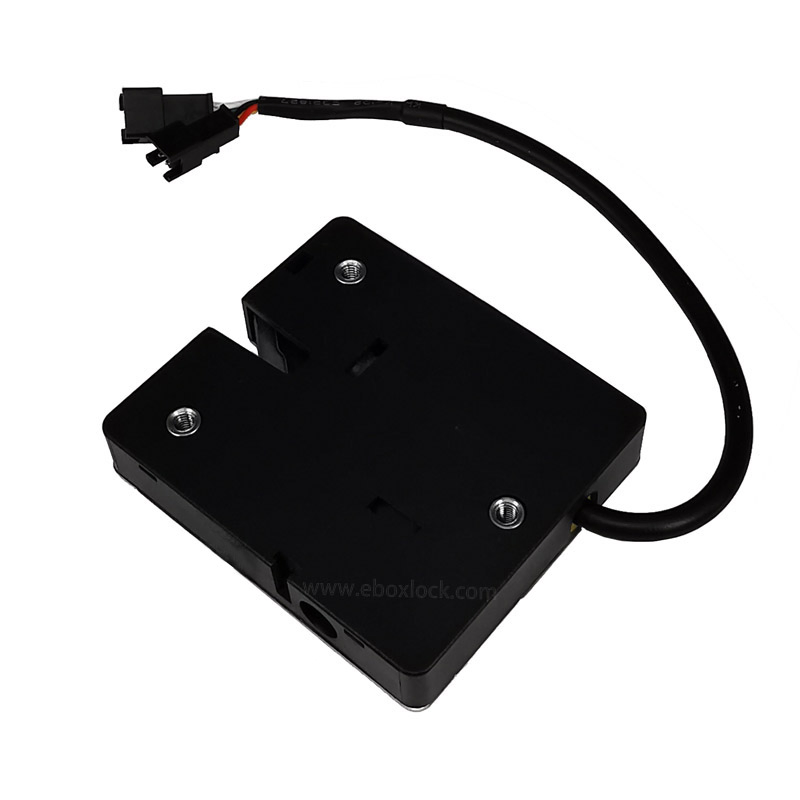

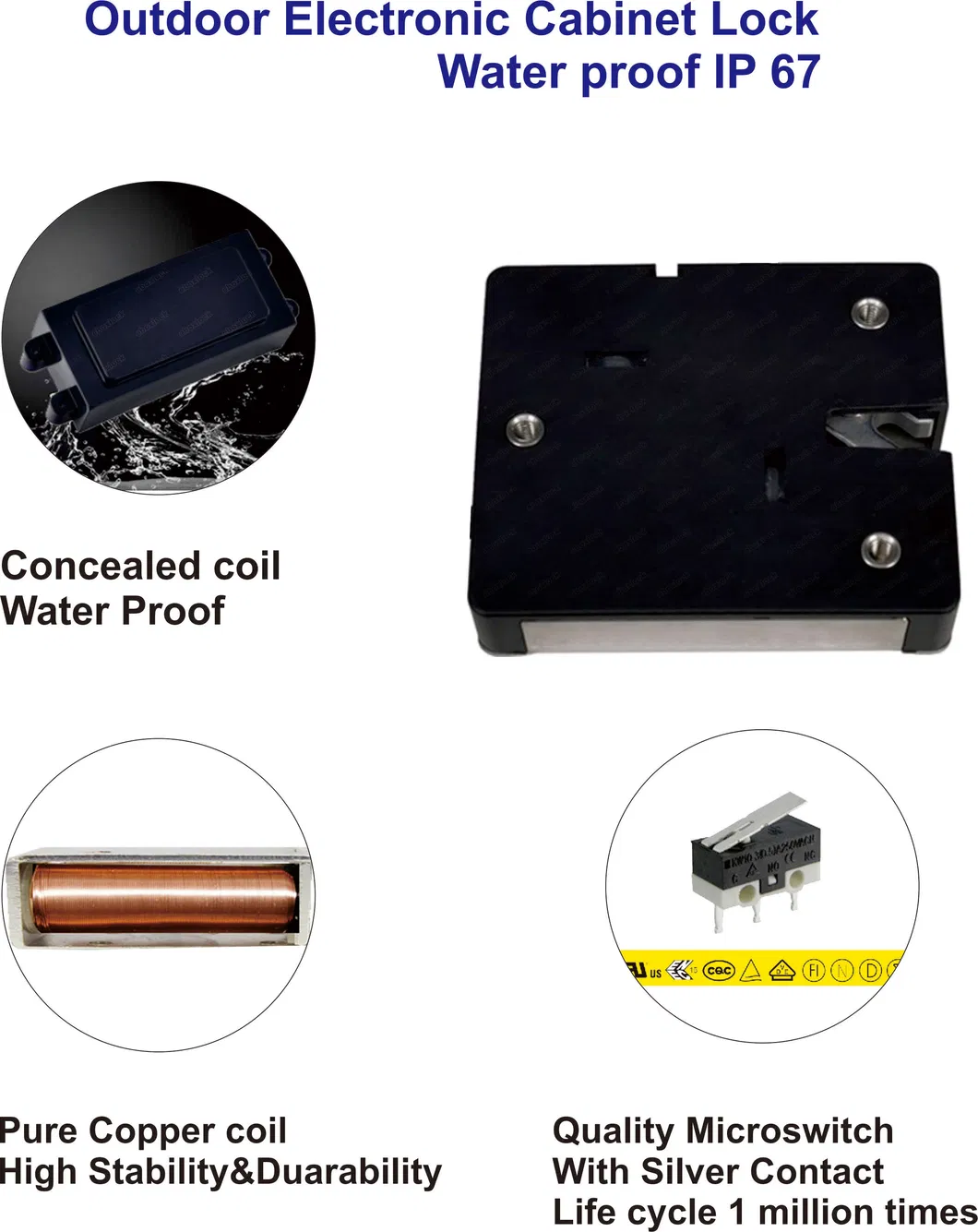

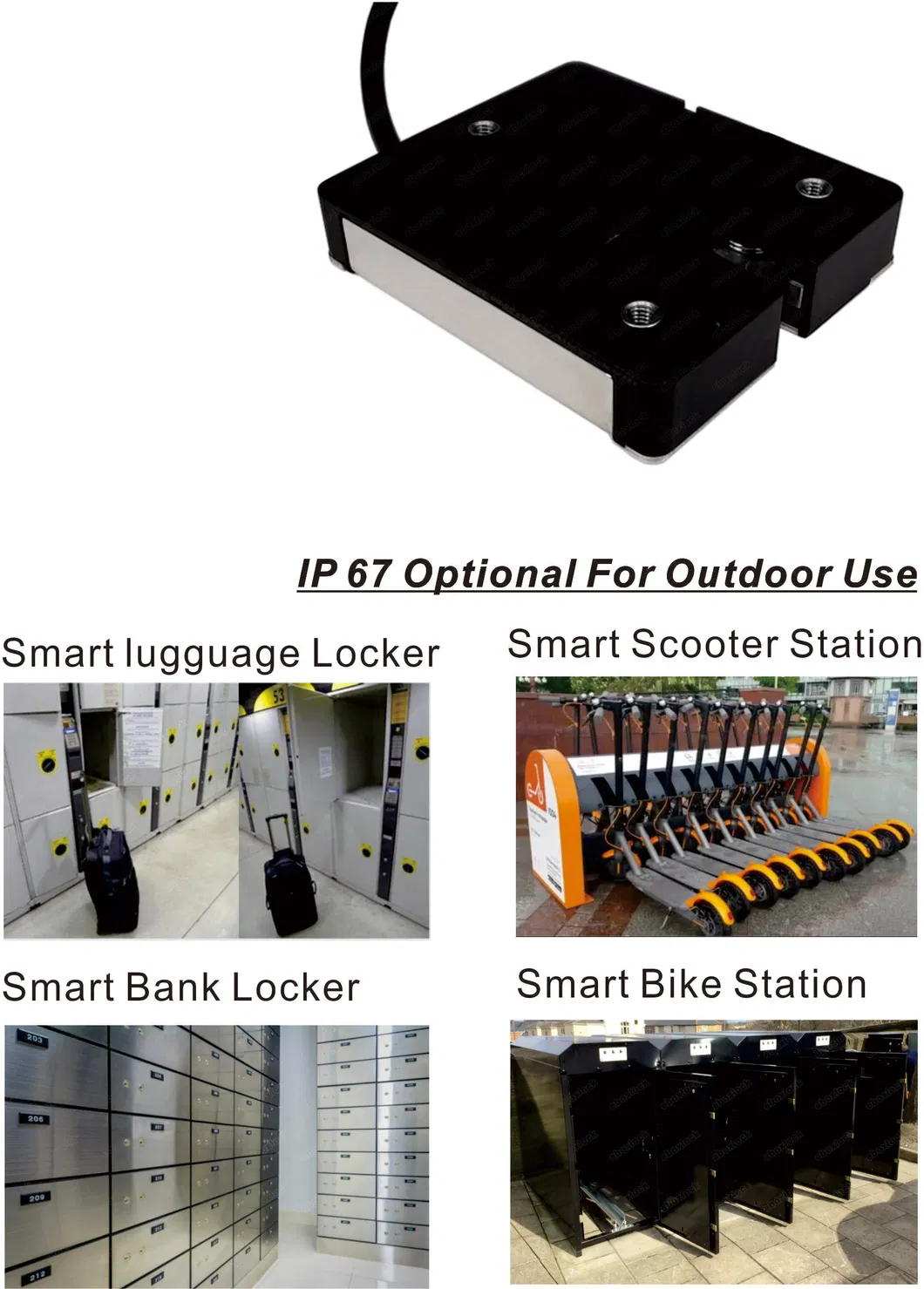

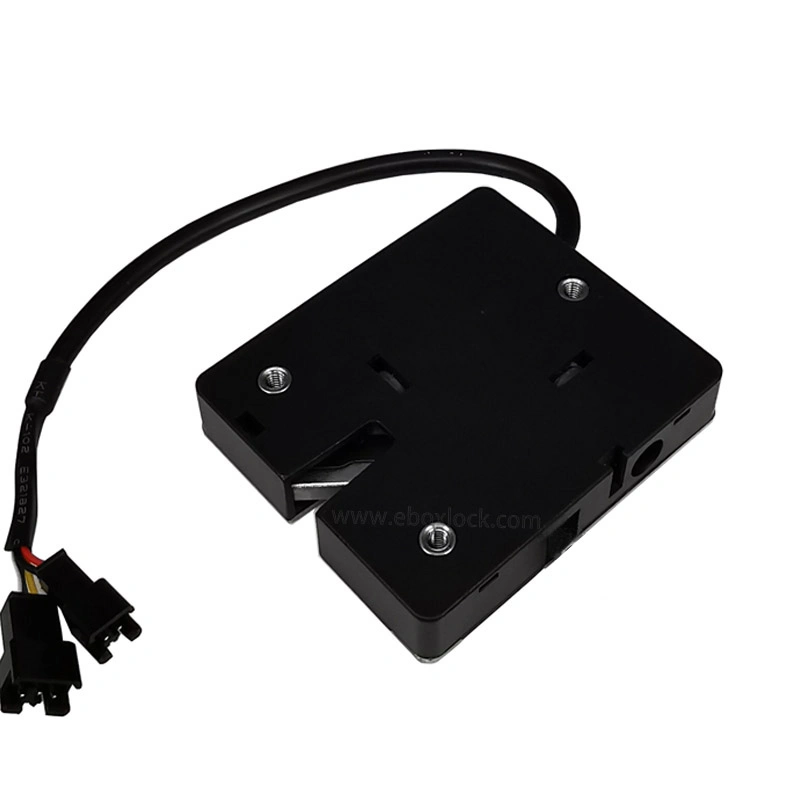

The Durable Anti-Corrosion Electric Cabinet Lock DJ7-S is a compact electromechanical lock with a concealed mechanism rated IP67. It is engineered specifically for outdoor cabinets, drawers, and lockers where environmental protection is critical.
Surface mounting either vertically or horizontally offers easy and flexible installation. This lock is compatible with existing access control systems, remote keypads, or key switches, and features a mechanical override for emergency access.
| Parameter | Details |
|---|---|
| Operation Voltage | 12/24VDC intermittent ±10% |
| Power Consumption | 12V DC 1500mA |
| Max. Power On | Less than 1 second |
| Operation Mode | Fail Locked (Fail-Secure) |
| Cycle Rating | More than 1,000,000 operations |
| Dimensions | 72mm x 62.5mm x 14mm |
| Voltage | Trigger Spring | Material | Connector |
| 9V, 12V, 24V, 48V | 10N, 25N, 35N | Steel / Stainless Steel | Molex, RJ11, pH, KF2510 |
* Custom samples available up to 10PCS. MOQ for batch orders: 500PCS.
As a specialized designer and manufacturer of electrified locking solutions, we provide security for lockers, cabinets, and kiosks. From size-restricted enclosures to heavy-duty metal cabinets, our designs meet specific security requirements for modern applications.

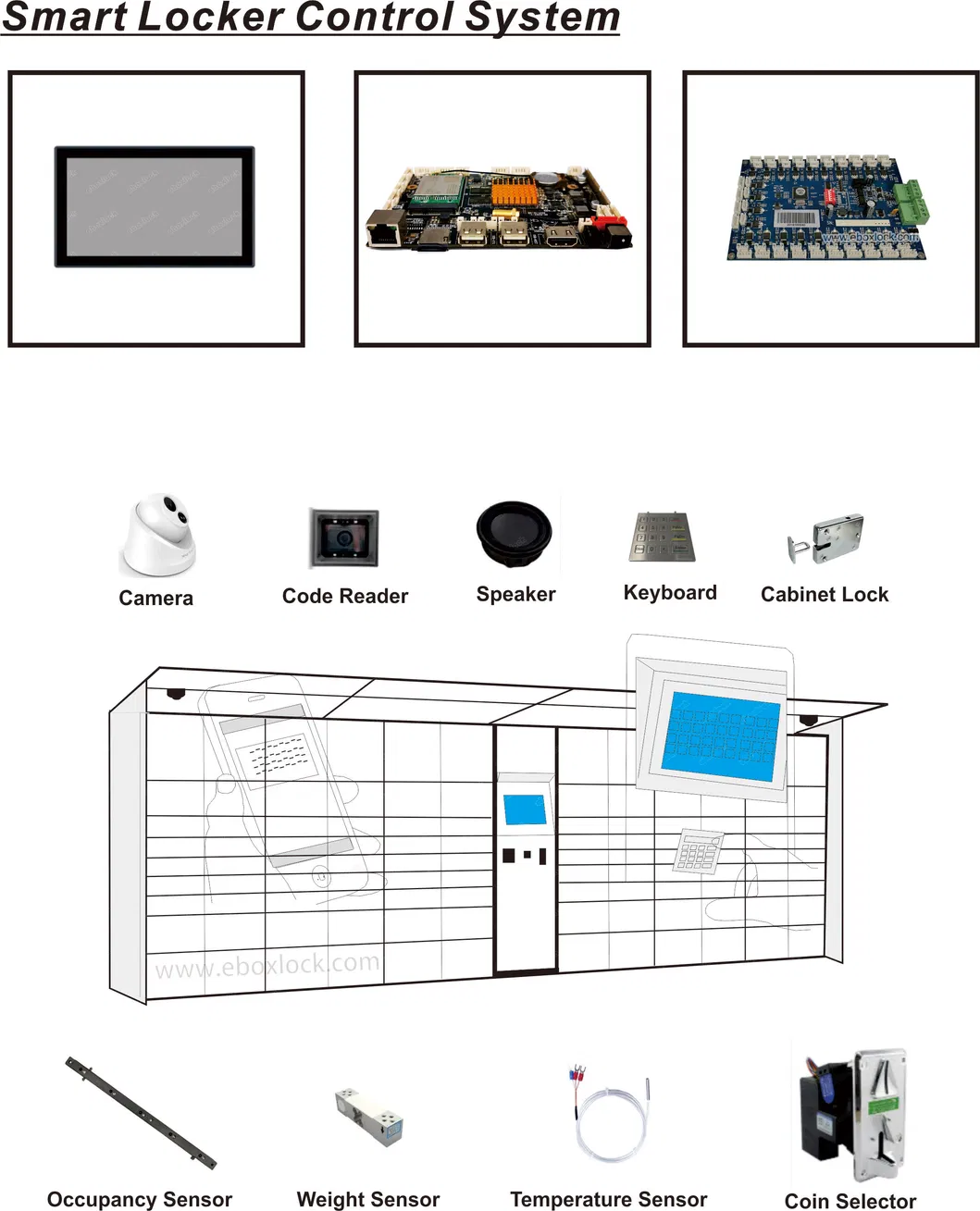

Our range includes electronic drawer locks, smart parcel locker control systems, and IOT hardware. Quality control is integrated into every step of the manufacturing process with multi-stage testing to ensure long-term reliability.
