Basic Information
Cylinder Length
1000mm/650mm/Custom
Capacity
200,000 pcs/Month
Package Size
120.00cm * 20.00cm * 15.00cm
Product Introduction

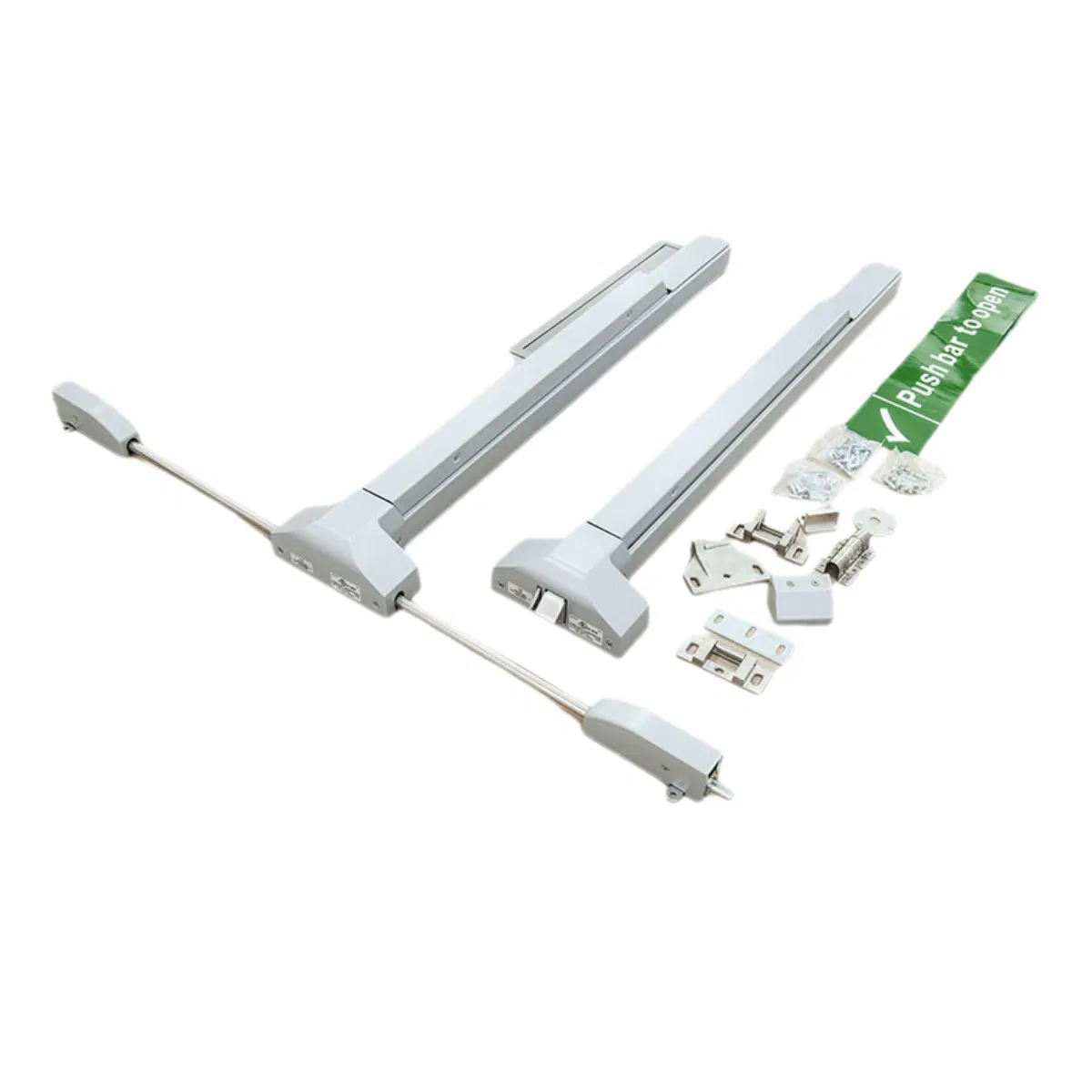

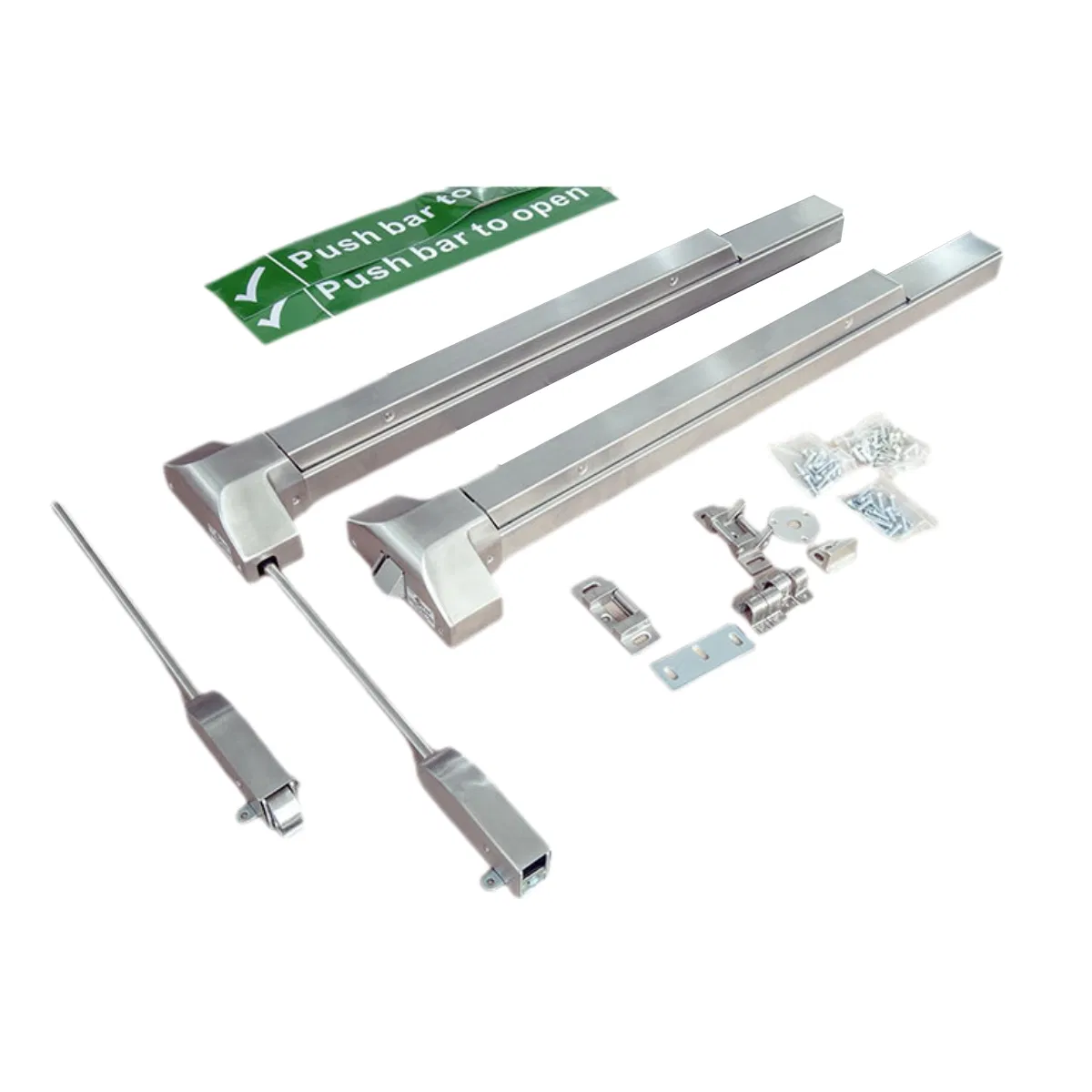

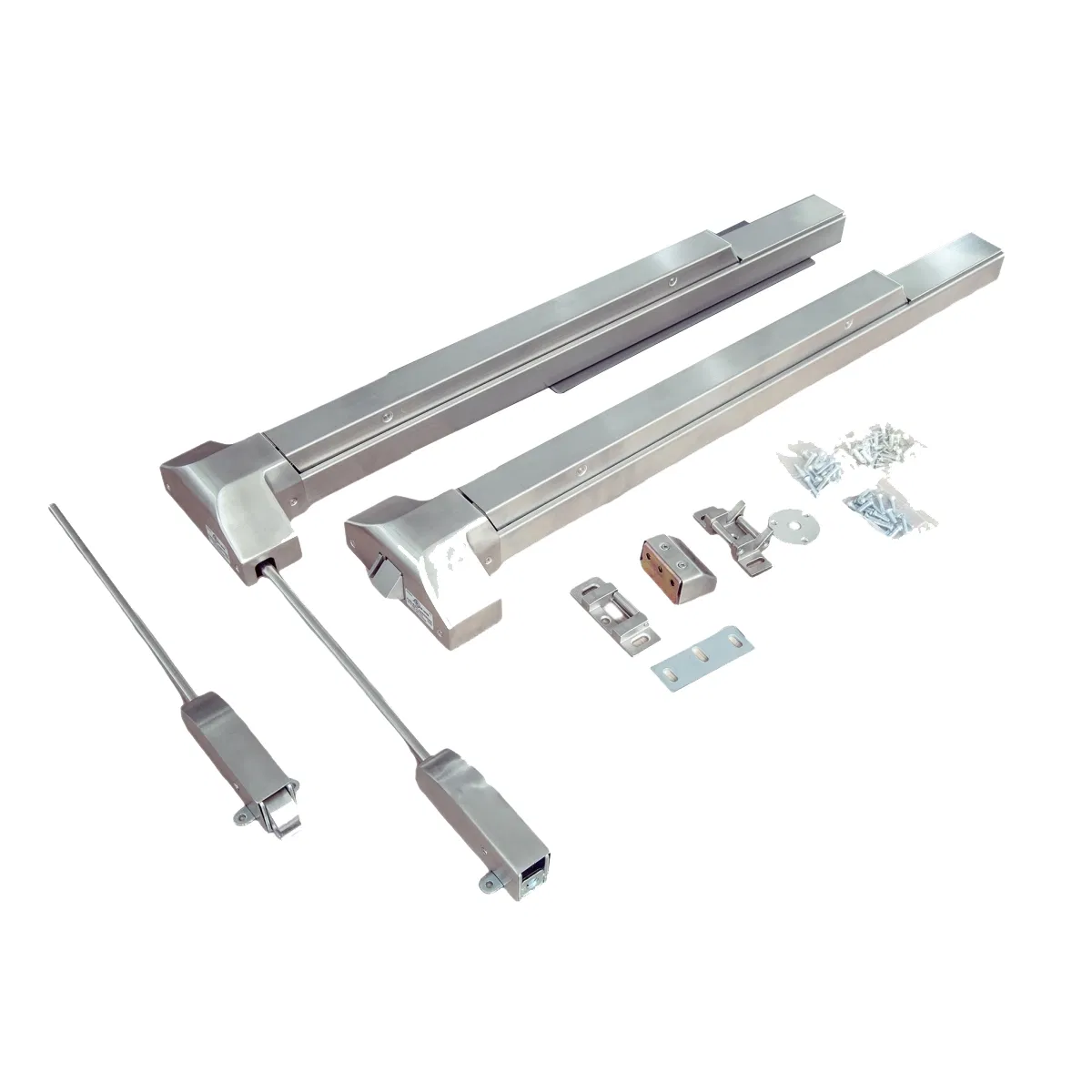

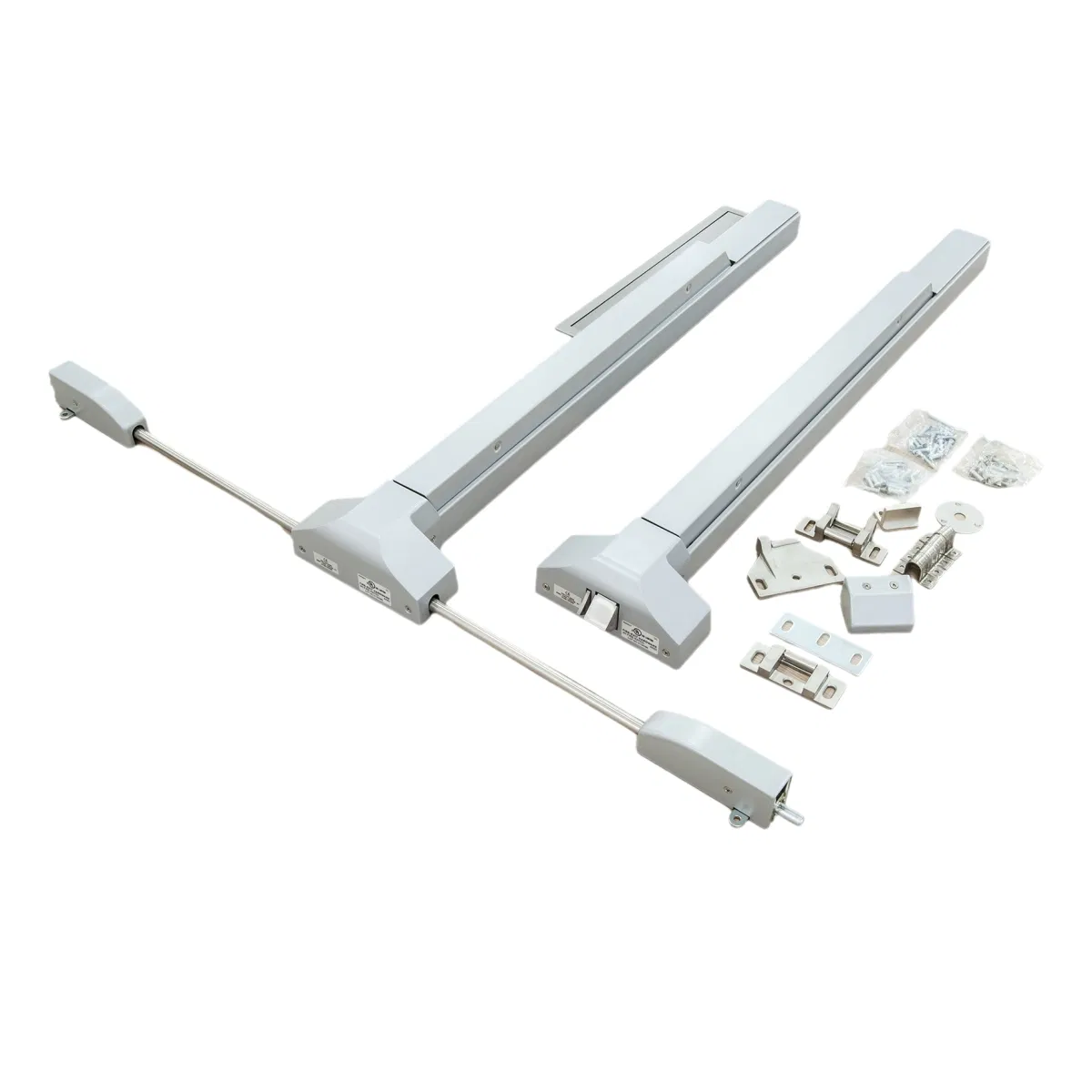

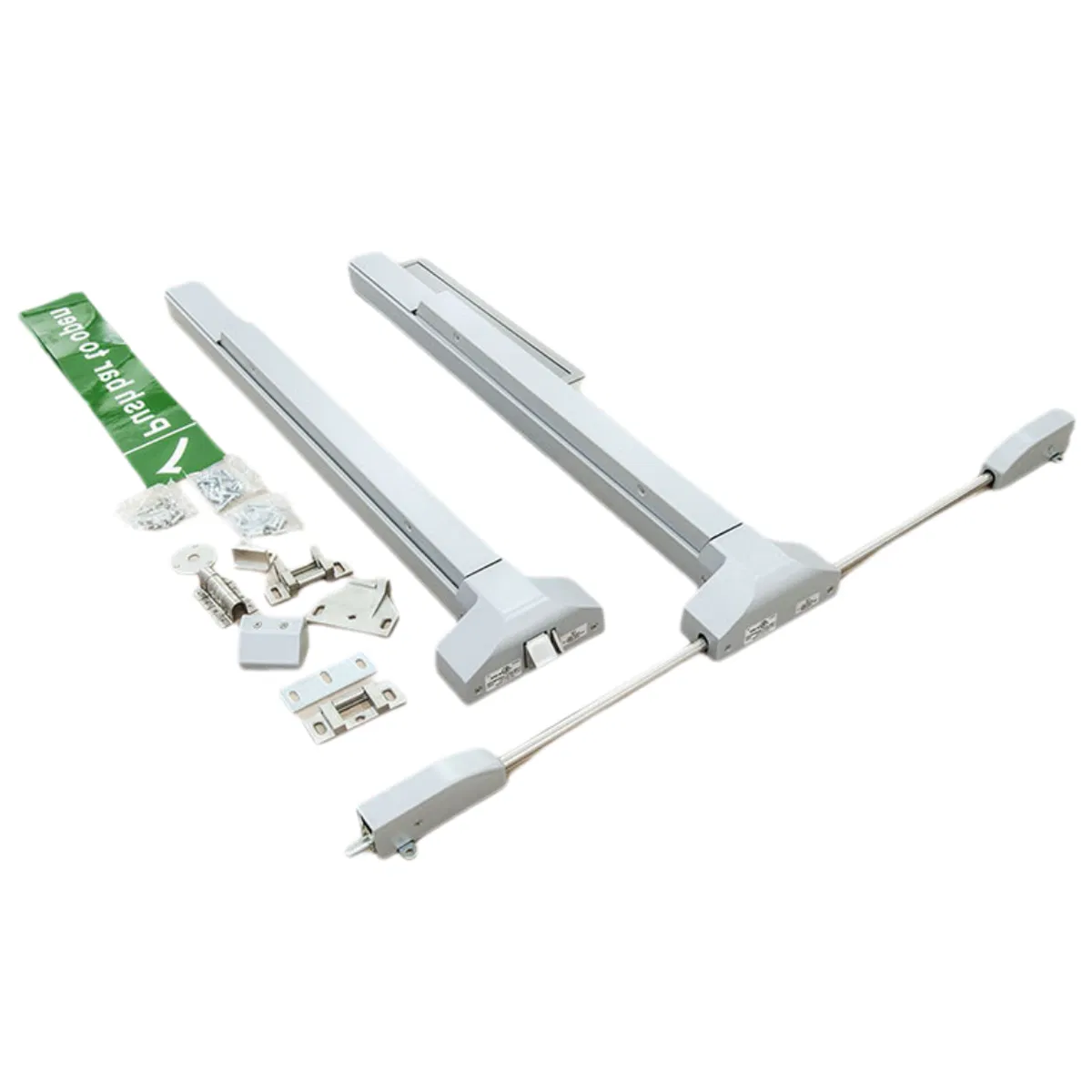

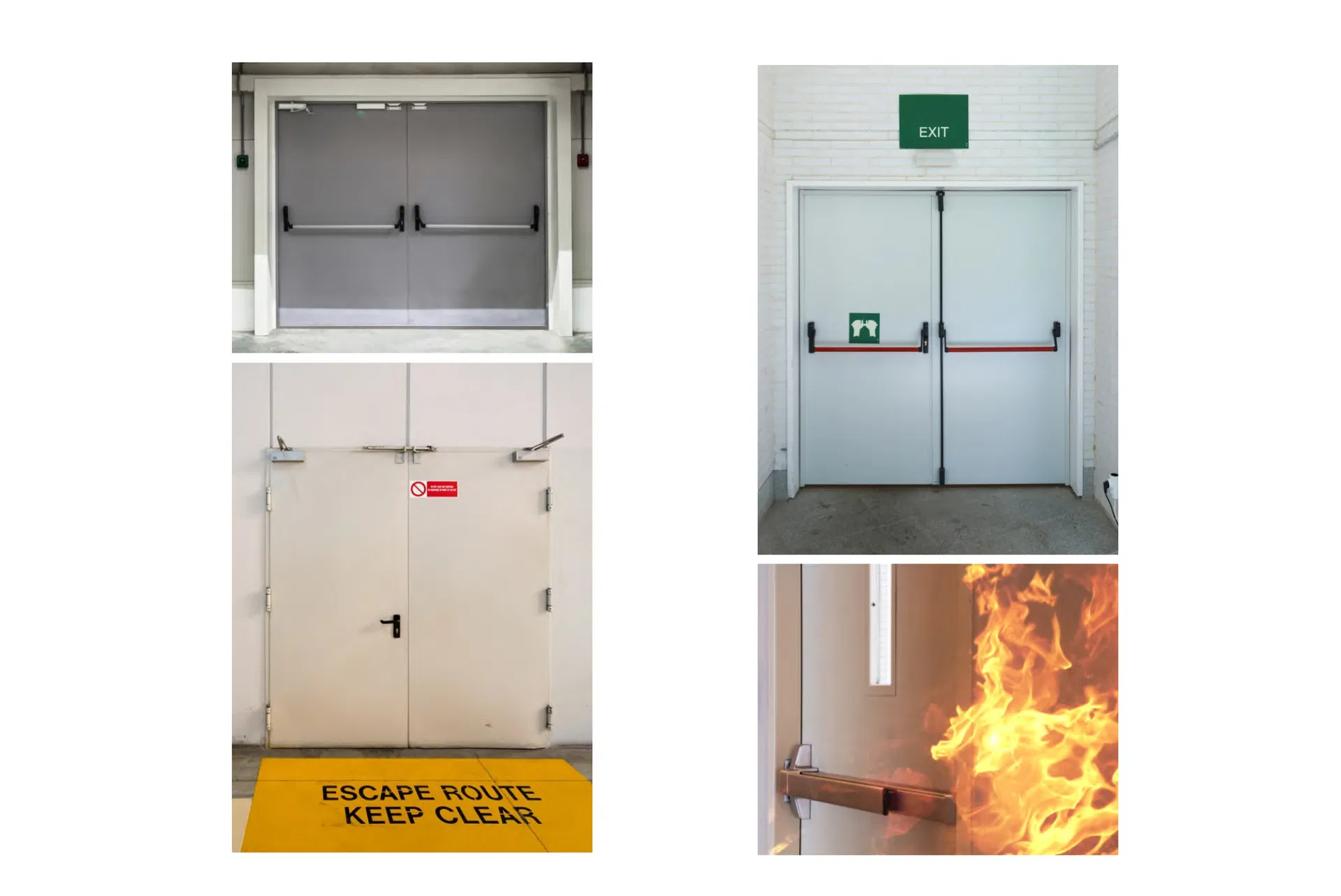

A push bar lock (also called a panic bar lock/crash bar lock) is a mechanical emergency exit lock device installed on interior/exterior doors of public, commercial, and industrial buildings. It features a horizontal push bar that unlocks the door instantly when pressed in the exit direction with minimal force, enabling quick, one-handed egress during emergencies such as fire or panic, while restricting unauthorized entry from the outside.
🚀 CORE FEATURES
- Rim Bulky Type Security Latch bolt
- Touch Bar Length: 550mm | Body Length: 850mm (Adjustable to min 700mm)
- EN1125 & 196min Fire Rated
- CE Certification, UL10C 3 Hours Fire Rated, ANSI/BHMA A156.3-Grade 1
- Silver powder painting (Colors optional)
- Compatible with Outside Trim Lock and cylinder

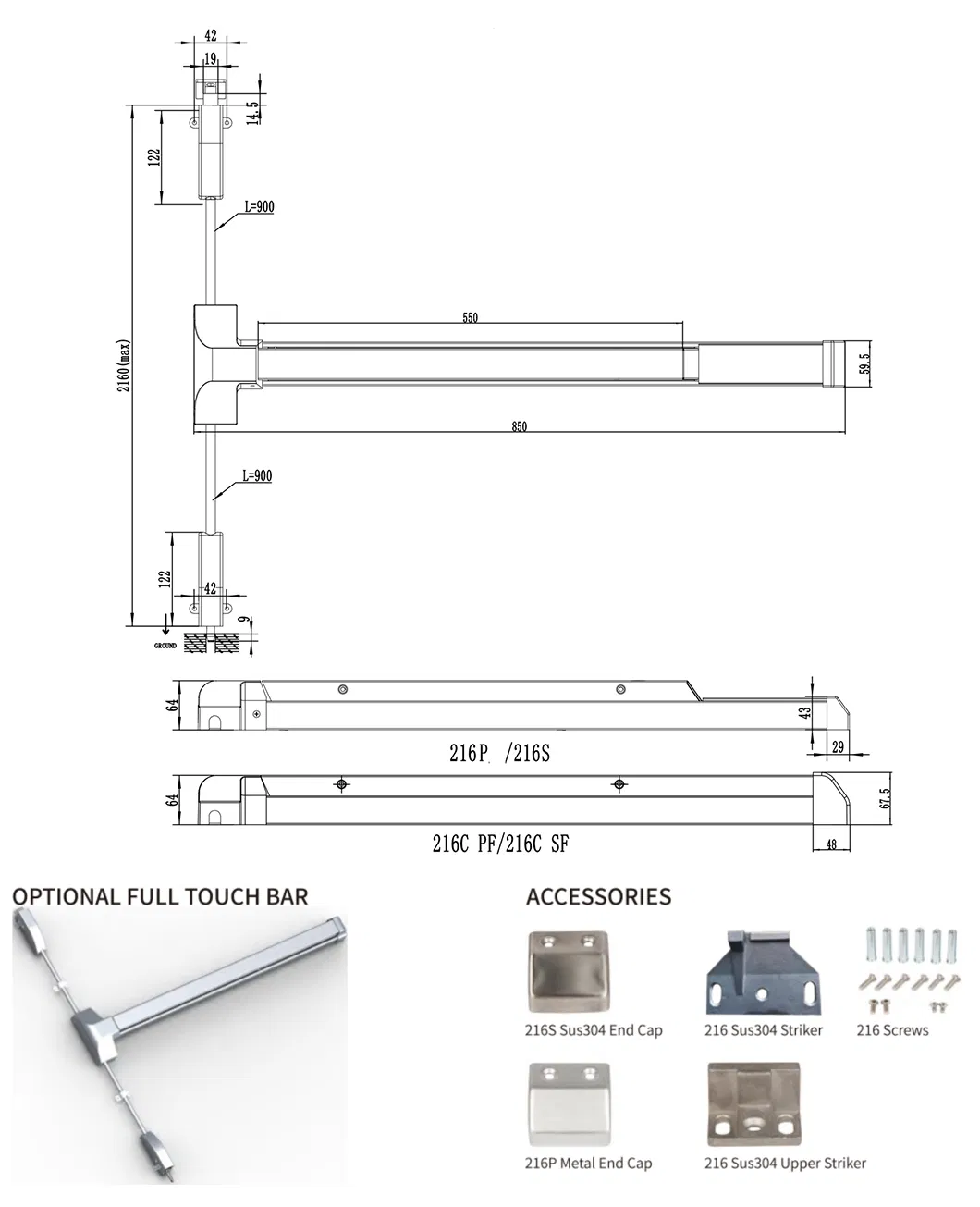

Technical Specifications
| Product Name | Push Bar Lock |
| Type | Vertical Narrow Type |
| Touch Bar Length | 550mm |
| Body Length | 850mm (Can be cutting to min 700mm) |
| Upper & Lower Tube | 900mm |
| Max Door Height | 2160mm |
| Certifications: UL10C 3HOURS FIRE RATED, ANSI/BHMA A156.3-GRADE 1, UL NO: R40947 |

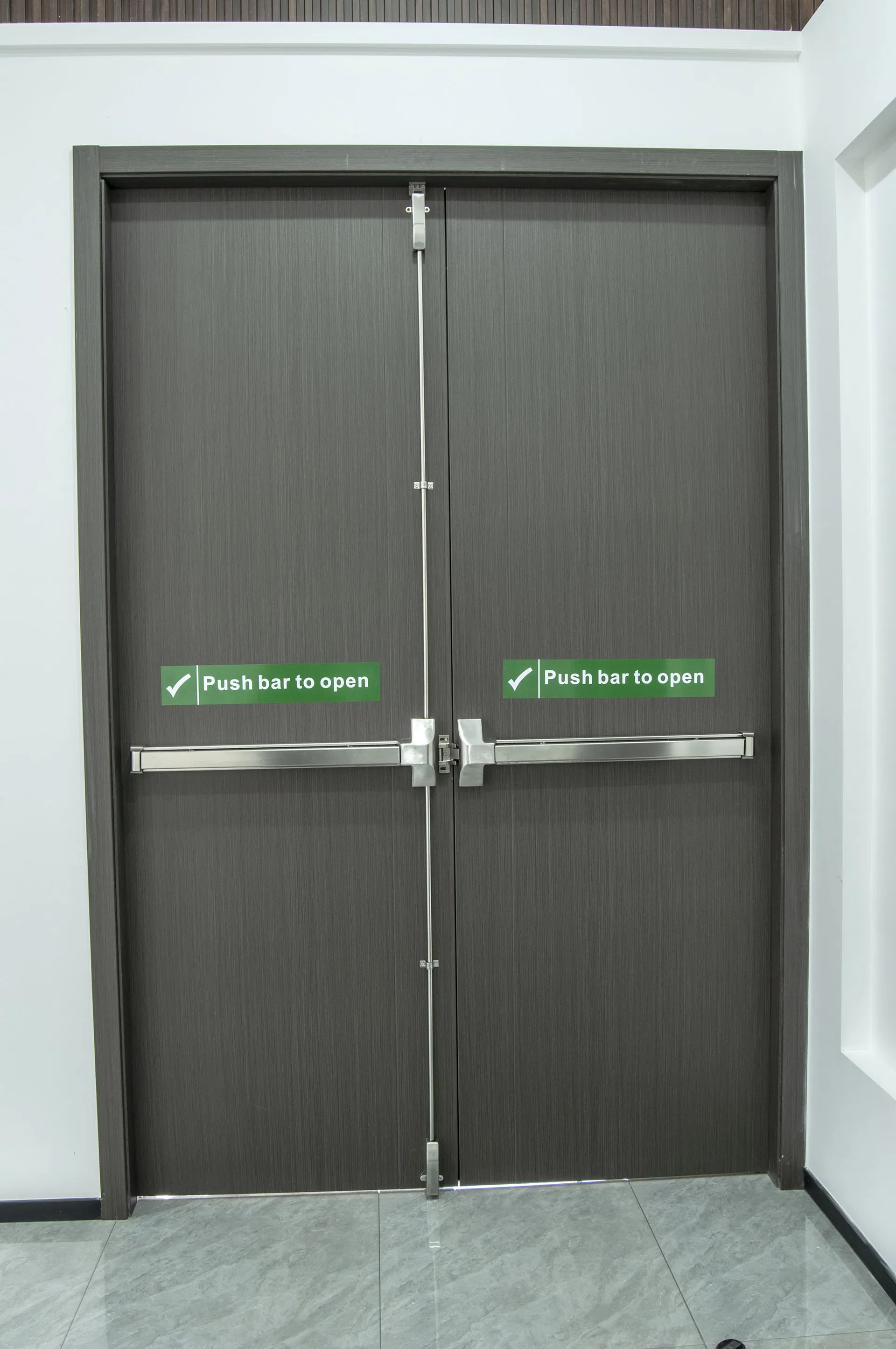

Performance Demonstration
Manufacturing Excellence
We are specializing in the production and marketing of door hardware, furniture hardware, bathroom and glass related hardware. Our core culture is "Quality first, Customer first", providing professional service for clients. We focus on high-quality, fashionable designs, and effective service at competitive prices.

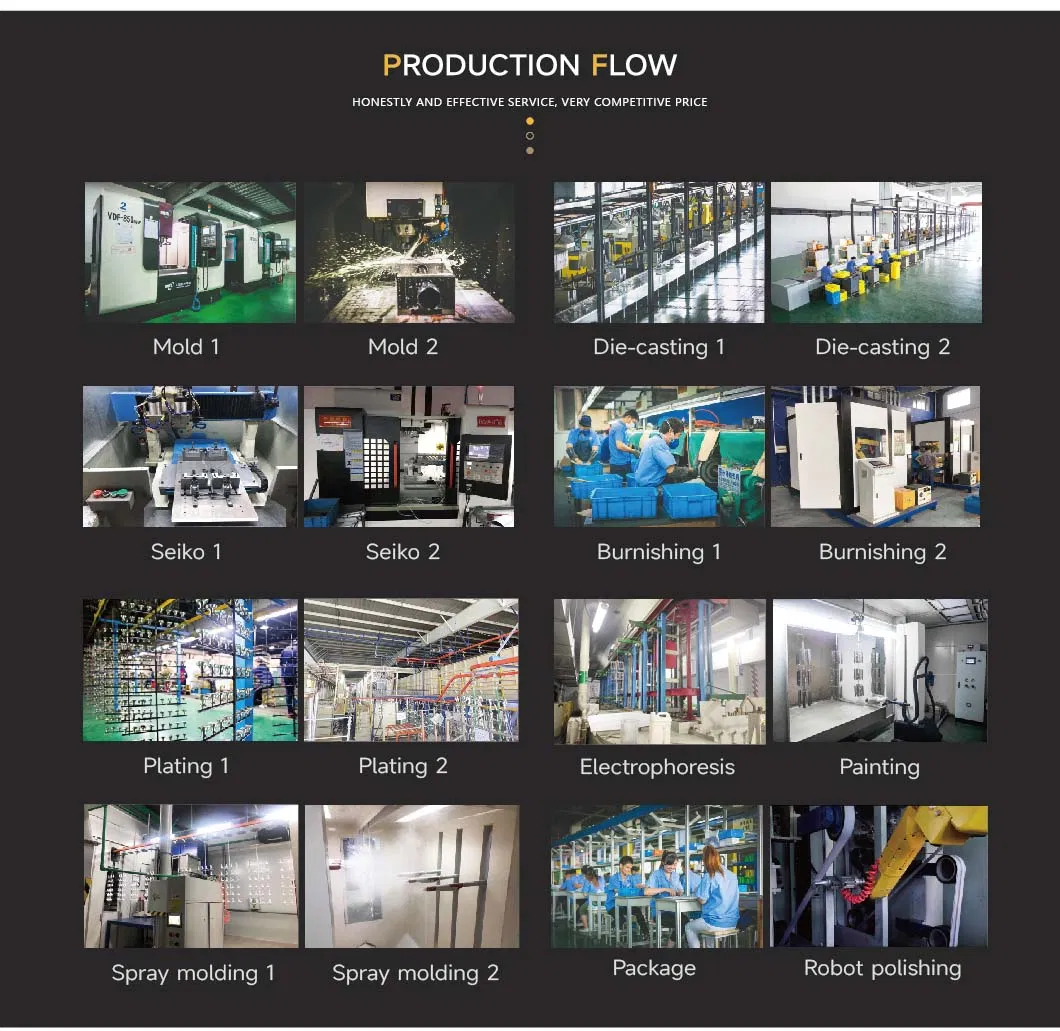

Workshop & Production Flow
Exhibition & Certifications
Packing & Delivery
Frequently Asked Questions
What certifications do your push bar locks have?
Our products are CE and UL certified. The designs strictly follow international standards such as EN1125, UL10C (3-hour fire rating), and ANSI/BHMA Grade 1.
Can the length of the push bar be customized?
Yes, the standard body length is 850mm, but it can be cut down to a minimum of 700mm to fit various door widths. We also offer 1000mm and 650mm cylinders.
Do you support OEM/ODM services for hardware?
Absolutely. We have over 10 years of experience in architectural hardware manufacturing and currently cooperate with several famous brands for OEM and ODM projects.
What is the production capacity and lead time?
Our production capacity is approximately 200,000 pieces per month. Lead times depend on order volume, but we pride ourselves on timely delivery.
How do you ensure product quality?
We operate under a strictly controlled quality system. As an SGS audited factory, every procedure throughout mass production is monitored according to international quality requirements.
What door types and thicknesses are compatible?
This lock is suitable for entrance and anti-theft doors with a thickness between 35mm and 50mm, commonly used in commercial and industrial buildings.
