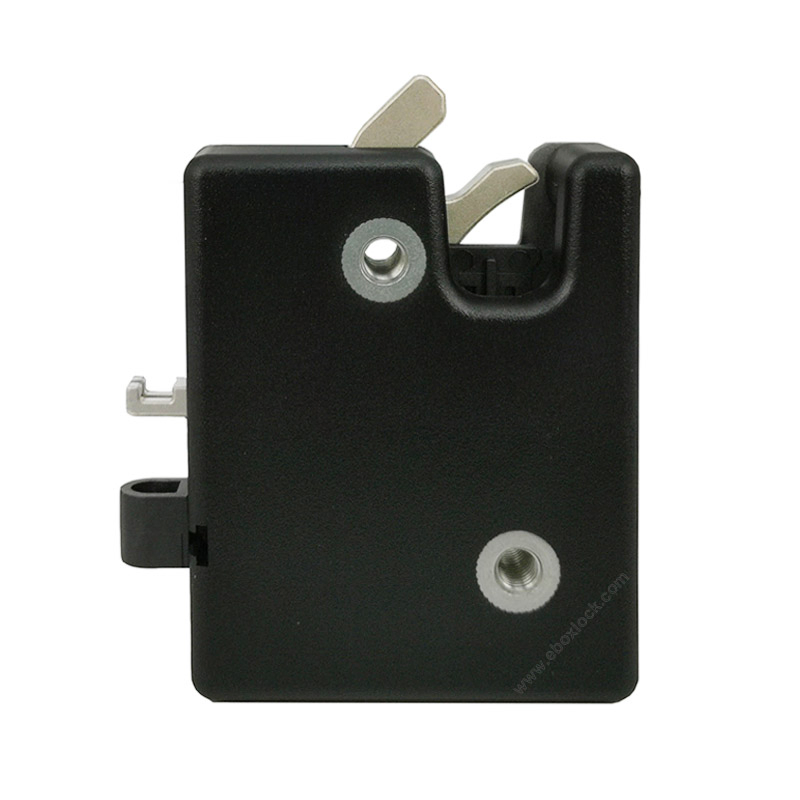

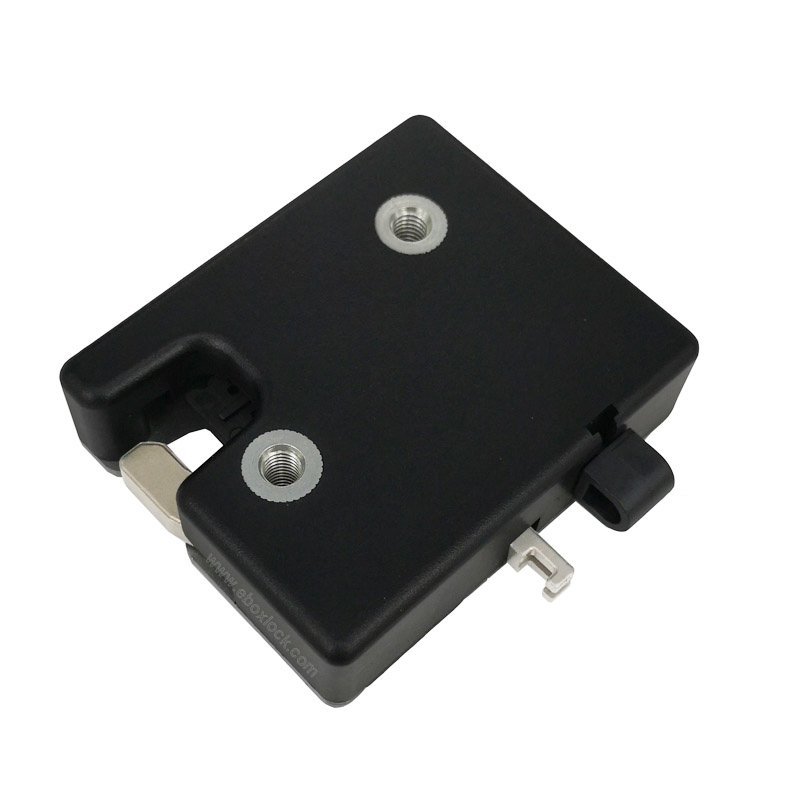

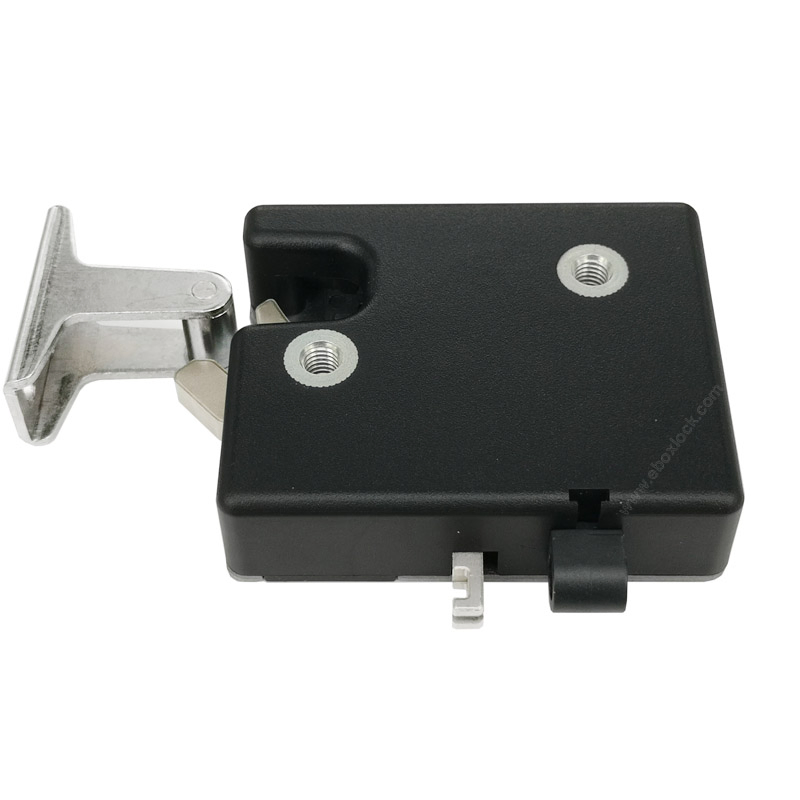

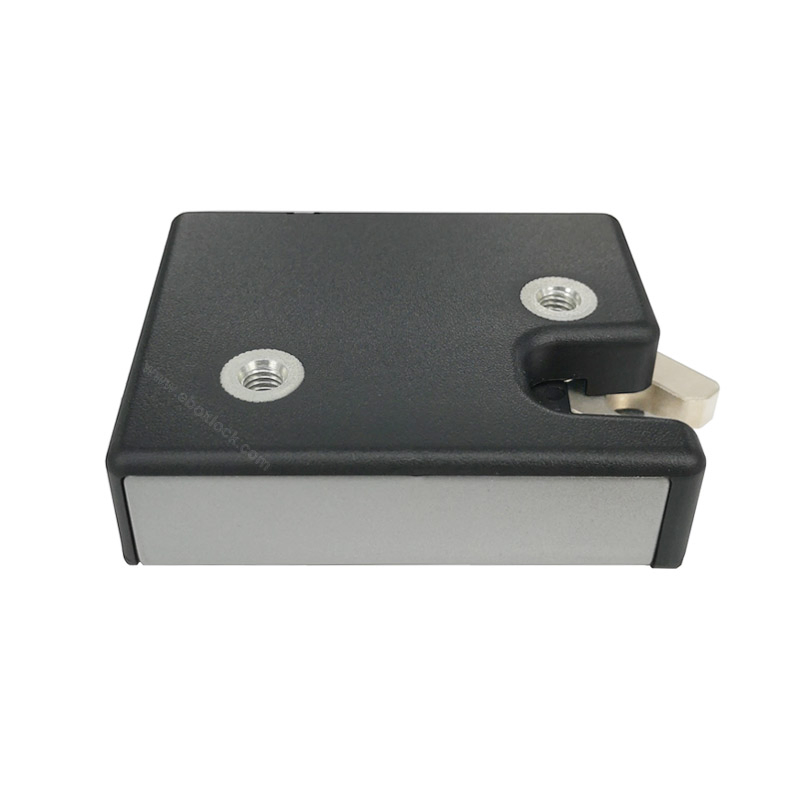

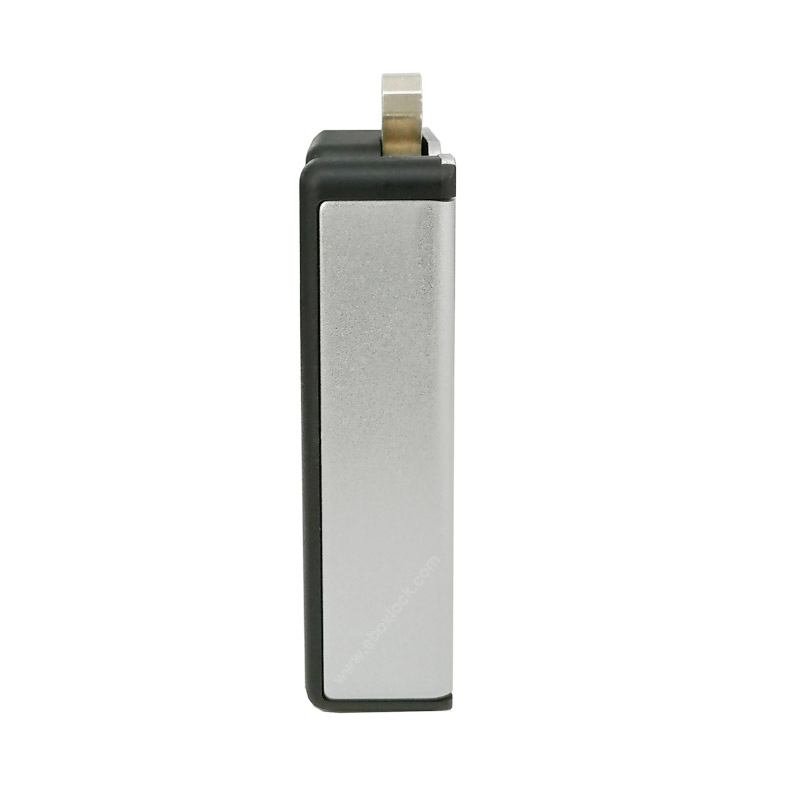

CE Approved 12VDC Specialty Locks DJ5-ASTF is an electric lock driven by gear-motor, which distinguishes it by low power consumption and high load capability. Designed with dual sensors for door and lock for double security. An optional mechanical kits for manual override in case of power failure. With easy push-to-close operation, the latch builds an internal spring rod to push door open when electrified. It simplifies the access control of Power Station Locker, Electronic Locker Lock System and Vending Touch Kiosks.
| Model NO. | DJ5-ASTF |
|---|---|
| Certification | RoHS, FCC, CE |
| Working Principle | Electronically Controlled Lock |
| Power Consumption | 200mA@12VDC or 24VDC |
| Materials | Steel Plus Flame Resistant Plastic |
| Holding Force | Withstand 7000N / 600KG |
| Cycle Testing | 300,000 Cycles |
| Protection Class | IP40 |
| Working Temperature | -20ºC ~ +60ºC |
| Dimensions | 76mm * 62.5mm * 20.3mm |
| Category | Available Options |
| Voltage | 9V / 12VDC / 24VDC |
|---|---|
| Trigger Spring | 4N / 7N / 15N / 21N |
| Mounting | M6 thread (standard) / M6 thru (optional) |
| Material | Steel (standard) / Stainless steel (Optional) |
| Connector | SM (standard) / Molex / KF2510 / PH / RJ11 |

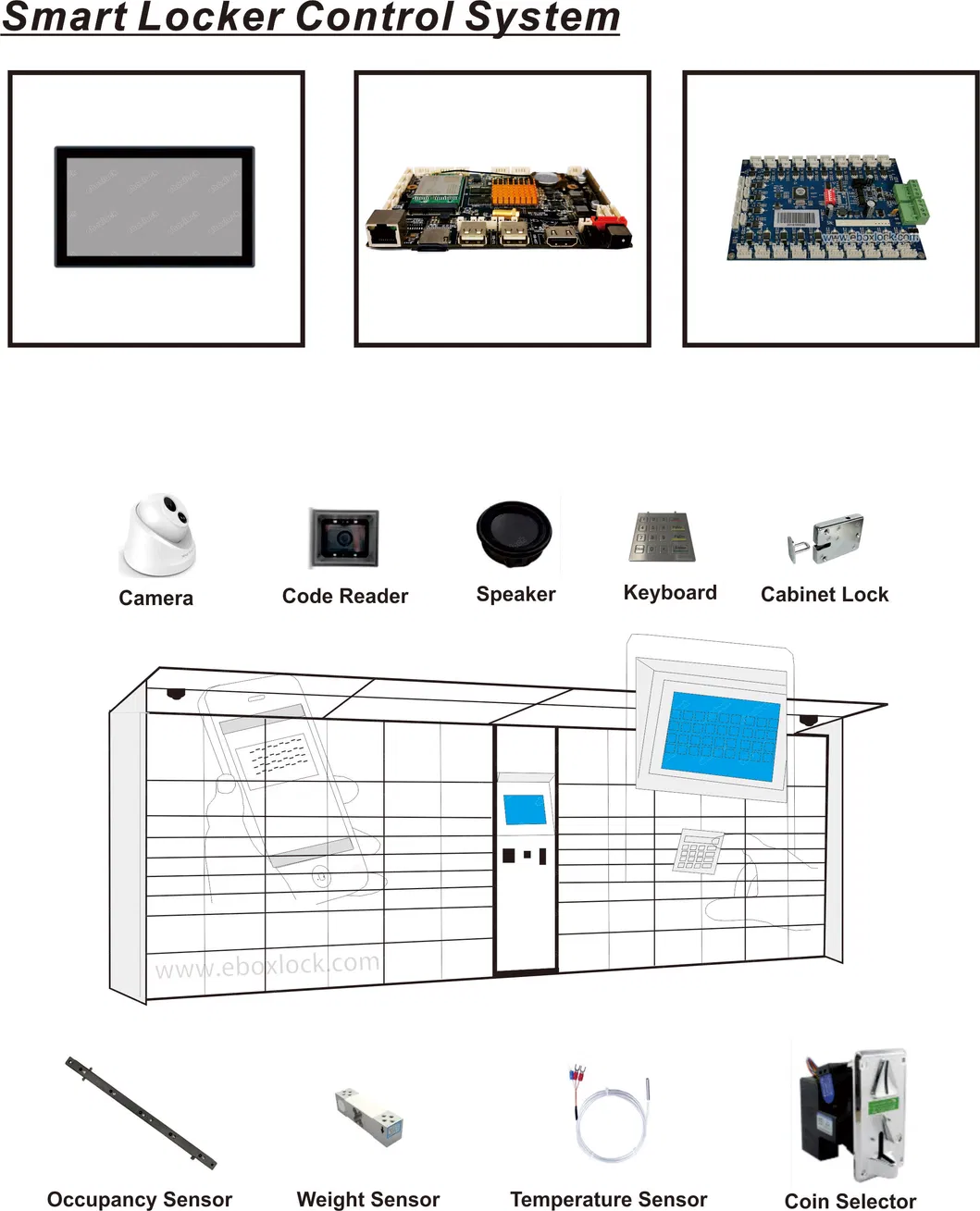

As a designer and manufacturer specializing in electrified locking solutions for lockers, cabinets, and kiosks, we provide tailored designs for size-restricted enclosures or heavy-doored metal cabinets. Our ranges cover electronic cabinet locks, drawer locks, smart parcel locker control systems, and vending machine control hardware.

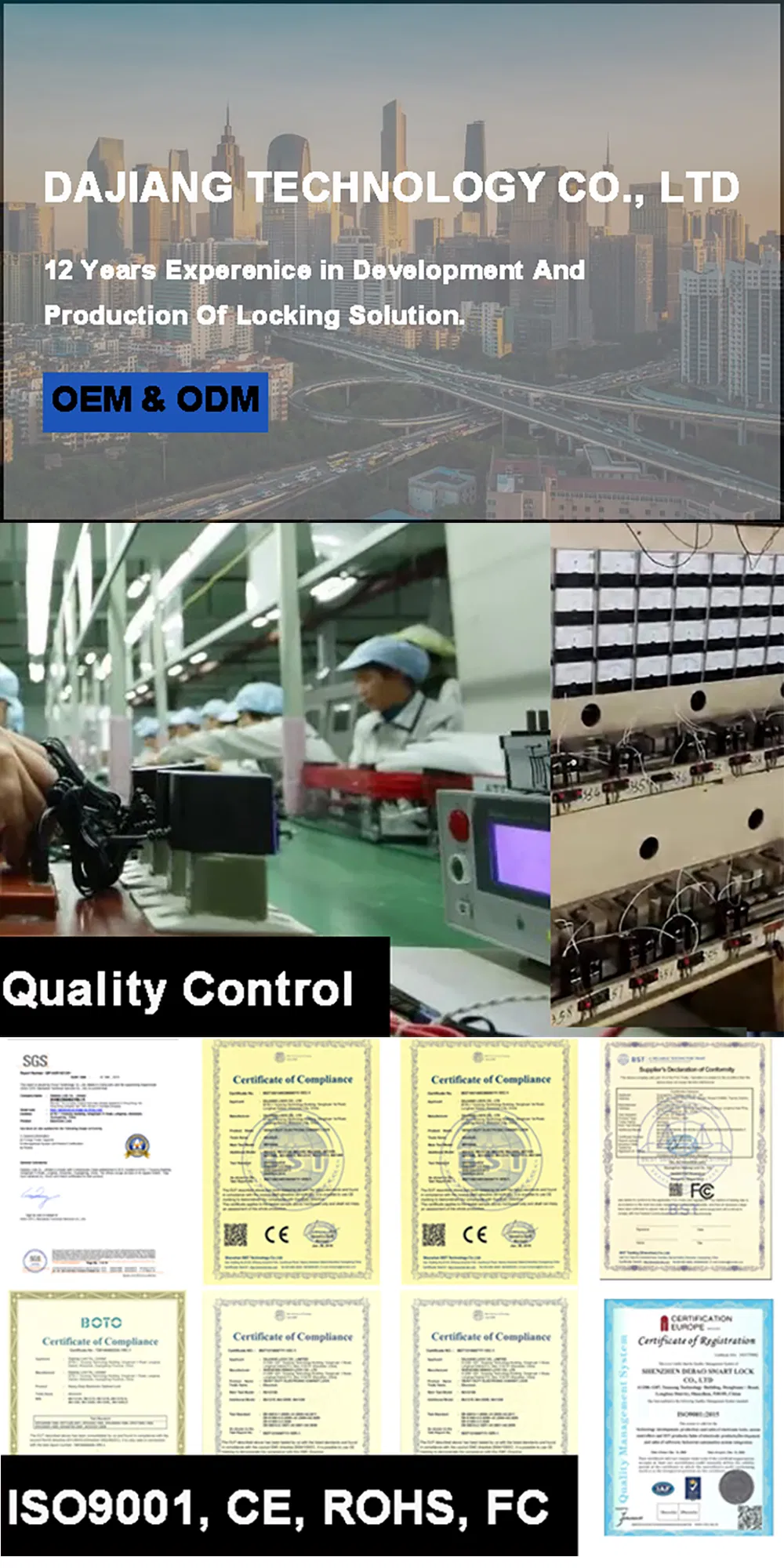

Quality control is integrated into the entire process, with products completing continuous supervision and multistage testing to ensure durability and security for applications like cash drawers, post mailboxes, and key cabinets.
