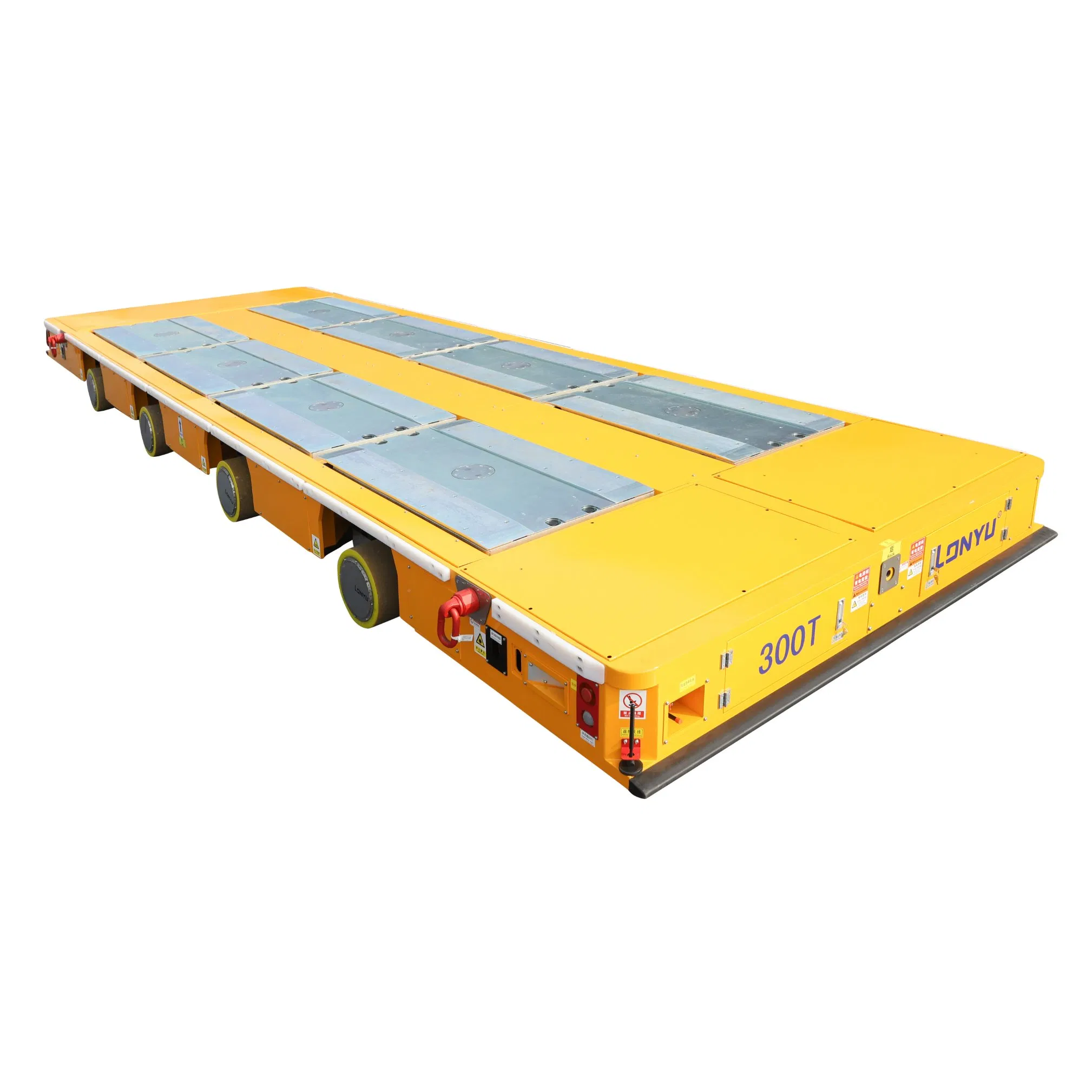

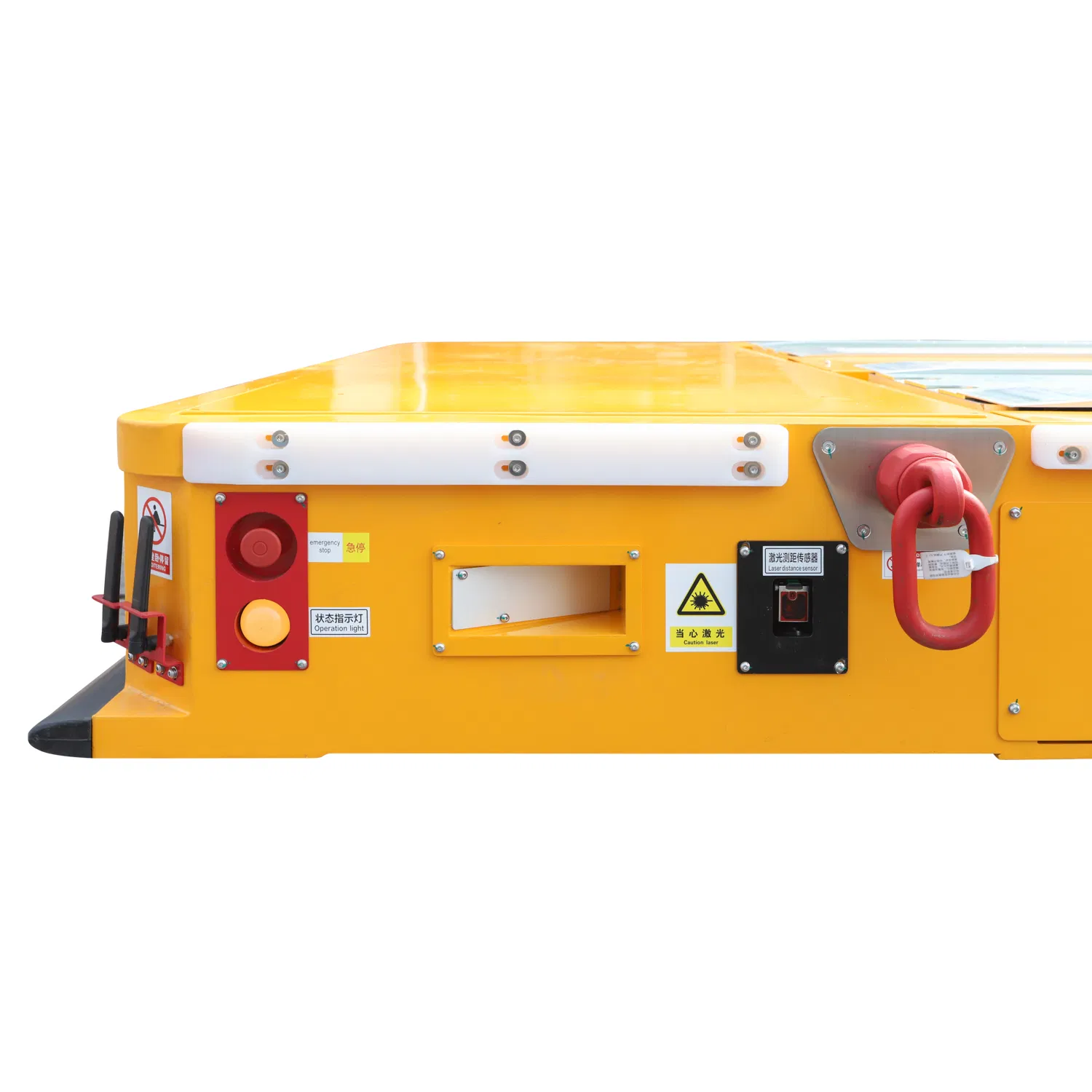

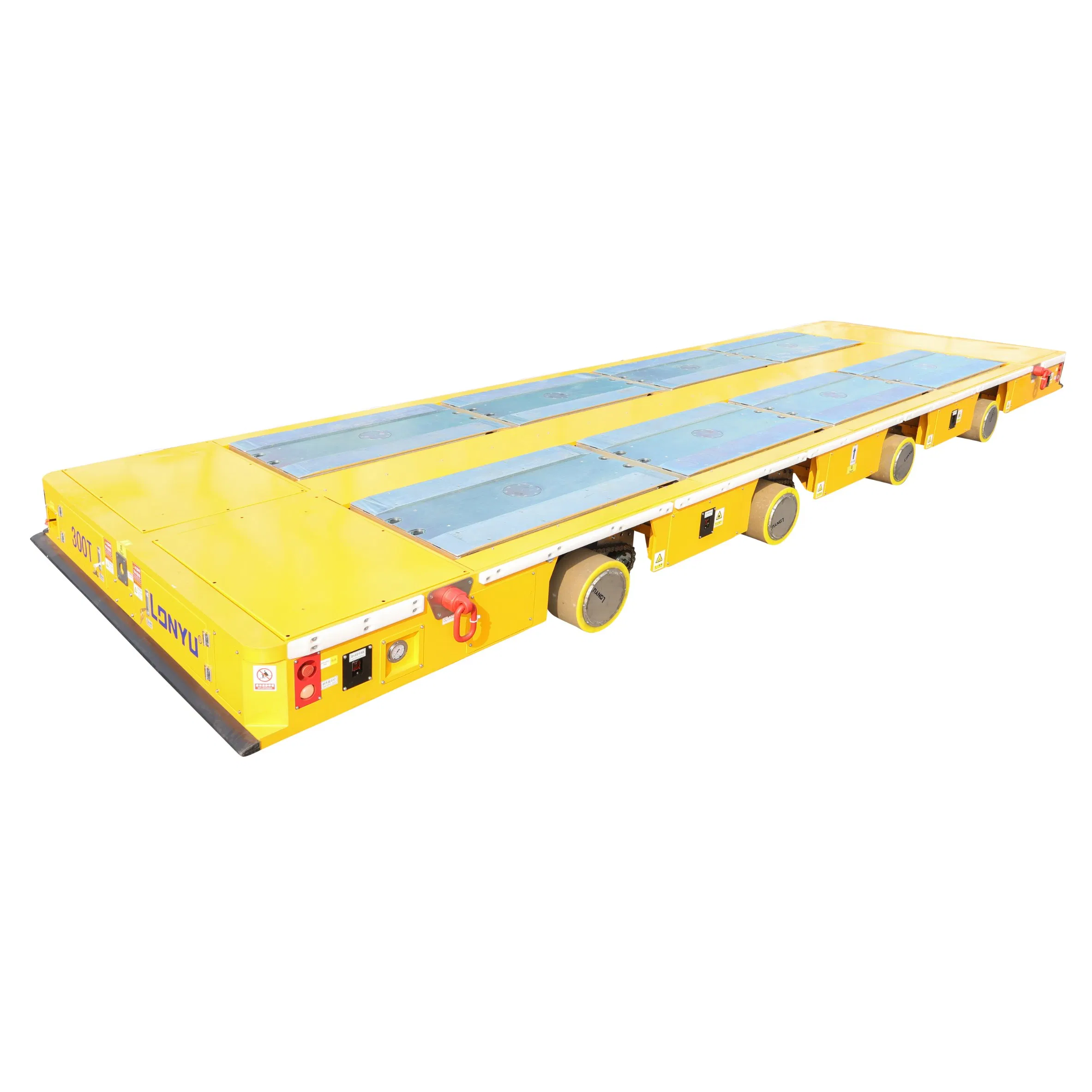

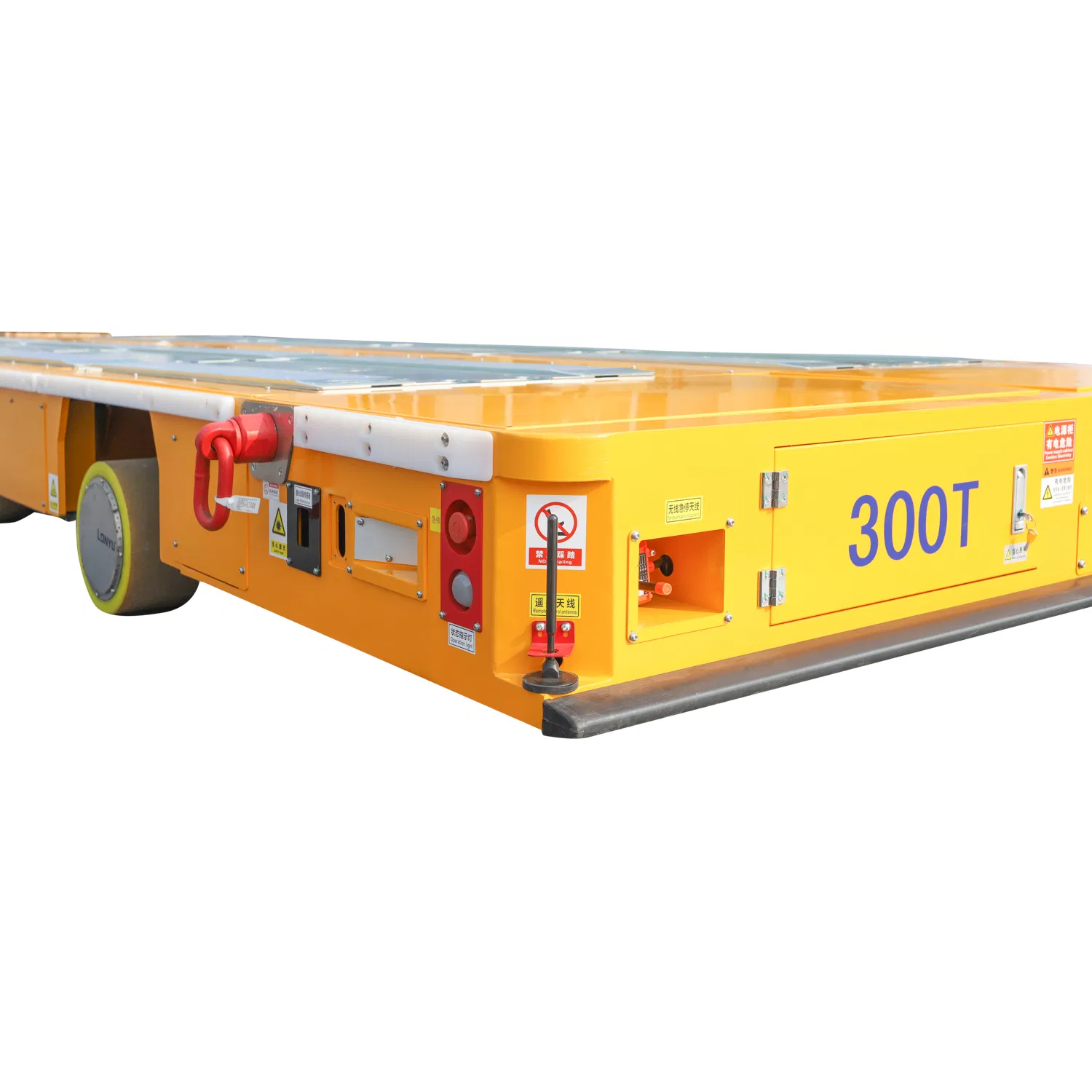

Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart
Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart
Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart
Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart
Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart
1 / 5
Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart
Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart
Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart
Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart
Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart

Autonomous Mobile Robot 120-Ton Material Handling Equipment Transfer Cart

Customization: Available
Control Mode: Manual Remote Control
Drive Mode: Electric
Send Inquiry

Product Description

i
Basic Information
Model NO.
300ton AGV
Load Capacity
120 Ton
Type
AGV (Automated Guided Vehicle)
Certification
CE
Communication
WiFi
Max Load
40000kg
Power Supply
Lithium Battery / External
Design Life
>10 Years
Braking Form
Motor Slow Stop, Power off Parking
Safety Protection
Emergency Stop, Multi-Collision Detection
★
Product Description
120-ton backpack heavy-duty AGV: The heavy-duty 120T adopts all-wheel drive, with a maximum load capacity of 40,000kg, a straight speed of 20m/min, and a turning radius of 2m. It features auxiliary magnetic navigation accuracy of +10mm, laser anti-collision devices, and automatic vehicle body lifting with a maximum stroke of 100mm. This equipment integrates clever mechanical load-bearing design with advanced electrical control, remote diagnosis, big data, and IoT technologies.

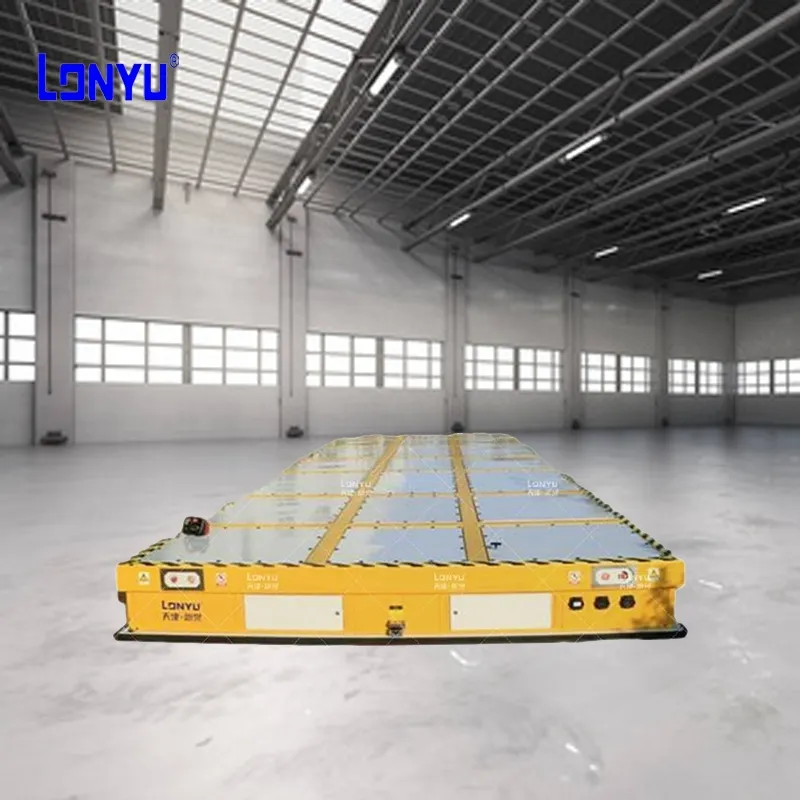

Heavy Duty AGV
AGV Transfer Cart
⚙
Technical Specifications
Rated Load50T (10-500T customizable)Design Load120T
Equipment Weight18TBody ShapeL11000×W4000×H700mm
Driving Wheels6-wheel drive (12 wheels)Walking DirectionStraight, Lateral, Rotation in place
Control MethodManual remote controlGround Clearance150mm
Moving Accuracy±5mmNavigation Accuracy±20mm
Charging Time≤4HTraveling Speed0-30m/min
Lifting Height150mm (Hydraulic)Climbing Ability<3°
Alarm ModeSound and light, 3-color lightEmergency Distance<20mm
✈
Application & Industry Use

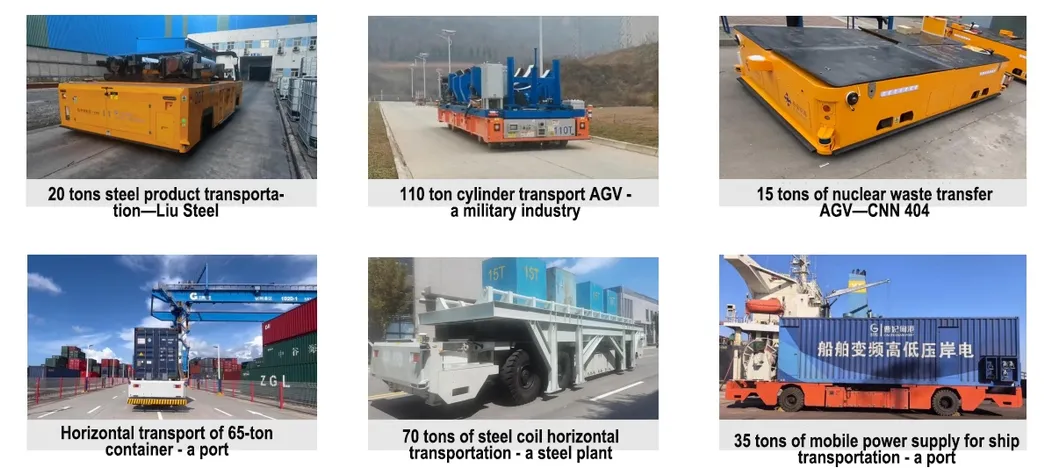

Application 1

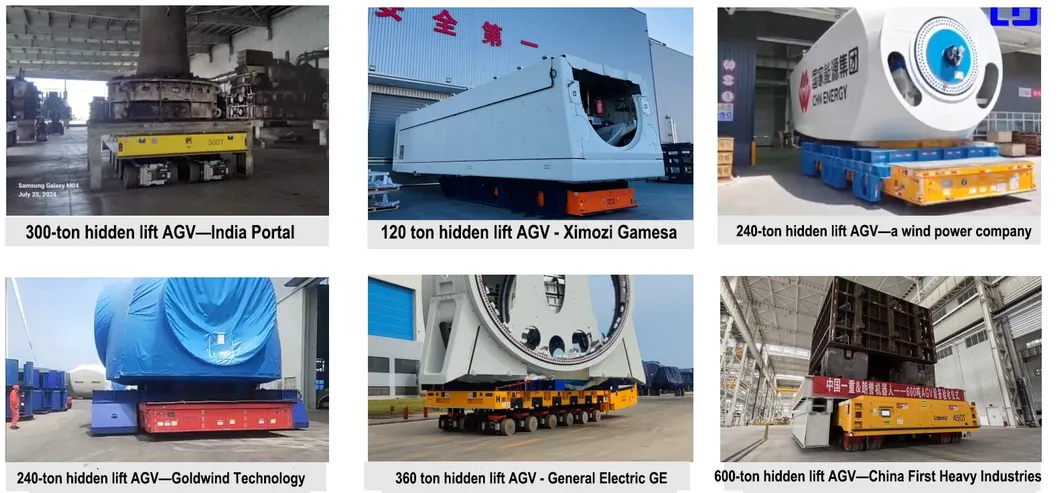

Application 2
✔
Honors & Certifications
Company Honors
Certifications
Profile View
?
Frequently Asked Questions
Would an AGV be a good solution for my facility?
An AGV is an excellent choice for moving materials and components horizontally. You must consider the load weight and travel requirements. It is a highly efficient movable platform for modern logistics.
What are the primary benefits of using heavy-duty AGVs?
They offer easy operation, high safety, and stable performance. Key advantages include automatic lifting, hydraulic independent suspension, anti-collision sensors, and all-round steering adaptability to uneven ground.
In which industries are heavy-duty AGVs typically applied?
They are mainly used in warehousing, manufacturing, ports, airports, and hazardous environments to handle overweight or overlong materials, improving production efficiency and safety.
What is the maximum load capacity and speed of this unit?
This heavy-duty AGV is designed with a maximum load capacity of 40,000kg (120 Ton design load) and can reach a straight traveling speed of up to 20m/min to 30m/min.
What safety features are integrated into the AGV?
The system includes a collision avoidance system, emergency stop buttons, obstacle detection sensors, safety laser scanners, and a comprehensive sound and light alarm system.
What is the expected design life and battery performance?
The equipment is designed for a service life of over 10 years. It utilizes a lithium battery power supply with a charging time of 4 hours or less.
