Product Description

i
Basic Specification
Model NO.
W2R 3P
Certification
CE
Poles
1p/2p/3p/4p
Output type
Dual
Rated Current
16A 20A 25A 32A 40A 50A 63A 100A
Mounted
DIN Rail
Insulation Voltage
AC 690V
Rated Frequency
50/60Hz
Rated Working Voltage
110V/220V
Impact-Resistant Voltage
8ka
Tse Class
PC
Standard
IEC60947-6-1
✓
Product Description

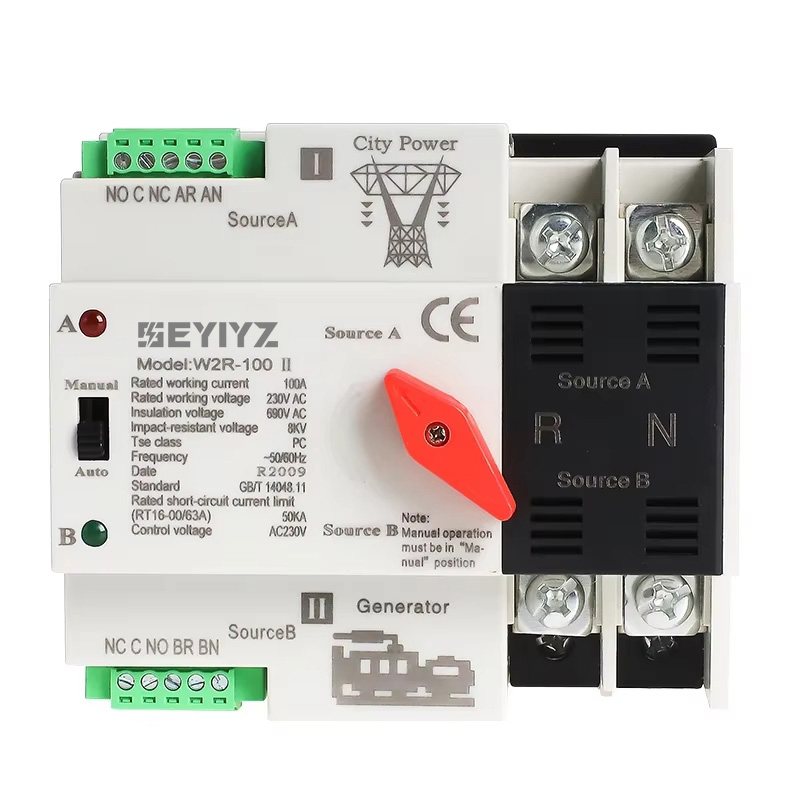

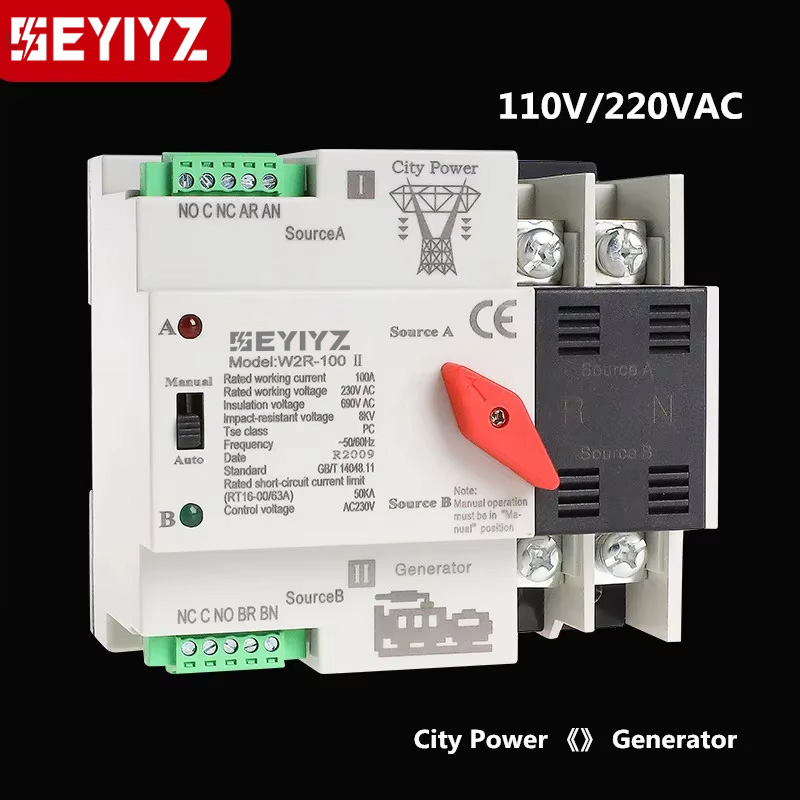

Mini ATS 2P Automatic Transfer Switch Electrical Selector Switches Dual Power Switch ATS
W2R series Mini ATS Dual Power Automatic Transfer Switch is PC Level, new developed micro household power transfer switch. When the normal city power is abnormal, the back up power works at once, no Interrupt, ensures the continuity, reliability, and safety of power supply.

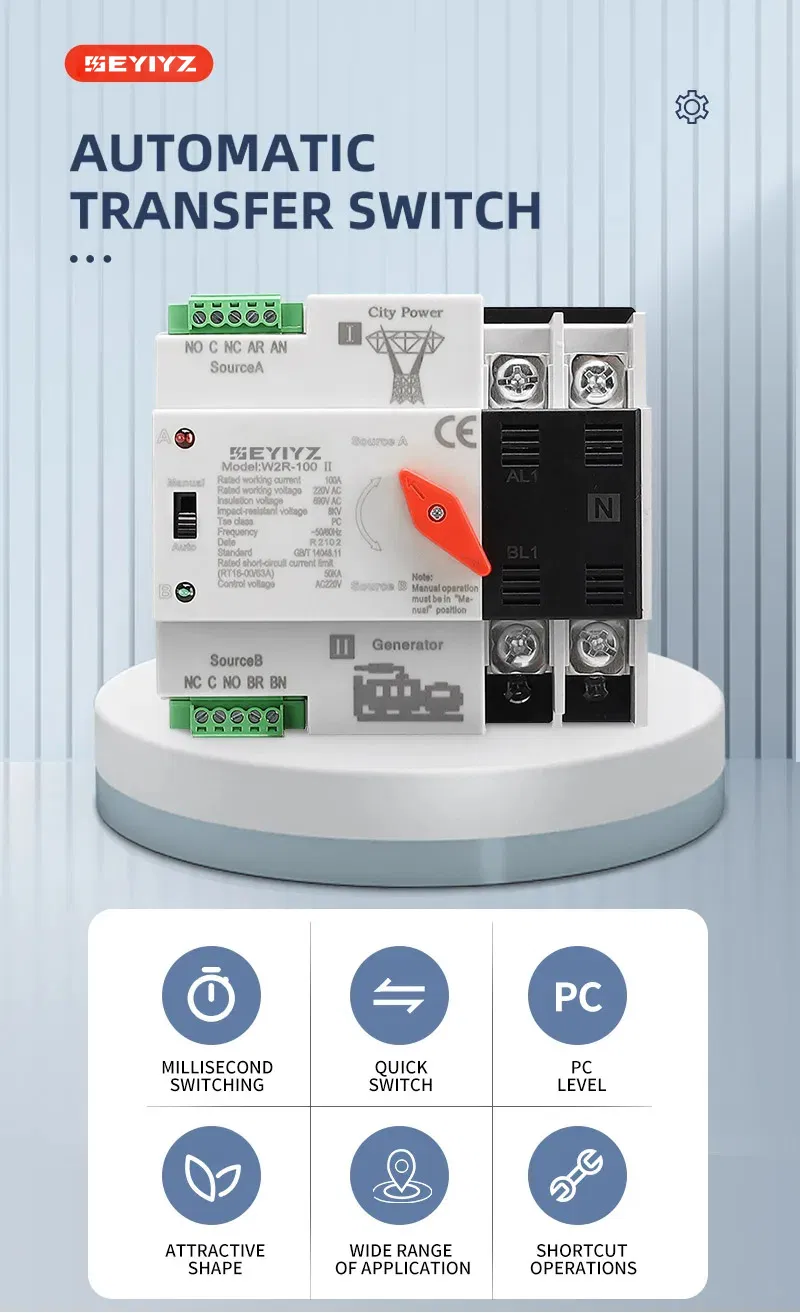

Automatic Transfer Switch Overview

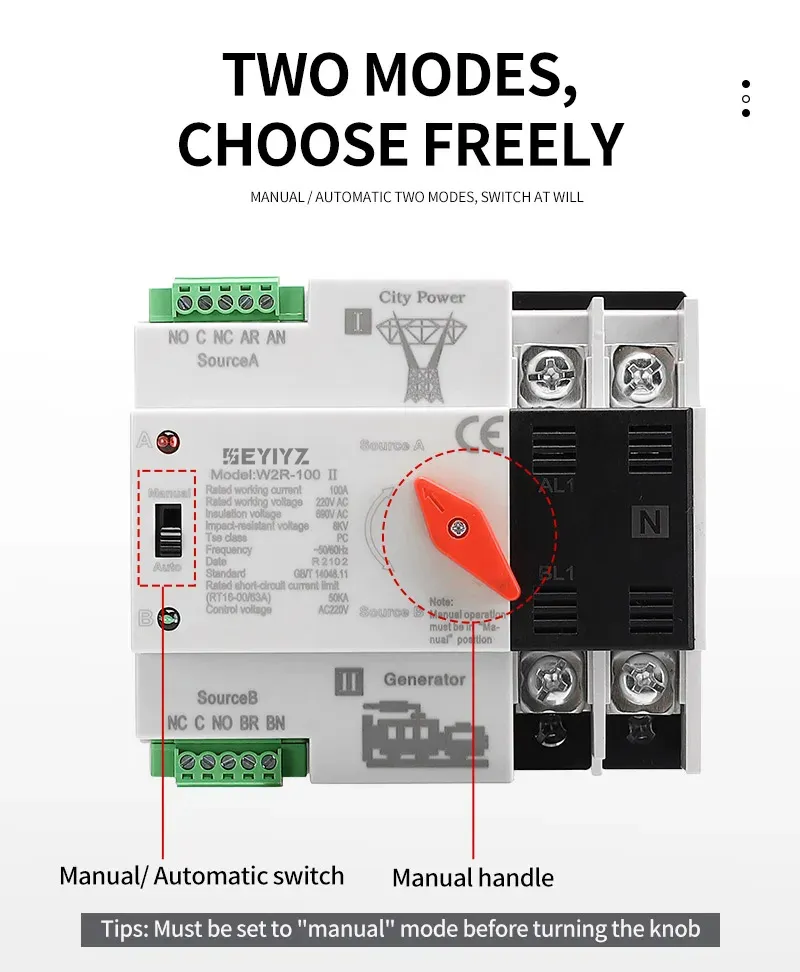

Dual Power Switch Details

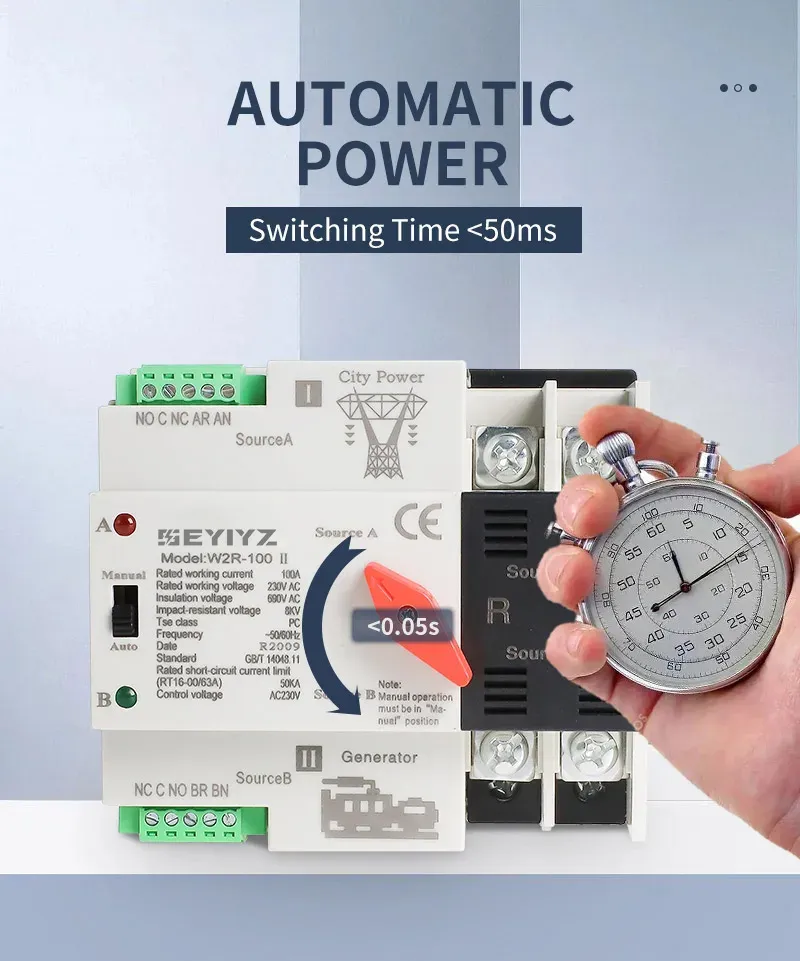

ATS Selector Switch

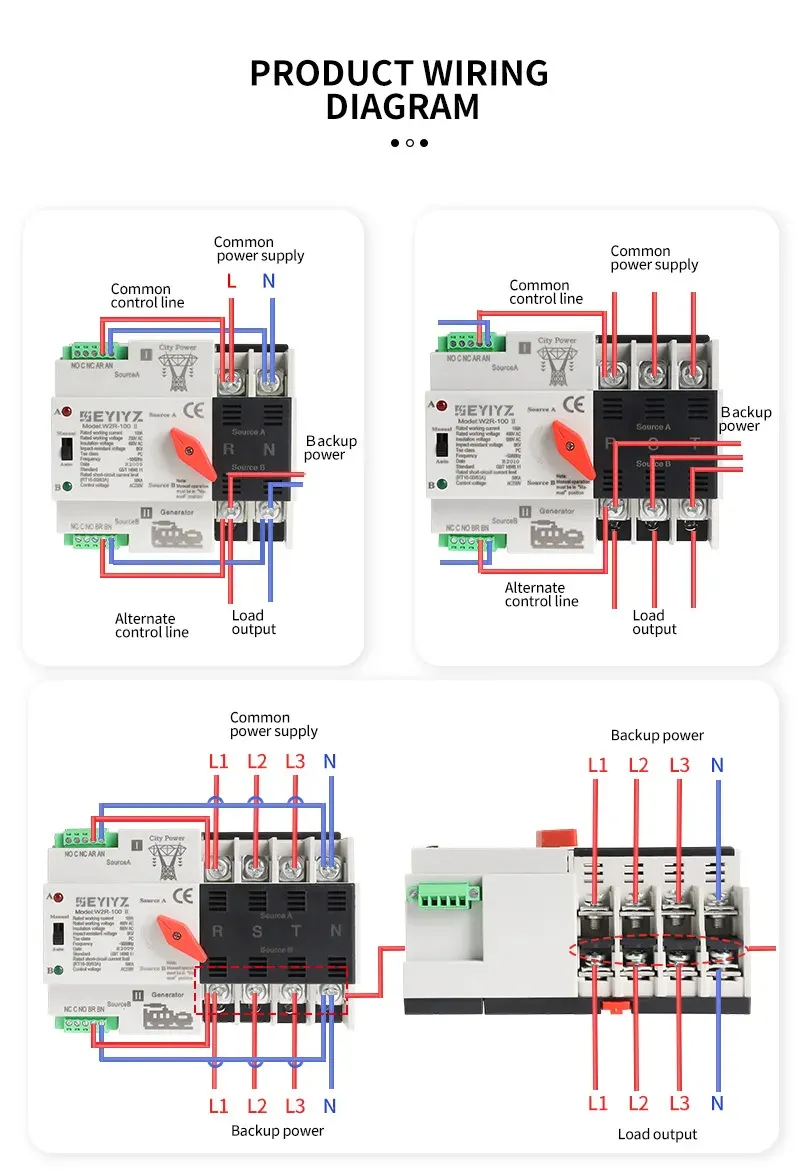

Electrical Transfer Switch
Mini ATS Installation

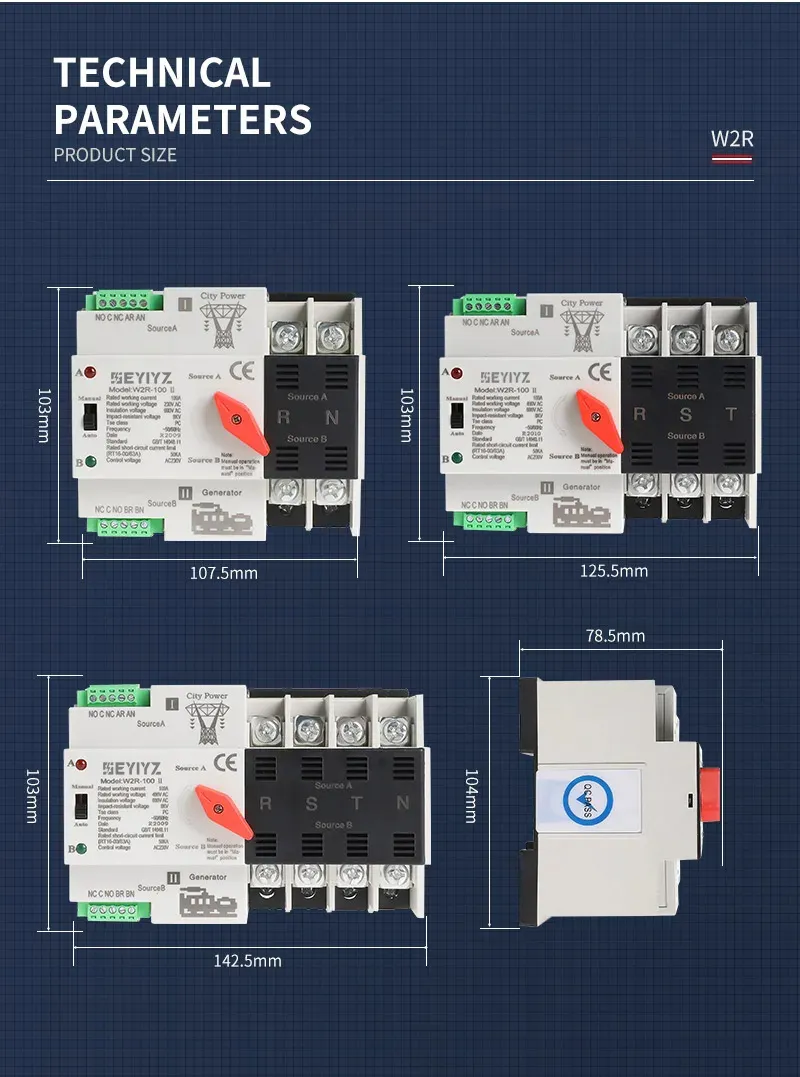

220V Transfer Switch

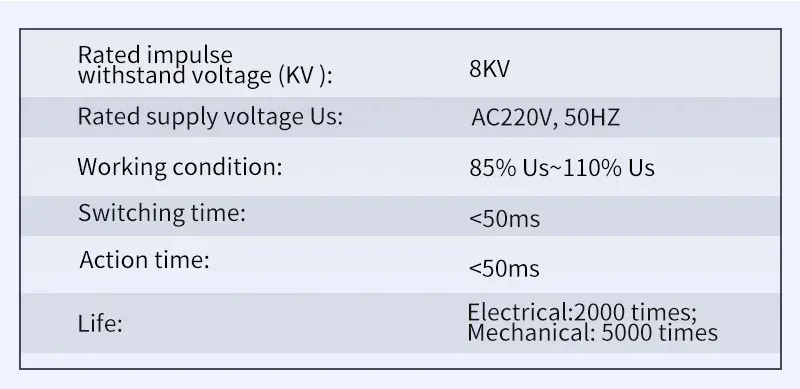

Automatic Changeover Switch

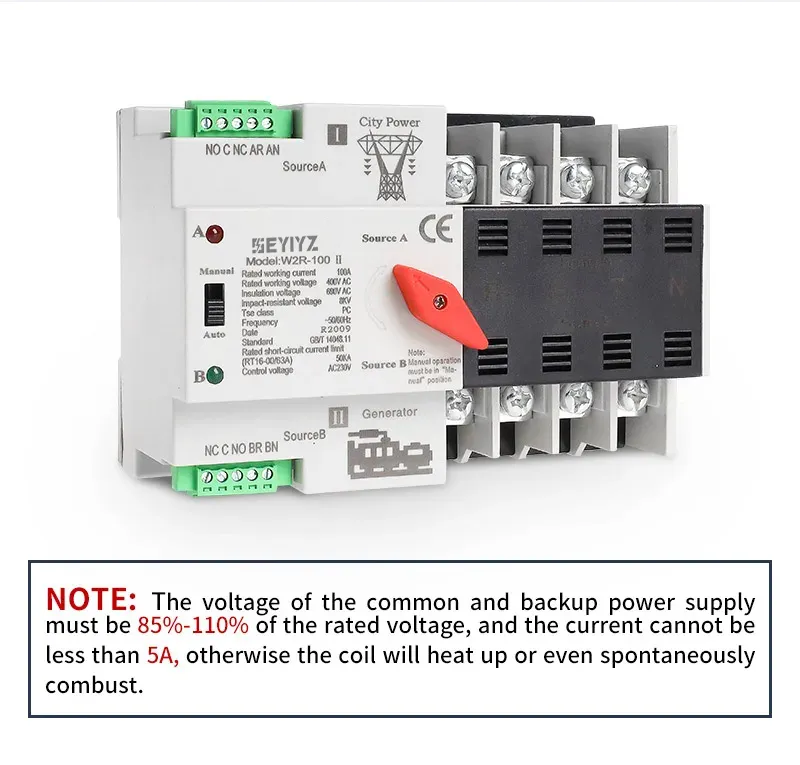

Power Selector Switch

Seamlessly change power sources in residential setting, hospitals, cold storage unit, or emergency systems during failures or generator activation.

?
Frequently Asked Questions
1. What is the transfer speed of the W2R series Mini ATS?
The W2R series is a PC-level switch designed for ultra-fast switching. It ensures no interrupt in the power supply, making it ideal for household and critical emergency systems.
2. Can this switch be mounted on a standard DIN rail?
Yes, this device is specifically designed for DIN rail mounting, allowing for easy installation in standard electrical distribution boxes.
3. What voltages are supported by this Automatic Transfer Switch?
The W2R series supports rated working voltages of 110V and 220V at a frequency of 50/60Hz, covering most residential and light commercial requirements.
4. Is the W2R ATS compatible with solar or generator power?
Yes, it is designed as a dual power switch that can automatically switch between city power and a backup source such as a generator or an inverter-based system.
5. What safety certifications does this product hold?
The product is CE certified and manufactured according to the IEC60947-6-1 standard, ensuring high reliability and safety for electrical operations.
6. What current ratings are available for this model?
We offer a wide range of rated currents including 16A, 20A, 25A, 32A, 40A, 50A, 63A, and up to 100A to suit different load requirements.

Related Products

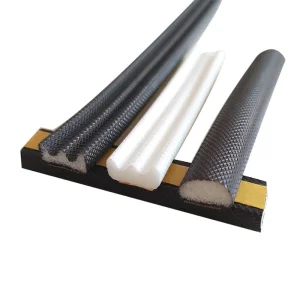

Self Adhesive Sound Proo PU Foam Door Sealing Weather Strip

Self Adhesive Sound Proo PU Foam Door Sealing Weather Strip
Electronic Cabinet Lock with Reporting and Manual Override

Electronic Cabinet Lock with Reporting and Manual Override
China Manufacture Custom Bugle Head Drywall Screw/Self Drilling Screw/Tapping Screw/Chipboard Screw/Wood Screw/Machine Screw/Furniture Screw

China Manufacture Custom Bugle Head Drywall Screw/Self Drilling Screw/Tapping Screw/Chipboard Screw/Wood Screw/Machine Screw/Furniture Screw
ANSI UL Fire Commercial Double Door Panic Exit Device Push Bar Lock Hardware

ANSI UL Fire Commercial Double Door Panic Exit Device Push Bar Lock Hardware
China Screw Fastener Bugle Phillips Head Drywall Screws Fine Thread Black Drywall Screw Factory

China Screw Fastener Bugle Phillips Head Drywall Screws Fine Thread Black Drywall Screw Factory

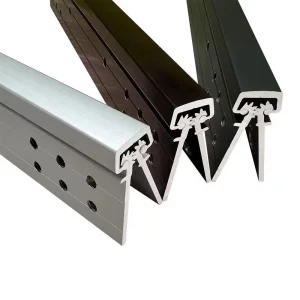

Heavy Duty Industrial Aluminum 83 Inches Continuous Geared Hinge for Swing Door

Heavy Duty Industrial Aluminum 83 Inches Continuous Geared Hinge for Swing Door
Durable Adjustable Threshold for Corrosion Resistance in Buildings

Durable Adjustable Threshold for Corrosion Resistance in Buildings
Whole Set 304 Stainless Steel Multi-Functional Kitchen Sink Big Single Bowl with Single Handle Pull Down Sink Kitchen Faucet

Whole Set 304 Stainless Steel Multi-Functional Kitchen Sink Big Single Bowl with Single Handle Pull Down Sink Kitchen Faucet
Durable PVC Door Bottom Seal Strip Door Sweep Weather Stripping for America

Durable PVC Door Bottom Seal Strip Door Sweep Weather Stripping for America

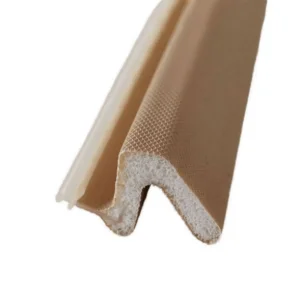

Durable Sealing Gasket for Enhanced Home Insulation and Comfort Door Seal PU Foam Sealing Strip Weatherstripping Sealing Strip
