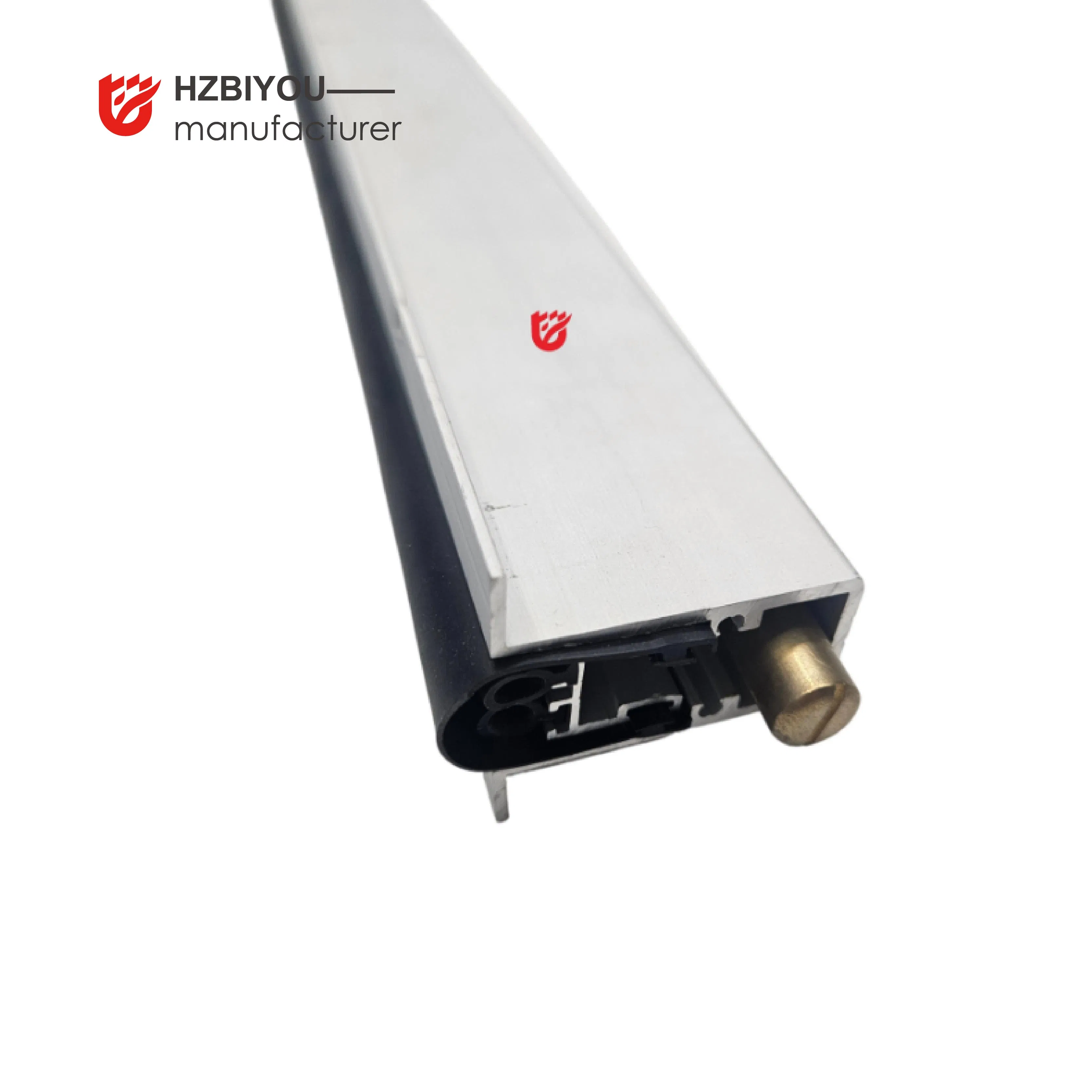

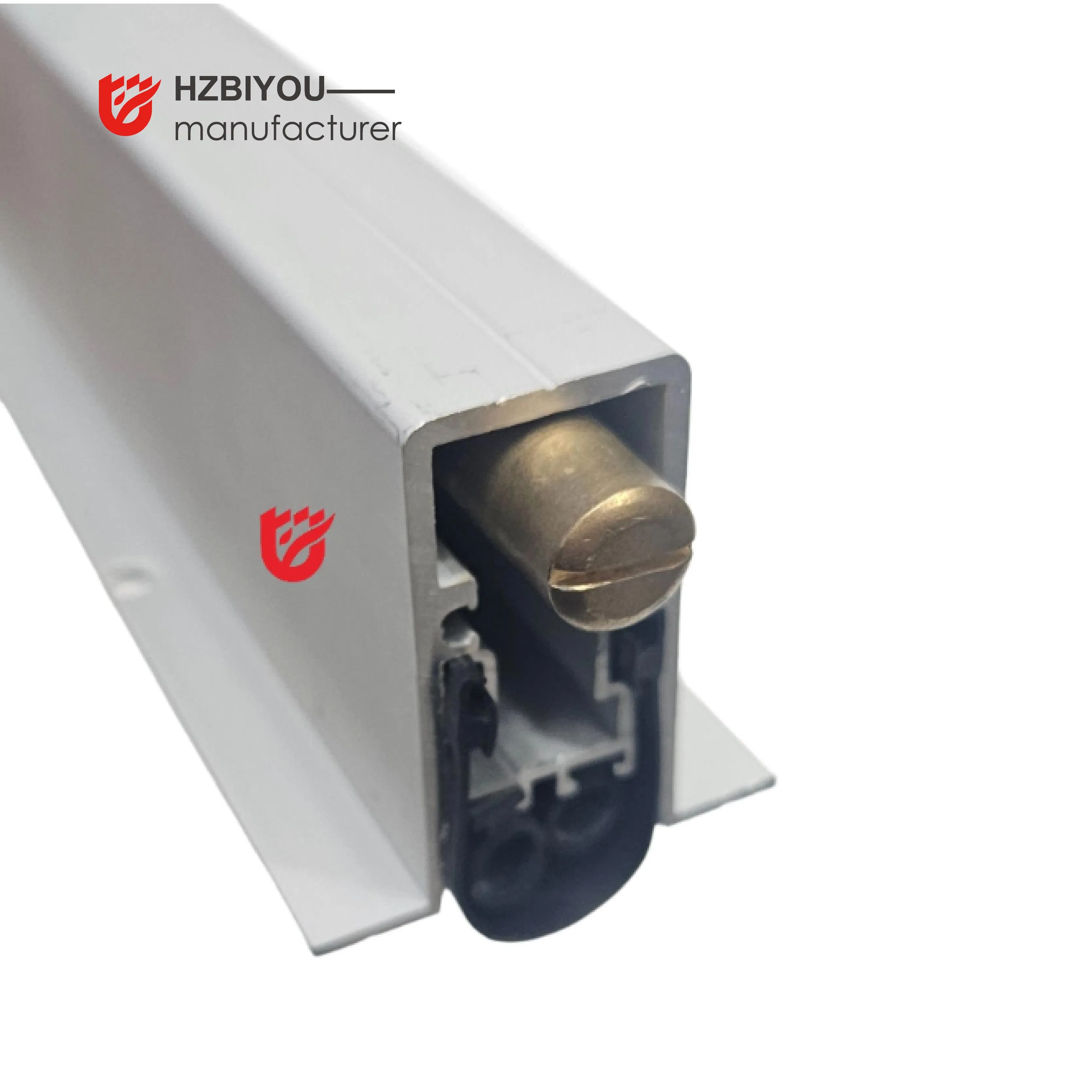

Aluminium Door Sweep Automatic Door Bottom Sweep

📋 Basic Info.

Model NO.

BY-ADDS-K

Warranty

2 Years

Type

Door Drop Seal

Min / Max Gap

3-13mm

Seal Color

Black, Grey

Surface Finish

Aluminium Anodised 15 Microns

Location

Install on Bottom of Doors

Function

Smoke & Sound Barrier

Transport Package

30PC/Carton

Specification

380-1200mm

Trademark

BY

HS Code

7610900000

🔍 Product Description

Acoustic Door Drop Seals are designed for the gap between the door bottom and floor. They provide an excellent barrier to airborne sound, ensuring the acoustic attenuation provided by a door set. This heavy-duty, concealed automatic door bottom seal is mortised into the bottom edge of single action doors.

It operates automatically by a spring-loaded mechanism which lifts the seal clear of the floor as soon as the door is opened. The sealing gap ranges from 3mm to 13mm.

Specification Item	Details
Product Name	Acoustic Door Drop Seal
Material	Aluminium Alloy + EPDM Rubber Seal
Dimension (mm)	20x34
Gap (mm)	Min. 3 mm / max. 13 mm
Standard Length (mm)	600mm, 820mm, 920mm, 1070mm, 1220mm
Seal Color	Black, Grey
Fixing	Concealed, with supporting stainless steel plates

📏 Cutting Back Length

Seal Original Length	Can be Cut Back to
1220mm	1070mm
1070mm	920mm
920mm	820mm
820mm	600mm
600mm	380mm
380mm	295mm

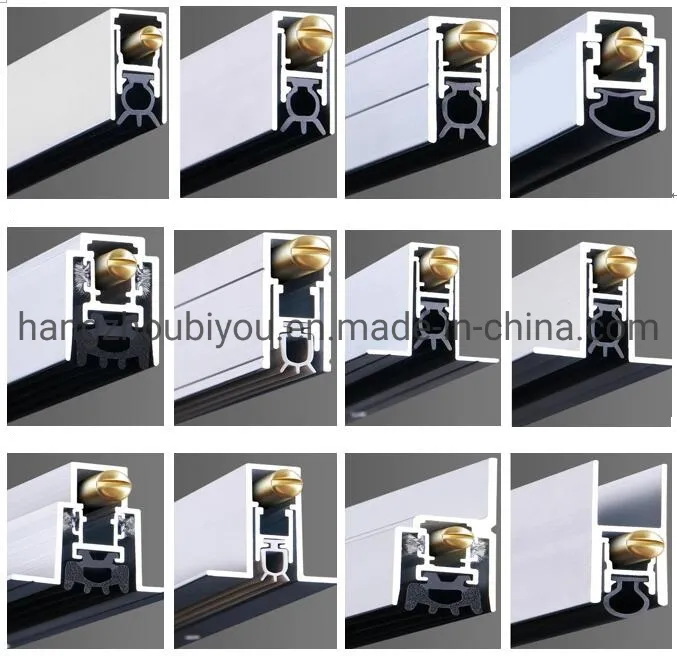

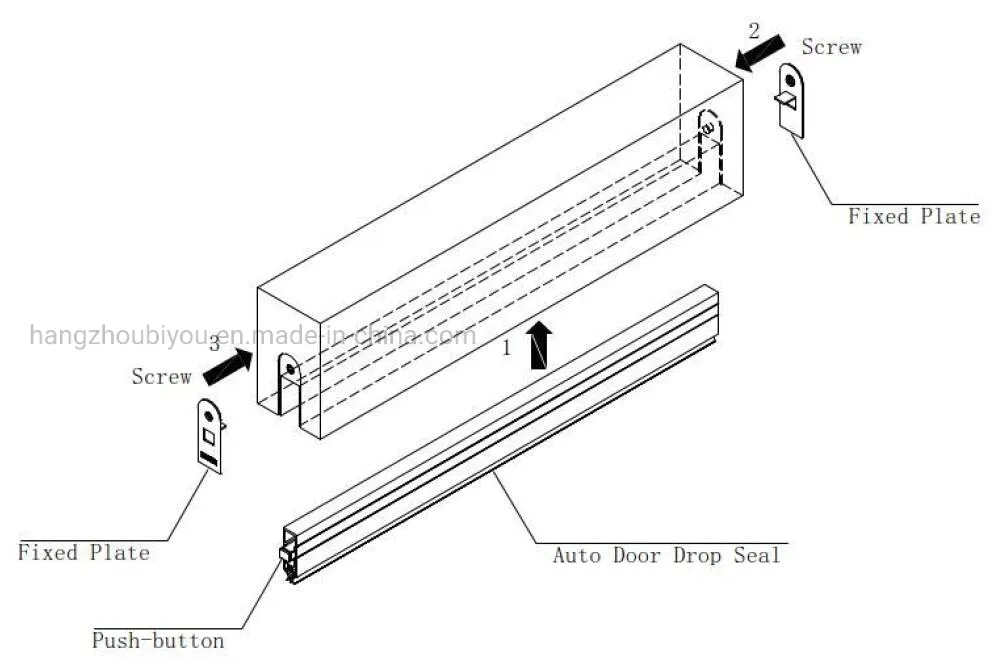

🎨 Construction Drawings

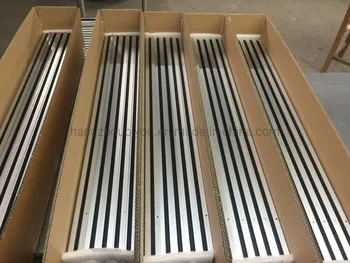

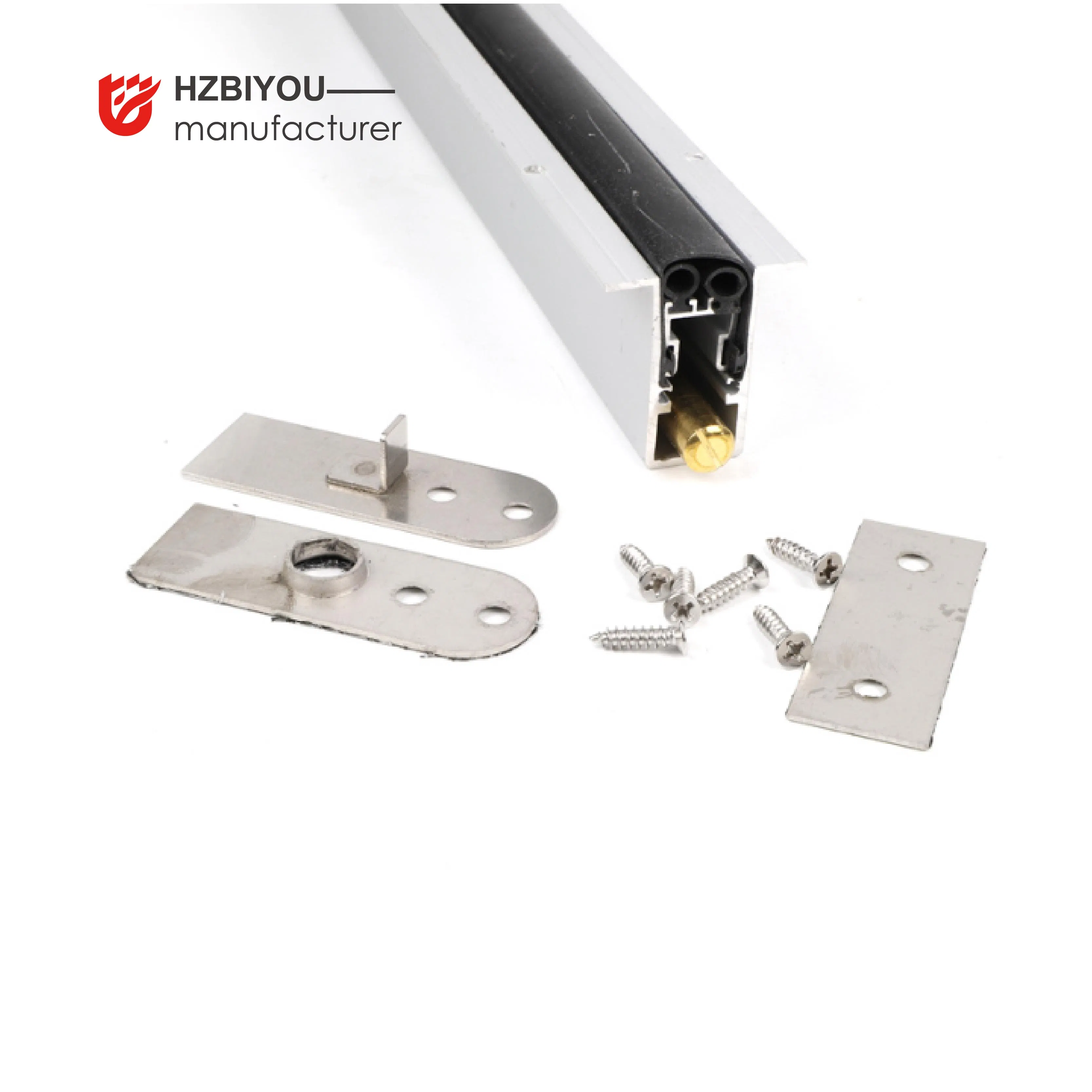

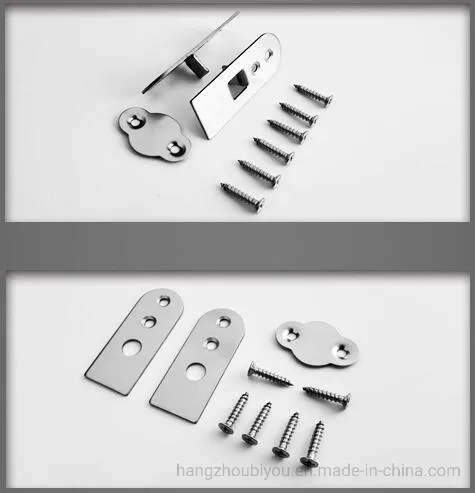

🛠️ Accessories & Packaging

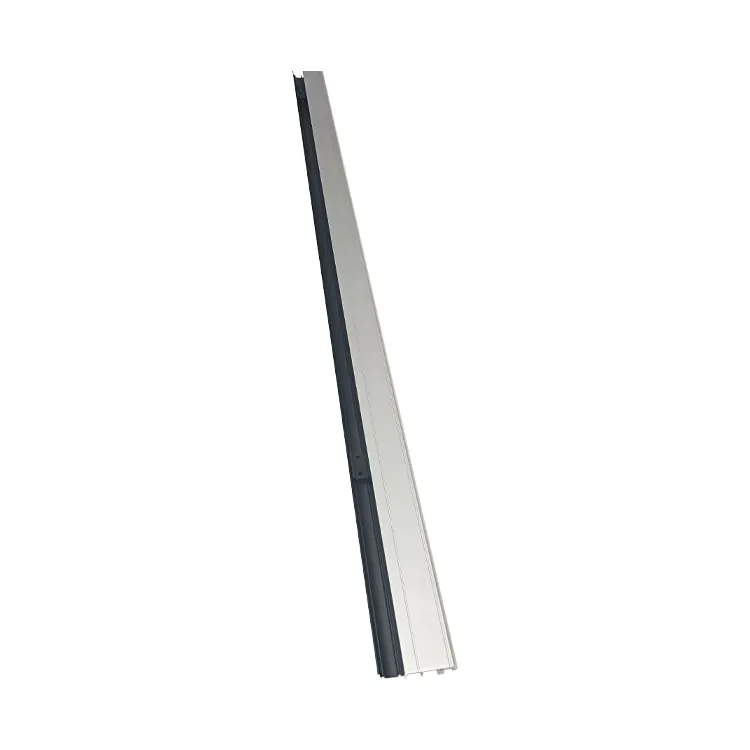

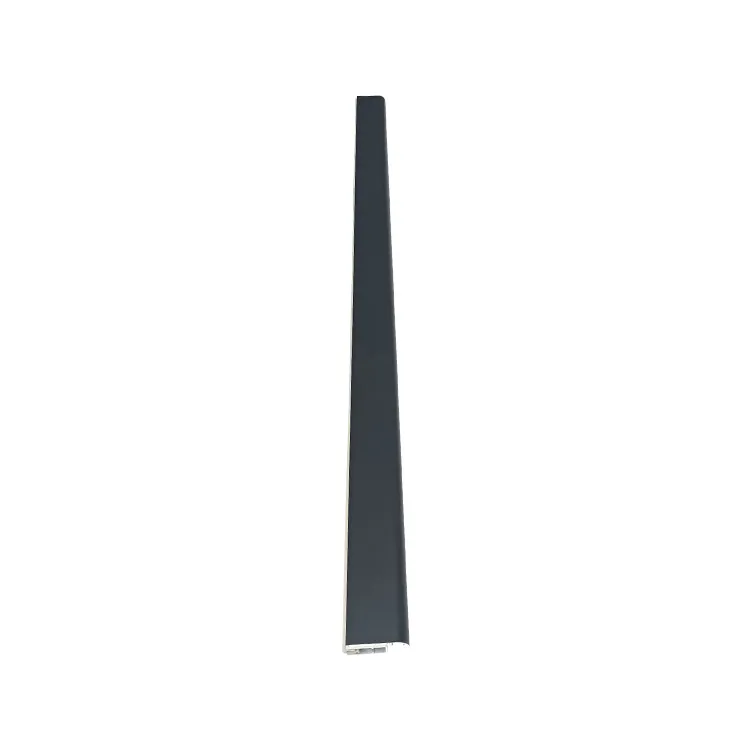

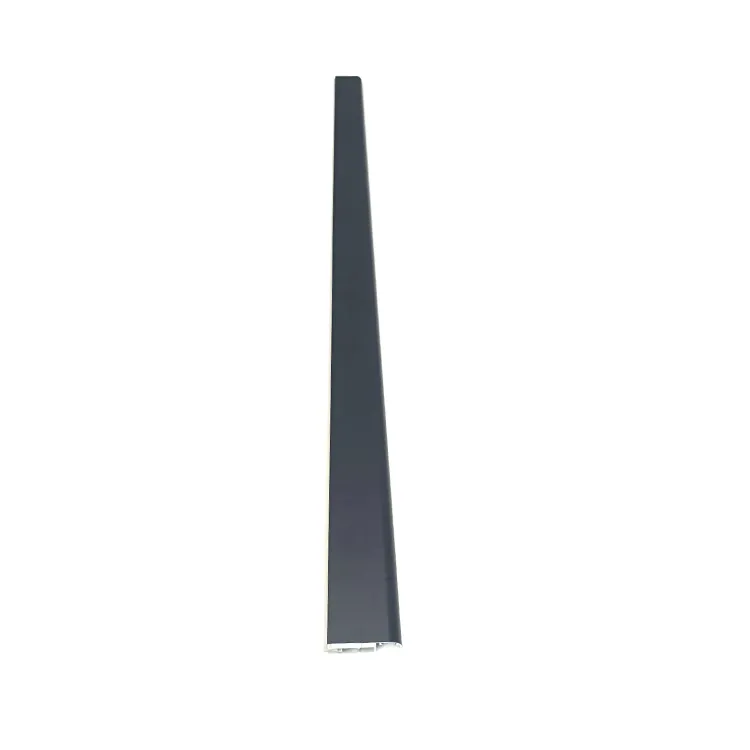

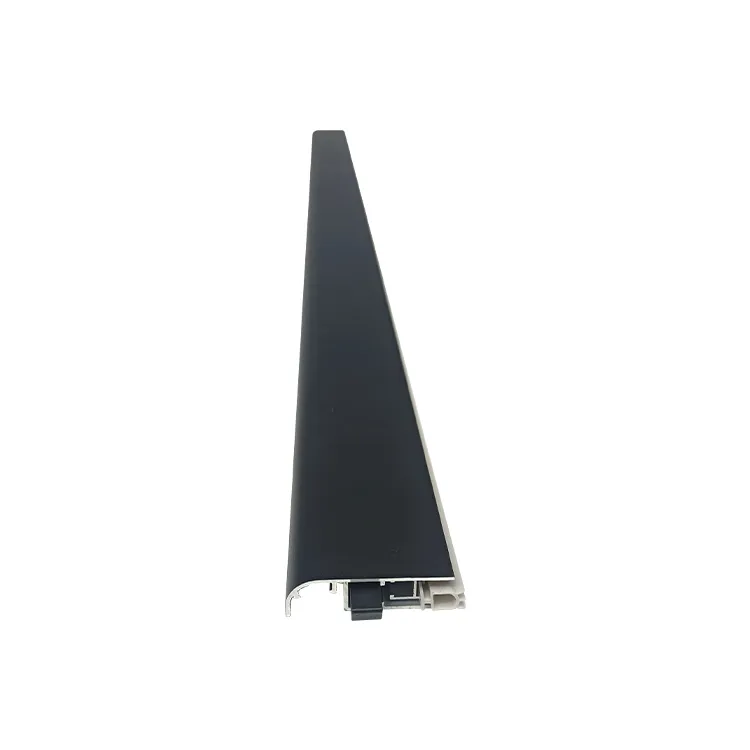

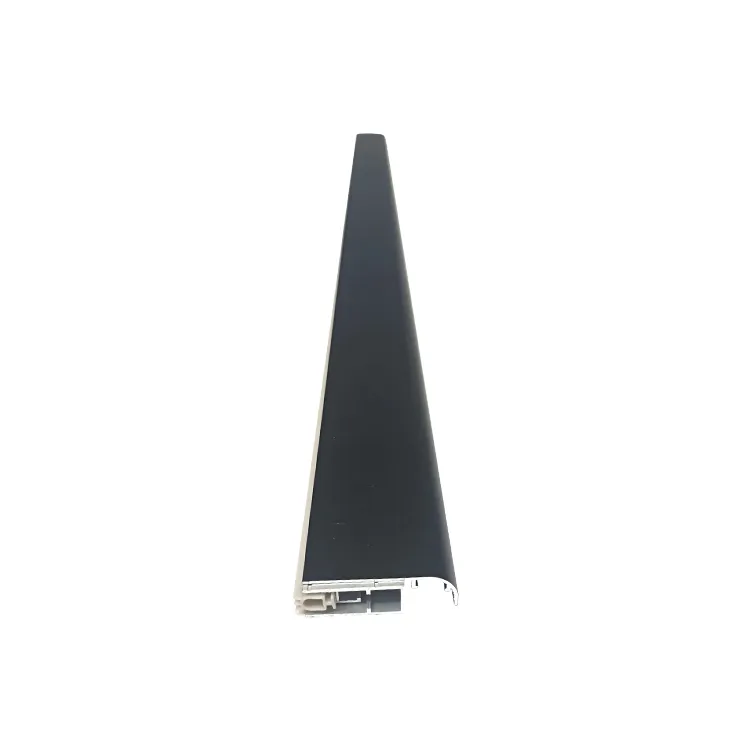

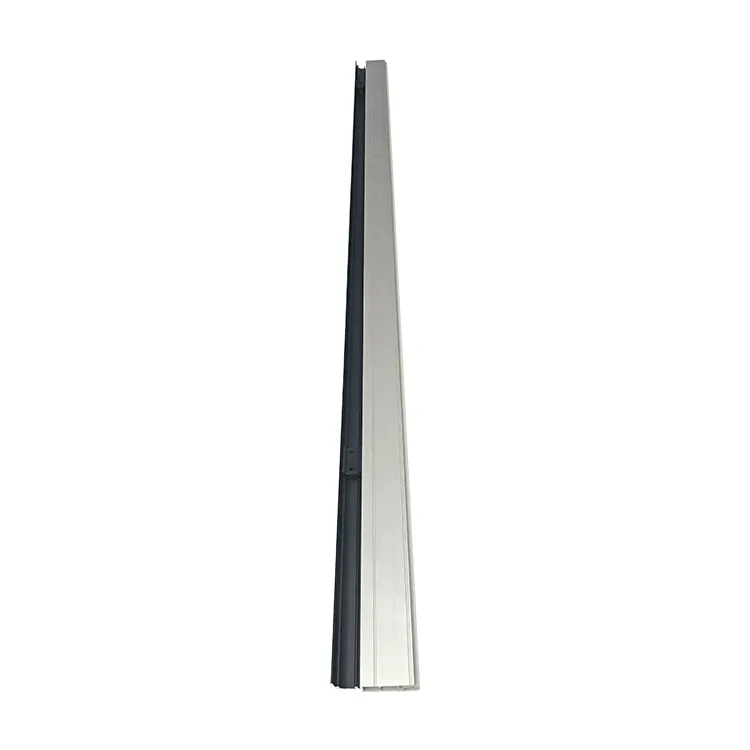

🏭 Production Display

❓ Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional door and windows seal, fire and acoustic seal products manufacturer with more than 20 years of experience for domestic and international markets.

What is your payment method for orders?

We prefer T/T. For new customers, we usually require 30% advanced payment before production and 70% before delivery. Other methods can be confirmed upon request.

Do you offer free samples?

Yes, free samples are available for quality verification and testing.

Can you provide OEM services based on our drawings?

Yes, we can customize products according to your specific drawings or create drawings based on your provided samples to meet your requirements.

What is the typical delivery time?

Generally, we arrange shipment within 7-30 days after receiving the deposit, depending on the specific purchasing quantities and production schedule.

How do you ensure product quality?

We arrange sample confirmation before mass production. Our professional QC staff monitors the entire process to ensure manufacturing aligns with the confirmed samples.
