Advanced Supercharging Smart Pantograph for Efficient Energy Transfer
Advanced Supercharging Smart Pantograph for Efficient Energy Transfer
Advanced Supercharging Smart Pantograph for Efficient Energy Transfer
Advanced Supercharging Smart Pantograph for Efficient Energy Transfer
Advanced Supercharging Smart Pantograph for Efficient Energy Transfer
1 / 5
Advanced Supercharging Smart Pantograph for Efficient Energy Transfer
Advanced Supercharging Smart Pantograph for Efficient Energy Transfer
Advanced Supercharging Smart Pantograph for Efficient Energy Transfer
Advanced Supercharging Smart Pantograph for Efficient Energy Transfer
Advanced Supercharging Smart Pantograph for Efficient Energy Transfer

Advanced Supercharging Smart Pantograph for Efficient Energy Transfer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
European Standard DC EV Charger
Charging Interfaces
One Pile with Multiple Charges
Location
Public Use
Installation
Floor Type
Charge Method
Quick Charge
Input Voltage
1000V
Max Output Current
500A
Function
WiFi Supported
Protocol
Ocpp1.6j Supported
Type
Ultra Fast Charging System
Certification
CE, ISO, TUV
Warranty
24 Months
Specification
900*900*1800mm
Origin
China

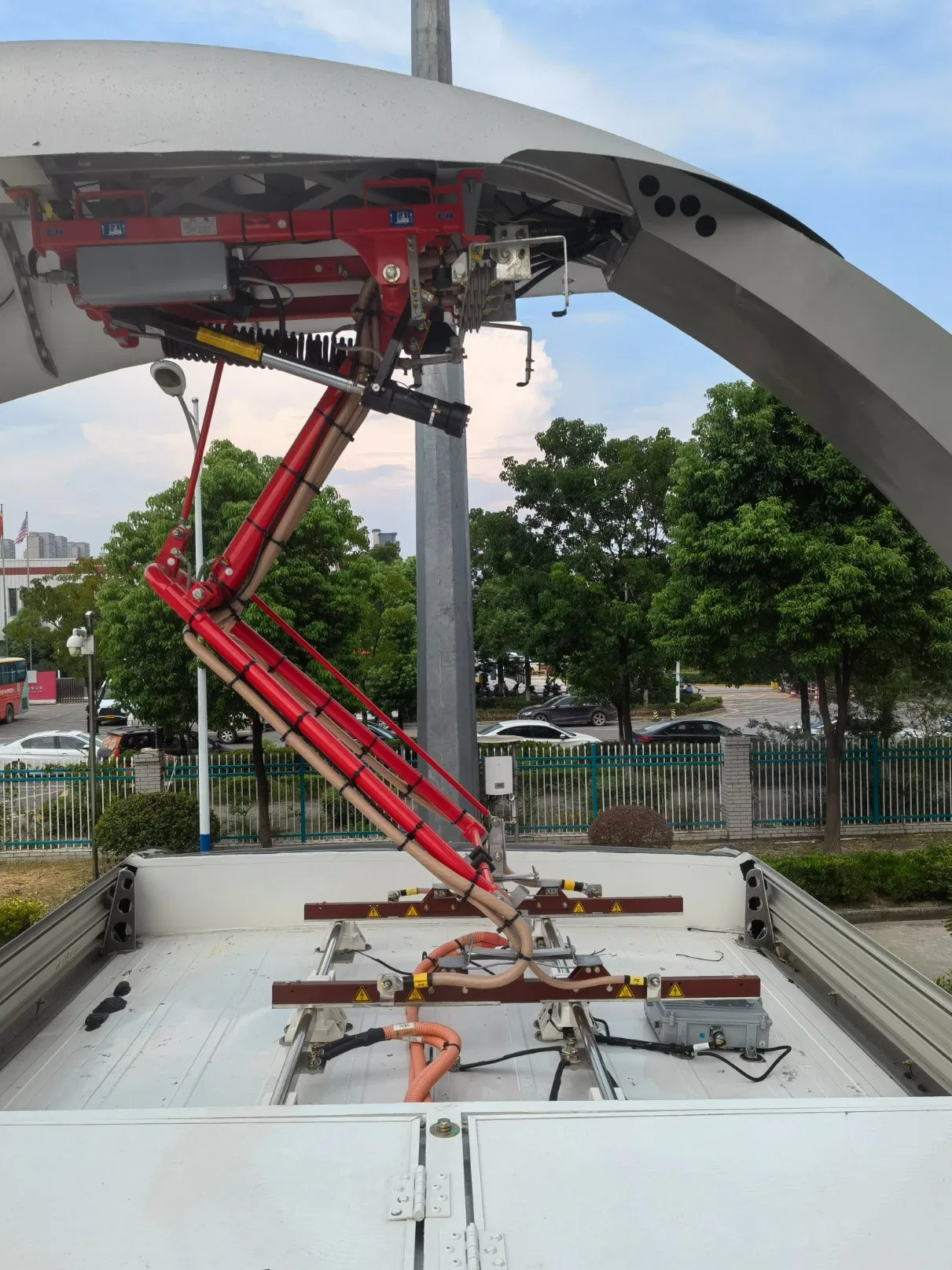

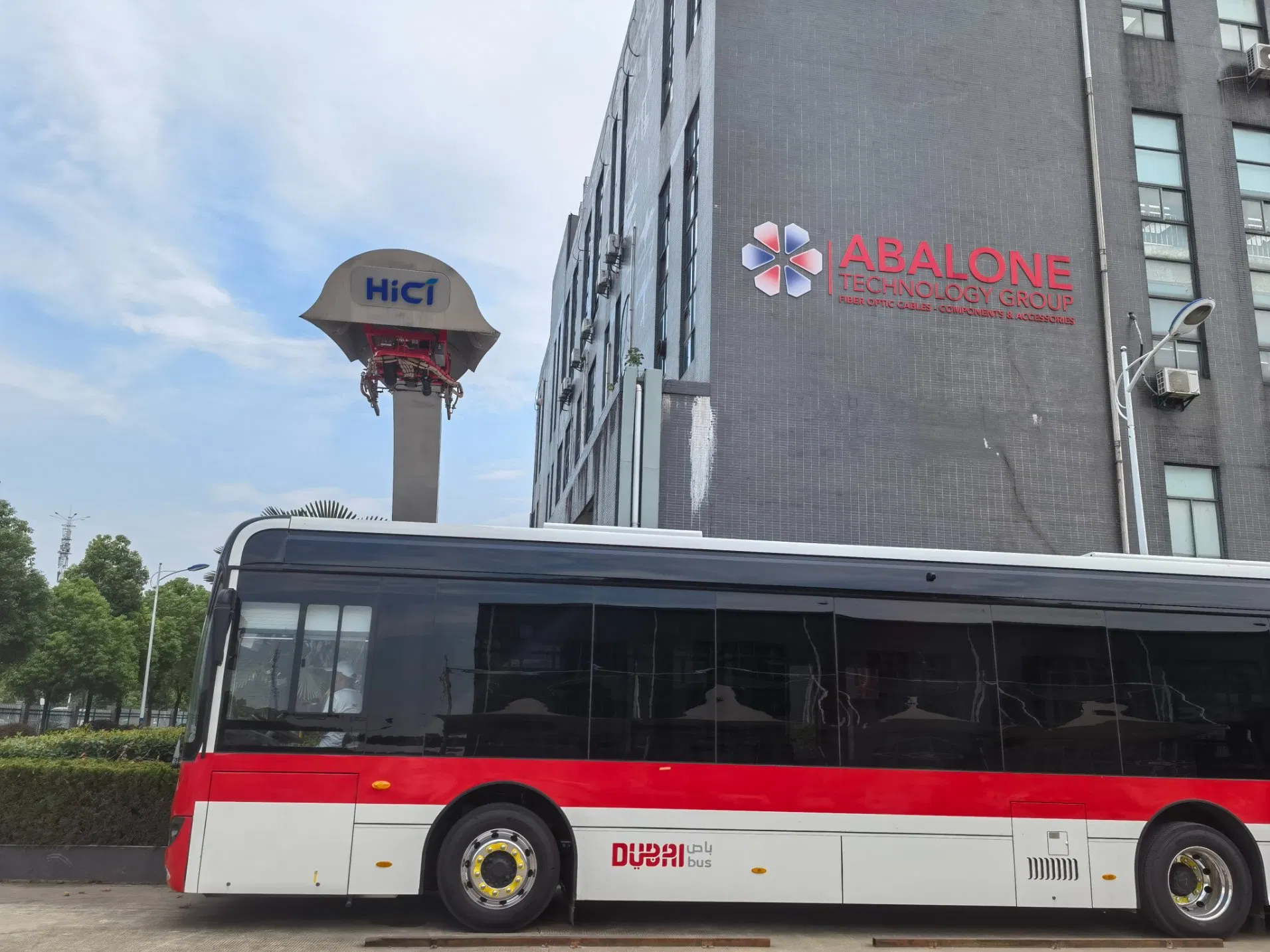

Professional Split Type Pantograph Charging System

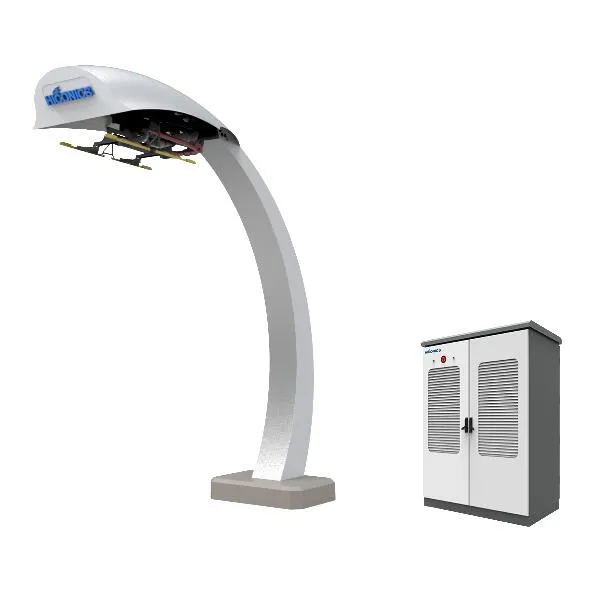

Advanced Supercharging Smart Pantograph

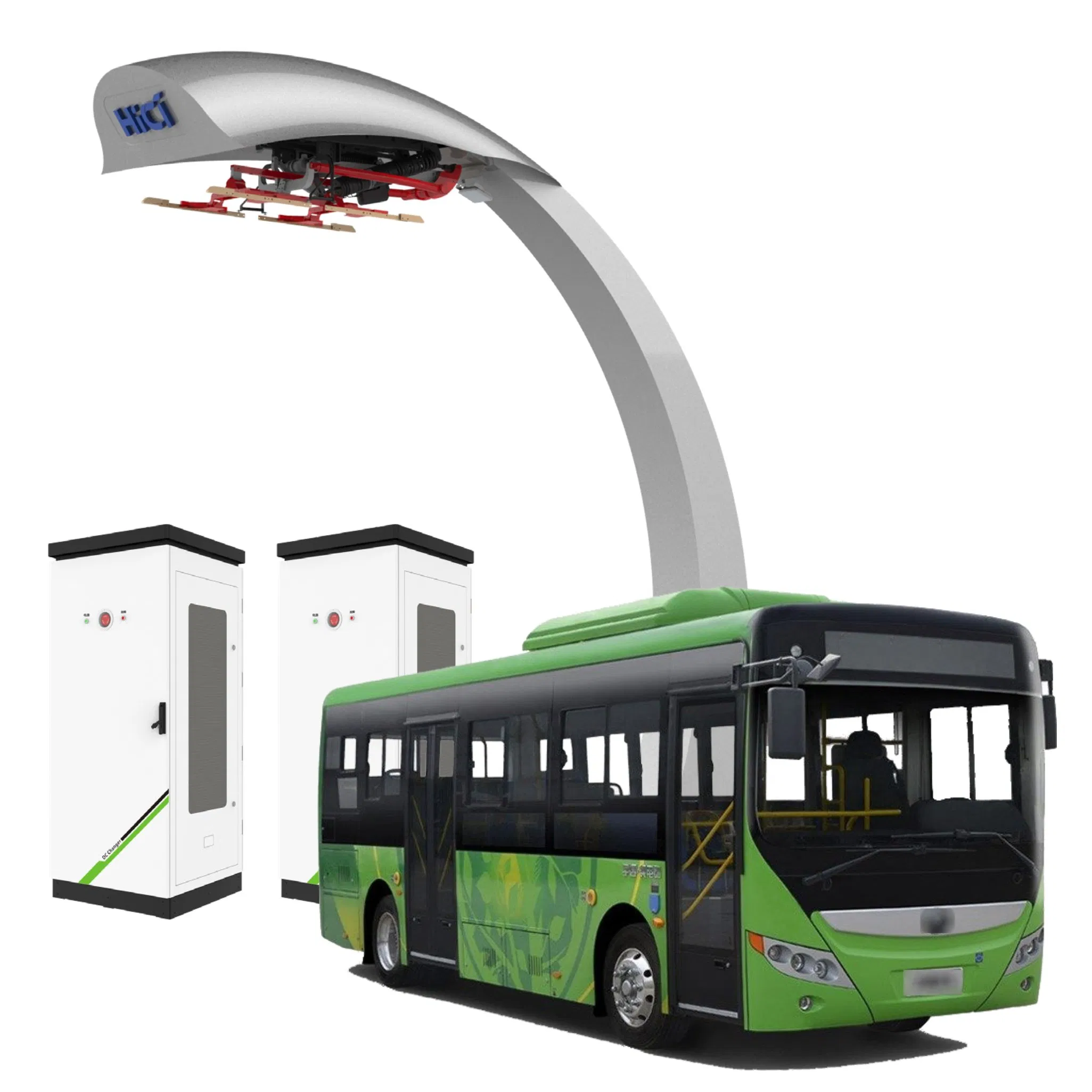

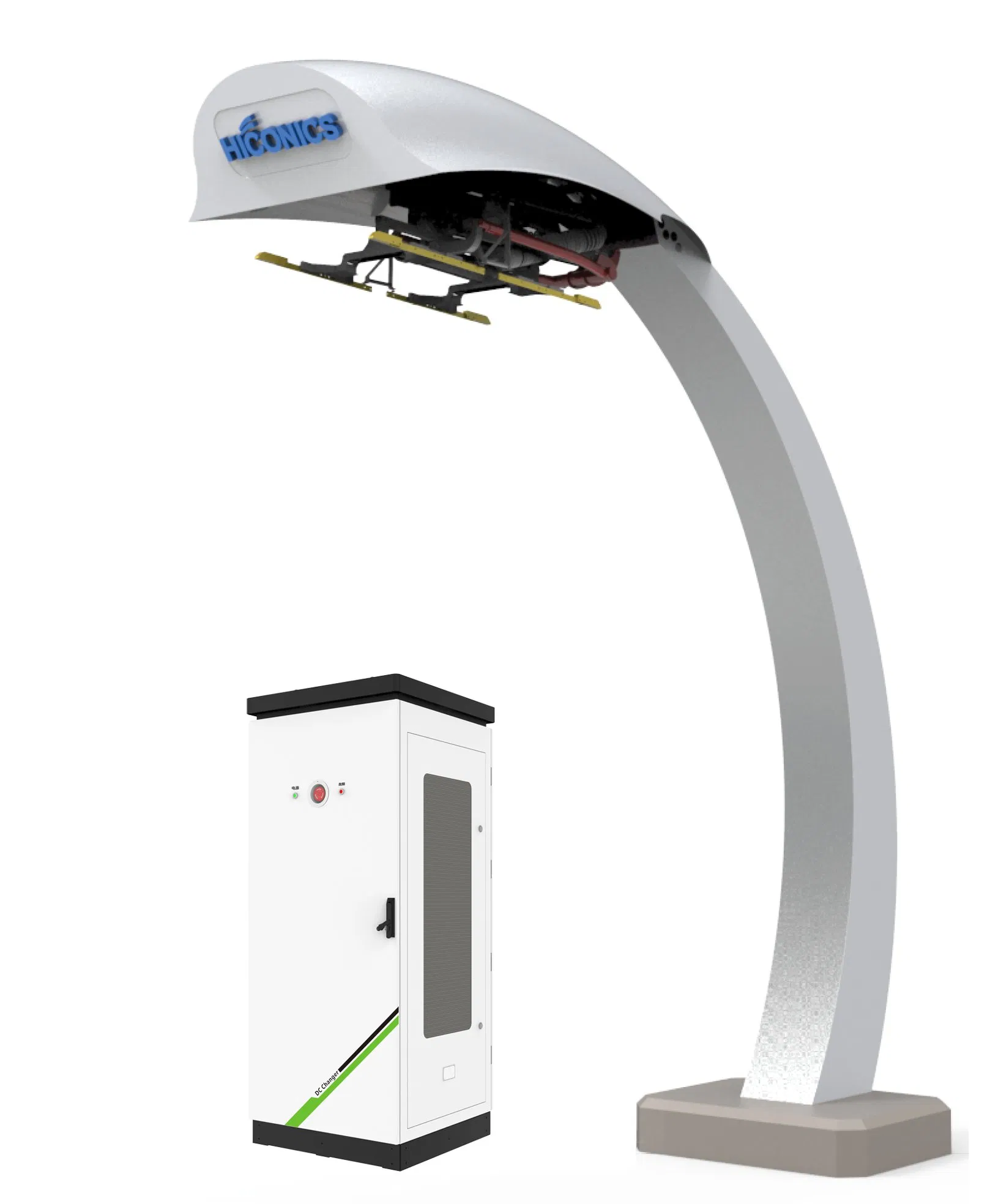

The split type pantograph system is a high-power quick charging equipment designed for pure electric buses. The system features two modes: AC input and DC input. The integrated architecture consists of a charging module cabinet and a charging interface, ensuring maintenance convenience and superior user experience.
Adopting a streamline design, the pantograph system combines aesthetics with industrial-grade durability. The cabinet is treated with galvanizing and multi-layer spraying, achieving a mechanical characteristic rating greater than IK10 and a protection class of IP54, making it resistant to water, dust, and corrosion.
Unique Features & Advantages
⚡
Large Current Output Mode:

Utilizes PLC carrier communication for accurate positioning and data interaction. The system meets ISO15118 standards with a maximum output current reaching 800A, specifically designed for fast charging of urban bus and commuter systems.

⚙️
"Power + Charging" Split Structure:

Separates the power components from the charging interface for simplified installation and maintenance. The interface utilizes high-quality electrical components ensuring long-term connection stability.

🛡️
Advanced Safe Control Mode:

Equipped with comprehensive protection: overvoltage, undervoltage, overcurrent, abnormal frequency, short circuit, emergency stop, leakage current, and lightning surge protection. Supports hot insertion and extraction for maximum safety.

Compliance Standards
  • IEC61851-1 / IEC 61851-23 / IEC 61851-24
  • IEC 62196-1 / IEC 62196-3
  • ISO15118-2018
  • IEC 61439-1 / IEC 60664-1
Technical Data Sheet (600kW System)
Item Technical Requirements
Nominal Voltage400VAC±15%
Input Current (MAX)1100A
AC Input Frequency40~60HZ
AC Input Mode3P+N+PE
Rated Output Voltage150~1000VDC
Rated Output Current0~800A
Cooling MethodForce Air Cooling
Efficiency≥0.95 (50% load or above)
IP ClassIP54
Operation Temperature-30ºC~+55ºC
CommunicationOCPP 1.6 (JSON) / 4G / Ethernet / WIFI
Global Applications
These charging solutions have been widely deployed in over 200 cities and approximately 27 countries including England, France, Australia, Singapore, and the Middle East. Our systems provide reliable energy transfer for green public transportation networks worldwide.

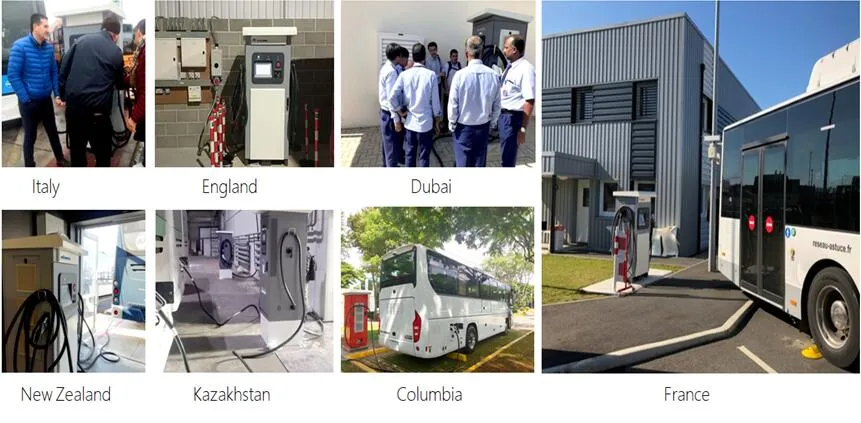

Global application of charging system
Manufacturing & After-Sales
Production Line 1
Production Line 2
Our advanced automatic assembly lines feature real-time data collection, self-diagnosis, and automated aging tests. A single charging pile can be completed within 35 minutes, ensuring high production capacity and quality control.

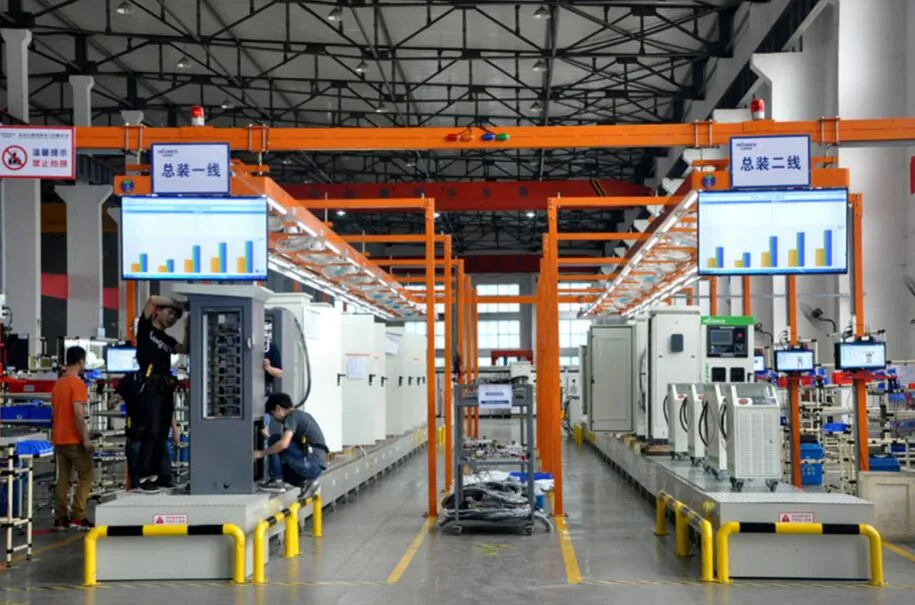

Testing 1

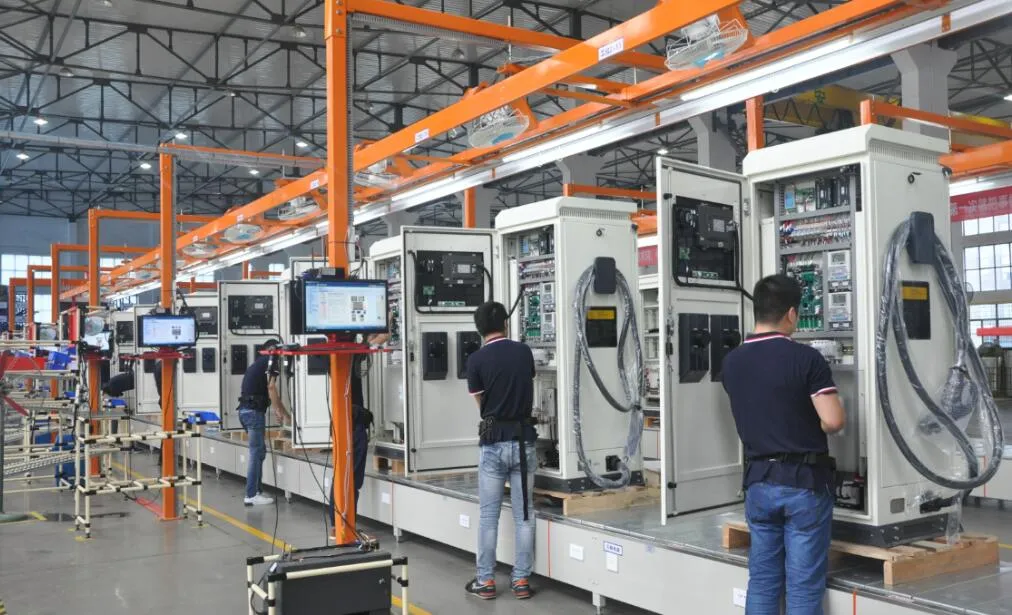

Testing 2

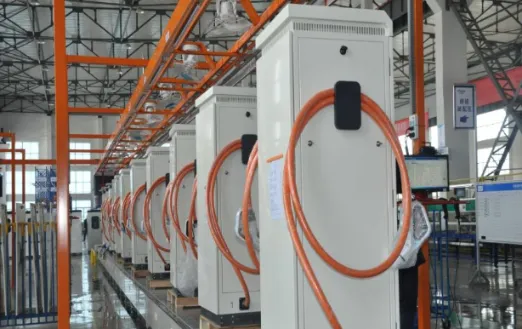

Testing 3
Comprehensive English user manuals and maintenance guidance provided.
24/7 online remote guidance for installation and commissioning.
Free operation and maintenance training for customers.
Fast spare parts delivery within 5 working days during warranty.
Product Family

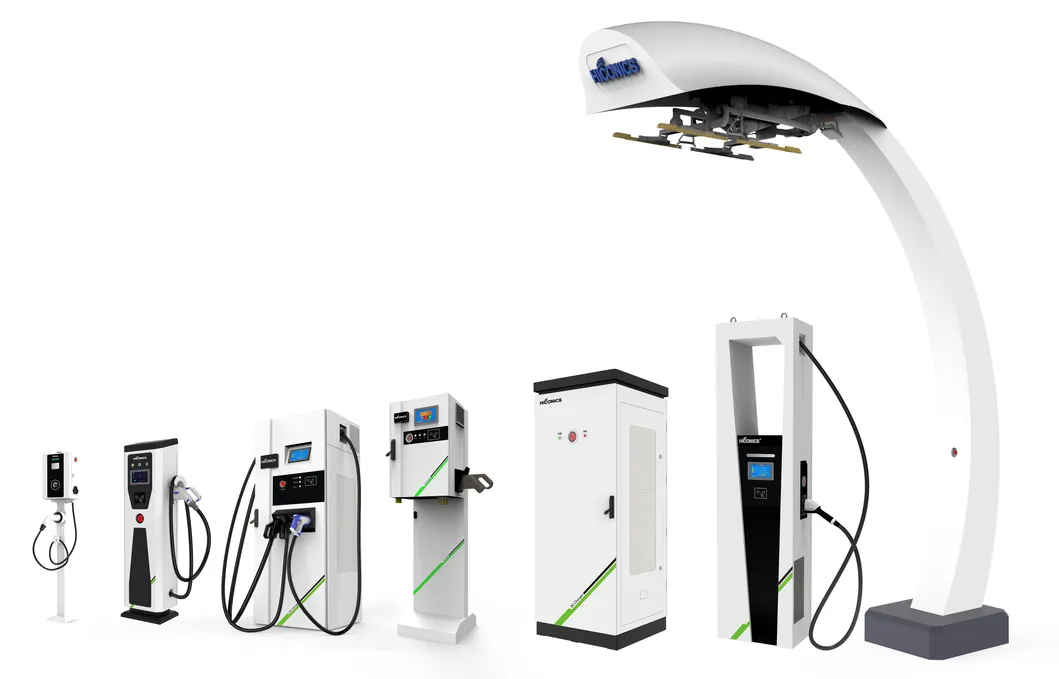

Product Portfolio
Frequently Asked Questions
Q1: What is a Split Type Pantograph Charging System? It is a high-power charging solution where the power conversion modules are separated from the overhead pantograph interface, allowing for flexible installation and easier maintenance in bus stations.
Q2: What is the maximum output current of this system? The system can deliver a maximum output current of up to 800A, making it ideal for ultra-fast charging of electric buses and heavy-duty vehicles.
Q3: Does the charger support smart connectivity and remote monitoring? Yes, the system supports OCPP 1.6 (JSON) protocol and can connect via 4G, Ethernet, or WiFi for remote monitoring, billing, and diagnostics.
Q4: What are the main safety protection features? The system includes input/output overvoltage and undervoltage protection, short circuit protection, emergency stop, leakage current protection (RCD), and lightning surge protection.
Q5: Is this system suitable for extreme weather conditions? Yes, with an IP54 protection rating and an operating temperature range of -30ºC to +55ºC, it is designed to operate reliably in various outdoor environments.
Q6: What kind of after-sales support do you offer? We provide 24-hour remote guidance, comprehensive English documentation, spare parts delivery within 5 days, and onsite engineering support for large-scale installations.
