Product Description

Basic Specifications

Model NO.

Customized

Length

Standard 915 mm (Customizable)

Plunger Material

Brass

Color

Silver

Feature

Sound Proof, Smoke & Fire Prevention

Application

Wood, Interior, Steel Doors

Origin

China

HS Code

3925900000

Capacity

2000 Pieces Per Week

Product Overview

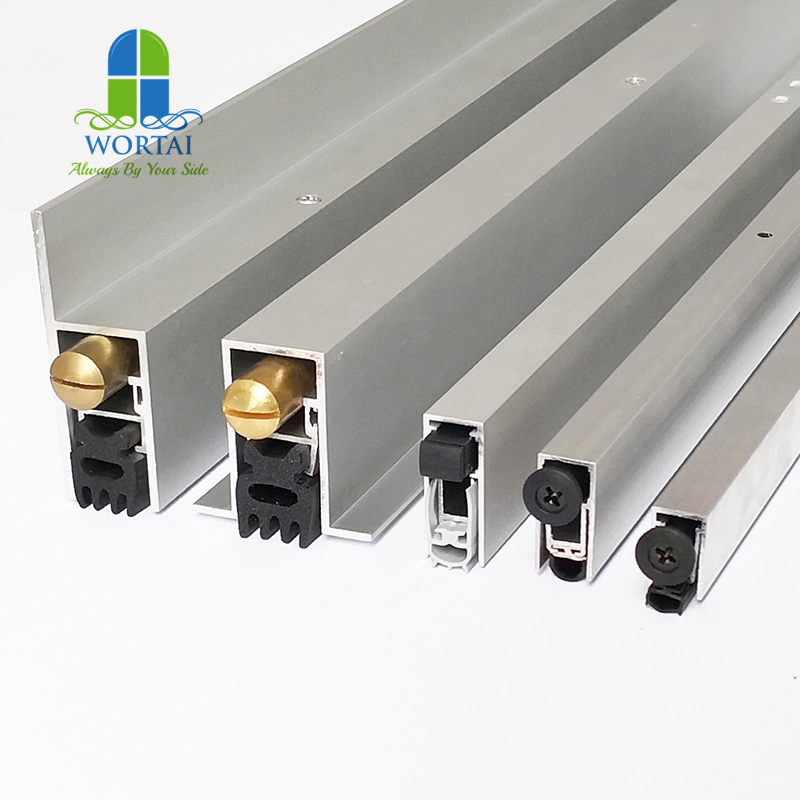

Acoustic Rated Door Bottom Seal - Automatic Drop Down Sweep

Our aluminum drop seal for door bottoms is engineered from high-quality aluminum alloy and premium silicone strips. Designed for both embedded and exterior installation, it boasts exceptional anti-aging and durability. This seal provides a robust barrier between indoor and outdoor environments, effectively resisting sand, dust, and insect invasion while offering superior thermal insulation and soundproofing.

Technical Parameters

Product Name	Acoustic Rated Automatic Drop Down Door Sweep
Material	Aluminum alloy frame + Silicone strip + 304 Stainless steel + Copper bolt

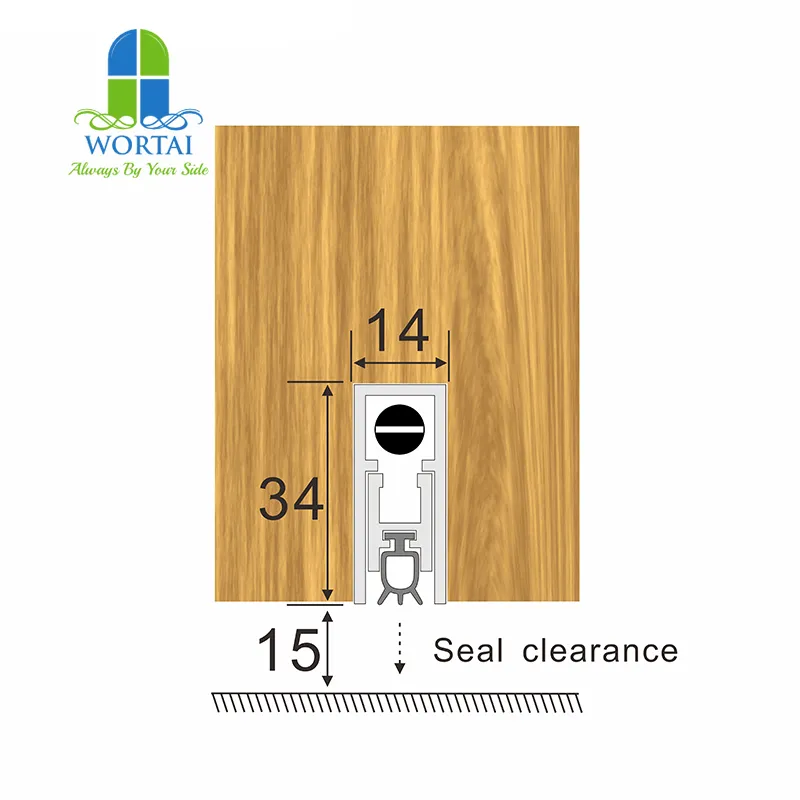

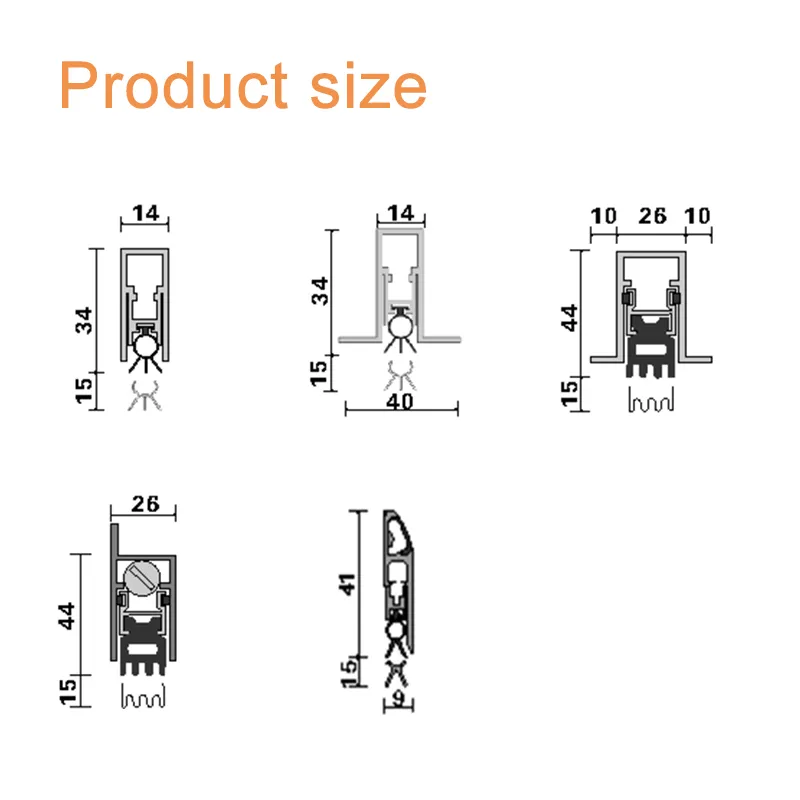

Sealing Gap	<15mm
Installation	Unfold or Concealed Installation
Key Advantages	Soundproof, Dustproof, Windproof, Waterproof

Core Features

🔇 Sound Isolation

Reduces noise pollution significantly.

🛡️ Protection

Blocks insects, dust, and reptiles.

🌡️ Energy Saving

Prevents air leakage and saves energy.

⚙️ Automatic

Lifts automatically when door opens.

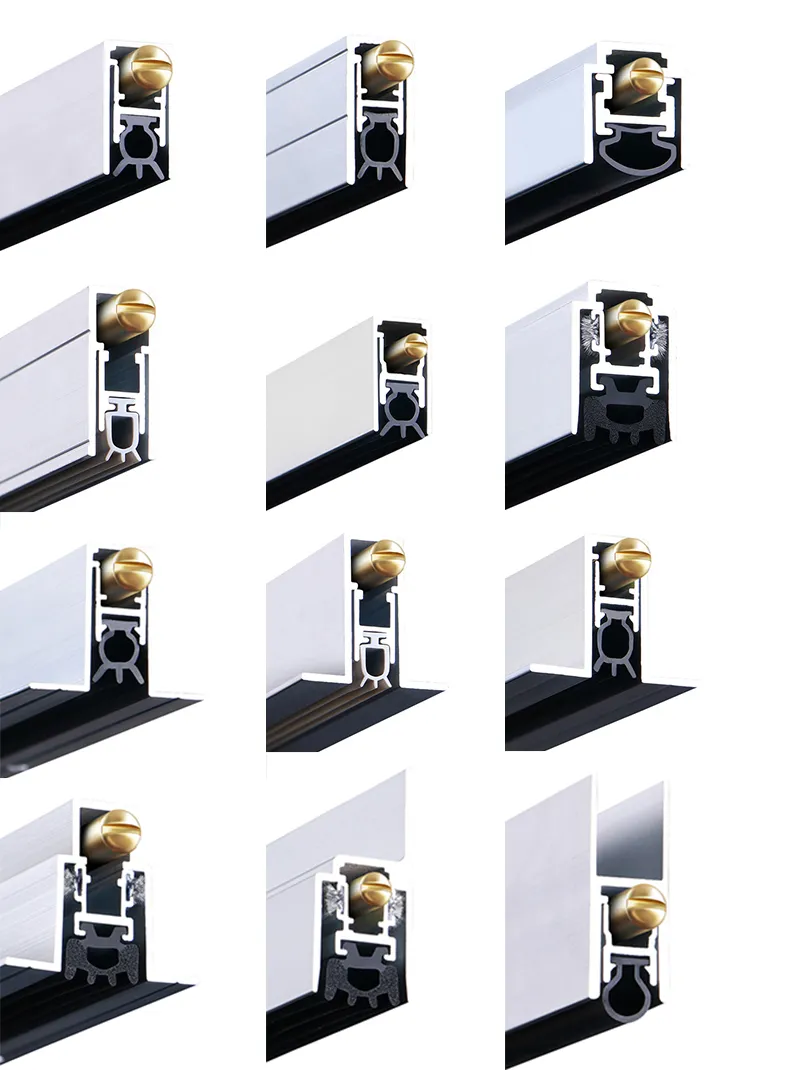

Working Mechanism

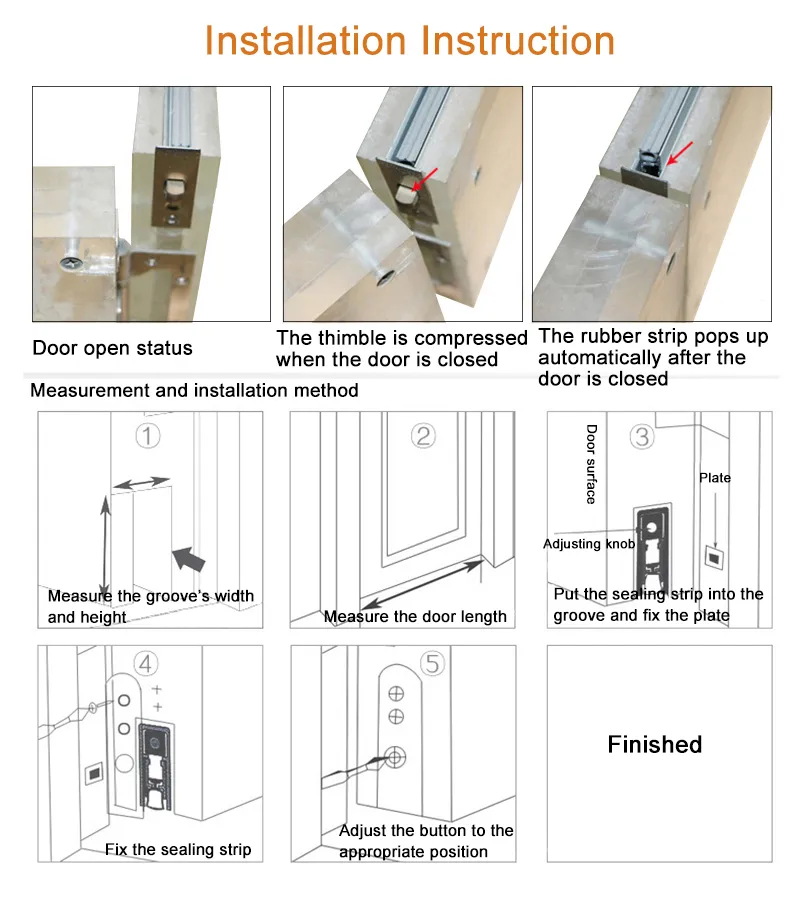

The surface features a matte silver-white anodized finish. When the door closes, the frame squeezes the adjusting copper head screw, which drives the sealing strip downward to close the gap. As soon as the door opens slightly, the seal lifts automatically, ensuring no friction or wear on the floor.

Cutting Instructions: The sealing strip can be trimmed by up to 15cm if needed. Always cut the side without the copper head.

If plates are in the groove: Strip should be 8mm shorter than door width.
If plates are not in the groove: Strip should be 5mm shorter than door width.

Packaging & Delivery

Shipping: Express (DHL, Fedex, UPS, TNT), Air, or Sea.
Lead Time: Usually 7-15 workdays based on quantity.
Packing: Inner plastic bag, outside carton (Usually 20pcs/carton).

Professional Services

OEM Support: Custom logo printing on packaging.
Samples: Free samples available for quality testing.
Support: Comprehensive pre-sale, sale, and after-sale "intimate service".
Supply Range: Bath shower screen seals, magnetic door seals, refrigerator gaskets, and industrial rubber products.

Frequently Asked Questions

What materials are used in the automatic drop seal?

The seal is constructed with a high-grade aluminum alloy frame, a durable silicone or EPDM rubber sealing strip, and 304 stainless steel accessories with a brass plunger.

Will the seal scratch my floor?

No. The intelligent mechanism ensures the sealing strip automatically lifts off the ground as soon as the door opens, preventing any wear or friction on the floor.

Can I cut the length of the door seal?

Yes, the seal can be shortened by up to 15cm. It is important to cut from the side without the copper adjustment head to maintain functionality.

What is the maximum gap this product can seal?

This automatic drop seal is designed to effectively seal gaps at the bottom of the door up to 15mm.

What types of doors is this seal suitable for?

It is versatile and suitable for various hinge doors, including wood doors, interior doors, and steel doors.

Is the installation difficult?

The product supports both surface-mounted (unfold) and concealed installation, making it adaptable to different aesthetic and functional requirements.
