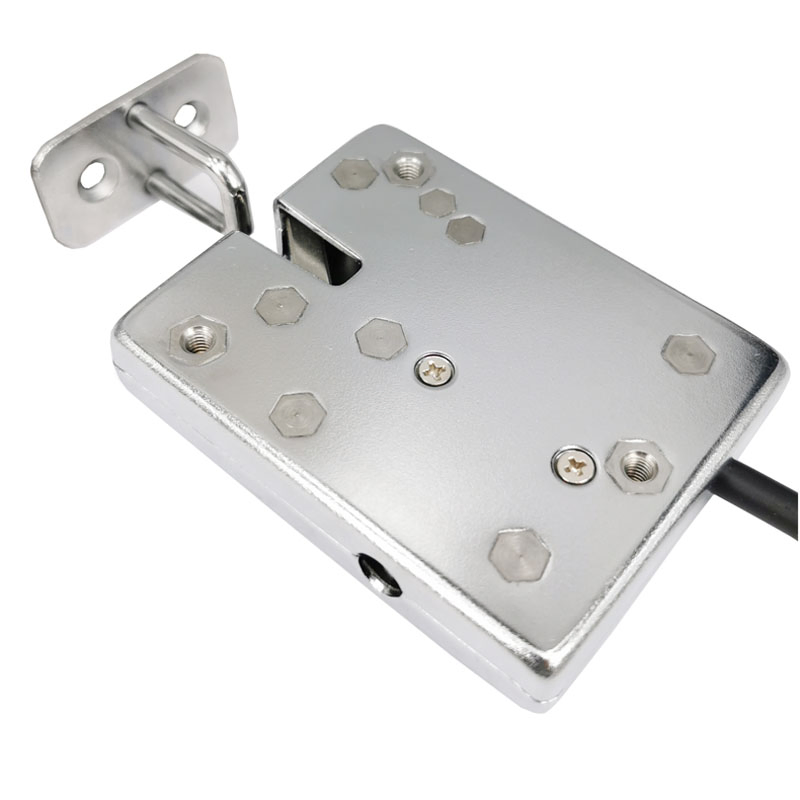

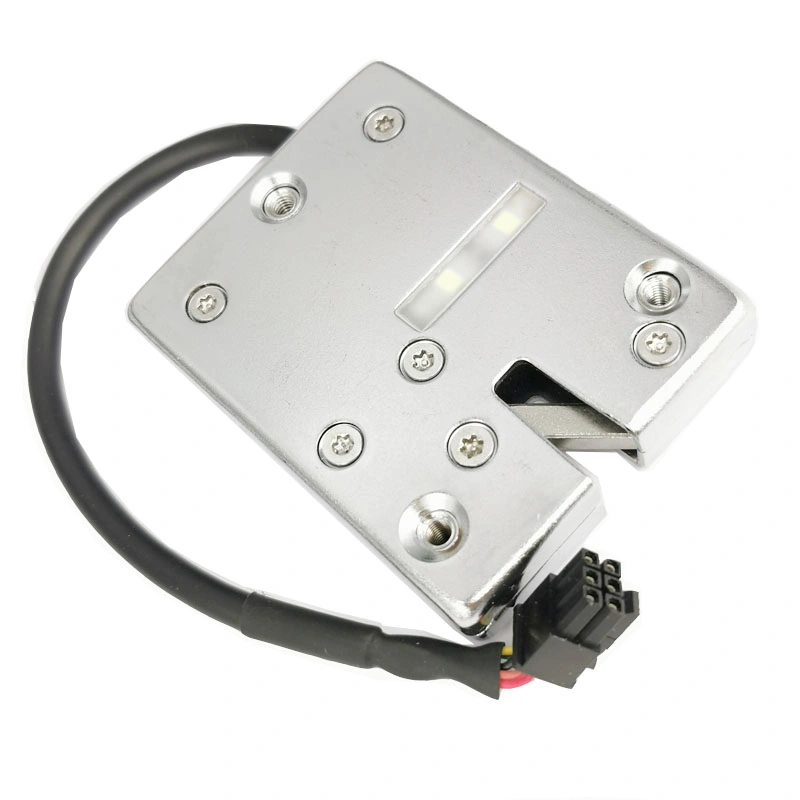

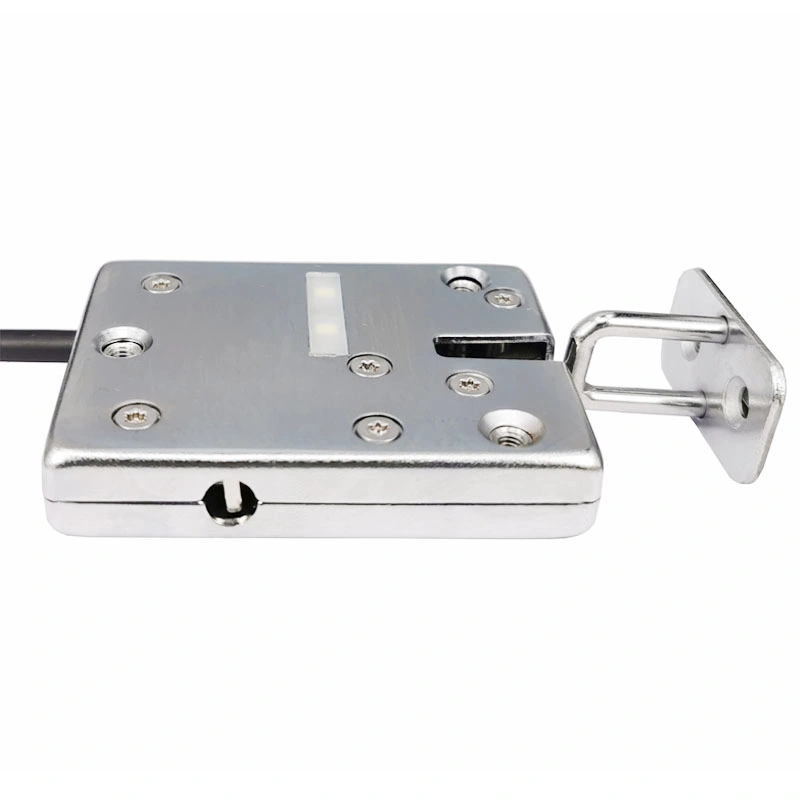

12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet
12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet
12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet
12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet
12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet
1 / 5
12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet
12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet
12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet
12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet
12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet

12VDC/24VDC Keyless Lock with Status and LED for Intelligent Safe and Cabinet

Customization: Available
After-sales Service: 2 Years Warranty
Warranty: Online Service/Refund/Replacement
Send Inquiry

Product Description

Technical Specifications
Model NO.
MA1208S-T
Type
Smart Card
Material
Steel
Surface Treatment
Chrome Plating
Style
Modern
Power Type
DC
Certification
CE, RoHS, ISO
Color
Silver
HS Code
8301300000
Production Capacity
10000 Per Month
Product Overview

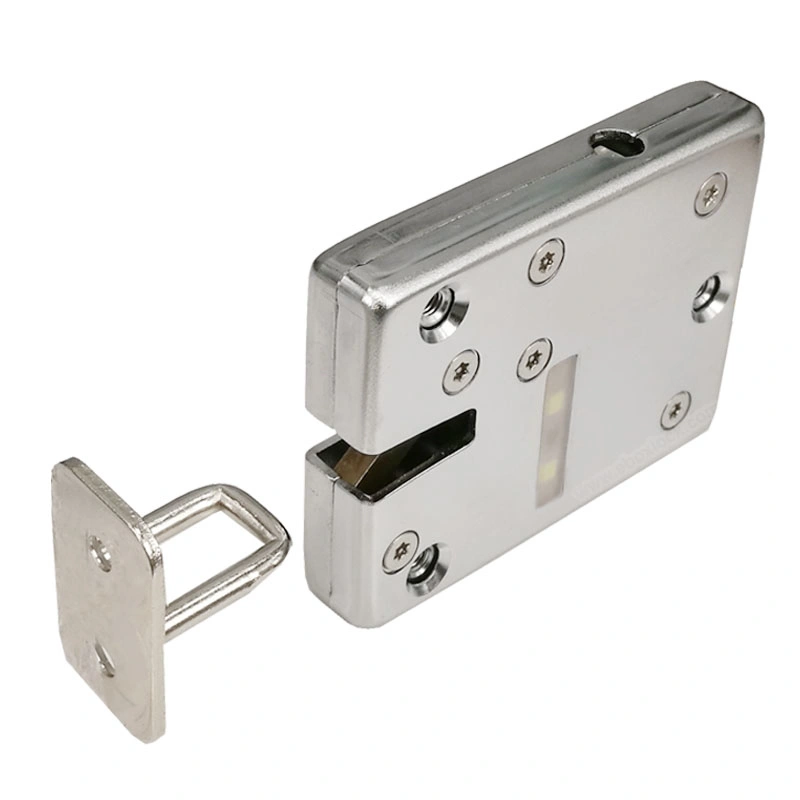

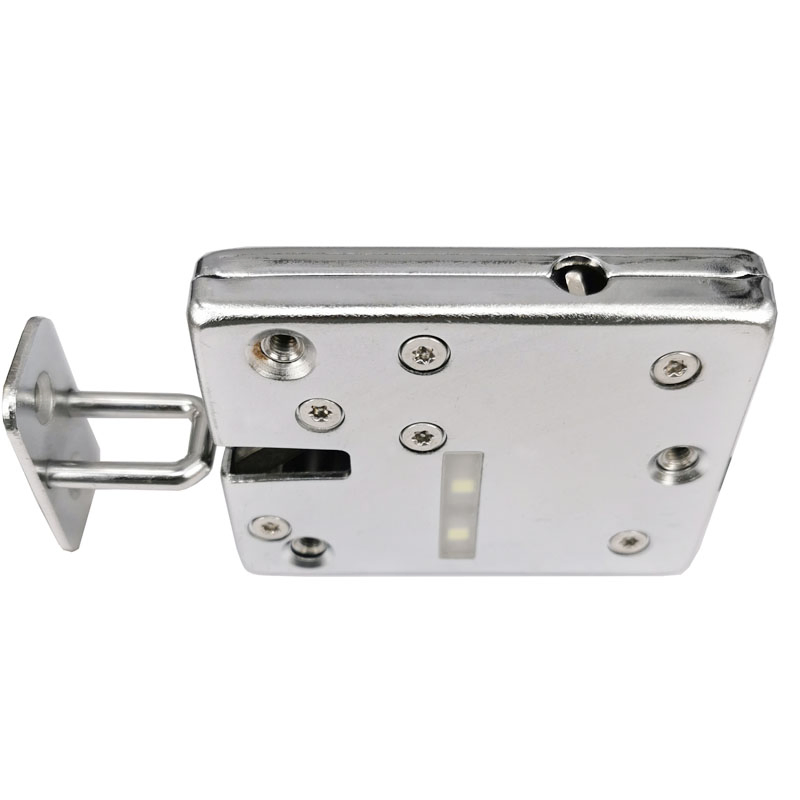

Keyless Lock MA1208S-T features a built-in LED to offer lighting for Electronic lockers. This compact electric lock allows controlled access to any cabinet, closet and drawer. An optional monitoring switch is available to indicate whether the mechanism is locked or unlocked. The cabinet lock is compatible with any access control system or standalone cabinet locking controller. It allows mechanical override for emergency open. The electronic cabinet lock is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet locking applications.

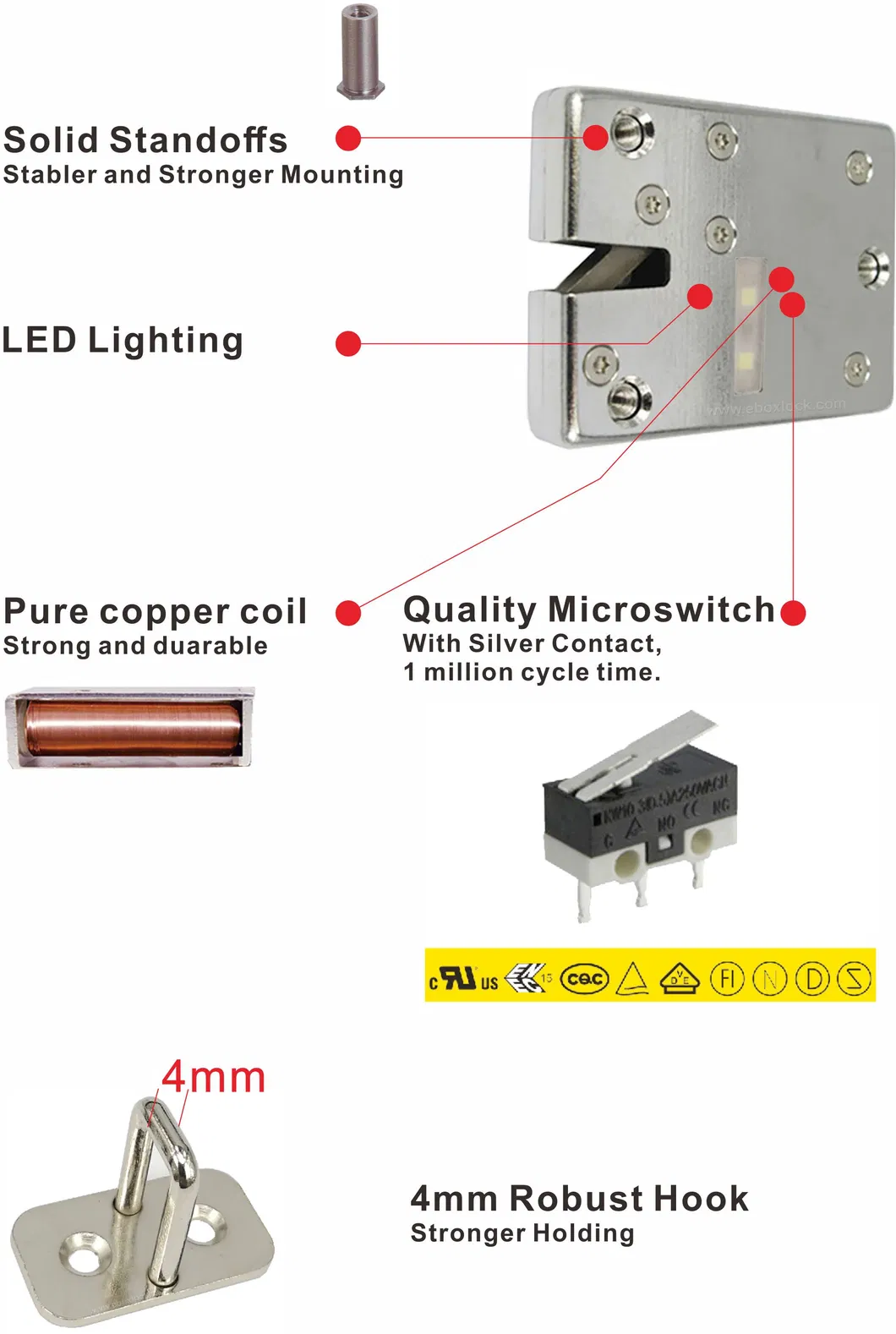

Keyless Lock Details

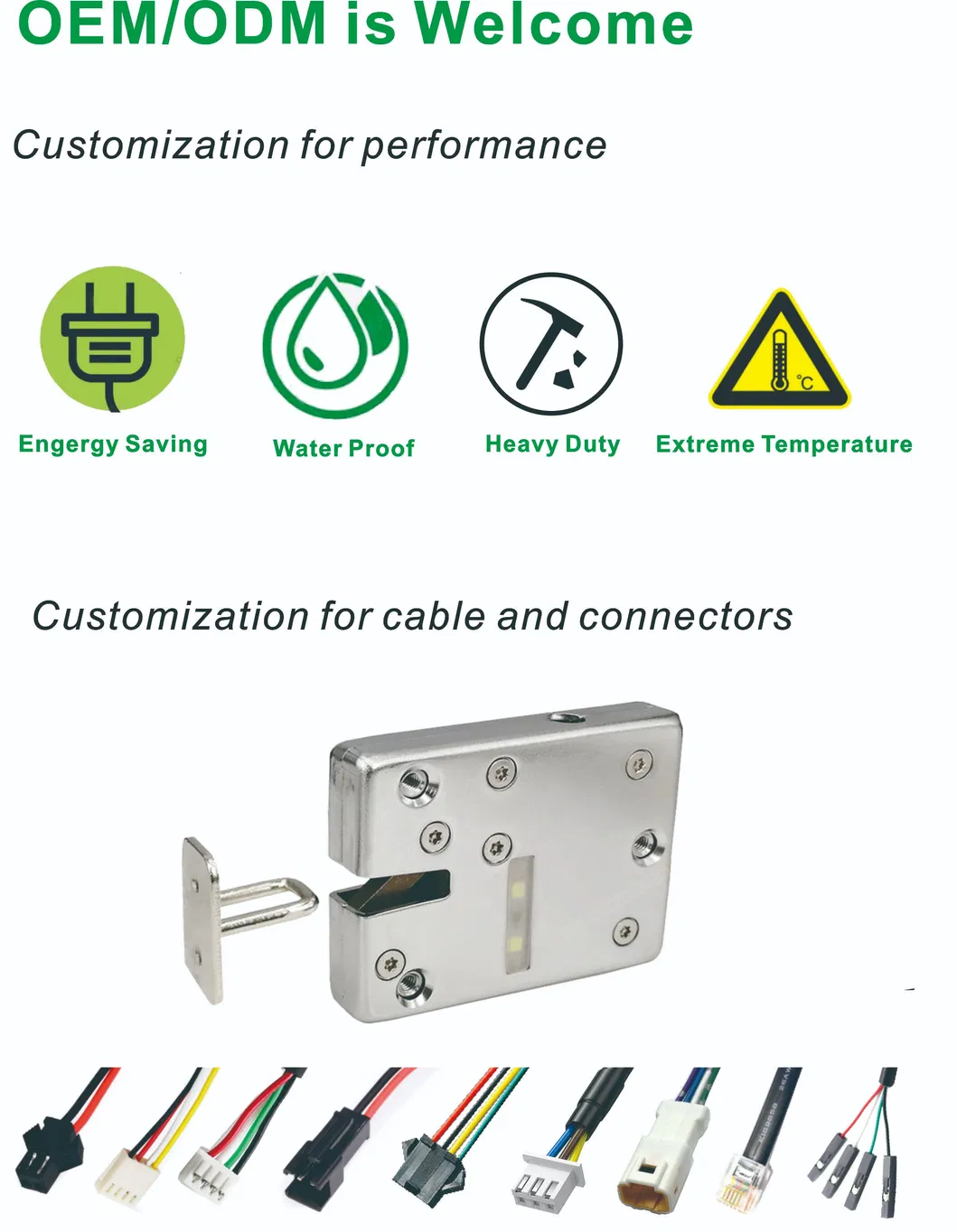

Keyless Lock Features
Key Features
✓Available in 12VDC or 24VDC operation.
✓Superior heavy duty metal construction with Chrome-plated steel housing.
✓Convenient mechanical override enables manual release during power failure.
✓Three-bolt regular triangle mounting for high security and low install cost.
✓Optional internal lock switch for detecting open/close output signal.
✓Compatible with numeric keypad, RFID card, remote or fingerprint access.
✓Patented design suitable for cabinets, lockers, and steel furniture.
✓Long-lasting performance with 2 years limited warranty.
Detailed Specifications
Operation Voltage12/24VDC intermittent ±10%
Power Consumption12V DC 800mA
Operation ModeFail Locked
Holding Force150KG
Max Power on TimeLess than 30 seconds
Cycle RatingMore than 1,000,000 times
Working Temperature-20ºC ~ +60ºC
Dimensions (LxWxH)72mm * 56mm * 13.8mm
Protection ClassIP20
ComplianceCE and RoHS certificate
Wide Applications

The electronic cabinet lock is ideal for various secure storage solutions:

Electronic lockers
Retail display cases
Filing cabinets
Pharmaceutical drawers
Electronic mailboxes
Museum displays

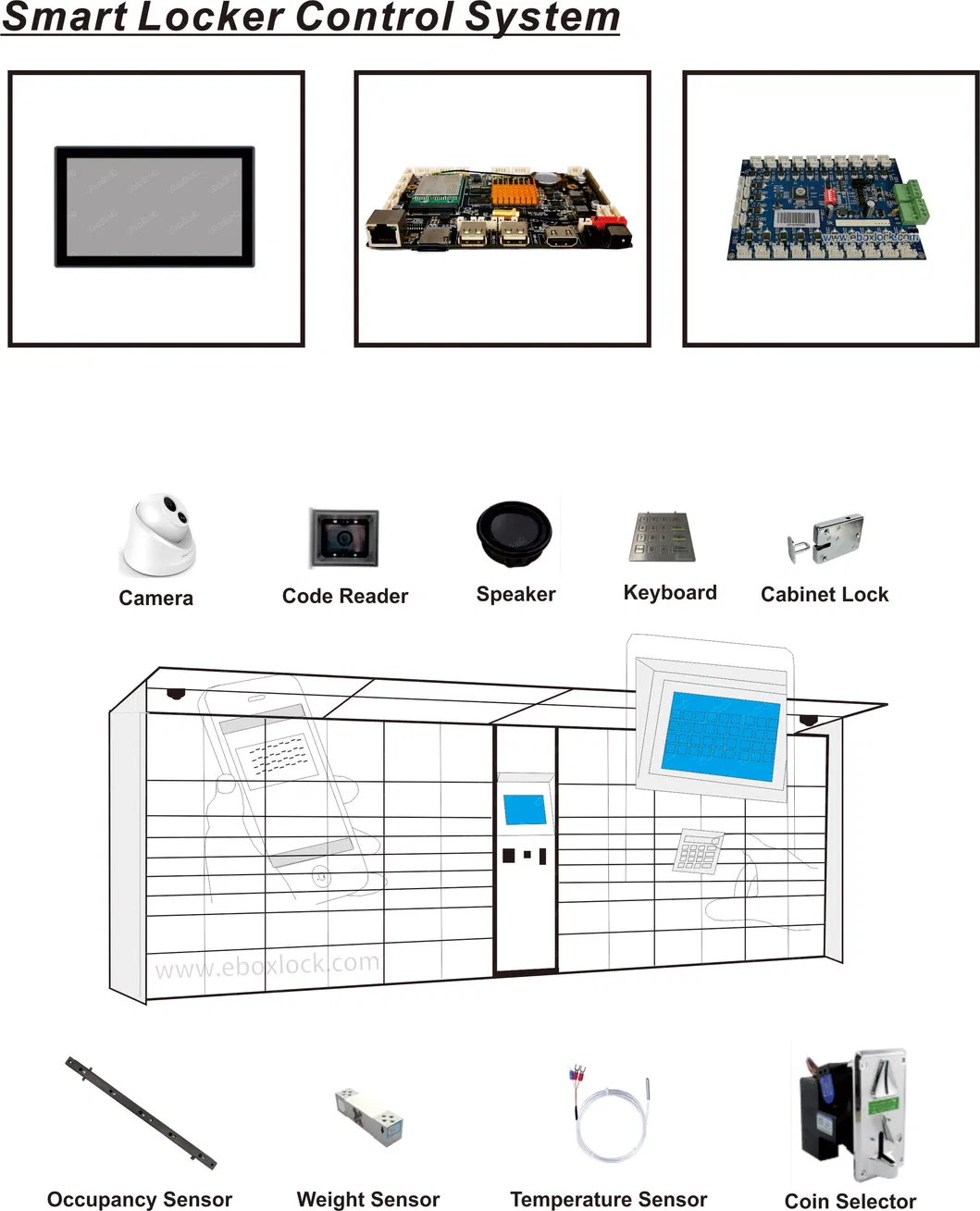

Application 1

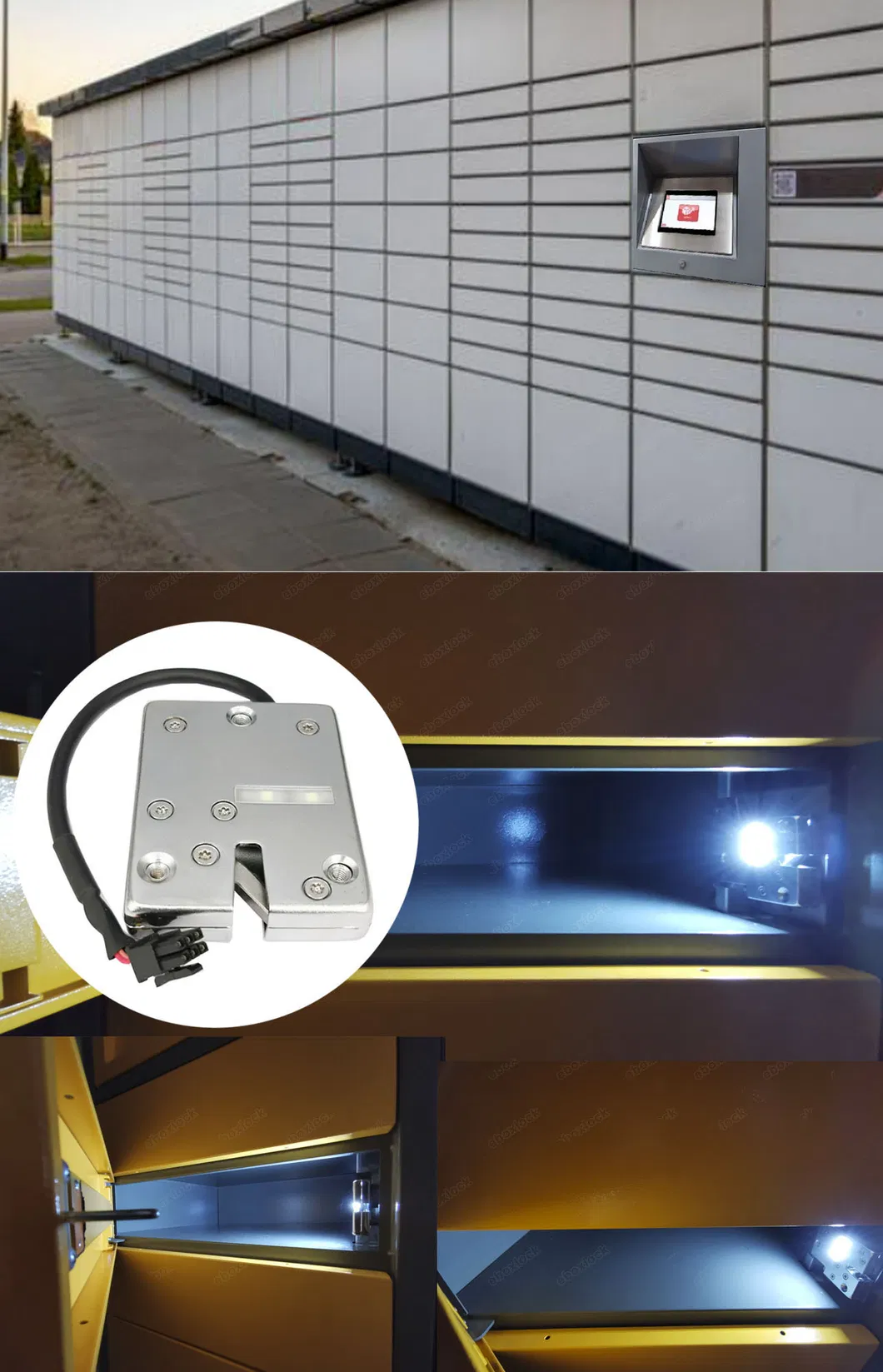

Application 2
Application 3
Packaging & Delivery
Package Size
12.00cm * 11.00cm * 7.00cm
Gross Weight
0.210kg
Transport Package
Carton
Packaging Info
Frequently Asked Questions
What voltages does this cabinet lock support?
The MA1208S-T electronic lock is available in both 12VDC and 24VDC configurations to suit different power supply requirements.
Can I open the lock if there is a power failure?
Yes, the lock features a mechanical override mechanism that allows for manual release and emergency opening during power outages.
Is it possible to monitor whether the cabinet is locked or not?
Yes, there is an optional internal monitoring switch available that can detect and output a signal for the open/closed status.
How much weight or force can this lock hold?
This heavy-duty steel lock provides a high holding force of up to 150KG, making it suitable for secure lockers and cabinets.
What types of access control systems are compatible?
It is designed to be highly compatible and can accept signals from RFID card readers, numeric keypads, remote controls, or fingerprint scanners.
What is the expected lifespan of the lock mechanism?
The MA1208S-T is rated for over 1,000,000 cycles, ensuring long-term reliability for high-traffic commercial applications.
