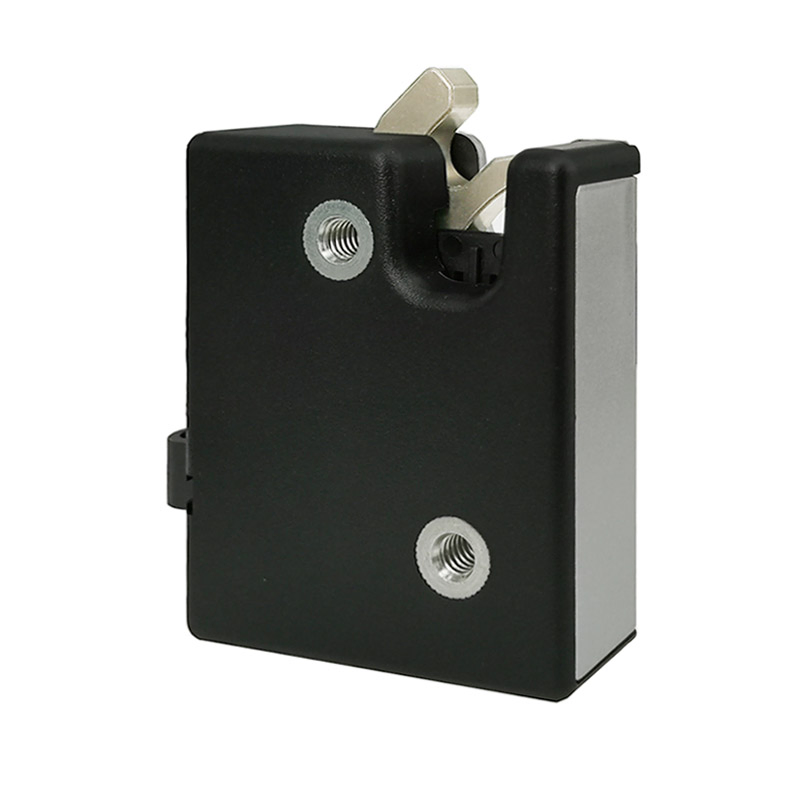

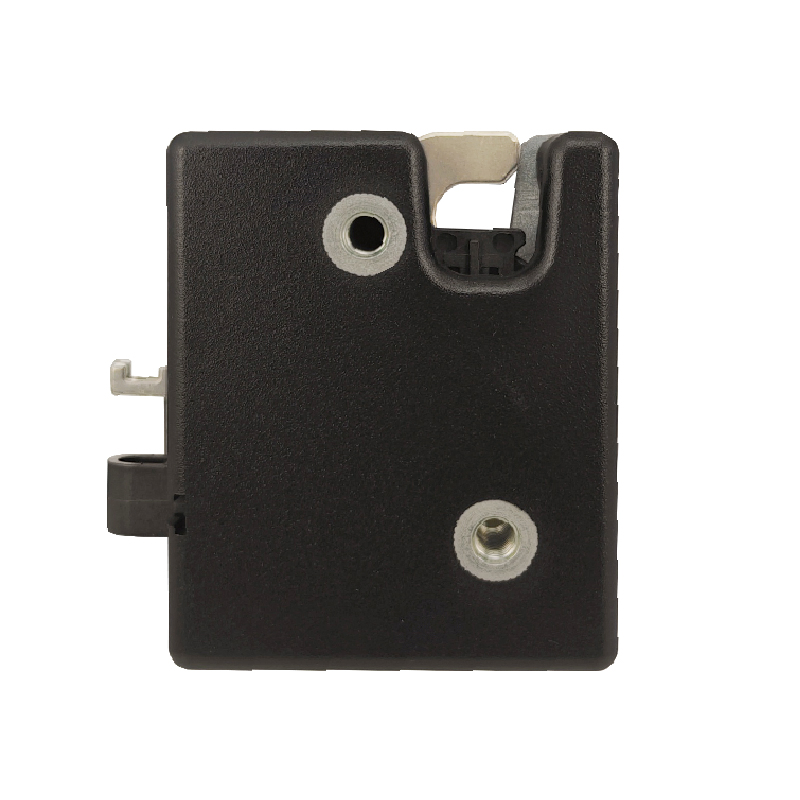

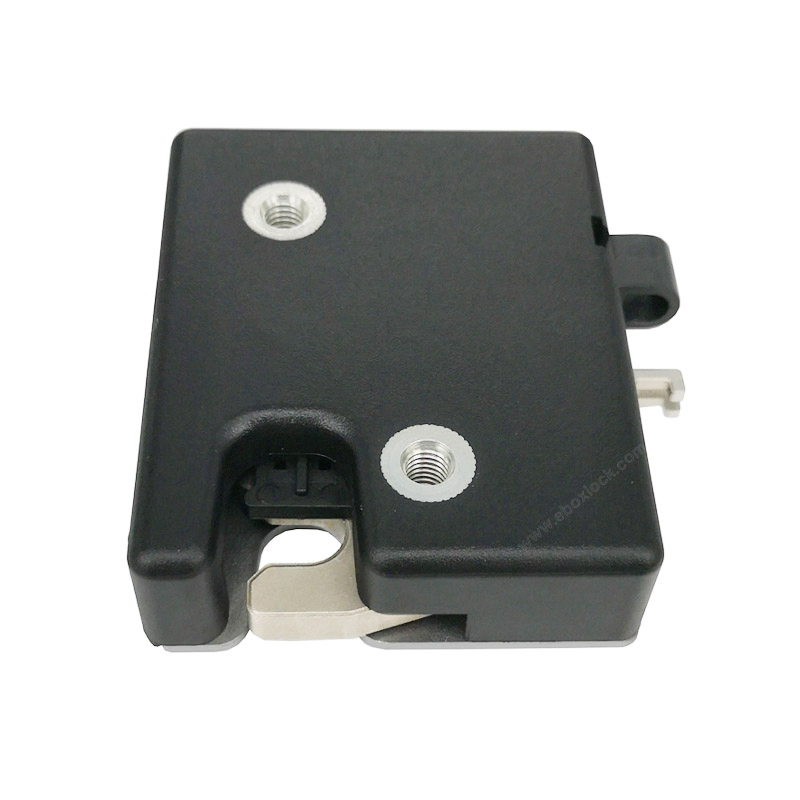

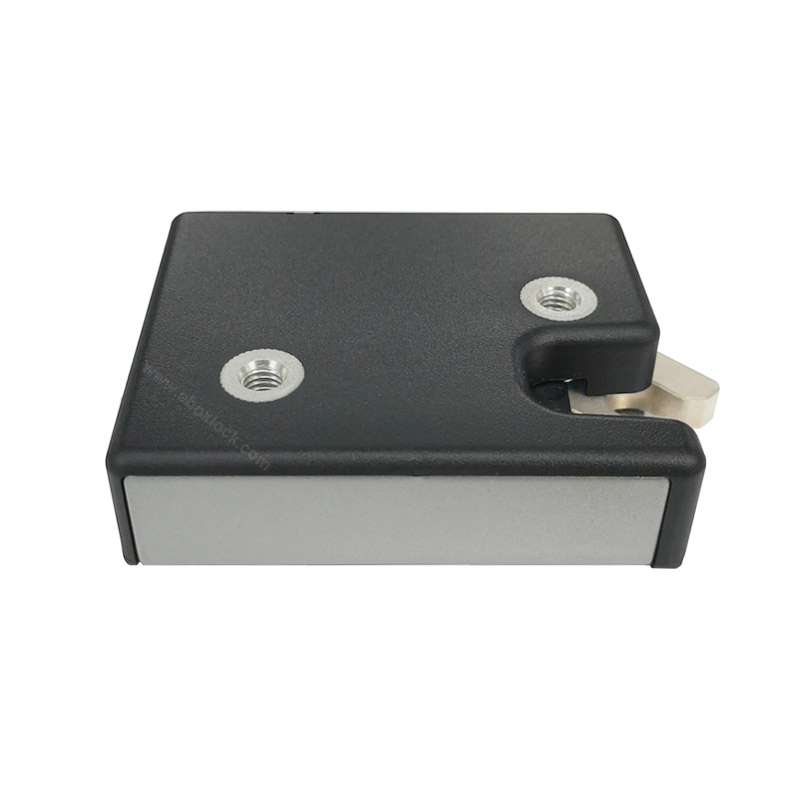

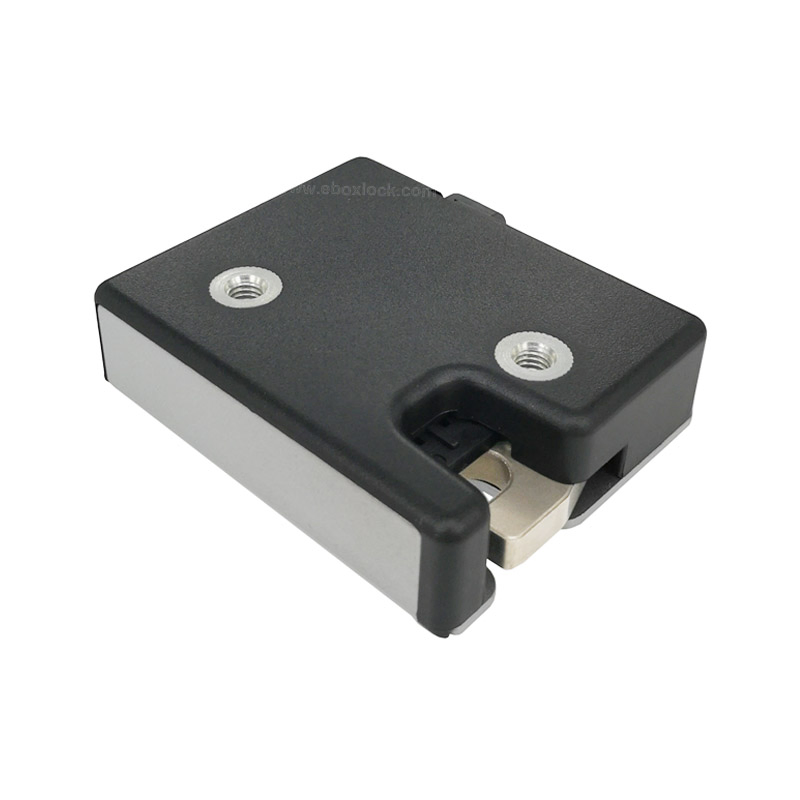

12VDC High Security Electromechanical Latch Lock for Beverage Freezer

1 / 5

12VDC High Security Electromechanical Latch Lock for Beverage Freezer

Customization:	Available
After-sales Service:	Online Service/Refund/Replacement
Warranty:	2 Years Warranty

Send Inquiry

Product Description

Basic Specifications

Model NO.DJ5-AS

CertificationRoHS, FCC, CE

Working PrincipleElectronically Controlled Lock

FunctionFail-Secure

Power Consumption200mA @ 12VDC

Holding Force600KG / 7000N

Cycle Testing50,000 to 300,000 Cycles

MaterialSteel Plus Flame Resistant Plastic

Protection ClassIP40

OriginChina

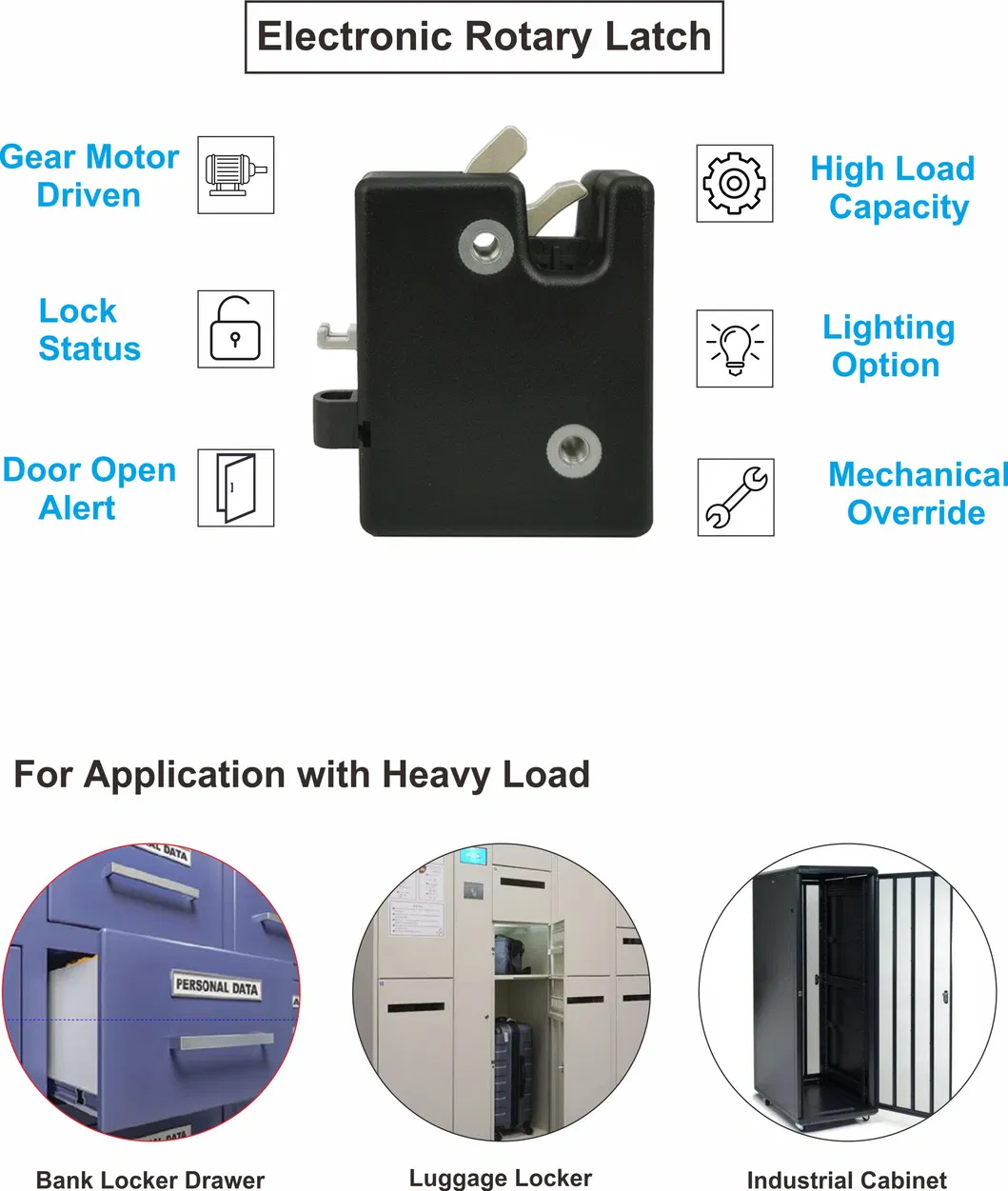

High Security Electromechanical Latch Lock

The DJ5-AS is an advanced electric lock driven by a gear-motor, offering exceptionally low power consumption combined with a high load capability. It is specifically designed with dual sensors for monitoring both the door and the lock status, providing double security for critical applications. Featuring an easy push-to-close operation, the internal spring rod automatically pushes the door open when electrified. This latch is ideal for heavy-duty vehicles, electronic locker systems, and automated equipment.

Key Features

Low Power Consumption Efficiency
Tough Metal/ABS Construction
Reliable Gear Motor Driven Mechanism
High Strength & Mechanical Durability
Operates Against Heavy Mechanical Loads
Dual Sensors for Status Reporting
Push to Lock & Electronic Release
Accepts All Access Control Inputs

Technical Parameters

Parameter	Specification
Operation Voltage	12VDC ±10%
Power Consumption	200mA
Operation Mode	Fail Locked (Fail-Secure)
Max. Power On Time	1 - 2 Seconds
Holding Force	600KG
Working Temperature	-20ºC ~ +60ºC
Dimensions (LxWxH)	76mm * 62.5mm * 20.3mm
Weight	260g
Monitoring Contact	5A @ 125V

Customization Options

We provide flexible customization for hardware components to ensure a perfect fit for your specific application requirements.

Voltage	Spring Tension	Mounting	Material	Connector
5V - 26V DC	4N, 7N, 15N, 21N	M6 Thread / M6 Thru	Steel / Stainless Steel	SM, Molex, PH, RJ11

Wide Range of Applications

This electronic cabinet lock is the ideal security solution for:

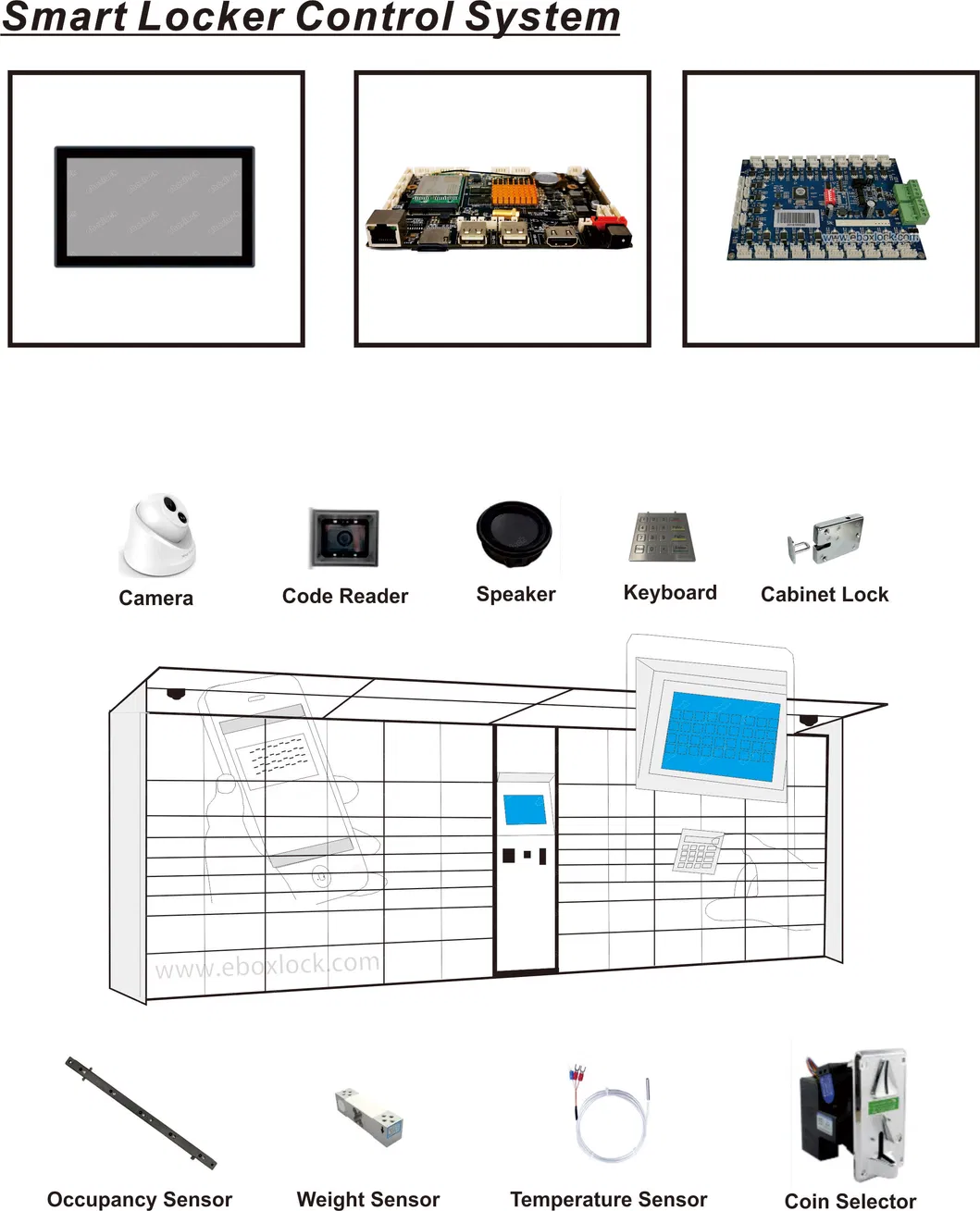

Smart Parcel Delivery Lockers
Retail Display Cases & Drawers
Medical & Pharmaceutical Cabinets
Steel Office Furniture & Filing
Automated Vending Machines
Museum Product Displays
Electronic Post Mailboxes
Utility & Tool Storage Units

Packaging & Logistics

Package Size12.00cm * 11.00cm * 7.00cm

Gross Weight0.360kg

Capacity10,000 Units Per Month

Frequently Asked Questions

What is the working voltage for this electronic latch lock?

The standard operating voltage is 12VDC ±10% with a low power consumption of 200mA. Customizations for 5V to 26V DC are also available.

What is the maximum holding force of the DJ5-AS model?

The lock is built for high-security requirements, providing a holding force of 600KG (withstanding up to 7000N of external force).

Does the lock provide status feedback?

Yes, it features optional dual sensors that can report both the door status (open/closed) and the latch status for enhanced security monitoring.

Is manual override available in case of a power failure?

Yes, we offer optional mechanical override kits that allow for manual release in emergency situations or power outages.

Can this lock be used for outdoor lockers?

While the standard version is IP40 rated, we offer a specific corrosion-resistant version designed specifically for outdoor environments.

What materials are used in construction?

The lock is primarily constructed from high-grade steel combined with flame-resistant plastic. A full stainless steel version is also available as an option.
