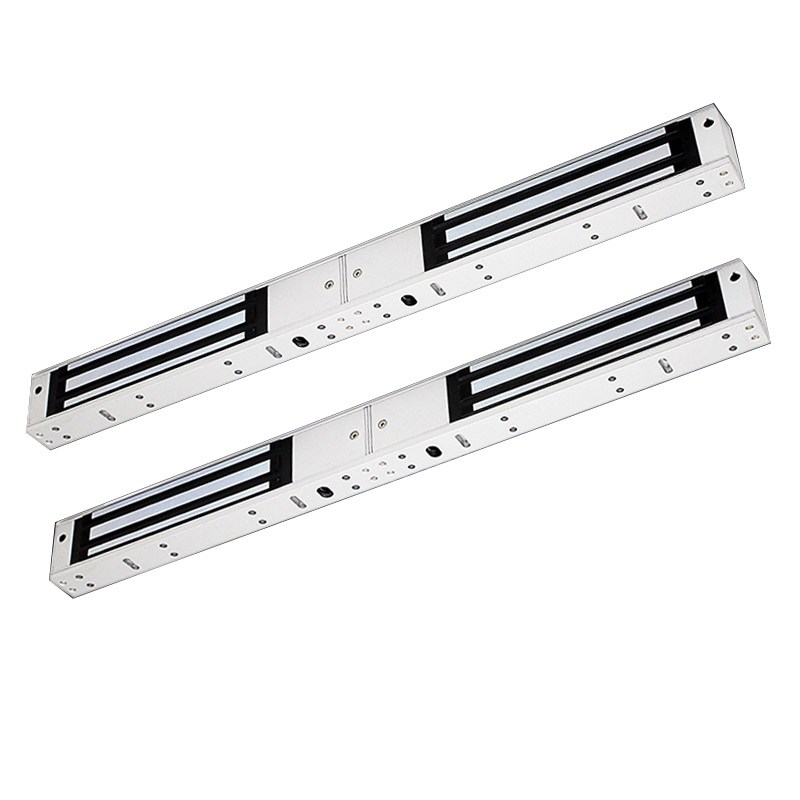

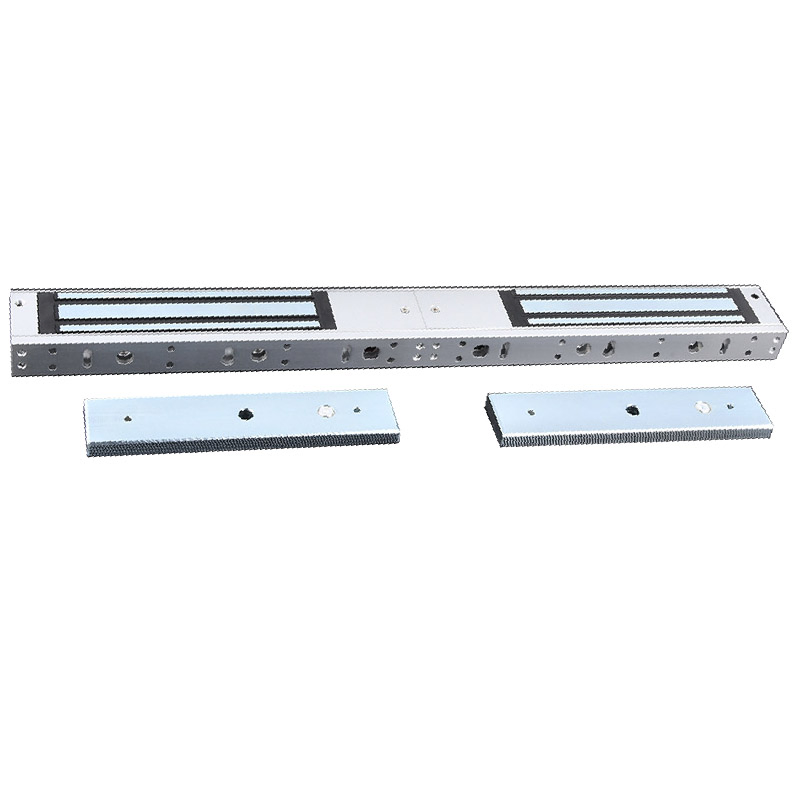

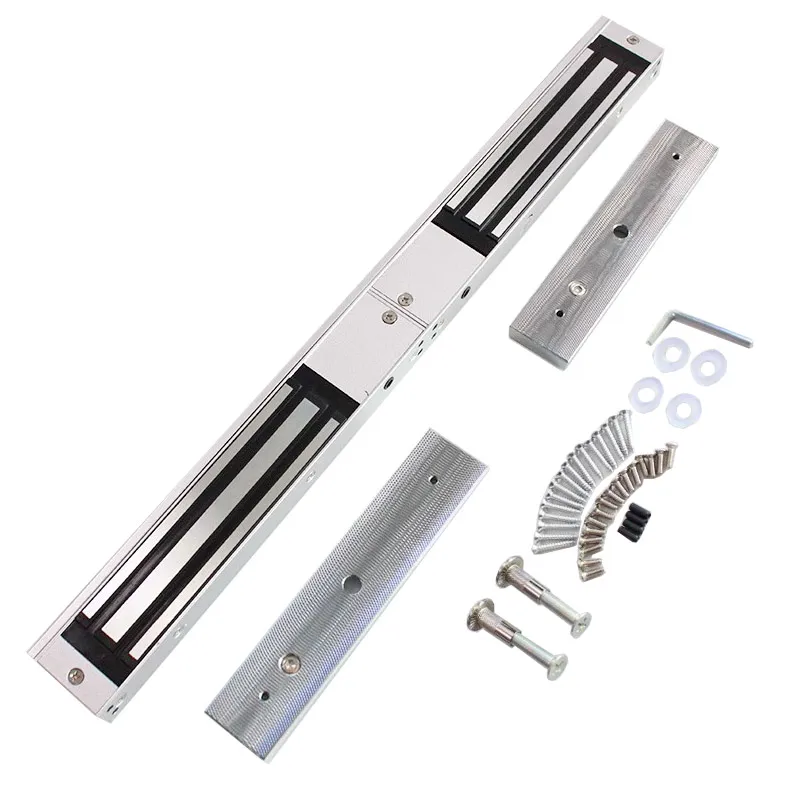

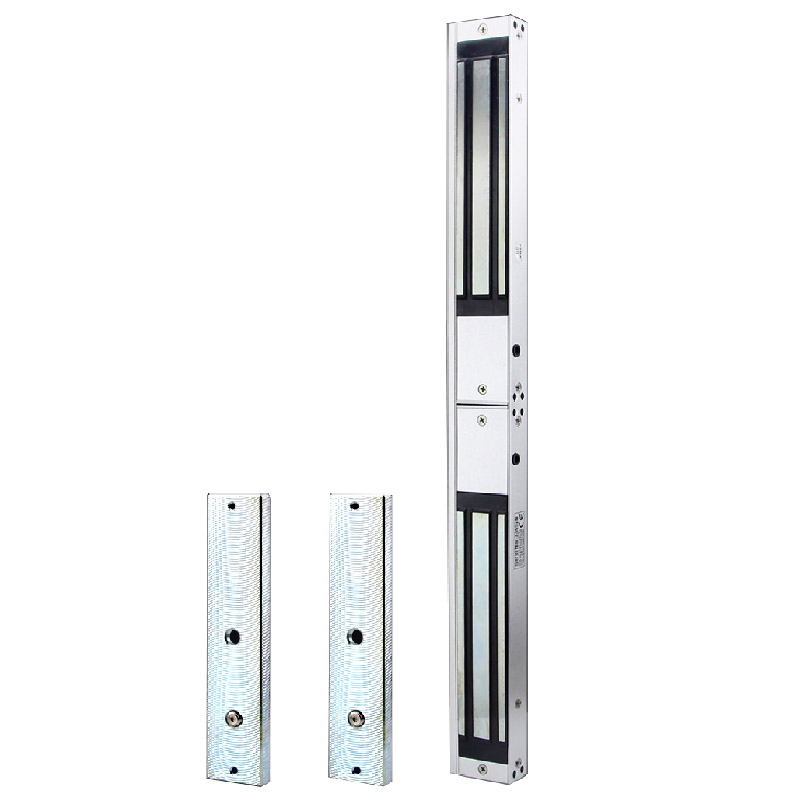

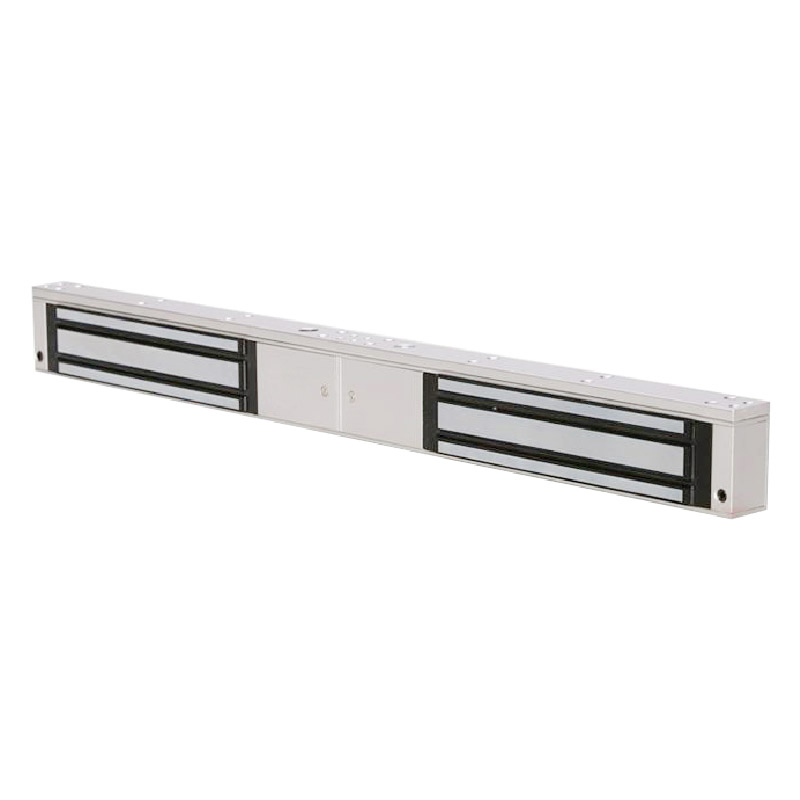

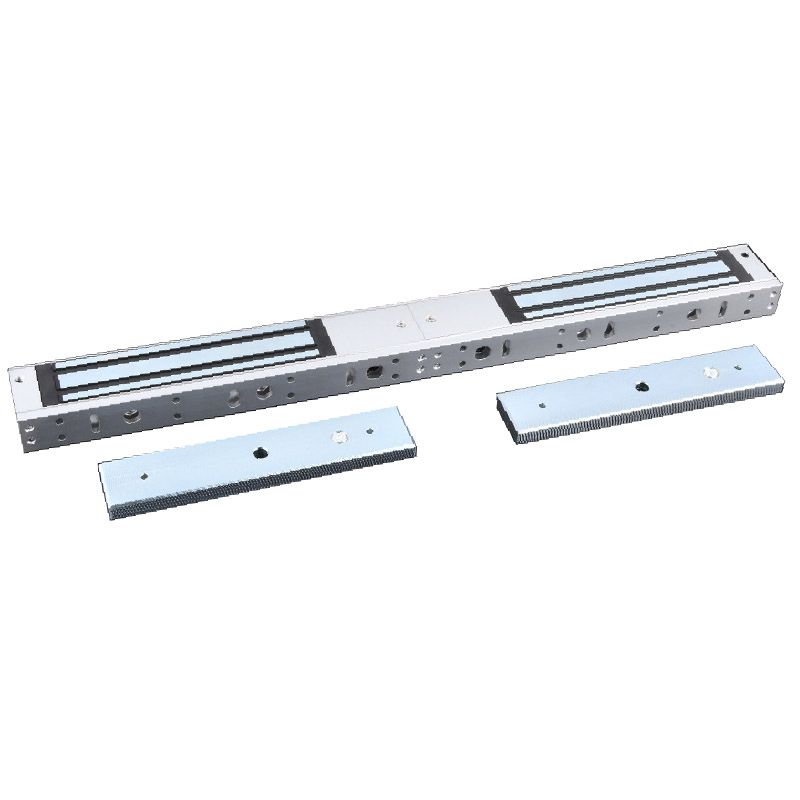

Electromagnetic lock RME1228 is a durable electromagnetic lock ideal for two doors. It is available with LED indicator for operation and delay time setting. Surface mounting either vertically or horizontally offers easy and flexible installation. Hardware accessories include brackets, housings, and dress covers as needed for every opening type. The Electromagnetic lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. It is with high durability and low maintenance.
| Operation Voltage | 12VDC ±10% |
| Power Consumption | 2x 480mA@12VDC |
| Operation Mode | Fail unlock |
| Holding Force | 280KG(600lbs) |
| Cycle Rating | More than 1,000,000 |
| Working Temperature | -10ºC ~ +55ºC |
| Lock Dimensions (LxWxH) | 250mm*42mm*26.5mm |
| Strike Dimensions (LxWxH) | 180mm*38mm*11mm |
| Model No. | Holding Force | LED indicator | Lock Status | Delay | Mounting Way | Single/Double |
|---|---|---|---|---|---|---|
| ME1228F | 280KG/600lbs | without | without | without | Flush Mount | Single |
| ME1228W | 280KG/600lbs | without | without | without | Surface Mount | Single |
| ME1228L | 280KG/600lbs | with | without | without | Surface Mount | Single |
| ME1228LS | 280KG/600lbs | with | with | without | Surface Mount | Single |
| ME1228DLS | 280KG/600lbs | with | with | with | Surface Mount | Double |

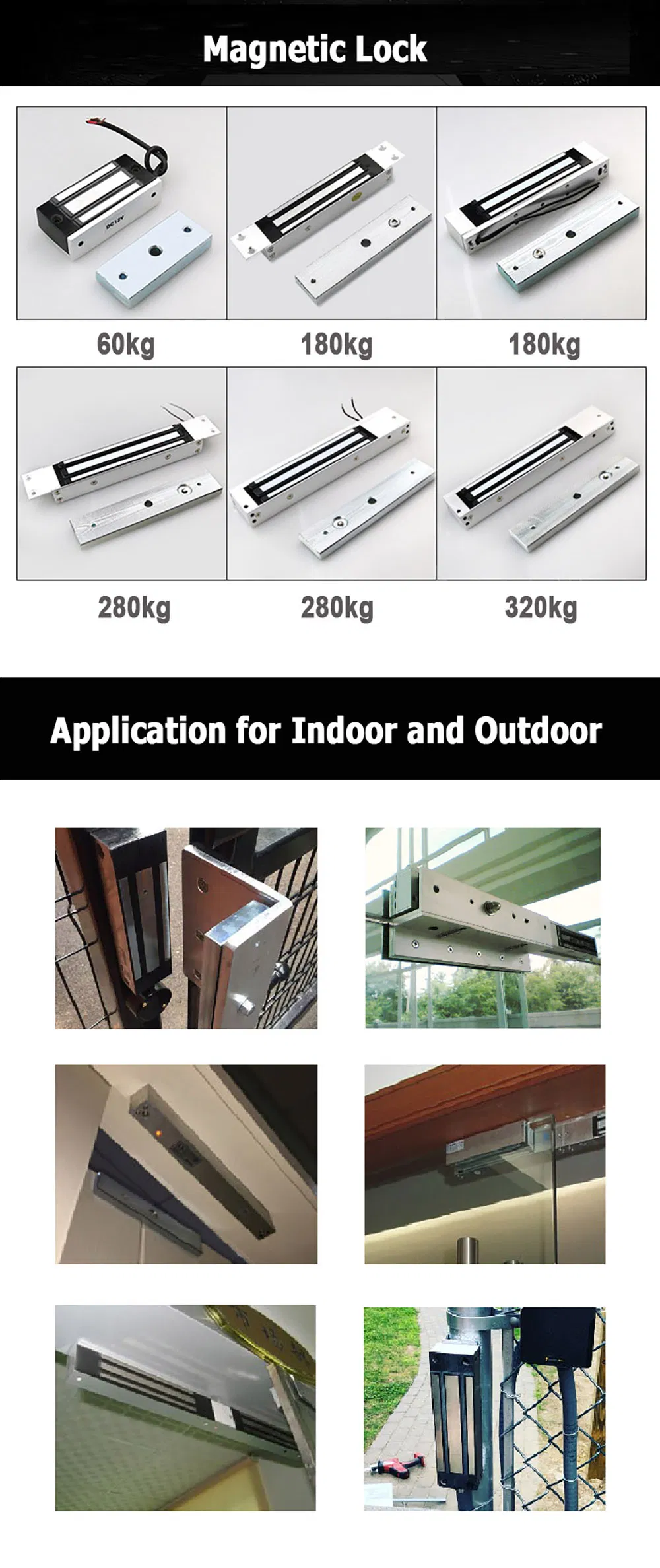

The electromagnetic lock is ideal for various applications including: Storage cabinets, Metal cabinets, Steel furniture, Retail display cases, Filing cabinets, Utility drawers, Museum displays, and Pharmaceutical cabinets.
