Product Overview

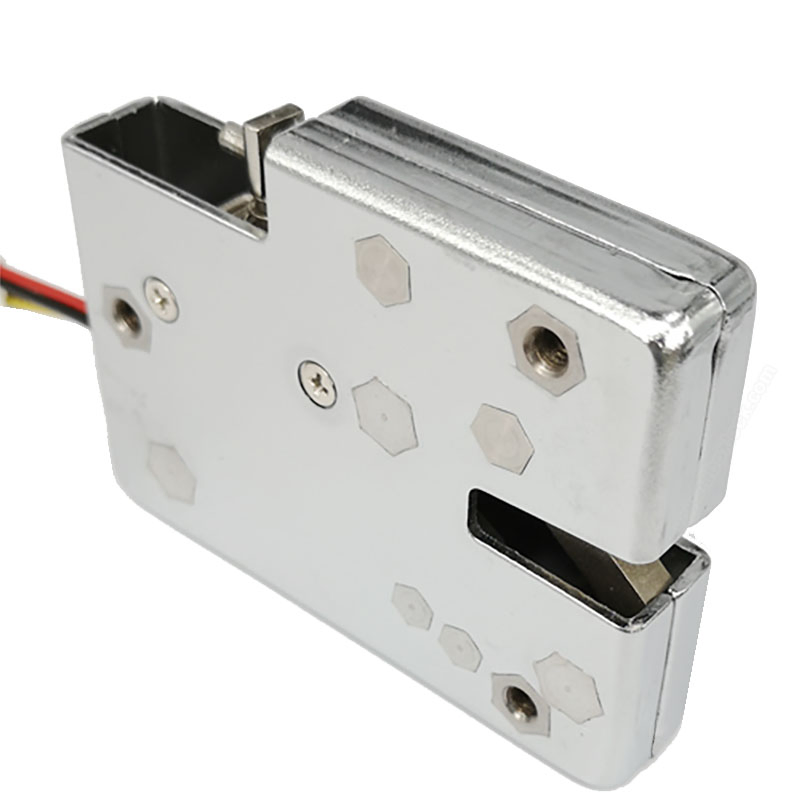

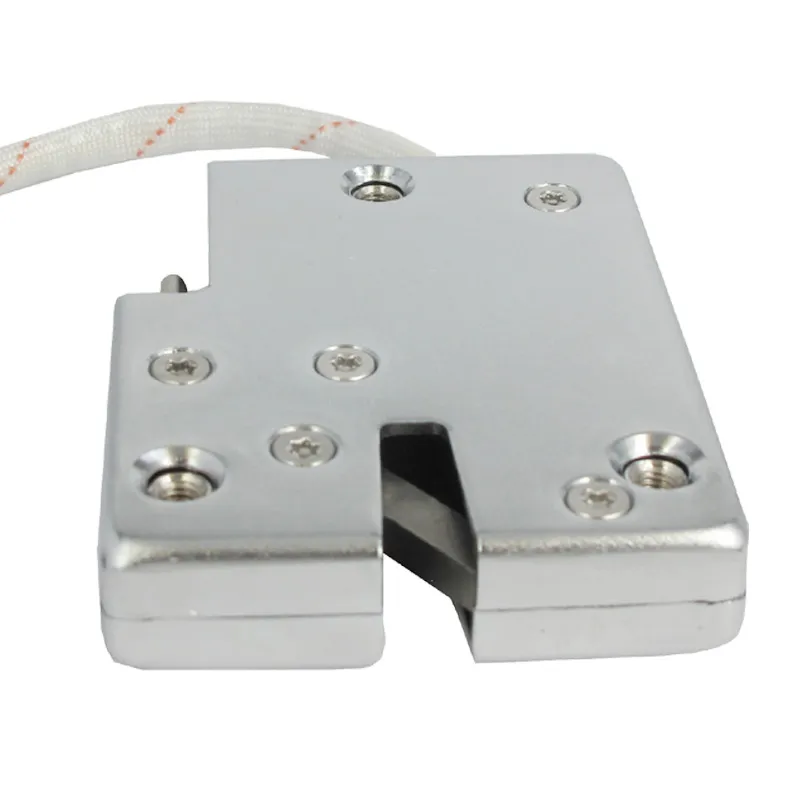

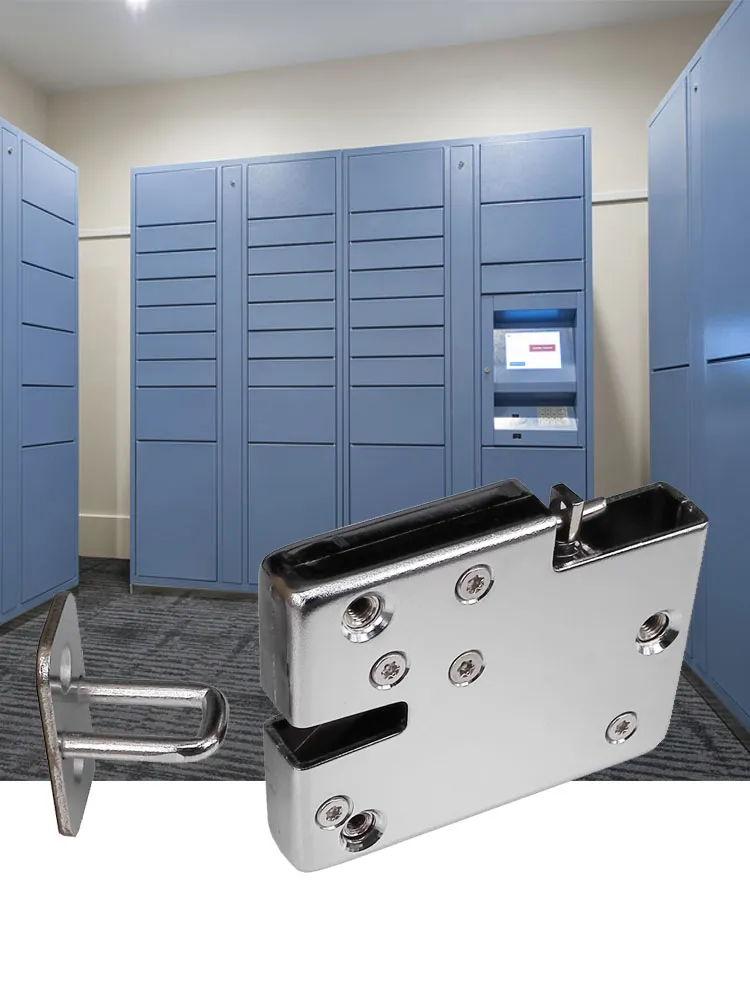

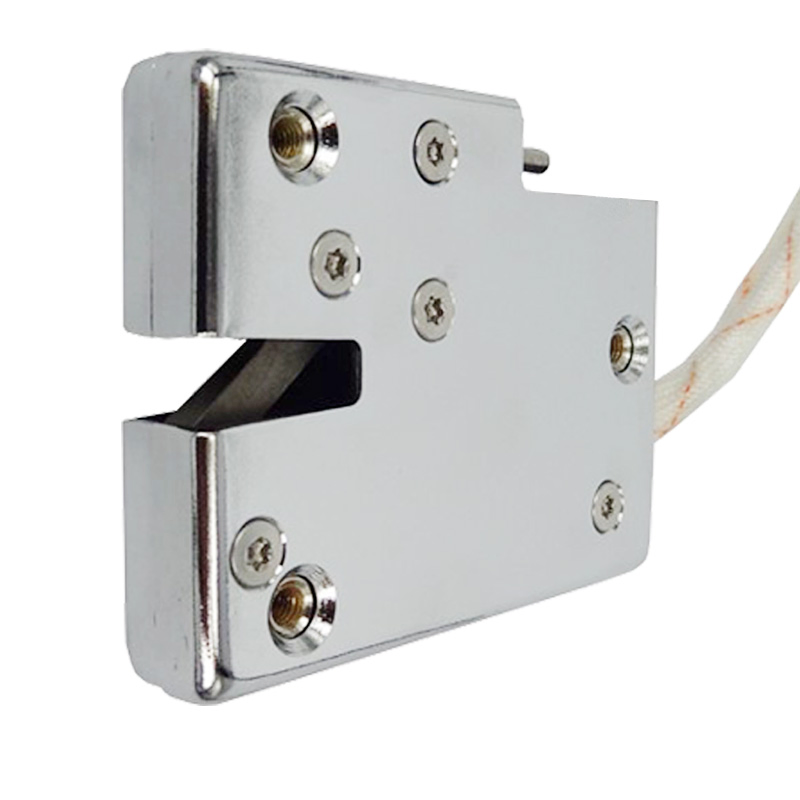

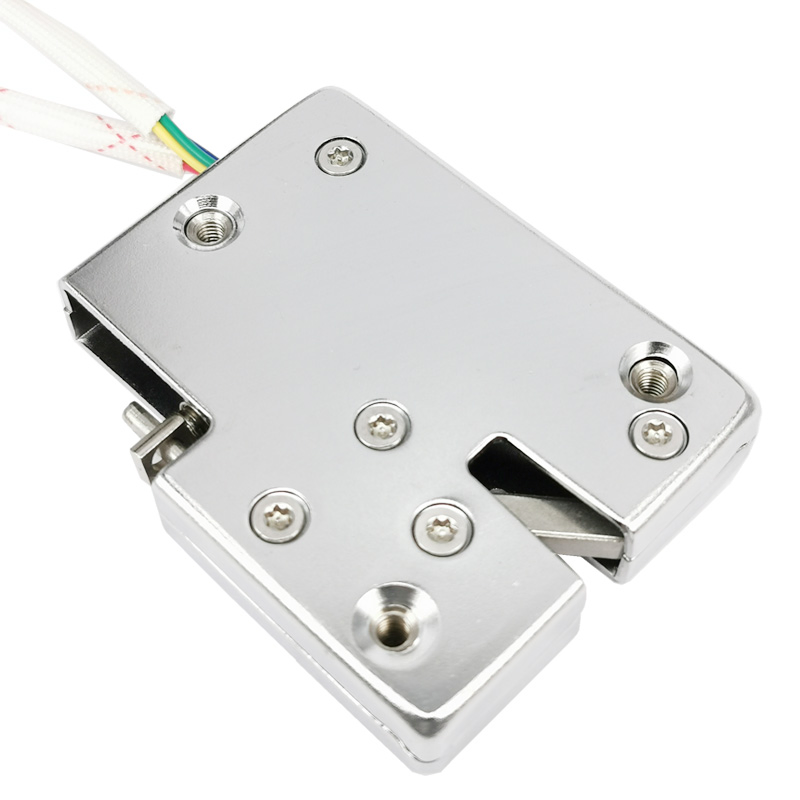

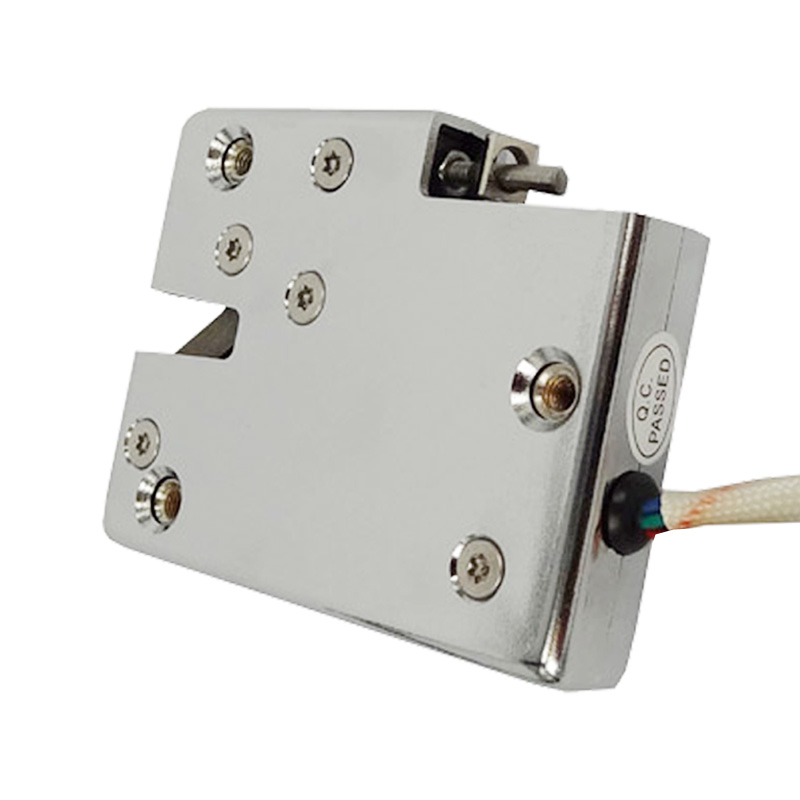

12VDC Electric Lock for Parcel Locker (MA1208LS) is a compact and all-metal lock with monitoring, the electric lock is ideal for cabinets, drawers and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. It allows mechanical override for emergency open. This electric cabinet lock is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.
🛠️ Customization Services
We offer customization for cable length and connector type to better meet the exact requirement of your application.
| Voltage |
Current |
Trigger Spring |
Mounting |
Cable |
Connector |
| 9V/12V/24V/48V |
800mA - 2000mA |
5N to 18N |
M4 Thread/Thru |
Twisted/RVV/Flat |
Molex/KF2510/PH/RJ11 |
Frequently Asked Questions
What is the maximum holding force of this electric lock?
The MA1208L electric lock provides a superior holding force of up to 150kg (330 lbs), making it suitable for heavy-duty storage applications.
How does the mechanical override work during a power failure?
The lock features a 29.5mm gap mechanical override that allows for manual release, ensuring you can still access the cabinet or locker during emergency power outages.
Can I monitor the status of the lock remotely?

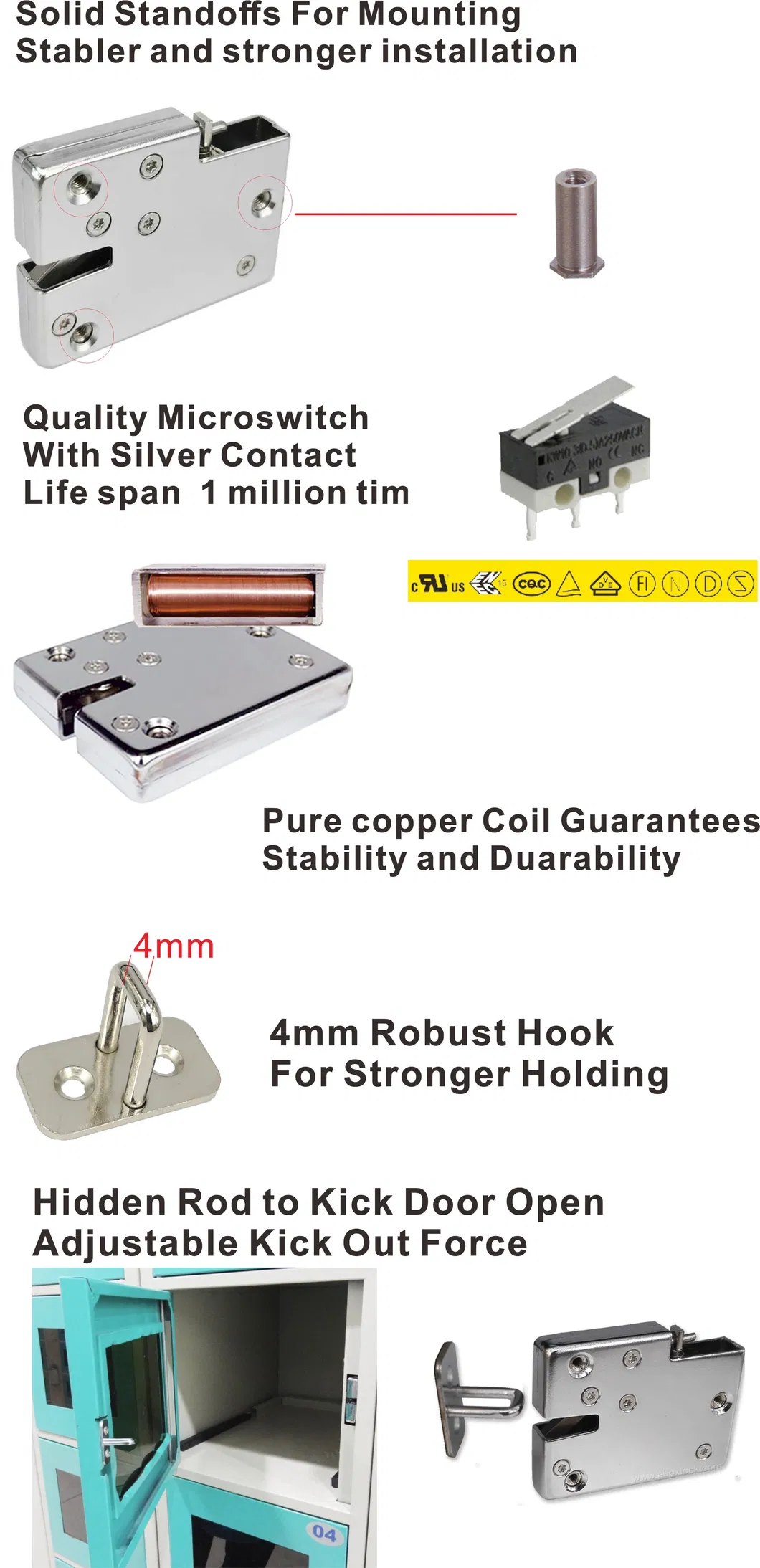

Yes, there is an optional internal microswitch that provides an output signal for remote monitoring of the open/closed status.
What is the expected lifespan of this lock?
The lock is designed for longevity and has a cycle rating of more than 1,000,000 operations under normal working conditions.

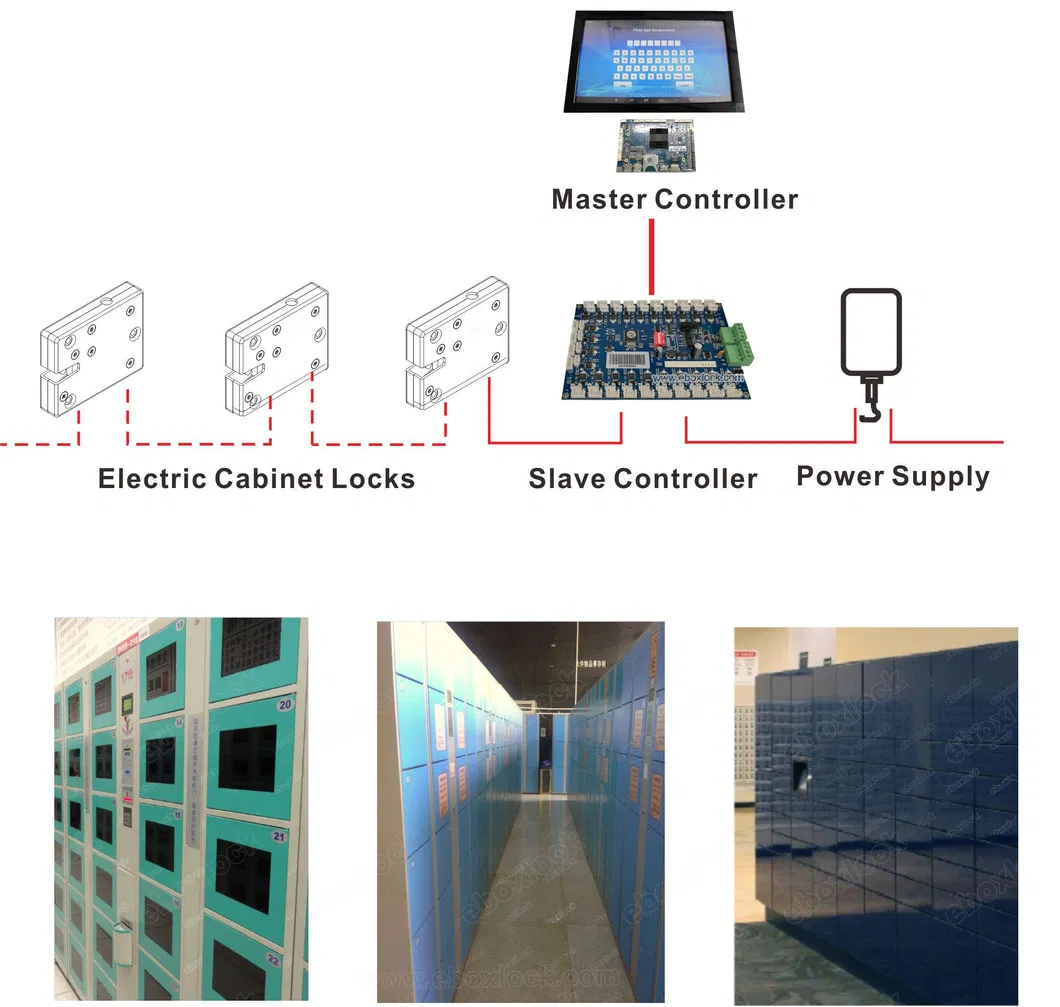

Is the lock compatible with my existing RFID access system?
Absolutely. The lock accepts access control signals from standard numeric keypads, RFID card readers, remote controls, and even fingerprint scanners.
Are there different material options for high-humidity environments?
Yes, while the standard version is chrome-plated steel, we offer a Stainless Steel 304 option specifically for better corrosion resistance.
